1.1" 25MP 200lp/mm FA Series Visible Light Lens
Products
Optical Lens
1.1" 25MP 200lp/mm FA Series Visible Light Lens
Related Models
Main Features
Related Models
Order Number
EFL
(mm)
F/#
Optical Distortion
FOV
Working Distance
Filter Thread
Mount
Download
D
H
V

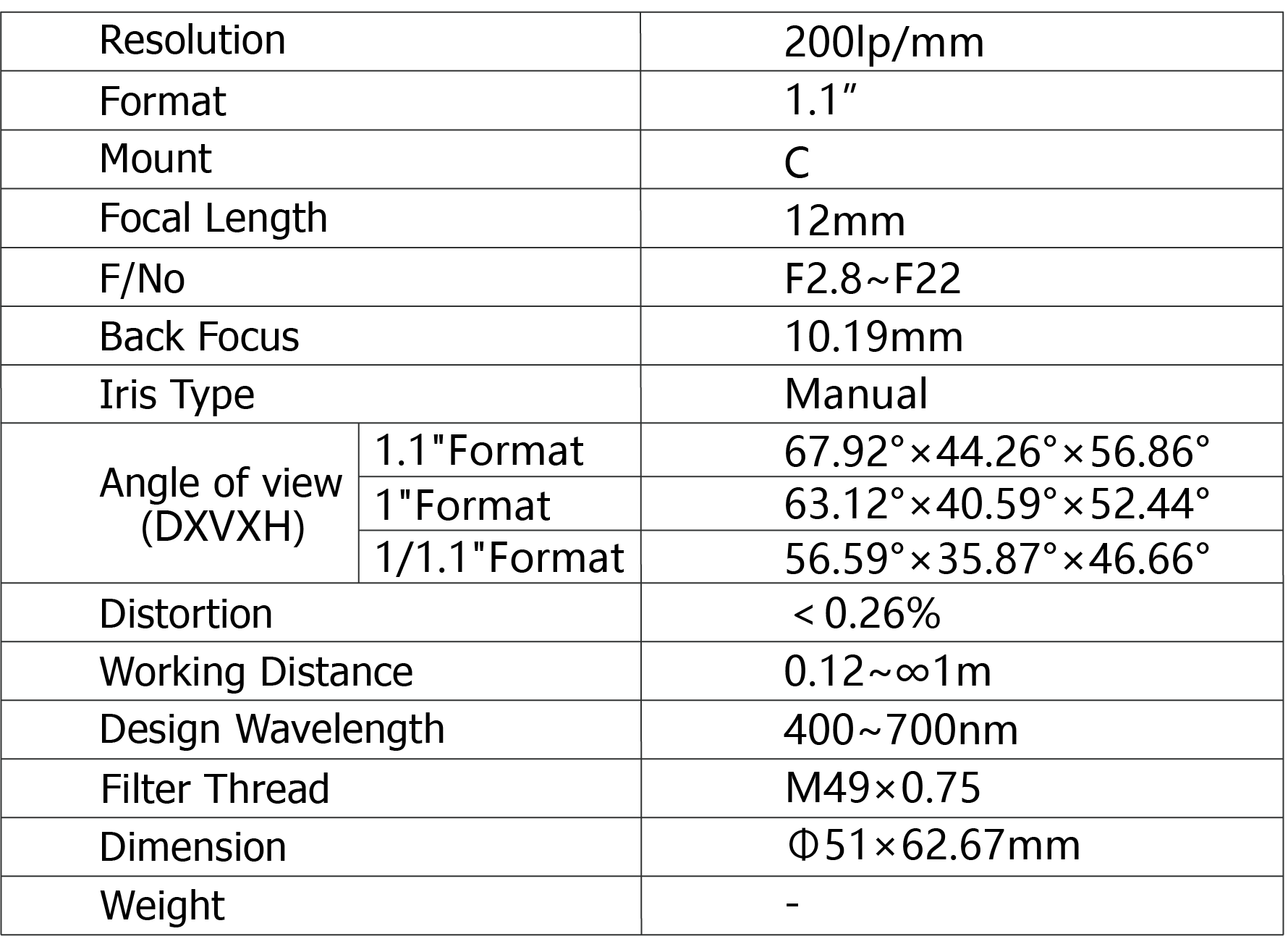

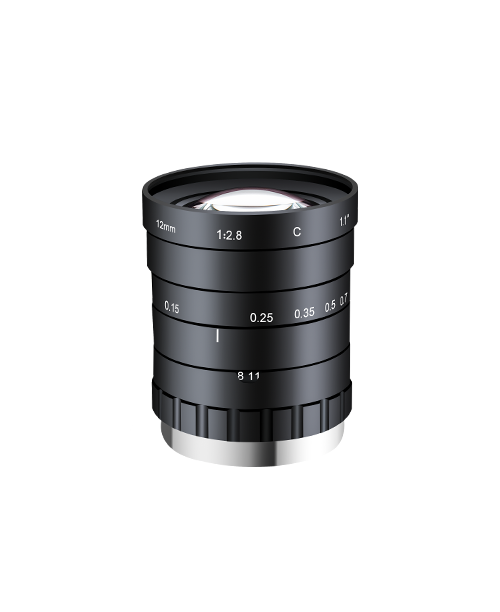

TPL-1228SF
12
F2.8-F22
0.26%
67.92°
56.86°
44.26°
0.12m-1m
M49x0.75
C

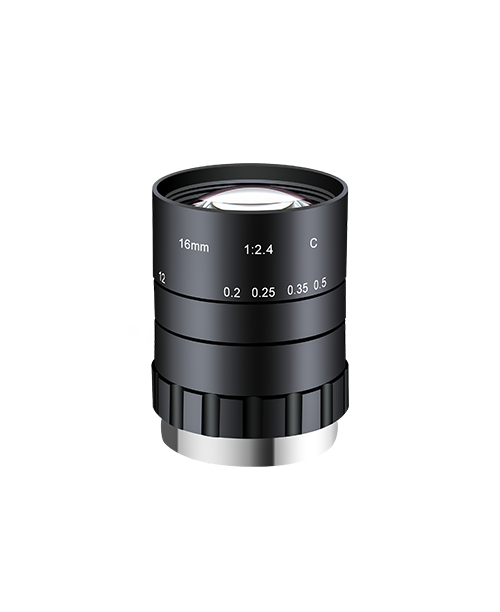

TPL-1624SF
16
F2.4-F22
0.60%
49.64°
40.79°
31.18°
0.12m-∞
M40.5x0.5
C

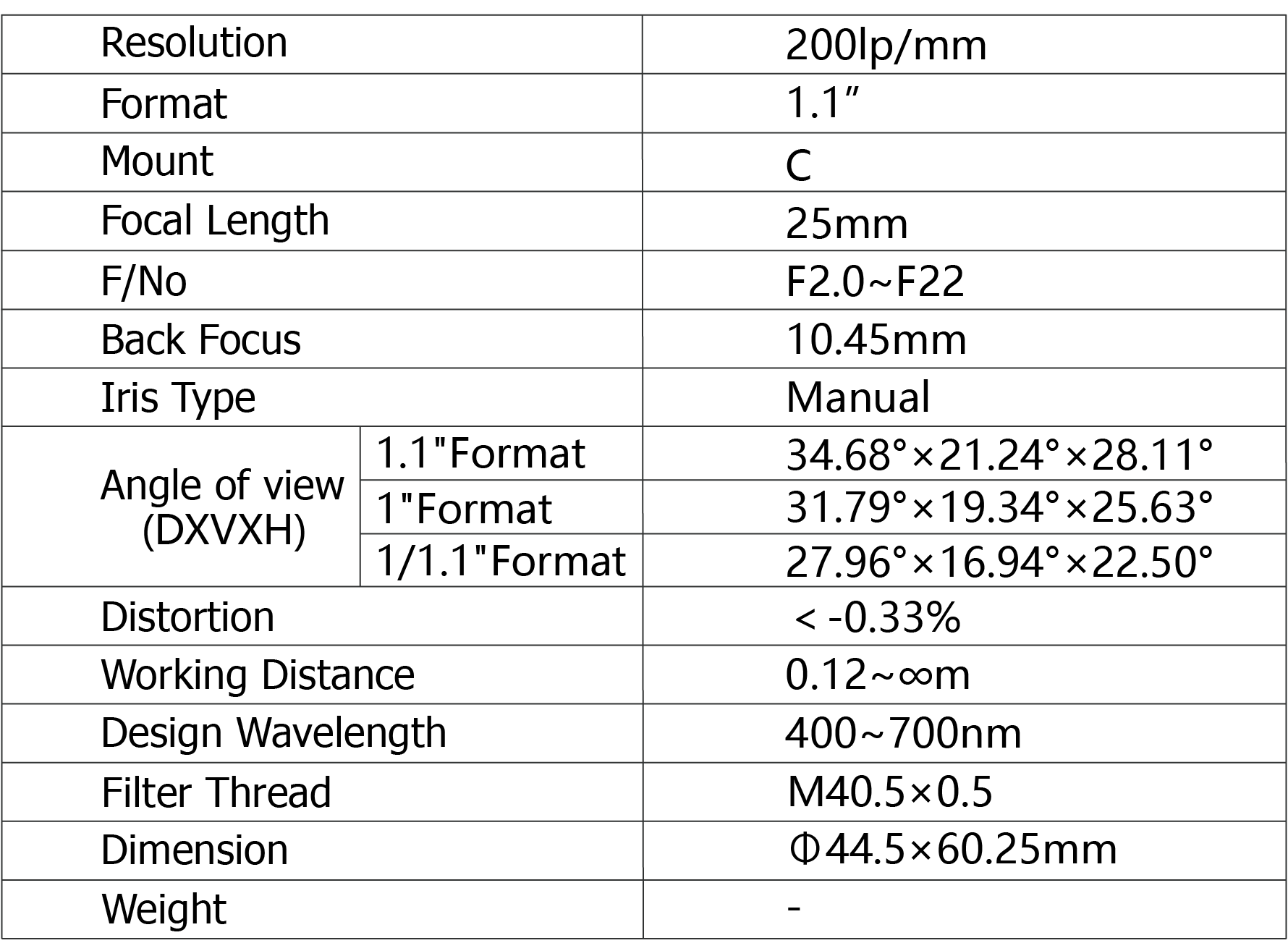

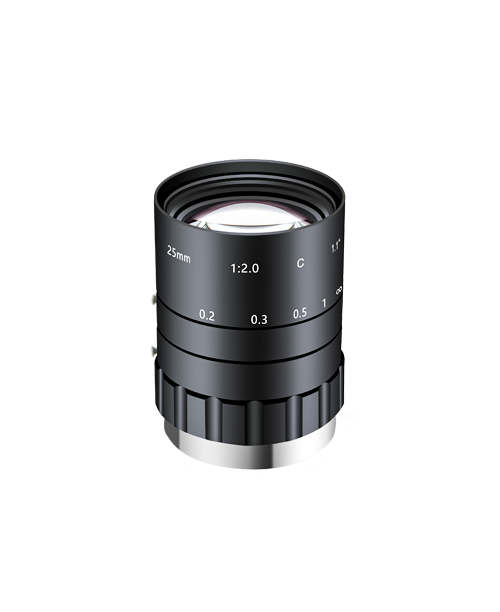

TPL-2520SF
25
F2.0-F22
-0.33%
34.68°
28.11°
21.24°
0.12m-∞
M40.5x0.5
C

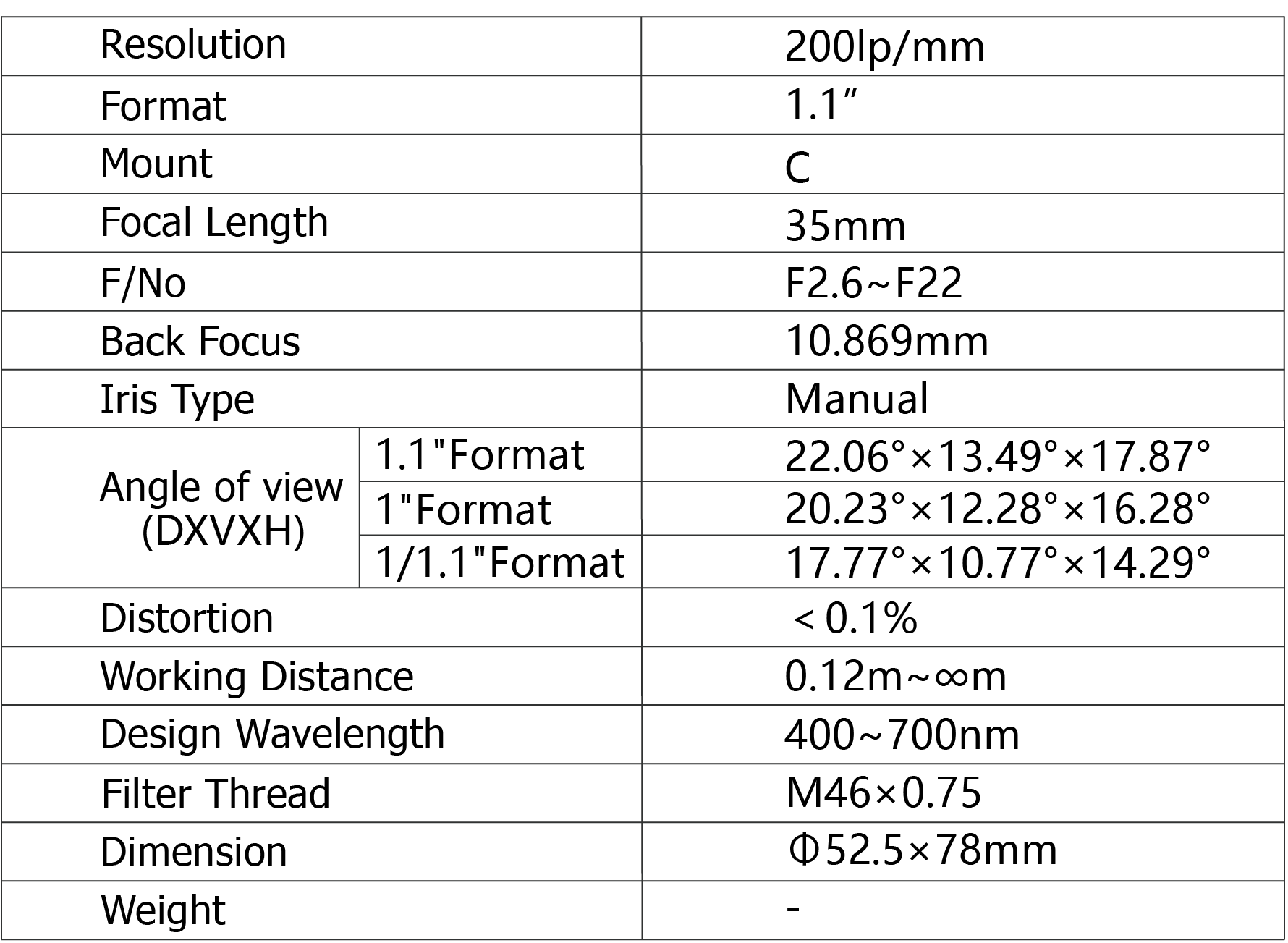

TPL-3526SF
35
F2.6-F22
0.10%
22.06°
17.87°
13.49°
0.12m-∞
M46x0.75
C
TPL-5020SF
50
F2.0-F22
0.08%
13.68°
11.3°
8.47°
0.2m-∞
M52x0.75
C
Main Features
TPL-1228SF
TPL-1624SF
TPL-2520SF
TPL-3526SF
TPL-5020SF
(mm)
