TPHD Standard HDMI Display Series
Product Introduction
Non-touch display series focused on image quality. The lineup includes 13.3-inch 4K AM-OLED and 13.3/15.6-inch 1080P IPS models. High contrast ratio, wide color gamut, and low latency output support scientific observation, industrial inspection, and teaching demonstration.
Product Features
- 4K AM-OLED / 1080P IPS multi-specification coverage
- 100% DCI-P3 color gamut on 4K OLED model with wide-angle viewing
- HDR dynamic enhancement with 3 ms low-latency response
- Integrated folding stand for portable deployment
- Standard HDMI input, plug and play
High-Quality Standard HDMI Display Series (4K / 1080P)
Non-touch display series focused on image quality. The lineup includes 13.3-inch 4K AM-OLED and 13.3/15.6-inch 1080P IPS models. High contrast ratio, wide color gamut, and low latency output support scientific observation, industrial inspection, and teaching demonstration.
| Model | Screen Size | Resolution | Contrast Ratio | Brightness | Color Gamut | Panel Type | Dimensions | Weight | Power Supply |
|---|---|---|---|---|---|---|---|---|---|
| TPHD4K133D | 13.3 inches | 3840×2160 (4K) | 100000:1 | 400 cd/m² | 100% DCI-P3 | 178° | 306×183×8 mm | 560 g | DC 12 V/2A |
| TPHD1080PD | 13.3 inches | 1920×1080 | 1000:1 | 400 cd/m² | 72% sRGB | 178° IPS | 306×183×8 mm | 450 g | DC 12 V/1A |

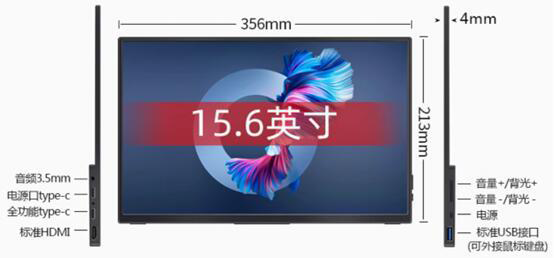

| TPHD1080P156A | 15.6 inches | 1920×1080 | 1200:1 | 400 cd/m² | 72% sRGB | 178° IPS | 356.1×213.21×11.8 mm | 750 g | DC 12 V/3A |
In-depth Introduction
TPHD Standard HDMI Display Series (4K AM-OLED / 1080P IPS)
Full Coverage of 4K AM-OLED and 1080P IPS
The series provides 13.3″ 4K AM-OLED and 13.3/15.6″ 1080P IPS multiple specifications, meeting different needs from portable demonstration to desktop display, balancing image detail and visual experience.
High Contrast, Wide Color Gamut and Ultra-Fast Response
4K models feature 100000:1 contrast ratio and 100% DCI-P3 wide color gamut; full series supports HDR dynamic enhancement and 3 ms level fast response, delivering clearer dynamic images with richer details.
Wide Viewing Angle and Stable Grayscale
Based on 178° wide viewing angle panel, maintaining color and grayscale consistency during multi-person viewing and classroom teaching even from side angles, suitable for scientific research and teaching collaboration scenarios.

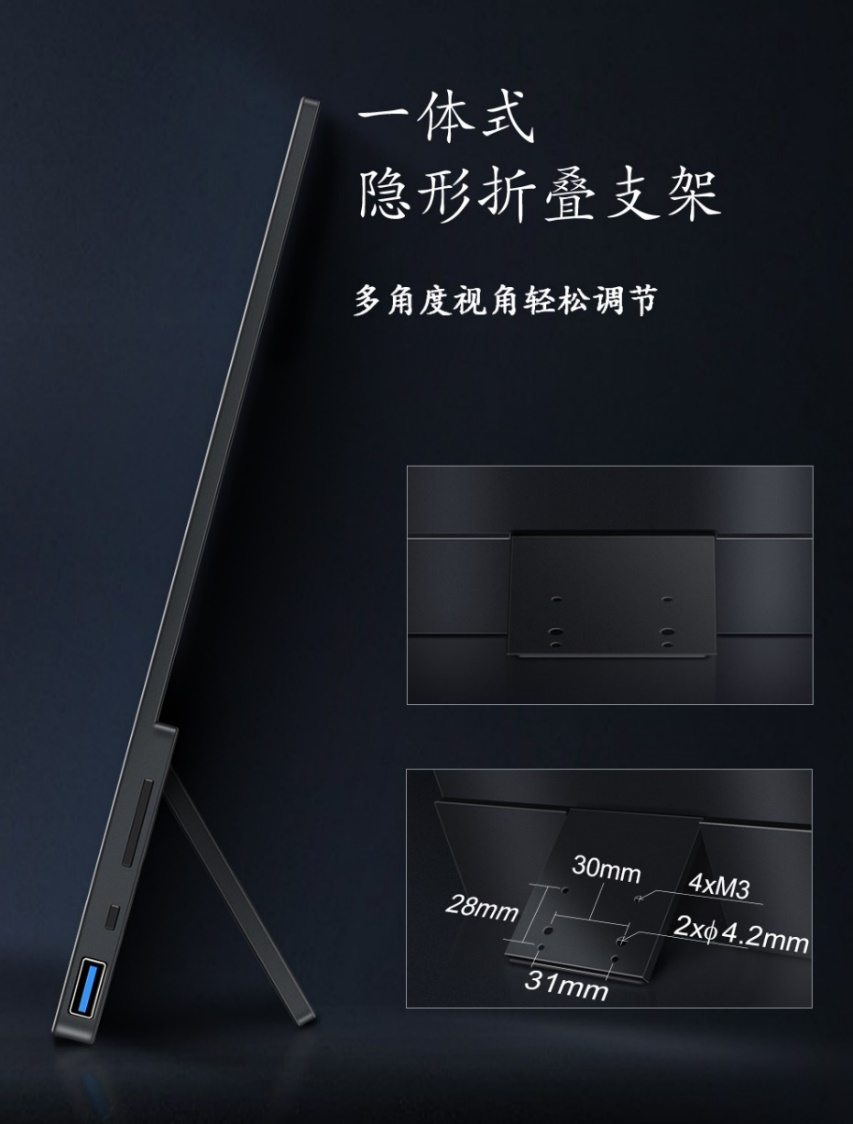

Slim Portable and Plug-and-Play

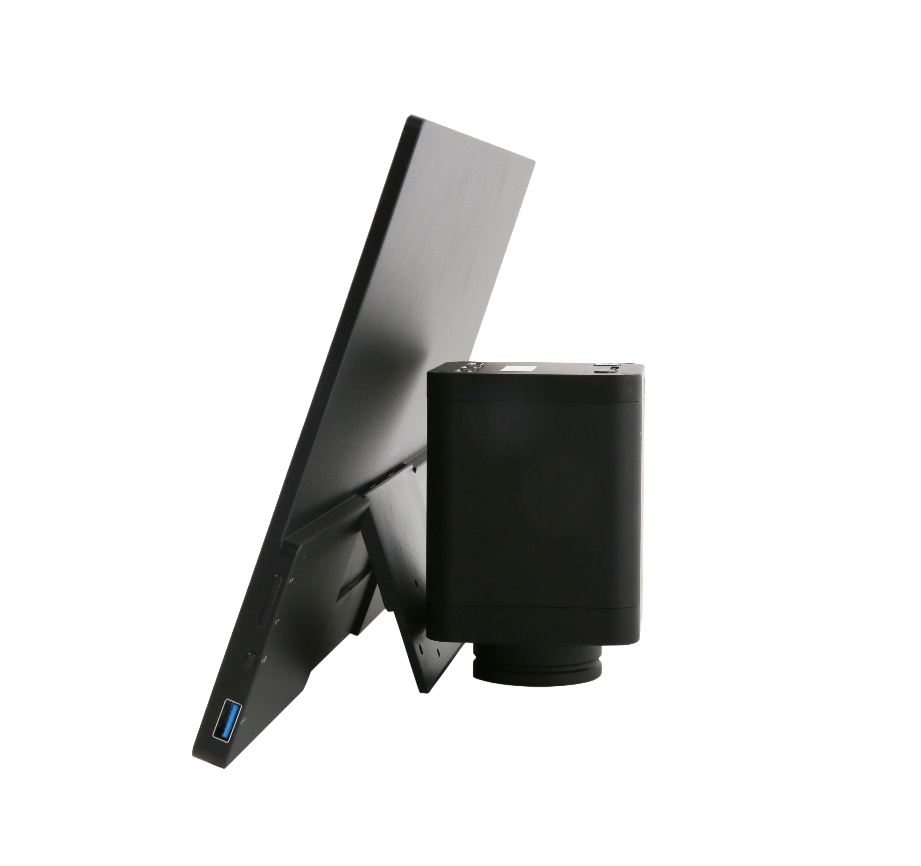

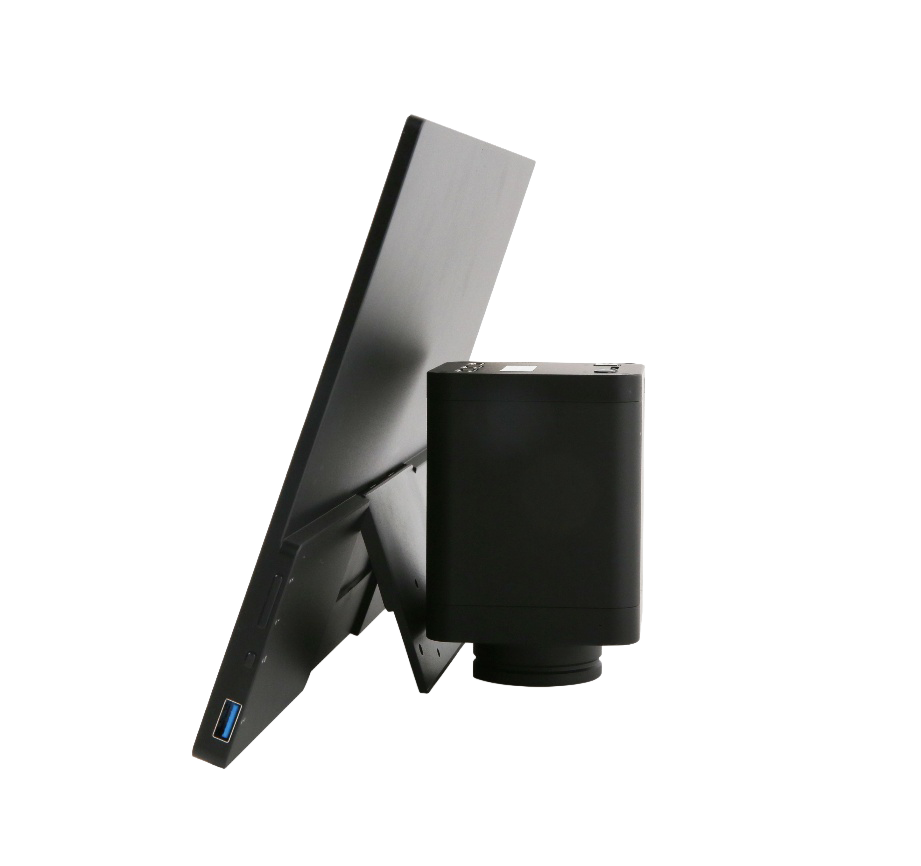

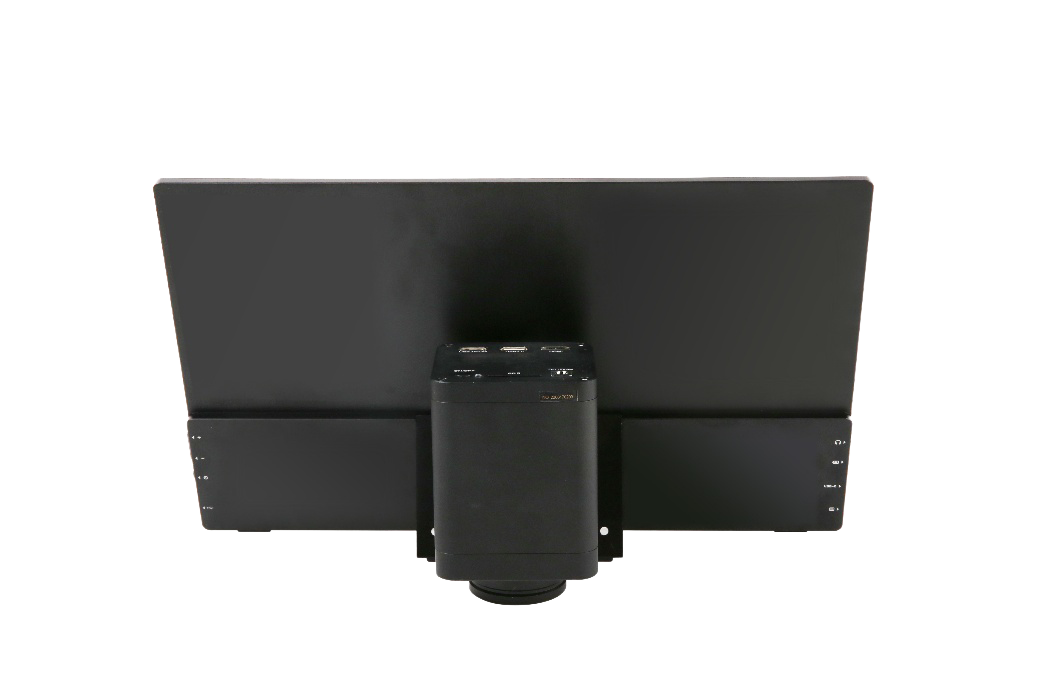

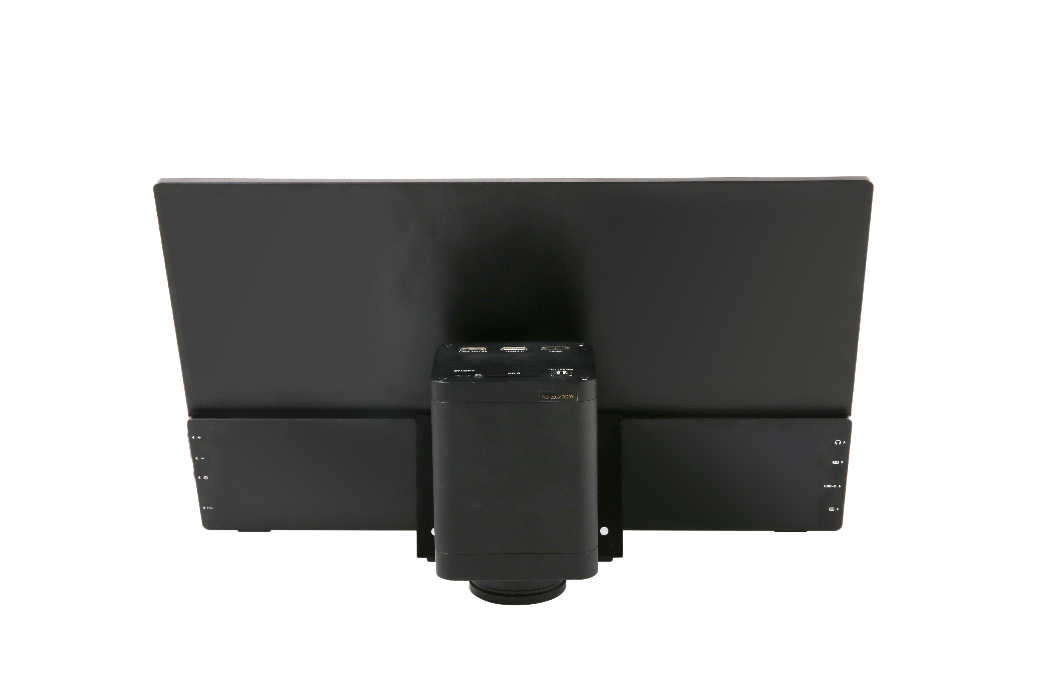

Slim narrow bezel design with integrated folding stand, ready to use out of the box; provides standard HDMI input, compatible with XCAM series HDMI cameras and computers/boxes/switchers and other devices, convenient for rapid deployment in laboratories, teaching and production lines.
