Intelligent Imaging Accessories

Through our comprehensive "camera-lens-light source-display" four-in-one ecosystem, intelligent imaging accessories enable optical upgrades from visible light to short-wave infrared, from brightfield to differential interference contrast/fluorescence/polarization within minutes

📺

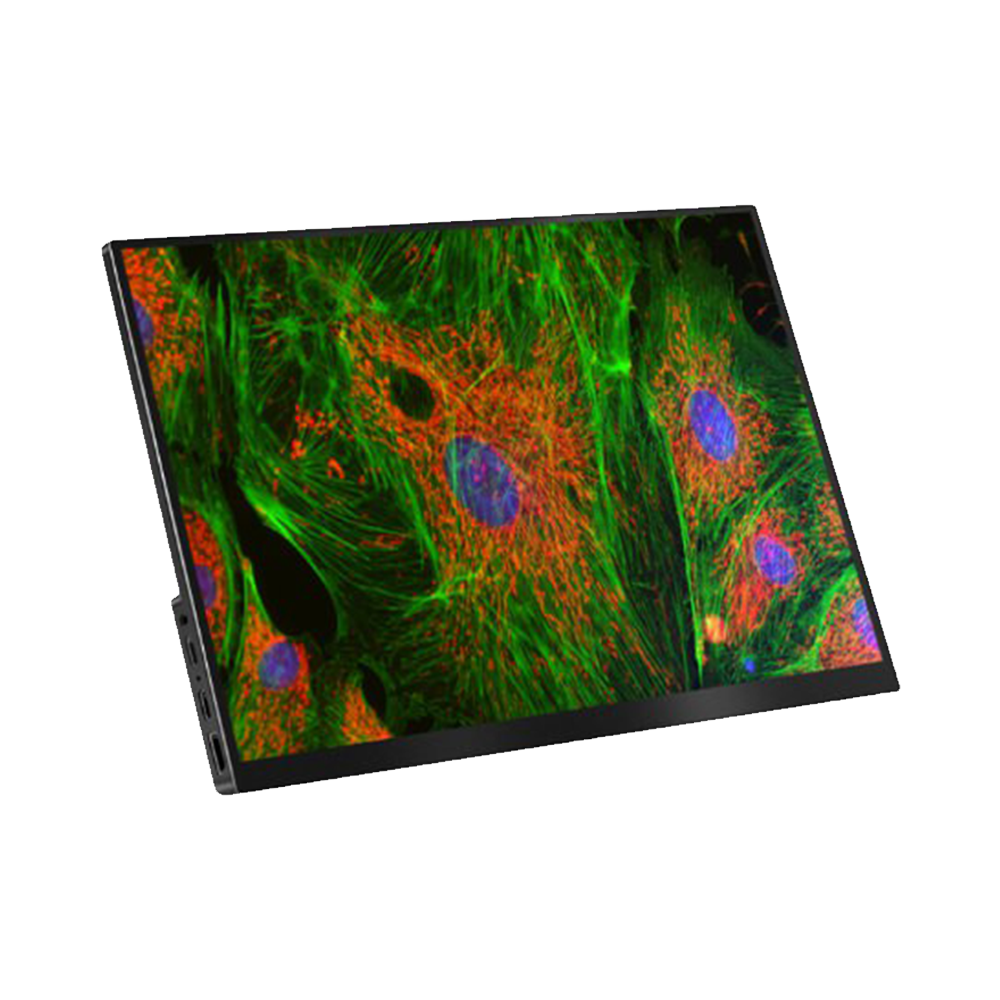

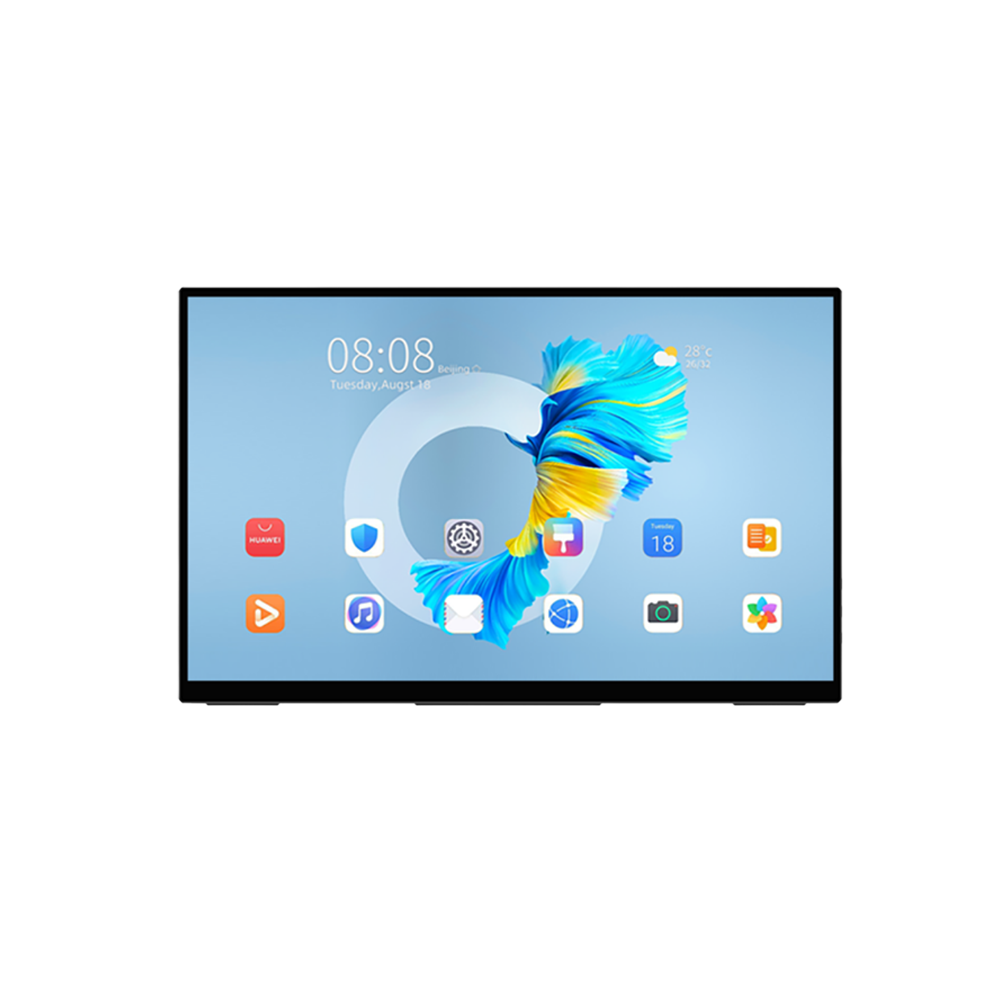

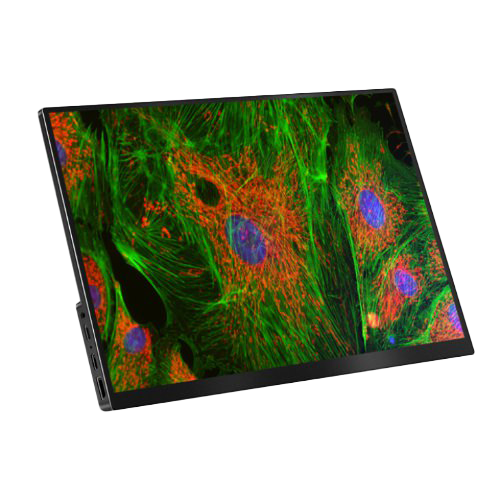

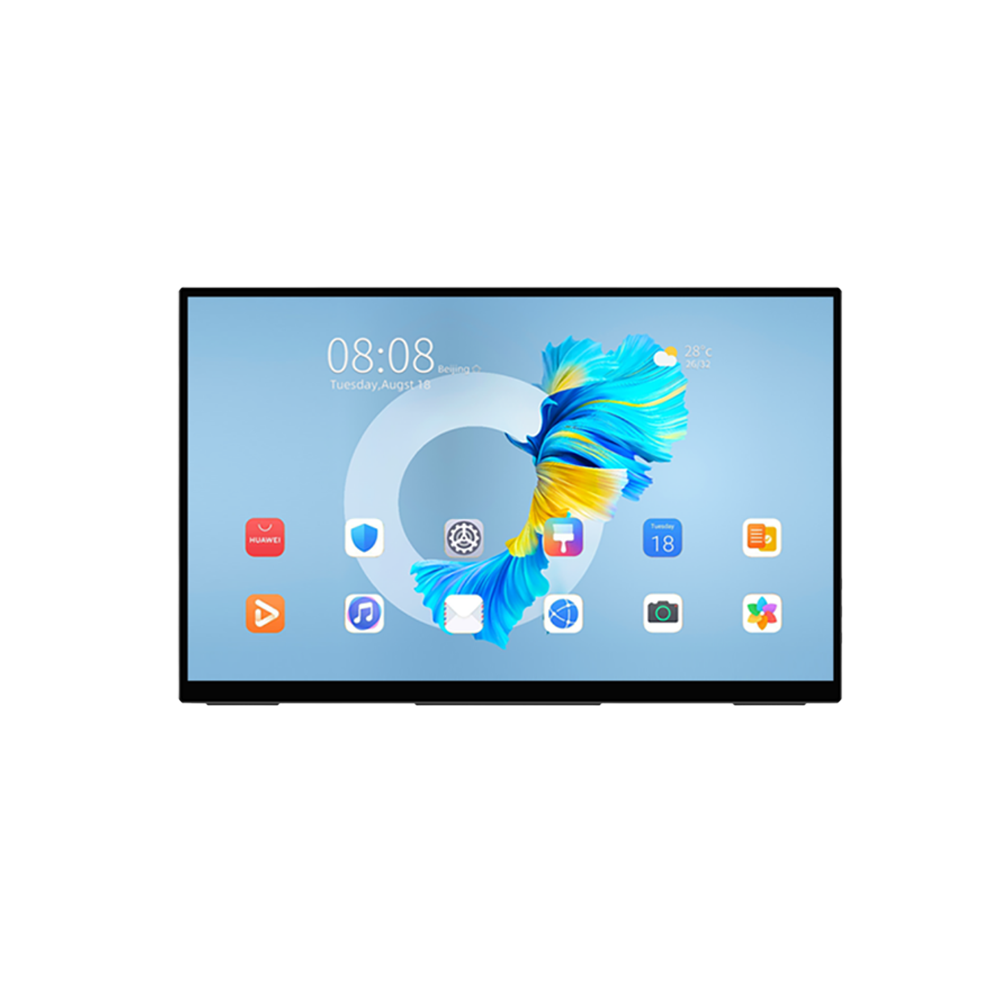

Display Series

7–27" HDMI touchscreen/non-touchscreen IPS/OLED panels with native 4K at 60 Hz and 3 ms gray-to-gray response. Single USB-C power and signal connection with VESA/desktop dual mounting support.

Core Features

  • 178° wide viewing angle, 100% DCI-P3 color gamut (OLED models)
  • 10-point capacitive touch for direct XCamView operation
  • OSD saves camera EDID for automatic 4K/1080p matching

Applications

Microscopic interactive teaching, production line QC stations, mobile demonstration platforms
🔍

Continuous Zoom Objectives

The TZM series features 100% purely mechanical long working distance continuous zoom objectives. Through precision worm gear mechanisms and ball bearings, they achieve stepless smooth zooming without motors or encoders, enabling rapid magnification switching across 0.4×-8× / 0.6×-12× to 1×-16× (optional) ranges while maintaining parfocal performance throughout the field of view.

Core Features

  • Power-free operation: Both zoom and coarse/fine adjustment rings use pure mechanical transmission
  • Parfocal optics: Minimal focus drift during magnification changes
  • Long working distance: Standard 95 mm, optional 160 mm LWD version
  • High zoom ratio: 8:1 / 12:1 / 16:1 three ratio options
  • Durable construction: 100,000 zoom cycles without loosening
Industry Application Application Examples Value Highlights
Electronics Manufacturing SMT solder joints, BGA solder balls Manual ring rotation for switching
Precision Machinery Tool wear, gear burrs Long working distance + large depth of field
Jewelry & Watchmaking Setting prongs, gear rivets 0.2×-32× extended magnification range
💡

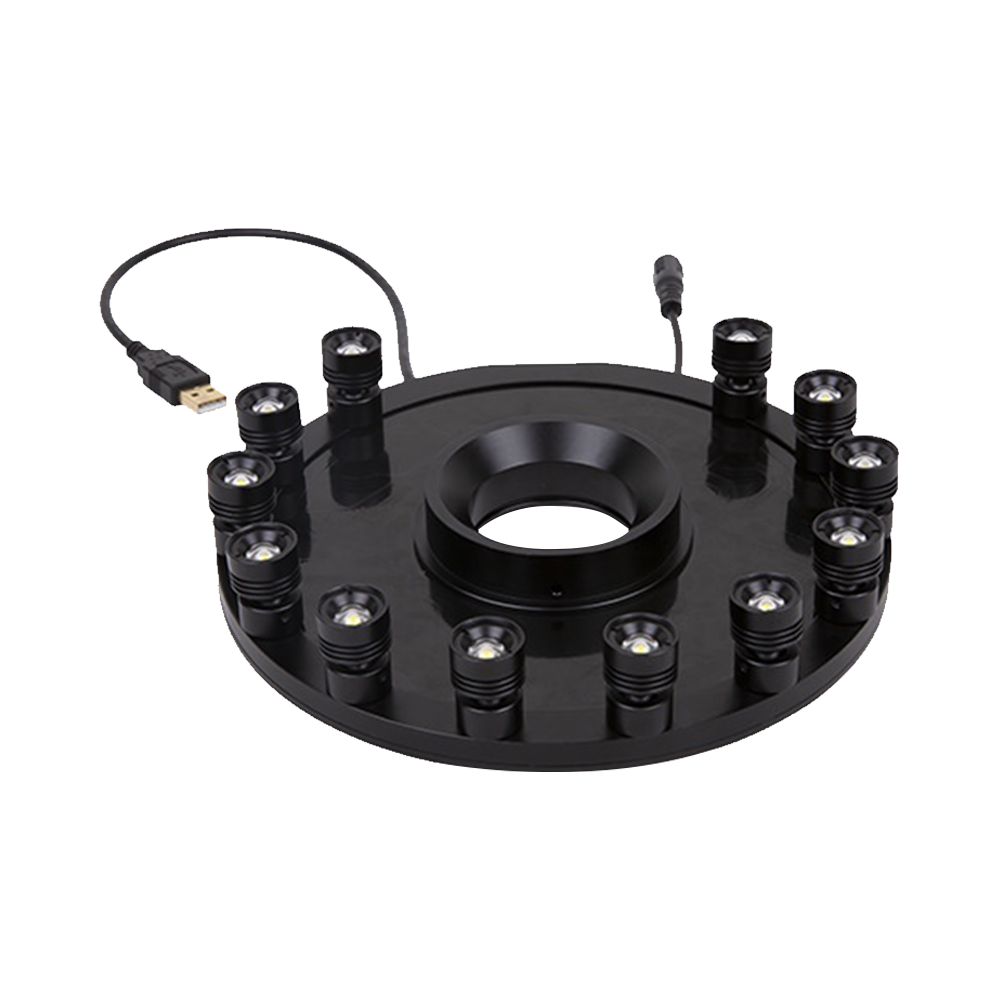

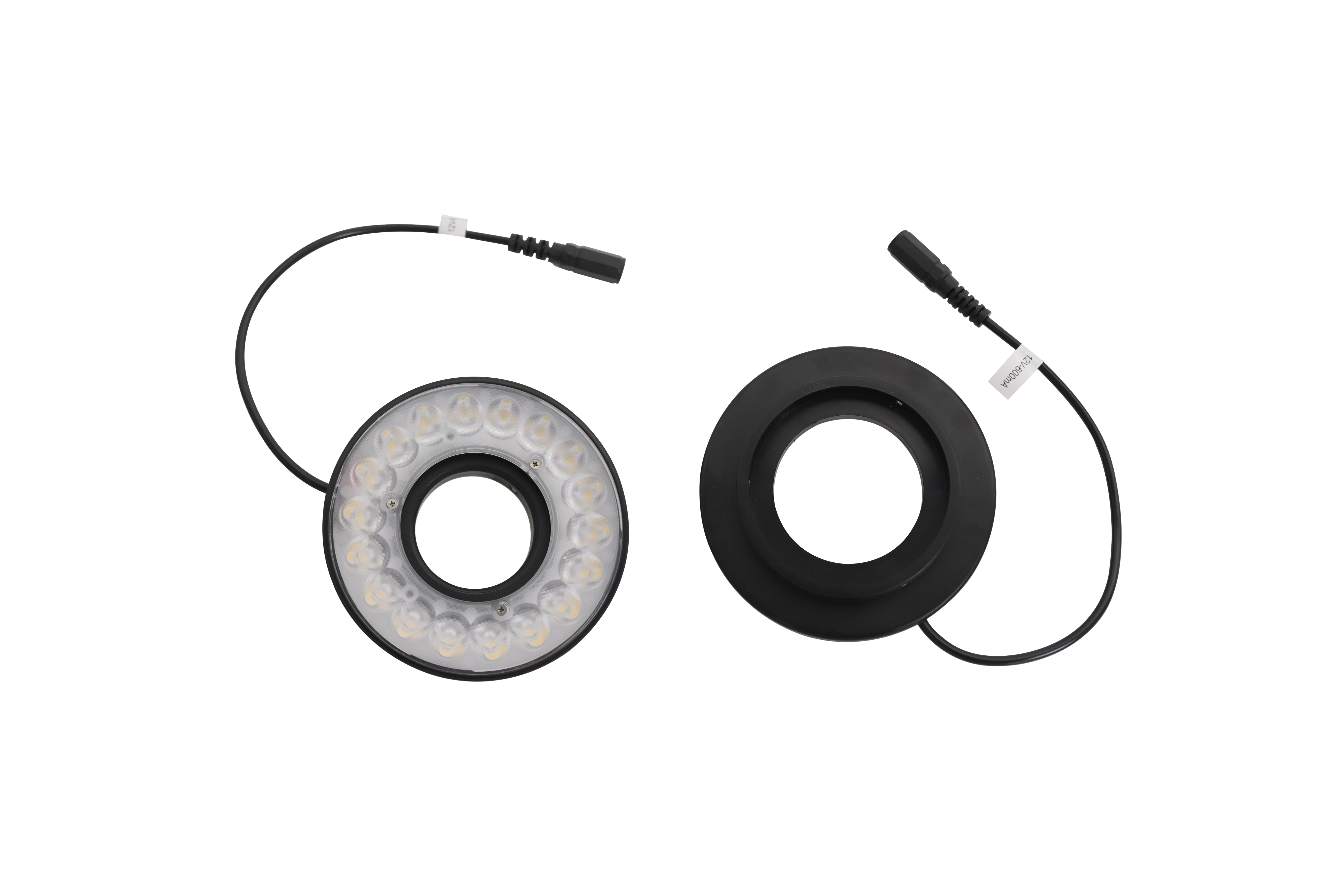

Light Source Series

The ZOPE, TZM, ZM, and AFDM LED light source families cover ring, coaxial, oblique, and polarized illumination methods, providing six-zone independent dimming, brightness memory, and quick-release mounts. Light sources can be powered directly by cameras or all-in-one systems without external adapters.

Core Features

  • 5000 K high CRI (Ra > 92) LEDs with lifespan > 50,000 hours
  • Coaxial light suppresses surface glare; polarized ring light eliminates metal reflections
  • Quick-release interface + 12 V single-wire power, 10-second replacement
  • Integrated with XCamView GUI for synchronized brightness/zone adjustment on screen

Applications

Ring: 360° uniform illumination for electronic components • Coaxial: High-contrast inspection of IC pins and metal cracks • Polarized: Glass stress and oxide film thickness observation

Integration Value

Through our comprehensive "camera-lens-light source-display" four-in-one ecosystem, intelligent imaging accessories enable optical upgrades from visible light to short-wave infrared, from brightfield to differential interference contrast/fluorescence/polarization within minutes, instantly expanding your existing intelligent imaging or HDMI cameras to more inspection and teaching scenarios.

Core Advantages Overview

Rapid Assembly

Modular design of light sources, objectives, and displays enables 10-second component switching

Intelligent Integration

Deep integration with XCamView software for direct camera parameter control via touchscreen

Single-Cable Power

Single USB-C cable for power and transmission, reducing desktop cable clutter

Professional-Grade Optics

High CRI LED light sources combined with precision zoom objectives ensure imaging quality

Scenario Expansion

From brightfield to fluorescence, from visible light to short-wave infrared, one system for multiple applications
