ToupTek Photonics SWIR Short-Wave Infrared Camera Series

Revealing the Invisible

Wide Spectrum, Single Camera Covering Visible-SWIR

Choose between 400–1700 nm or 900–1700 nm versions, quantum efficiency ≥ 75% @ 1.35 µm

Wide spectrum coverage 400–1700 nm
High resolution & high frame rate
Advanced TEC cooling technology
Multiple interfaces for easy integration
SWIR Short-Wave Infrared Camera

High Resolution & Frame Rate Options

5 MP (2560×2048): 165 fps (10 GigE)
3 MP (2048×1536): 176 fps (USB3)
1.3 MP (1280×1024): 200 fps (Multi)
0.33 MP (640×512): 1000 fps (CL Full)

*Smaller ROI can reach > 3000 fps

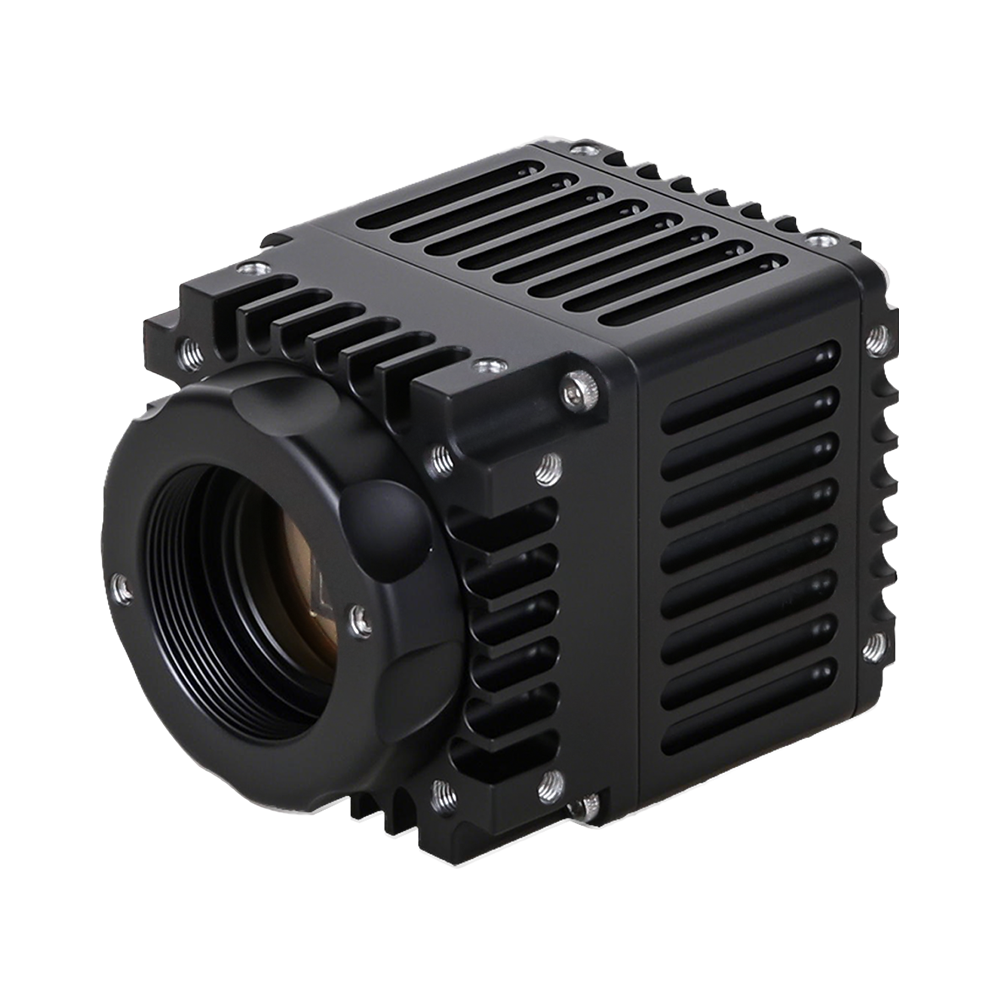

Advanced TEC Cooling, Enhanced SNR

Cooling differential down to -40 °C, significantly reducing dark current for long exposures

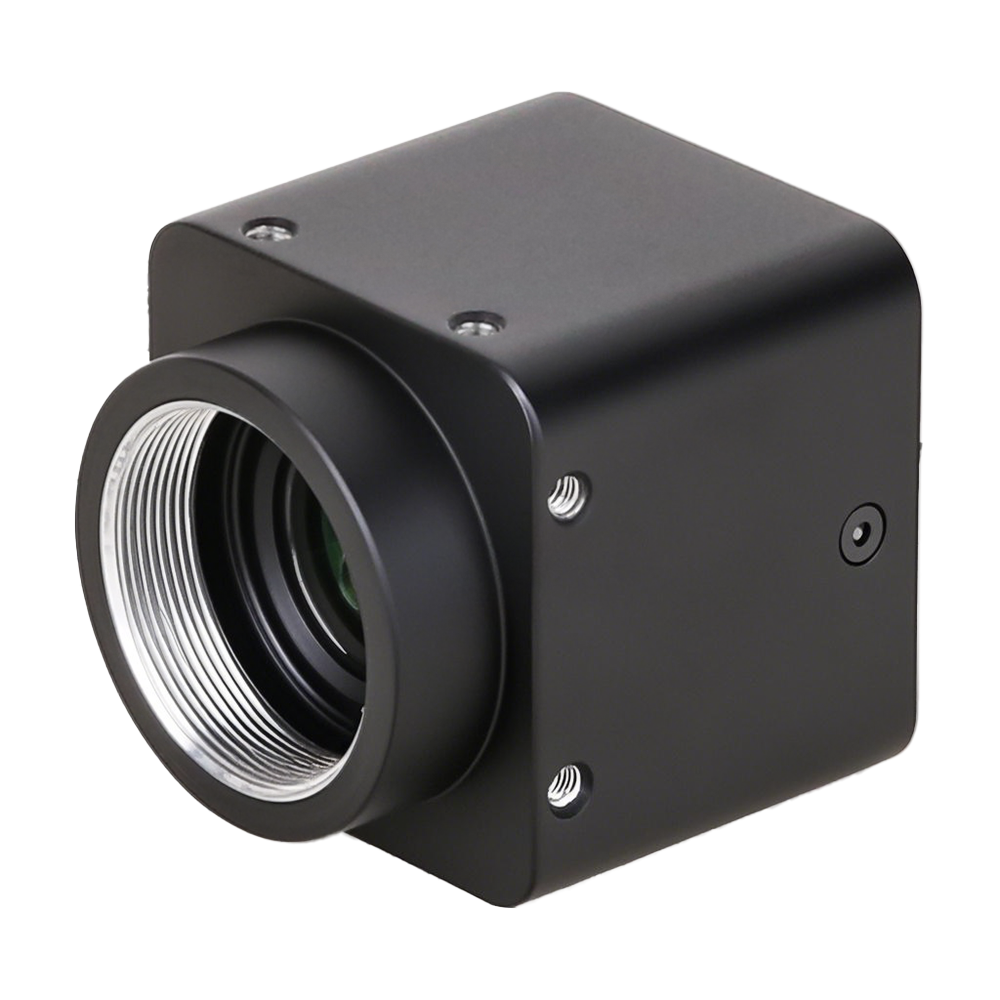

Non-cooled UMV version with compact 33 mm³ body, weighing only 70 g
Ideal for low-light imaging, easy integration with drones or microscopy workstations

Multiple Interfaces, Easy Integration

USB3 GigE 10 GigE CameraLink CoaXPress
All compliant with GenICam/Vision standards, plug-and-play
Direct integration with vision software like HALCON and VisionPro

Hardware

Global shutter, multiple pixel sizes: 3.45/5/15 µm
512 MB on-chip DDR3 buffer
Up to 14-bit ADC with rich image processing
Supports external IO trigger, Gamma, flat field correction

Application Scenarios

Semiconductor Defect Inspection

Precise detection of chip surface defects

Solar Cell EL Testing

Electroluminescence detection technology

Agricultural Remote Sensing

Crop health status monitoring

Plastic Sorting

Material composition identification and classification

Security & Anti-Counterfeiting

Invisible ink recognition applications

Medical Fluorescence Imaging

Biomedical research applications

With ToupTek Photonics SWIR series, camera selection is no longer a compromise between resolution and frame rate, nor does it require the added cost of a dual-camera system. Whether you're pursuing high-speed dynamics, extremely low light conditions, or ultra-wide spectrum detection, the SWIR series provides your scientific and industrial vision solutions with higher sensitivity, richer interfaces, and more flexible configurations for short-wave infrared imaging.
