900–1700 nm | China-made SWIR InGaAs | VGA 0.33 MP | USB3/GigE/10GigE/CameraLink | Cooled/Uncooled
Product Introduction
The SWIR 900–1700 nm VGA (640×512) series focuses on ultra-high frame rates and stable connectivity, offering USB3/GigE/10GigE/CameraLink Full multi-interface options with deep cooling, external cooling, and uncooled versions, covering high-speed sorting, process monitoring, laser imaging, and array deployment applications.
Product Features
- 900-1700 nm version employs China-made InGaAs sensor
- Global shutter
- Support for USB 3.0/GigE/10GigE/CameraLink Full interfaces
- Support for external IO trigger control
- 12–14-bit ADC
- 4 Gb memory buffer
- Ultra-high frame rate (up to 1000 fps)
- Precision temperature control (cooled/uncooled)
- Support for on-site firmware upgrades
- Accept OEM customization
Product Models
SWIR331/339 Series | VGA 640×512 | USB3/GigE/10GigE/CameraLink | 900–1700 nm
| Model | Sensor / Size | Resolution | Pixel Size | Shutter | Frame Rate | Interface | Dynamic Range |
Action |
|---|---|---|---|---|---|---|---|---|
| SWIR331KMB-U700 |
China-made 640×512 (InGaAs CMOS)
3/4" (12.29 mm) | 9.60 mm × 7.68 mm
|
0.33 MP (640×512) | 15 µm × 15 µm | Global Shutter |
724 fps @ 640×512
|
USB3 |
70.6 dB (LG), 63.0 dB (MG)
|
View Details |
| SWIR331KMB-U700-C0 |
China-made 640×512 (InGaAs CMOS)
3/4" (12.29 mm) | 9.60 mm × 7.68 mm
|
0.33 MP (640×512) | 15 µm × 15 µm | Global Shutter |
724 fps @ 640×512
|
USB3 |
70.6 dB (LG), 63.0 dB (MG)
|
View Details |
| SWIR331KMB-G125 |
China-made 640×512 (InGaAs CMOS)
3/4" (12.29 mm) | 9.60 mm × 7.68 mm
|
0.33 MP (640×512) | 15 µm × 15 µm | Global Shutter |
125 fps @ 640×512
|
GigE |
70.59 dB (LG), 67.96 dB (MG), 47.98 dB (HG)
|
View Details |
| SWIR331KMB-G125-C0 |
China-made 640×512 (InGaAs CMOS)
3/4" (12.29 mm) | 9.60 mm × 7.68 mm
|
0.33 MP (640×512) | 15 µm × 15 µm | Global Shutter |
125 fps @ 640×512
|
GigE |
70.59 dB (LG), 67.96 dB (MG), 47.98 dB (HG)
|
View Details |
| SWIR331KMB-G350 |
China-made 640×512 (InGaAs CMOS)
3/4" (12.29 mm) | 9.60 mm × 7.68 mm
|
0.33 MP (640×512) | 15 µm × 15 µm | Global Shutter |
360 fps @ 640×512
|
GigE |
70.59 dB (LG), 67.96 dB (MG), 47.98 dB (HG)
|
View Details |
| SWIR331KMB-G700 |
China-made 640×512 (InGaAs CMOS)
3/4" (12.29 mm) | 9.60 mm × 7.68 mm
|
0.33 MP (640×512) | 15 µm × 15 µm | Global Shutter |
360 fps @ 640×512
700 fps @ 320×256
|
GigE |
70.59 dB (LG), 67.96 dB (MG), 47.98 dB (HG)
|
View Details |
| SWIR331KMB-10G |
China-made 640×512 (InGaAs CMOS)
3/4" (12.29 mm) | 9.60 mm × 7.68 mm
|
0.33 MP (640×512) | 15 µm × 15 µm | Global Shutter |
724 fps @ 640×512
|
10GigE |
70.59 dB (LG), 67.96 dB (MG), 47.98 dB (HG)
|
View Details |
| SWIR331KMA-CL500 |
China-made 640×512 (InGaAs CMOS)
3/4" (12.29 mm) | 9.60 mm × 7.68 mm
|
0.33 MP (640×512) | 15 µm × 15 µm | Global Shutter |
517 fps @ 640×512
|
CameraLink Full |
69.2 dB (LG), 63.2 dB (MG), 57.4 dB (HG)
|
View Details |
| SWIR331KMA-CL700 |
China-made 640×512 (InGaAs CMOS)
3/4" (12.29 mm) | 9.60 mm × 7.68 mm
|
0.33 MP (640×512) | 15 µm × 15 µm | Global Shutter |
724 fps @ 640×512
|
CameraLink Full |
69.2 dB (LG), 63.2 dB (MG), 57.4 dB (HG)
|
View Details |
| SWIR331KMA-CL1000 |
China-made 640×512 (InGaAs CMOS)
3/4" (12.29 mm) | 9.60 mm × 7.68 mm
|
0.33 MP (640×512) | 15 µm × 15 µm | Global Shutter |
1000 fps @ 640×512
|
CameraLink Full |
69.2 dB (LG), 63.2 dB (MG), 57.4 dB (HG)
|
View Details |
| SWIR331KMB-CL500 |
China-made 640×512 (InGaAs CMOS)
3/4" (12.29 mm) | 9.60 mm × 7.68 mm
|
0.33 MP (640×512) | 15 µm × 15 µm | Global Shutter |
517 fps @ 640×512
|
CameraLink Full |
69.2 dB (LG), 63.2 dB (MG), 57.4 dB (HG)
|
View Details |
| SWIR331KMB-CL700 |
China-made 640×512 (InGaAs CMOS)
3/4" (12.29 mm) | 9.60 mm × 7.68 mm
|
0.33 MP (640×512) | 15 µm × 15 µm | Global Shutter |
724 fps @ 640×512
|
CameraLink Full |
69.2 dB (LG), 63.2 dB (MG), 57.4 dB (HG)
|
View Details |
| SWIR331KMB-CL1000 |
China-made 640×512 (InGaAs CMOS)
3/4" (12.29 mm) | 9.60 mm × 7.68 mm
|
0.33 MP (640×512) | 15 µm × 15 µm | Global Shutter |
1000 fps @ 640×512
|
CameraLink Full |
69.2 dB (LG), 63.2 dB (MG), 57.4 dB (HG)
|
View Details |
| SWIR331KMB-UMV |
China-made 640×512 (InGaAs CMOS)
3/4" (12.29 mm) | 9.60 mm × 7.68 mm
|
0.33 MP (640×512) | 15 µm × 15 µm | Global Shutter |
400 fps @ 640×512
|
USB3 |
70.59 dB (LG), 67.96 dB (MG), 47.98 dB (HG)
|
View Details |
| SWIR331KMB-GMV |
China-made 640×512 (InGaAs CMOS)
3/4" (12.29 mm) | 9.60 mm × 7.68 mm
|
0.33 MP (640×512) | 15 µm × 15 µm | Global Shutter |
350 fps @ 640×512 (8-bit)
175 fps @ 640×512 (14-bit)
|
GigE |
70.59 dB (LG), 62.98 dB (MG)
|
View Details |
| SWIR339KMB-CL700 |
China-made 640×512 (InGaAs CMOS)
3/4" (12.29 mm) | 9.60 mm × 7.68 mm
|
0.33 MP (640×512) | 15 µm × 15 µm | Global Shutter |
724 fps @ 640×512
|
CameraLink Full |
69.2 dB (LG), 63.2 dB (MG), 57.4 dB (HG)
|
View Details |

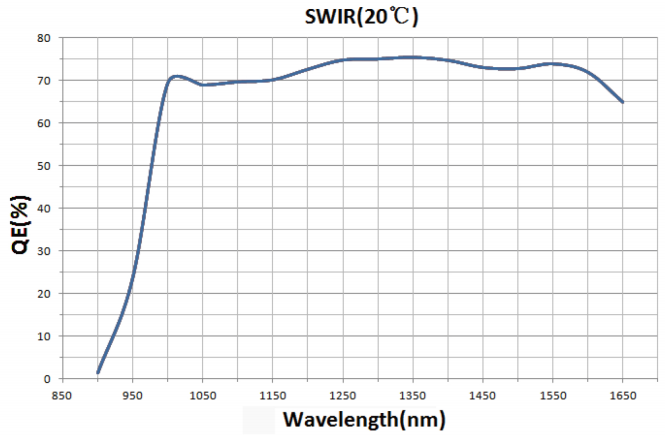

Quantum Efficiency Curve #
China-made SWIR 900–1700 nm typical quantum efficiency response
Package Contents #
VGA 640×512 (15 µm) · China-made InGaAs · C-mount · USB3 / GigE / 10GigE / CameraLink Full (includes UMV/GMV uncooled compact models)

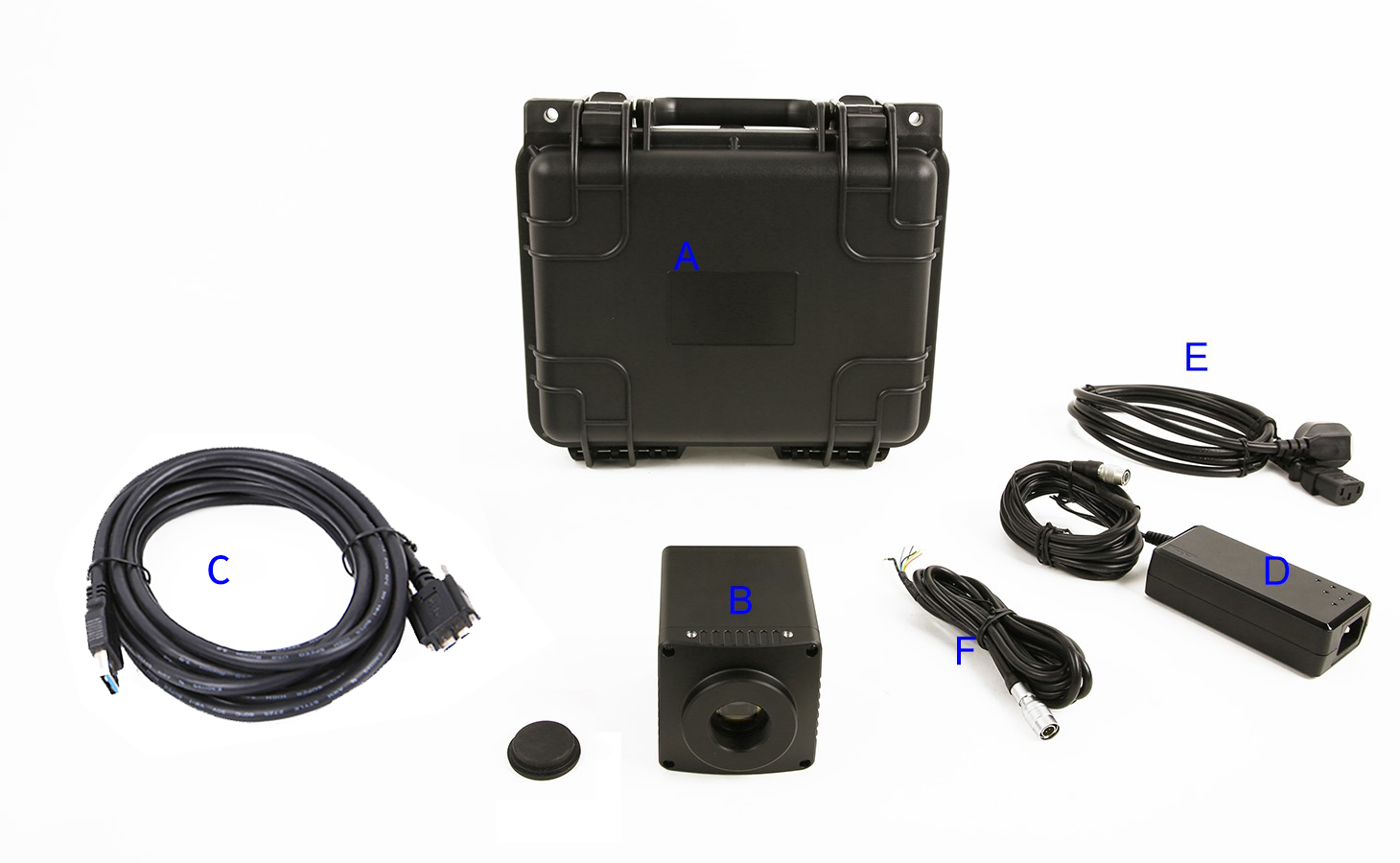

- A 3-A instrument safety case: L: 28 cm W: 23.0 cm H: 15.5 cm (1 pcs, 2.8 kg/box)
- B SWIR 900–1700 USB interface camera
- C High-speed USB3 A-to-B gold-plated cable (1.5 m)
- D 12 V / 3 A 6-pin aviation power adapter
- E Power cable
- F External trigger control cable ×1

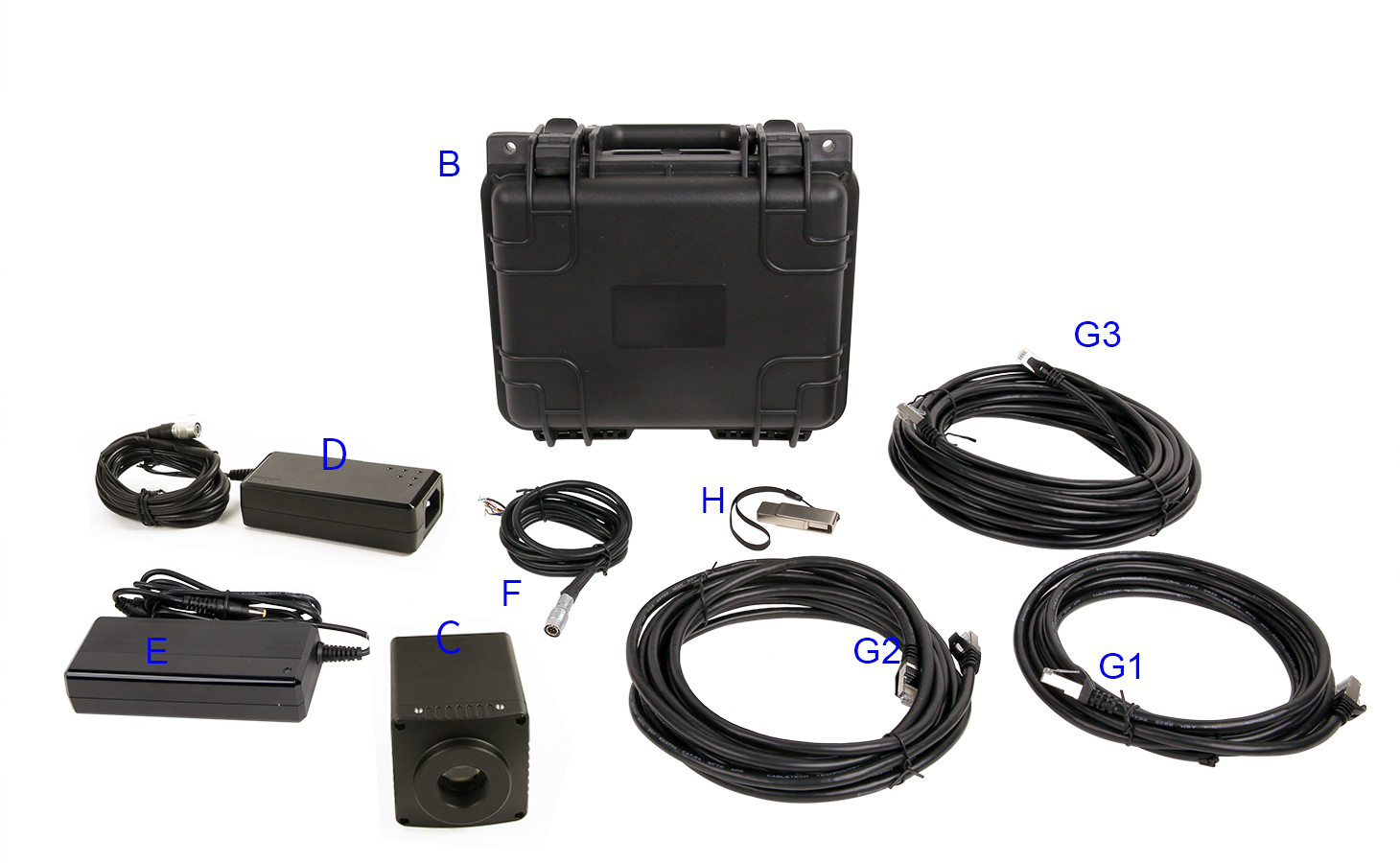

- A Outer box (not shown): carton size L: 28.2 cm W: 25.2 cm H: 16.7 cm
- B 3-A instrument safety case: L: 28 cm W: 23.0 cm H: 15.5 cm (1 pcs, 2.8 kg/box)
- C SWIR 900–1700 GigE interface camera
- D 12 V / 3 A 6-pin aviation power adapter
- E Power cable (CN/US/EU/UK, not shown)
- F External trigger control cable ×1
- G Network cable: G1 3 m / G2 5 m / G3 10 m (G4 50 m not shown)
- H USB drive (includes driver and software)
- A Outer box (not shown): carton size L: 28.2 cm W: 25.2 cm H: 16.7 cm
- B 3-A instrument safety case: L: 28 cm W: 23.0 cm H: 15.5 cm (1 pcs, 2.8 kg/box)
- C SWIR 900–1700 10GigE interface camera (same exterior as GigE cooled)
- D 12 V / 3 A 6-pin aviation power adapter
- E Power cable (CN/US/EU/UK, not shown)
- F External trigger control cable ×1
- G 10GigE high-speed cable (supports shielded cable)
- H USB drive (includes driver and software)

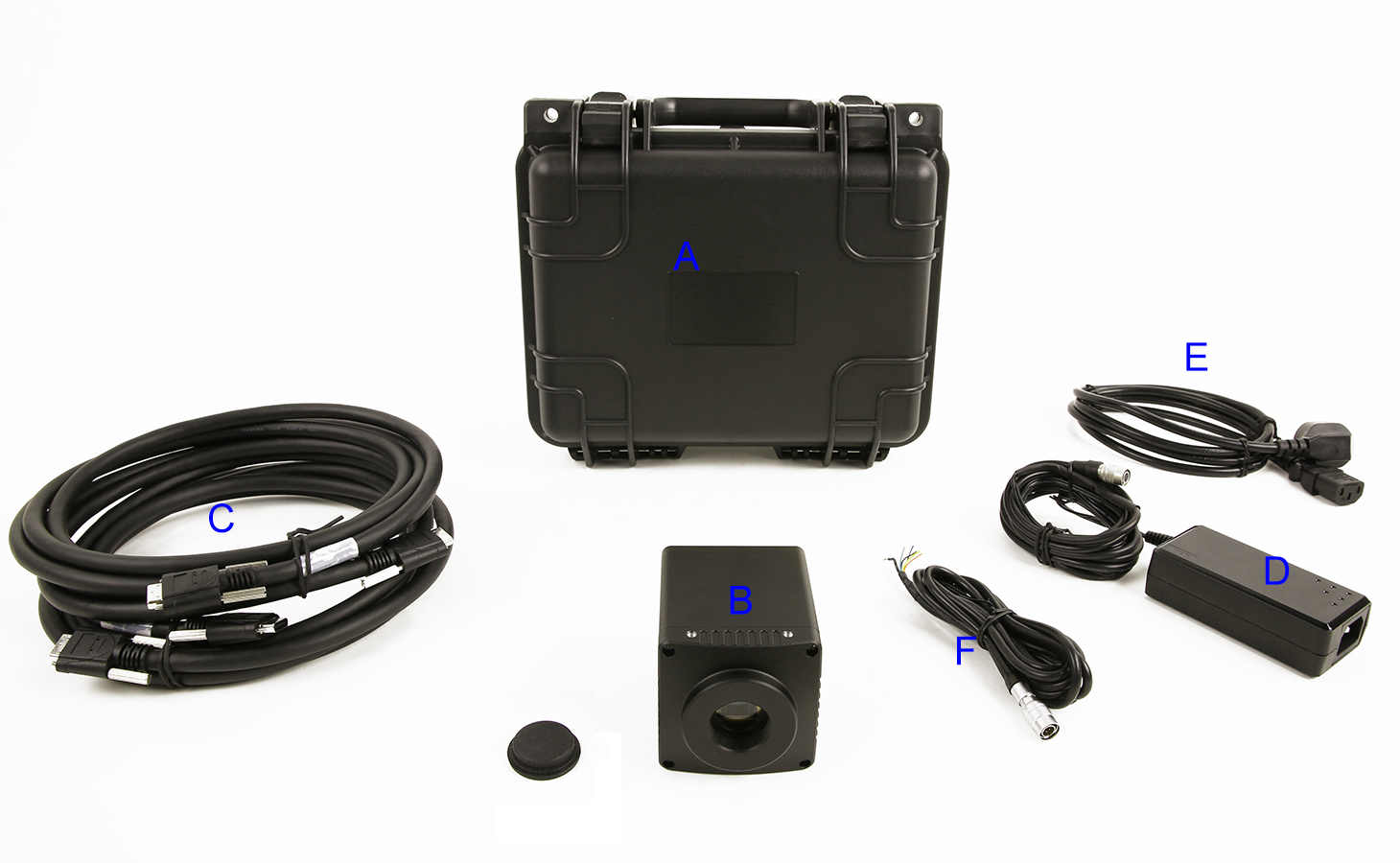

- A 3-A instrument safety case: L: 28 cm W: 23.0 cm H: 15.5 cm (1 pcs, 2.8 kg/box)

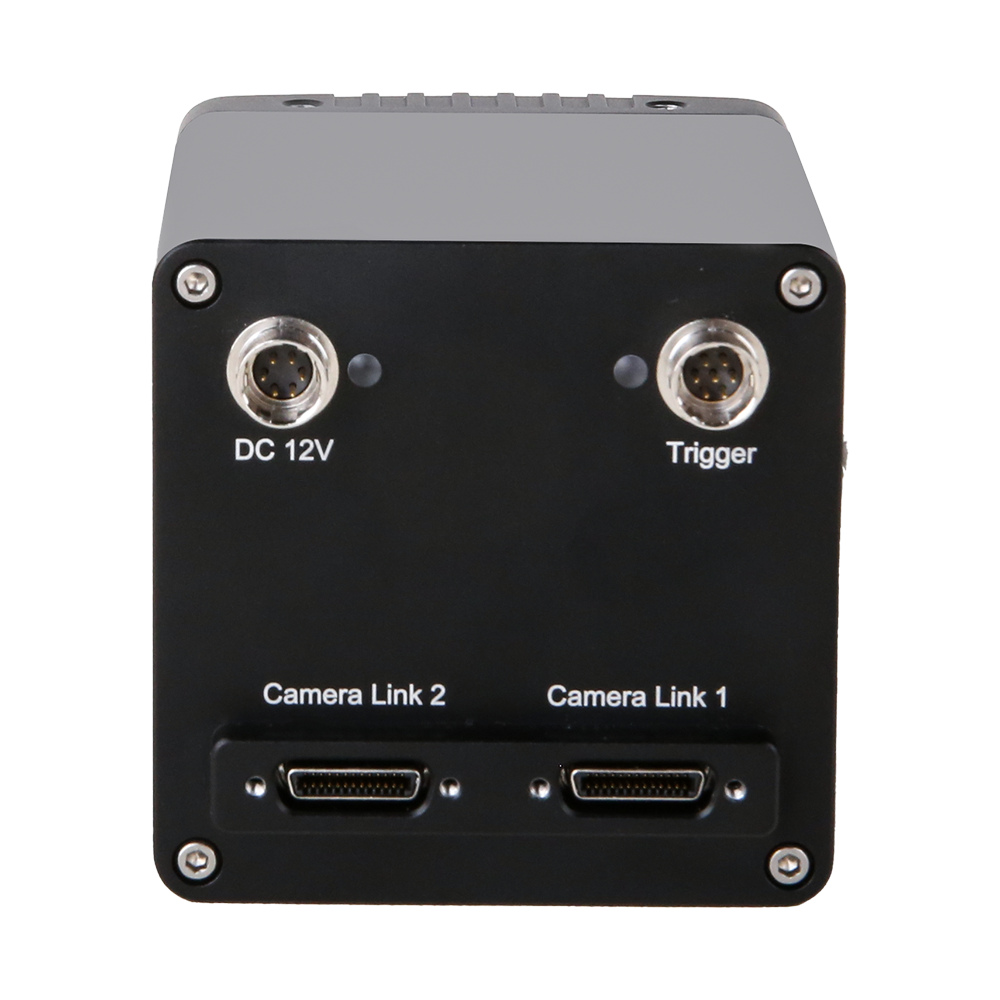

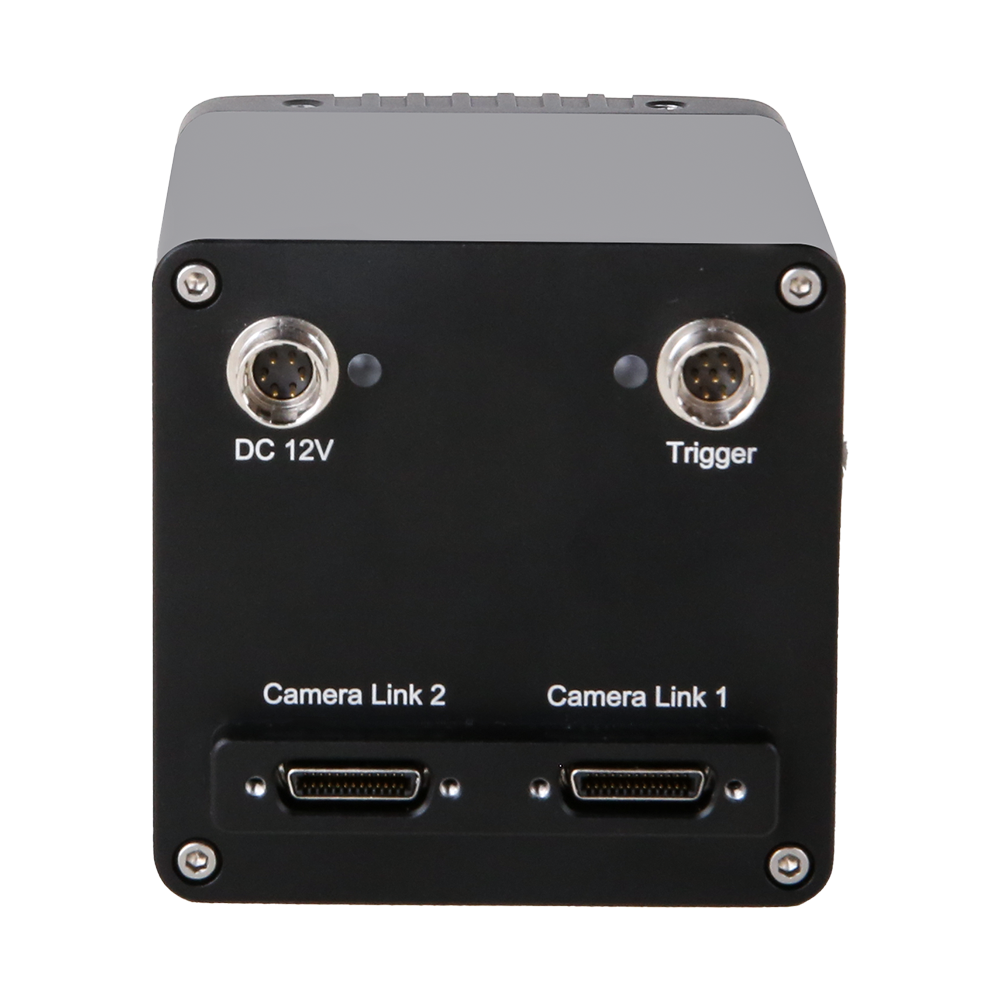

- B SWIR 900–1700 CL interface camera
- C CameraLink cable ×2
- D 12 V / 3 A 6-pin aviation power adapter
- E Power cable
- F External trigger control cable ×1
- A Outer box (not shown): carton size L: 28.2 cm W: 25.2 cm H: 16.7 cm
- B 3-A instrument safety case: L: 28 cm W: 23.0 cm H: 15.5 cm (1 pcs, 2.8 kg/box)

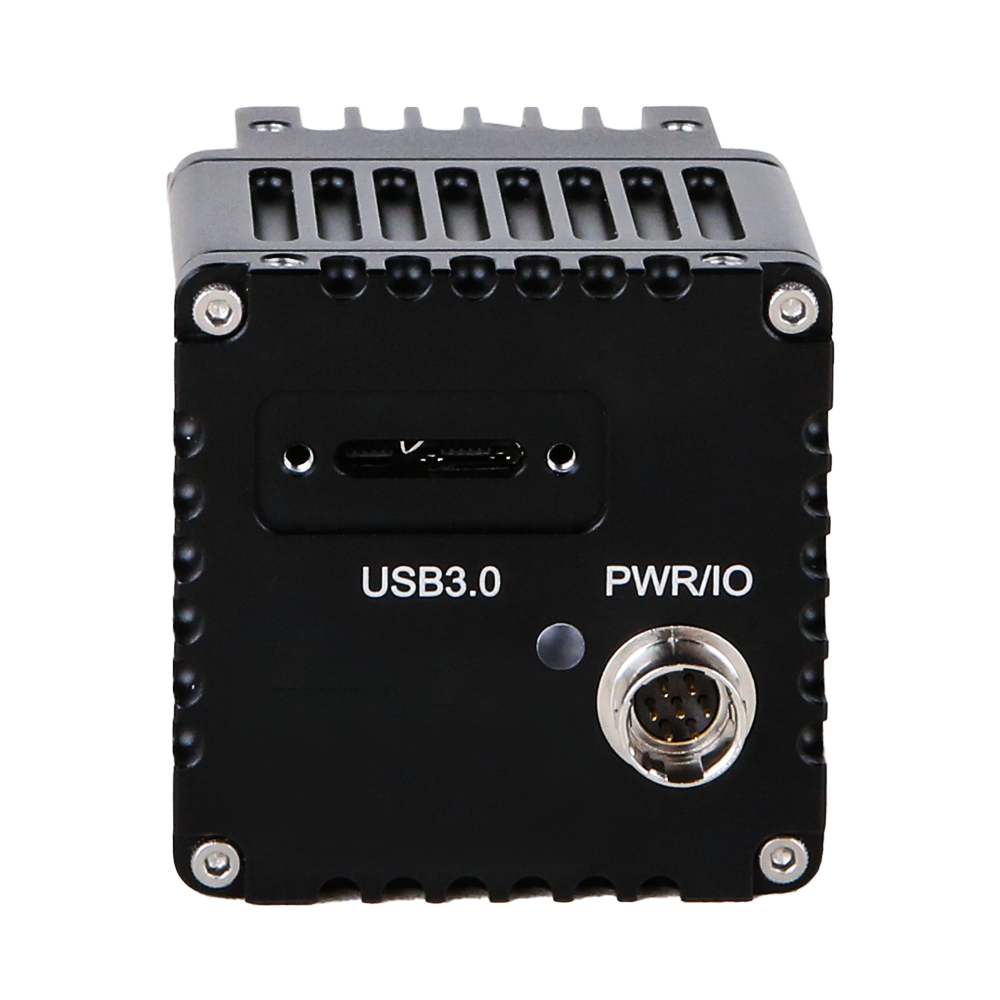

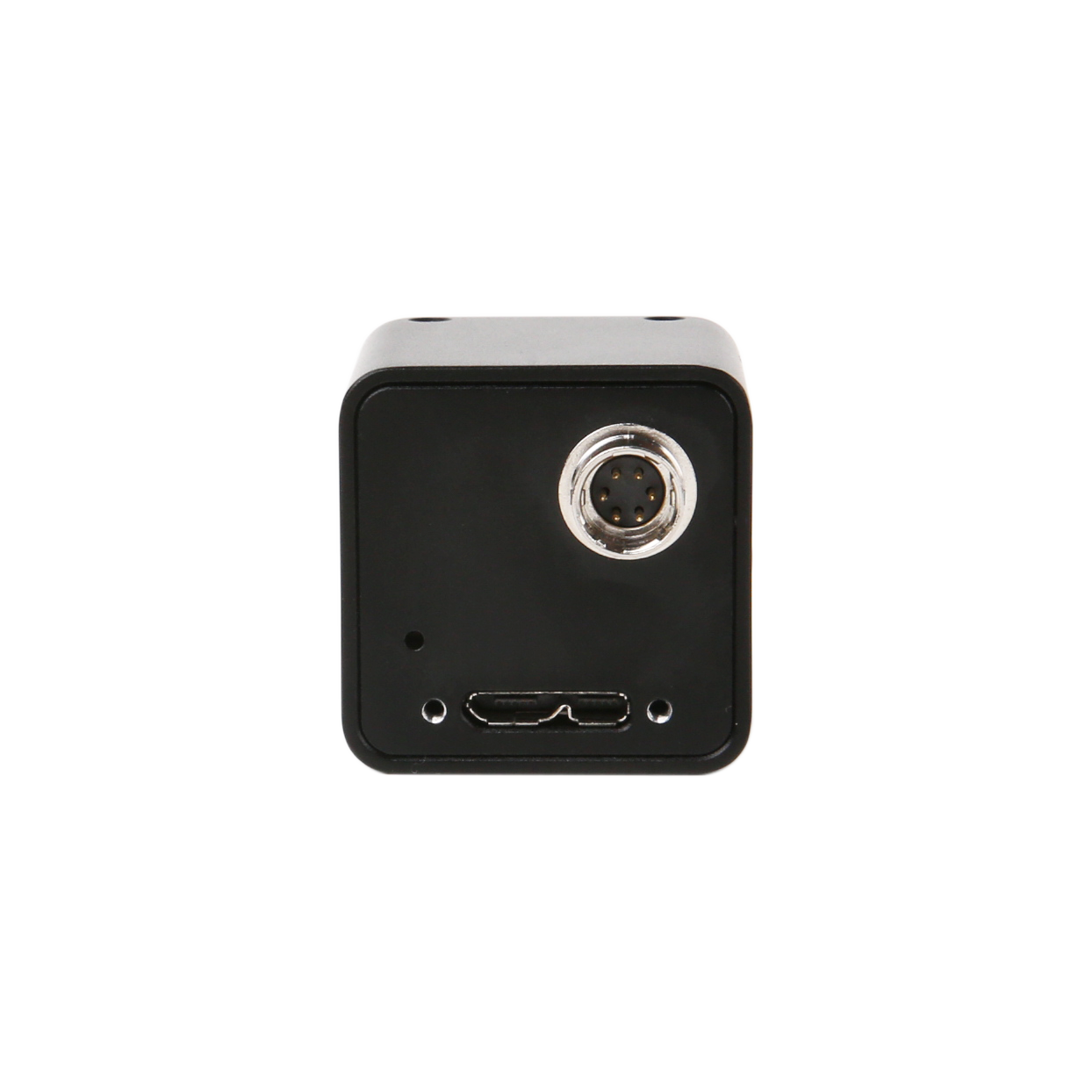

- C SWIR 900–1700 USB uncooled camera (UMV compact)
- D High-speed USB3 A-to-B gold-plated cable (1.5 m)
- E External trigger control cable ×1
- F USB drive (includes driver and software)
- A Outer box (not shown): carton size L: 28.2 cm W: 25.2 cm H: 16.7 cm
- B 3-A instrument safety case: L: 28 cm W: 23.0 cm H: 15.5 cm (1 pcs, 2.8 kg/box)

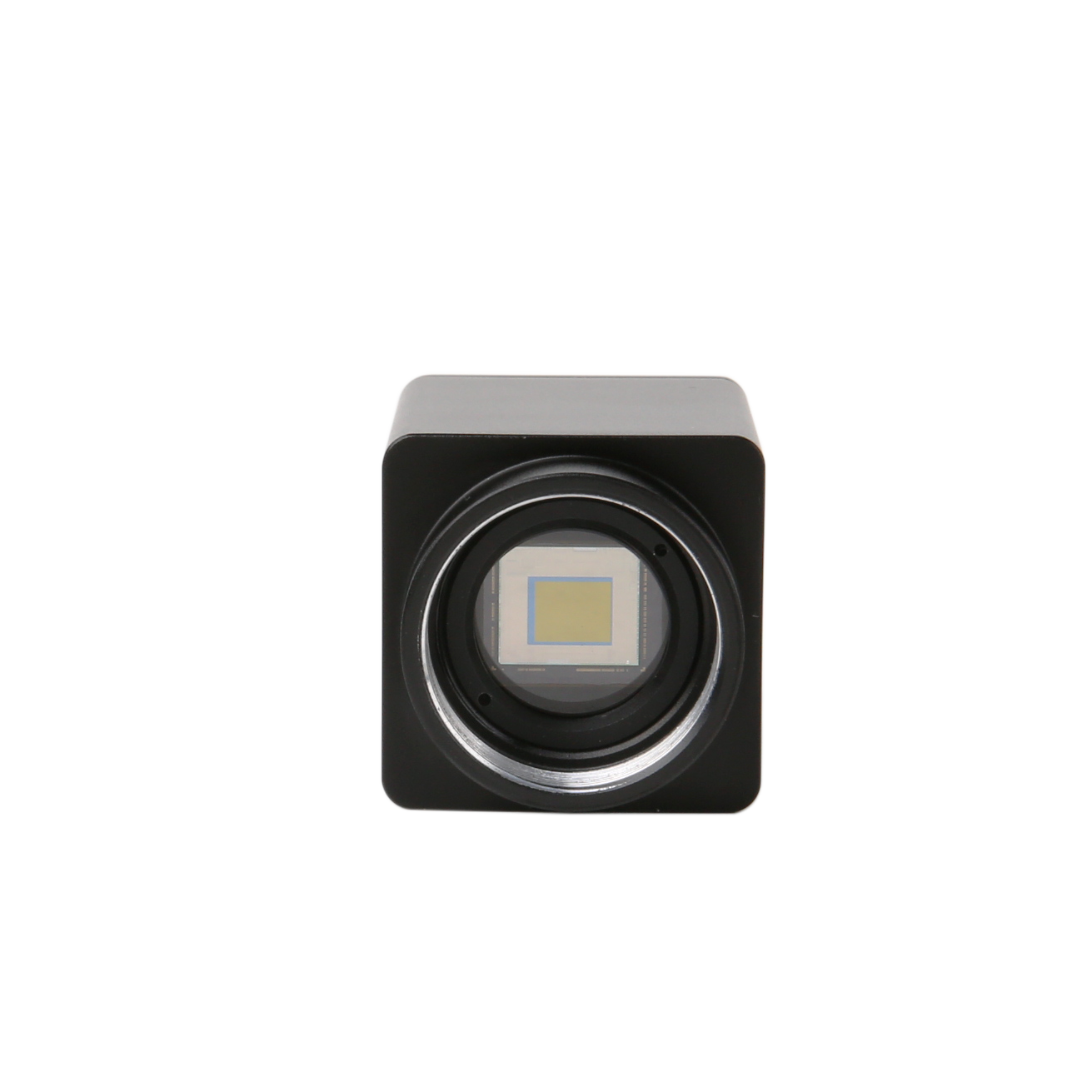

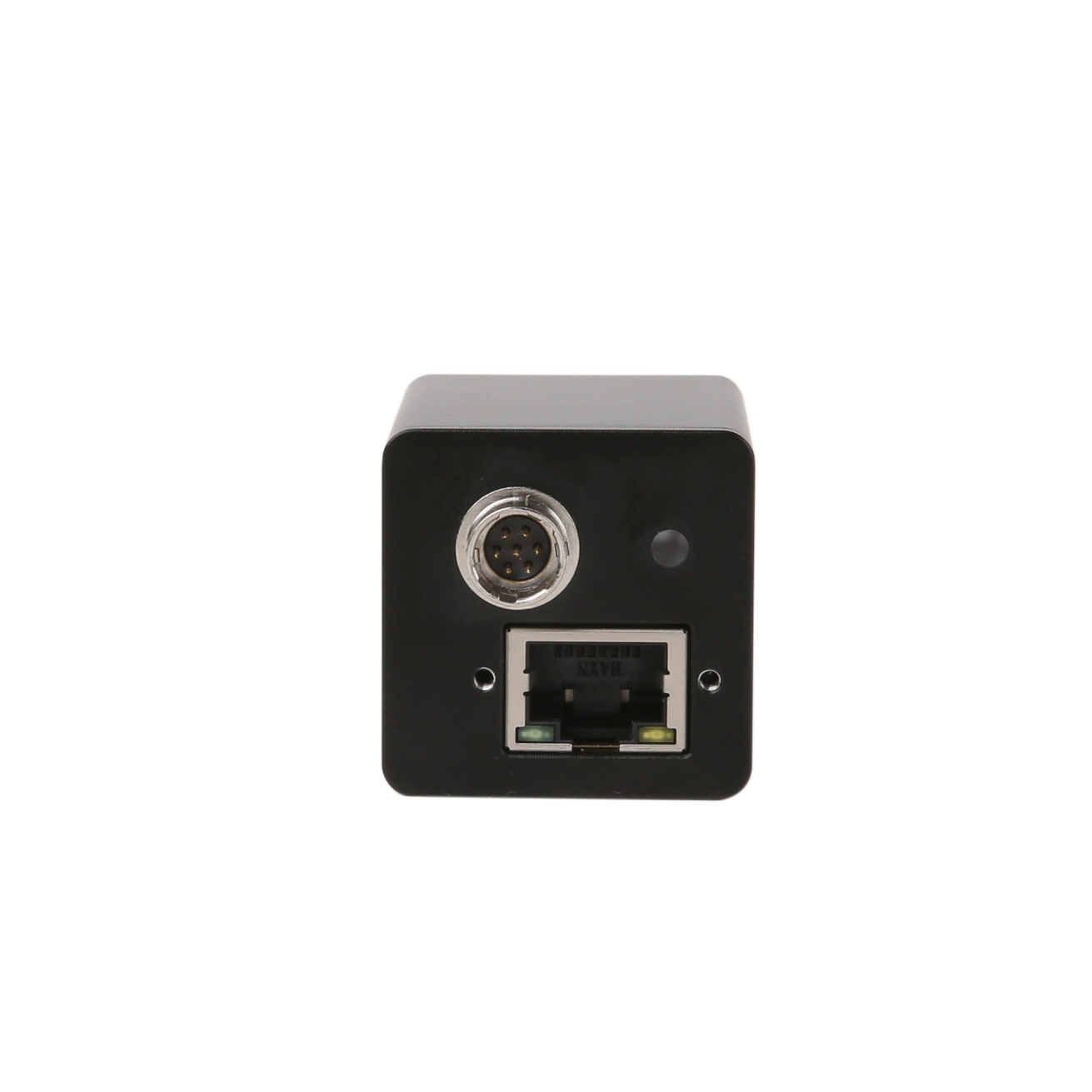

- C SWIR 900–1700 GigE uncooled camera (GMV compact)
- D Network cable: G1 3 m / G2 5 m / G3 10 m (G4 50 m not shown)
- E External trigger control cable ×1
- F USB drive (includes driver and software)
Product Dimensions #

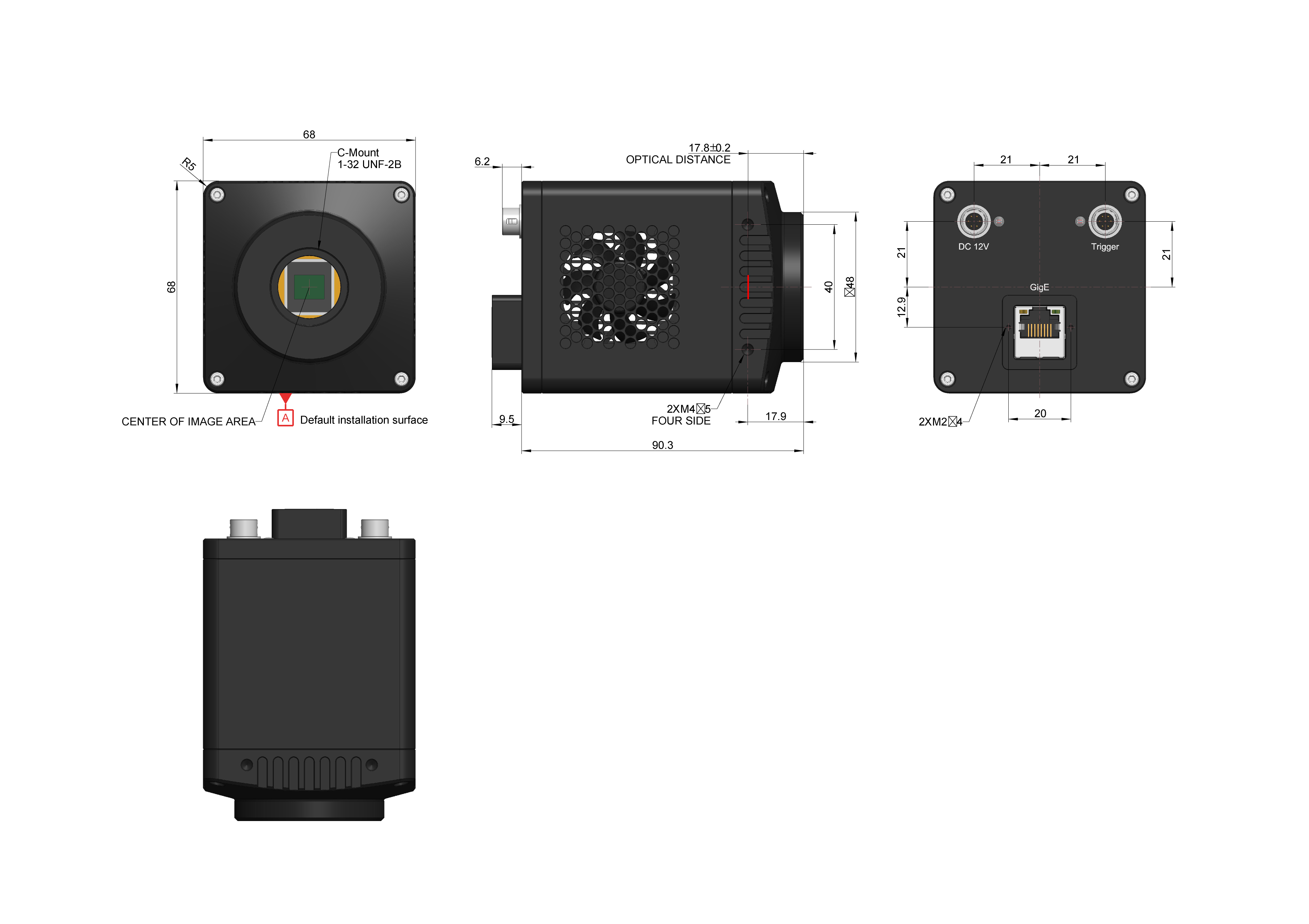

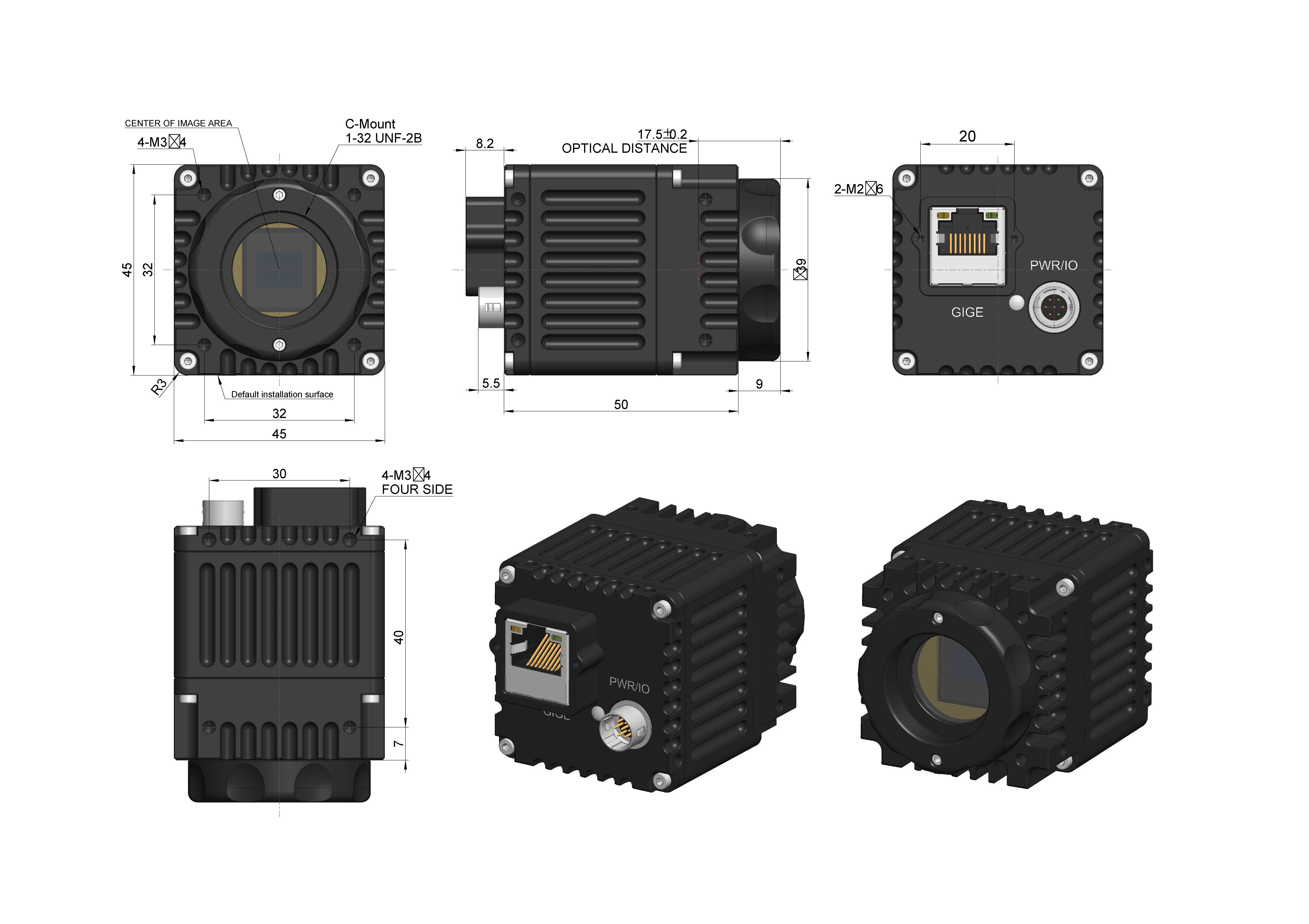

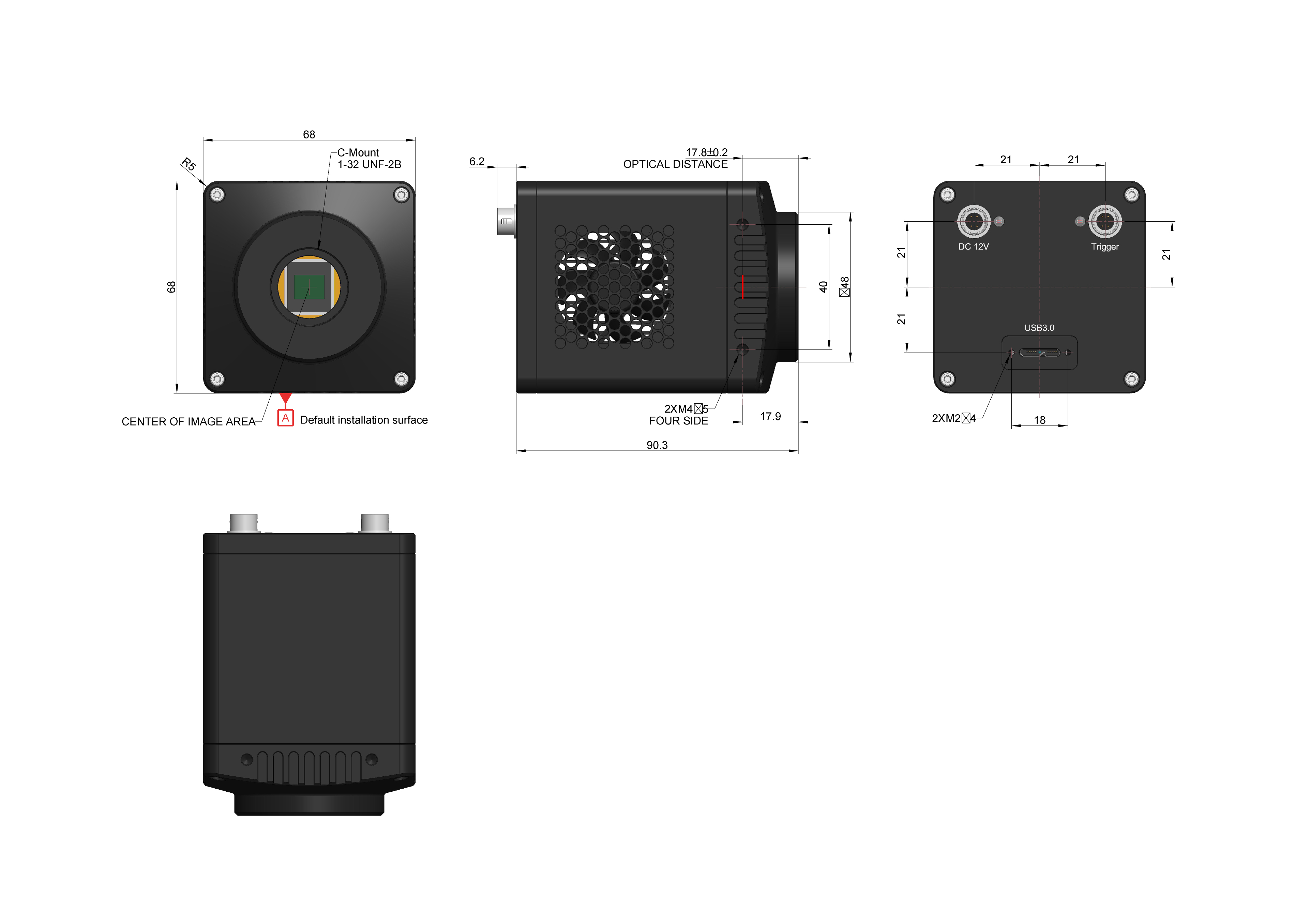

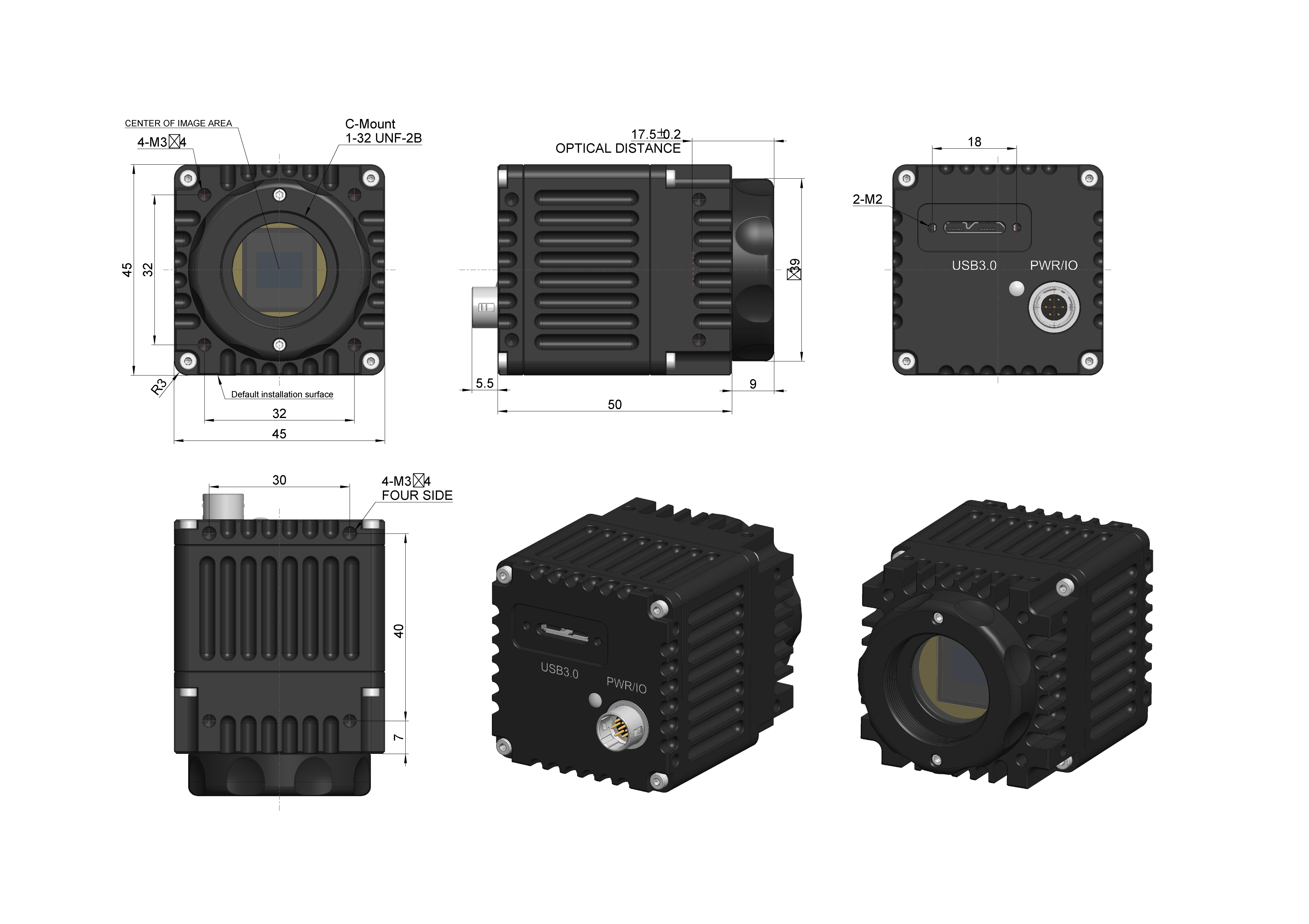

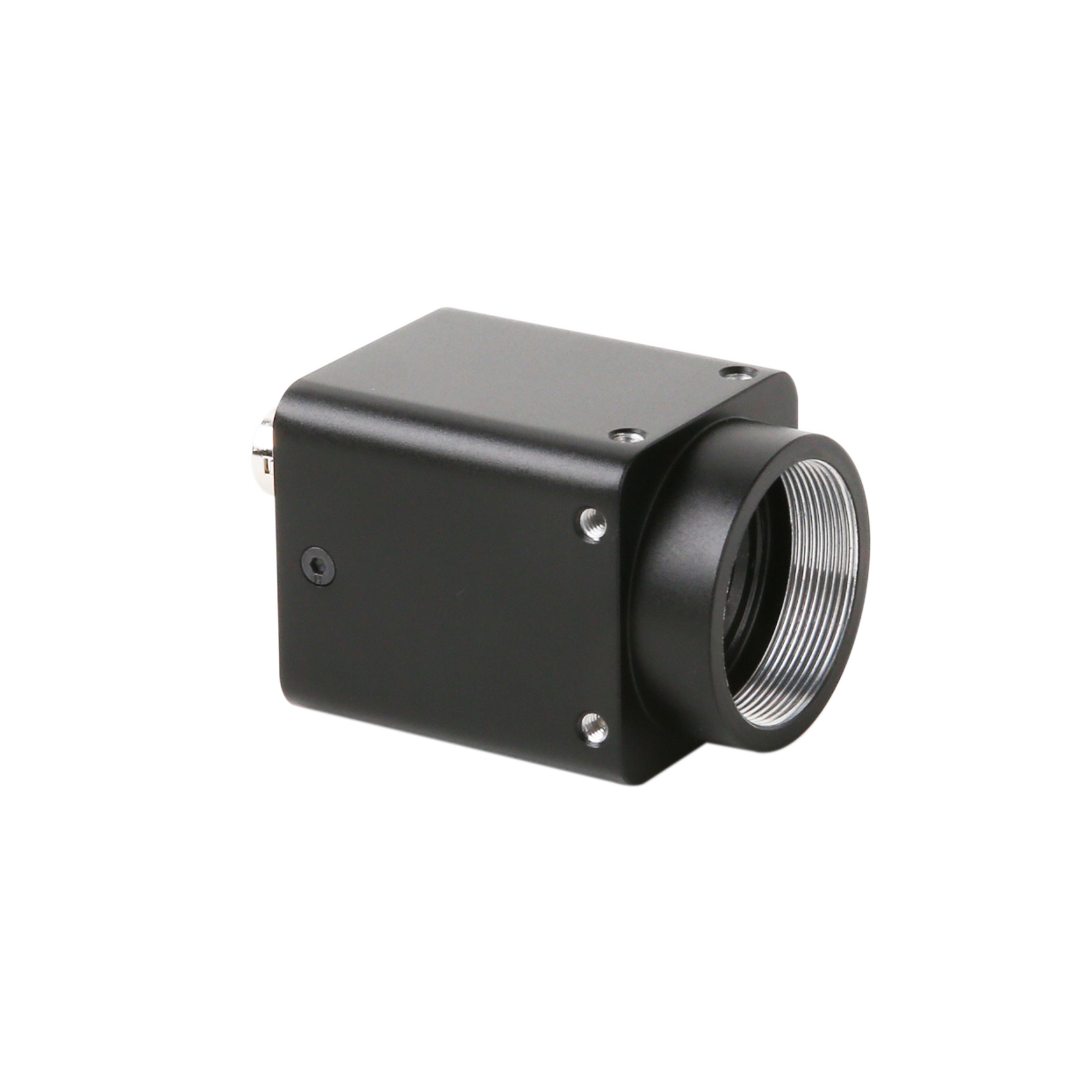

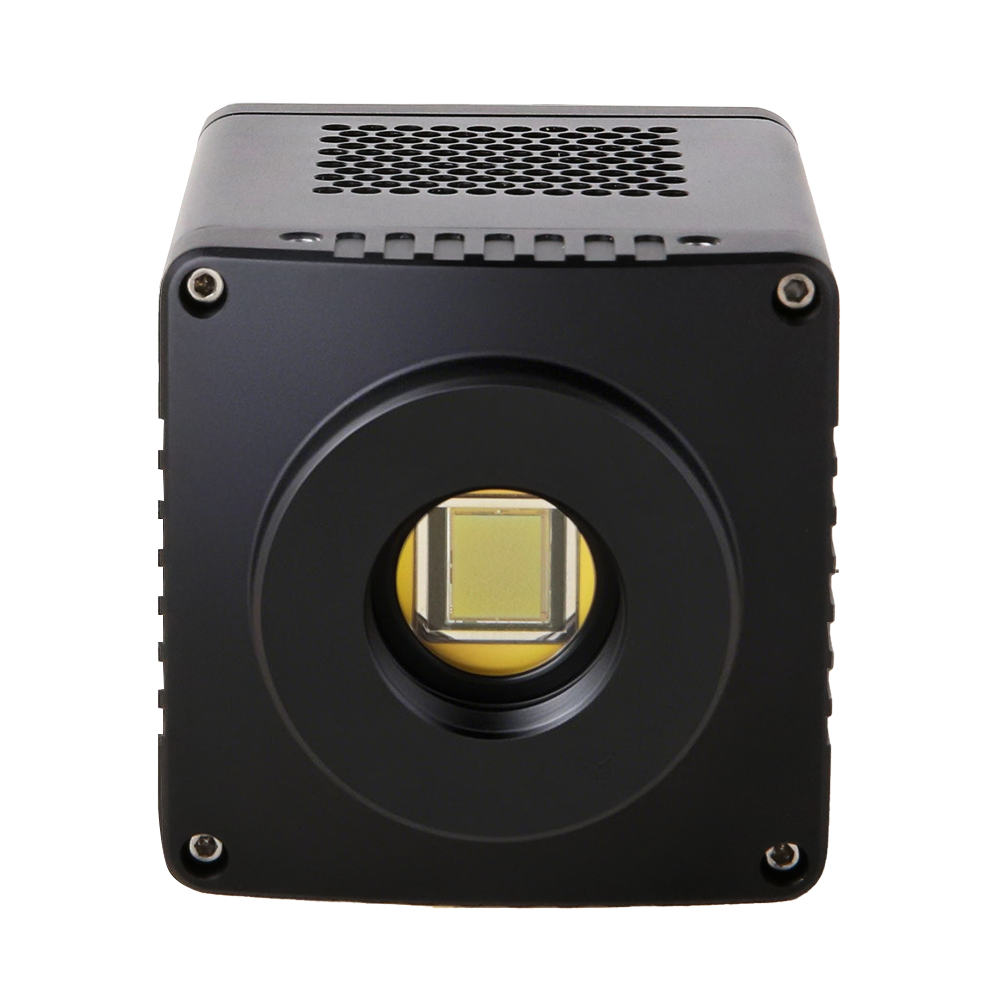

VGA cooled: 68×68×90.3 mm (≈485 g) · C-mount; UMV: 45×45×50 mm; GMV: 33×33×46.7 mm
Frequently Asked Questions
Learn more about SWIR short-wave infrared camera technology
Deep Understanding of SWIR Cameras
Short-Wave Infrared (SWIR) cameras and their core sensors are important components of advanced imaging systems. SWIR technology covers the 900–1700 nanometer wavelength band and has excellent penetration capabilities in harsh environments, such as penetrating fog, smoke, and dust to achieve clear imaging under extreme conditions.
SWIR cameras primarily rely on short-wave infrared light reflection, similar to the visible light band, complementing the application range that thermal imaging cameras (LWIR) cannot cover, providing more complete imaging solutions. They are compact and flexibly integrated, making them easy to apply in various industrial and commercial systems.
The high resolution and high sensitivity of SWIR cameras can meet precision detection and high-requirement applications, capable of detecting minute changes and anomalies in samples, making them very suitable for quality control and defect detection. Some models support cooling, further ensuring imaging quality in high-temperature or high-noise environments.
To reduce system costs and improve integration efficiency, modern SWIR cameras commonly adopt standard optical interfaces and compact designs to accommodate broader application requirements. With the continuous development of imaging markets and technology, SWIR cameras have become one of the key technologies for high-end imaging and sensing in multiple industries due to their unique advantages.
Application Examples
Demonstration of SWIR camera applications in real-world scenarios
More Application Industry References
- Semiconductor Industry: Solar cell and chip inspection
- Agriculture: Spectral remote sensing applications via multirotor aircraft
- Recycling Industry: Material sorting of plastics, waste, and other materials
- Medical Imaging and Research: Hyperspectral and multispectral imaging
- Food Industry: Quality inspection and grading
- Beverage Industry: Liquid level detection in opaque containers
- Packaging: Seal inspection
- Glass Industry: High-temperature glass penetration defect detection
- Printing Industry: See-through hidden features
- Video Surveillance: Visual enhancement (e.g., smoke penetration)
- Security: Counterfeit detection, such as currency, wigs, or skin
