Microscopy Imaging Series Product Overview
The Microscopy Imaging Series targets ambient temperature microscopy scenarios including educational microscopy, laboratory research, pathological sections, and live cell observation. This comprehensive collection encompasses the following non-cooled digital microscopy camera platforms.
Product Sub-Series Matrix
| Sub-Series | Sensor Type | Interface | Typical Resolution (& Format) | Interface (Customizable) |
|---|---|---|---|---|

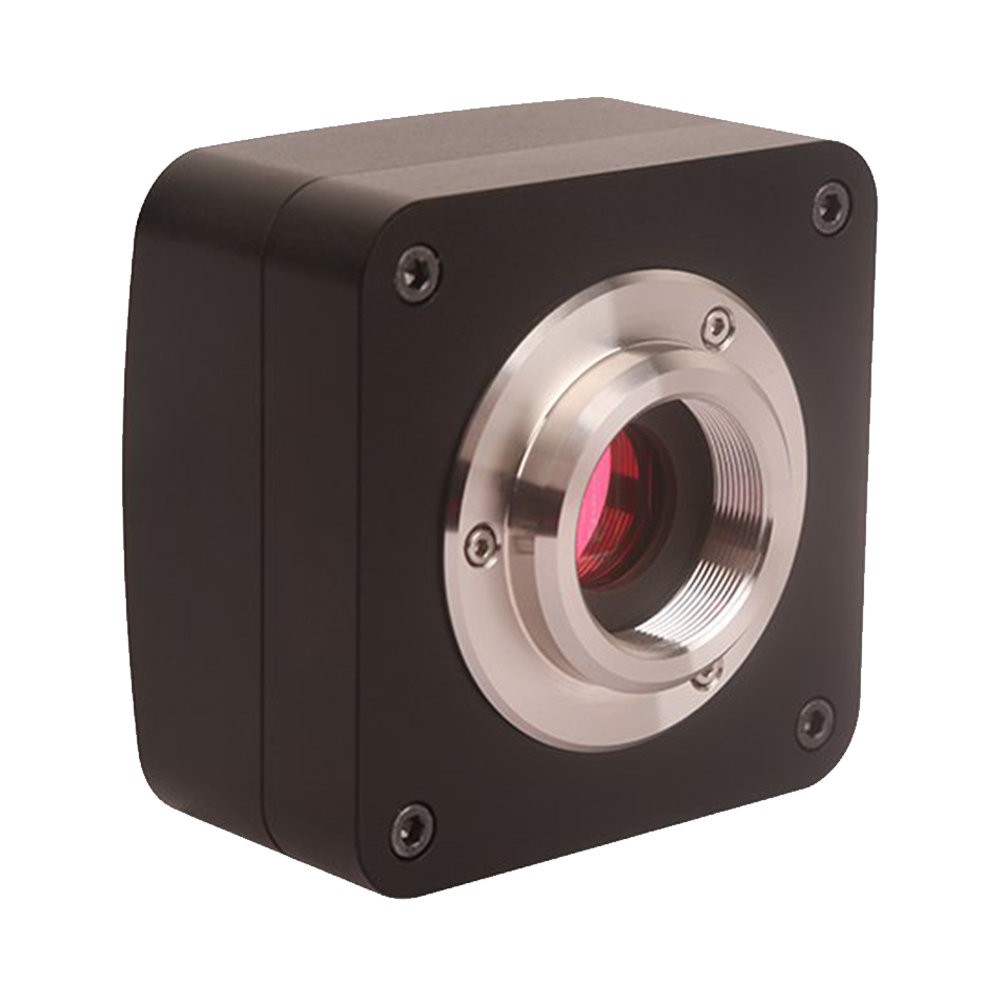

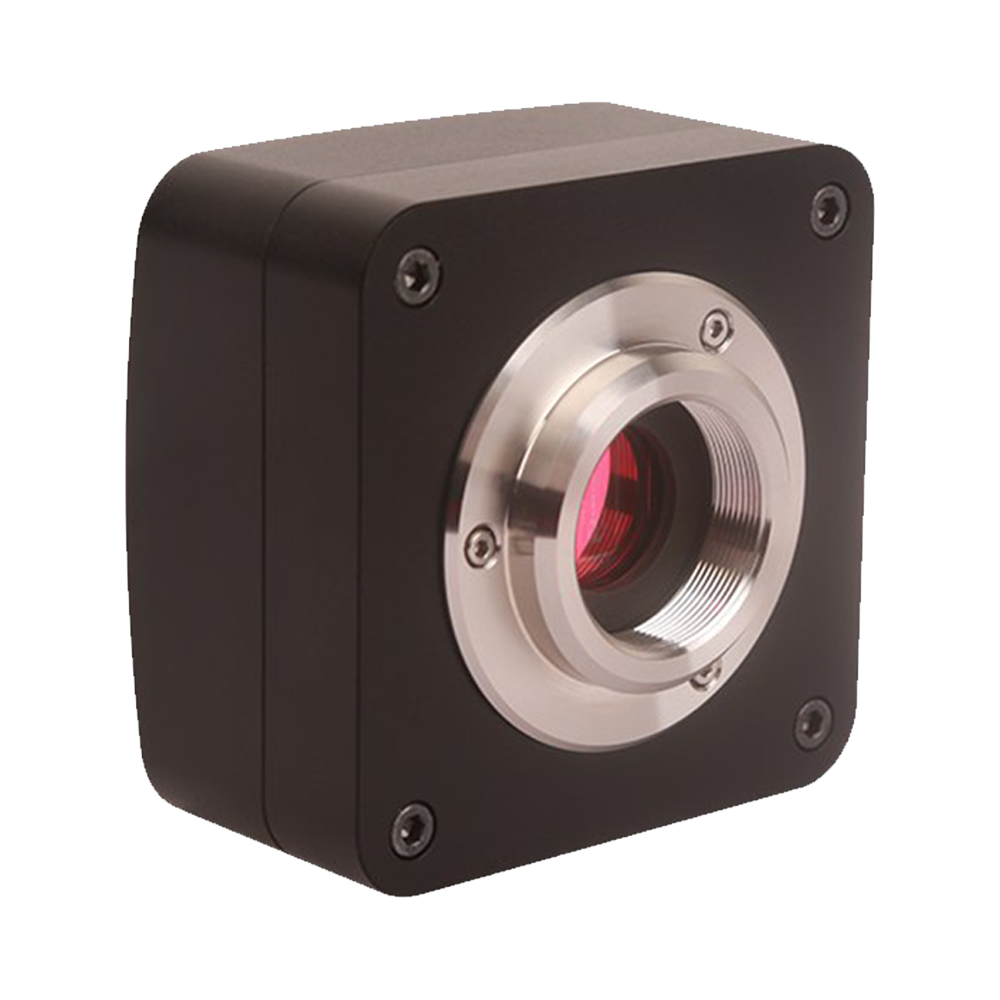

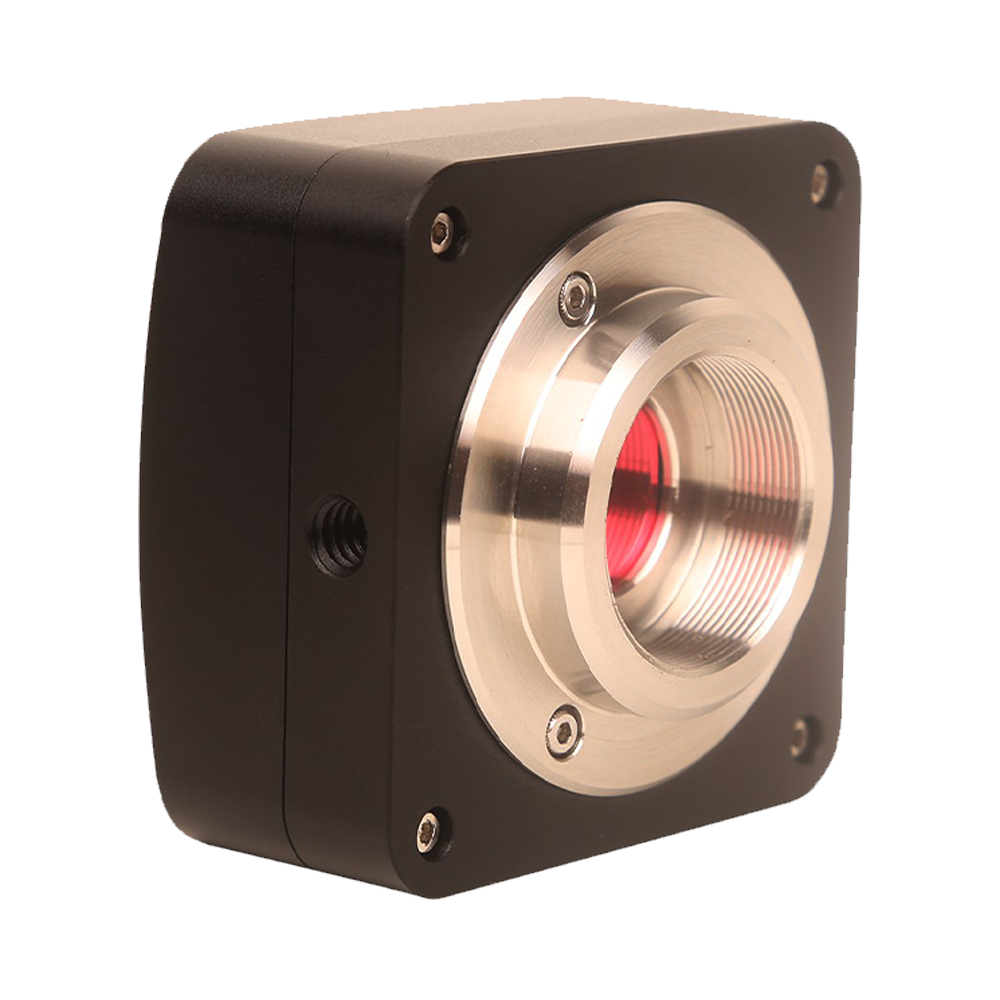

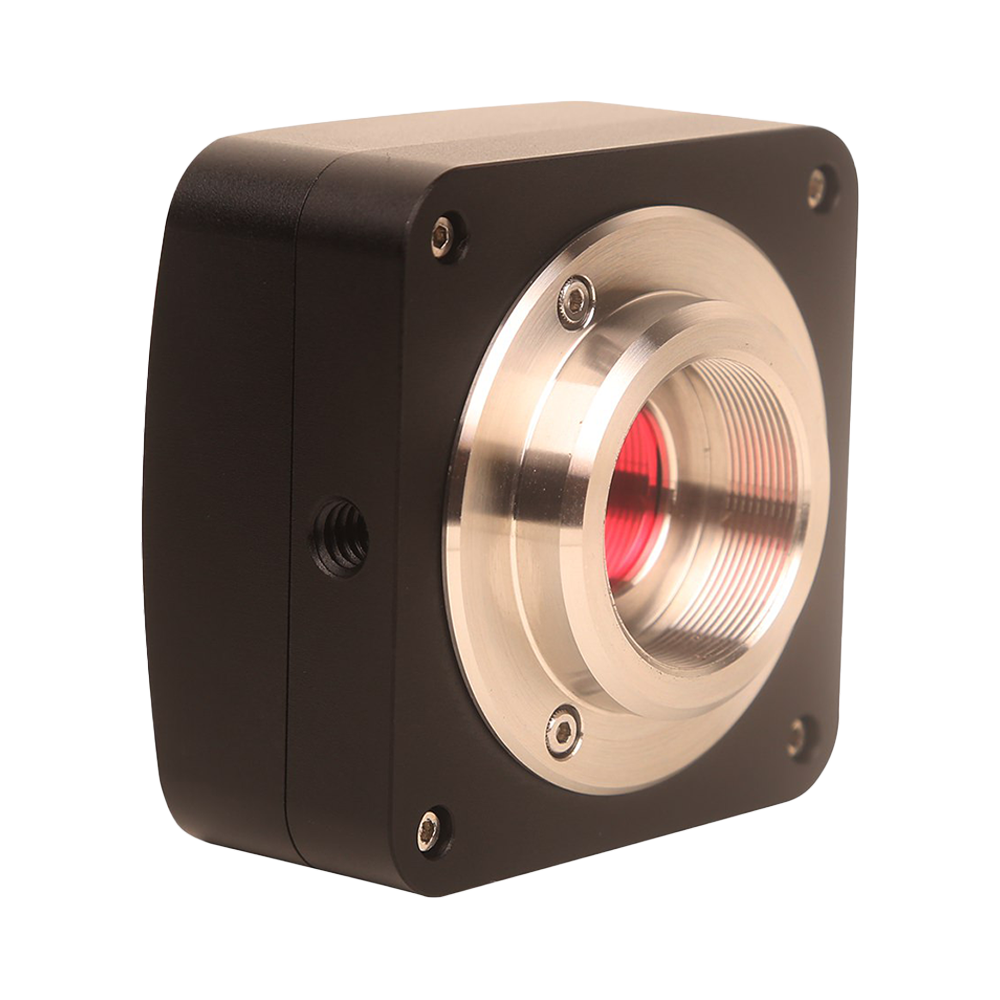

| U3CCD / EXCCD / UHCCD / LHCCD | Sony CCD / Linear CCD | USB 3.0 / USB 2.0 | 0.4 – 12 MP (1/3″–1″) | C-Mount |

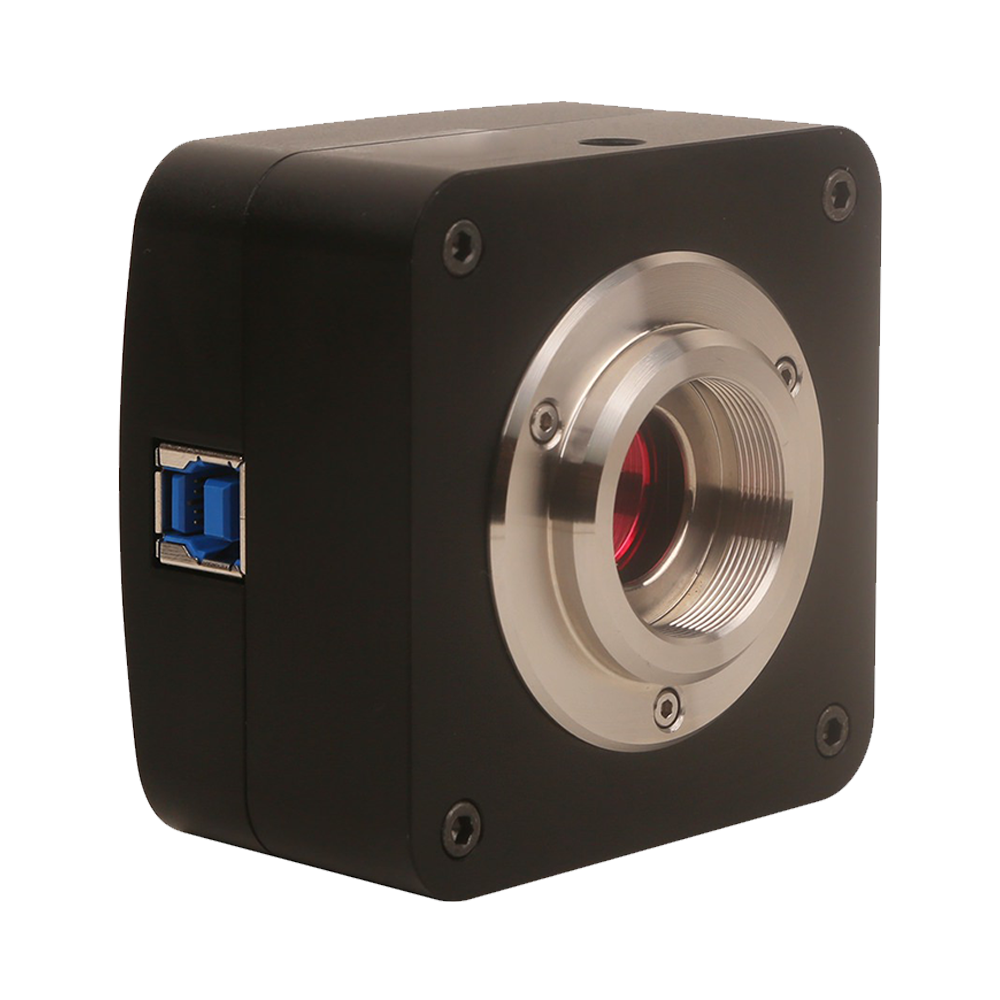

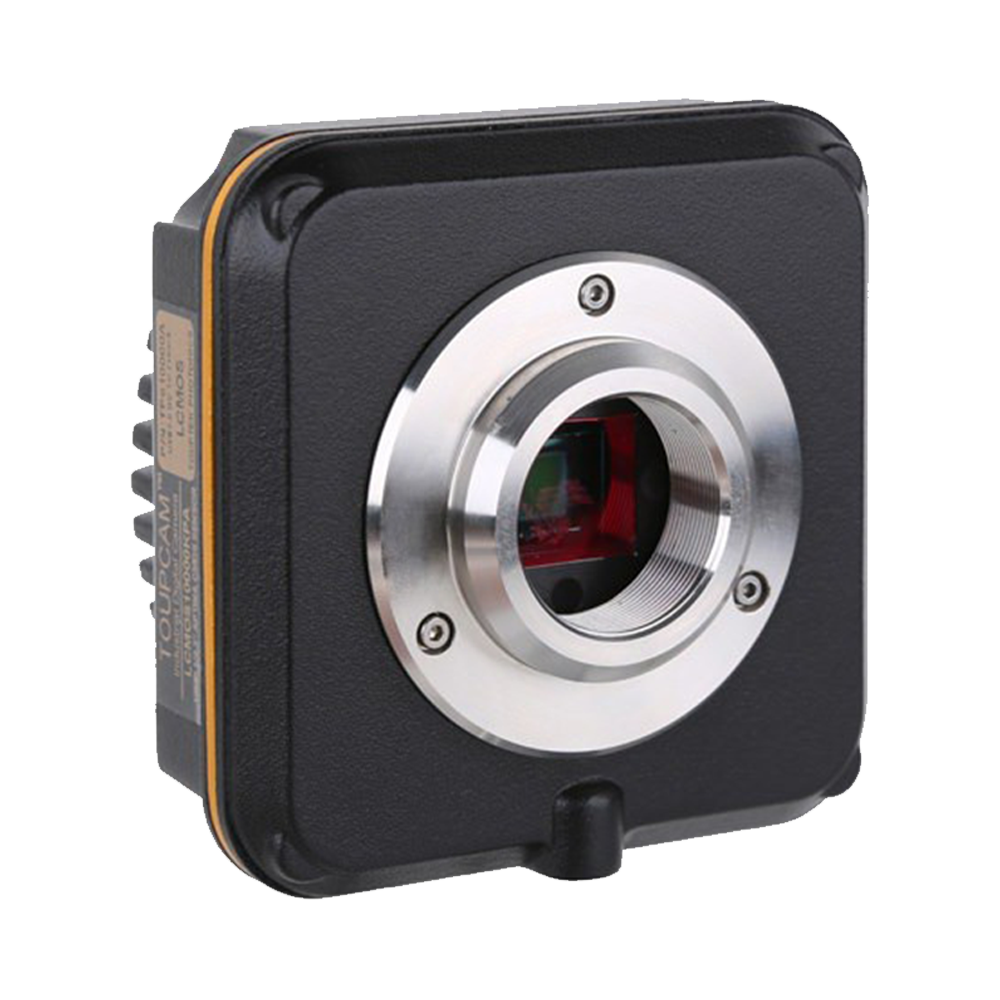

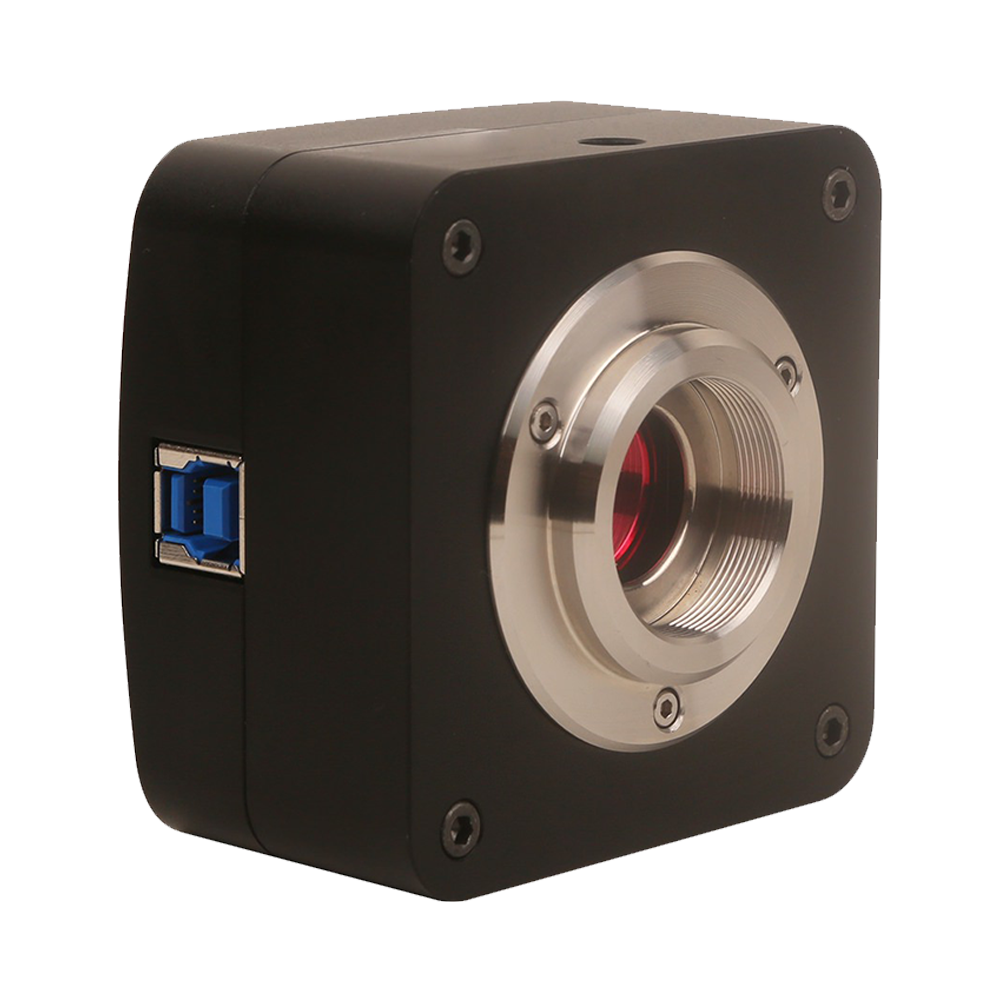

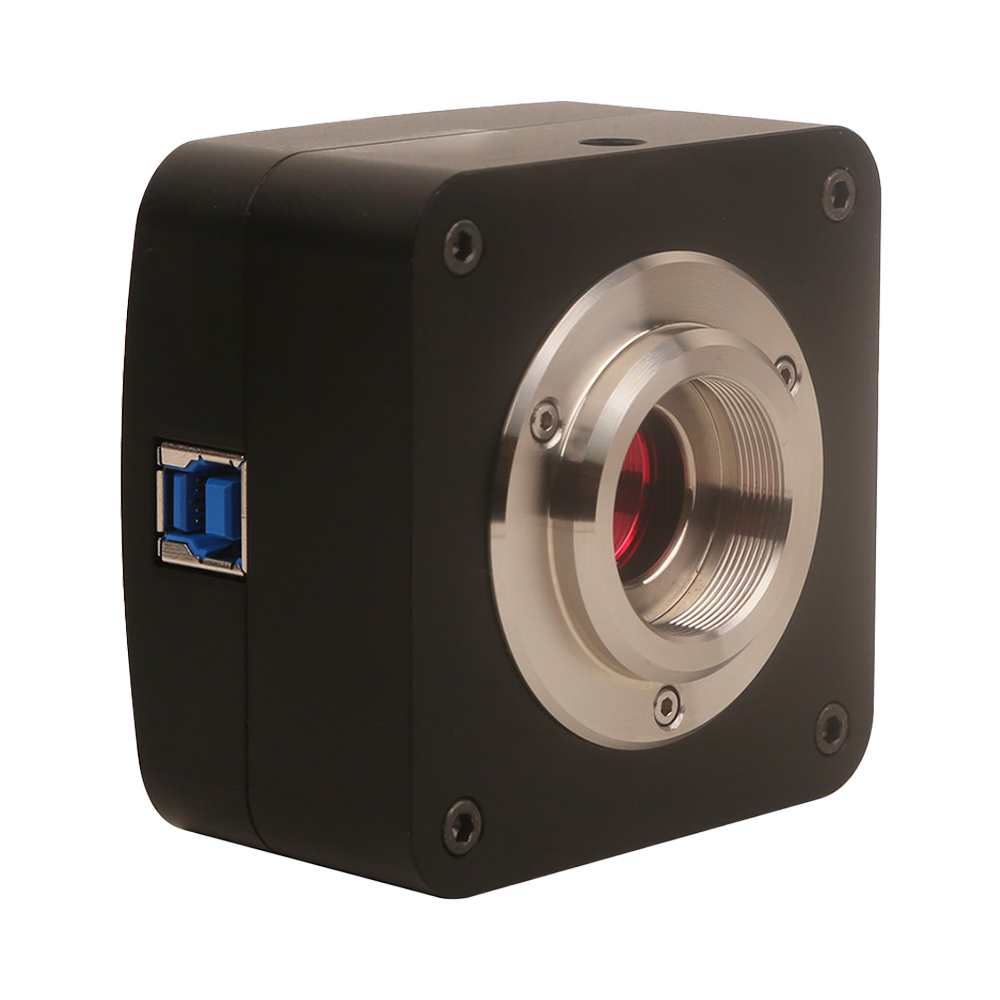

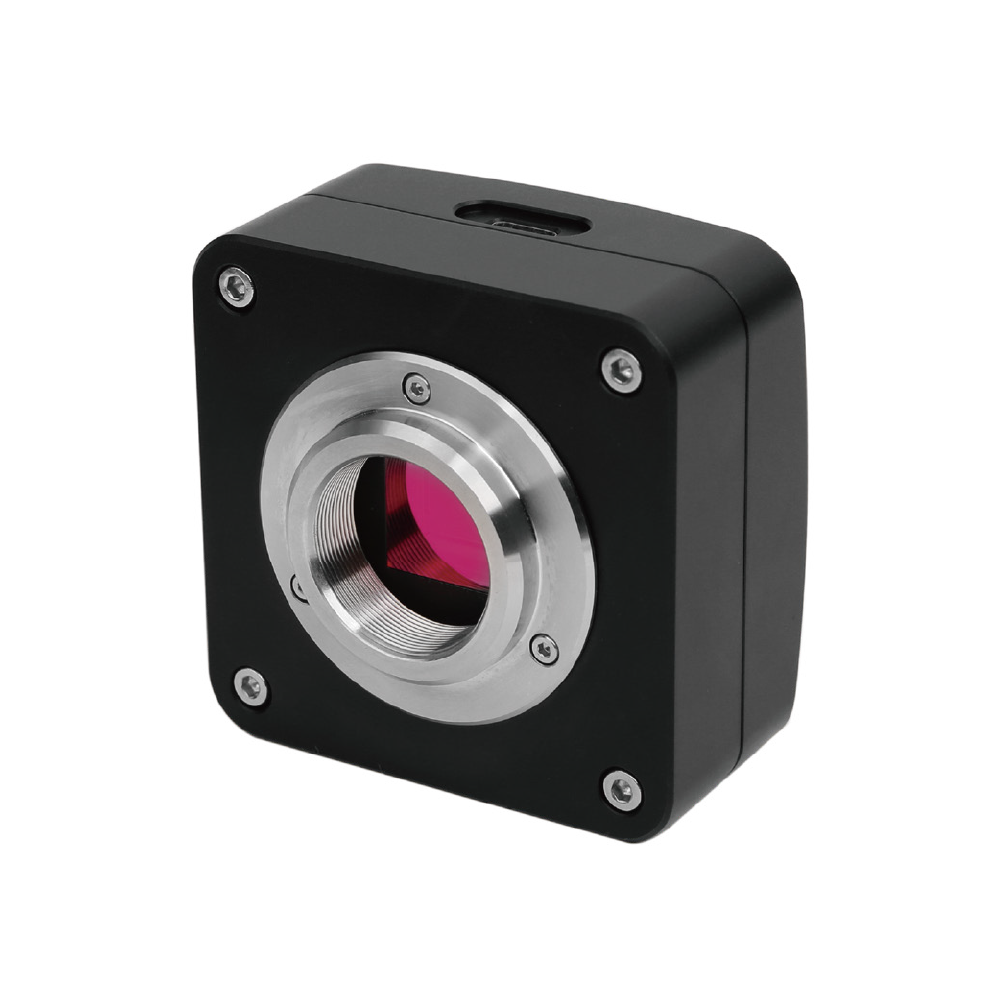

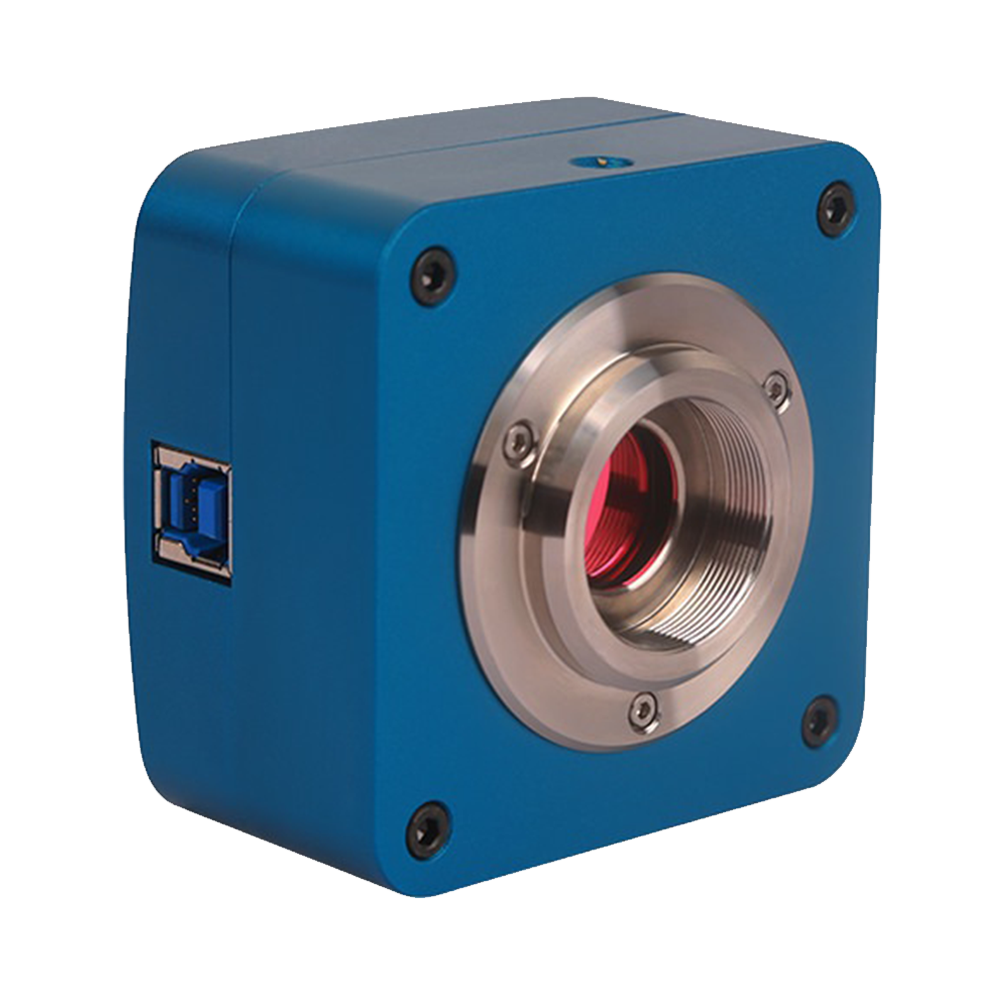

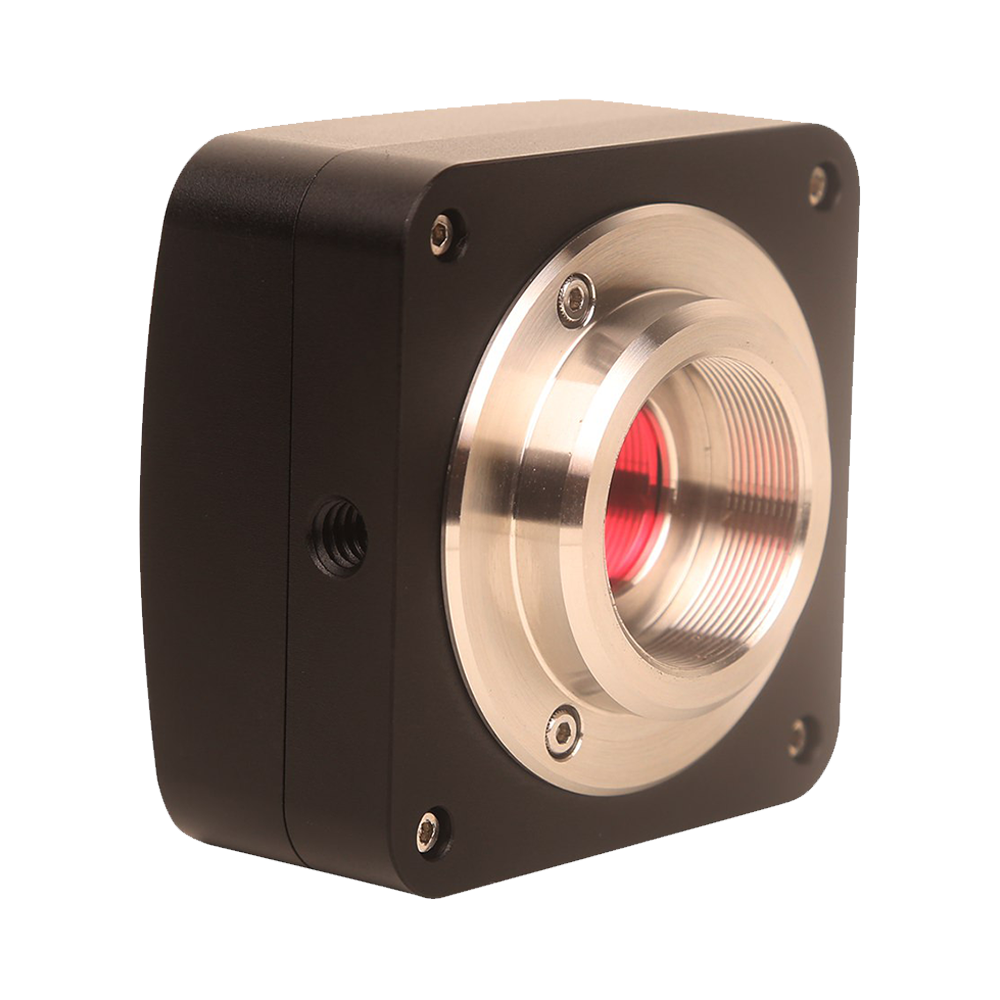

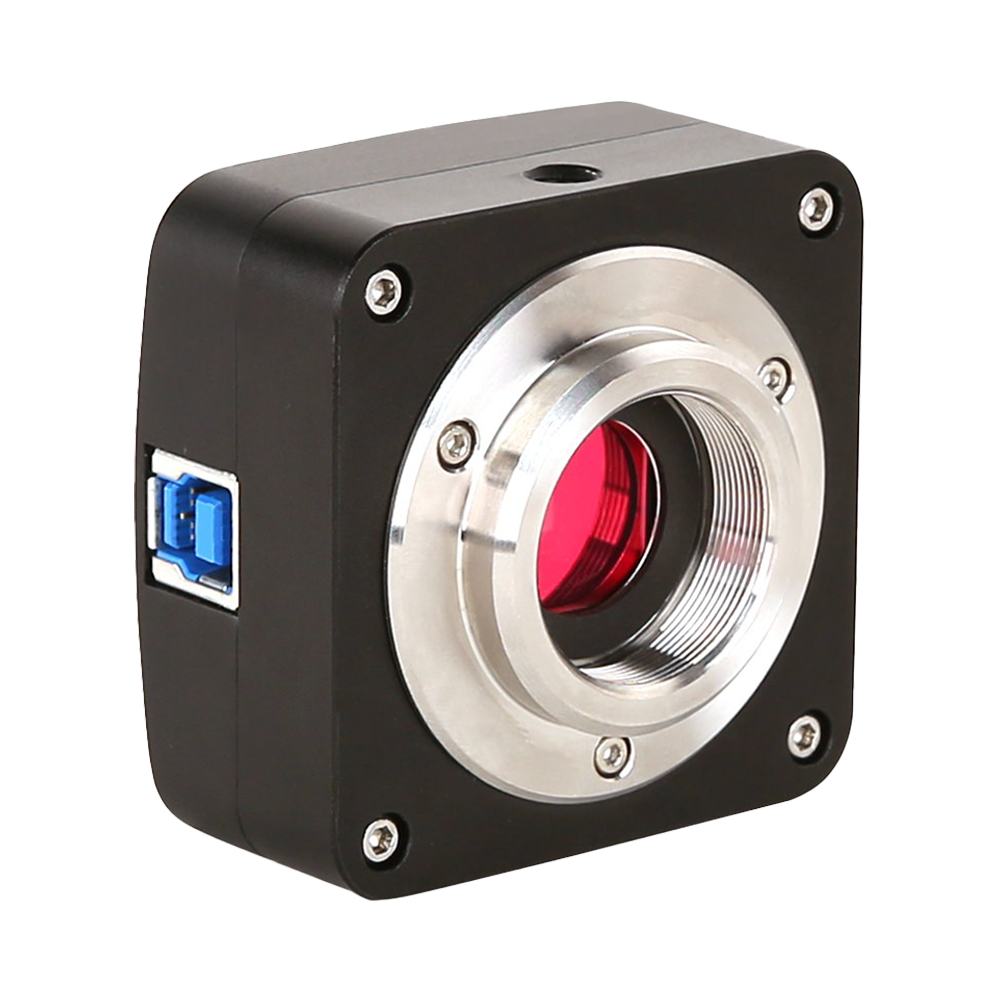

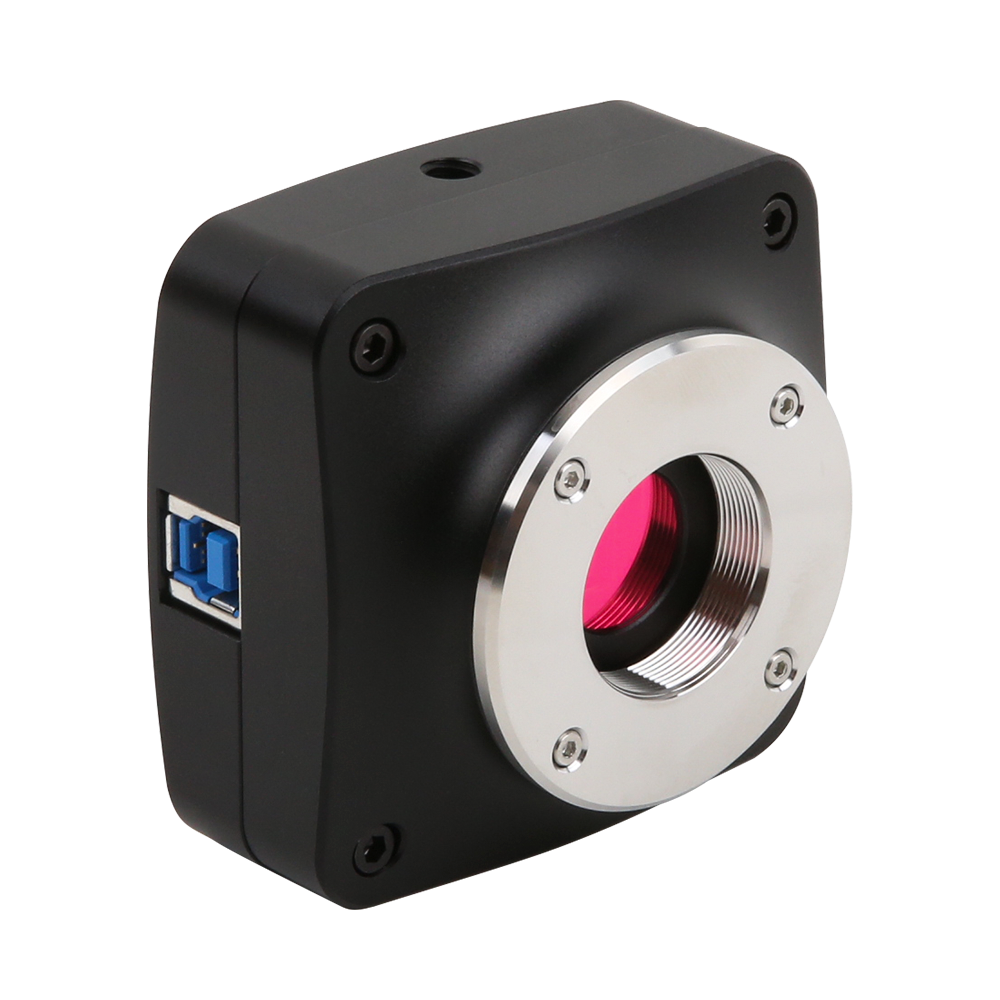

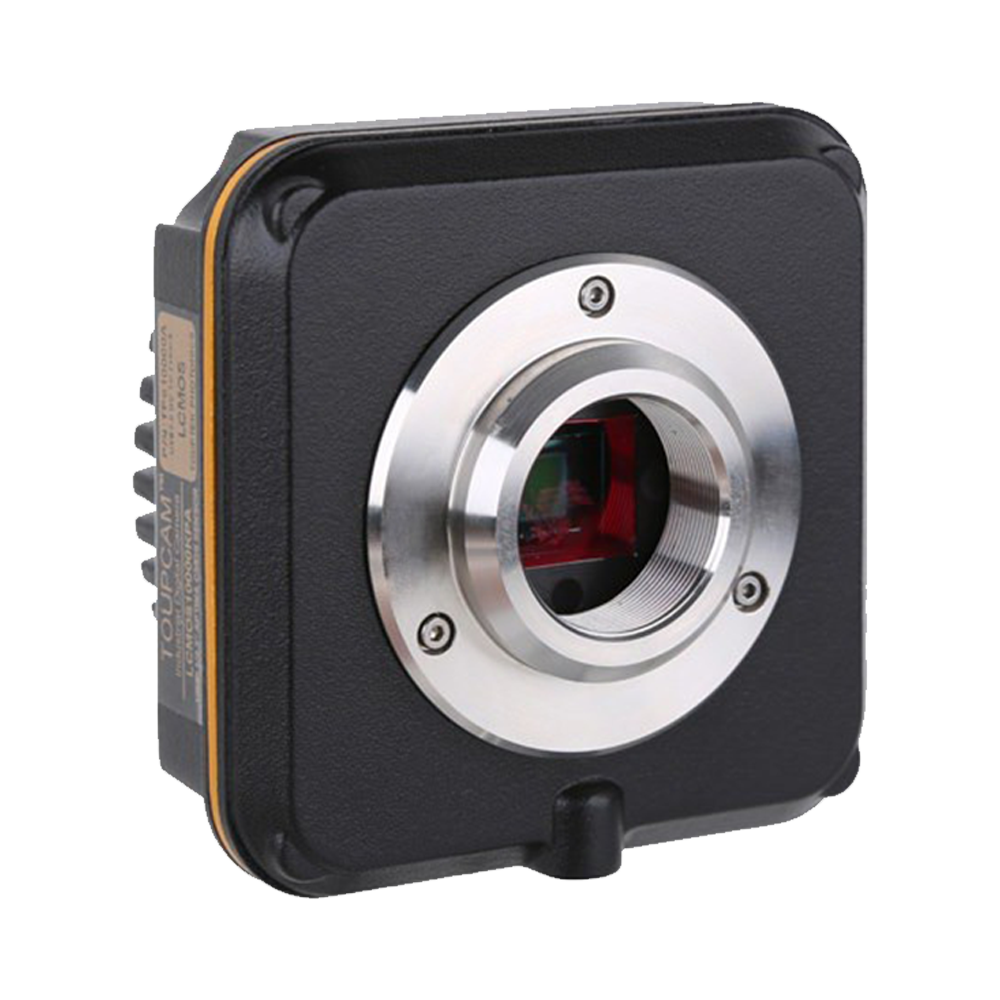

| E3CMOS / E3ISPM / U3ISPM / L3CMOS / U3CMOS / C3CMOS / ECMOS / LCMOS / UCMOS / UA / C2CMOS | Sony / Aptina / ON Semi CMOS | USB 3.0 / USB 2.0 | 0.4 – 20 MP (1/3″–1″) | C-Mount / M42 |

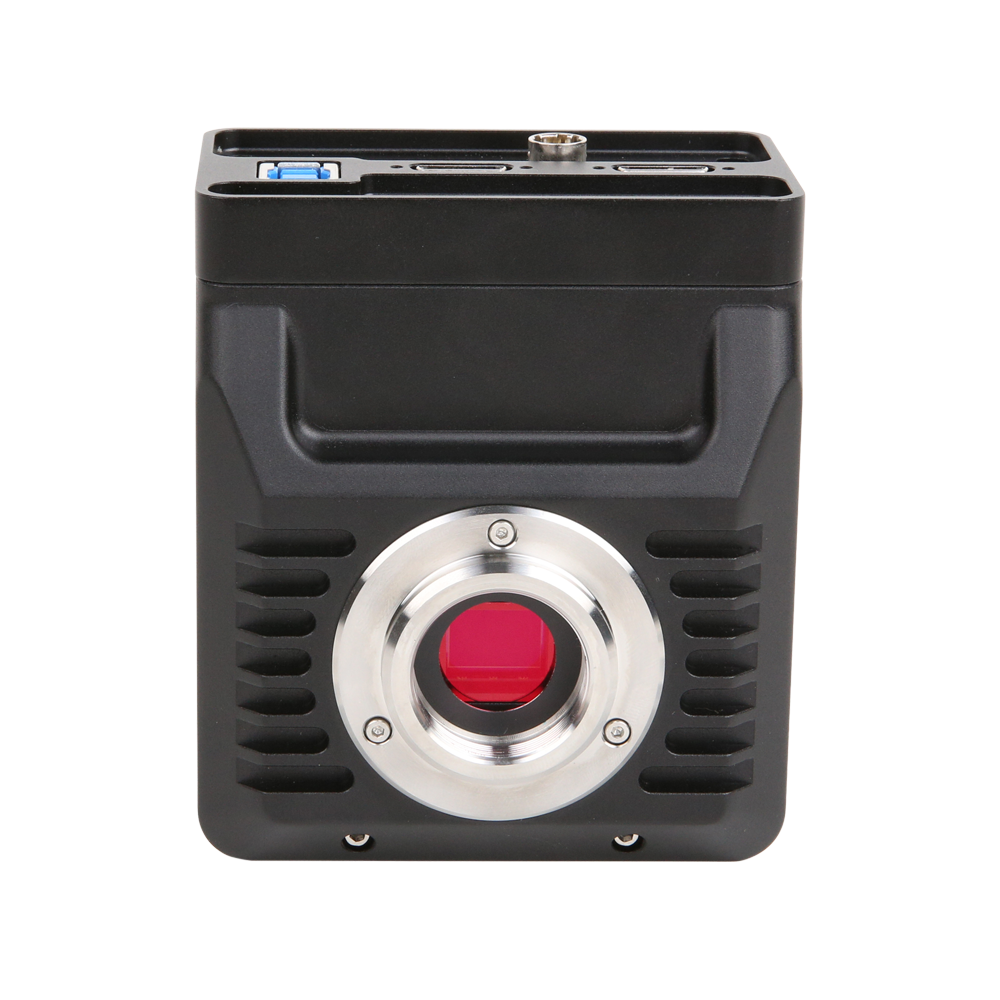

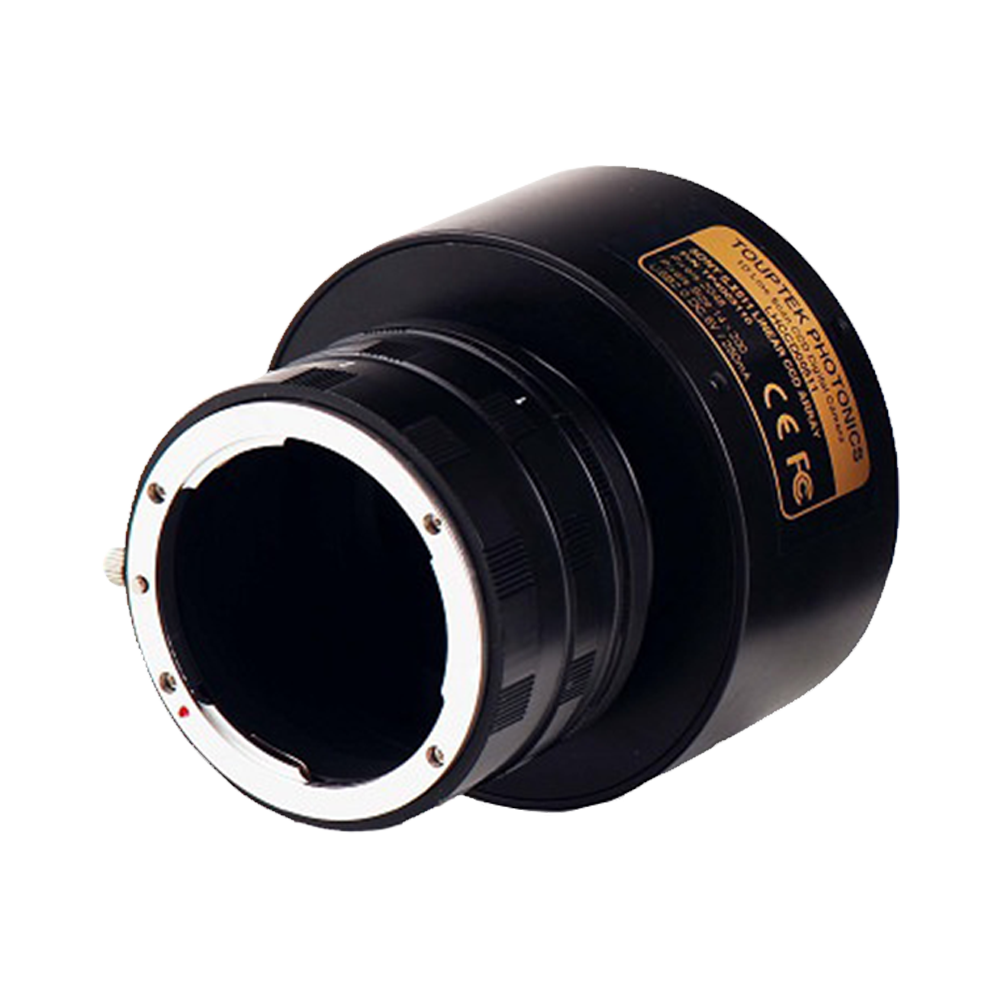

| BIGEYE | Sony Exmor / GSENSE CMOS | USB 3.0 | 4.2 – 10 MP (M42) | M42 / M42-to-C/F |

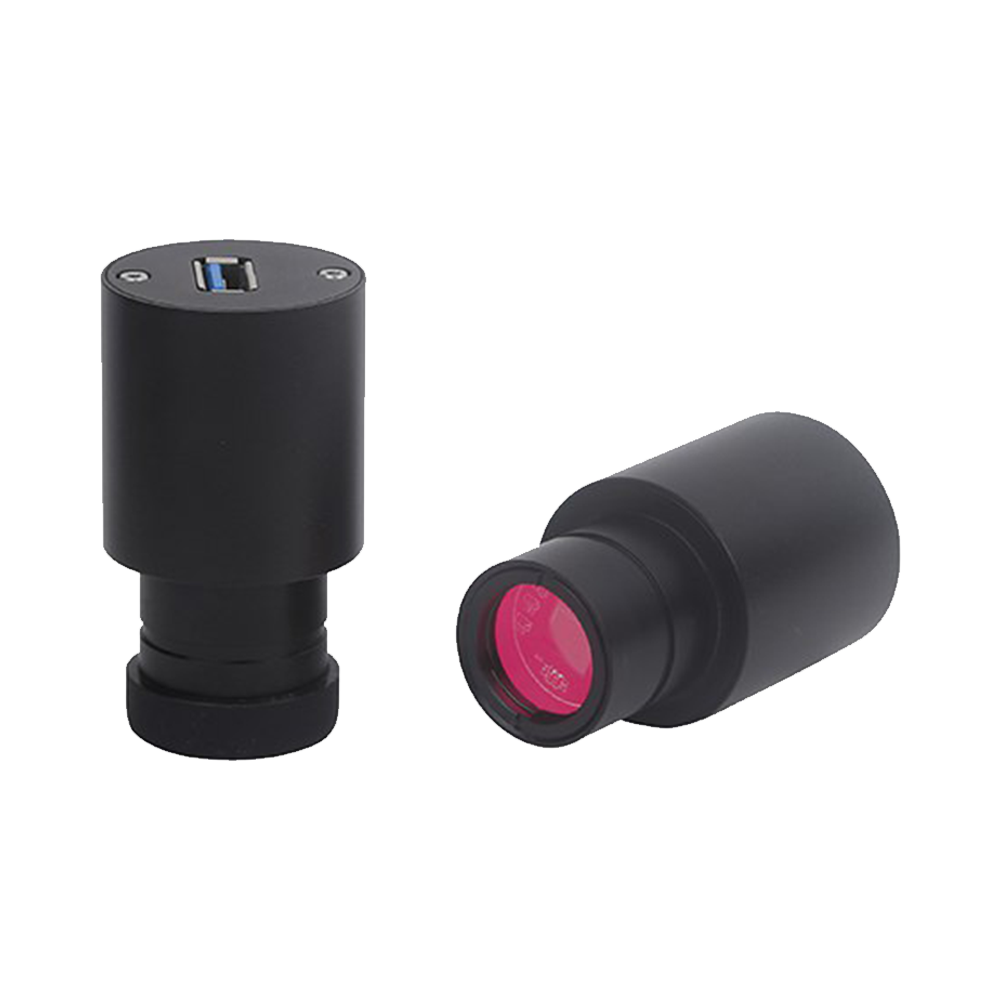

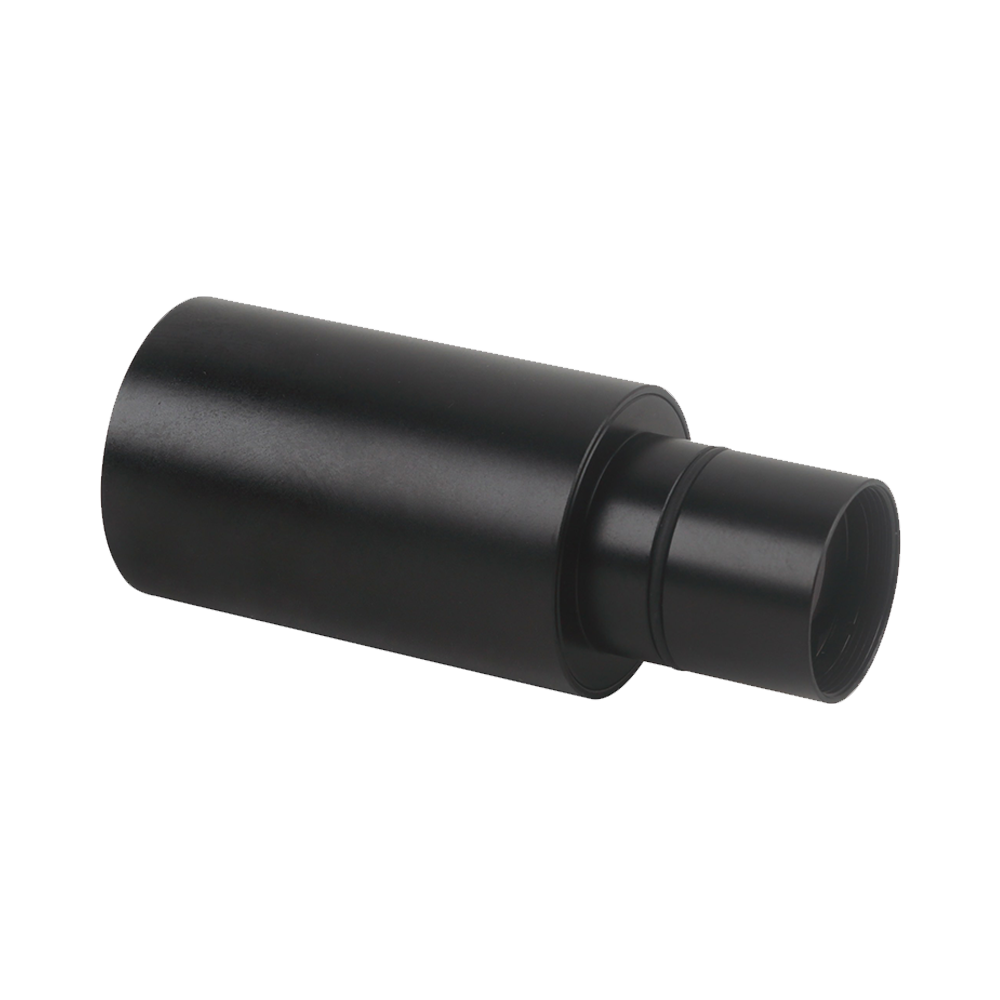

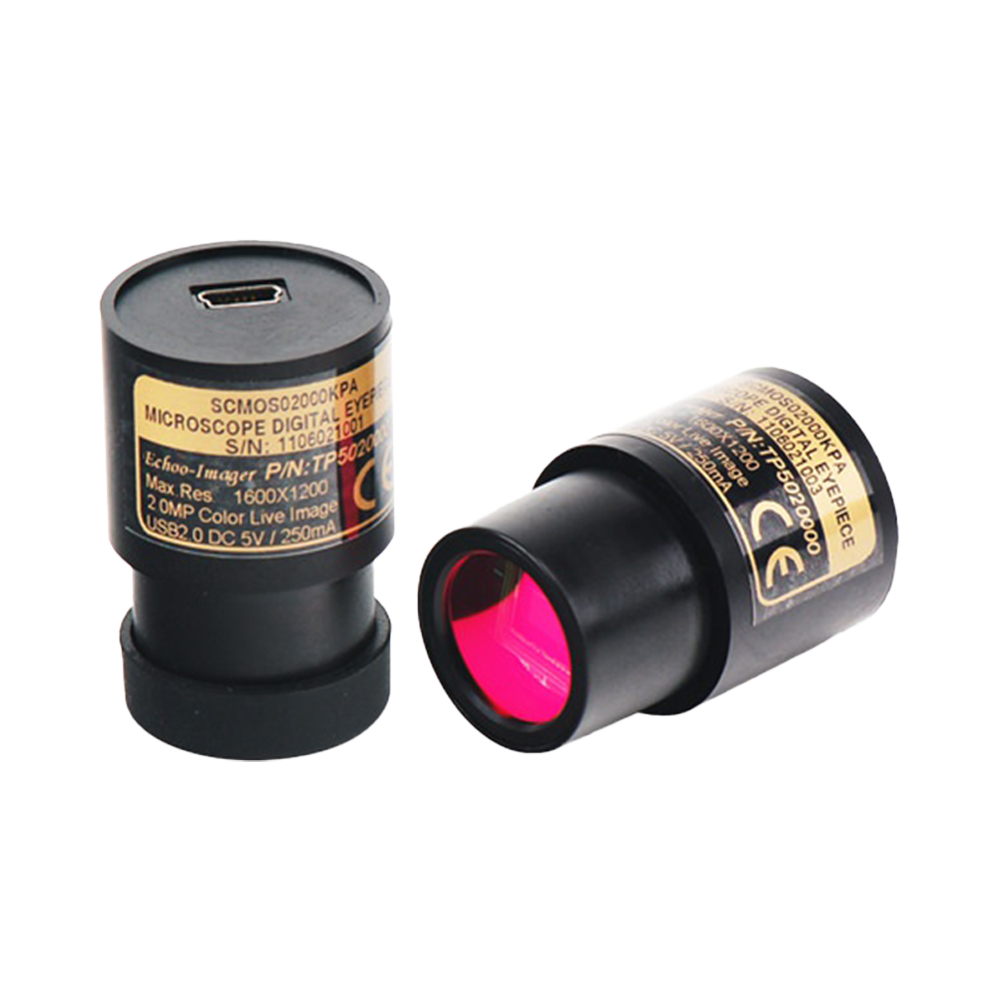

| SCMOS / S3CMOS / SPCMOS | CMOS | USB 2.0 / USB 3.0 | 0.4 – 8 MP (1/3″) | 23.2 mm Eyepiece Tube Style |
Key Features
Plug-and-Play Multi-Interface
Full compatibility between USB 3.0 (5 Gbps) and USB 2.0, with GigE available on select series. Multiple mechanical specifications including 23.2 mm eyepiece tube, C-Mount, M42, and F-mount enable rapid adaptation to various microscope brands.
Multi-Tier Resolution & Frame Rates
Coverage from 0.4 MP to 45 MP resolution range. High-speed modules achieve >400 fps @ VGA for rapid preview capabilities, meeting requirements for dynamic sample observation and educational demonstrations.
High Sensitivity & Multi-Spectral
High quantum efficiency sensors including Sony ExView HAD CCD, Exmor CMOS, and GSENSE BSI technologies. Available in RGB, Mono, UV, and NIR versions with peak quantum efficiency exceeding 90%, delivering high signal-to-noise ratio images even under low-light conditions.
Hardware ISP & Real-Time HDR
Models such as E3ISPM and U3ISPM feature built-in 12/14-bit ISP with engine-level real-time demosaicing, black level correction, automatic exposure and white balance, plus HDR synthesis, significantly reducing host CPU load.
Flexible ROI & Image Control
Supports hardware ROI, binning, flipping, and bit depth switching. When combined with ToupView software, enables measurement, stitching, annotation, and batch export functions with a single click.
Comprehensive Accessory Ecosystem
Provides 0.37×–0.75× TV adapters, dedicated C-Mount adapter tubes for major microscope brands, TPS-600 series microscopy stands, and LED illumination accessories for easy construction of complete digital microscopy workstations.
Cross-Platform SDK
Includes ToupView professional software and comprehensive SDK support for Windows, Linux, macOS, and Android platforms. Compatible with DirectShow, Twain, and LabVIEW for convenient secondary development and system integration.
Reliability Certification
Certified to CE/FCC/RoHS standards with wide temperature design supporting −10 °C to 55 °C operation. Enables 24/7 stable operation to meet the high-frequency usage demands of educational and research laboratory environments.
