E10ISPM Series
Product Introduction

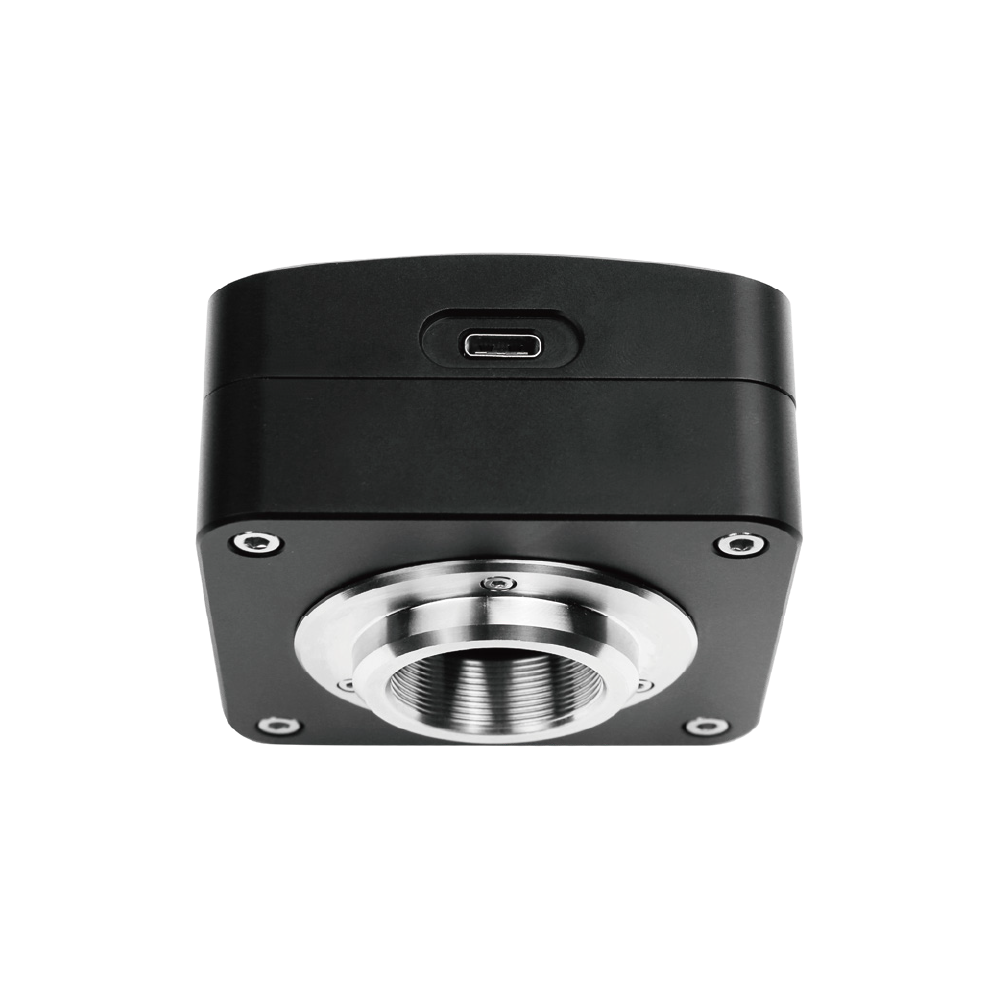

Touptek's new E10ISPM series cameras feature cutting-edge USB3.2 Gen2 technology, breaking through transmission bottlenecks with 10 Gbps high bandwidth, achieving speeds 2-3 times faster than traditional USB3.0 cameras, supporting microscopy imaging, industrial inspection, scientific research and other scenarios. The USB Type-C interface supports reversible insertion, combining convenience with stability to meet multi-device connection requirements.
The series adopts Sony IMX high-performance CMOS sensors, providing excellent low-noise performance and high dynamic range. Supports 8/12-bit data switching to meet diverse needs from rapid preview to precision measurement.
Typical applications: High-speed microscopy imaging, fluorescence imaging, biomedical research, semiconductor inspection, industrial quality control, scientific experiments.
Product Features
- USB3.2 Gen2 interface with 10 Gbps ultra-high bandwidth, transmission speed 2-3 times faster than USB3.0
- USB Type-C interface supporting reversible insertion for convenient and stable connection
- Sony IMX high-performance CMOS sensors (IMX472/IMX383/IMX585) with low noise and high sensitivity
- Flexible switching between 8/12-bit data formats
- High frame rate acquisition up to 240 fps@1760×1318 (8-bit)
- Low readout noise as low as 1.07 e- (HCG mode)
- High dynamic range up to 72 dB
- Resolution coverage from 8.3–21 MP meeting diverse application requirements
- Support for hardware and software binning (2×2, 3×3, 4×4)
- C-mount standard lens interface compatible with various microscopes and industrial lenses
- Support for external trigger and GPIO control
- Bundled ToupView software with Windows/Linux/macOS/Android multi-platform SDK
- Compliant with CE/FCC certification standards
Product Models
Select the E10ISPM Series that fits your application requirements
| Product Model | Effective Pixels | Sensor Size | Shutter Type | Frame Rate (FPS) | Sensor Type | Data Interface | Color | Actions |
|---|---|---|---|---|---|---|---|---|
| E10ISPM21000KPA | 21M (5280×3956) |
17.42 mm × 13.05 mm
1.36" (21.77 mm)
|
Rolling Shutter |
49 fps@5280×3956(8-bit)
25 fps@5280×3956(12-bit)
115 fps@2640×1978(8-bit)
55 fps@2640×1978(12-bit)
240 fps@1760×1318(8-bit)
117 fps@1760×1318(12-bit)
|
IMX472 (C,RS) | USB3.2 Gen2 (Type-C) |
|
View Details |
| E10ISPM20000KPA | 20M (5472×3648) |
13.13 mm × 8.75 mm
0.99" (15.78 mm)
|
Rolling Shutter |
49 fps@5472×3648(8-bit)
24 fps@5472×3648(12-bit)
49 fps@2736×1824(8-bit)
24 fps@2736×1824(12-bit)
120 fps@1824×1216(8-bit)
120 fps@1824×1216(12-bit)
|
IMX383 (C,RS) | USB3.2 Gen2 (Type-C) |
|
View Details |
| E10ISPM08300KPA | 8.3M (3840×2160) |
11.13 mm × 6.26 mm
0.8" (12.77 mm)
|
Rolling Shutter |
88 fps@3840×2160(8-bit)
60 fps@3840×2160(12-bit)
60 fps@1920×1080(8-bit)
60 fps@1920×1080(12-bit)
|
IMX585 (C,RS) | USB3.2 Gen2 (Type-C) |
|
View Details |
Package Contents #
Standard configuration and packing details for E10ISPM series USB 3.2 Gen2 hardware ISP CMOS cameras
Standard Packing List
- Outer carton: L 52 cm × W 32 cm × H 33 cm (20 pcs, approximately 12-17 kg per carton)
- Inner box: L 15 cm × W 15 cm × H 10 cm (0.58-0.60 kg per box)
- One E10ISPM series camera
- High-speed USB 3.2 dual Type-C gold-plated data cable (2.0 m)
- CD (drivers and application software, Ø 12 cm)
Optional Accessories
- Adjustable eyepiece tube adapters
Dia. 23.2 mm eyepiece tube to C-mount: 108001/AMA037, 108002/AMA050, 108003/AMA075, 108004/AMA100
Dia. 31.75 mm eyepiece tube to C-mount: 108008/ATA037, 108009/ATA050, 108010/ATA075, 108011/ATA100 - Fixed eyepiece tube adapters
Dia. 23.2 mm eyepiece tube to C-mount: 108005/FMA037, 108006/FMA050, 108007/FMA075, 108008/FMA100
Dia. 31.75 mm eyepiece tube to C-mount: 108011/FTA037, 108012/FTA050, 108013/FTA075, 108014/FTA100 - 108015 (Dia. 23.2 mm to 30.0 mm ring) - adapter ring for 30 mm eyepiece tubes
- 108016 (Dia. 23.2 mm to 30.5 mm ring) - adapter ring for 30.5 mm eyepiece tubes
- 108017 (Dia. 23.2 mm to 31.75 mm ring) - adapter ring for 31.75 mm eyepiece tubes
- Stage micrometers
106011/TS-M1 (X = 0.01 mm/100 Div.)
106012/TS-M2 (X, Y = 0.01 mm/100 Div.)
106013/TS-M7 (X = 0.01 mm/100 Div., 0.10 mm/100 Div.)
Product Dimensions #
Outline reference for E10ISPM series USB 3.2 Gen2 hardware ISP CMOS cameras
Frequently Asked Questions
Understand the professional capabilities of the E10ISPM series microscopy imaging cameras
- 10 Gbps bandwidth: Doubles the throughput of USB 3.0 (5 Gbps) and eliminates transmission bottlenecks.
- Sustained high frame rates: 21 MP sensors still reach 49 fps, while 8.3 MP models deliver up to 88 fps at 8-bit output.
- Reversible Type-C interface: Reliable connections with plug-from-any-side convenience and stronger mechanical retention.
- Lower latency: Minimizes transfer delays for true real-time preview and rapid acquisition.
- Backward compatibility: Fully compatible with USB 3.0 and USB 2.0 systems to protect existing investments.
Resolution range: 8.3 MP to 21 MP to match different microscopy scenarios.
Read noise: As low as 1.07 e⁻ in HCG mode for fluorescence and other low-light imaging.
Dynamic range: Up to 72 dB, preserving highlight detail and shadow gradations.
Signal-to-noise ratio: Up to 45.9 dB for clean, high-contrast imagery.
Bit-depth options: Switchable 8/10/12-bit output to balance speed and accuracy.
Binning modes: Hardware and software 2×2/3×3/4×4 binning for sensitivity boosts.
Transfer speed: USB 3.2 Gen2 provides 10 Gbps bandwidth—double that of E3ISPM’s USB 3.0 interface.
Interface update: Type-C connectivity offers reversible plug-in and sturdier connectors.
Image quality: Lower read noise and higher SNR deliver cleaner scientific imagery.
Frame-rate benefit: Higher throughput supports faster preview and acquisition at identical resolutions.
Future readiness: Additional bandwidth reserves capacity for next-generation high-resolution sensors.
E10ISPM21000KPA: 21 MP, 4/3-inch format, delivering the largest field of view for high-resolution inspection.
E10ISPM20000KPA: 20 MP, 1/1.1-inch format, a balanced choice for mainstream microscopy workflows.
E10ISPM08300KPA: 8.3 MP, featuring 1.07 e⁻ minimum read noise, optimized for fluorescence and fast dynamics.
Consider resolution, field-of-view requirements, frame-rate targets, sensitivity demands, and budget constraints when selecting a model.
In-Depth Product Introduction
USB 3.2 Gen2 10 Gbps Data Throughput
E10ISPM cameras adopt the latest USB 3.2 Gen2 standard, providing 10 Gbps theoretical bandwidth and more than 8 Gbps effective transmission. Compared with the 5 Gbps ceiling of USB 3.0, throughput increases by 100%, eliminating the bottleneck when streaming ultra-high-resolution data. Even at 21 MP full resolution the camera maintains 49 fps at 8-bit output, while the 8.3 MP model reaches up to 88 fps, delivering both high resolution and high frame rate.
USB Type-C Convenient Connectivity
The USB Type-C connector supports reversible plug-in, ending the trial-and-error associated with legacy connectors. Reinforced mechanical strength and improved electrical characteristics provide a reliable link and sufficient power delivery without an additional adapter. Type-C is widely compatible; simple adapters allow seamless integration with traditional USB-A workstations.
Sony IMX High-Performance CMOS Sensors
The series employs Sony’s latest IMX sensors, including IMX472 (21 MP), IMX383 (20 MP), and IMX585 (8.3 MP). These sensors combine advanced fabrication with superb quantum efficiency to minimize read noise—down to 1.07 e⁻ on the IMX585. Dual HCG/LCG gain modes keep noise low while providing a 39,000 e⁻ full well and up to 72 dB dynamic range for demanding scientific imaging.
Professional-Grade Imaging Performance
All models support selectable 8/10/12-bit outputs. Twelve-bit mode offers 4,096 tonal levels for quantitative analysis, whereas 8-bit mode maximizes frame rate for live observation. Carefully tuned gain conversion, read noise, and full well capacity yield up to 45.9 dB SNR, preserving fine detail across a broad range of illumination conditions.
Flexible Imaging Control System
Hardware and software binning (2×2/3×3/4×4) enhance sensitivity and frame rate when required. Programmable ROI capture lets users crop any window to further accelerate acquisition. Exposure can be controlled from microseconds to tens of seconds, and trigger, strobe, and synchronization ports simplify integration with automation platforms.
Robust System Integration & Software Ecosystem
E10ISPM cameras include a comprehensive SDK covering Windows, macOS, Linux, and Android, along with sample code for C/C++, C#, Python, and LabVIEW. Combined with ToupView/XCamView software, the platform supports live measurement, fluorescence pseudo-color, time-lapse capture, focus stacking, stitching, and batch automation to match laboratory, industrial, and educational workflows.
Applications
E10ISPM series deployments across diverse microscopy imaging fields
Key Advantages of the E10ISPM Series
10 Gbps Bandwidth
USB 3.2 Gen2 ultra-high-speed transfer
Type-C Interface
Reversible plug design for easy, stable connections
Sony IMX Sensors
High-performance CMOS with low noise
High Frame Rates
21 MP @ 49 fps; 8.3 MP @ 88 fps
Ultra-Low Noise
Read noise down to 1.07 e⁻
72 dB Dynamic Range
Rich tonal detail with wide latitude
Flexible Binning
Hardware/software 2×2/3×3/4×4 modes
Cross-Platform SDK
Windows, Linux, macOS, and Android support
