Enhanced Imaging (Industrial Cameras) Series
The Enhanced Imaging series encompasses industrial camera platforms designed for high-speed
machine vision, automated inspection, scientific measurement, and AI vision integration.
Non-cooled design
Resolution coverage from 0.39 MP – 251 MP, sensor formats ranging from
1/2.9″ micro sensors to 4.2″ full-frame. Mechanical mounts
provide C / M42 / F / EF (autofocus) and OEM structures for rapid
integration into various production lines and equipment.
Output interfaces covering industrial standards
High-quality multi-brand sensors
Featuring Sony / Gpixel / ON Semi CMOS sensors, supporting global shutter (GS) or rolling shutter (RS), with high peak quantum efficiency and low dark noise
Multi-interface high-speed output
USB 3.0 (5 Gbps), GigE (1 Gbps), 10 GigE (10 Gbps), CameraLink. Maximum single-link bandwidth up to 10 Gbps, meeting ultra-high resolution or high-speed acquisition requirements
Full resolution & sensor format coverage
0.39 MP – 251 MP, 1/2.9″ – 4.2″. Capable of >400 fps high-speed preview and 8K/12K ultra-high definition defect detection
Hardware ISP & HDR
Models like I3ISPM／I3ISPM-ISP feature built-in 12/14-bit ISP with engine-level real-time demosaicing, black level correction, auto exposure/white balance, and HDR composition, reducing host CPU load
Rich triggering & synchronization
Hardware trigger, software trigger, free run mode. Supports external I/O, programmable ROI, binning, precise frame rate control for assembly line and multi-camera parallel operations
Autofocus & multiple mounts

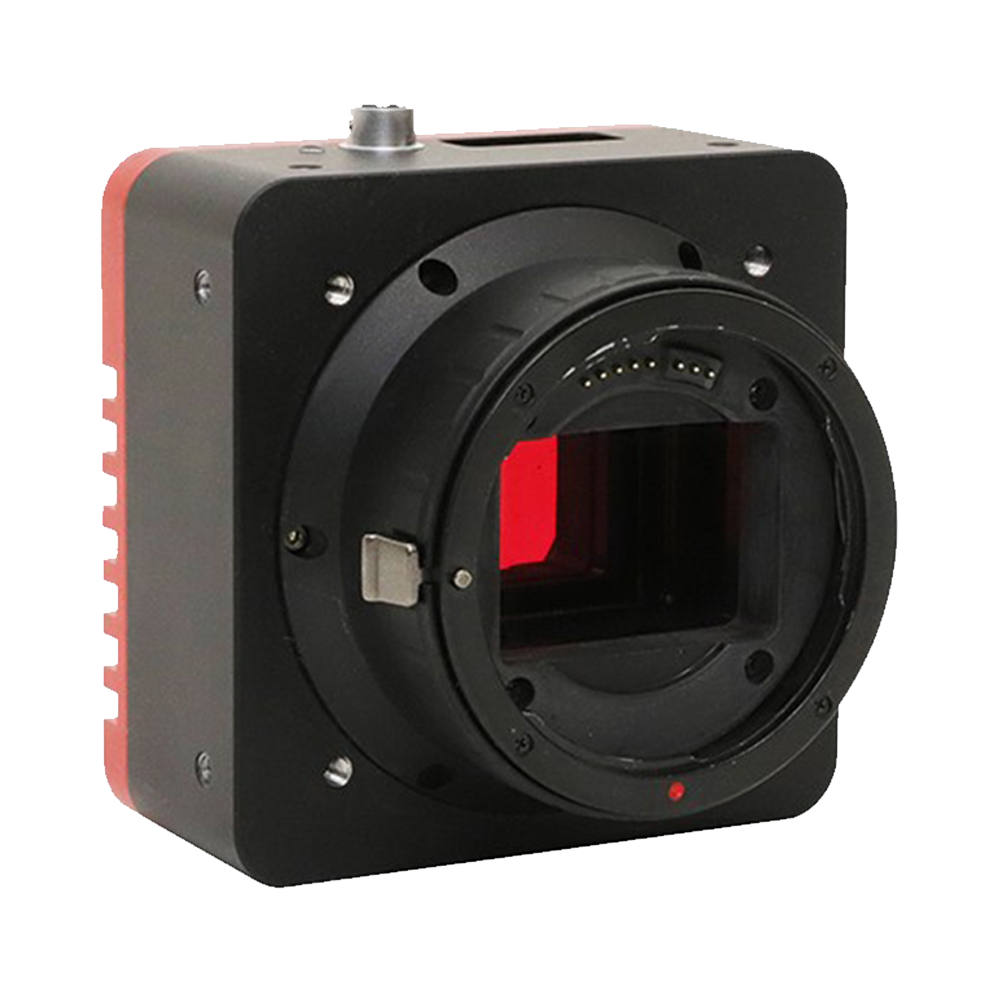

IUC-AFU-EF features built-in AFU module, compatible with Canon EF lens autofocus. Other series provide C / M42 / F mounts and OEM structures for different lens solutions
Multispectral versions
Standard RGB, Mono, plus NIR enhanced, UV enhanced, Short-Wave Infrared (SWIR) (400 – 1700 nm) versions available for laser marking, wafer inspection, glass & PCB crack detection, food sorting, and other specialized applications
Cross-platform SDK & easy development
Includes ToupView imaging software and Windows / Linux / macOS / Android SDK, compatible with C/C++, C#/VB.Net, DirectShow, Twain, supporting field firmware upgrades
Industrial-grade reliability
Low power consumption, –20 °C – 55 °C wide temperature design, CE / FCC / RoHS certified, capable of 24/7 continuous operation
