I3ISPM Series

Product Introduction

The I3ISPM Series is designed for high-speed dynamic and embedded integration scenarios, featuring high-performance CMOS sensors from Sony/onsemi and others. It offers both global shutter (GS) and rolling shutter (RS) solutions based on application requirements, with resolutions ranging from 0.5 to 20.4 MP. The compact form factor (minimum 33×33×33 mm, with 46.7 mm depth versions available depending on model) facilitates deployment in space-constrained equipment.

Data links include USB3.0, GigE, and CoaXPress (model-dependent), combined with bandwidth control and optional built-in buffer to ensure high-speed stable transmission. The built-in hardware ISP performs real-time processing including Demosaic, AE/AGC, AWB, Gamma/LUT at the camera level. The system supports free-running, software/hardware trigger, and multi-camera synchronization. I/O provides opto-isolated trigger/flash control and programmable GPIO for timing coordination with production lines and experimental equipment.

The system features low power consumption, wide temperature adaptability, and emphasizes long-term stability. It includes ToupView and cross-platform SDK (Windows/Linux/macOS; C/C++/C#/Python, etc.), compatible with DirectShow/TWAIN for secondary development and system integration.

Product Features

Sensor brands: Sony/onsemi and other high-performance CMOS (model-dependent)
Resolution coverage from 0.5 to 20.4 MP; high frame rate design suitable for high-speed dynamic imaging
Shutter types: Global shutter (GS) and rolling shutter (RS) options available (model-dependent)
Compact form factor: minimum 33×33×33 mm; 46.7 mm depth versions available (model-dependent) for easy embedding
Multiple interfaces: USB3.0/GigE/CoaXPress (model-dependent, consult online for details), supports bandwidth limiting and long-cable stable transmission
Built-in hardware ISP: Demosaic, AE/AGC, AWB, one-click white balance, Gamma, LUT, noise reduction/sharpening (model-dependent)
Acquisition modes: free-running, software trigger, external hardware trigger; supports multi-camera synchronization/flash linkage

Rich I/O: opto-isolated input/output + programmable GPIO (model-dependent) for coordination with light sources/motion control
Image functions: ROI/windowing, digital binning (2×2/3×3/4×4 model-dependent), mirror/flip, bit depth 8/10/12/16-bit (model-dependent)
Optional built-in buffer for enhanced data integrity during high-speed/burst acquisition (model-dependent)
Low power consumption and wide temperature adaptability design supporting long-term continuous stable operation
Software and development: includes ToupView; Windows/Linux/macOS SDK (C/C++/C#/Python), compatible with DirectShow/TWAIN
Supports field firmware upgrade; CE/FCC/RoHS compliant (model-dependent)

Get Quote Product Manual

Product Models

Warning: Undefined array key "title" in /www/wwwroot/photonics-EN/public/components/product-intro-enhanced-Industry.php on line 25

Deprecated: htmlspecialchars(): Passing null to parameter #1 ($string) of type string is deprecated in /www/wwwroot/photonics-EN/public/components/product-intro-enhanced-Industry.php on line 25

Model	Sensor / Size	Resolution	Pixel Size	Shutter	Frame Rate	Interface	Action
I3ISPM07100KPB-10G	Sony IMX420LQJ-C 1" (17.47 mm) \| 14.4 mm × 9.9 mm	7.1 MP (3200×2200)	4.5 µm × 4.5 µm	Global Shutter	160 fps @ 3200×2200 180 fps @ 1920×1080 300 fps @ 1600×1100	10GigE	View Details
I3ISPM00500KPA	Sony IMX433LQJ 1/1.8" (9.20 mm) \| 7.31 mm × 5.58 mm	0.5 MP (812×620)	9.0 µm × 9.0 µm	Global Shutter	166.5 fps @ 812×620	USB3.0	View Details
I3ISPM01500KPA	Sony IMX273LQR 1/2.5" (6.21 mm) \| 4.97 mm × 3.73 mm	1.5 MP (1440×1080)	3.45 µm × 3.45 µm	Global Shutter	227.2 fps @ 1440×1080 382.7 fps @ 720×540	USB3.0	View Details
I3ISPM02000KPB	IMX385LQR-C 1/2" (8.00 mm) \| 6.40 mm × 4.80 mm	2.0 MP (1920×1080)	3.75 µm × 3.75 µm	Rolling Shutter	124.3 fps @ 1920×1080 (8-bit) 90.4 fps @ 1920×1080 (10-bit)	USB3.0	View Details
I3ISPM02300KPA	Sony IMX174LQJ 3/4" (13.27 mm) \| 11.25 mm × 7.03 mm	2.3 MP (1920×1200)	5.86 µm × 5.86 µm	Global Shutter	164.5 fps @ 1920×1200	USB3.0	View Details
I3ISPM02300KPB	Sony IMX249LQJ 3/4" (13.27 mm) \| 11.25 mm × 7.03 mm	2.3 MP (1920×1200)	5.86 µm × 5.86 µm	Global Shutter	30 fps @ 1920×1200	USB3.0	View Details
I3ISPM02400KPA	Gpixel GMAX4002 1/1.8" (9.49 mm) \| 8.19 mm × 4.80 mm	2.4 MP (2048×1200)	4.0 µm × 4.0 µm	Global Shutter	155 fps @ 2048×1200 620 fps @ 1024×600	USB3.0	View Details
I3ISPM03100KPA	Sony IMX252LQR 1/1.8" (8.84 mm) \| 7.07 mm × 5.30 mm	3.1 MP (2048×1536)	3.45 µm × 3.45 µm	Global Shutter	115 fps @ 2048×1536 230.3 fps @ 1024×768	USB3.0	View Details
I3ISPM03100KPB	Sony IMX265LQR 1/1.8" (8.84 mm) \| 7.07 mm × 5.30 mm	3.1 MP (2048×1536)	3.45 µm × 3.45 µm	Global Shutter	55.4 fps @ 2048×1536 115.1 fps @ 1024×768	USB3.0	View Details
I3ISPM03200KPA	Sony IMX900AQR 1/3" (5.76 mm) \| 4.61 mm × 3.46 mm	3.2 MP (2048×1536)	2.25 µm × 2.25 µm	Global Shutter	55.4 fps @ 2048×1536 126.8 fps @ 1024×768	USB3.0	View Details
I3ISPM04200KPA	Sony IMX664-AAQR1 1/1.8" (8.96 mm) \| 7.80 mm × 4.41 mm	4.2 MP (2688×1520)	2.9 µm × 2.9 µm	Rolling Shutter	88.1 fps @ 2688×1520 116.1 fps @ 1344×760	USB3.0	View Details
I3ISPM05000KPA	Sony IMX250LQR 2/3" (11.02 mm) \| 8.45 mm × 7.07 mm	5.0 MP (2448×2048)	3.45 µm × 3.45 µm	Global Shutter	71.2 fps @ 2448×2048 175.2 fps @ 1224×1024	USB3.0	View Details
I3ISPM05000KPB	Sony IMX264LQR 2/3" (11.02 mm) \| 8.45 mm × 7.07 mm	5.0 MP (2448×2048)	3.45 µm × 3.45 µm	Global Shutter	35.6 fps @ 2448×2048 87.6 fps @ 1224×1024	USB3.0	View Details
I3ISPM05000KPB-G	Sony IMX264LQR 2/3" (11.02 mm) \| 8.45 mm × 7.07 mm	5.0 MP (2448×2048)	3.45 µm × 3.45 µm	Global Shutter	23.9 fps @ 2448×2048 87.6 fps @ 1224×1024	GigE	View Details
I3ISPM05100KPA	Gpixel GMAX3405 2/3" (10.85 mm) \| 8.32 mm × 6.96 mm	5.1 MP (2448×2048)	3.4 µm × 3.4 µm	Global Shutter	71 fps @ 2448×2048 100 fps @ 1224×1024	USB3.0	View Details
I3ISPM06300KPA	Sony IMX178LQJ 1/1.8" (8.86 mm) \| 7.37 mm × 4.92 mm	6.3 MP (3072×2048)	2.4 µm × 2.4 µm	Rolling Shutter	58.7 fps @ 3072×2048 59.5 fps @ 1536×1024	USB3.0	View Details
I3ISPM08000KPA	Sony IMX546-AAQJ 2/3" (11.00 mm) \| 7.78 mm × 7.78 mm	8.0 MP (2832×2832)	2.74 µm × 2.74 µm	Global Shutter	41 fps @ 2832×2832 118 fps @ 1408×1408	USB3.0	View Details
I3ISPM08300KPA	Sony IMX678-AAQR 1/1.8" (8.81 mm) \| 7.68 mm × 4.32 mm	8.3 MP (3840×2160)	2.0 µm × 2.0 µm	Rolling Shutter	45 fps @ 3840×2160 70 fps @ 1920×1080	USB3.0	View Details
I3ISPM08300KPB	Sony IMX585-AAQJ1-C 3/4" (12.78 mm) \| 11.14 mm × 6.26 mm	8.3 MP (3840×2160)	2.9 µm × 2.9 µm	Rolling Shutter	45 fps @ 3840×2160 70 fps @ 1920×1080	USB3.0	View Details
I3ISPM12000KPA	Sony IMX226CQJ 1/1.8" (9.40 mm) \| 7.52 mm × 5.64 mm	12.0 MP (4064×3046)	1.85 µm × 1.85 µm	Rolling Shutter	29.9 fps @ 4064×3046 59.9 fps @ 2048×1080	USB3.0	View Details
I3ISPM12000KPB	Sony IMX676-AACR 2/3" (10.00 mm) \| 7.07 mm × 7.07 mm	12.0 MP (3536×3536)	2.0 µm × 2.0 µm	Rolling Shutter	27.7 fps @ 3536×3536 65.8 fps @ 1760×1760	USB3.0	View Details
I3ISPM01700KPA	Sony IMX432LQJ 1" (17.47 mm) \| 14.4 mm × 9.9 mm	1.7 MP (1600×1100)	9.0 µm × 9.0 µm	Global Shutter	98.6 fps @ 1600×1100	USB3.0	View Details
I3ISPM01700KPB	Sony IMX425LQJ 1" (17.47 mm) \| 14.4 mm × 9.9 mm	1.7 MP (1600×1100)	9.0 µm × 9.0 µm	Global Shutter	180 fps @ 1600×1100	USB3.0	View Details
I3ISPM02000KPA	Sony IMX430LQJ 1/1.8" (9.20 mm) \| 7.31 mm × 5.58 mm	2.0 MP (1624×1240)	4.5 µm × 4.5 µm	Global Shutter	132 fps @ 1624×1240	USB3.0	View Details
I3ISPM02800KPA	Sony IMX421LQJ 2/3" (10.92 mm) \| 8.71 mm × 6.59 mm	2.8 MP (1936×1464)	4.5 µm × 4.5 µm	Global Shutter	121 fps @ 1936×1464 425 fps @ 968×732	USB3.0	View Details
I3ISPM07100KPA	Sony IMX428LQJ 1" (17.47 mm) \| 14.4 mm × 9.9 mm	7.1 MP (3200×2200)	4.5 µm × 4.5 µm	Global Shutter	51.4 fps @ 3200×2200 133.8 fps @ 1584×1100	USB3.0	View Details
I3ISPM12300KPA	Sony IMX304LQR-C 1" (17.52 mm) \| 14.13 mm × 10.35 mm	12.3 MP (4096×3000)	3.45 µm × 3.45 µm	Global Shutter	23.4 fps @ 4096×3000 46.3 fps @ 2048×1500 46.3 fps @ 1024×750	USB3.0	View Details
I3ISPM12500KPA	Gpixel GMAX3412 1" (17.41 mm) \| 13.93 mm × 10.44 mm	12.5 MP (4096×3072)	3.4 µm × 3.4 µm	Global Shutter	30 fps @ 4096×3072 60 fps @ 2048×1536	USB3.0	View Details
I3ISPM20400KPA	Sony IMX541-AAQJ-C 1" (17.42 mm) \| 12.32 mm × 12.32 mm	20.4 MP (4496×4496)	2.74 µm × 2.74 µm	Global Shutter	17.5 fps @ 4496×4496 64.4 fps @ 2240×2240 64.4 fps @ 1120×1120	USB3.0	View Details

Package Contents #

Standard contents for I3 industrial machine vision cameras (USB3 / GigE / 10GigE)

Recommended kit (USB3)

Camera body - USB3.0 interface
I/O cable - 6-pin cable or extension cable
USB3.0 cable - Micro USB3.0 cable
Lens (optional)

USB3.0 is plug-and-play with a compact form for easy embedding.

Recommended kit (GigE)

Camera body - GigE interface
I/O cable - 6-pin cable or extension cable
GigE cable
Lens (optional)

GigE supports long-distance links for distributed vision systems.

Recommended kit (10GigE)

Camera body - 10GigE interface
Power adapter - 12 V/36 W aviation power supply
I/O cable - 7-pin cable or extension cable
10GigE cable
Lens (optional) - M42 or F-mount lens

10GigE offers high bandwidth; 12 V aviation power required for high-resolution/high-fps use.

Click the interface buttons above to switch lists

Product Dimensions #

Outline dimensions for I3 industrial machine vision cameras

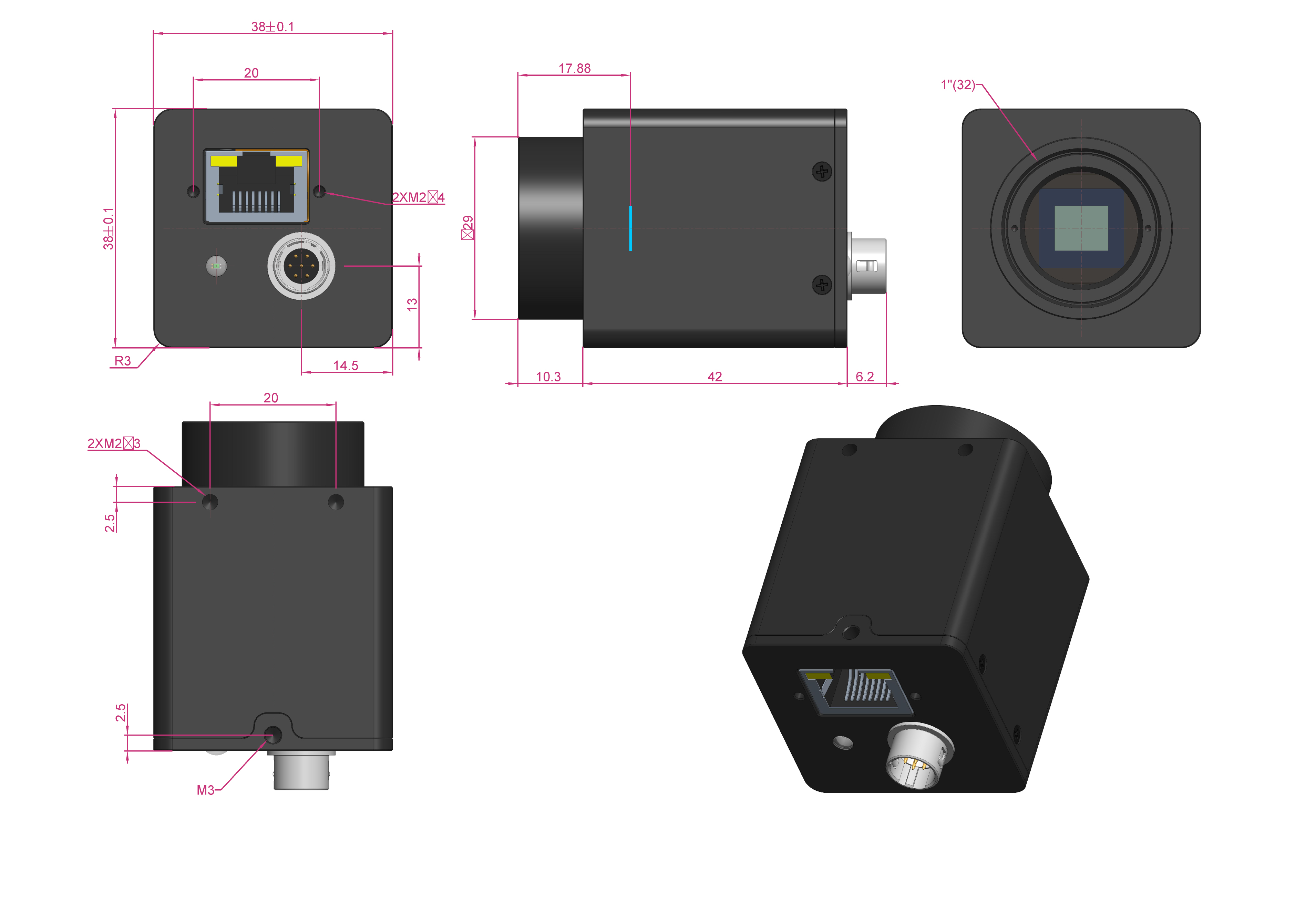

I3ISPM GigE dimensions (33 mm)

GigE Outline drawing

Applicable: GigE interface models

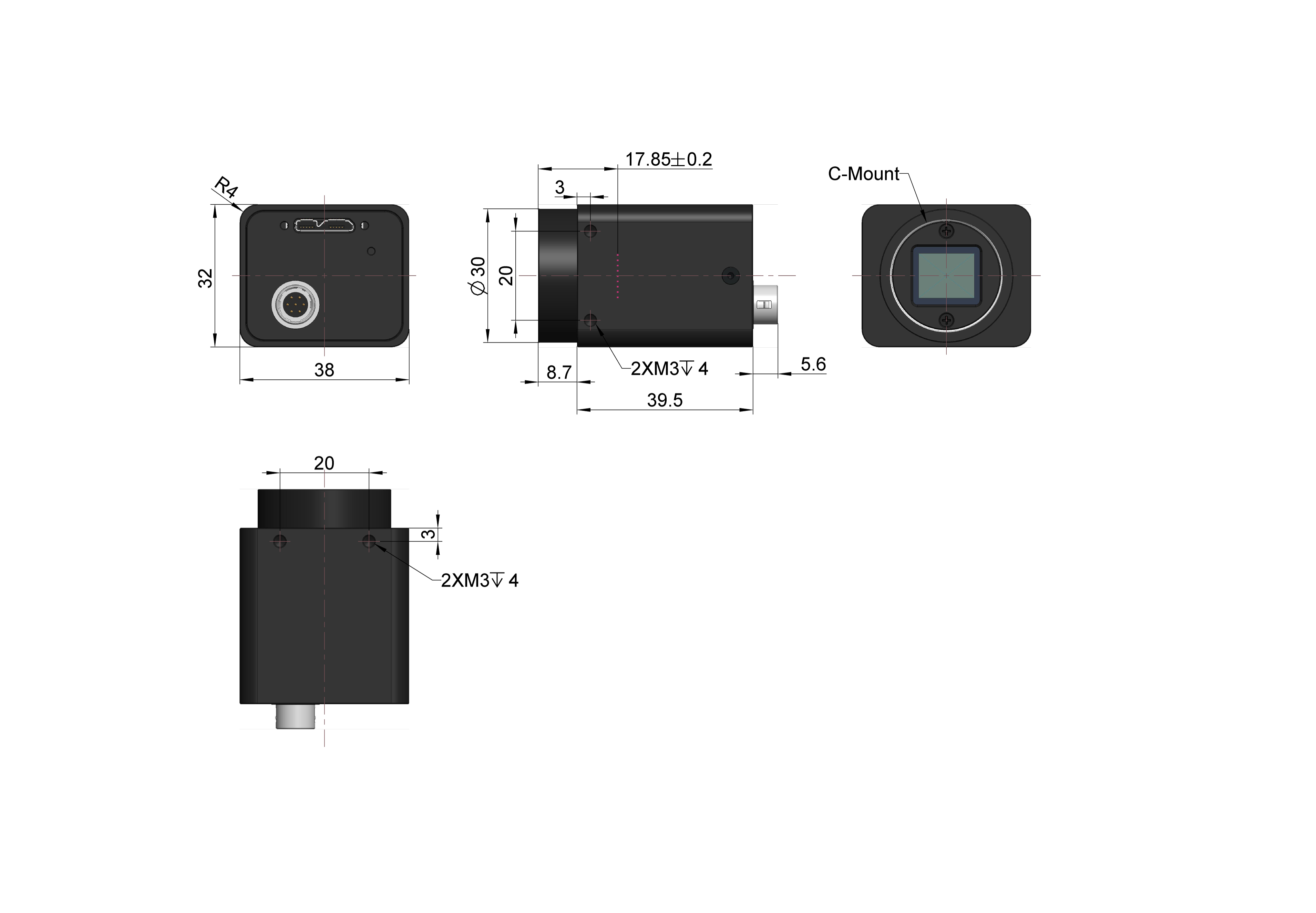

I3ISPM USB3 dimensions (38 mm)

USB3 Outline drawing

Applicable: USB3.0 interface models

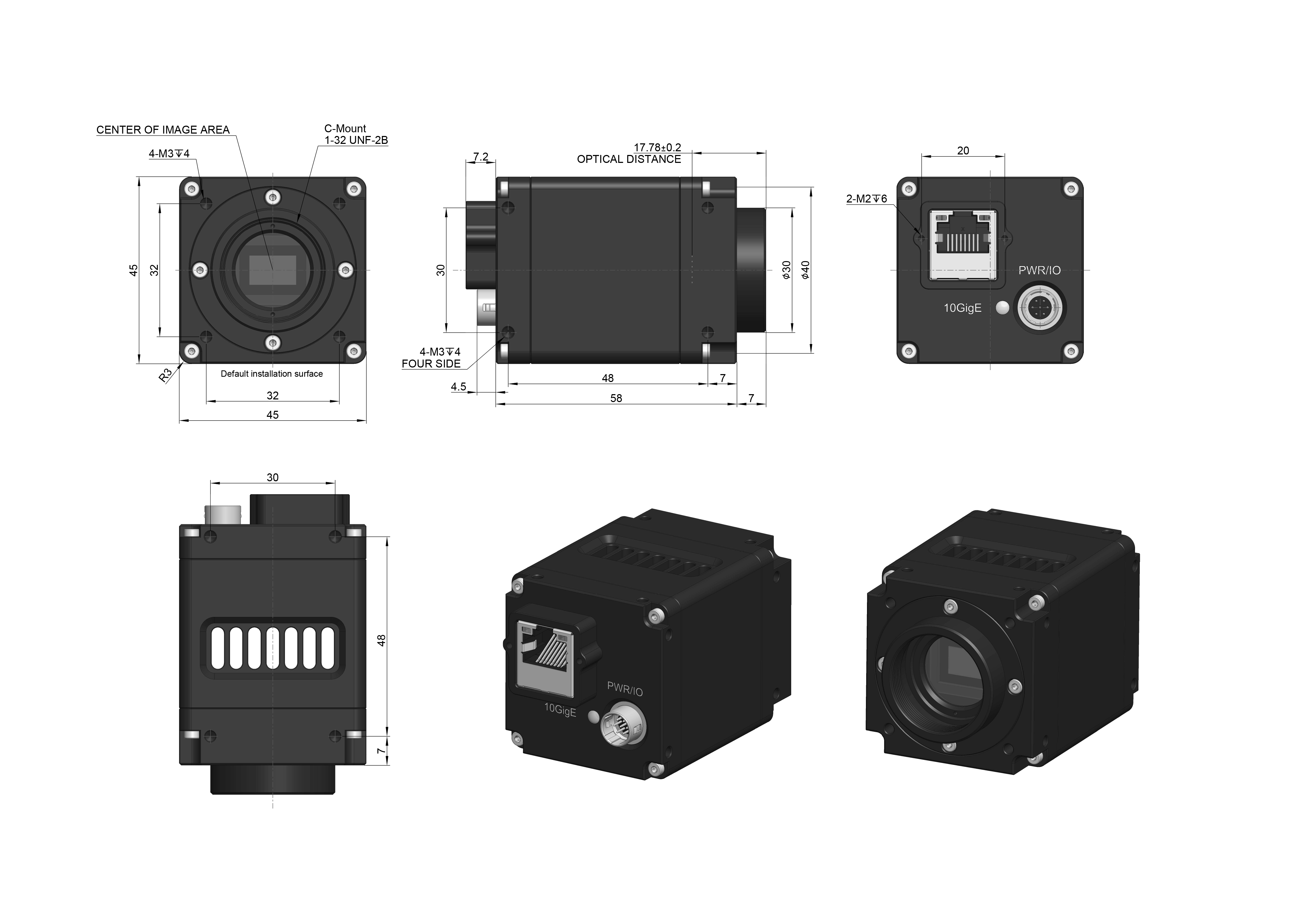

I3ISPM 10GigE dimensions (fanless)

10GigE Outline drawing

Applicable: 10GigE interface fanless version

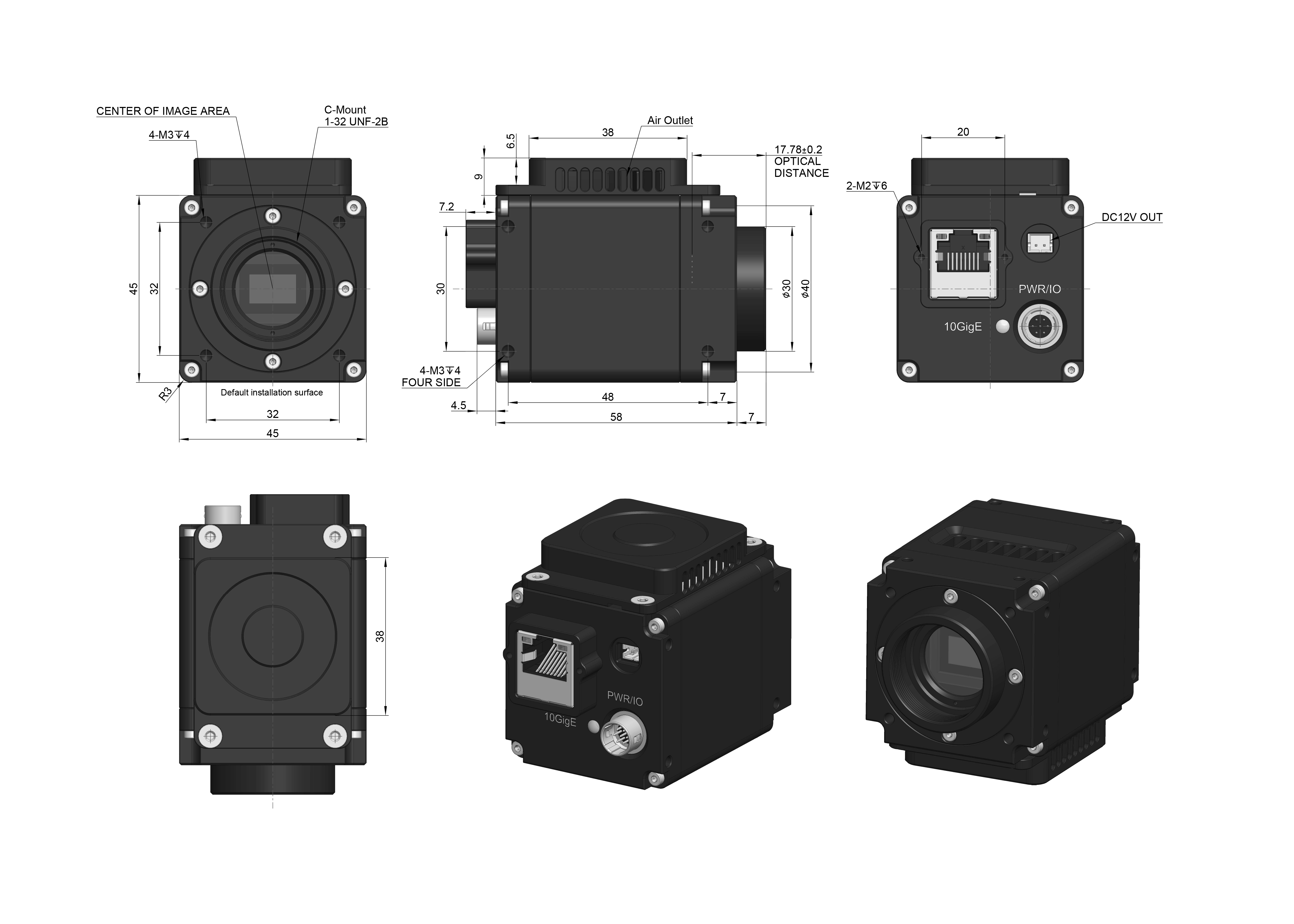

I3ISPM 10GigE dimensions (with fan)

10GigE Outline drawing

Applicable: 10GigE interface models with fan

Click any image to view full size

The I3ISPM Series is ToupTek’s compact, high-speed USB3.0 industrial camera line, spanning 0.5–20.4 MP with Sony and Gpixel high-performance CMOS sensors from 1/2.9" to 1.1" formats. With a 33×33×33 mm cube body, it offers both global and rolling shutter options to balance high frame rates and image quality—ideal for automation, machine vision, and scientific imaging.

Key Features

Ultra-compact design

33×33×33 mm cube body

Global shutter options

Most models; smear-free imaging

Ultra-high speed

Up to 600 fps capability

Multi-resolution coverage

0.5 MP to 20.4 MP range

Performance highlights

Peak frame rate

600 fps

Low-resolution mode

Resolution range

0.5-20.4 MP

Multiple options

Body size

33 mm cube

Only 70 g

Dynamic range

73 dB

High contrast

In-Depth Overview

Wide sensor platform

Built on sensors such as Sony IMX433, IMX273, IMX252, IMX541, and Gpixel GMAX4002, covering needs from low-resolution high-speed to high-pixel precision imaging. Pixel sizes from 2.74 µm to 9.0 µm balance sensitivity and detail. Typical models reach up to 73 dB dynamic range and 50 dB SNR for accurate imaging in high-contrast environments.

Excellent high-speed performance

Frame rates up to 600 fps (low-resolution mode); high-pixel models like 20.4 MP still achieve 17.5 fps at 4496×4496. 0.5 MP models reach 166.5 fps @ 812×620, 2.4 MP models reach 620 fps @ 1024×600. Supports 1×1, 2×2, 3×3, 4×4 hardware/software binning to balance speed and sensitivity.

Advanced shutter options

Most models offer global shutter for fast motion without smearing; rolling shutter options support high dynamic range needs. Wide exposure from 6 µs to 15 s with 8-bit/10-bit/12-bit outputs provides flexibility for varied inspection and analysis.

Ultra-compact industrial design

33×33×33 mm cube, only 70 g, full metal housing. Power below 3.5 W; operating range -10 to +50 °C, humidity 20%–80% (non-condensing) for long-term stability. Opto-isolated and non-isolated I/O enable line integration and external triggering.

Complete software ecosystem

Supports Windows, Linux, macOS, Android with APIs for C/C++, C#/VB.NET, Python, DirectShow, and TWAIN to simplify secondary development. Rich SDK functions and full documentation make system integration straightforward for automation, machine vision, and research deployment.
