Microscope All-in-One Systems
Digital Microscopes & Continuous Zoom All-in-One Systems - Integrated Imaging Solutions
Product Description

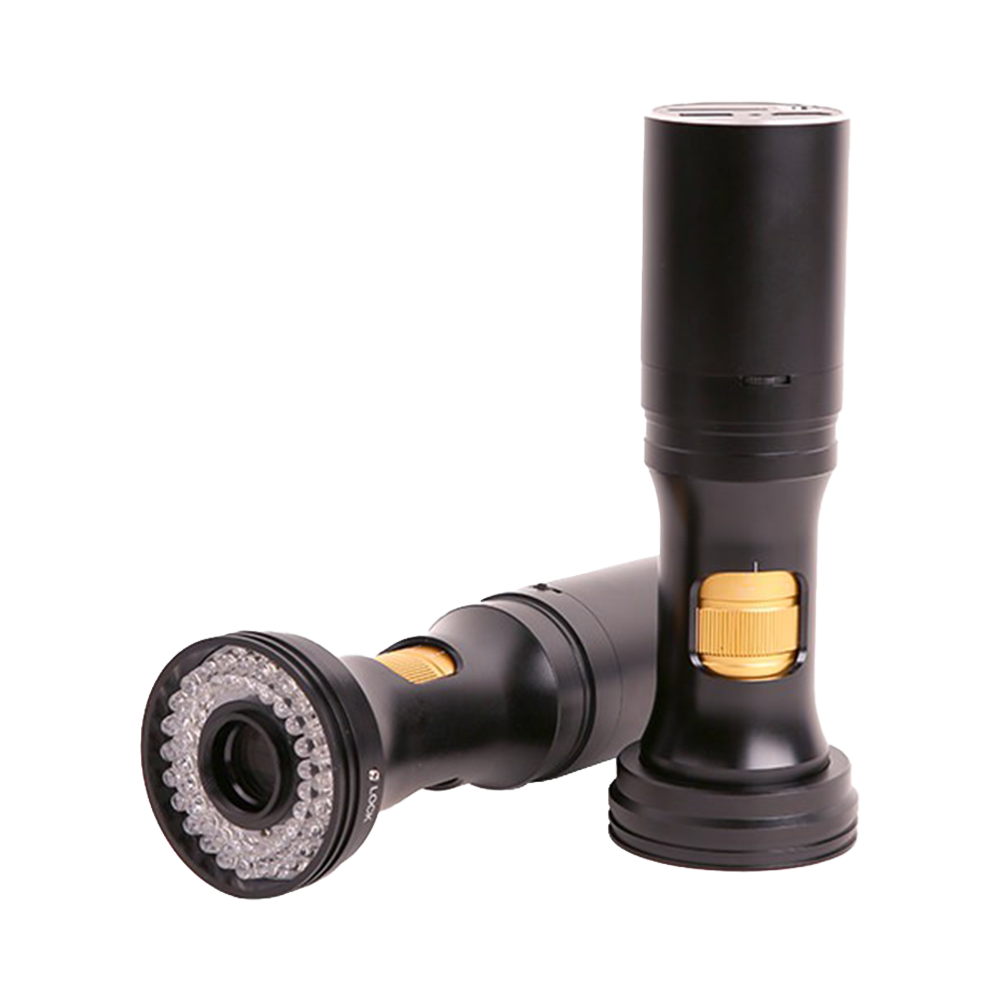

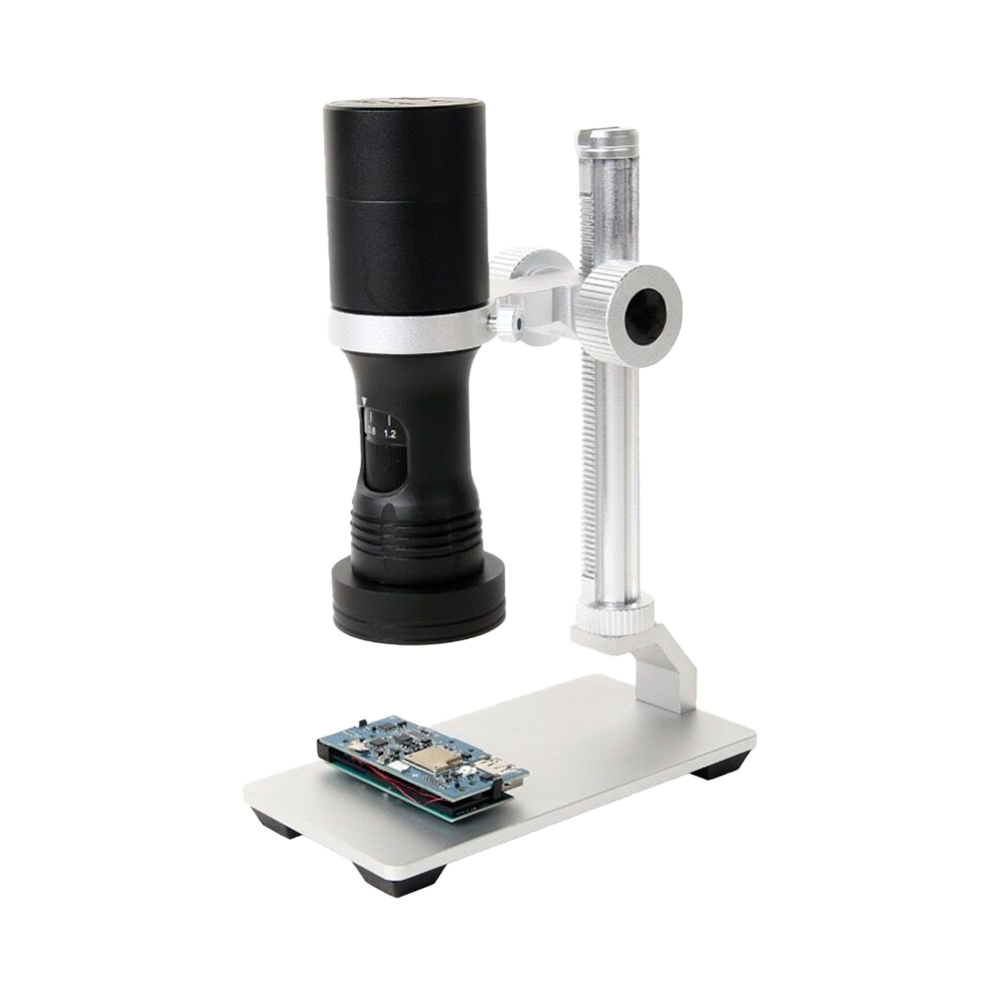

The Microscope All-in-One System series integrates a 4K HDMI digital camera, continuous zoom optical monocular, and LED ring/coaxial light source into a single unit. Combined with 7.5″-13.3″ touchscreens or any HDMI display, it enables plug-and-play operation without requiring a computer. The built-in XCamView interface supports measurement, depth-of-field synthesis, real-time stitching, and H.265 local recording, making it particularly suitable for production line rapid inspection, classroom demonstrations, and mobile laboratory vehicles. Taking the ZM0756H4K8MPA as an example, it provides 0.7-5.6× continuous zoom, 37 mm–160 mm working distance, and 4K 30 fps HDMI output, requiring only a single power cable for complete imaging and illumination.
Core Features
| Feature Dimension | Specific Advantages |
|---|---|
| Integrated Design | Camera + optical zoom tube + ring/coaxial LED light source + stand, ready to use out of the box, eliminating cable clutter |
| Continuous Zoom | 0.7–5.6× (8× total) optical zoom; optional 0.5×/0.75×/1×/1.5×/2× auxiliary objectives, maximum NA 0.18, effective field of view 34 mm→1 mm |
| 4K High Definition Output | HDMI 1.4 4K 30 fps or 1080p 30 fps; some models support concurrent USB/Wi-Fi |
| Embedded Software | XCamView: exposure/gain/white balance, 10× digital magnification, measurement toolbar, batch recording/capture |
| Quick-Release/Wireless Light Source | Ring, polarized ring, and coaxial LED types, dial wheel + GUI dual-channel synchronized dimming; light source powered through lens tube, no additional adapters required |
| Multi-Language & SDK | Chinese/English/Korean/Japanese/German/French and ten other languages; PC-side open C/C++, C#, Python SDK for deep development |
| Portable & Robust | All-metal housing, 12V/1A low power consumption; -10℃-50℃ operating range; entire system ≤1kg, rapid deployment |
