AIOCAMW is a multifunctional all-in-one camera that integrates a 13.3-inch display and an image acquisition system for portable microscopy image capture and processing. AIOCAMW is the abbreviation of All-in-One Camera with Windows system.
AIOCAMW Series
Product Introduction

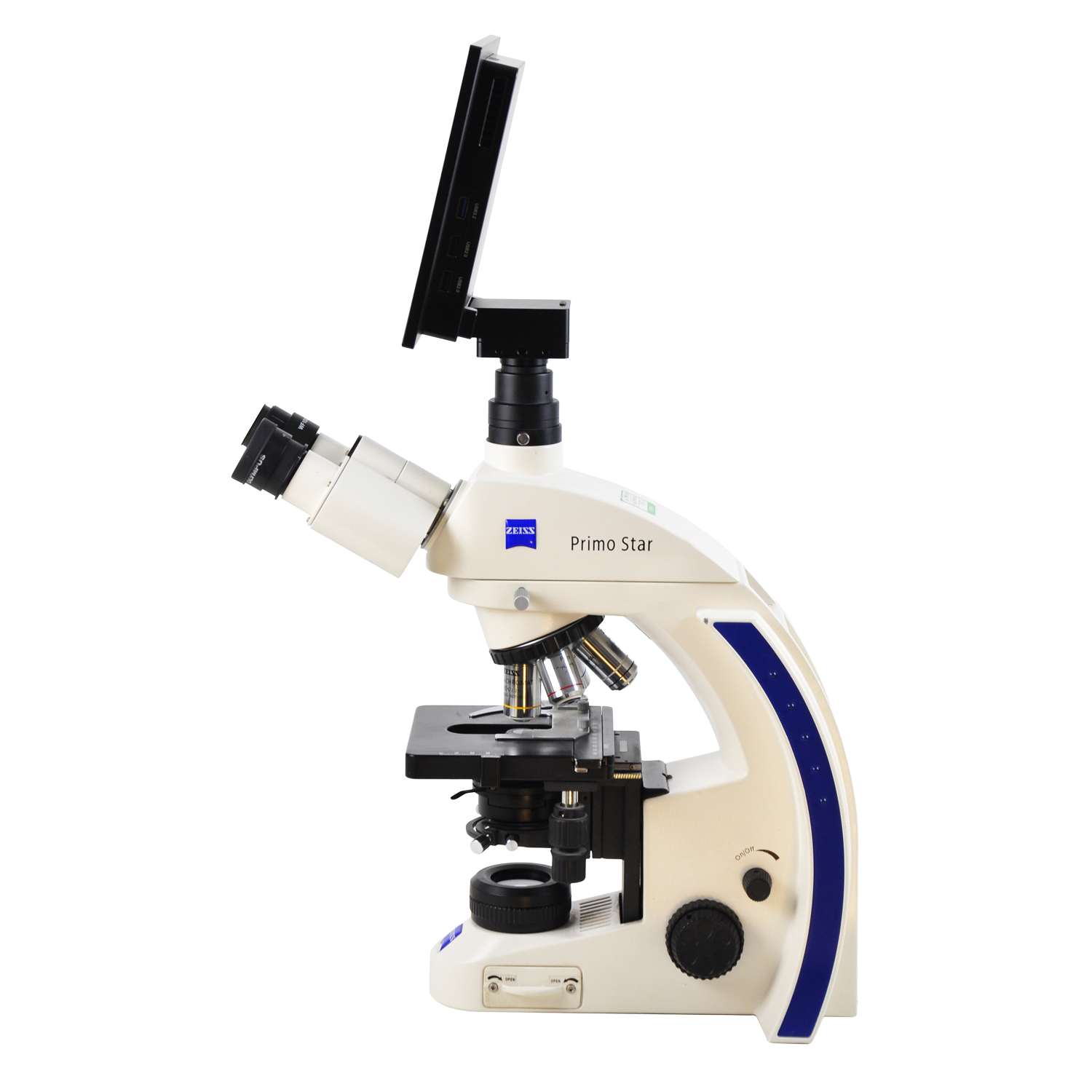

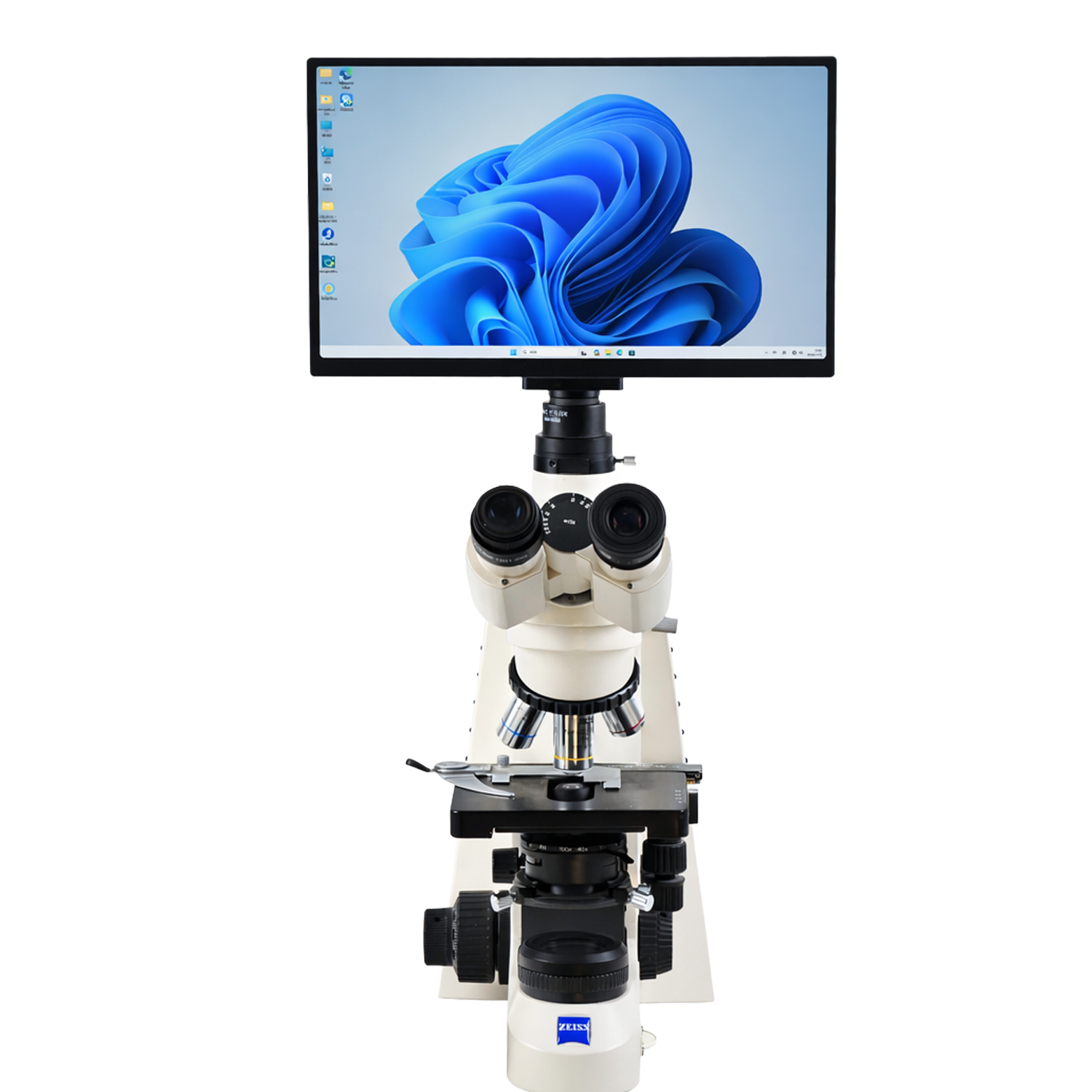

AIOCAMW is a multifunctional all-in-one camera that integrates a 13.3-inch display and an image acquisition system. It supports portable microscopy image acquisition and processing. AIOCAMW is the abbreviation of All-in-One Camera with Windows system.
Product Features
- Standard C-mount camera and display are integrated to reduce cabling and simplify installation
- Built-in Intel N150 processor with turbo frequency up to 3.6 GHz
- Preinstalled Windows system with touchscreen support and optional wireless keyboard/mouse
- Uses Sony CMOS sensors and supports large-format high-resolution sensor options with model customization
- Supports HDMI2.0 or Type-C synchronous 4K@60 Hz video output
- Supports Gigabit Ethernet and WiFi6 networking and works with XCamView digital interactive networking software for teaching workflows
- Provides advanced video and image processing software: ToupView and ToupLite
- Provides Windows SDK supporting native C/C++, C#/VB.Net, DirectShow, and TWAIN APIs
AIOCAMW All-in-One Camera with Display
| Model | Sensor/Size | Effective Pixels | Output Resolution | Frame Rate (fps) | Output Interface | Lens Mount | Storage Support | Featured Functions |
|---|---|---|---|---|---|---|---|---|
| AIOCAMW8MPA |
Sony IMX678(C)
1/1.8" (7.68×4.32 mm)
|
2.0 μm × 2.0 μm | 8MP (3840×2160) | 45 fps@3840×2160; 60 fps@1920×1080 | HDMI2.0 USB3.2 NETWORK Wi-Fi6 | C-mount | 128 GB SSD / USB Flash Drive | Integrated 13.3-inch touchscreen display Windows 11 Pro with Intel N150 processor HDMI2.0/Type-C 4K@60 synchronous output Gigabit LAN + WiFi6 networking C-mount camera module with Sony CMOS sensor ToupView/ToupLite and Windows SDK support |
| AIOCAMW12MPA |
Sony IMX676(C)
1/1.6" (7.07×7.07 mm)
|
2.0 μm × 2.0 μm | 12MP (3536×3536) | 27 fps@3536×3536; 60 fps@1768×1768 | HDMI2.0 USB3.2 NETWORK Wi-Fi6 | C-mount | 128 GB SSD / USB Flash Drive | Integrated 13.3-inch touchscreen display Windows 11 Pro with Intel N150 processor HDMI2.0/Type-C 4K@60 synchronous output Gigabit LAN + WiFi6 networking C-mount camera module with Sony CMOS sensor ToupView/ToupLite and Windows SDK support |
| AIOCAMW20MPA |
Sony IMX283(C)
1" (13.06×8.76 mm)
|
2.4 μm × 2.4 μm | 20MP (5440×3648) | 15 fps@5440×3648; 50 fps@2736×1824; 60 fps@1824×1216 | HDMI2.0 USB3.2 NETWORK Wi-Fi6 | C-mount | 128 GB SSD / USB Flash Drive | Integrated 13.3-inch touchscreen display Windows 11 Pro with Intel N150 processor HDMI2.0/Type-C 4K@60 synchronous output Gigabit LAN + WiFi6 networking C-mount camera module with Sony CMOS sensor ToupView/ToupLite and Windows SDK support |
AIOCAMW Series All-in-One Camera — Product Introduction
Core Features
- Integrated structure:Standard C-mount camera and display are integrated to reduce cabling and simplify installation.
- Local computing:Built-in Intel N150 processor with turbo frequency up to 3.6 GHz.
- System and interaction:Preinstalled Windows system with touchscreen support and optional wireless keyboard/mouse.
- Sensor extensibility:Sony CMOS solution supports large-format high-resolution sensors and model customization.
- Synchronous video output:Supports HDMI2.0 or Type-C 4K@60 Hz video output.
- Networking:Supports Gigabit RJ45 and WiFi6 and works with XCamView digital interactive networking software for teaching workflows.
- Software ecosystem:Provides ToupView and ToupLite advanced imaging software plus Windows SDK with native C/C++, C#/VB.Net, DirectShow, and TWAIN APIs.
Model Parameter Overview
| Ordering Code | Sensor Size | Pixel (um) | G Sensitivity / Dark Signal | Output (FPS/Resolution) | Sampling Average | Exposure Time |
|---|---|---|---|---|---|---|
| AIOCAMW8MPA | IMX678(C) 1/1.8" (7.68×4.32) |
2.0×2.0 | 3541mv with 1/30s 0.15mv with 1/30s |
45@3840×2160 60@1920×1080 |
1×1 2×2 |
0.02ms~15s |
| AIOCAMW12MPA | IMX676(C) 1/1.6" (7.07×7.07) |
2.0×2.0 | 3637mv with 12 bit converted value(HCG) 0.15mv with 1/30s |
27@3536×3536 60@1768×1768 |
1×1 2×2 |
0.013ms~15s |
| AIOCAMW20MPA | IMX283(C) 1" (13.06×8.76) |
2.4×2.4 | 462mv with 1/30s 0.21mv with 1/30s |
15@5440×3648 50@2736×1824 60@1824×1216 |
1×1 2×2 3×3 |
0.1ms~15s |
AIOCAMW All-in-One Camera with Display | Interfaces and Functional Parameters #
Interface definitions, system parameters, display specifications, and operating environment

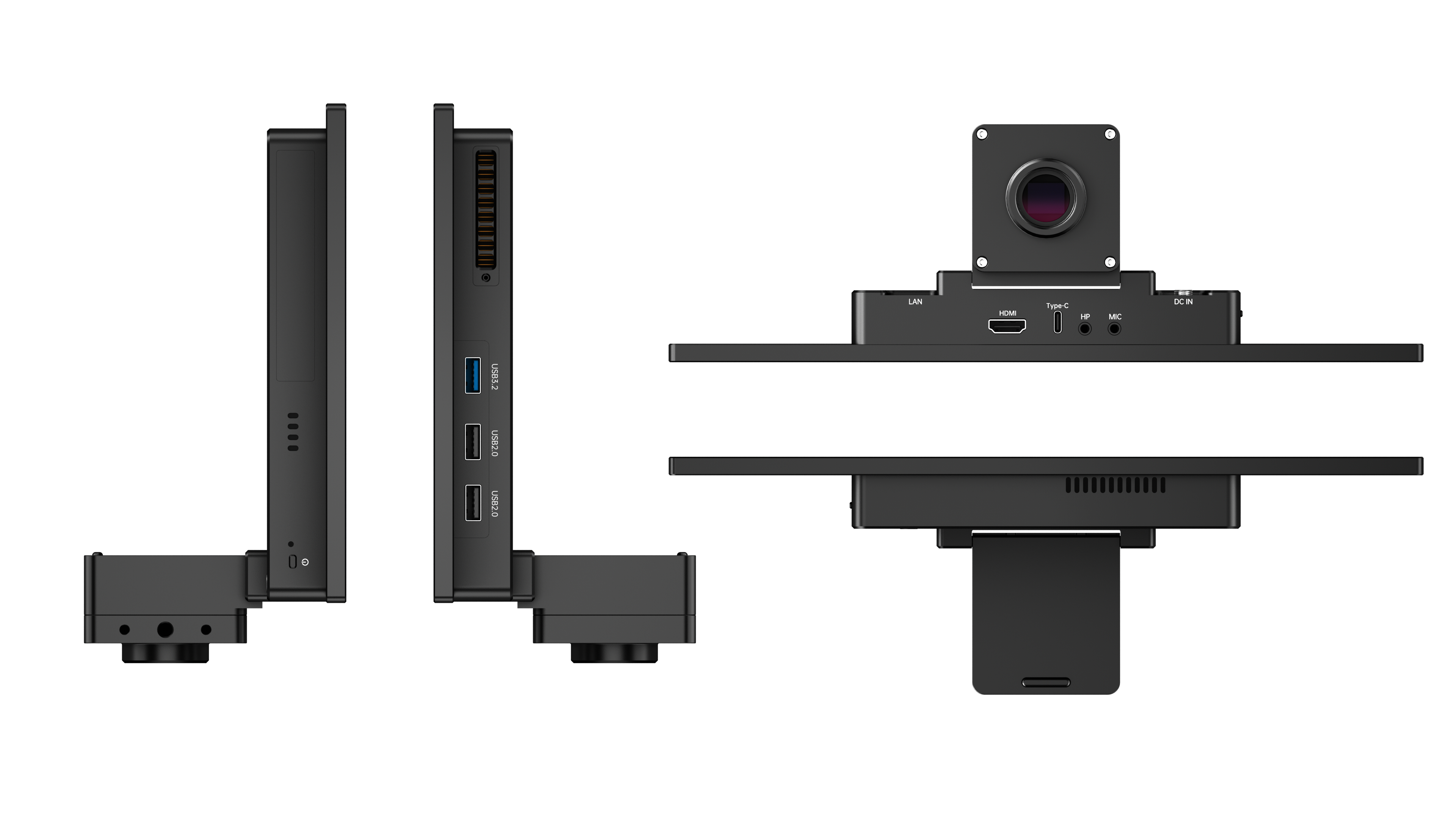

AIOCAMW interface diagram

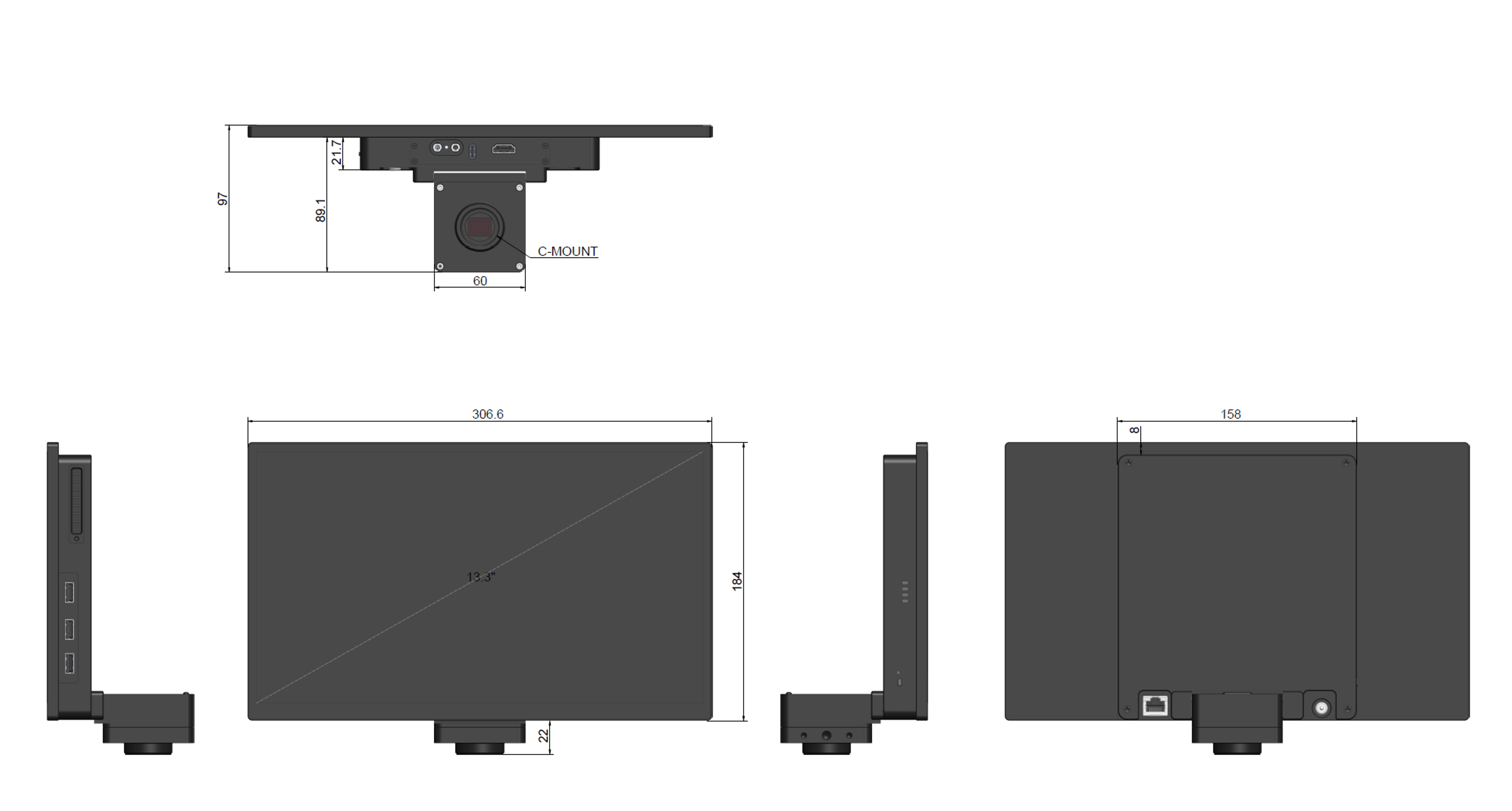

AIOCAMW dimension diagram
| Interface | Description |
|---|---|
| Power | DC12V5A (5.5mm×2.5mm) |
| HDMI | HDMI-A 2.0 video output, supports 3840×2160@60Hz |
| Ethernet | RJ45 1000Mbps Ethernet interface |
| Type-C | Supports 3840×2160@60Hz video output |
| USB | 1 × USB3.2 and 2 × USB2.0 for USB flash drive, keyboard, mouse, and other peripherals |
| HP | Headphone output, standard 3.5mm interface |
| MIC | Microphone input, standard 3.5mm interface |
| Power button | Tap to power on and start the system |
| LED | Indicates system working status |
| Function Parameter | Value |
|---|---|
| Operating system | Windows 11 Pro |
| CPU | Intel@ Processor N150 |
| CPU base frequency | 0.8GHz |
| Max turbo frequency | 3.6GHz |
| CPU cores / threads | 4 cores / 4 threads |
| Memory | 8GB LPDDR5 |
| Touch mode | Capacitive touch G+FF, supports multi-touch |
| Speaker power | 8 Ohm, 1W |
| Storage | 128GB SSD |
| Wireless network | WiFi IEEE 802.11a/b/g/n/ac/ax + BT5.0 |
| Power consumption | Operating power 40W; standby power 0.7W |
| Display Specifications | |
| Display size | 13.3 inch 1920×1080P 60Hz |
| Display area | 293.76(H) × 165.24(V) |
| Pixel pitch | 0.153 × 0.153 (H×V) |
| Brightness | 400 cd/㎡ (Typ.) |
| Contrast ratio | 15000:1 (Typ.) |
| Refresh rate | 60Hz |
| Display colors | 16.7M (8-bit) |
| Color gamut | 71% NTSC (Typ.) |
| Response time | 14ms |
| Camera Operating Environment | |
| Operating temperature | -10℃ ~ 50℃ |
| Storage temperature | -20℃ ~ 60℃ |
| Operating humidity | 10%RH ~ 90%RH, non-condensing |
| Storage humidity | 5%RH ~ 95%RH, non-condensing |
AIOCAMW All-in-One Camera with Display | Packing List #
Standard Packing List
- A Carton size: L:45 cm W:27.8 cm H:9 cm (1 pcs, 1.68 kg/box)
- B AIOCAMW series all-in-one camera ×1
-
C Power adapter: input AC 100~240V 50Hz/60Hz, output DC 12V 5A
CN: POWER-12V5A(HKA06012050-0A7) + CN power cord
US: POWER-12V5A(HKA06012050-0A7) + US power cord
EU: POWER-12V5A(HKA06012050-0A7) + EU power cord
UK: POWER-12V5A(HKA06012050-0A7) + UK power cord
Optional Accessory
- D USB wireless keyboard and mouse kit

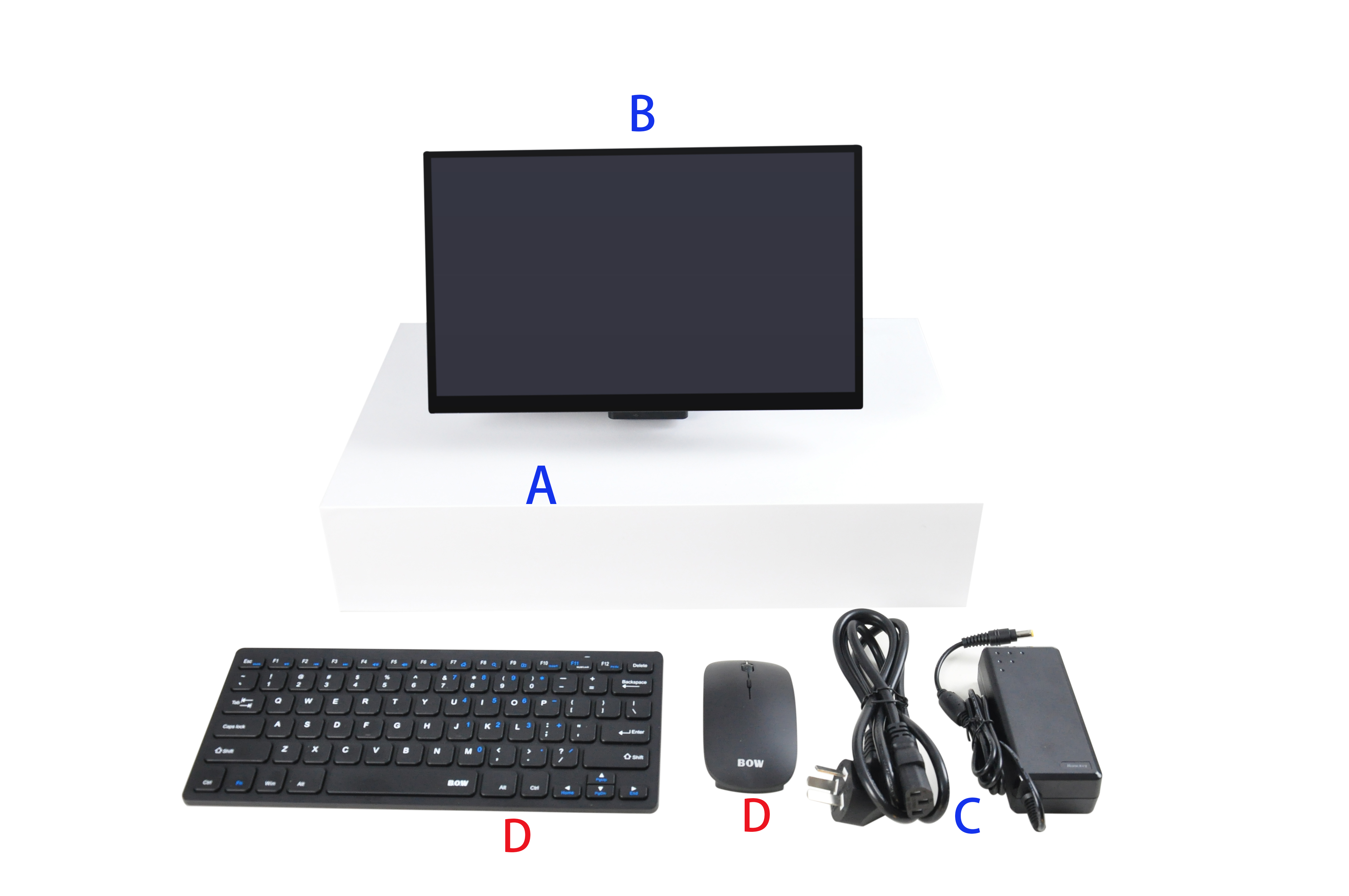

AIOCAMW packing overview
