AIOCAM4K Series

Product Introduction

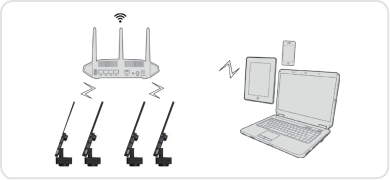

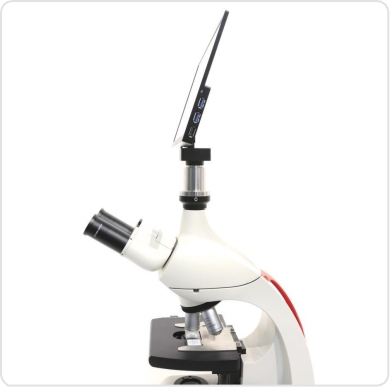

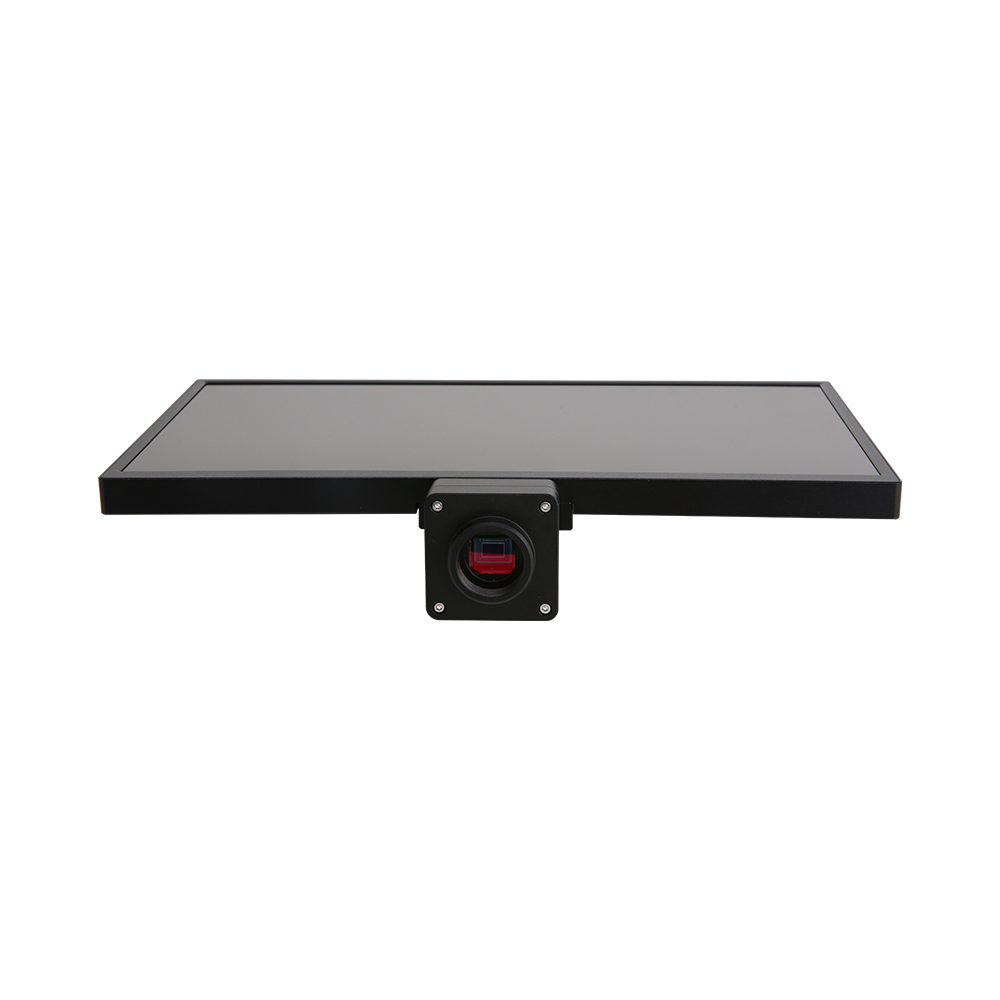

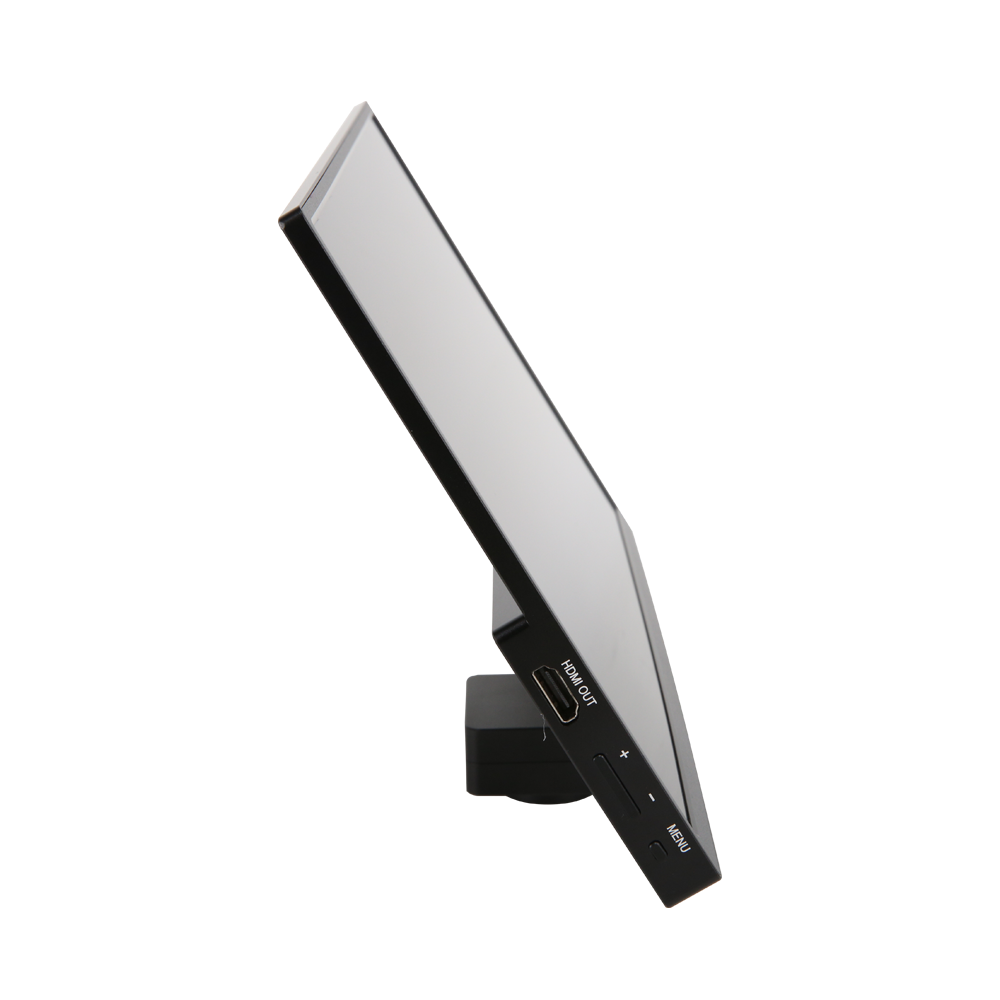

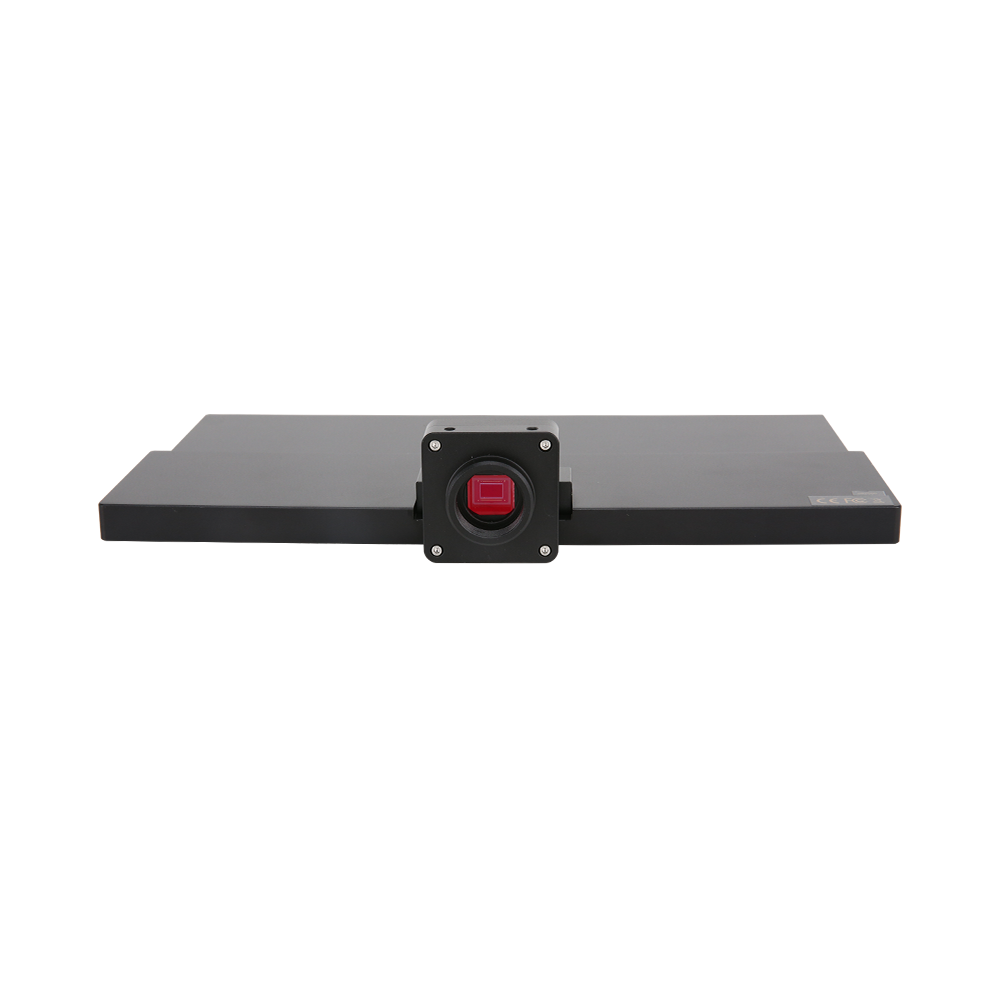

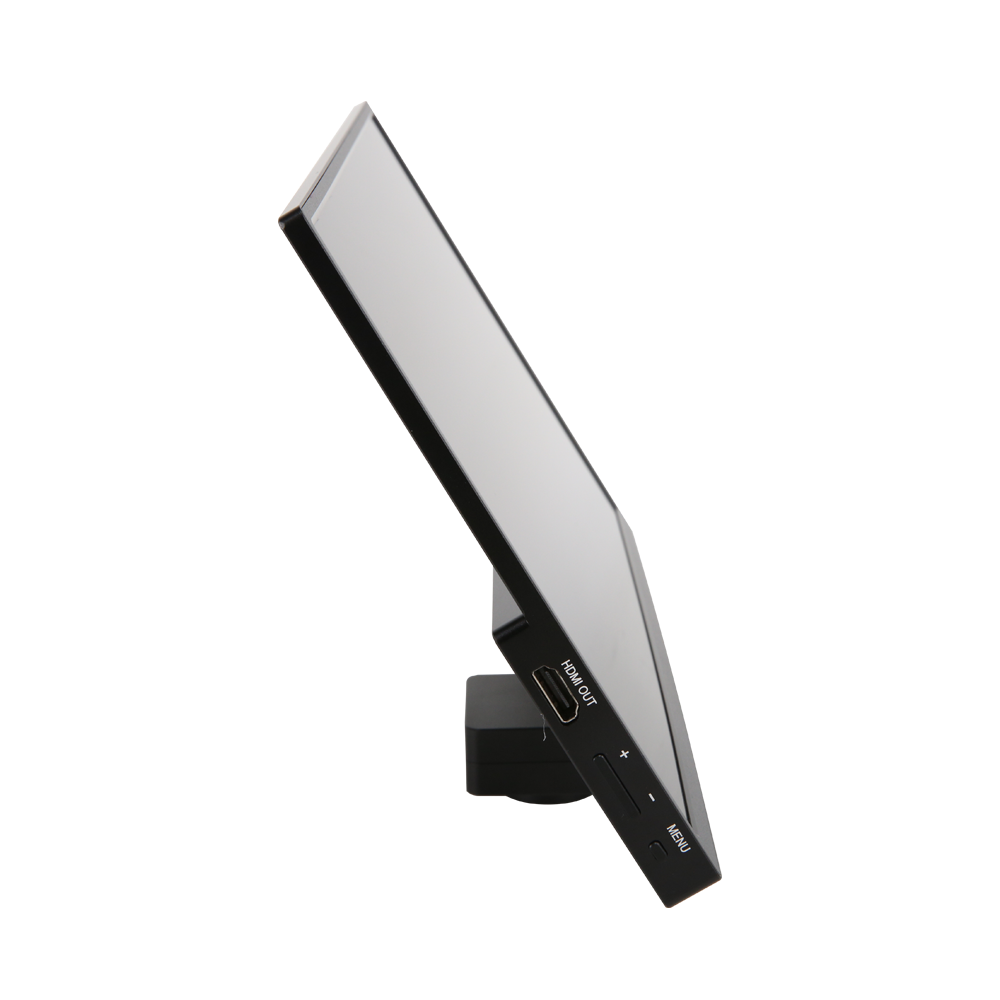

AIOCAM4K is a multifunctional integrated camera that combines a 13.3-inch display screen with a 4K image acquisition and processing system. It can be directly used for video and image capture with stereoscopic microscopes or biological microscopes without requiring a computer, and can also form an interactive microscopy teaching system through Wi-Fi wireless networking to facilitate teaching and student learning.

Product Features

  • Camera and display integrated together, eliminating cables for convenient installation
  • Sony Starvis 2 back-illuminated CMOS sensor
  • Display output with average latency of 40 ms
  • Supports HDMI2.0 interface connection to external display for simultaneous output, 4K/1080P HDMI output adaptive switching

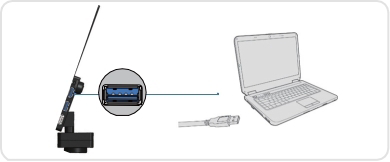

  • Supports USB3.0 interface simultaneous real-time video output
  • USB flash drive saves captured videos or images with local preview and playback support
  • Supports capture and display of RAW format images
  • Supports automatic upload of captured photos to server via network
  • Supports USB voice control module for real-time voice command control of camera photo, video, and freeze operations
  • Brand new browse interface provides rich file operation functions: image-to-image comparison, image-to-live-video comparison, multi-image depth-of-field stacking, multi-image stitching
  • Powerful ISP functions with remarkable sharpening and 3D noise reduction effects, more precise ROI white balance
  • Provides real-time video depth-of-field stacking function and real-time video WDR output function
  • Provides real-time stitching function to obtain higher quality images through real-time processing
  • Provides biological and stereoscopic microscope default ISP parameter switching for convenient secondary adjustment and optimization
  • Embedded XCamView software provides rich image processing and measurement functions, supports automatic edge detection and automatic measurement
  • ToupView/ToupLite software for more convenient PC operation
  • iOS/Android mobile applications, free download from app stores
Get Quote Product Manual

4K All-in-One Camera with Display

Model Sensor/Size Effective Pixels Output Resolution Frame Rate (fps) Output Interface Lens Mount Storage Support Featured Functions
AIOCAM4K8MPA
Sony IMX678(C)
1/1.8" (7.68×4.32 mm)
 2.0 µm × 2.0 µm 8MP 60 fps@3840×2160 HDMI USB3 Wi-Fi C-mount USB Flash Drive 13.3-inch display screen integration Low latency approximately 40 ms HDMI2.0 4K/1080P adaptive output USB3.0 real-time output Wi-Fi AP/STA mode RAW image capture Voice control for photography/video recording/freeze Real-time depth of field synthesis/WDR/stitching ROI white balance and 3D noise reduction Built-in XCamView measurement and image processing

AIOCAM4K All-in-One Camera with Display | Package List #

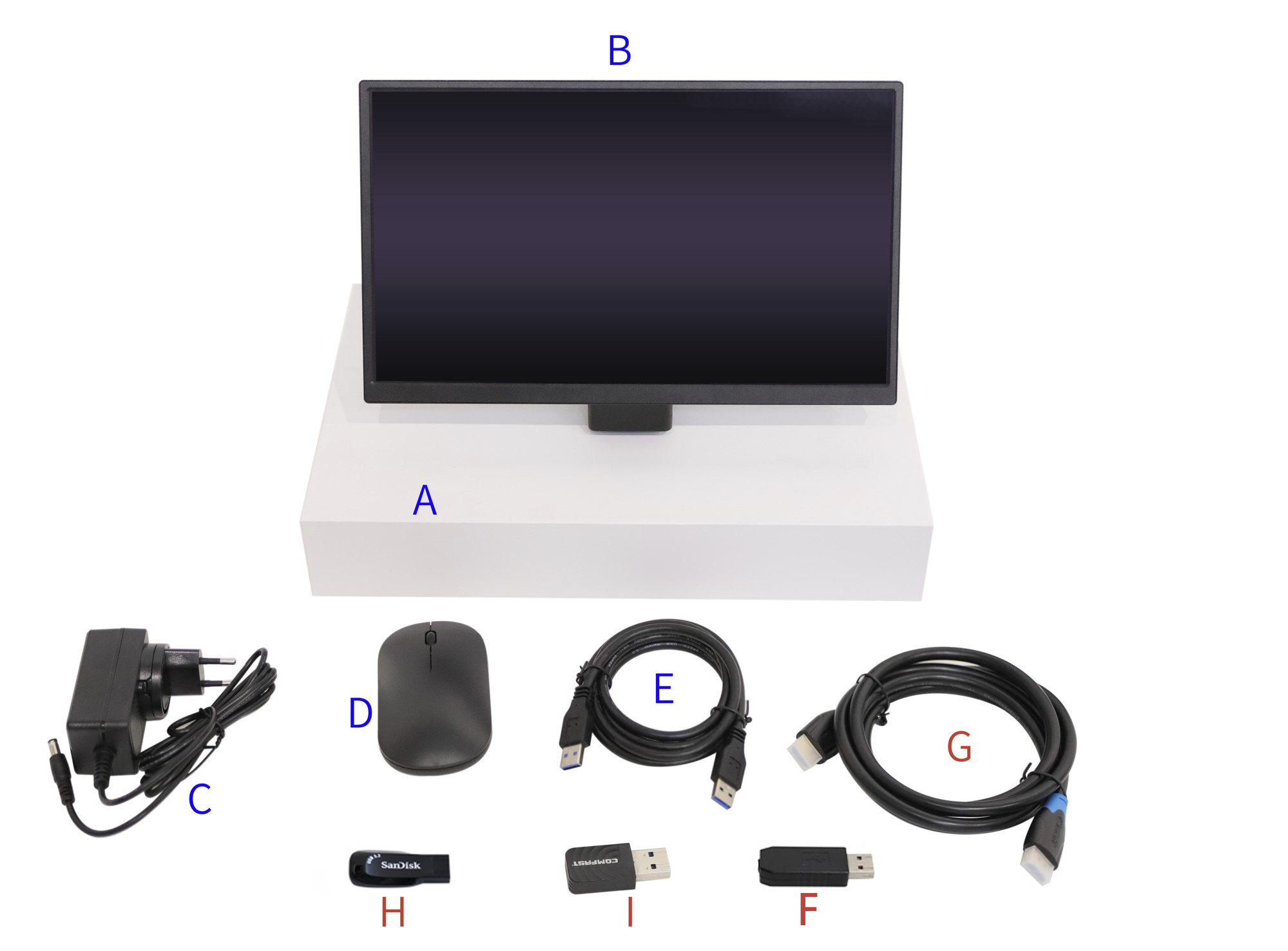

Standard Items in the Box

  • A Camera packaging box: 35.6 cm × 24.9 cm × 7.5 cm (1 pc, approx. 1.68 kg/box)
  • B AIOCAM4K all-in-one camera ×1
  • C Power adapter: input AC 100–240 V 50/60 Hz; output DC 12 V 2 A
    US version: model POWER-12V2A (MX24Z1-1202000) + US plug
    EU version: model POWER-12V2A (MX24Z1-1202000) + EU plug
  • D USB wireless mouse ×1
  • E USB 3.0 A↔A gold-plated data cable (1.5 m)

Optional Accessories

  • F Voice control module (Chinese or English)
  • G HDMI 2.0 cable
  • H USB flash drive

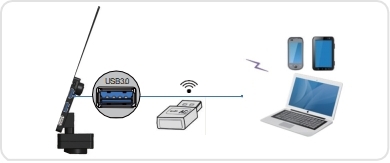

  • I USB wireless network adapter (required for Wi-Fi mode; appearance varies by model)
AIOCAM4K packaging overview
AIOCAM4K packaging overview

AIOCAM4K All-in-One Camera with Display | Product Dimensions #

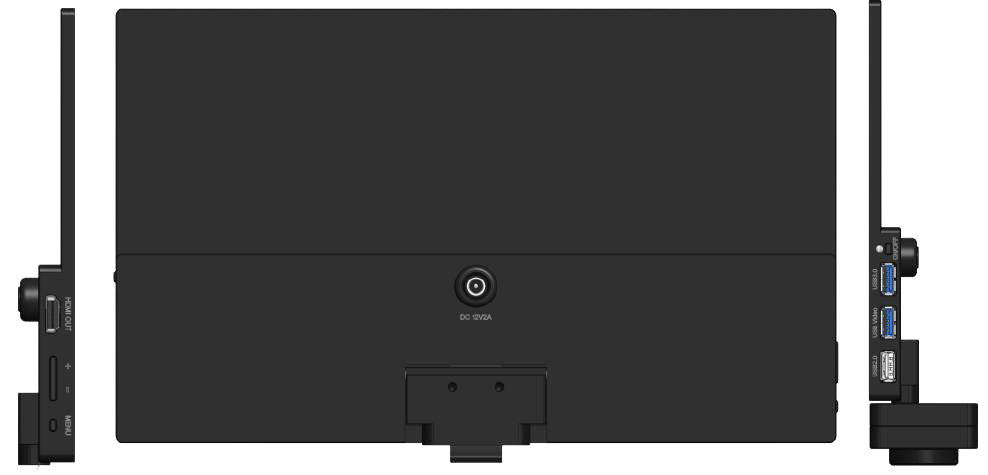

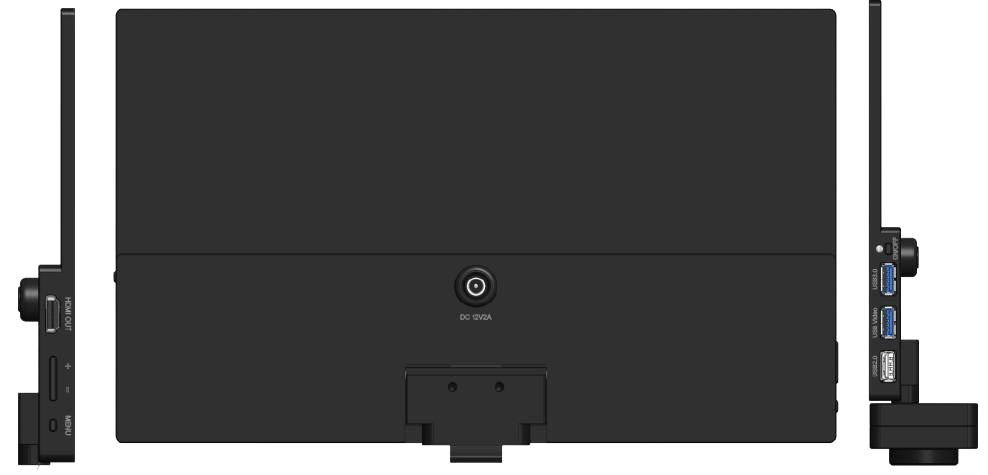

Chassis layout and interface locations

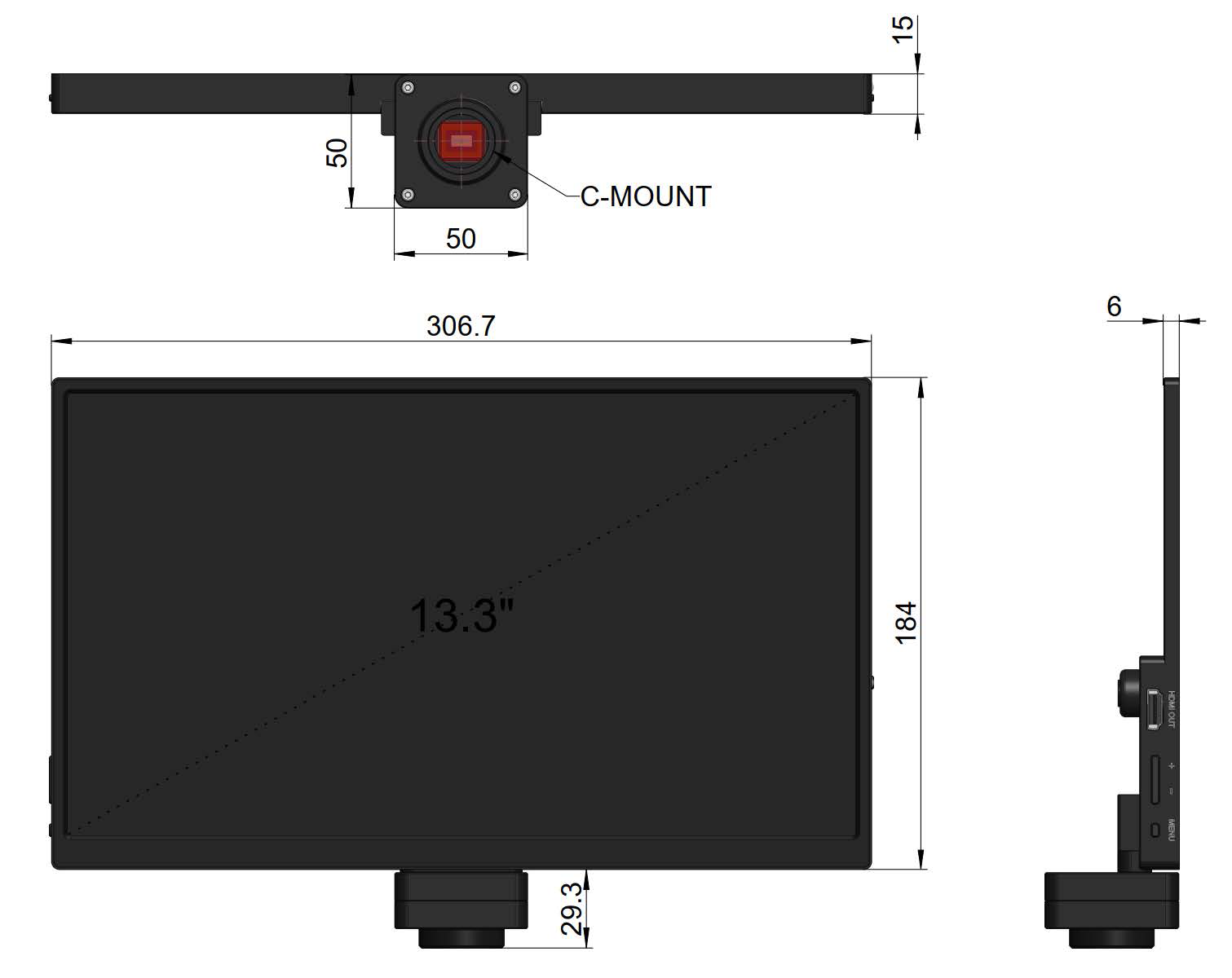

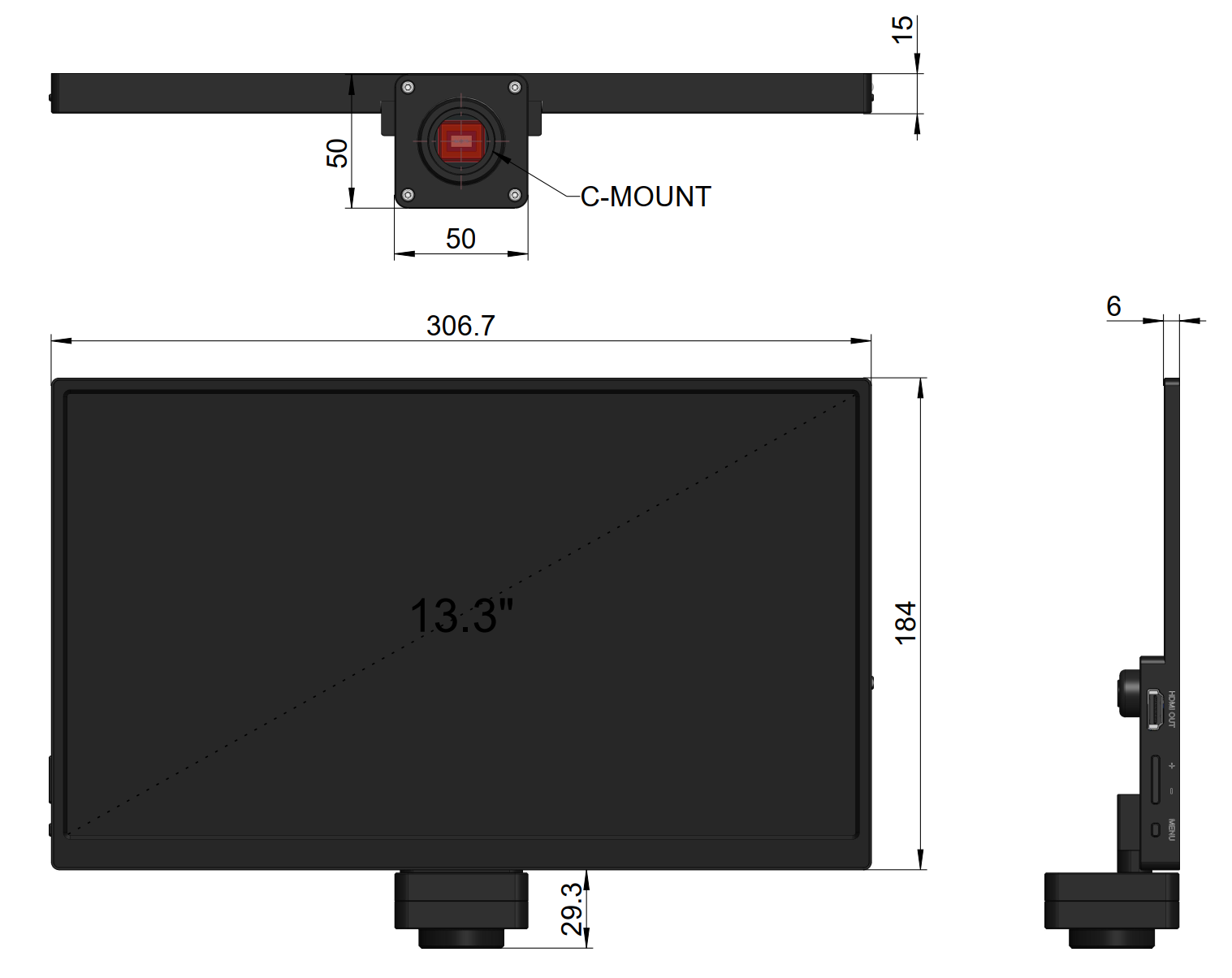

AIOCAM4K dimensions
AIOCAM4K dimensions

Refer to the manual for detailed drawings

  • Packaging box: 35.6 cm × 24.9 cm × 7.5 cm
  • Shipping weight: approx. 1.68 kg (with packaging)
  • Power supply: DC 12 V / 2 A

Please verify the mounting holes and interface orientation against the dimension drawing before installation.

AIOCAM4K8MPA Series All-in-One Multi-Interface Camera — Product Overview

ToupTek Photonics AIOCAM4K8MPA Series cameras are standalone 4K multi-interface microscopes that operate without a computer. They are engineered for video and image capture on stereo and biological microscopes and support networked deployment for interactive microscopy classrooms, enabling instructors and students to observe in sync.

Powered by a Sony Starvis 2 back-illuminated high-sensitivity sensor and 8 MP high-resolution imaging, the camera integrates a built-in display so users can preview, record, and output 4K video directly, greatly improving efficiency in microscopy education and research imaging.

In-Depth Overview

  • Integrated and Easy to Use: Integrated camera and display eliminate extra cabling, support HDMI output to external monitors, and auto-switch between 4K and 1080p for streamlined operation.
  • Multi-Interface, High-Performance Output: Supports HDMI, USB 3.0, and Wi-Fi simultaneous transmission, recording at 60 fps @ 3840×2160 to cover teaching, presentation, and documentation scenarios.
  • High-Sensitivity Sensor with Low-Latency Display: Sony Starvis 2 back-illuminated CMOS ensures low noise and high dynamic range performance, while the integrated screen delivers about 40 ms latency for real-time viewing.
  • Local Storage and File Management: Supports saving video and images to USB flash drives with RAW capture for convenient post-processing and sharing.
  • Versatile Application Expansion: Supports networking for interactive teaching, live demonstrations, and synchronized multi-terminal display, and works with ToupView/ToupLite software for extended PC workflows.

Product Advantages

1
All-in-One Design, No External Dependencies

Integrated screen and multiple interfaces deliver imaging right out of the box, simplifying setup and deployment.

2
High Resolution and Real-Time Display

4K 60 fps output with 40 ms low latency supports high-definition recording and smooth classroom demonstrations.

3
Flexible Interface Options

HDMI, USB 3.0, and Wi-Fi output in parallel to support varied display and storage needs.

4
Local and Network Collaboration

Supports RAW capture, local playback, and synchronized network transmission for research and teaching data management.

5
Broad Application Coverage

Ideal for microscopy education, laboratory research, industrial inspection, live demonstrations, and interactive teaching systems.
