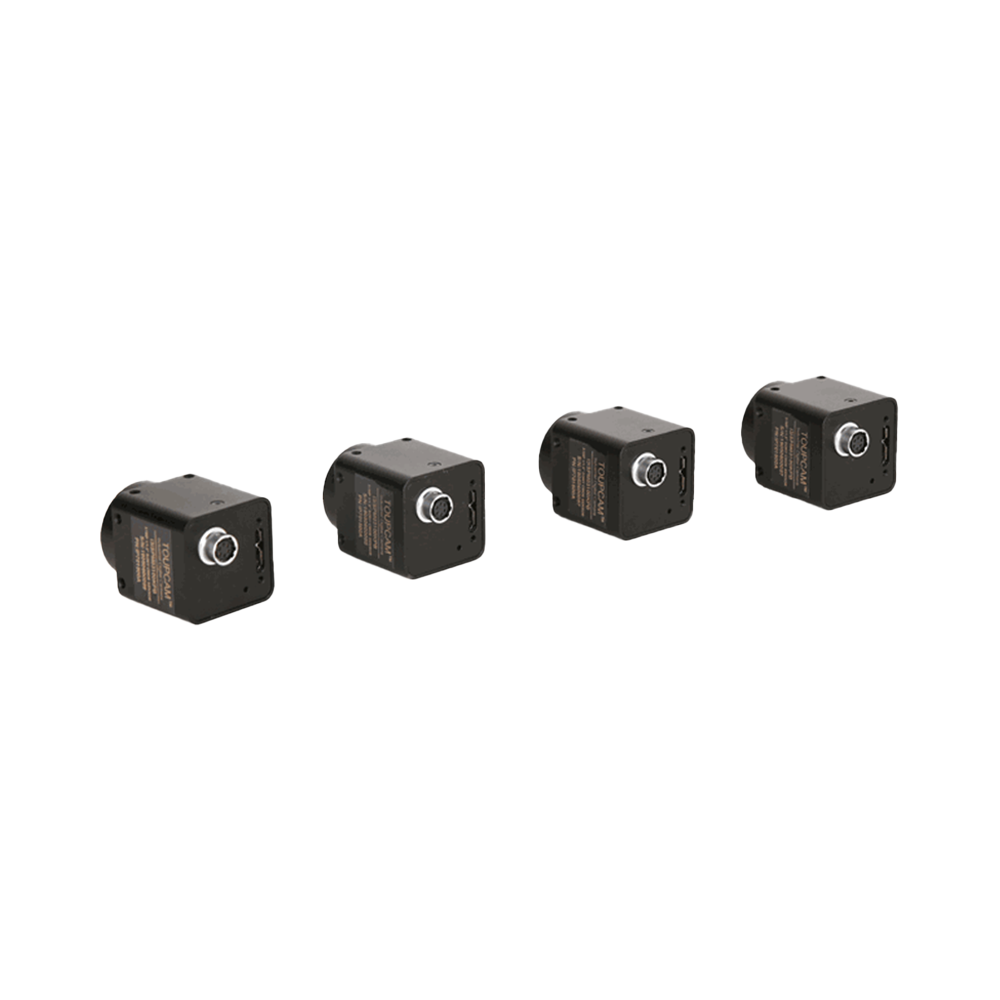

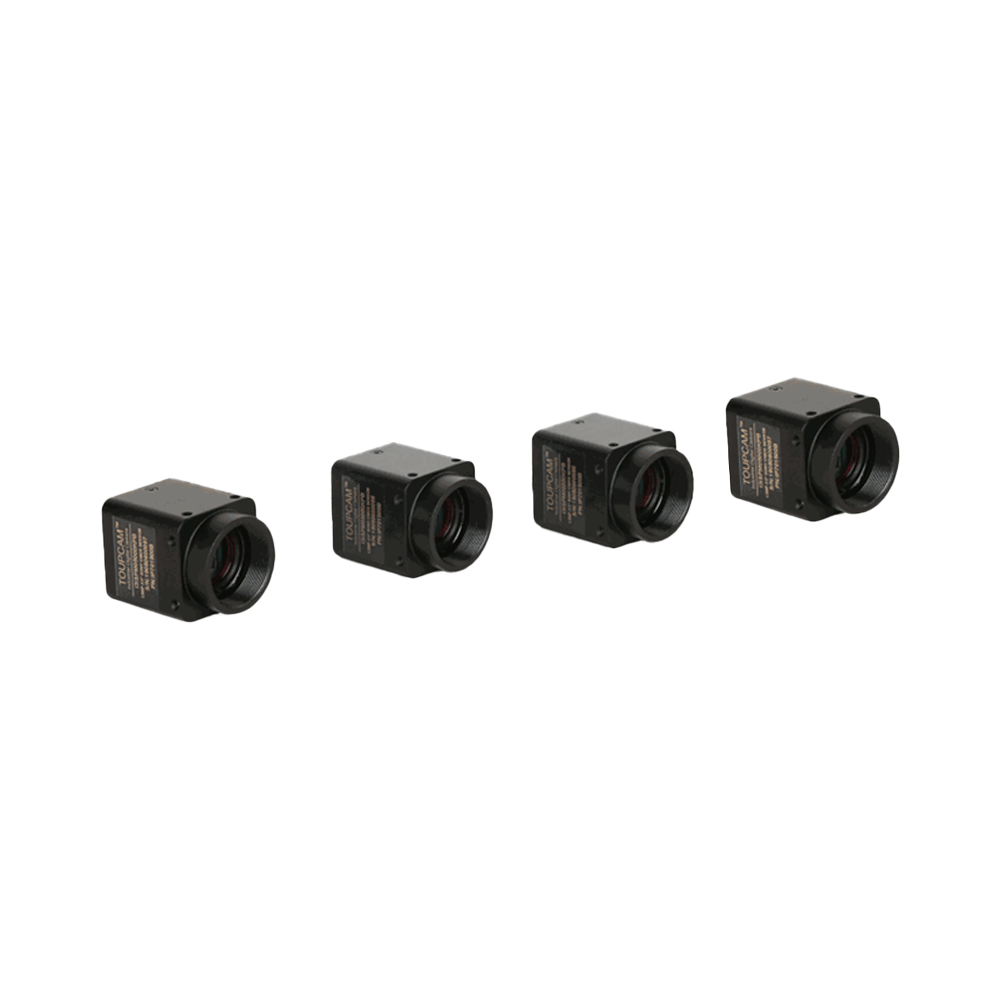

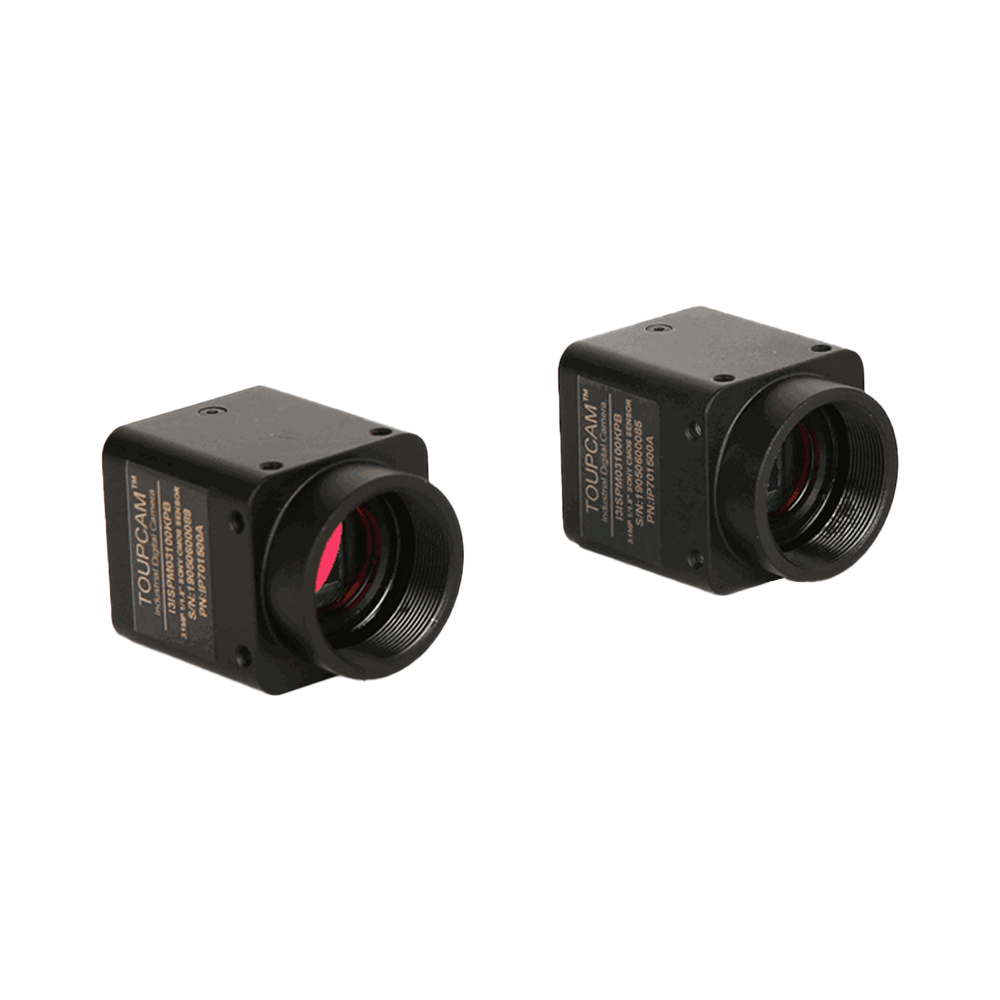

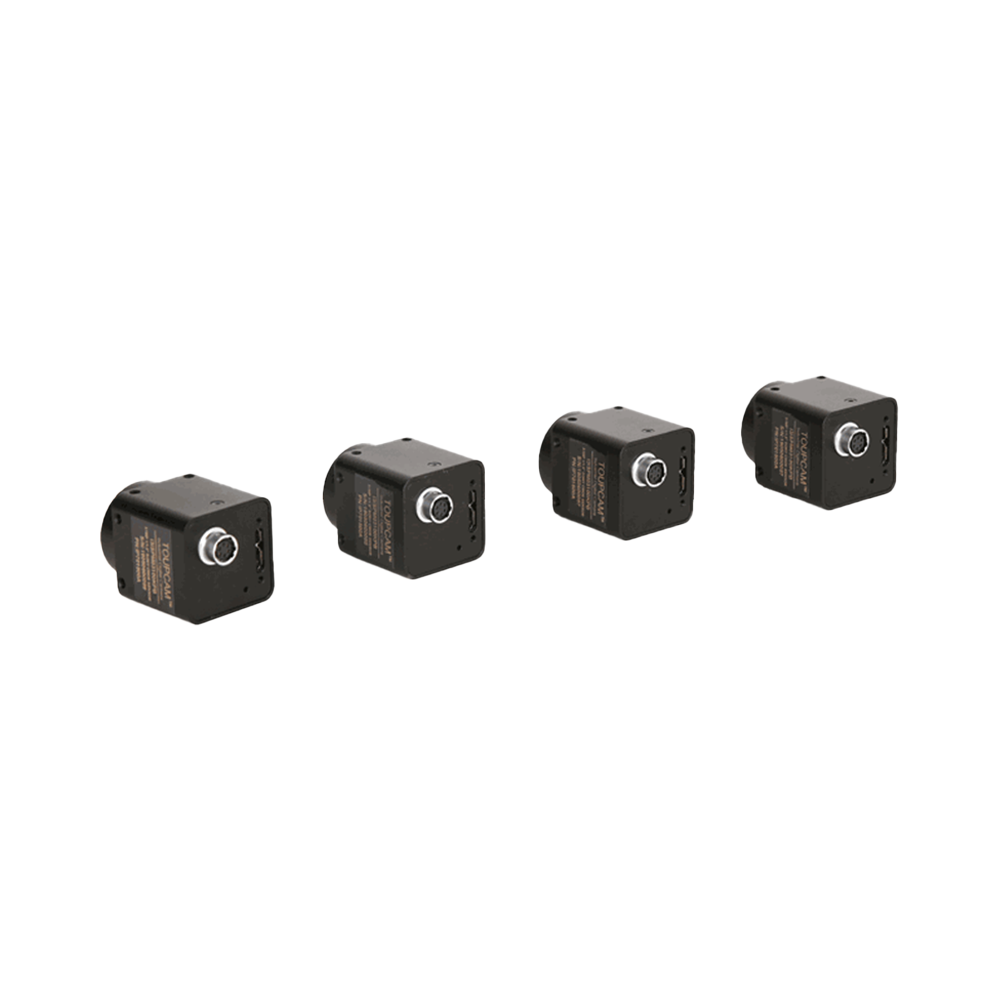

I3CMOS Series

Product Introduction

The I3CMOS Series is designed for high-speed machine vision, automated inspection, and scientific imaging applications. It features high-performance CMOS sensors from Sony and other manufacturers, with resolutions ranging from 0.5 to 20.4 MP and sensor formats from 1/2.9″ to 1.1″. The series offers both global shutter (GS) and high frame rate solutions (including rolling shutter RS models) based on application requirements, delivering clear, low-smear images even with high-speed motion and low-texture targets.

The system emphasizes compact design, low power consumption, and long-term stable operation. It provides USB3.0, GigE, and CoaXPress high-speed interfaces (model-dependent), supporting multiple bit depth outputs and bandwidth control to accommodate different cable lengths and acquisition bandwidth requirements. The built-in hardware ISP performs real-time processing including Demosaic, AE/AGC, AWB, Gamma/LUT at the camera level. The system supports free-running, software/hardware trigger, and multi-camera synchronization. I/O provides opto-isolated trigger/flash control and programmable GPIO for coordination with light sources, motion platforms, and other peripherals.

The series includes ToupView and cross-platform SDK (Windows/Linux/macOS; C/C++/C#/Python, etc.), compatible with DirectShow/TWAIN for easy system integration and secondary development.

Product Features

Sensor brands: Sony and other high-performance CMOS (model-dependent)
Resolution coverage from 0.5 to 20.4 MP; sensor formats from 1/2.9″ to 1.1″ (model-dependent)
Shutter types: Global shutter (GS) and rolling shutter (RS) options available (model-dependent)
High frame rate design, supports ROI/windowing for further frame rate and throughput enhancement
Data interfaces: USB3.0/GigE/CoaXPress (model-dependent), supports bandwidth limiting and long-cable stable transmission
Image bit depth: 8/10/12/16-bit (model-dependent), enhancing weak signal gradation and dynamic range
Built-in hardware ISP: Demosaic, AE/AGC, AWB, one-click white balance, Gamma, LUT, noise reduction/sharpening (model-dependent)

Acquisition modes: Free-running, software trigger, external hardware trigger; supports multi-camera synchronization and flash control
I/O: Opto-isolated input/output + programmable GPIO (model-dependent) for timing coordination with production lines/experimental equipment
Image functions: ROI/windowing, digital binning (2×2/3×3/4×4 model-dependent), mirror/flip, etc.
Bandwidth control and buffer (model-dependent), ensuring data integrity during high-speed/burst acquisition
Low power consumption, wide temperature adaptation, and anti-interference design for long-term continuous stable operation
Software and ecosystem: Includes ToupView; Windows/Linux/macOS SDK (C/C++/C#/Python), compatible with DirectShow/TWAIN
Supports field firmware upgrade; CE/FCC/RoHS compliant (model-dependent)

Get Quote Product Manual

Product Models

Compact High-Speed Industrial Cameras | 0.5–20.4 MP, 1/2.9″–1.1″, Global Shutter/High Frame Rate, USB3.0/GigE/CoaXPress

Model	Sensor / Size	Resolution	Pixel Size	Shutter	Frame Rate	Interface	Color	Action
I3CMOS12300KMC	Sony IMX253MZR (Polarsens) 1.1" (17.68 mm) \| 14.14 mm × 10.61 mm	12.3 MP (4096×3000)	3.45 µm × 3.45 µm	Global Shutter	23.4 fps @ 4096×3000 46.3 fps @ 2048×1500 46.3 fps @ 1024×750	USB3.0 (USB3.1 GEN1)	Monochrome Polarization	View Details
I3CMOS00500KMA	Sony IMX433LLJ 1/1.73" (9.2 mm) \| 7.31 mm × 5.58 mm	0.5 MP (812×620)	9.0 µm × 9.0 µm	Global Shutter	166.5 fps @ 812×620	USB3.0		View Details
I3CMOS01500KMA	Sony IMX273LLR 1/2.6" (6.21 mm) \| 4.97 mm × 3.73 mm	1.5 MP (1440×1080)	3.45 µm × 3.45 µm	Global Shutter	226.5 fps @ 1440×1080 506 fps @ 720×540	USB3.0		View Details
I3CMOS02300KMA	Sony IMX174LLJ 1/1.2" (13.27 mm) \| 11.25 mm × 7.03 mm	2.3 MP (1920×1200)	5.86 µm × 5.86 µm	Global Shutter	164.5 fps @ 1920×1200	USB3.0		View Details
I3CMOS02300KMB	Sony IMX249LLJ 1/1.2" (13.27 mm) \| 11.25 mm × 7.03 mm	2.3 MP (1920×1200)	5.86 µm × 5.86 µm	Global Shutter	30 fps @ 1920×1200	USB3.0		View Details
I3CMOS02400KMA	Gpixel GMAX4002 1/1.7" (9.49 mm) \| 8.19 mm × 4.80 mm	2.4 MP (2048×1200)	4.0 µm × 4.0 µm	Global Shutter	155 fps @ 2048×1200 620 fps @ 1024×600	USB3.0		View Details
I3CMOS03100KMA	Sony IMX252LLR 1/1.8" (8.84 mm) \| 7.07 mm × 5.30 mm	3.1 MP (2048×1536)	3.45 µm × 3.45 µm	Global Shutter	110.6 fps @ 2048×1536 233.8 fps @ 1024×768	USB3.0		View Details
I3CMOS03100KMB	Sony IMX265LLR 1/1.8" (8.84 mm) \| 7.07 mm × 5.30 mm	3.1 MP (2048×1536)	3.45 µm × 3.45 µm	Global Shutter	55.4 fps @ 2048×1536 115.1 fps @ 1024×768	USB3.0		View Details
I3CMOS03100KMB-G	Sony IMX265LLR 1/1.8" (8.84 mm) \| 7.07 mm × 5.30 mm	3.1 MP (2048×1536)	3.45 µm × 3.45 µm	Global Shutter	36.9 fps @ 2048×1536 115.1 fps @ 1024×768	GigE		View Details
I3CMOS03200KMA	Sony IMX900AMR 1/2.8" (5.76 mm) \| 4.61 mm × 3.46 mm	3.2 MP (2048×1536)	2.25 µm × 2.25 µm	Global Shutter	53.4 fps @ 2048×1536 126.8 fps @ 1024×768	USB3.0		View Details
I3CMOS03200KMA-G	Sony IMX900AMR 1/2.8" (5.76 mm) \| 4.61 mm × 3.46 mm	3.2 MP (2048×1536)	2.25 µm × 2.25 µm	Global Shutter	16.9 fps @ 2048×1536 66 fps @ 1024×768	GigE		View Details
I3CMOS04200KMA	Sony IMX664-AAMR1 1/1.8" (8.96 mm) \| 7.80 mm × 4.41 mm	4.2 MP (2688×1520)	2.9 µm × 2.9 µm	Rolling Shutter	90 fps @ 2688×1520	USB3.0		View Details
I3CMOS05000KMA	Sony IMX250LLR 1/1.45" (11.02 mm) \| 8.45 mm × 7.07 mm	5.0 MP (2448×2048)	3.45 µm × 3.45 µm	Global Shutter	70.9 fps @ 2448×2048 175.2 fps @ 1224×1024	USB3.0		View Details
I3CMOS05000KMB	Sony IMX264LLR 1/1.45" (11.02 mm) \| 8.45 mm × 7.07 mm	5.0 MP (2448×2048)	3.45 µm × 3.45 µm	Global Shutter	35.6 fps @ 2448×2048 87.6 fps @ 1224×1024	USB3.0		View Details
I3CMOS05000KMB-G	Sony IMX264LLR 1/1.45" (11.02 mm) \| 8.45 mm × 7.07 mm	5 MP (2448×2048)	3.45 µm × 3.45 µm	Global Shutter	23.9 fps @ 2448×2048 87.6 fps @ 1224×1024	GigE		View Details
I3CMOS05000KMC	Sony IMX250MZR (Polarsens) 1/1.45" (11.02 mm) \| 8.45 mm × 7.07 mm	5.0 MP (2448×2048)	3.45 µm × 3.45 µm	Global Shutter	35.6 fps @ 2448×2048 87.6 fps @ 1224×1024	USB3.0	Monochrome (Polarization)	View Details
I3CMOS05100KMA	Gpixel GMAX3405 2/3" (10.85 mm) \| 8.32 mm × 6.96 mm	5.1 MP (2448×2048)	3.4 µm × 3.4 µm	Global Shutter	71 fps @ 2448×2048 100 fps @ 1224×1024	USB3.0		View Details
I3CMOS05100KMB-CXP	Sony IMX547-AAMJ-C 1/1.85" (8.75 mm) \| 6.71 mm × 5.61 mm	5.1 MP (2432×2048)	2.74 µm × 2.74 µm	Global Shutter	109 fps @ 2432×2048 (8-bit) 88 fps @ 2432×2048 (10-bit) 74 fps @ 2432×2048 (12-bit)	CXP-6		View Details
I3CMOS06300KMA	Sony IMX178LLJ 1/1.8" (8.86 mm) \| 7.37 mm × 4.92 mm	6.3 MP (3072×2048)	2.4 µm × 2.4 µm	Rolling Shutter	58.7 fps @ 3072×2048 59.5 fps @ 1536×1024	USB3.0		View Details
I3CMOS08000KMA	Sony IMX546-AAMJ 1/1.45" (11 mm) \| 7.78 mm × 7.78 mm	8.0 MP (2840×2840)	2.74 µm × 2.74 µm	Global Shutter	41 fps @ 2840×2840 118 fps @ 1420×1420	USB3.0		View Details
I3CMOS01300KMA	GPixel GLUX9701BSI (UV) 1" (15.99 mm) \| 12.49 mm × 9.99 mm	1.3 MP (1280×1024)	9.76 µm × 9.76 µm	Rolling Shutter	30 fps @ 1280×1024 30 fps @ 640×512	USB3.0	Monochrome (UV)	View Details
I3CMOS01700KMA	Sony IMX432LLJ 1.1" (17.47 mm) \| 14.4 mm × 9.9 mm	1.7 MP (1600×1100)	9.0 µm × 9.0 µm	Global Shutter	98.6 fps @ 1600×1100	USB3.0		View Details
I3CMOS01700KMB	Sony IMX425LLJ 1.1" (17.47 mm) \| 14.4 mm × 9.9 mm	1.7 MP (1600×1100)	9.0 µm × 9.0 µm	Global Shutter	210 fps @ 1600×1100	USB3.0		View Details
I3CMOS08300KMB	Sony IMX585-AAMJ1-C 1/1.25" (12.78 mm) \| 11.14 mm × 6.26 mm	8.3 MP (3840×2160)	2.9 µm × 2.9 µm	Rolling Shutter	45 fps @ 3840×2160 70 fps @ 1920×1080	USB3.0		View Details
I3CMOS02000KMA	Sony IMX430LLJ 1/1.73" (9.2 mm) \| 7.31 mm × 5.58 mm	2.0 MP (1624×1240)	4.5 µm × 4.5 µm	Global Shutter	132 fps @ 1624×1240	USB3.0		View Details
I3CMOS02800KMA	Sony IMX421LLJ 1/1.45" (10.92 mm) \| 8.71 mm × 6.59 mm	2.8 MP (1936×1464)	4.5 µm × 4.5 µm	Global Shutter	121 fps @ 1936×1464 425 fps @ 968×732	USB3.0		View Details
I3CMOS07100KMA	Sony IMX428LLJ 1.1" (17.47 mm) \| 14.4 mm × 9.9 mm	7.1 MP (3200×2200)	4.5 µm × 4.5 µm	Global Shutter	51.3 fps @ 3200×2200 133.8 fps @ 1584×1100	USB3.0		View Details
I3CMOS12300KMA	Sony IMX304LLR-C 1.1" (17.52 mm) \| 14.13 mm × 10.35 mm	12.3 MP (4096×3000)	3.45 µm × 3.45 µm	Global Shutter	23.4 fps @ 4096×3000 46.3 fps @ 2048×1500 46.3 fps @ 1024×750	USB3.0		View Details
I3CMOS12500KMA	Gpixel GMAX3412 1.1" (17.41 mm) \| 13.93 mm × 10.44 mm	12.5 MP (4096×3072)	3.4 µm × 3.4 µm	Global Shutter	30 fps @ 4096×3072 60 fps @ 2048×1536	USB3.0		View Details
I3CMOS20400KMA	Sony IMX541-AAMJ-C 1.1" (17.42 mm) \| 12.32 mm × 12.32 mm	20.4 MP (4496×4496)	2.74 µm × 2.74 µm	Global Shutter	17.5 fps @ 4496×4496 64.4 fps @ 2240×2240 64.4 fps @ 1120×1120	USB3.0		View Details

Package Contents #

Standard package contents for I3 series industrial machine vision cameras (USB3 / GigE / 10GigE)

Recommended bundle (USB3)

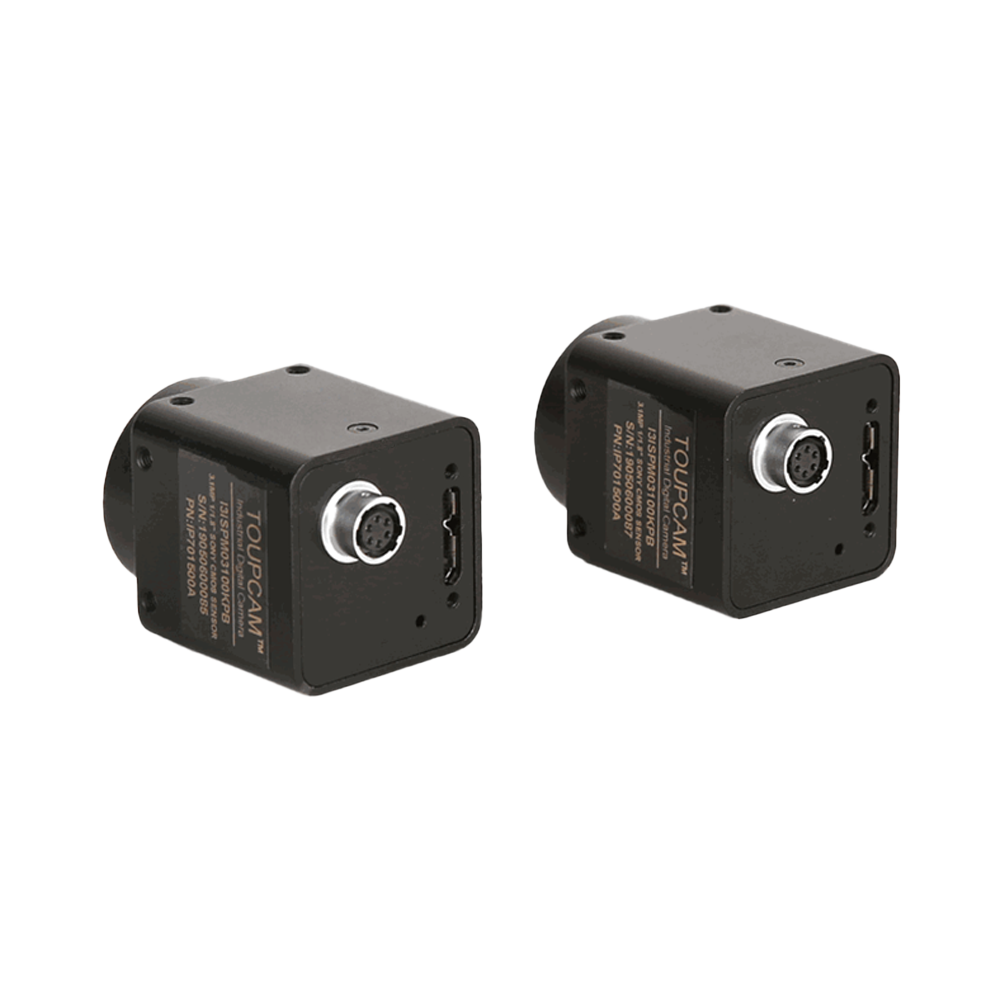

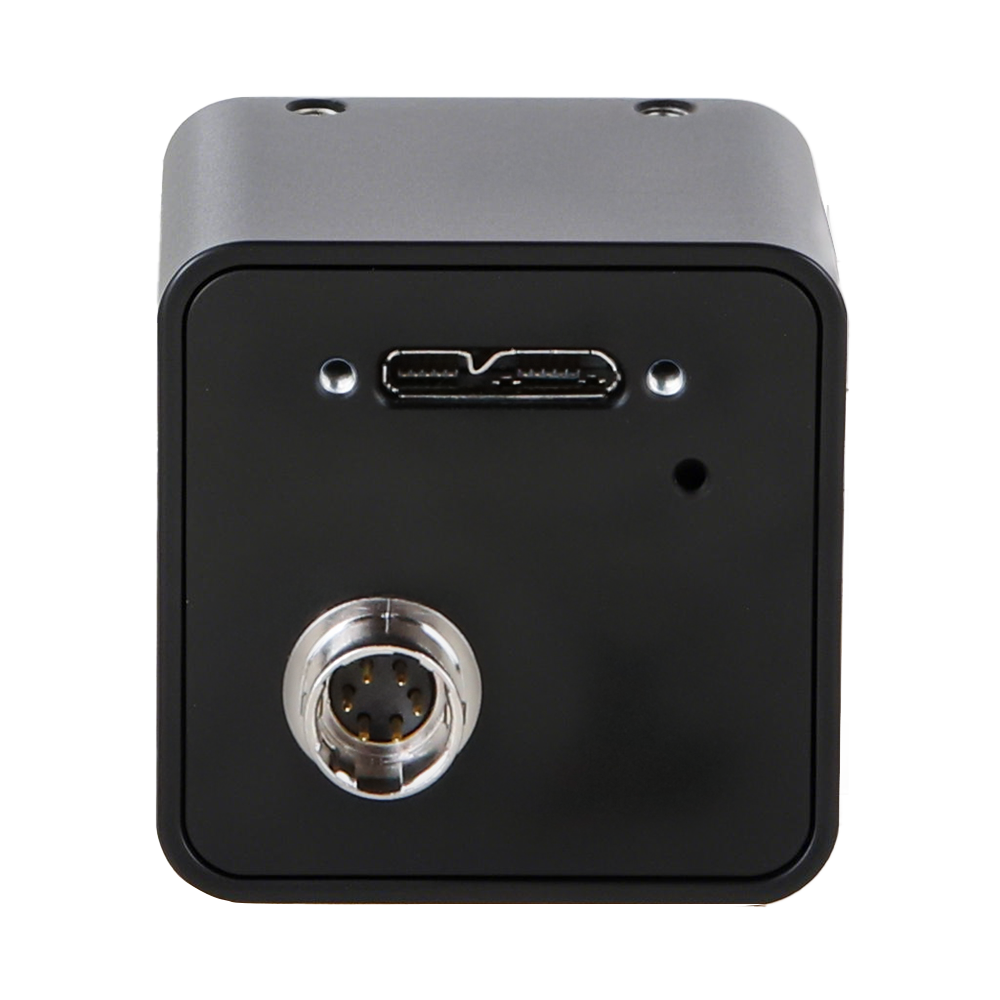

Camera body - USB3.0 interface
I/O cable - 6-pin cable or extension cable
Cable - Micro USB3.0 cable
Lens (optional)

USB3.0 is plug-and-play with hot-swappable support.

Recommended bundle (GigE)

Camera body - GigE interface
I/O cable - 6-pin cable or extension cable
GigE cable
Lens (optional)

GigE supports long-distance transmission, ideal for distributed vision systems.

Recommended bundle (10GigE)

Camera body - 10GigE interface
Power adapter - 12 V/36 W aviation power supply
I/O cable - 7-pin cable or extension cable
10GigE cable
Lens (optional) - M42 or F-mount lens

10GigE delivers ultra-high bandwidth for high-resolution, high-frame-rate use; requires 12 V aviation power.

Recommended bundle (CXP)

Camera body - CoaXPress interface
I/O cable - 7-pin cable or extension cable
Cable - CoaXPress cable
Lens (optional) - C-mount lens

CoaXPress offers high bandwidth and low latency for high-speed transfer; requires CXP cables.

Click the interface buttons above to switch lists

Product Dimensions #

Dimensions overview for I3 series industrial machine vision cameras

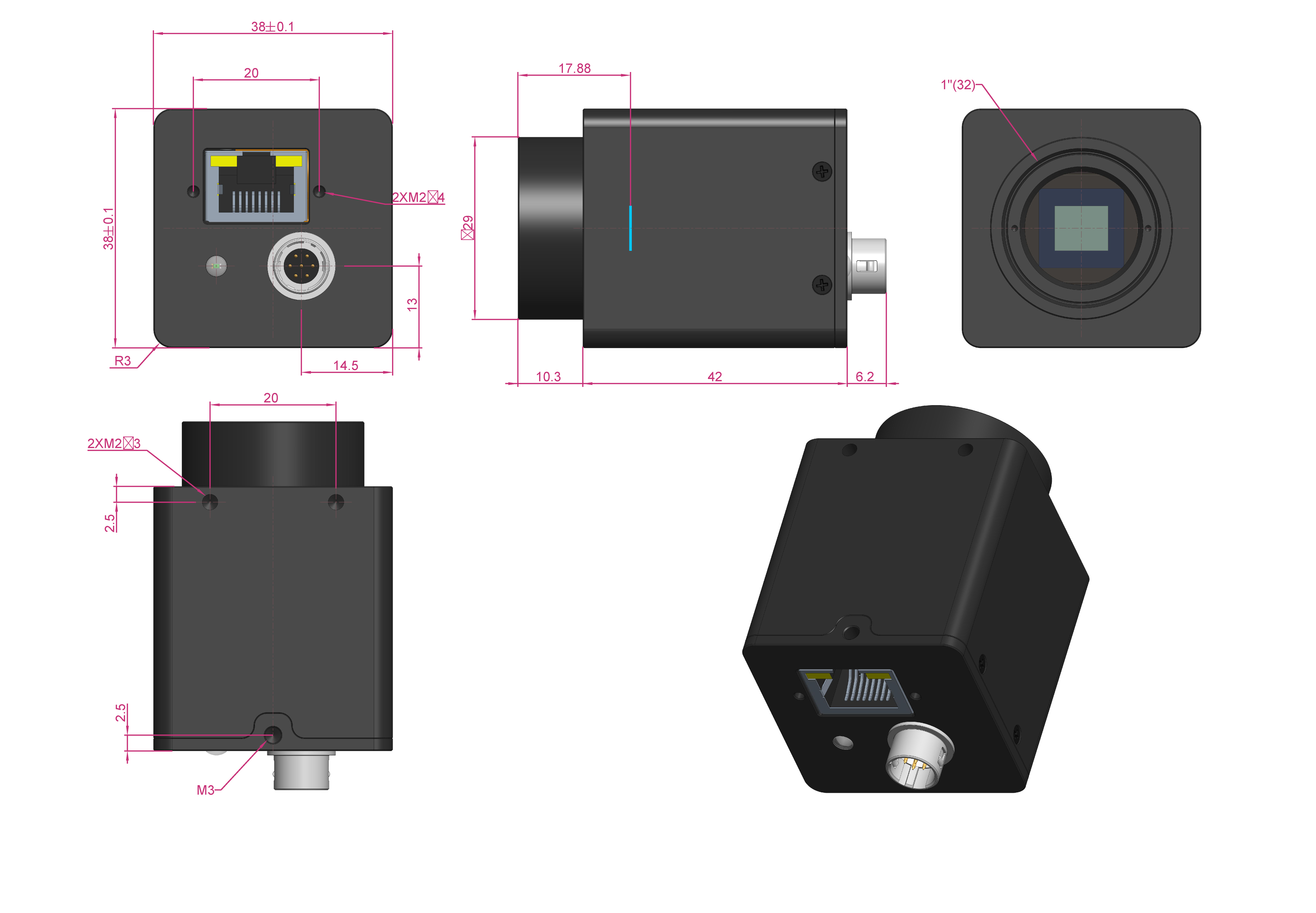

I3CMOS GigE dimensions (33 mm)

GigE Outline drawing

Applicable: GigE interface models

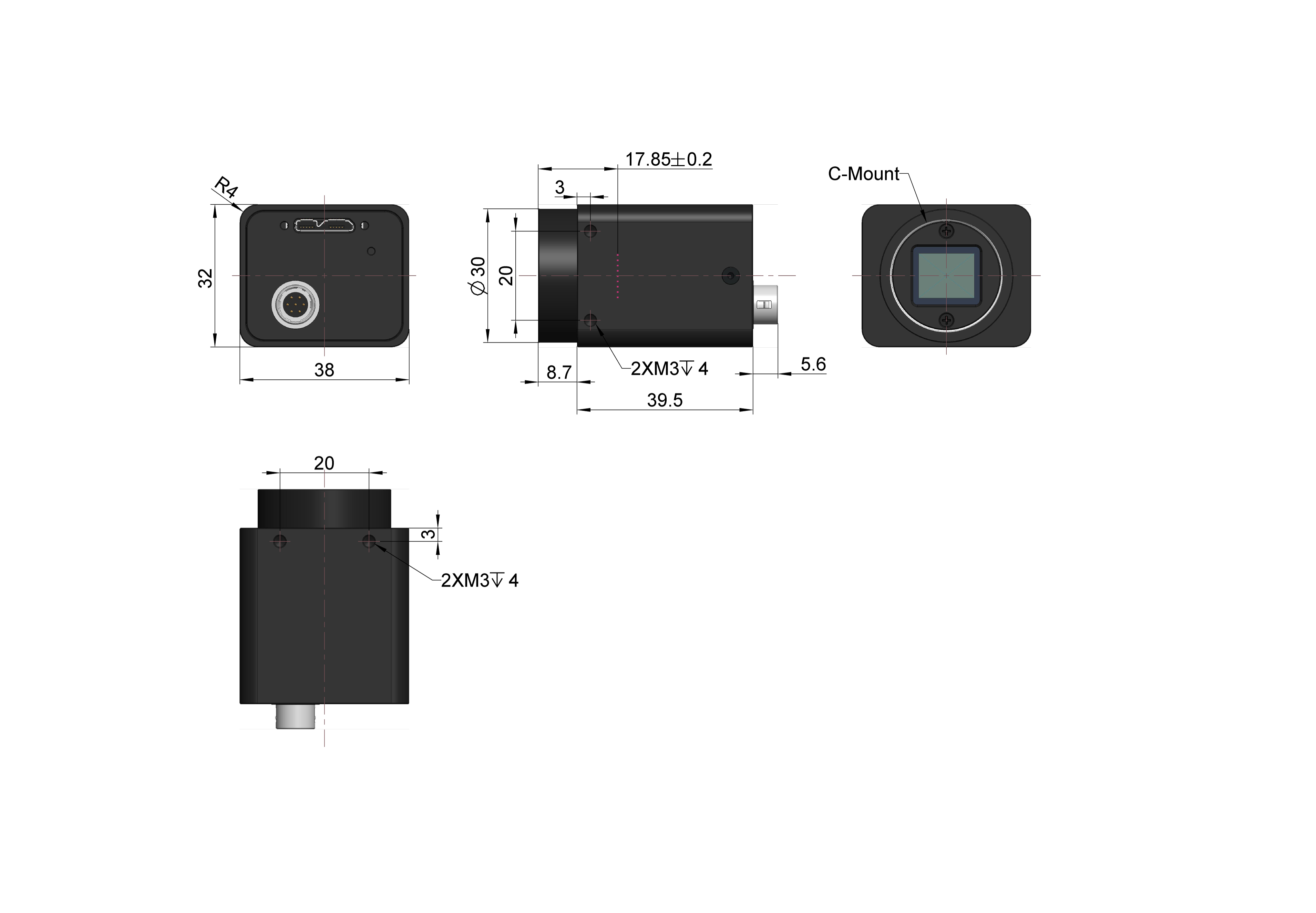

I3CMOS USB3 dimensions (38 mm)

USB3 Outline drawing

Applicable: USB3.0 interface models

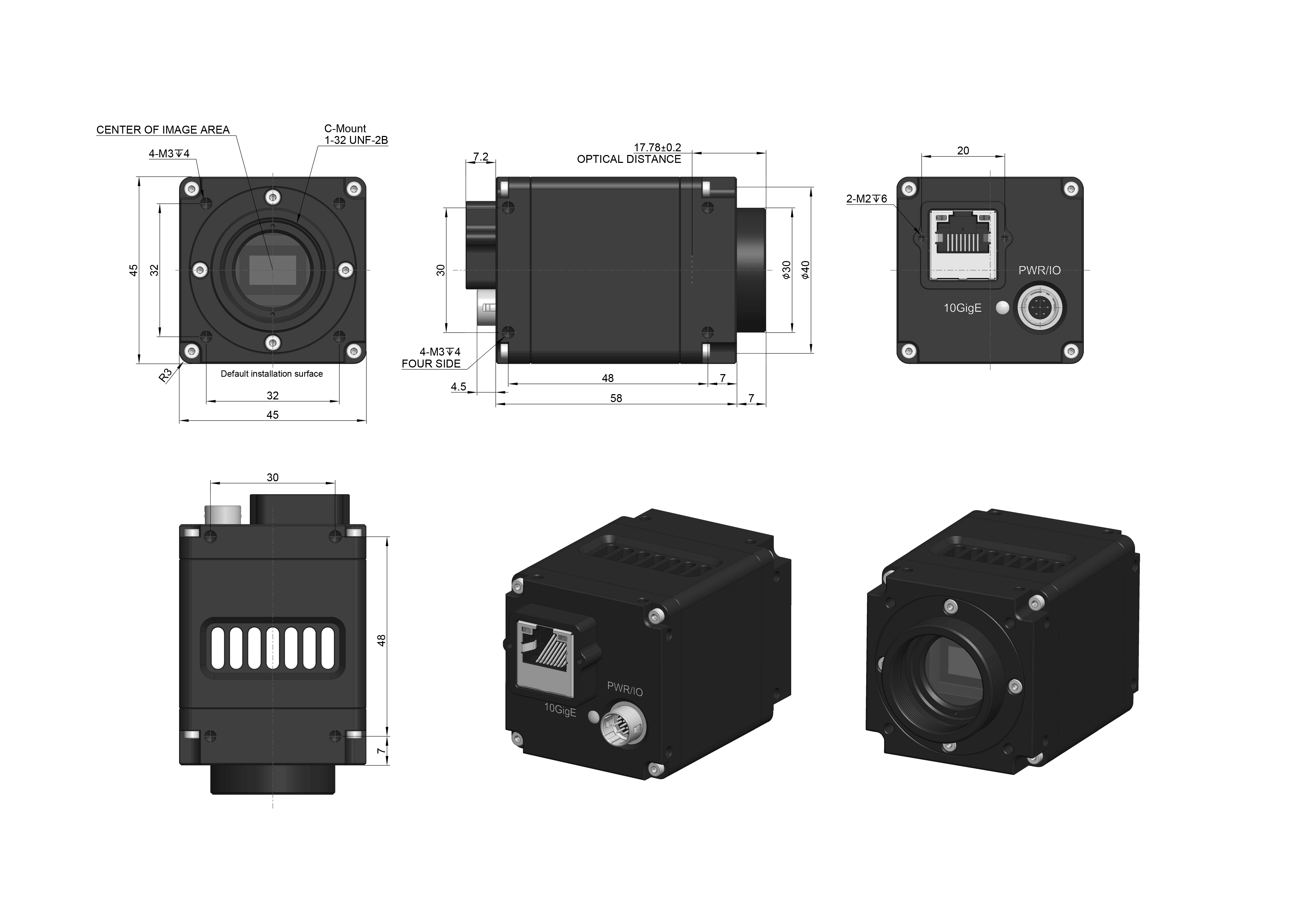

I3CMOS 10GigE dimensions (fanless)

10GigE Outline drawing

Applicable: 10GigE interface fanless version

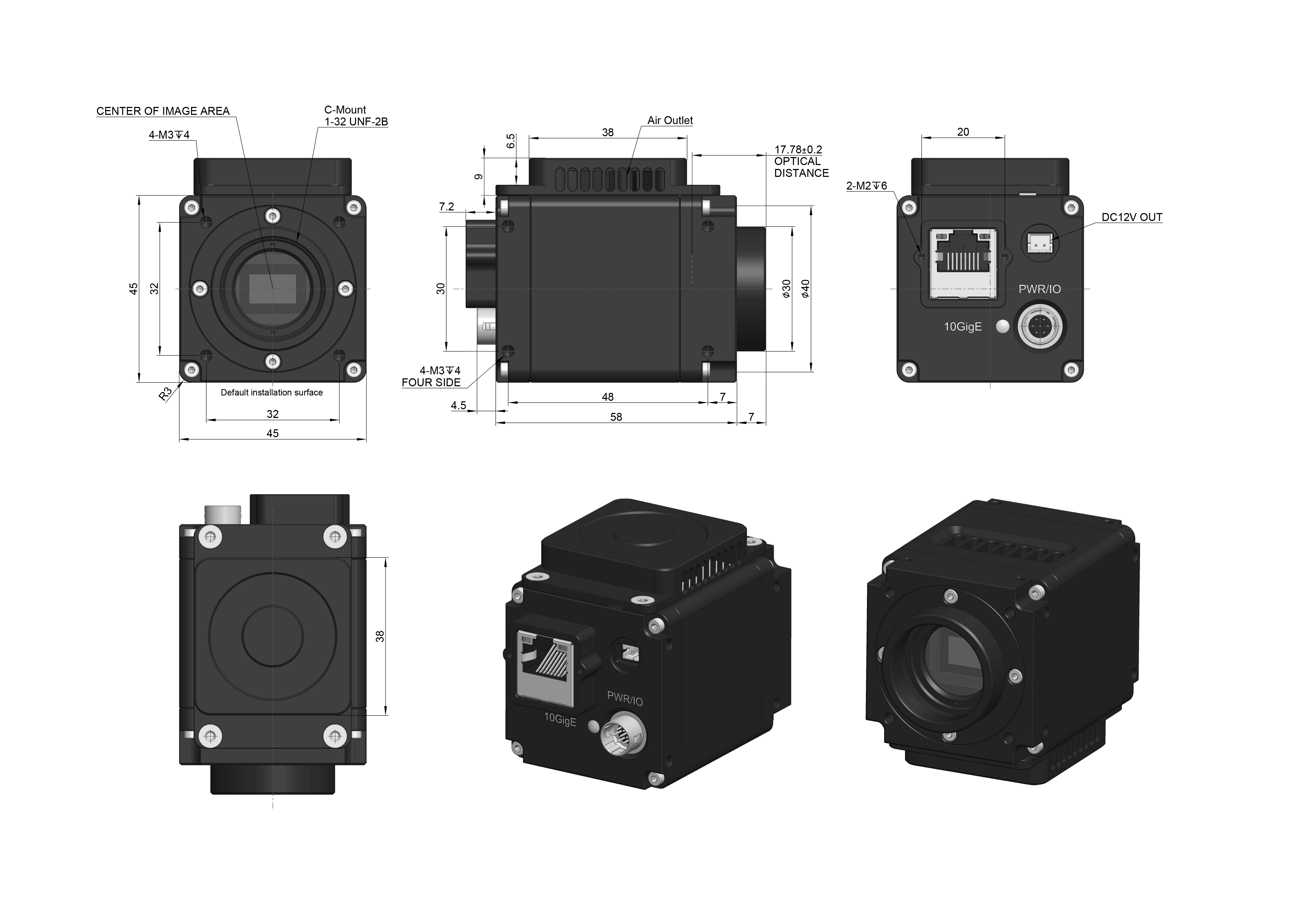

I3CMOS 10GigE dimensions (with fan)

10GigE Outline drawing

Applicable: 10GigE interface models with fan

I3CMOS CoaXPress overall dimensions

CXP Outline drawing

Applicable: CXP interface models (overall dimensions)

Click images to view full size

The I3CMOS series from ToupTek offers high-performance USB3.0 industrial cameras spanning 2–20.4 MP, built with premium Sony and Gpixel CMOS sensors and supporting 1/1.7" to 1.1" formats. The series features global shutter capture with high speed, low noise, and wide dynamic range, making it ideal for industrial inspection, machine vision, and research imaging.

Key Features

Global shutter technology

Eliminates motion blur for precise capture

Premium sensors

Sony/Gpixel CMOS sensors

High-speed imaging

Up to 132 fps capture

Wide dynamic range

70 dB+ dynamic range performance

Performance Highlights

Resolution range

2–20.4 MP

Multiple options

Max frame rate

132 fps

@ 2 MP

Dynamic range

70.8 dB

High-contrast scenes

Compact size

38×38×33

mm body

In-depth Product Overview

High-performance sensor platform

Equipped with Sony IMX430, IMX421, IMX541, and Gpixel GMAX sensors, the lineup covers diverse pixel sizes and resolutions. Pixel sizes range from 2.74 µm to 4.5 µm, balancing fine detail with low-light sensitivity. These high-end sensors deliver excellent image quality under varied lighting, with dark current as low as 0.15 mV, ideal for long-exposure use.

Global shutter high-speed imaging

The entire series supports global shutter technology for high-speed dynamic scenes, effectively eliminating motion blur. Typical 2 MP models reach up to 132 fps, while 20.4 MP variants still deliver 17.5 fps at full 4496×4496 resolution. This speed makes the cameras excel in high-speed production line inspection and motion analysis.

Flexible imaging control

Offers 1×1, 2×2, 3×3, and 4×4 hardware and software binning so users can balance speed, sensitivity, and image quality. Supports 8-bit/12-bit output to meet precision requirements. Some models reach dynamic range above 70 dB with SNR around 40 dB, preserving rich detail in high-contrast scenes.

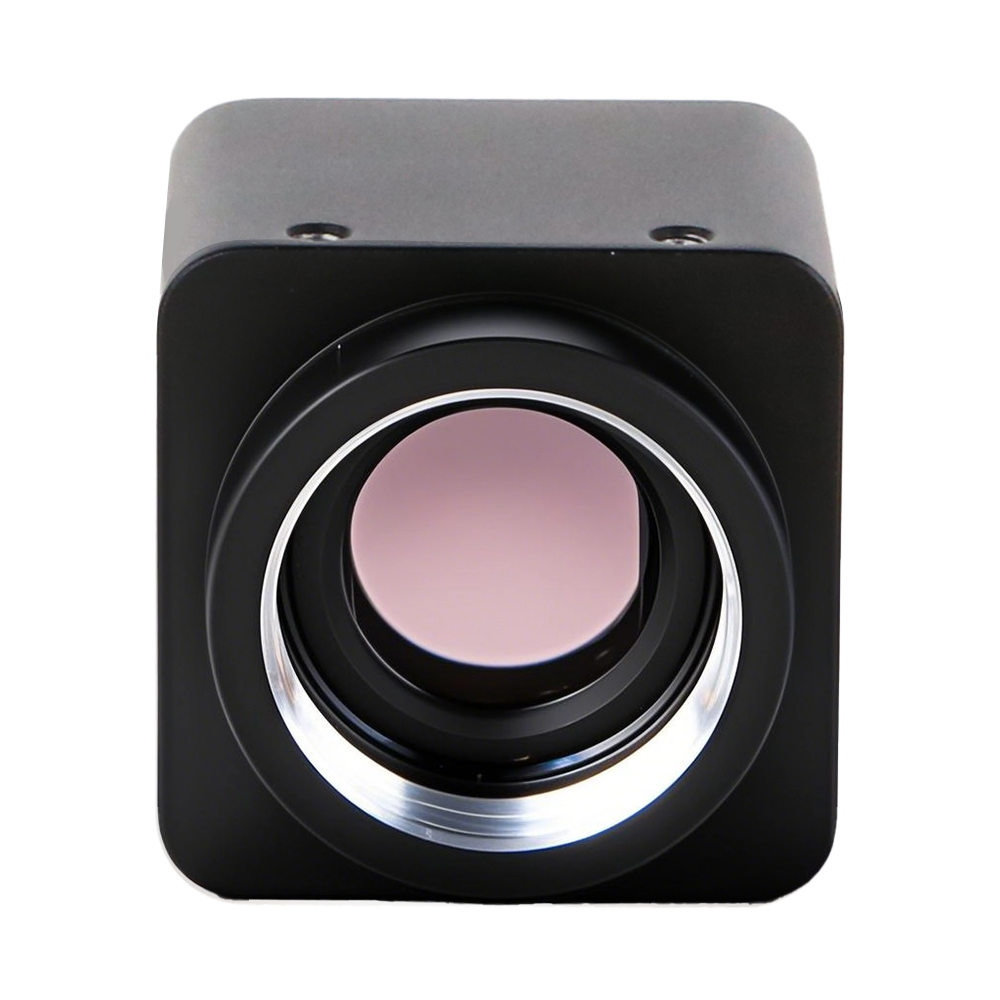

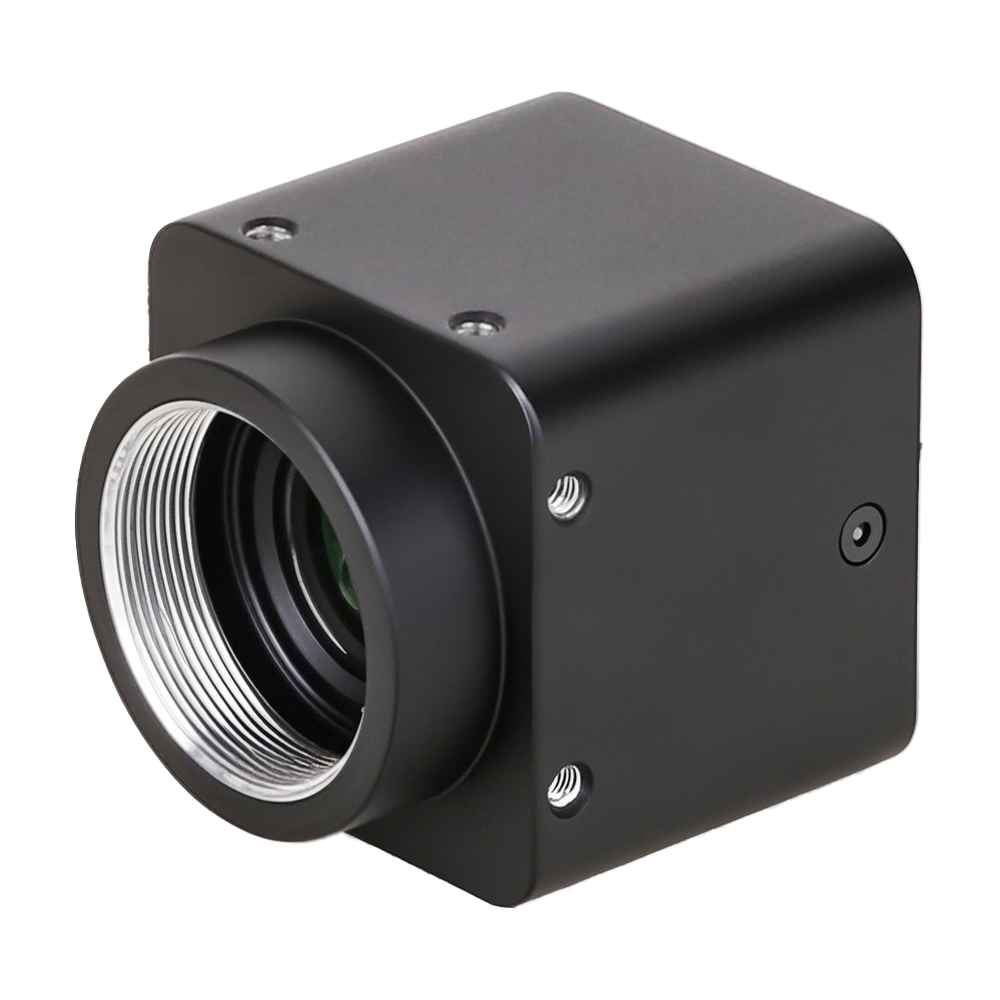

Compact, reliable industrial design

Built with a compact 38×38×33 mm full-metal design, weighing about 70 g and consuming under 3 W. USB3.0 (USB3.1 GEN1) single-cable power simplifies integration. Opto-isolated I/O eases embedding into automation systems. Operating temperature is -10 to 50 °C with 20%–80% humidity (non-condensing) for stable long-term industrial use.

Comprehensive software ecosystem

Compatible with ToupView software and Windows, Linux, macOS, and Android. The SDK provides C/C++, C#/VB.NET, Python, DirectShow, and Twain interfaces for easy secondary development. Rich SDK features and standardized I/O enable rapid integration into machine vision or research systems, shortening development cycles.
