I3CMOS05000KMB-G Industrial Camera/Analytical Imaging
Product Introduction
The I3CMOS Series is designed for high-speed machine vision, automated inspection, and scientific imaging applications. It features high-performance CMOS sensors from Sony and other manufacturers, with resolutions ranging from 0.5 to 20.4 MP and sensor formats from 1/2.9″ to 1.1″. The series offers both global shutter (GS) and high frame rate solutions (including rolling shutter RS models) based on application requirements, delivering clear, low-smear images even with high-speed motion and low-texture targets.
The system emphasizes compact design, low power consumption, and long-term stable operation. It provides USB3.0, GigE, and CoaXPress high-speed interfaces (model-dependent), supporting multiple bit depth outputs and bandwidth control to accommodate different cable lengths and acquisition bandwidth requirements. The built-in hardware ISP performs real-time processing including Demosaic, AE/AGC, AWB, Gamma/LUT at the camera level. The system supports free-running, software/hardware trigger, and multi-camera synchronization. I/O provides opto-isolated trigger/flash control and programmable GPIO for coordination with light sources, motion platforms, and other peripherals.
The series includes ToupView and cross-platform SDK (Windows/Linux/macOS; C/C++/C#/Python, etc.), compatible with DirectShow/TWAIN for easy system integration and secondary development.
Key Features
- Sensor brands: Sony and other high-performance CMOS (model-dependent)
- Resolution coverage from 0.5 to 20.4 MP; sensor formats from 1/2.9″ to 1.1″ (model-dependent)
- Shutter types: Global shutter (GS) and rolling shutter (RS) options available (model-dependent)
- High frame rate design, supports ROI/windowing for further frame rate and throughput enhancement
- Data interfaces: USB3.0/GigE/CoaXPress (model-dependent), supports bandwidth limiting and long-cable stable transmission
- Image bit depth: 8/10/12/16-bit (model-dependent), enhancing weak signal gradation and dynamic range
- Built-in hardware ISP: Demosaic, AE/AGC, AWB, one-click white balance, Gamma, LUT, noise reduction/sharpening (model-dependent)
- Acquisition modes: Free-running, software trigger, external hardware trigger; supports multi-camera synchronization and flash control
- I/O: Opto-isolated input/output + programmable GPIO (model-dependent) for timing coordination with production lines/experimental equipment
- Image functions: ROI/windowing, digital binning (2×2/3×3/4×4 model-dependent), mirror/flip, etc.
- Bandwidth control and buffer (model-dependent), ensuring data integrity during high-speed/burst acquisition
- Low power consumption, wide temperature adaptation, and anti-interference design for long-term continuous stable operation
- Software and ecosystem: Includes ToupView; Windows/Linux/macOS SDK (C/C++/C#/Python), compatible with DirectShow/TWAIN
- Supports field firmware upgrade; CE/FCC/RoHS compliant (model-dependent)
Product Details
| Key Parameters | |
| Model | I3CMOS05000KMB-G |
| Sensor | Sony IMX264LLR |
| Effective Pixels / Resolution | 5 MP (2448×2048) |
| Frame Rate (Full Resolution) | 23.9 fps @ 2448×2048; 87.6 fps @ 1224×1024 |
| Shutter Type | Global Shutter |
| Color Type | Monochrome |
| Imaging Performance | |
| Pixel Size | 3.45 µm × 3.45 µm |
| Sensor Size | 8.45 mm × 7.07 mm |
| Diagonal | 2/3" |
| Dynamic Range | 73.6 dB |
| Bit Depth | 8/12-bit |
| Sensitivity | 1830 mV |
| Interface & Mechanical | |
| Data Interface | GigE |

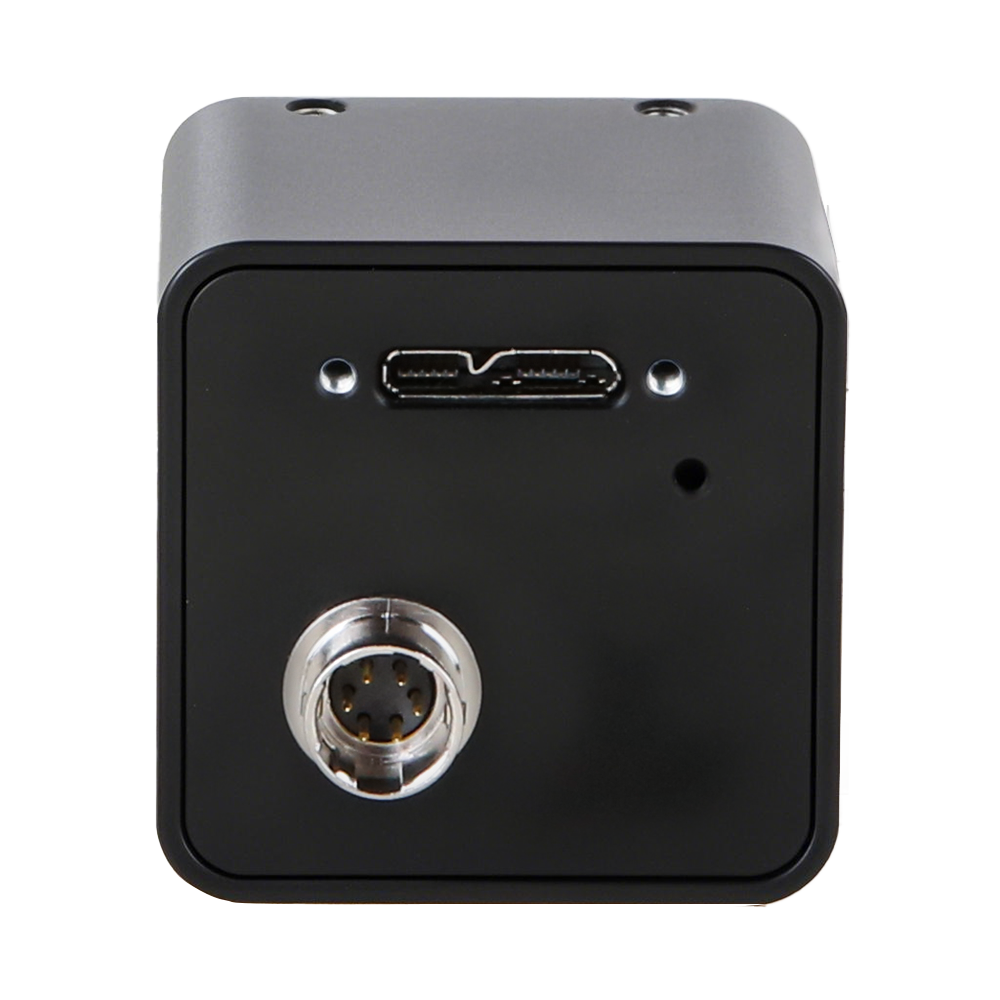

| GPIO | 1 opto-isolated input, 1 opto-isolated output, 1 non-isolated I/O port |

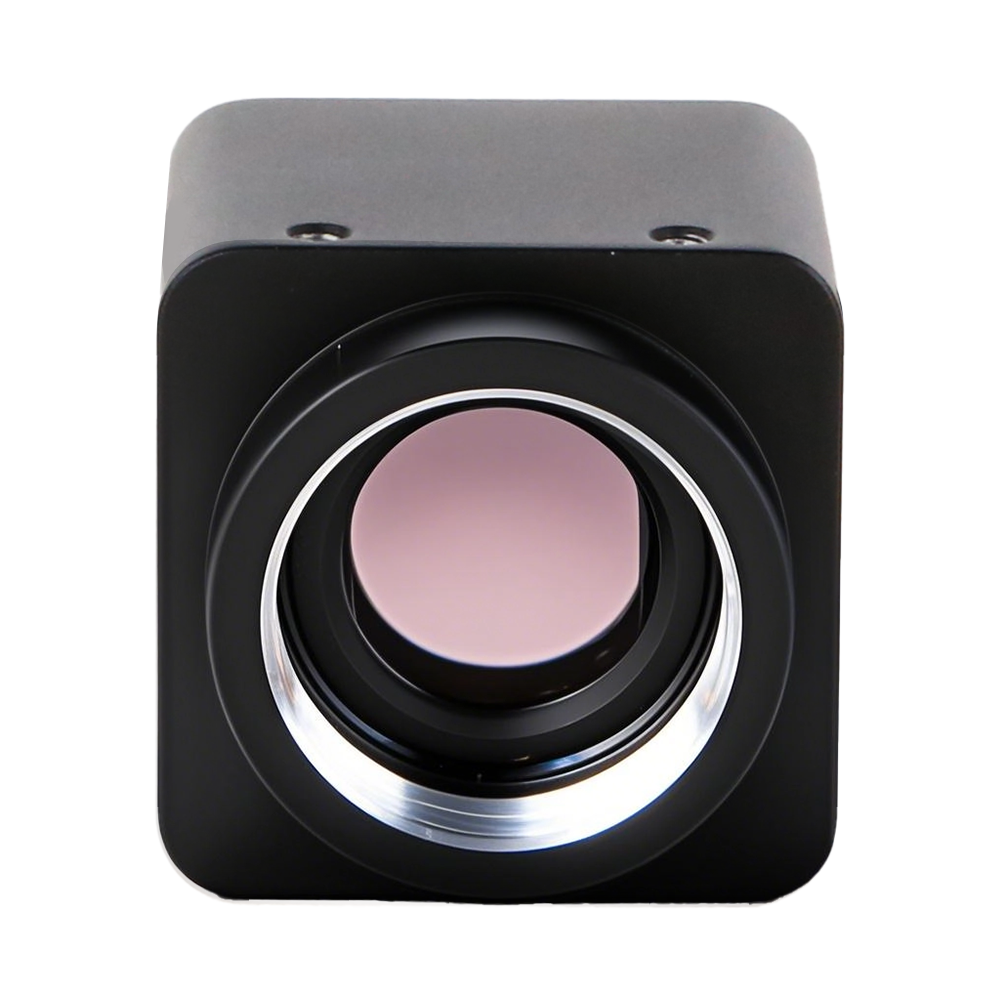

| Lens Mount | C-mount |
| Dimensions | 33 mm × 33 mm × 33 mm |
| Weight | 70 g |
| Power Supply | 12 V power adapter |
| Environment & Certification | |
| Operating Temperature / Humidity | -10 °C to +50 °C / 20% to 80% non-condensing |
| Storage Temperature / Humidity | -30 °C to +70 °C / TBD |
| Operating System | Win32/WinRT/Linux/macOS/Android |
| Certification | CE, FCC |
Product Overview
The I3CMOS05000KMB-G represents a precision-engineered industrial camera solution designed specifically for demanding machine vision applications. Featuring a Sony IMX264LLR high-performance image sensor, this platform delivers exceptional capabilities for automated inspection and quality control environments requiring precise timing and compact integration.
Industrial Performance Characteristics
The I3CMOS Series establishes new standards for industrial imaging through its optimized sensor architecture and compact mechanical design. The 5 MP (2448×2048) resolution capability combined with 3.45 µm × 3.45 µm pixel pitch delivers exceptional detail resolution across a 8.45 mm × 7.07 mm sensor format, ensuring consistent performance in automated manufacturing environments.
The implementation of Global Shutter technology eliminates motion artifacts that compromise measurement accuracy in high-speed applications. This design approach ensures temporal precision essential for machine vision systems monitoring rapid manufacturing processes or conducting automated quality inspections where object movement cannot introduce imaging distortions.
High-Speed Data Management
The GigE interface architecture enables maximum frame rates reaching 23.9 fps @ 2448×2048; 87.6 fps @ 1224×1024 , supporting real-time image acquisition and immediate processing feedback required in automated inspection systems. This connectivity standard ensures consistent data throughput without bottlenecks that could compromise production line efficiency.
Advanced image processing capabilities include 8/12-bit color depth processing with dynamic range specifications exceeding 73.6 dB . These parameters ensure accurate color reproduction and contrast resolution necessary for defect detection and quality assessment applications across diverse industrial materials and lighting conditions.
Optical Integration and Sensitivity
Optimized sensitivity specifications of 1830 mV enable reliable performance across varying illumination conditions typical in industrial environments. This capability ensures consistent imaging quality whether deployed in controlled inspection stations or variable production environments where lighting conditions may fluctuate.
The standard C-mount interface provides universal compatibility with industrial lens systems, while optional 0.5×/0.63×/1× relay adapters enable integration with specialized optical configurations. This flexibility supports diverse application requirements from macro inspection to precision microscopic analysis.
Compact Integration Design
The exceptionally compact form factor measuring 33 mm × 33 mm × 33 mm with a total system weight of 70 g addresses space constraints inherent in automated manufacturing systems. The 12 V power adapter power architecture eliminates additional power supply requirements, simplifying installation and reducing system complexity.
Professional software integration supports comprehensive development environments including C/C++, C#, Python, DirectShow, GenICam platforms across Win32/WinRT/Linux/macOS/Android operating systems. This compatibility ensures seamless integration with existing automation infrastructure and enables custom application development tailored to specific manufacturing requirements.
Core Performance Metrics
Resolution
5 MP (2448×2048)
Frame Rate
Up to 23.9 fps @ 2448×2048; 87.6 fps @ 1224×1024
Pixel Size
3.45 µm × 3.45 µm
Data Interface
GigE
Industrial Application Capabilities
Manufacturing Integration
Engineered for demanding production environments including automated assembly lines, quality control stations, and precision manufacturing systems requiring consistent imaging performance and reliable operation
High-Speed Precision
Global shutter architecture eliminates motion blur and temporal distortions, ensuring accurate measurement and inspection results in high-speed manufacturing processes and dynamic object tracking applications
Space-Efficient Design
Ultra-compact mechanical design addresses space constraints in automated systems while maintaining professional-grade imaging performance and reliable operation in challenging industrial environments
System Integration
Comprehensive software development kit enables seamless integration with existing automation infrastructure, supporting custom application development and specialized machine vision algorithms
Industrial Excellence
The I3CMOS05000KMB-G industrial camera delivers exceptional value through its precision engineering, compact design, and comprehensive integration capabilities. This platform represents the optimal solution for demanding manufacturing environments requiring reliable high-speed imaging, precise timing, and seamless automation system integration.
I3CMOS05000KMB-G Technical Documentation
Comprehensive PDF documentation including detailed technical specifications and mechanical drawings
SDK Development Kit
Multi-platform support for Windows, Linux, macOS and comprehensive API documentation
3D CAD Models
Precision STEP format files for mechanical design integration and system planning

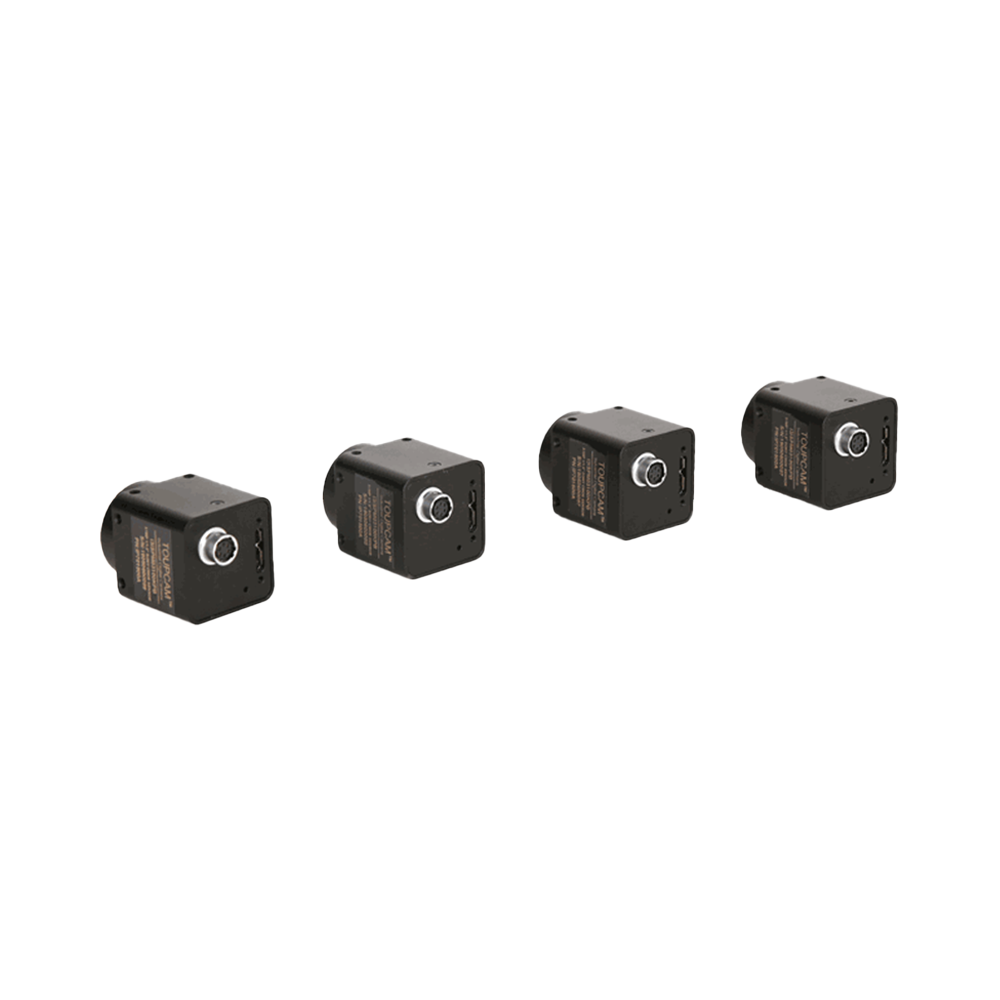

Product Overview
Professional features of the I3CMOS series industrial cameras

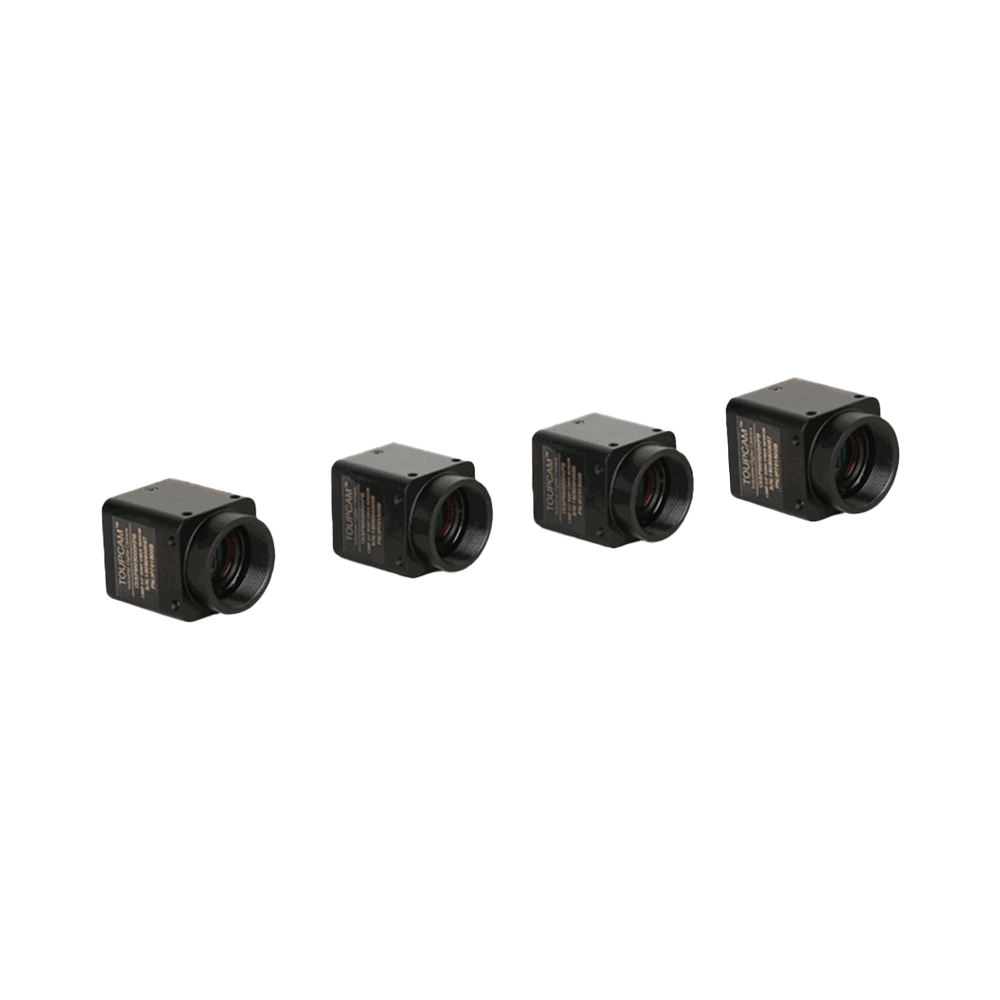

The I3CMOS series represents high-performance USB 3.0 industrial cameras developed by Spectrum Instruments, offering resolutions ranging from 2 to 20.4 megapixels. These cameras feature premium Sony and Gpixel CMOS sensors with compatibility across sensor sizes from 1/1.7" to 1.1". The series supports global shutter technology while delivering exceptional high-speed acquisition, low noise performance, and wide dynamic range capabilities, making them ideally suited for industrial inspection, machine vision, and scientific imaging applications.
Core Features
Global Shutter Technology
Eliminates motion blur for precise capture
Premium Sensors
Sony/Gpixel CMOS technology
High-Speed Imaging
Up to 132 fps high-speed acquisition
Wide Dynamic Range
70+ dB dynamic range performance
Performance Highlights
Resolution Range
2-20.4 MP
Multiple specifications availableMaximum Frame Rate
132 fps
@2MPDynamic Range
70.8 dB
High contrast capabilityCompact Size
38×38×33
mm housingIn-Depth Product Introduction
High-Performance Sensor Technology Platform
The I3CMOS series incorporates advanced Sony IMX430, IMX421, IMX541, and Gpixel GMAX series sensors, covering diverse pixel size and resolution requirements. Pixel dimensions range from 2.74 µm to 4.5 µm, balancing detail representation with low-light sensitivity. These premium sensors ensure exceptional imaging quality across various lighting conditions, with dark current levels as low as 0.15 mV, making them suitable for long-exposure applications.
Global Shutter High-Speed Imaging Technology
The entire series supports global shutter technology, making them ideal for high-speed dynamic scenes while effectively eliminating motion blur. Typical models achieve 132 fps high-speed acquisition at 2 megapixel resolution. Even high-resolution 20.4 megapixel models maintain stable 17.5 fps output at full 4496×4496 resolution. This exceptional speed performance ensures outstanding results in high-speed production line inspection, motion analysis, and similar demanding applications.
Flexible Imaging Parameter Control
The cameras provide multiple hardware and software binning modes including 1×1, 2×2, 3×3, and 4×4 configurations, allowing users to balance speed, sensitivity, and image quality according to specific requirements. Support for both 8-bit and 12-bit data output satisfies different precision demands. Selected models achieve dynamic ranges exceeding 70 dB with signal-to-noise ratios of approximately 40 dB, ensuring rich image detail capture even in high-contrast scenarios.

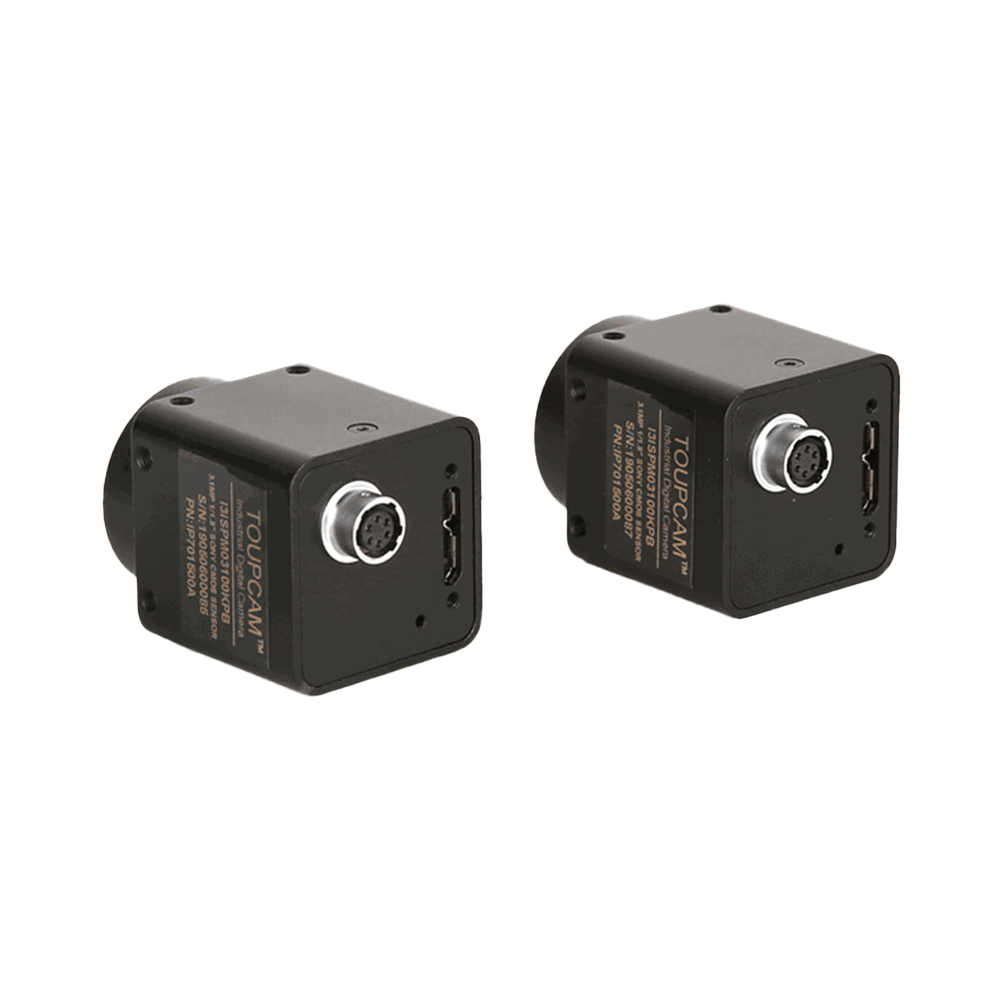

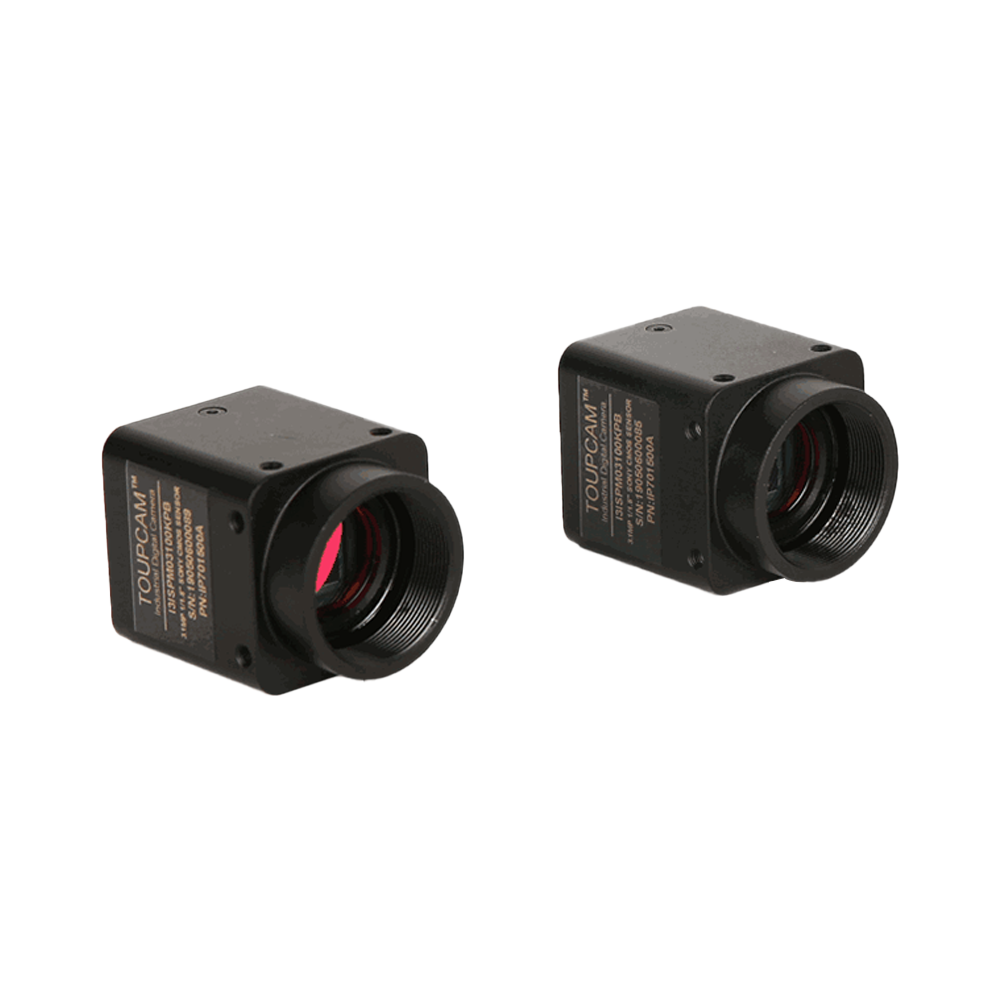

Compact and Reliable Industrial-Grade Design
The cameras feature a compact 38×38×33 mm all-metal construction weighing approximately 70 g with power consumption below 3 W. The USB 3.0 (USB 3.1 GEN1) single-cable power solution simplifies system integration. Support for optically isolated I/O interfaces facilitates seamless embedding into automation systems. Operating temperature range of -10°C to 50°C and humidity tolerance of 20%-80% (non-condensing) ensure reliable long-term operation across various industrial environments.
Comprehensive Software Development Ecosystem
The cameras are compatible with ToupView software and support multiple platforms including Windows, Linux, macOS, and Android. The SDK provides comprehensive interfaces for C/C++, C#/VB.NET, Python, DirectShow, and Twain, facilitating secondary development. Rich SDK functionality and standardized I/O interfaces enable rapid integration into machine vision or scientific research systems, significantly reducing development cycles.
Applications
I3CMOS series applications across various industrial imaging fields
I3CMOS Series Core Advantages
Global Shutter
Motion blur-free imaging
High-Speed Acquisition
132 fps
Wide Dynamic Range
70.8 dB
Low Noise
0.15 mV
Premium Sensors
Sony/Gpixel
Multi-Level Binning
4 modes available
Compact Design
38×38×33 mm
Low Power Consumption
<3 W
