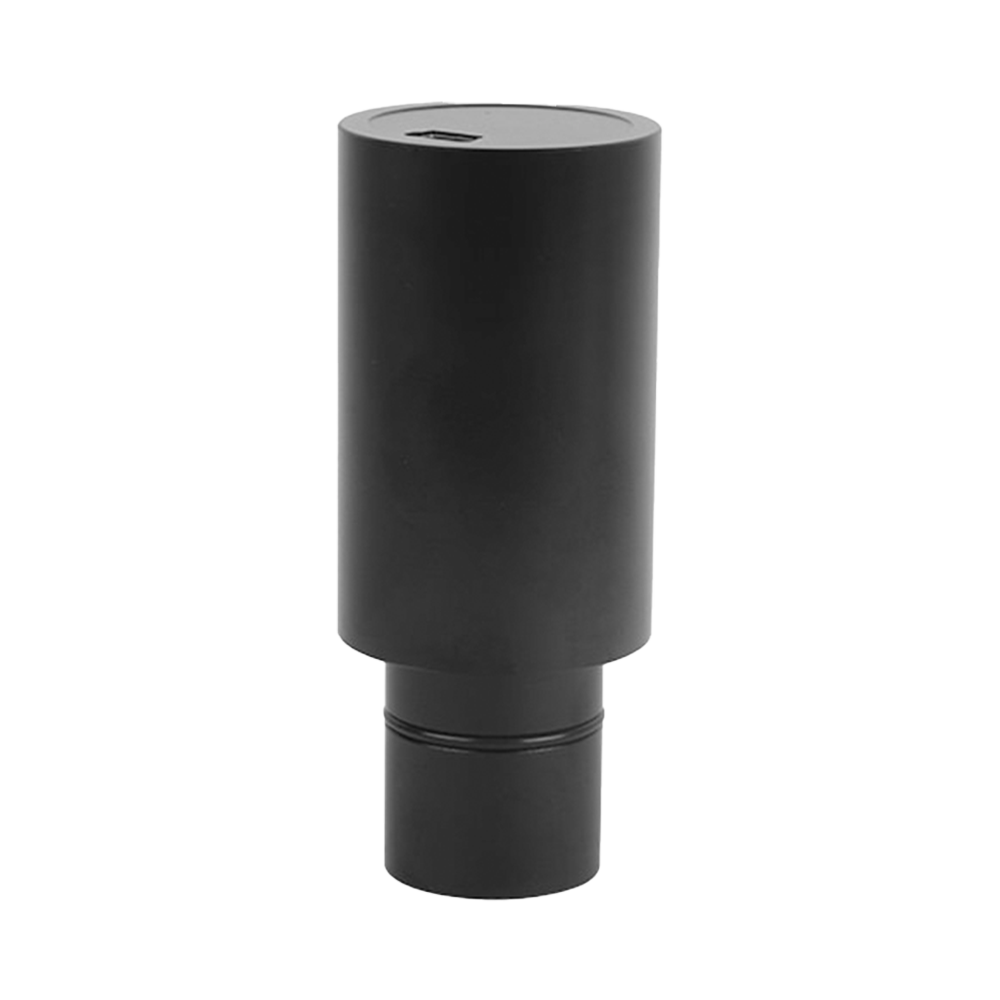

SPCMOS Series

Product Introduction

The SPCMOS series represents a CMOS camera with built-in reducer designed for eyepiece tube integration. The front-end adopts a standard 23.2 mm eyepiece tube dimension, enabling direct insertion into microscope eyepiece tubes to capture intermediate images. The built-in reducer proportionally reduces objective lens imaging, providing better matching between microscope images and sensor size, thereby enhancing effective field of view while reducing vignetting.

Through 23.2→30 / 23.2→30.75 mm adapter sleeves, compatibility extends to additional educational and stereo microscopes, enabling rapid digital conversion of monocular and binocular microscopes. The camera utilizes USB2.0 data connectivity with plug-and-play operation. The built-in Ultra-Fine hardware ISP performs real-time processing including demosaicing, auto exposure/gain control, one-click white balance, and color/gamma/contrast adjustments directly in the camera, reducing host system load while meeting stable output requirements for educational demonstrations and daily documentation.

Included ToupView/ToupLite professional software and cross-platform SDK support (Windows/Linux/macOS/Android) facilitate secondary development and system integration.

Product Features

23.2 mm eyepiece tube direct insertion design with built-in reducer for improved field-to-sensor matching and reduced vignetting (model/optical path dependent)
Supports 23.2→30 / 23.2→30.75 mm adapter sleeves for compatibility with broader tube diameter specifications
Utilizes Aptina (onsemi) and other high-sensitivity CMOS sensors (model dependent) with low noise and clear imaging
USB2.0 (480 Mbit/s) combined data and power transmission with plug-and-play operation and simplified cabling
Ultra-Fine hardware ISP: Demosaic, AE/AGC, AWB/one-click white balance, color correction, gamma, brightness/contrast/saturation, LUT
Automatic/manual exposure with ROI metering, adapting to different samples and lighting conditions

Supports ROI/windowing and image flipping for convenient field cropping and observation direction adjustment (model dependent)
Integrated with ToupView providing preview, capture/recording, annotation, and measurement functions for educational and documentation purposes
Lightweight integrated structure suitable for digital conversion of monocular/binocular and stereo microscopes
Provides Windows / Linux / macOS / Android SDK with DirectShow / TWAIN compatibility for easy system integration
Typical applications: educational demonstrations, classroom broadcasting, experimental documentation, general education/stereo microscopy observation

Get Quote Product Manual

Product Models

Built-in Reducer Eyepiece Tube Camera | 23.2 mm Direct Insertion, Improved Field Matching | USB2.0 | Ultra-Fine Color Engine

Model	Sensor / Size	Resolution	Pixel Size	Shutter	Frame Rate	Interface	Action
SPCMOS05000KPA	Aptina(C) 1/2.5" (7.13 mm) \| 5.70mm × 4.28mm	5.0M (2592×1944)	2.2 µm × 2.2 µm	Electronic Rolling Shutter (ERS)	2 fps@2592×1944 3 fps@2048×1536 5 fps@1600×1200 7.5 fps@1280×1024	USB2.0	View Details
SPCMOS03000KPA	Aptina(C) 1/3" (5.64 mm) \| 4.51mm × 3.38mm	3.0M (2048×1536)	2.2 µm × 2.2 µm	Electronic Rolling Shutter (ERS)	3 fps@2048×1536 5 fps@1600×1200 7.5 fps@1280×1024	USB2.0	View Details
SPCMOS02000KPA	Aptina(C) 1/3" (5.60 mm) \| 4.48mm × 3.36mm	2.0M (1600×1200)	2.8 µm × 2.8 µm	Electronic Rolling Shutter (ERS)	5 fps@1600×1200 7.5 fps@1280×1024 7.5 fps@1280×960 20 fps@800×600	USB2.0	View Details
SPCMOS01300KPA	Aptina(C) 1/2.5" (5.90 mm) \| 4.60mm × 3.70mm	1.3M (1280×1024)	3.6 µm × 3.6 µm	Electronic Rolling Shutter (ERS)	7.5 fps@1280×1024 12.5 fps@1024×768 12.5 fps@800×600	USB2.0	View Details
SPCMOS00350KPA	Aptina(C) 1/4" (4.48 mm) \| 3.58mm × 2.69mm	0.35M (640×480)	5.6 µm × 5.6 µm	Electronic Rolling Shutter (ERS)	30 fps@640×480	USB2.0	View Details
SPCMOS05100KPB	IMX335(C) 1/2.5" (6.48 mm) \| 5.18mm × 3.89mm	5.1M (2592×1944)	2.0 µm × 2.0 µm	Rolling Shutter	26 fps@2592×1944 26 fps@1280×960 26 fps@640×480	USB2.0	View Details

Package Contents #

Standard kit and packaging for SPCMOS USB2.0 eyepiece cameras with built-in reducing optics

Standard Items

Shipping carton: L 52 cm × W 32 cm × H 33 cm (20 pcs, 12–17 kg per carton)
Inner box: L 15 cm × W 15 cm × H 10 cm (0.26–0.27 kg per box)
SPCMOS camera (1 pc)
High-speed USB2.0 Type-A male to Mini Type-B gold-plated cable (2.0 m)
Software CD (drivers and application, Ø 8 cm)

Optional Accessories

108015 (Dia. 23.2 mm to 30.0 mm ring) – adapter ring for 30 mm eyepiece tubes
108016 (Dia. 23.2 mm to 30.5 mm ring) – adapter ring for 30.5 mm eyepiece tubes
108017 (Dia. 23.2 mm to 31.75 mm ring) – adapter ring for 31.75 mm eyepiece tubes
Calibration reticles
106011/TS-M1 (X = 0.01 mm / 100 divisions)
106012/TS-M2 (X, Y = 0.01 mm / 100 divisions)
106013/TS-M7 (X = 0.01 mm / 100 divisions; 0.10 mm / 100 divisions)

Note: SPCMOS cameras include an integrated optical reducer designed for direct eyepiece-tube installation, providing a wider usable field of view.

Refer to the enclosed packing slip for the definitive accessory list.

Product Dimensions #

Mechanical outline of SPCMOS USB2.0 eyepiece cameras with reducer optics

SPCMOS Shell

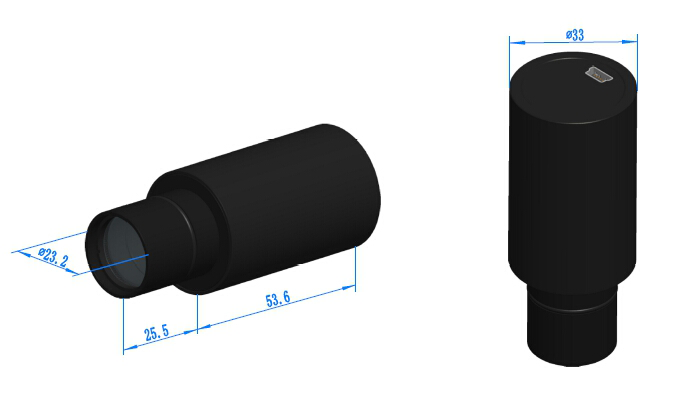

Standard Size Reference drawing

Use this outline to verify microscope clearance and mounting depth.

Click the image to view a larger version.

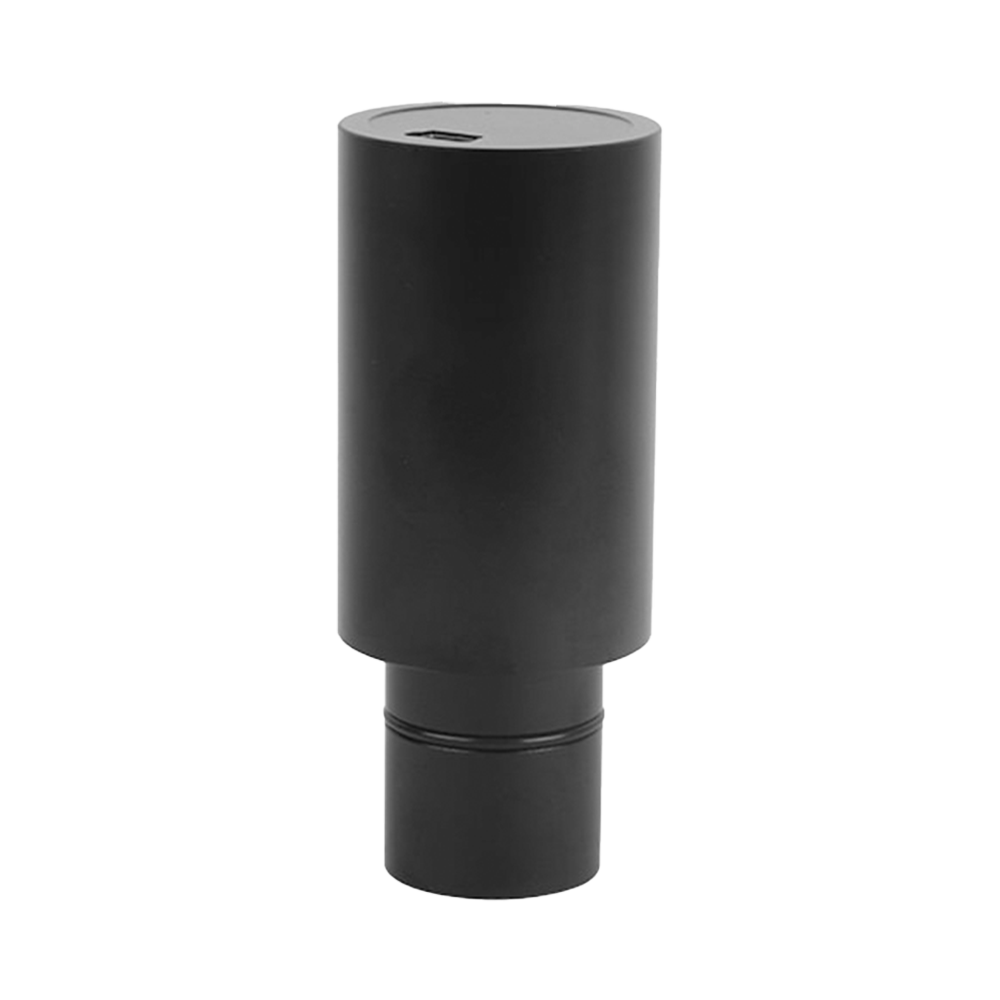

The SPCMOS series is a USB2.0 eyepiece-style microscopy camera with built-in reducing optics from ToupTek Photonics. Featuring a standard 23.2 mm eyepiece interface, it can directly replace traditional microscope eyepieces to quickly upgrade optical microscopes into digital imaging systems. This series uses Aptina or Sony CMOS sensors with clear imaging and a compact design, suitable for teaching, research, and routine observation digital imaging needs.

Core Features

Built-in Reducing Optics

23.2 mm standard interface, no adapter needed, avoids vignetting and distortion

High-Quality CMOS Sensors

Aptina/Sony sensors balance resolution and sensitivity

USB2.0 Plug-and-Play

Stable transmission, easy operation, quick digital upgrade

Ultra-Fine Color Engine

Professional-grade color processing for true microscopy image reproduction

Performance Highlights

Resolution Range

0.35–5 MP

Multiple options

Built-in Reducer

Optical Match

Optimized imaging

Pixel Size

2.0–5.6 µm

High sensitivity

Exposure Range

0.1–2000 ms

Flexible adjustment

In-Depth Technology Overview

Integrated Reducer Optics

The precision reducer inside each SPCMOS camera aligns the microscope image circle with the sensor to eliminate vignetting and distortion. Because it installs directly into a 23.2 mm eyepiece tube, users avoid external adapters and achieve uniform illumination across the entire frame from the moment the camera is mounted.

Optimized CMOS Sensor Selection

Aptina and Sony sensors cover 0.35–5 MP configurations, balancing resolution and low-light performance. Pixel sizes from 2.0 µm to 5.6 µm deliver high quantum efficiency with minimal noise, supporting both detailed documentation and routine screening.

Ultra-Fine Color Engine

ToupTek’s Ultra-Fine color engine provides hardware-grade processing for accurate staining reproduction, automatic white balance, and fine tone control. Users can adjust brightness, contrast, and saturation in real time to suit varying samples and illumination conditions.

Stable USB2.0 Transmission

A mature USB2.0 pipeline ensures smooth video streams without frame drops. MJPEG/YUV output supports 30 fps at 640×480 and stable performance at higher resolutions. Power and data share a single cable for genuine plug-and-play convenience, while USB2.0 compatibility works with legacy PCs and modern systems alike.

Software Ecosystem & SDK Support

Bundled ToupView/ToupLite software delivers live preview, capture, measurement, and report generation in an intuitive interface. Developers benefit from cross-platform SDKs for Windows, Linux, and macOS, with support for C/C++, C#/VB.NET, DirectShow, and TWAIN. The CNC-machined aluminum body uses fanless passive cooling, ensuring quiet, reliable operation for classrooms and laboratories.
