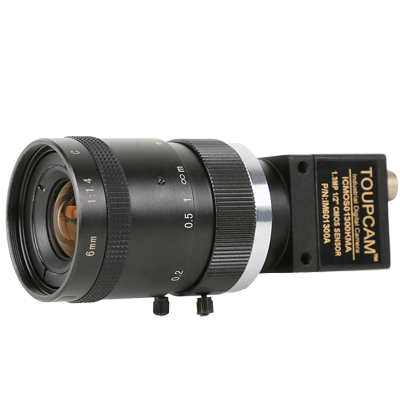

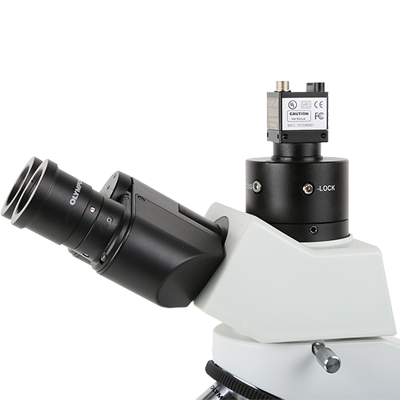

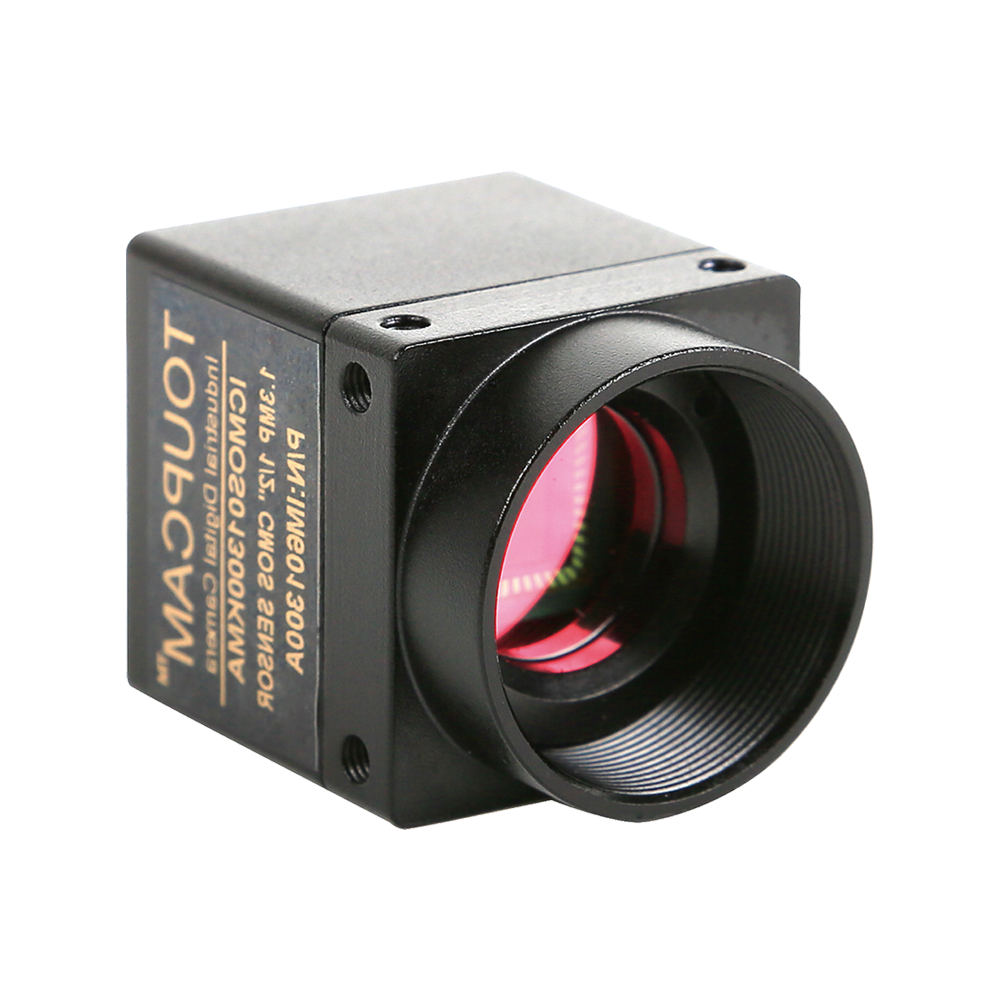

ICMOS Series image 1
ICMOS Series image 2
ICMOS Series image 3
ICMOS Series thumbnail 1 ICMOS Series thumbnail 2 ICMOS Series thumbnail 3

ICMOS Series

Product Introduction

The ICMOS series are compact USB2.0 microscopy/teaching CMOS cameras without external trigger interfaces, designed for routine observation and classroom demonstrations. The 29×29×29 mm housing keeps the setup lightweight and cost-effective while offering UVC plug-and-play compatibility for fast deployment.

Featuring the Ultra-Fine color processing engine and cross-platform SDK support (Windows/Linux/macOS), the series covers 1.3-14 MP resolution options and provides both board-level and finished camera forms for easy integration.

Product Features

  • Compact 29×29×29 mm housing for teaching and routine microscopy
  • USB2.0 (480 Mbit/s) UVC plug-and-play, no external trigger interface
  • Ultra-Fine color processing: demosaic, AE/AGC, AWB, gamma, color correction
  • Resolution range from 1.3 MP to 14 MP with multiple sensor options
  • C-mount standard interface compatible with microscope adapters
  • Windows/Linux/macOS UVC support with SDKs for secondary development
  • Board-level and finished camera variants available
  • USB bus powered, low cost, easy deployment for classrooms
Get Quote Product Manual

Product Models

ICMOS | C-mount USB2.0 | UVC Plug-and-Play | 1.3-14 MP | Compact Teaching Microscopy Cameras

Model Sensor / Size Resolution Pixel Size Shutter Frame Rate Interface Color Action
ICMOS14000KPA
Aptina MT9F002 (C) 1/2.3" (7.33 mm) | 5.73 mm × 4.60 mm
14MP (4096×3288) 1.4 µm × 1.4 µm Rolling Shutter
2.7 fps@4096×3288
USB2.0 (UVC) Color View Details
ICMOS10000KPA
Aptina MT9J003 (C) 1/2.3" (7.48 mm) | 5.99 mm × 4.59 mm
10MP (3584×2748) 1.67 µm × 1.67 µm Rolling Shutter
3.7 fps@3584×2748
USB2.0 (UVC) Color View Details
ICMOS03100KPA
Aptina MT9T001 (C) 1/2" (8.19 mm) | 6.55 mm × 4.92 mm
3.1MP (2048×1536) 3.2 µm × 3.2 µm Rolling Shutter
12 fps@2048×1536
USB2.0 (UVC) Color View Details
ICMOS01300KMA
onsemi MT9M001 (M) 1/2" (8.52 mm) | 6.66 mm × 5.32 mm
1.3MP (1280×1024) 5.2 µm × 5.2 µm Rolling Shutter
30 fps@1280×1024
USB2.0 (UVC) Monochrome View Details

Packing List #

Standard kit and packaging for the ICMOS USB2.0 microscopy camera series

Standard Items
  1. Shipping carton: L 52 cm x W 32 cm x H 33 cm (20 pcs, 12-17 kg per carton)
  2. Inner box: L 15 cm x W 15 cm x H 10 cm (0.50-0.55 kg per box)
  3. ICMOS series camera (1 pc)
  4. USB2.0 Type-A male to Type-B male gold-plated cable (2.0 m)
  5. Software CD (drivers and applications, 12 cm)
Optional Accessories
  1. Adjustable eyepiece adapters
    Dia. 23.2 mm eyepiece to C-mount: 108001/AMA037, 108002/AMA050, 108003/AMA075
    Dia. 31.75 mm eyepiece to C-mount: 108008/ATA037, 108009/ATA050, 108010/ATA075
  2. Fixed eyepiece adapters
    Dia. 23.2 mm eyepiece to C-mount: 108005/FMA037, 108006/FMA050, 108007/FMA075
    Dia. 31.75 mm eyepiece to C-mount: 108011/FTA037, 108012/FTA050, 108013/FTA075
  3. 108015 (Dia. 23.2 mm to 30.0 mm ring) - adapter ring for 30 mm eyepiece tubes
  4. 108016 (Dia. 23.2 mm to 30.5 mm ring) - adapter ring for 30.5 mm eyepiece tubes
  5. 108017 (Dia. 23.2 mm to 31.75 mm ring) - adapter ring for 31.75 mm eyepiece tubes
  6. Calibration reticles
    106011/TS-M1 (X = 0.01 mm / 100 divisions)
    106012/TS-M2 (X, Y = 0.01 mm / 100 divisions)
    106013/TS-M7 (X = 0.01 mm / 100 divisions; 0.10 mm / 100 divisions)
Note: Please confirm microscope or telescope adapters before ordering. ToupTek engineers can recommend the correct C-mount adapter for your application.

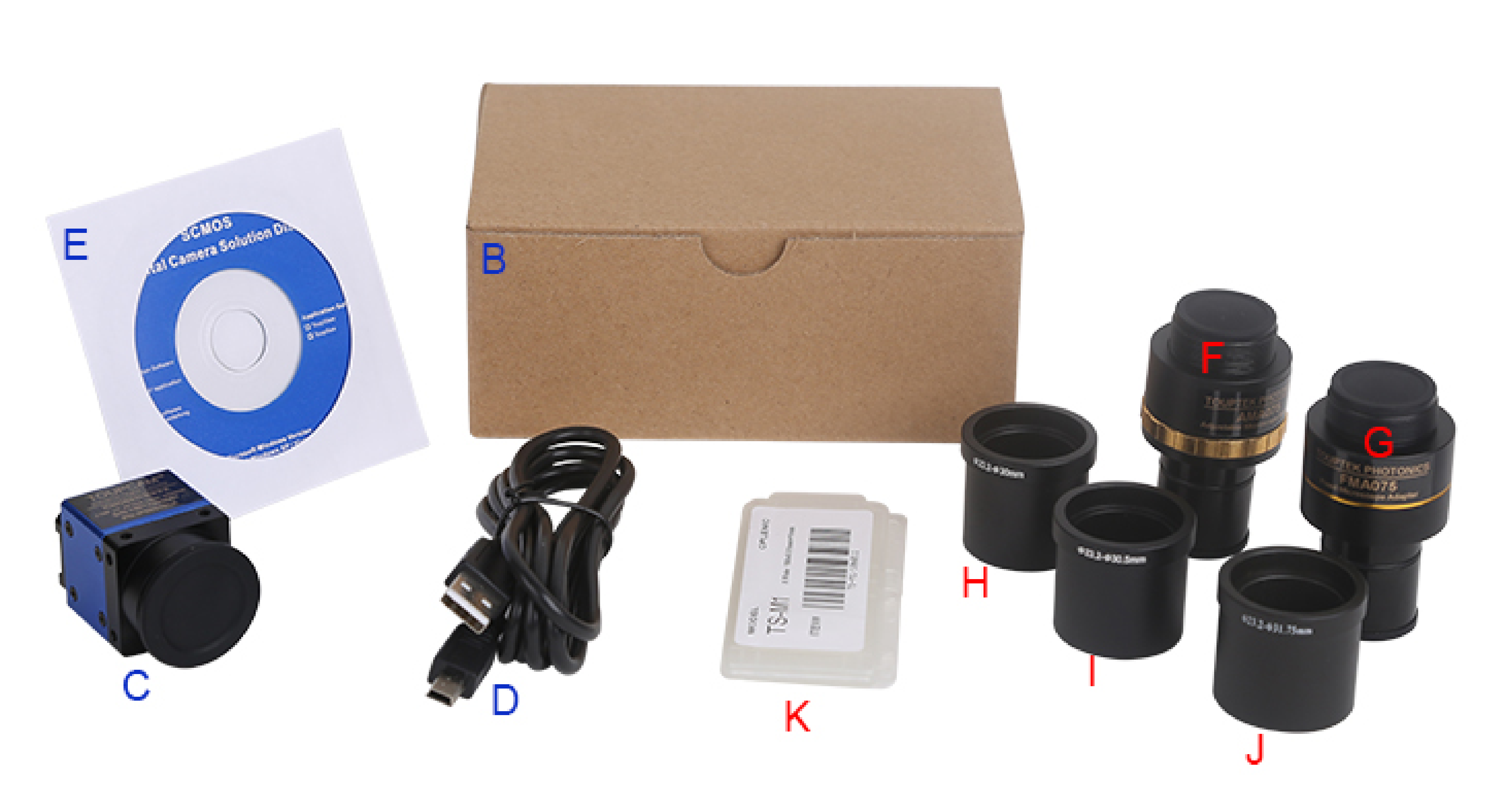

ICMOS series packing list
ICMOS series packing list reference
This packing list is for reference; please rely on the packing slip enclosed with the shipment.

Product Dimensions #

Mechanical outline for ICMOS C-mount USB2.0 cameras

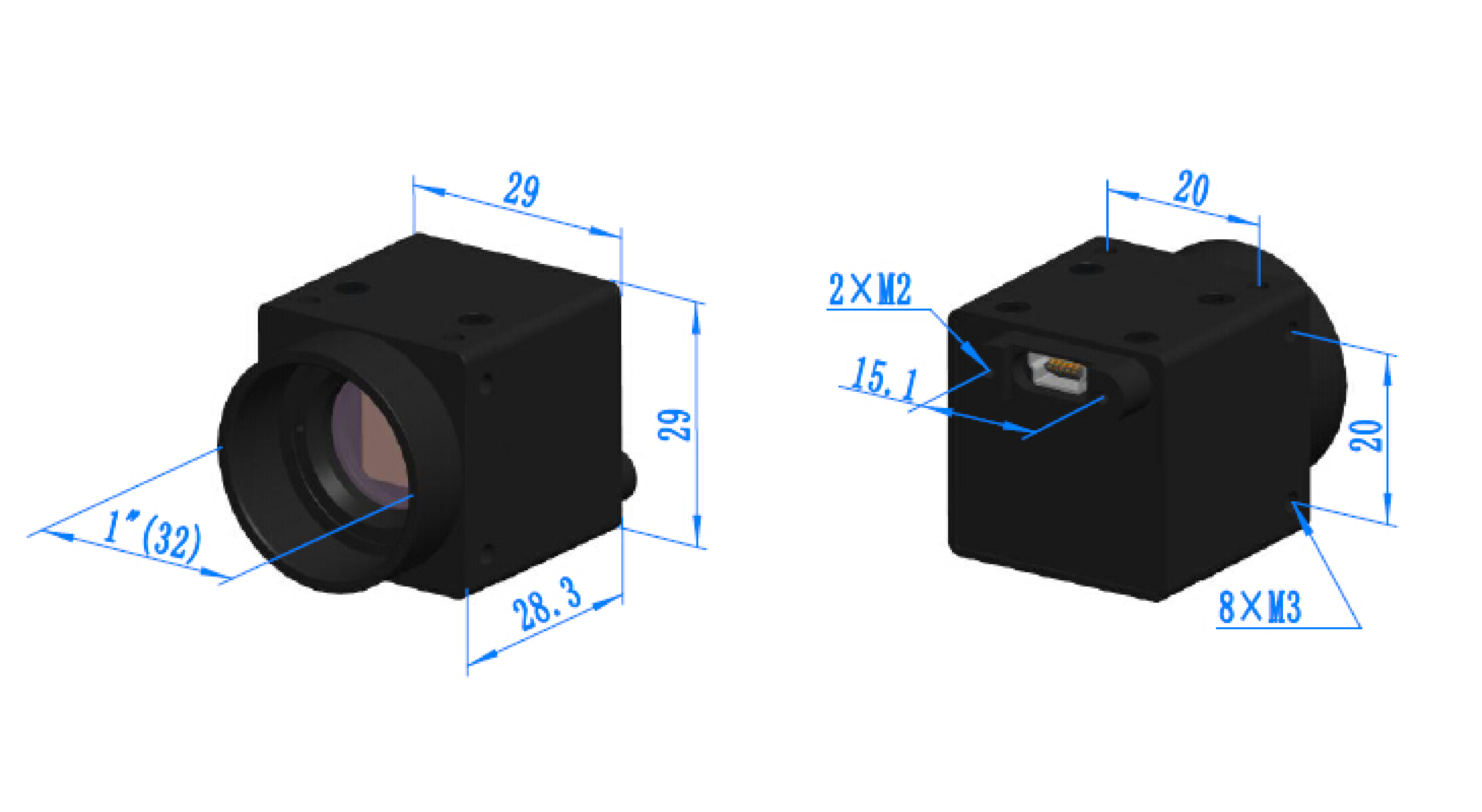

ICMOS series outline dimensions
ICMOS Series
Standard size Outline drawing
External dimensions: 29 x 29 x 29 mm
Click an image to view the full-size drawing.

ICMOS cameras are compact USB2.0 UVC microscopy cameras designed for teaching and routine observation. The small 29 x 29 x 29 mm housing and bus-powered USB connection make them easy to deploy in classrooms, while Ultra-Fine color processing delivers stable color output for demonstrations and documentation.

Key Features

UVC Plug-and-Play

USB2.0 UVC compatibility for fast setup without external triggers.

Ultra-Fine Color Engine

Built-in demosaic, AE/AGC, AWB, gamma and color correction.

Compact Teaching Design

29 x 29 x 29 mm housing fits tight microscope setups.

Multi-Platform SDK

Windows, Linux and macOS support for teaching labs.

Performance Highlights

Resolution Range

1.3-14 MP

Multiple sensor options
Pixel Size

1.4-5.2 um

From detail to sensitivity
Interface

USB2.0

UVC compatible
Housing Size

29 x 29 x 29 mm

Compact teaching form factor
