CXCAM Series

Product Introduction

USB Type-C integrates power and video: connect to a Type-C display or PC (Type-A via data cable) for stereo/biological microscopy imaging and processing. Built-in XCamView supports capture, measurement, playback, and USB drive storage. Add a USB 5 GHz Wi-Fi adapter for AP/STA wireless transmission, plus support for USB voice-control modules and smart AR glasses with Type-C input.

Product Features

  • Powered directly through the Type-C link from a monitor or computer, no external power adapter required
  • Sony Starvis/Starvis 2 back-illuminated CMOS sensors for low dark current and high sensitivity
  • Compatible with smart AR glasses that accept Type-C video input
  • USB flash drive storage for captured images or video with local preview and playback
  • Supports USB voice-control module for real-time voice capture/record/freeze commands
  • Built-in XCamView offers rich processing and measurement, including automatic edge finding and auto measurement
  • Robust ISP with sharpening and 3D noise reduction; ROI white balance for better accuracy
  • Ships with ToupView/ToupLite desktop software plus free iOS/Android mobile apps
Get Quote Product Manual

CXCAM Series

Type-C Single-Cable 4K/1080P Camera (Monitor/USB Video/Wi-Fi)

Model Sensor/Size Effective Pixels Output Resolution Frame Rate (fps) Output Interface Auto Focus Lens Mount Storage Support Featured Functions
CXCAM1080P8MPA
Sony IMX334 (Color)
1/1.8" (7.68 × 4.32 mm)
 2.0 µm × 2.0 µm 8 MP (3840×2160) Sensor: 45 fps @ 3840×2160; Video recording: 45 fps @ 1920×1080; Monitor: 45 fps @ 1920×1080; USB Video: 30 fps @ 3840×2160 / 45 fps @ 1920×1080; Wi-Fi: 30 fps @ 3840×2160 / 45 fps @ 1920×1080 Type-C Monitor USB Video Wi-Fi C-mount USB flash drive 505 mV light sensitivity (1/30 s), 0.1 mV dark current (1/30 s) 0.04–1000 ms exposure time range Type-C powered connection to monitor or PC, no external supply Dual-channel synchronous video output Supports USB voice-control module for capture/record/freeze Automatic edge detection and measurement in XCamView
CXCAM1080P8MPB
Sony IMX585 (Color)
1/1.2" (11.14 × 6.26 mm)
 2.9 µm × 2.9 µm 8 MP (3840×2160) Sensor: 45 fps @ 3840×2160; Video recording: 45 fps @ 1920×1080; Monitor: 45 fps @ 1920×1080; USB Video: 30 fps @ 3840×2160 / 45 fps @ 1920×1080; Wi-Fi: 30 fps @ 3840×2160 / 45 fps @ 1920×1080 Type-C Monitor USB Video Wi-Fi C-mount USB flash drive 5970 mV high light sensitivity (1/30 s), 0.39 mV dark current (1/30 s) 0.04–1000 ms exposure time range Large 2.9 µm pixel size for better sensitivity Single Type-C cable for power and data Supports Wi-Fi AP/STA modes Built-in measurement calibration function
CXCAM1080P8MPC
Sony IMX678 (Color)
1/1.8" (7.68 × 4.32 mm)
 2.0 µm × 2.0 µm 8 MP (3840×2160) Sensor: 45 fps @ 3840×2160; Video recording: 45 fps @ 1920×1080; Monitor: 45 fps @ 1920×1080; USB Video: 30 fps @ 3840×2160 / 45 fps @ 1920×1080; Wi-Fi: 30 fps @ 3840×2160 / 45 fps @ 1920×1080 Type-C Monitor USB Video Wi-Fi C-mount USB flash drive 1364 mV ultra-high light sensitivity (1/30 s), 0.15 mV low dark current (1/30 s) 0.04–1000 ms exposure time range Sony Starvis 2 technology with Type-C plug-and-play Dual output over Monitor/USB Video with Wi-Fi expansion Supports multi-camera networking Layered/fused measurement data storage
CXCAM1080P2MPA
Sony IMX385 (Color)
1/2" (7.2 × 4.05 mm)
 3.75 µm × 3.75 µm 2 MP (1920×1080) Sensor: 120 fps @ 1920×1080; Video recording: 100 fps @ 1920×1080; Monitor: 60 fps @ 1920×1080; USB Video: 80 fps @ 1920×1080; Wi-Fi: 60 fps @ 1920×1080 / 60 fps @ 1280×720 Type-C Monitor USB Video Wi-Fi C-mount USB flash drive 1175 mV light sensitivity (1/30 s), 0.15 mV dark current (1/30 s) 0.04–1000 ms exposure time range 60 fps monitor output with 100 fps recording Large 3.75 µm pixel size for higher SNR Portable Type-C connectivity without external power Supports 50 Hz/60 Hz anti-flicker

Application Scenarios

Captured with CXCAM4K8MPC: Cucurbit stem (L.S.)
Captured with CXCAM4K8MPC: Cucurbit stem (L.S.)
Captured with CXCAM4K8MPC: Two-year Tilia stem (C.S.)
Captured with CXCAM4K8MPC: Two-year Tilia stem (C.S.)
Captured with CXCAM4K8MPC: Simple cuboidal epithelium (section)
Captured with CXCAM4K8MPC: Simple cuboidal epithelium (section)

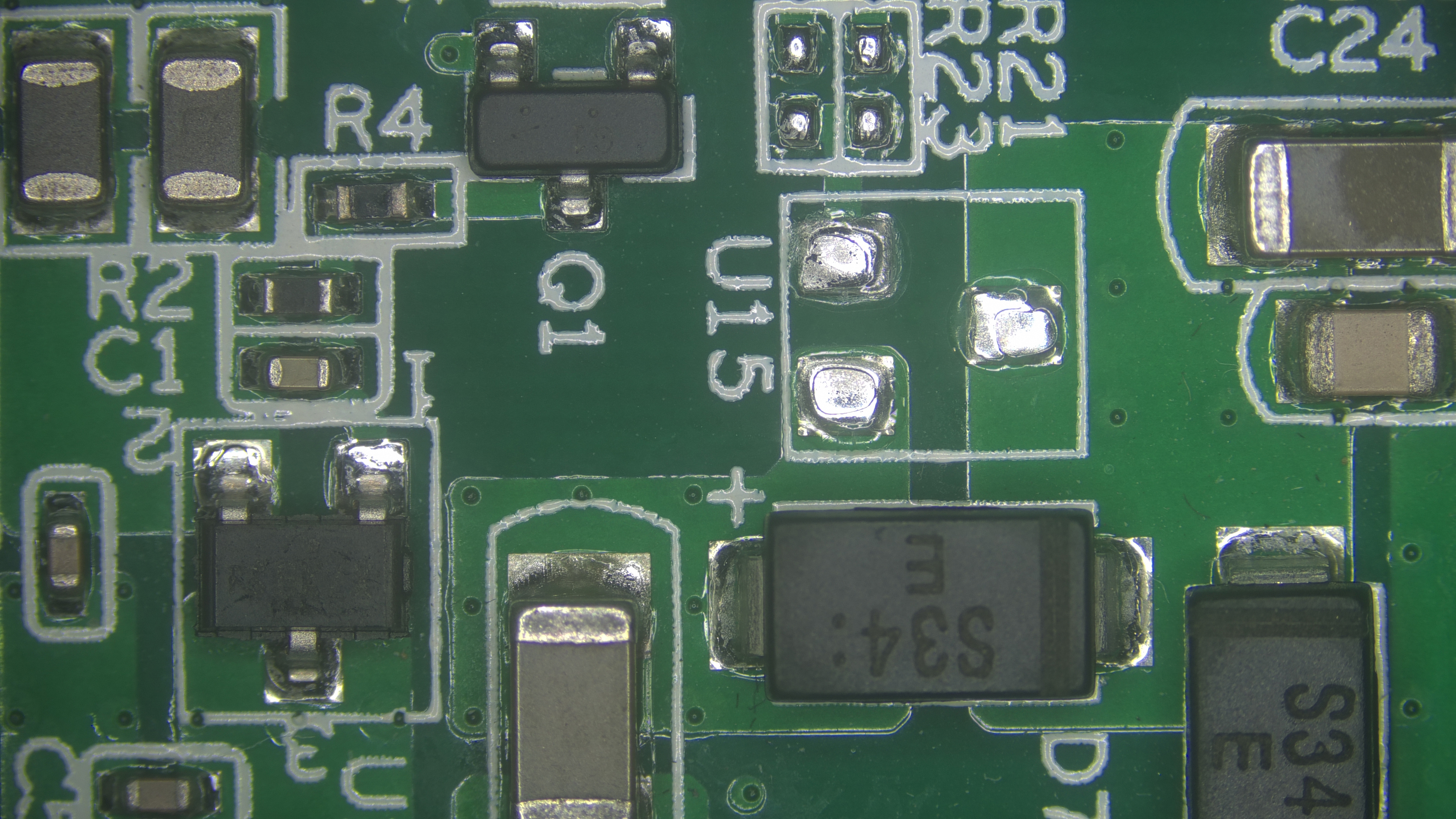

Captured with CXCAM4K8MPC: Circuit board
Captured with CXCAM4K8MPC: Circuit board

CXCAM Multi-Interface Camera | Packing List #

Standard Items in the Box

  • A Camera box: 25.5 cm × 17.0 cm × 9.0 cm (1 pc, approx. 1.57 kg per box)
  • B CXCAM series camera ×1
  • C Power adapter: input AC 100–240 V 50/60 Hz; output DC 12 V 1 A (GS12U12-P1I / GS12E12-P1I)
  • D USB mouse ×1
  • E HDMI 2.0 cable ×1
  • F High-speed USB 2.0 A↔A gold-plated data cable (2.0 m)
  • G Driver and application disc (Ø12 cm)

Optional Accessories

  • H SD card (≥16 GB, Class 10)
  • I Adjustable eyepiece adapters 108001/AMA037, 108002/AMA050, 108003/AMA075
  • J Fixed eyepiece adapters 108005/FMA037, 108006/FMA050, 108007/FMA075
  • K 30 mm eyepiece conversion ring 108015
  • L 30.5 mm eyepiece conversion ring 108016
  • M Micrometer 106011/TS-M1, 106012/TS-M2, 106013/TS-M7
  • N USB flash drive (backup media)
  • O USB Wi-Fi adapter (required for Wi-Fi/AP mode)

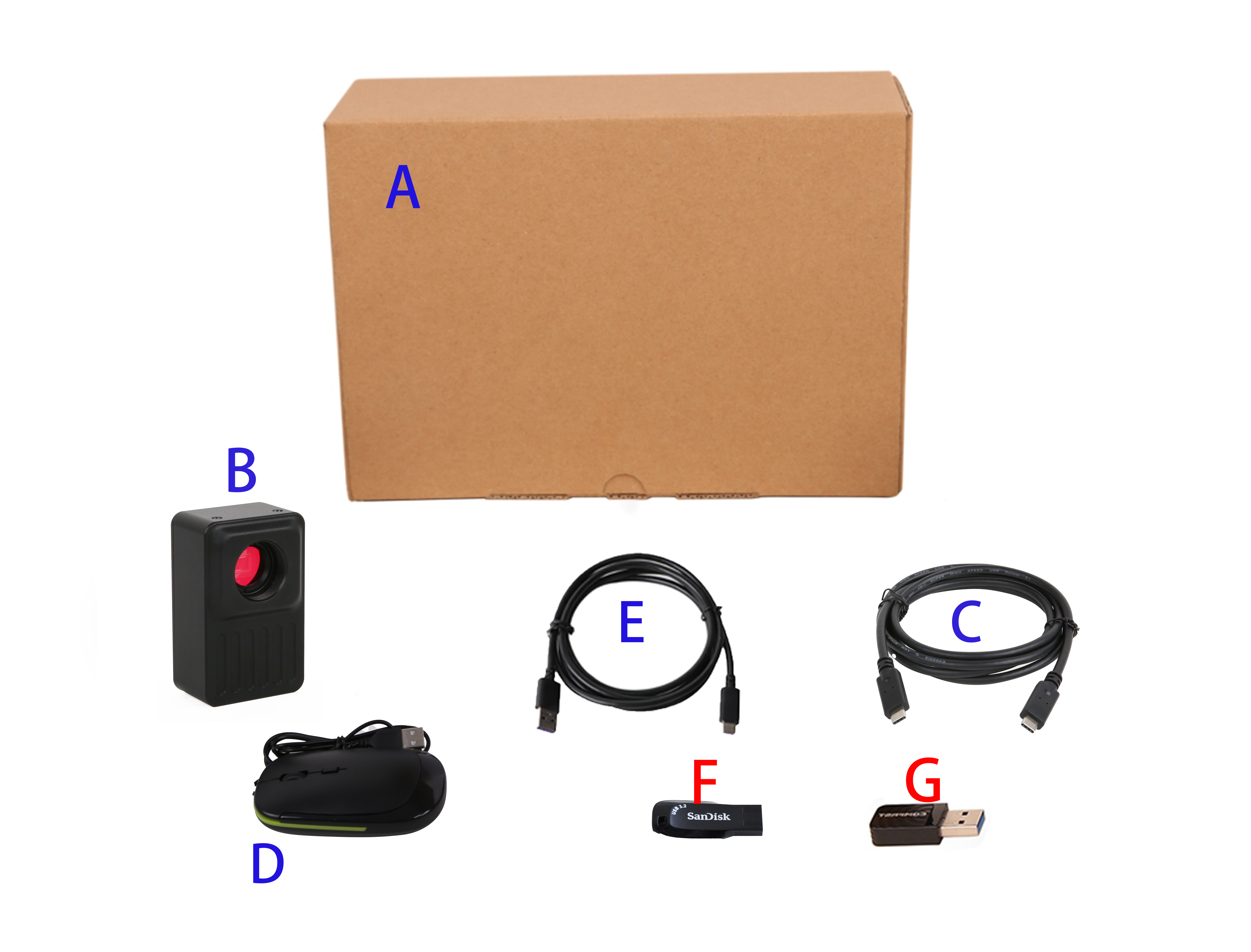

CXCAM packaging overview
CXCAM packaging overview (Figure 6-4)

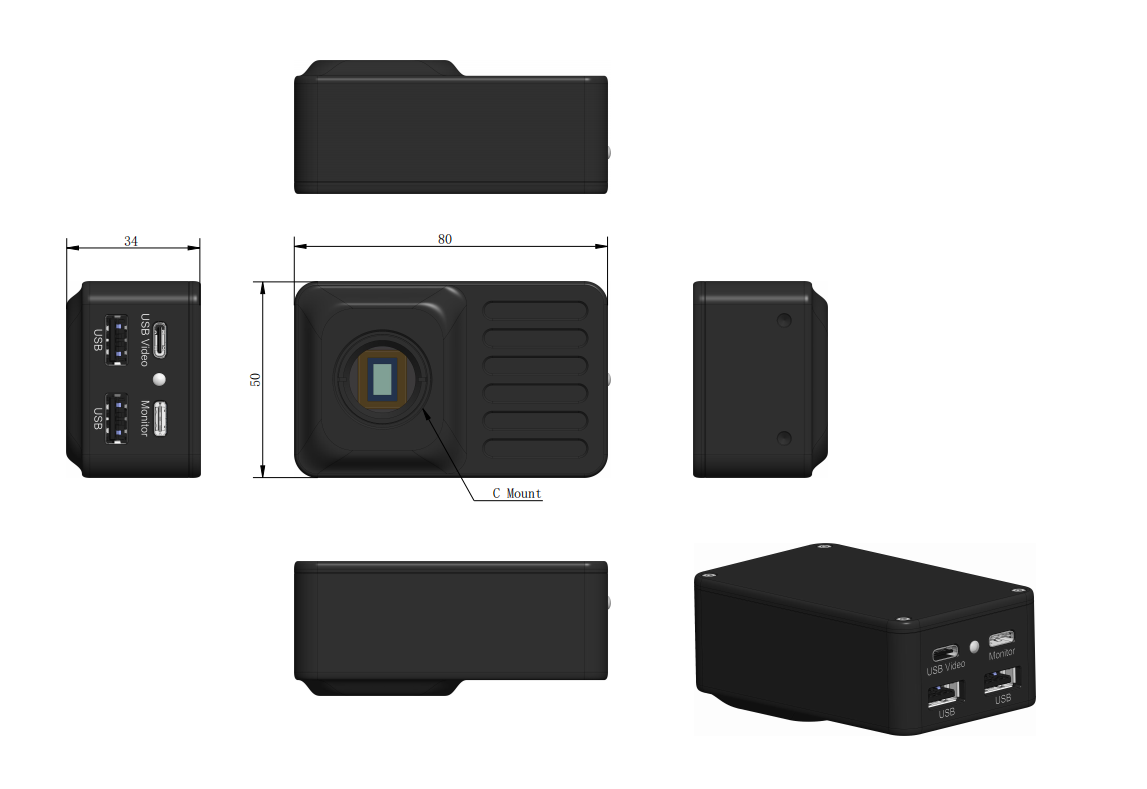

CXCAM Multi-Interface Camera | Dimensions #

Chassis outline and interface layout

CXCAM dimensions
CXCAM dimensions

Refer to manual Figure 6-3

  • Package: 25.5 cm × 17.0 cm × 9.0 cm
  • Shipping weight: approx. 1.57 kg (with packaging)
  • Power: DC 12 V / 1 A (GS12 series adapter)
  • Interfaces: USB 3.0 / HDMI 2.0 / LAN / Wi-Fi (AP/STA)

Confirm the mount holes and interface orientation with the dimension drawing before installation.

In-Depth Overview

The CXCAM camera series from Tupu Optoelectronics uses a USB Type-C design to supply power and transmit video through a single cable. It serves field inspections, mobile microscopy, teaching demonstrations, and industrial quality control that require rapid deployment and portability.

With a Sony Starvis/Starvis 2 back-illuminated CMOS sensor, the camera outputs 4K/1080p video via HDMI, supports Type-C connections to PCs and mobile devices, and embeds XCamView software for standalone measurement, recording, and image processing.

Technical Highlights

  • Type-C one-cable connectivity: Power and video share a single Type-C link, simplifying setup for portable and on-site use.
  • Sony Starvis imaging: Starvis/Starvis 2 sensors deliver high sensitivity, low dark current, and wide dynamic range (refer to each model specification).
  • Native 4K HDMI output: HDMI 2.0 supports 4K/1080p adaptive switching for large-format displays and recording devices.
  • ISP image processing: Hardware-level 3D noise reduction, sharpening, and ROI white balance balance image quality and stability.
  • Built-in measurement and analysis: XCamView provides auto edge detection, auto measurement, and image comparison.
  • Flexible networking and voice control: Supports Wi-Fi AP/STA modes (USB Wi-Fi adapter required) and optional USB voice control modules for hands-free capture and recording.

Core Advantages

  • 1
    Ultra-simple portability Type-C power and video via one cable make it plug-and-play for mobile and on-site workflows.
  • 2
    High sensitivity with low dark current Sony Starvis/Starvis 2 sensors deliver high sensitivity and low noise (see individual specification sheets for details).
  • 3
    Standalone operation Embedded XCamView handles measurement, recording, and image processing without a computer.
  • 4
    Multi-device collaboration Supports simultaneous monitor and PC output; with Android/iOS apps you can view on mobile devices (Wi-Fi requires a USB adapter).
  • 5
    Broad use cases Ideal for "Type-C portable microscope camera," "mobile inspection," and "voice-controlled camera" applications.
