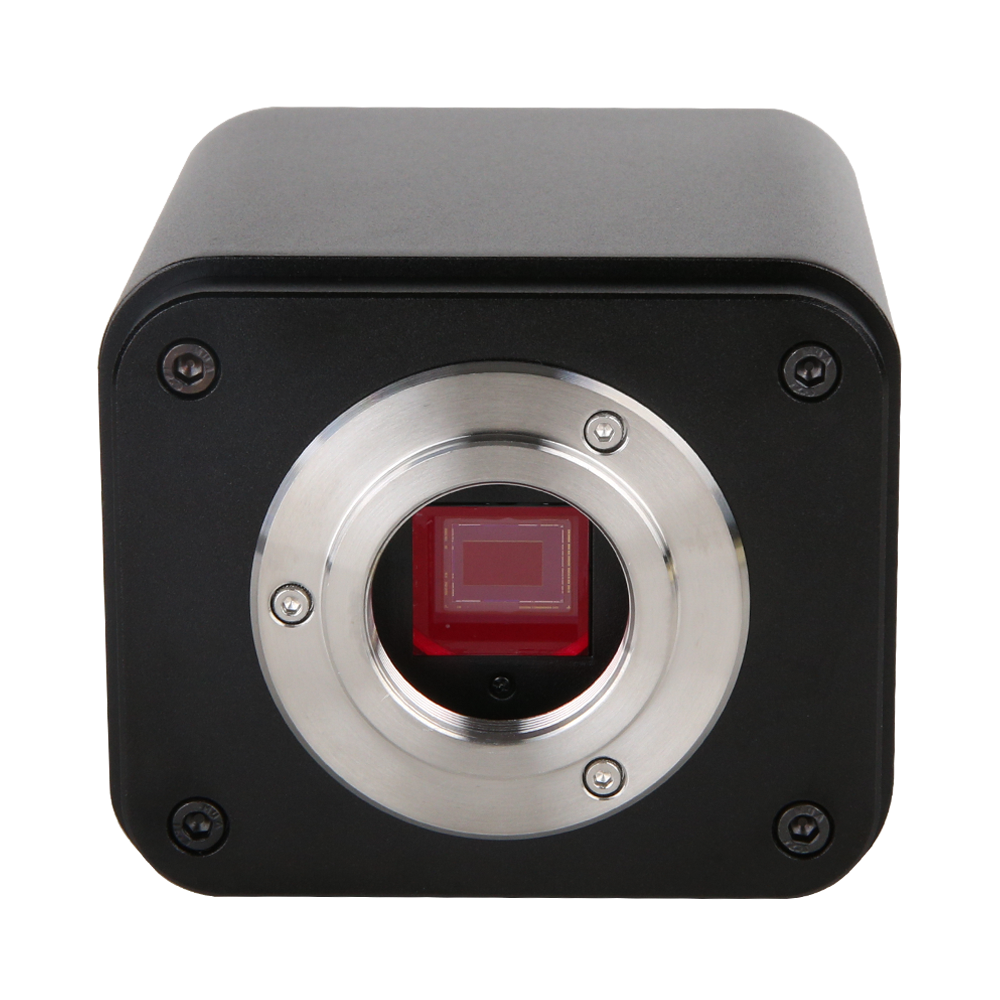

XCAMTOP1080P Series image 1
XCAMTOP1080P Series image 2
XCAMTOP1080P Series thumbnail 1 XCAMTOP1080P Series thumbnail 2

XCAMTOP1080P Series

Product Introduction

The XCAMTOP1080P series camera is designed for acquiring digital images from stereo microscopes, biological microscopes, and online interactive teaching systems. It integrates HDMI, NETWORK, and USB multiple video outputs in one body, supports SD card or USB flash drive local storage with preview and playback, and embeds XCamView for image control, measurement, and processing without relying on a PC.

Product Features

  • Sony Pregius front-illuminated CMOS sensor
  • 1080P HDMI / NETWORK / USB multiple video outputs
  • SD card and USB flash drive support for image and video storage with local preview and playback
  • Supports USB voice control module for snap, recording, freeze, and other real-time operations
  • Built-in XCamView with camera control, automatic edge finding, and measurement functions
  • Excellent ISP with local tone mapping and 3D denoising
  • ToupView / ToupLite software for PC-side operation
  • iOS / Android applications for smart phones and tablets
Get Quote Product Manual

XCAMTOP1080P Series

1080P HDMI/NETWORK/USB Multi-Output C-Mount Camera

Model Sensor/Size Effective Pixels Output Resolution Frame Rate (fps) Output Interface Auto Focus Lens Mount Storage Support Featured Functions
XCAMTOP1080P2MPB
Sony IMX392(C)
1/2.35" (6.62×3.72 mm)
 3.45 μm × 3.45 μm 2MP (1920×1080) HDMI: 60 fps@1920×1080; NETWORK: 60 fps@1920×1080; USB: 90 fps@1920×1080 HDMI1.4 LAN USB Video C-mount SD card / USB flash drive 1080P HDMI / NETWORK / USB simultaneous-ready output options USB voice control module support Automatic edge finding and on-device measurement Local image and video preview / playback Local tone mapping ISP 3D denoising Graphic overlay and comparison tools Multi-language interface

XCAMTOP1080P Multi-Interface Camera | Packing List #

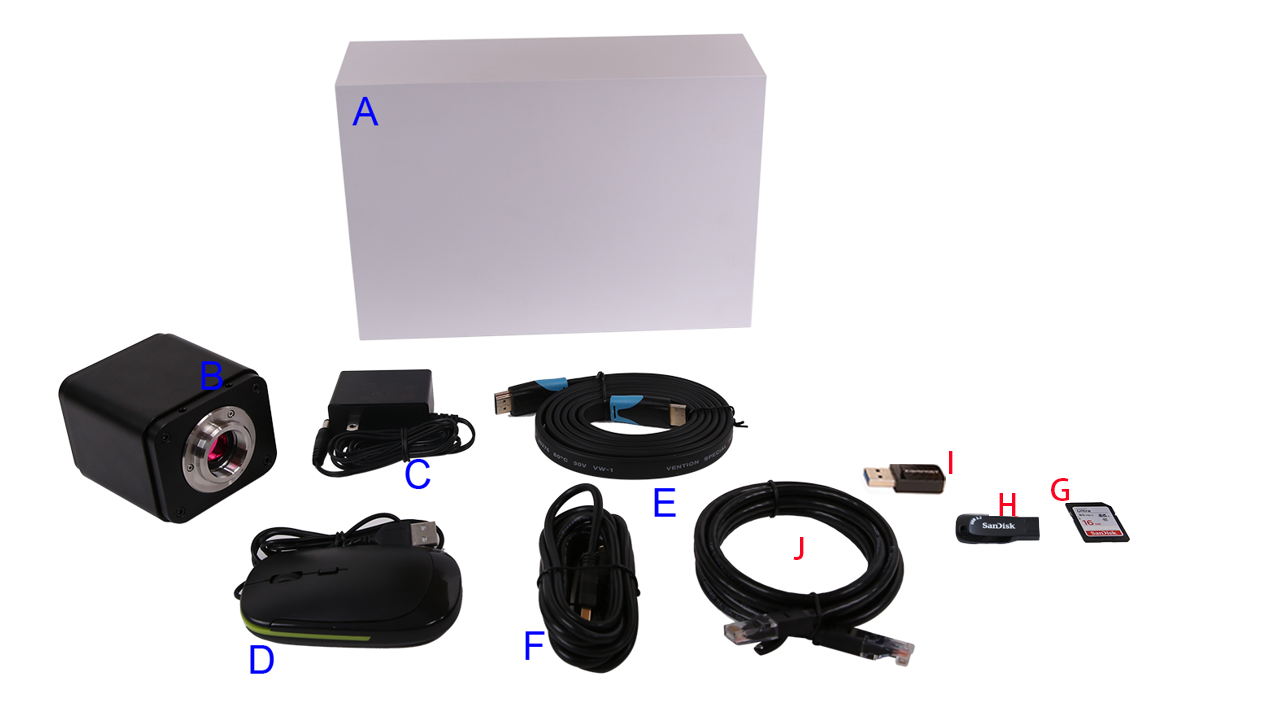

Standard Packing List

  • A Gift box: 25.5 cm × 17.0 cm × 9.0 cm (1 pc, about 1.57 kg per box)
  • B XCAMTOP1080P camera ×1
  • C Power adapter: input AC 100~240 V 50/60 Hz, output DC 12 V 1 A, regional version supplied by shipment destination
  • D USB mouse
  • E HDMI cable
  • F USB2.0 A male to A male gold-plated cable, 2.0 m

Optional Accessories

  • G SD card, 16 GB or above, Class 10 recommended
  • H USB flash drive for local storage and playback
  • I USB 5G WiFi adapter for AP / STA wireless video transmission
  • J Ethernet cable for LAN deployment
XCAMTOP1080P packing information
XCAMTOP1080P packing information

Deep Dive

The ToupTek XCAMTOP1080P is a full-HD multi-interface microscope camera built around a Sony Pregius IMX392 color CMOS sensor. It is designed for stereo microscopes, biological microscopes, and interactive teaching systems that require monitor display, local storage, and flexible host connectivity from a single device.

Compared with basic HDMI-only products, this model adds LAN and USB Video output paths, supports voice-control expansion, SD / USB local recording, embedded measurement, playback, and comparison workflows, and provides practical ISP tools such as local tone mapping, ROI white balance, sharpening, and 3D denoise for stable full-HD imaging in labs, classrooms, and routine inspection benches.

Technical Highlights

  • Multiple output interfaces: HDMI 1080P 60 fps, LAN 1080P 60 fps, and USB Video 1080P 90 fps for display, streaming, and host-side acquisition.
  • Embedded XCamView: Mouse-controlled capture, playback, comparison, automatic edge finding, and measurement functions run directly on the camera.
  • Flexible storage: SD card and USB flash drive support enable local JPEG / TIFF image saving and H.264 MP4 video recording with preview and playback.
  • Expanded operation options: Optional USB voice control module and 5G WiFi adapter extend hands-free control and wireless video transmission.
  • Practical image processing: Tone mapping, 3D denoise, sharpening, gamma, ROI white balance, and anti-flicker improve consistency under changing illumination.

Core Benefits

  • 1
    One Camera, Three Delivery Paths Serve local displays, network classrooms, and computer-side capture without changing the camera body.
  • 2
    Standalone Measurement Workflow Embedded XCamView reduces dependency on external software for daily capture, playback, and measurement tasks.
  • 3
    Voice and Storage Ready Voice control expansion and local SD / USB recording improve efficiency in teaching and routine inspection work.
  • 4
    Stable Full-HD Imaging Sony Pregius sensor plus practical ISP tuning keeps 1080P output clean, sharp, and reliable.
  • 5
    Easy Integration for Microscopy C-mount design, DC 12 V power, and platform-side software support fit research, education, and industrial imaging systems.
