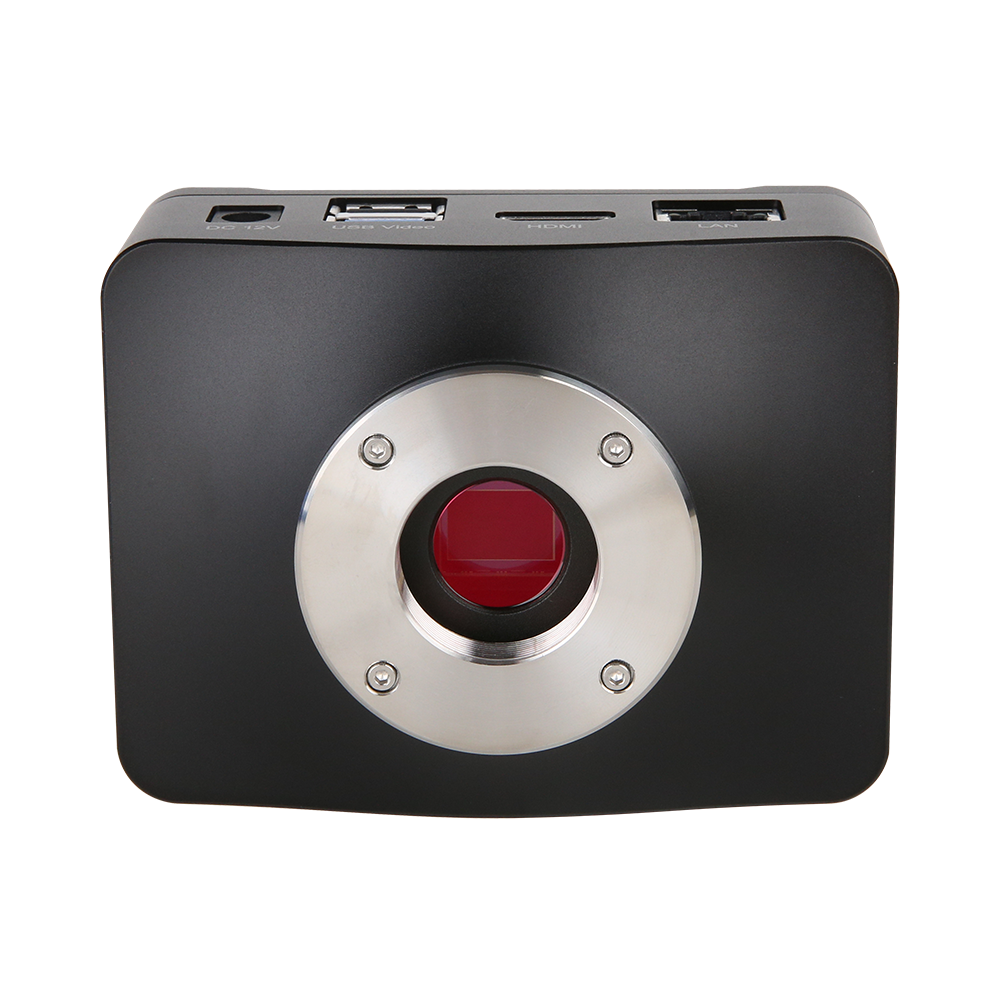

X7CAM4K Series
Product Introduction
Features ultra-high frame rate output, 4K resolution, flexible switching between HDMI, USB3.0, LAN and other multi-interfaces, suitable for fast detection and high-resolution acquisition.
Product Features
- Sony Starvis 2 back-illuminated CMOS sensor

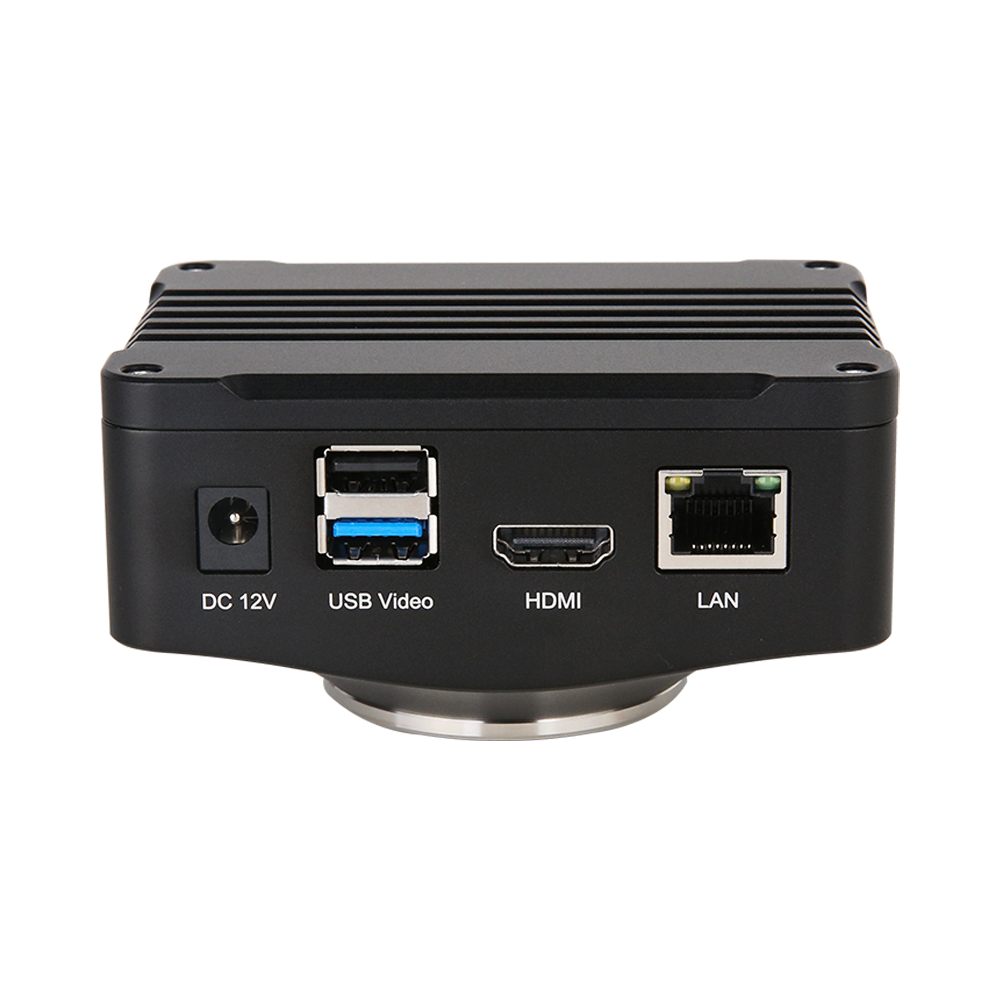

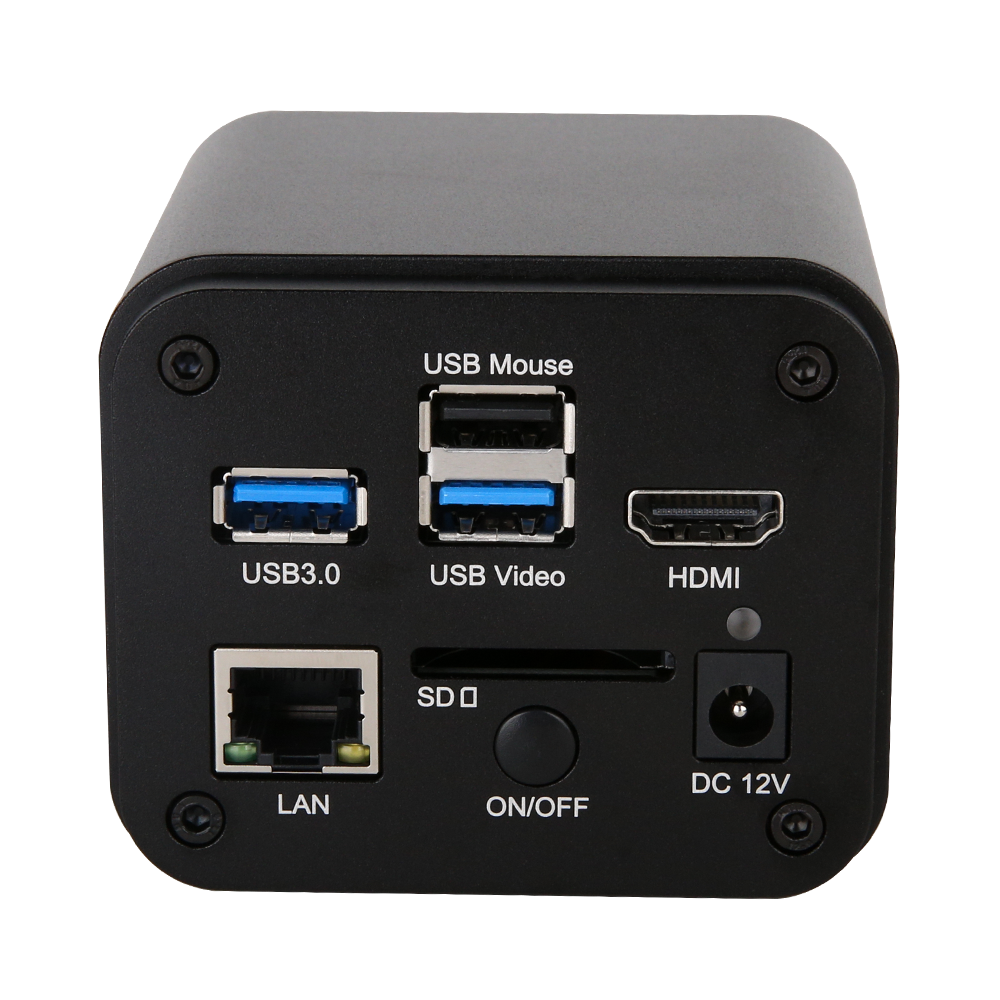

- 4K HDMI/NETWORK/USB multi-interface synchronous output
- 4K/1080P HDMI output adaptive switching
- High frame rate output, up to 4K 75 fps support
- Supports 4K 60 fps low-latency HDMI output mode with average latency of 40 ms
- SD card/USB flash drive saves captured videos or images, supports local preview and playback
- Supports RAW format image capture and display
- Supports photo automatic upload to server via network
- Supports USB audio control module for voice command real-time camera control for shooting, recording and freezing operations
- Brand new browsing interface provides rich file operation functions, image-to-image comparison, image-to-real-time video comparison, multi-image depth of field synthesis, multi-image stitching
- Powerful ISP functions with significant sharpening and 3D noise reduction effects, more accurate ROI white balance
- Provides real-time video depth of field synthesis and real-time video WDR output functions
- Provides real-time stitching function, obtaining higher quality images through real-time processing
- Provides biological and stereomicroscope default ISP parameter switching for convenient secondary adjustment and optimization
- Built-in XCamView software provides rich image processing and measurement functions, supports automatic edge detection and automatic measurement
- ToupView/ToupLite software for more convenient PC operation
- iOS/Android mobile applications, free download from app stores
X7CAM4K Series
High-Speed Multi-Interface HDMI Camera
| Model | Sensor/Size | Effective Pixels | Output Resolution | Frame Rate (fps) | Output Interface | Auto Focus | Lens Mount | Storage Support | Featured Functions |
|---|---|---|---|---|---|---|---|---|---|
| X7CAM4K8MPA |
Sony IMX678(C)
1/1.8" (7.68×4.32 mm)
|
2.0 µm × 2.0 µm | 8MP | 72 fps@3840×2160 | HDMI USB3 SD LAN | C mount | SD card / USB drive | Ultra-high frame rate 4K output Multi-interface output | |
| X7CAM4K8MPB |
Sony IMX585(C)
1/1.2" (11.14×6.26 mm)
|
2.9 µm × 2.9 µm | 8MP | 75 fps@3840×2160 | HDMI USB3 SD LAN | C mount | SD card / USB drive | Ultra-high frame rate 4K output Multi-interface output Large-format sensor | |
| X7CAM4K16MPA |
Sony IMX283(C)
1/1.1" (13.06×7.34 mm)
|
2.4 µm × 2.4 µm | 16MP | 30 fps@5440×3060 | HDMI USB3 SD LAN | C mount | SD card / USB drive | 16MP high resolution Large-format sensor Multi-interface output |
X7CAM4K Multi-Interface Camera | Packing List #

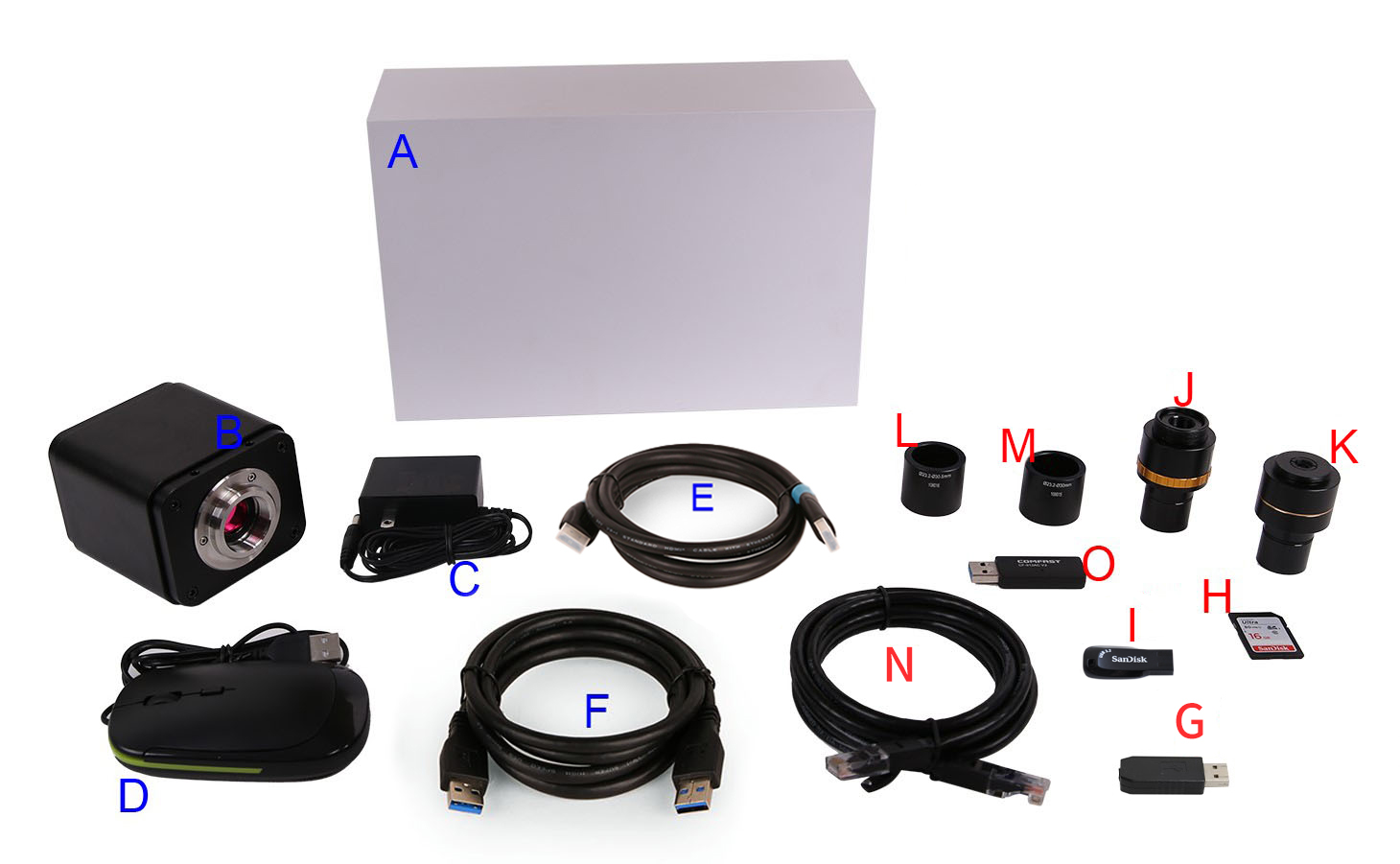

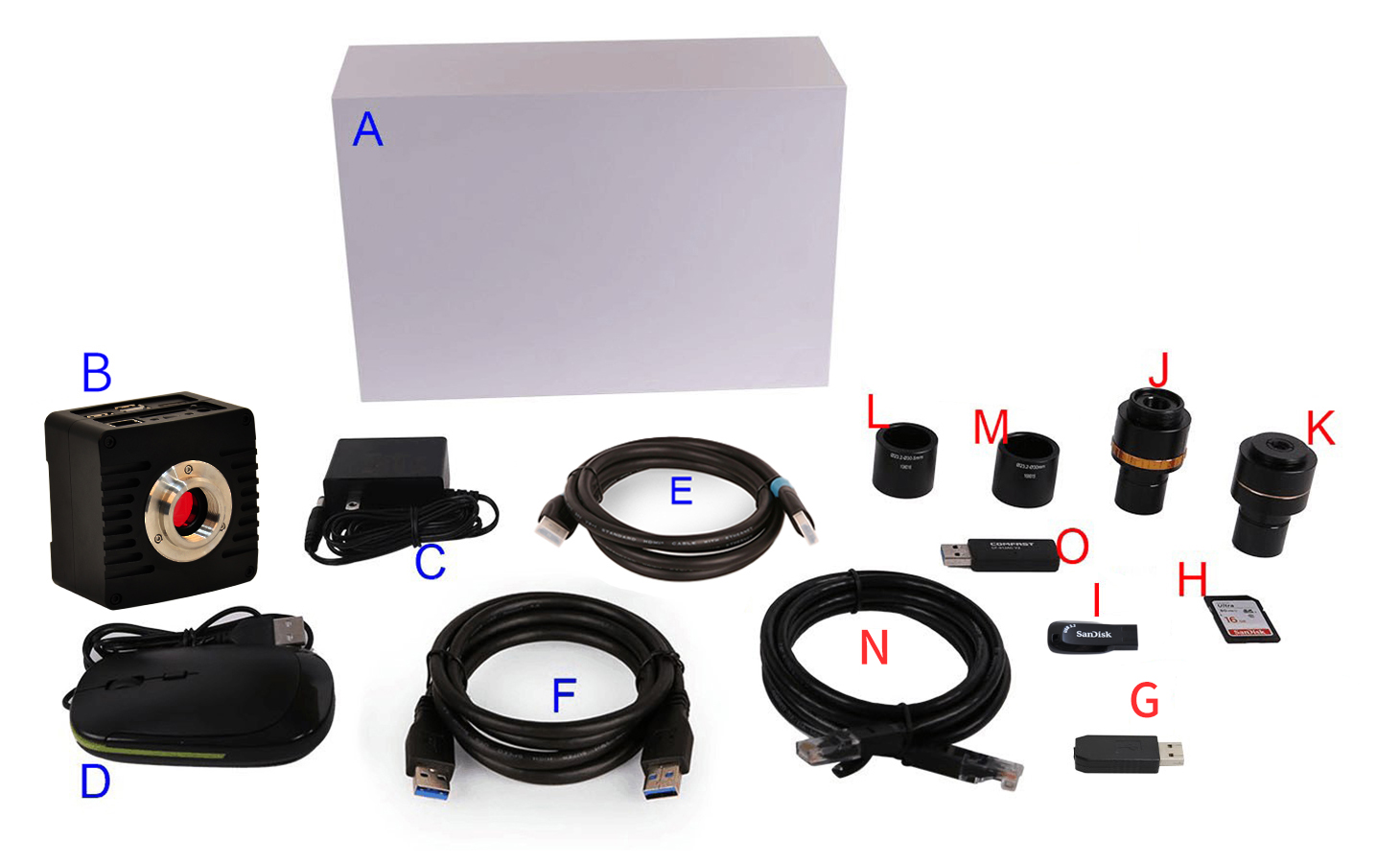

Standard Packing List
- A Camera box size: 25.5 cm × 17.0 cm × 9.0 cm (1 pcs, 1.7 kg per box)

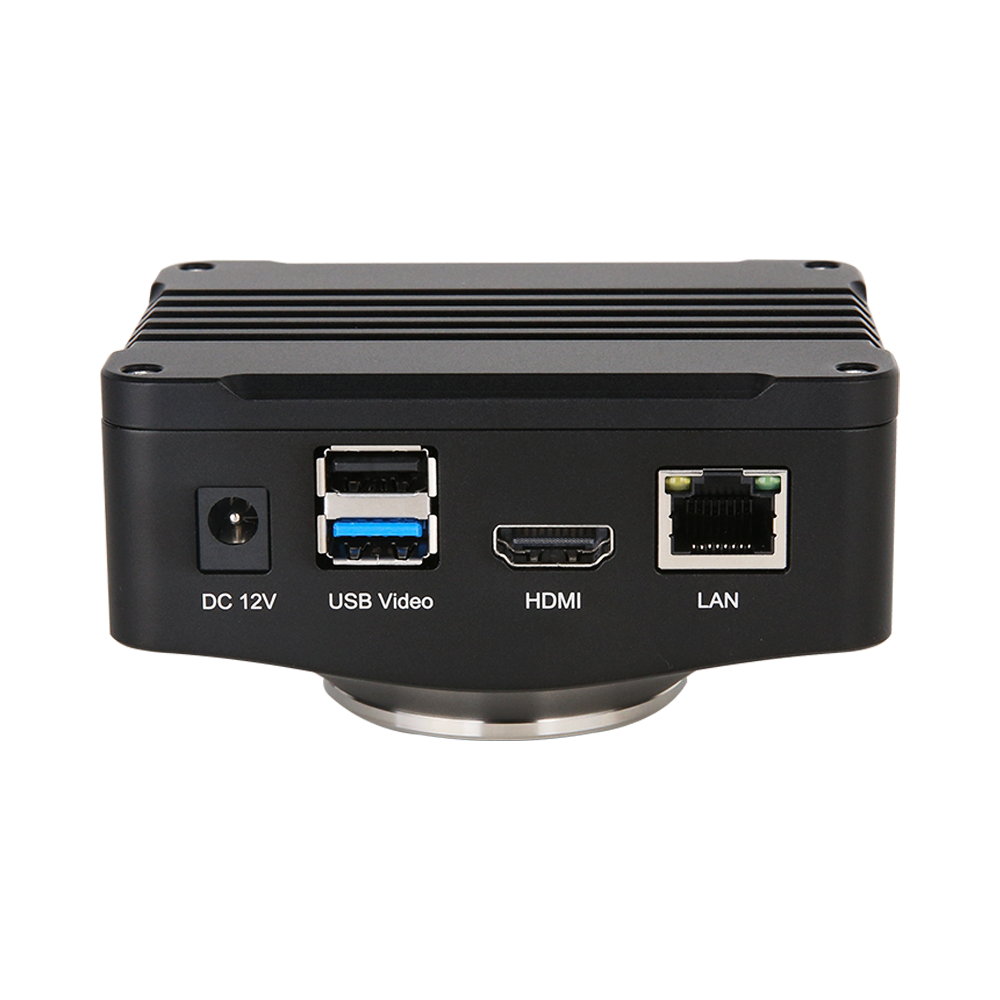

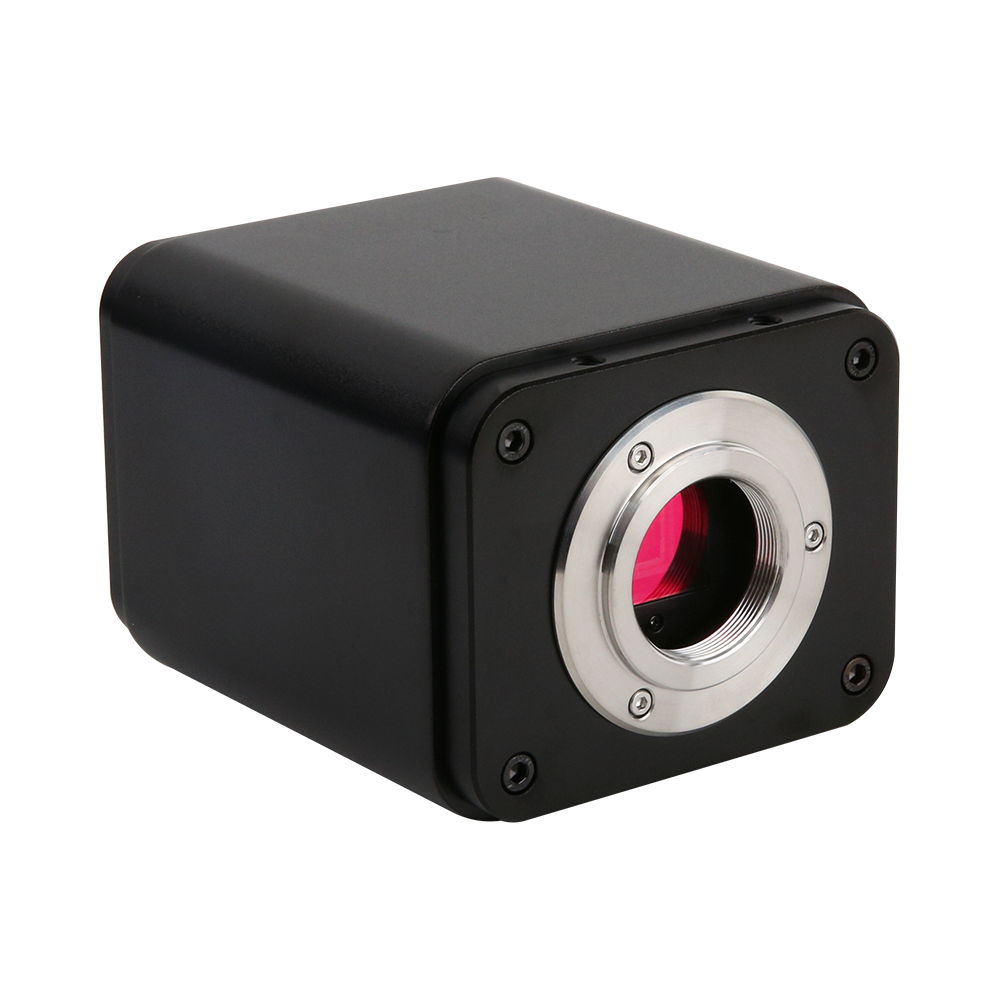

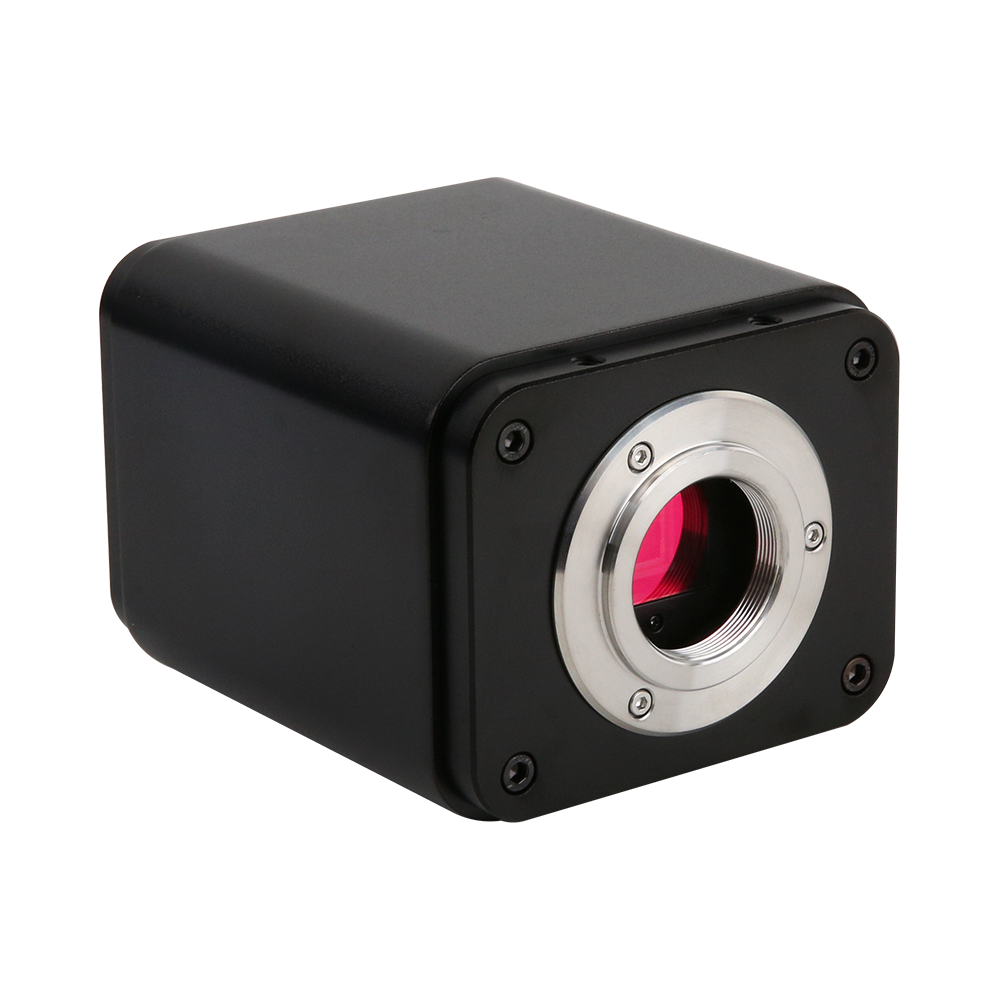

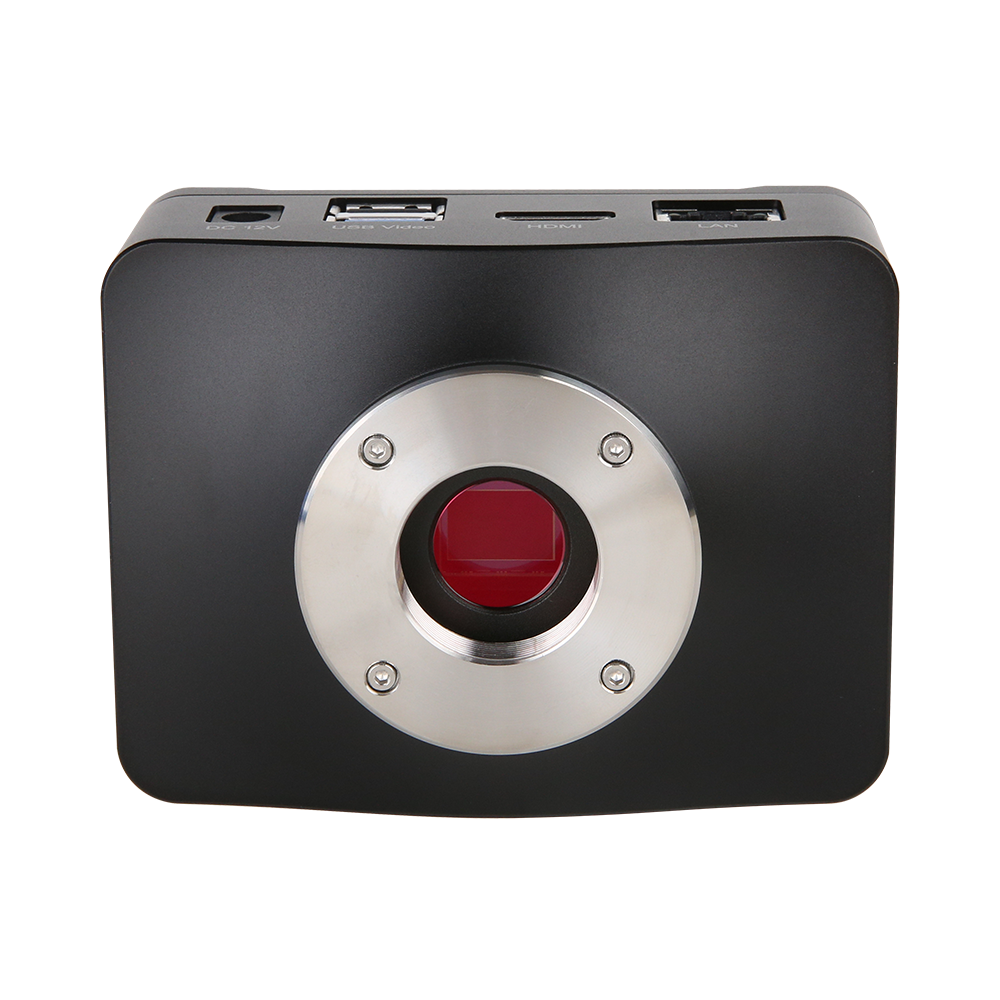

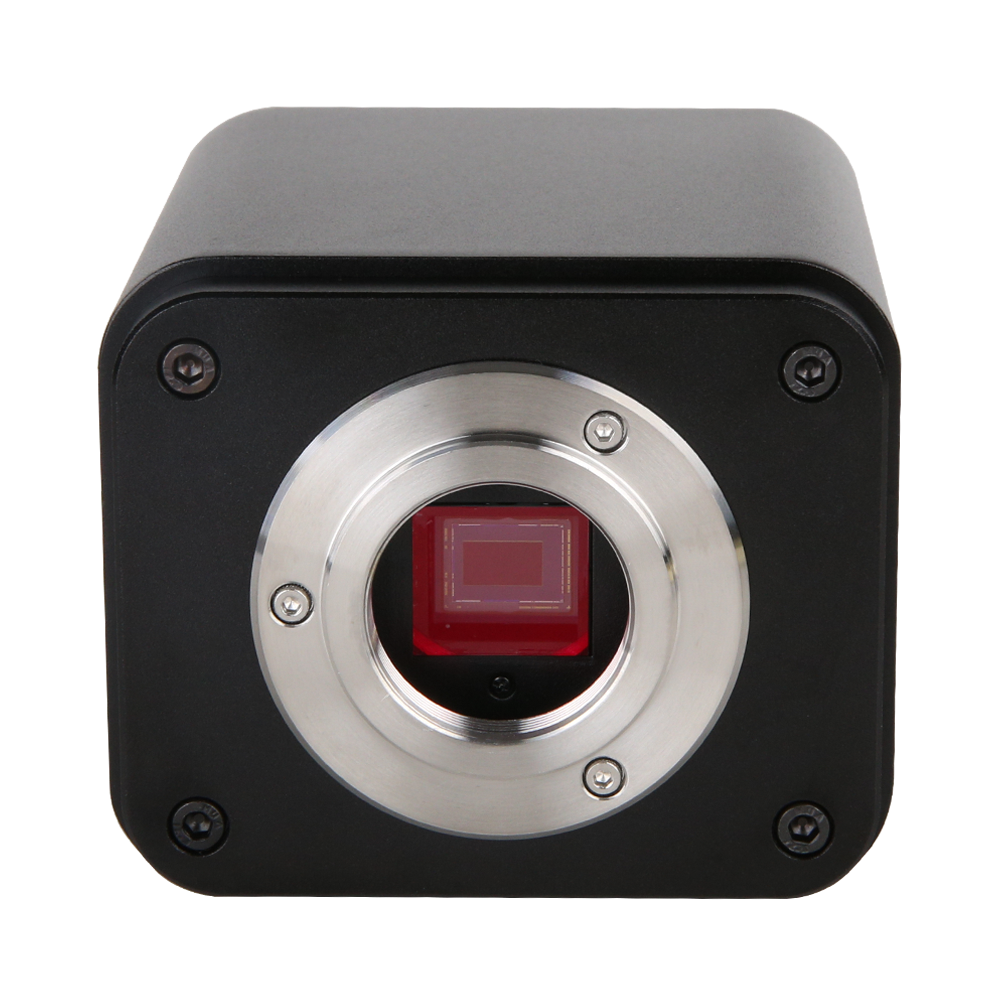

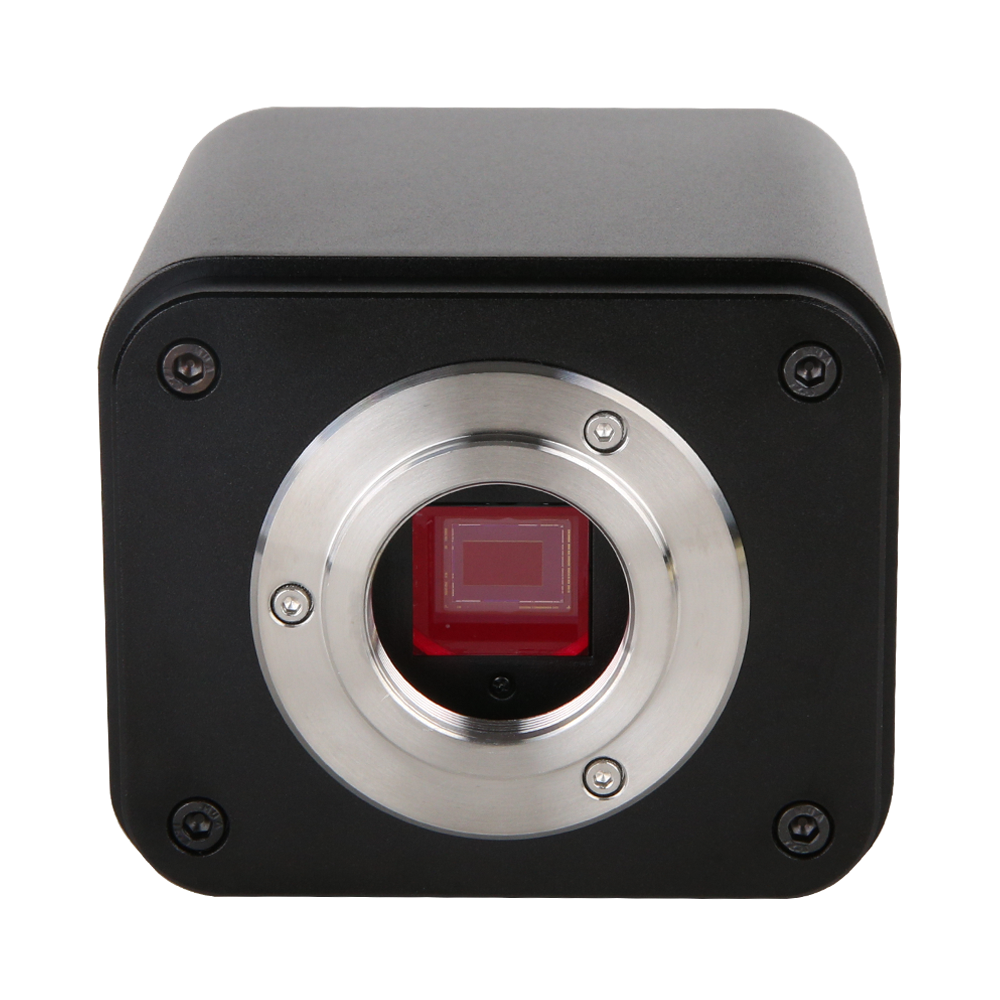

- B X7CAM4K camera ×1 (cube/flat version, choose one)
- C Power adapter: Input AC 100~240 V 50/60 Hz, output DC 12 V 1 A; US POWER-U-12V1A (MSA-C1000IC12.0-12H-US), EU POWER-E-12V1A (MSA-C10001C12.0-12H-DE)
- D USB mouse
- E HDMI 2.0 cable
- F USB3.0 A male ↔ A male gold-plated data cable (1.5 m)
Optional Accessories
- G Voice control module
- H SD card (16 GB+, Class 10)
- I USB drive
-
J Adjustable eyepiece tube adapters
Dia.23.2 mm to C-mount: 108001/AMA037, 108002/AMA050, 108003/AMA075 (choose based on the camera and microscope).
-
K Fixed eyepiece tube adapters
Dia.23.2 mm to C-mount: 108005/FMA037, 108006/FMA050, 108007/FMA075. Note: confirm the camera model and scenario before choosing J or K; engineers can assist.
- L 108015 (Dia.23.2 mm→30.0 mm) adapter ring for 30 mm eyepiece tubes
- M 108016 (Dia.23.2 mm→30.5 mm) adapter ring for 30.5 mm eyepiece tubes
- O USB wireless network adapter (required for WiFi mode; appearance varies by model)
- P Ethernet cable
X7CAM4K Multi-Interface Camera | Product Dimensions #

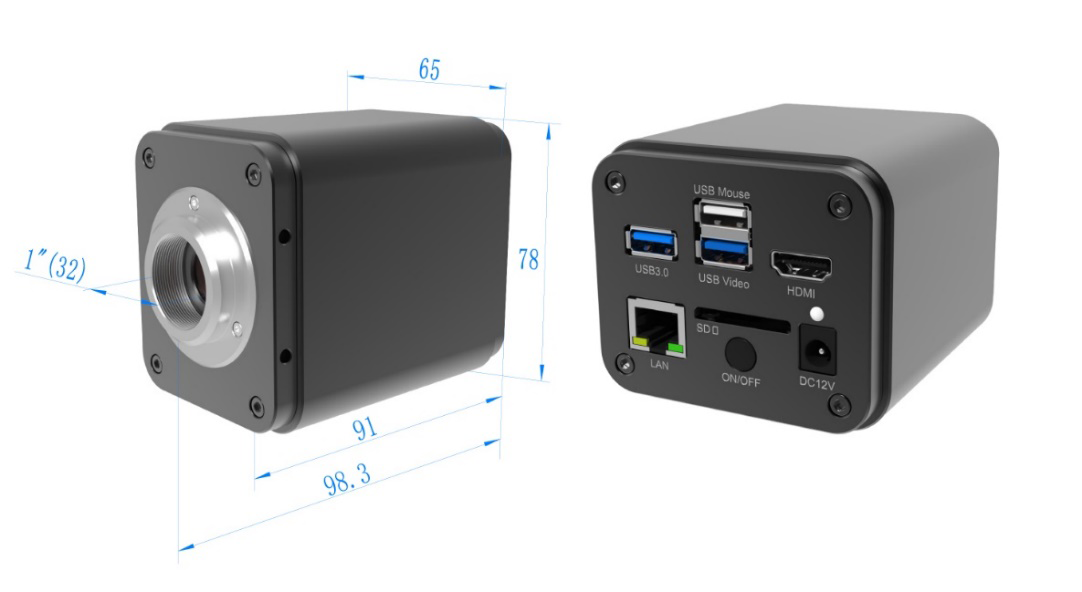

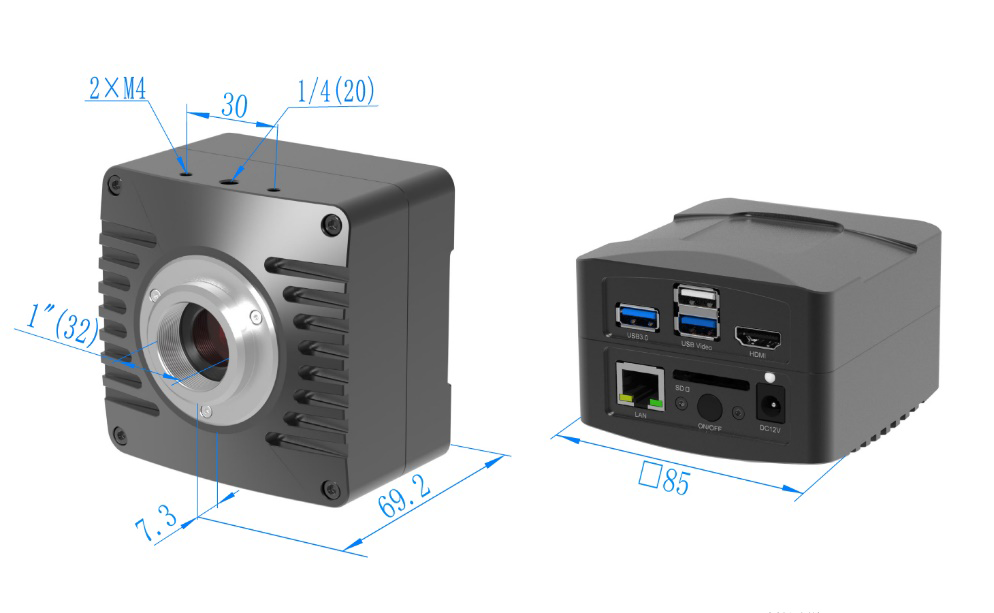

Dimensions for both cube and flat bodies
Cube and flat body size diagrams
Cube and flat body size diagrams
Please confirm mounting holes and interface orientation per the dimension drawing before installation.
Deep Dive
The Touptek X7CAM4K series is a standalone multi-interface 4K HDMI camera that operates without a PC. It is built for high-resolution imaging and video capture on stereo and biological microscopes and can be networked over LAN or Wi-Fi to create interactive teaching and collaboration systems for classes, research teams, and multi-end sharing.
This series uses a Sony Starvis 2 backside-illuminated high-sensitivity CMOS sensor, supports 4K/1080p HDMI auto switching, and delivers 4K 60 fps ultra-low-latency display (about 40 ms on average). It fits research, teaching, industrial inspection, and remote demonstration scenarios.
Technical Highlights

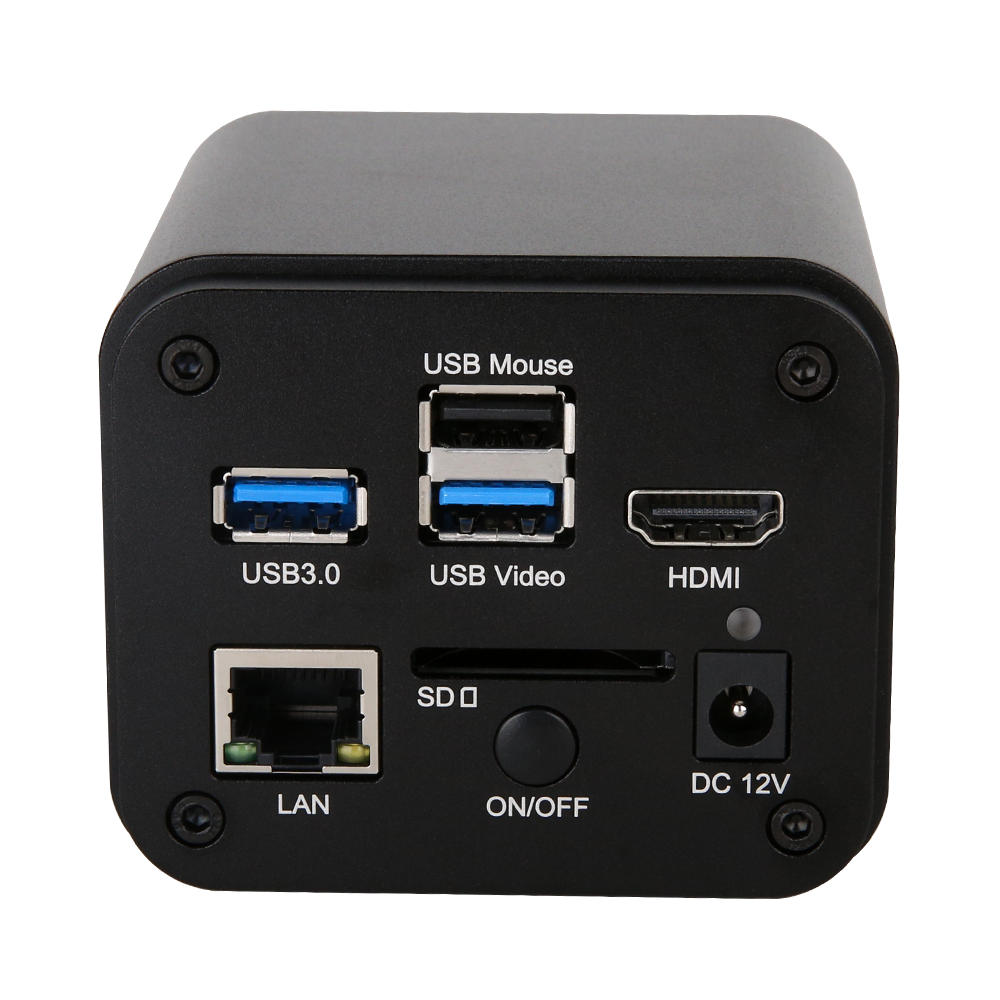

- Multi-interface synchronous output and networking: HDMI 4K60, USB3.0, Gigabit Ethernet, and Wi-Fi outputs run in parallel for local display, PC capture, and wired/wireless collaboration
- High-performance imaging: Sony Starvis 2 BSI high-sensitivity CMOS with hardware 3D noise reduction, sharpness enhancement, Gamma correction, and color fidelity
- Smart control and efficiency: Built-in voice module lets you capture, record, and freeze via USB audio control, with auto-upload of images and video to a server
- Multi-function file management: Intuitive browser supports still/video comparison, dynamic/static comparison, multi-depth fusion, and stitching
- Cross-platform ecosystem: Compatible with ToupView and ToupLite on Windows, macOS, and Linux, with standard SDKs for secondary development and industrial integration
Core Benefits
-
1
Plug-and-Play Collaboration PC-free with HDMI, USB, LAN, and Wi-Fi outputs for multi-end collaboration and deployment
-
2
4K 60 fps, Ultra-Low Latency About 40 ms latency for responsive viewing, recording, and remote presentations
-
3
Smart Interaction Voice control and auto upload streamline workflows and boost efficiency
-
4
Pro-Grade Image Tuning 3D noise reduction, Gamma correction, sharpness, and natural color output ensure quality
-
5
Cross-Platform & Extensible Supports mainstream OS and SDK development for research, teaching, and QA scenarios
