X7CAM4K8MPB HDMI Multi-Interface CMOS Camera
Product Introduction
X7CAM4K8MPB is a high-performance HDMI Multi-Interface CMOS Camera featuring Sony IMX585(C) sensor, with resolution up to 8MP, supporting HDMI, USB3, SD, LAN multiple output methods.
Product Features
- Ultra-high frame rate
- 4K output
- Multi-interface output
- Large-format sensor
Product Details
X7CAM4K8MPB Specifications
| Key Parameters | |
| Product Model | X7CAM4K8MPB |
| Product Series | HDMI Multi-Interface CMOS Camera |
| Sensor Parameters | |
| Sensor Model | Sony IMX585(C) |
| Sensor Size | 1/1.2" (11.14×6.26 mm) |
| Diagonal | 1/1.2" |
| Pixel Size | 2.9 µm × 2.9 µm |
| Resolution | 8MP |
| Shutter Type | Rolling shutter |
| Color Type | Color |
| Performance Parameters | |
| Frame Rate | 75 fps@3840×2160 |
| Output Interfaces | HDMI, USB3, SD, LAN |
| Lens Mount | C mount |
| Storage Support | SD card, USB drive |
| Software Support | XCamView, ToupView |
| Physical Parameters | |
| Power Supply | DC 12 V/1A |
| Dimensions | Unknown |
| Weight | Unknown |
| Environmental Parameters | |
| Operating Temperature | -10 °C ~ 50 °C |
| Other Information | |
| OS Support | Windows, Linux, macOS |
| Certification | CE, FCC |
Product Overview
X7CAM4K8MPB is a High-Speed Multi-Interface HDMI Camera designed for high-definition real-time imaging, featuring the following core characteristics:
- Plug-and-Play Design: Direct HDMI HD video output without a computer, connect to a display for immediate microscopy observation and recording
- USB Voice Control Module: Supports voice commands for real-time camera control including capture, recording, and freeze operations, enabling hands-free operation
- Barcode Scanner Capture: Supports barcode scanner-triggered capture function, ideal for batch sample recording and traceability management
- Intelligent Measurement Functions: Built-in XCamView software supports automatic edge detection, automatic parallel line distance measurement, automatic rectangle measurement, and other intelligent measurement features
- Local Storage and Comparison: Supports USB storage with local preview and playback, plus image comparison and video comparison functions for convenient sample analysis
- Powerful ISP Processing: Provides dark field enhancement, sharpening, and 3D noise reduction functions to significantly improve image quality
- Quick Scene Switching: Supports quick switching between biological microscope and stereo microscope default effects, adapting to multiple usage scenarios
Core Performance Indicators
4K
Video Resolution
60 fps
Maximum Frame Rate
Multi-Interface
HDMI/USB Output
8MP
Sensor Resolution
Advanced Features
Voice Control
Voice control via USB audio module for improved operational convenience
Barcode Capture
Supports barcode scanner-triggered capture, suitable for batch sample management
Intelligent Measurement
Automatic edge detection and measurement functions improve measurement efficiency and accuracy
ISP Optimization
Powerful image processing capabilities optimize image quality
Why Choose This Product
X7CAM4K8MPB stands out with its plug-and-play design philosophy, diverse control methods, and powerful image processing capabilities, making it particularly suitable for microscopy observation scenarios requiring high-definition real-time display. The addition of voice control and barcode capture functions significantly improves operational efficiency, making it an ideal choice for educational demonstrations, industrial inspection, and scientific research recording.
Application Scenarios
Microscope imaging
Microscope imaging
Industrial inspection
Industrial inspection
Application Case Display
Corn leaves
Corn root tip LS
Cucurbitaceae plant stem LS
Wheat seed fluorescent section
Selection Guide
- 4K HD Requirements: Choose X7CAM4K4K8MPA or X7CAM4K4K8MPB, supporting 3840×2160 resolution
- High Frame Rate Requirements: Choose X7CAM4K1080P series, supporting 60 fps high-speed imaging
- Large Sensor Requirements: Choose IMX678 sensor model with 1/1.8" large sensor
- Budget-Friendly Choice: Choose IMX415 or IMX462 sensor models for high cost-performance ratio
X7CAM4K8MPB Product Manual
PDF format, includes detailed technical specifications, dimension drawings, and application guide
Software Downloads
XCamView / ToupView / ToupLite professional imaging software
3D Model Files
STEP format for system integration design
X7CAM4K Multi-Interface Camera | Packing List #
Standard Packing List
- A Camera box size: 25.5 cm × 17.0 cm × 9.0 cm (1 pcs, 1.7 kg per box)
- B X7CAM4K camera ×1 (cube/flat version, choose one)
- C Power adapter: Input AC 100~240 V 50/60 Hz, output DC 12 V 1 A; US POWER-U-12V1A (MSA-C1000IC12.0-12H-US), EU POWER-E-12V1A (MSA-C10001C12.0-12H-DE)
- D USB mouse
- E HDMI 2.0 cable
- F USB3.0 A male ↔ A male gold-plated data cable (1.5 m)
Optional Accessories
- G Voice control module
- H SD card (16 GB+, Class 10)
- I USB drive
-
J Adjustable eyepiece tube adapters
Dia.23.2 mm to C-mount: 108001/AMA037, 108002/AMA050, 108003/AMA075 (choose based on the camera and microscope).
-
K Fixed eyepiece tube adapters
Dia.23.2 mm to C-mount: 108005/FMA037, 108006/FMA050, 108007/FMA075. Note: confirm the camera model and scenario before choosing J or K; engineers can assist.
- L 108015 (Dia.23.2 mm→30.0 mm) adapter ring for 30 mm eyepiece tubes
- M 108016 (Dia.23.2 mm→30.5 mm) adapter ring for 30.5 mm eyepiece tubes
- O USB wireless network adapter (required for WiFi mode; appearance varies by model)
- P Ethernet cable

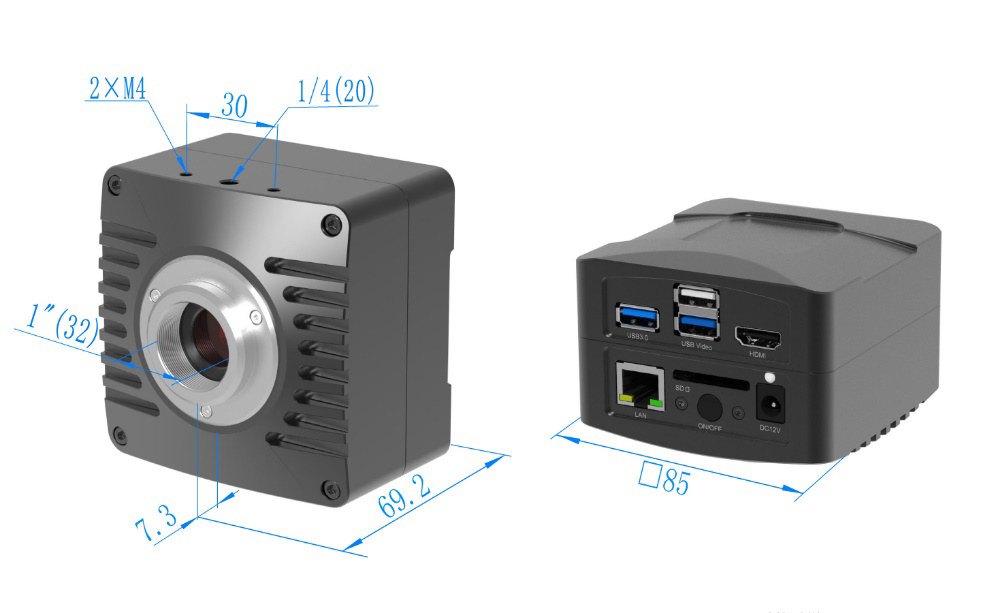

X7CAM4K Multi-Interface Camera | Product Dimensions #
Dimensions for both cube and flat bodies
Cube and flat body size diagrams
Cube and flat body size diagrams
Please confirm mounting holes and interface orientation per the dimension drawing before installation.
Deep Dive
The Touptek X7CAM4K series is a standalone multi-interface 4K HDMI camera that operates without a PC. It is built for high-resolution imaging and video capture on stereo and biological microscopes and can be networked over LAN or Wi-Fi to create interactive teaching and collaboration systems for classes, research teams, and multi-end sharing.
This series uses a Sony Starvis 2 backside-illuminated high-sensitivity CMOS sensor, supports 4K/1080p HDMI auto switching, and delivers 4K 60 fps ultra-low-latency display (about 40 ms on average). It fits research, teaching, industrial inspection, and remote demonstration scenarios.
Technical Highlights
- Multi-interface synchronous output and networking: HDMI 4K60, USB3.0, Gigabit Ethernet, and Wi-Fi outputs run in parallel for local display, PC capture, and wired/wireless collaboration
- High-performance imaging: Sony Starvis 2 BSI high-sensitivity CMOS with hardware 3D noise reduction, sharpness enhancement, Gamma correction, and color fidelity
- Smart control and efficiency: Built-in voice module lets you capture, record, and freeze via USB audio control, with auto-upload of images and video to a server
- Multi-function file management: Intuitive browser supports still/video comparison, dynamic/static comparison, multi-depth fusion, and stitching
- Cross-platform ecosystem: Compatible with ToupView and ToupLite on Windows, macOS, and Linux, with standard SDKs for secondary development and industrial integration
Core Benefits
-
1
Plug-and-Play Collaboration PC-free with HDMI, USB, LAN, and Wi-Fi outputs for multi-end collaboration and deployment
-
2
4K 60 fps, Ultra-Low Latency About 40 ms latency for responsive viewing, recording, and remote presentations
-
3
Smart Interaction Voice control and auto upload streamline workflows and boost efficiency
-
4
Pro-Grade Image Tuning 3D noise reduction, Gamma correction, sharpness, and natural color output ensure quality
-
5
Cross-Platform & Extensible Supports mainstream OS and SDK development for research, teaching, and QA scenarios
