SCAM4K Series
Product Introduction
HDMI, Wi-Fi, USB3.0 triple output, supports wireless and wired multi-terminal synchronous connection, built-in multi-language and image measurement functions, suitable for scientific research and industrial scenarios.
SCAM4K series cameras can be directly used for video and image acquisition of stereo microscopes or biological microscopes without computers, and can also be networked to form microscopic interactive teaching systems, facilitating teacher instruction and student learning.
Product Features
- Sony Exmor/Starvis back-illuminated CMOS sensor
- 4K HDMI/Wi-Fi/USB3.0 multi-interface output
- 4K/1080P HDMI output adaptive switching
- SD card/USB flash drive saves captured images or videos with local preview and playback support
- Built-in XCamView software for camera control
- Powerful ISP functionality with significant sharpening and 3D noise reduction effects, more precise ROI white balance
- ToupView/ToupLite software for more convenient computer operation
- iOS/Android mobile applications available for free download from app stores
SCAM4K Series
Wi-Fi+USB3.0 multi-output C-mount camera
| Model | Sensor/Size | Effective Pixels | Output Resolution | Frame Rate (fps) | Output Interface | Auto Focus | Lens Mount | Storage Support | Featured Functions |
|---|---|---|---|---|---|---|---|---|---|
| SCAM4K8MPA |
Sony IMX678(C)
1/1.8" (7.68×4.32 mm)
|
2.0 μm × 2.0 μm | 8MP (3840×2160) | HDMI: 30 fps@4K/1080P; Wi-Fi: 30 fps@1920×1080; USB3.0: 30 fps@3840×2160 | HDMI1.4 USB3.0 Wi-Fi | C-mount | SD card / USB drive | 4K video recording Image measurement Crosshair display Image comparison 3D noise reduction Sharpening processing ROI white balance Multi-language menu | |
| SCAM4K8MPB |
Sony IMX585(C)
1/1.2" (11.14×6.26 mm)
|
2.9 μm × 2.9 μm | 8MP (3840×2160) | HDMI: 30 fps@4K/1080P; Wi-Fi: 30 fps@1920×1080; USB3.0: 30 fps@3840×2160 | HDMI1.4 USB3.0 Wi-Fi | C-mount | SD card / USB drive | 4K video recording Image measurement Crosshair display Image comparison 3D noise reduction Sharpening processing ROI white balance Multi-language menu |
SCAM4K Multi-Interface Camera | Packing List #

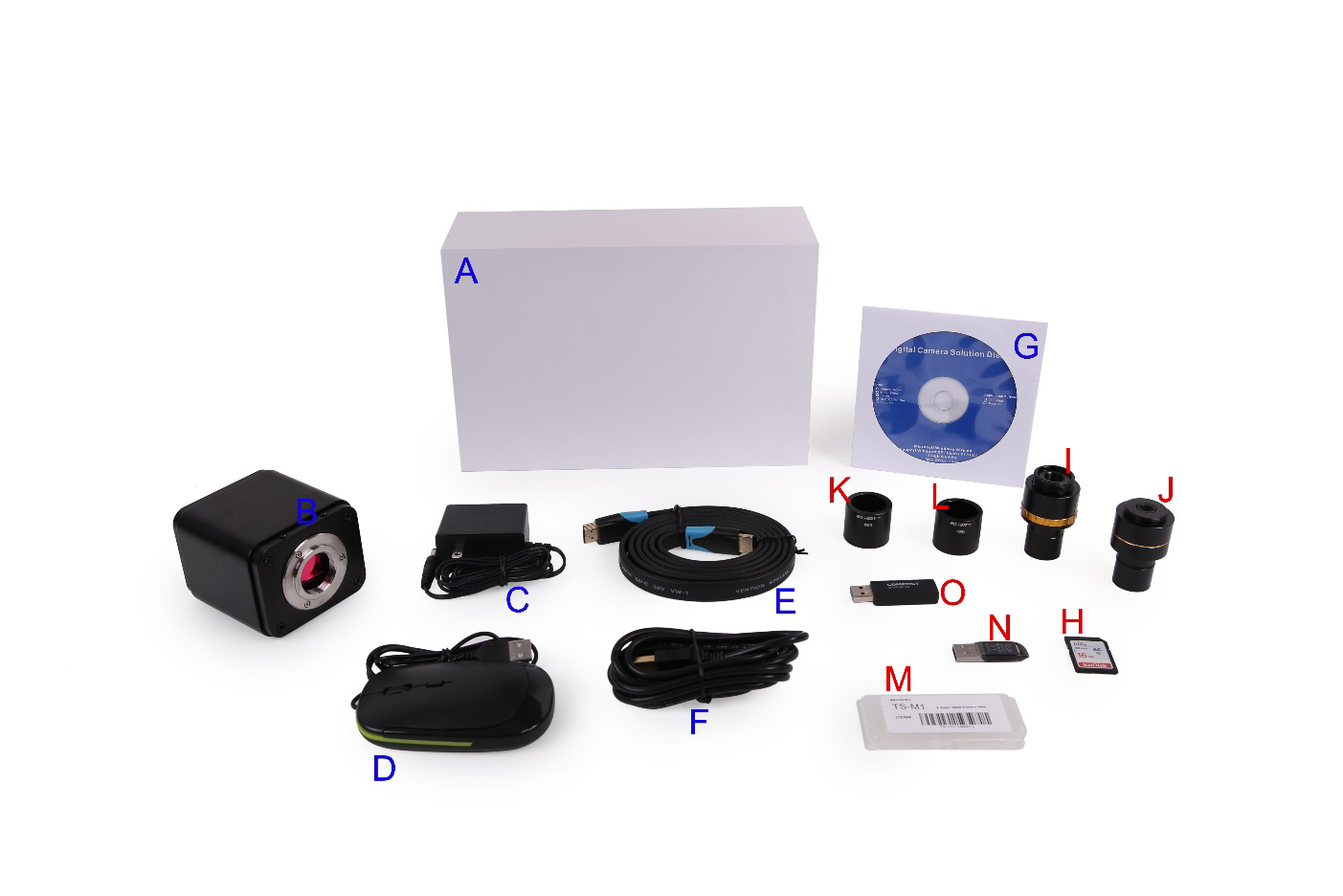

Standard Packing List
- A Camera box: 25.5 cm × 17.0 cm × 9.0 cm (1 pcs, 1.57 kg per box)
- B SCAM4K series camera ×1 (cube or flat style)
- C Power adapter: Input AC 100~240 V 50/60 Hz, output DC 12 V 1 A; US POWER-U-12V1A (MSA-C1000IC12.0-12W-US: UL/CE/FCC), EU POWER-E-12V1A (MSA-C10001C12.0-12W-DE: UL/CE/FCC); EMI: FCC Part 15 Subpart B; EMS: EN61000-4-2/3/4/5/6
- D USB mouse
- E HDMI cable
- F USB 3.0 A male ↔ A male gold-plated data cable (1.5 m)
- G CD (drivers and application, Ø12 cm)
Optional Accessories
- H SD card (16 GB or above, Class 10)
-
I Adjustable eyepiece tube adapters
Dia.23.2 mm to C-mount: 108001/AMA037, 108002/AMA050, 108003/AMA075 (choose based on camera and microscope).
-
J Fixed eyepiece tube adapters
Dia.23.2 mm to C-mount: 108005/FMA037, 108006/FMA050, 108007/FMA075. Note: Confirm camera model and scenario before choosing I or J; engineers can assist with matching.
- K 108015 (Dia.23.2 mm→30.0 mm) adapter ring for 30 mm eyepiece tubes
- L 108016 (Dia.23.2 mm→30.5 mm) adapter ring for 30.5 mm eyepiece tubes
- M Micrometer: 106011/TS-M1 (X=0.01 mm/100 Div.); 106012/TS-M2 (X,Y=0.01 mm/100 Div.); 106013/TS-M7 (X=0.01 mm/100 Div., 0.10 mm/100 Div.)
- N USB drive
- O USB wireless network adapter (required for WiFi mode; appearance varies by model)
In-Depth Overview
The ToupTek Photonics SCAM4K series is a standalone multi-interface microscope camera for video and image capture on stereo and biological microscopes. It can also network to create an interactive microscopy teaching system for teachers and students to view simultaneously.
It uses Sony Exmor/Starvis back-illuminated high-sensitivity CMOS sensors, supports HDMI, Wi-Fi, and USB 3.0 outputs, and provides 4K/1080p HDMI adaptive switching, fitting research, teaching, and industrial inspection scenarios.
Technical Highlights
- High-performance sensor: Sony Exmor/Starvis back-illuminated CMOS with low noise and high sensitivity for clear imaging in low light.
- Flexible multi-interface output: HDMI, Wi-Fi, and USB 3.0 simultaneous transmission with 4K/1080p adaptive switching to meet display and recording needs.
- Data storage and playback: Supports saving images or video to SD card or USB flash drive with on-camera preview and playback.
- Built-in control software: Integrated XCamView enables camera setup, capture, and control, supporting touch or mouse operation.
- Adaptable to many environments: Rapidly deploy for lab research, teaching demos, industrial QC, and interactive classrooms.
Core Advantages
-
1
Plug-and-play without PC dependence HDMI, Wi-Fi, and USB 3.0 outputs enable capture and display right after power-on.
-
2
High resolution with flexible output Supports 4K/1080p switching for detailed imaging and smooth presentation.
-
3
Convenient data management Supports SD/USB local storage and playback for courseware and research archiving.
-
4
Smart operation Built-in XCamView supports multiple interaction methods and image processing features.
-
5
Broad application coverage Fits “4K HDMI microscope camera,” “multi-interface output camera,” “Sony Starvis microscope camera,” and “teaching/research imaging solutions.”
