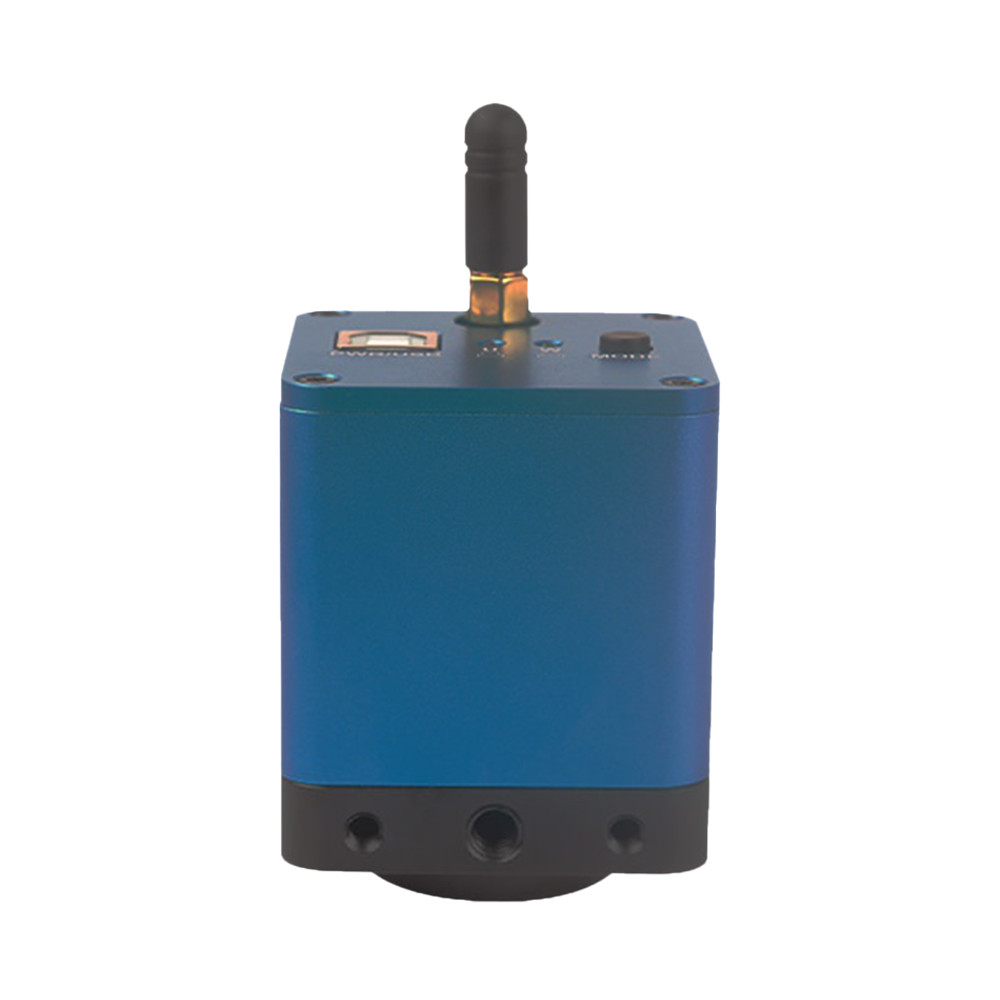

WUCAM0720PA Series (Discontinued)
Product Introduction
The WUCAM0720PA series HDMI cameras can connect to various devices through two methods:
1. Connect to smart devices (such as smartphones and tablets) and computers via Wi-Fi;
2. Connect to computers via USB.
When the WUCAM0720PA series HDMI cameras connect to smart devices via Wi-Fi, the WCAM series cameras offer software for multiple platforms, including iOS, Android, and other platform applications. Furthermore, the WUCAM series cameras support simultaneous access for up to approximately 3 devices. The video stream encoding format is MJPG.
When the WUCAM0720PA series HDMI cameras connect to computers via Wi-Fi or USB, the camera's hardware features an embedded dedicated color and image processing DSP to achieve perfect image reproduction. Through ToupTek's professional software ToupView, users can control the camera as needed to ensure high-quality images (currently 720P), with controls including exposure (automatic & manual), gain, white balance (one-click), color adjustment, anti-flicker, and more. Additionally, the transmitted video stream uses the popular MJPG codec to ensure optimal video quality. Finally, users can fully utilize ToupView's advanced processing functions such as layers, measurement, image stitching, image stacking for noise reduction, and multi-focal plane image fusion.
The WUCAM0720PA series HDMI cameras can seamlessly connect to microscopes, telescopes, and spotting scopes through professionally designed C-mount camera adapters.
Product Features
- C-mount CMOS camera featuring Aptina CMOS sensor
- Video transmission to smartphones, computers, and tablets via Wi-Fi using MJPG encoding
- Video transmission to computers via USB using MJPG encoding
- Supports Windows/iOS/OSX/Linux/Android platform devices
- Supports multi-device simultaneous reception (when connected via Wi-Fi)
- CNC aluminum alloy housing
- Efficient heat dissipation structure ensures low-noise imaging
- USB2.0 interface ensures high transmission rate
- Ultra-Fine color engine ensures accurate color reproduction
- Includes ToupView advanced video and image processing application software
- Provides Windows/Linux/macOS/Android multi-platform standard SDK
WUCAM0720PA Series (Discontinued)
Economical Wi-Fi/USB dual-output design for teaching demonstrations, mobile observation, and flexible connectivity with multi-device synchronous access.
| Model | Sensor/Size | Effective Pixels | Output Resolution | Frame Rate (fps) | Output Interface | Auto Focus | Lens Mount | Storage Support | Featured Functions |
|---|---|---|---|---|---|---|---|---|---|
| WUCAM0720PA |
Aptina MT9P001(C)
1/2.5" (5.63×3.17 mm)
|
2.2 µm × 2.2 µm | 720P (1280×720) | USB/Wi-Fi: 30 fps@1280×720 | USB2.0 Wi-Fi 802.11b/g/n | C-mount | No local storage | Dual output modes Wi-Fi/USB switching Multi-device connectivity White balance adjustment Economical dual-mode solution |
XCAM720PHC Multi-Interface Camera | Packing List #

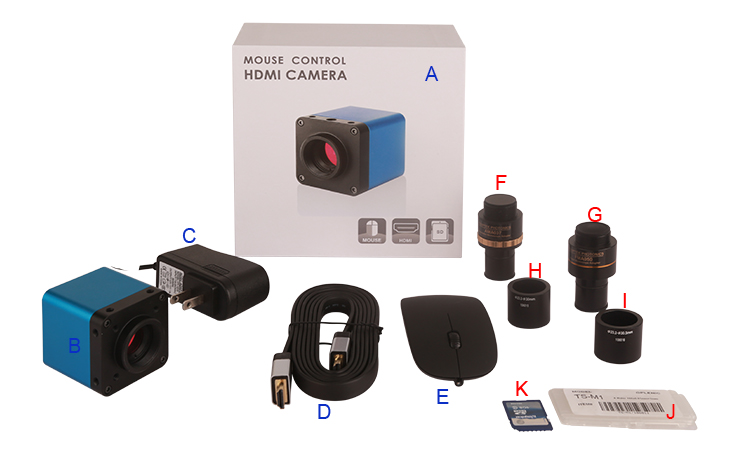

Standard Packing List
- A Camera box: 17.5 cm × 17.5 cm × 8.5 cm (1 pcs, 0.85 kg per box)
- B XCAM720PHC camera ×1
- C Power adapter: Input AC 100~240 V 50/60 Hz, output DC 12 V 1 A; US GS12U12-P1I (UL/CUL/BSMI/CB/FCC), EU GS12E12-P1I (TUV(GS)/CB/CE/ROHS); EMI: EN55022, EN61204-3, EN61000-3-2/-3, FCC Part 15B, BSMI CNS14338; EMS: EN61000-4-2/3/4/5/6/8/11, EN61204-3 Class A light industrial
- D HDMI cable
- E USB mouse (wired or wireless option)
Optional Accessories
- F Adjustable eyepiece tube adapters
Dia.23.2 mm to C-mount: 108001/AMA037, 108002/AMA050, 108003/AMA075; Dia.31.75 mm to C-mount: 108008/ATA037, 108009/ATA050, 108010/ATA075 (choose based on camera and microscope/telescope).
- G Fixed eyepiece tube adapters
Dia.23.2 mm to C-mount: 108005/FMA037, 108006/FMA050, 108007/FMA075; Dia.31.75 mm to C-mount: 108011/FTA037, 108012/FTA050, 108013/FTA075. Note: Confirm camera interface and scenario before choosing F or G; engineers can assist with matching.
- H 108015 (Dia.23.2 mm→30.0 mm) adapter ring for 30 mm eyepiece tubes
- I 108016 (Dia.23.2 mm→30.5 mm) adapter ring for 30.5 mm eyepiece tubes
- J Micrometer: 106011/TS-M1 (X=0.01 mm/100 Div.); 106012/TS-M2 (X,Y=0.01 mm/100 Div.); 106013/TS-M7 (X=0.01 mm/100 Div., 0.10 mm/100 Div.)
- K SD card (4 GB or 8 GB)
XCAM720PHC Multi-Interface Camera | Dimensions #

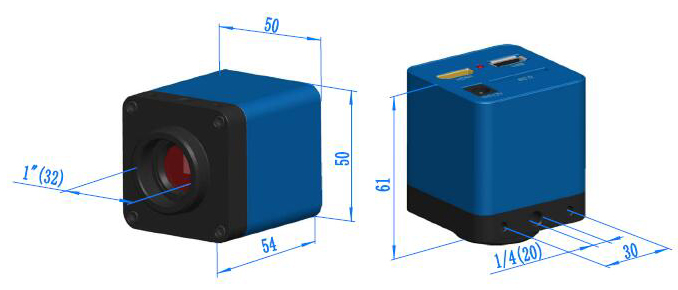

Body dimensions and interface layout
See manual Figure 3-142
Confirm mount holes and interface orientation with the dimension drawing before installation.
In-Depth Overview
The ToupTek Photonics XCAM720P series is a C-mount microscope camera with real-time HDMI output for stereo microscopes, biological microscopes, and other C-mount optical systems requiring 720p HD video and image capture. With built-in XCamView, a USB mouse controls preview, capture, and basic settings directly on a monitor, and SD card local storage lets it run independently without a computer.
A high-sensitivity CMOS sensor delivers 1280×720 @ 30 fps stable HDMI output, plus still capture, freeze, digital zoom, and image flip—well suited for teaching, research records, and industrial inspection from entry to routine use.
Technical Highlights
- Interfaces and usage: HDMI real-time display; USB port for mouse control; supports SD card local saving; DC 12 V power for plug-and-play.
- Imaging spec: 720p (1280×720) 30 fps real-time output, with still capture for teaching demos and on-site observation.
- Built-in UI and controls: XCamView toolbar supports capture, digital zoom, horizontal/vertical flip, freeze/unfreeze, and quick control panel access.
- Image tuning: Default auto exposure and auto white balance; basic adjustments (sharpness, contrast, gamma, etc.) to fit varied lighting and samples.
- Compatibility: Universal C-mount with a compact metal body for portable or space-limited integration.
Core Advantages
-
1
HDMI plug-and-play Operate via monitor and mouse; no PC needed for observation and capture.
-
2
Stable 720p real-time output 1280×720 @ 30 fps for classroom demonstrations and routine inspections.
-
3
Efficient local storage Save directly to SD card for easy retention and archiving.
-
4
Simple operation, quick to learn XCamView menus are intuitive with one-click access to common tools.
-
5
Universal C-mount, easy integration Fits many microscope systems and accessories for teaching, research, and basic industrial use.
