AFDM512 Series
Product Introduction
The AFDM512 Series features Sony IMX415 high-performance CMOS sensor with HDMI2.0 support for 4K/60 fps output and low latency ≈40 ms. Integrated with 18× continuous optical zoom and autofocus, it provides HDMI, USB3.0, Ethernet (with support for external 5G Wi-Fi via USB) multi-interface output. Suitable for high-precision industrial inspection, real-time monitoring, automated production lines and other applications requiring extreme speed and accuracy.
Product Features
- 4K60 ultra-high definition output, HDMI low latency ≈40 ms, meeting real-time display requirements
- Sony IMX415 CMOS, 8.3MP high resolution, true color reproduction
- 18× continuous optical zoom + autofocus, covering multi-magnification observation

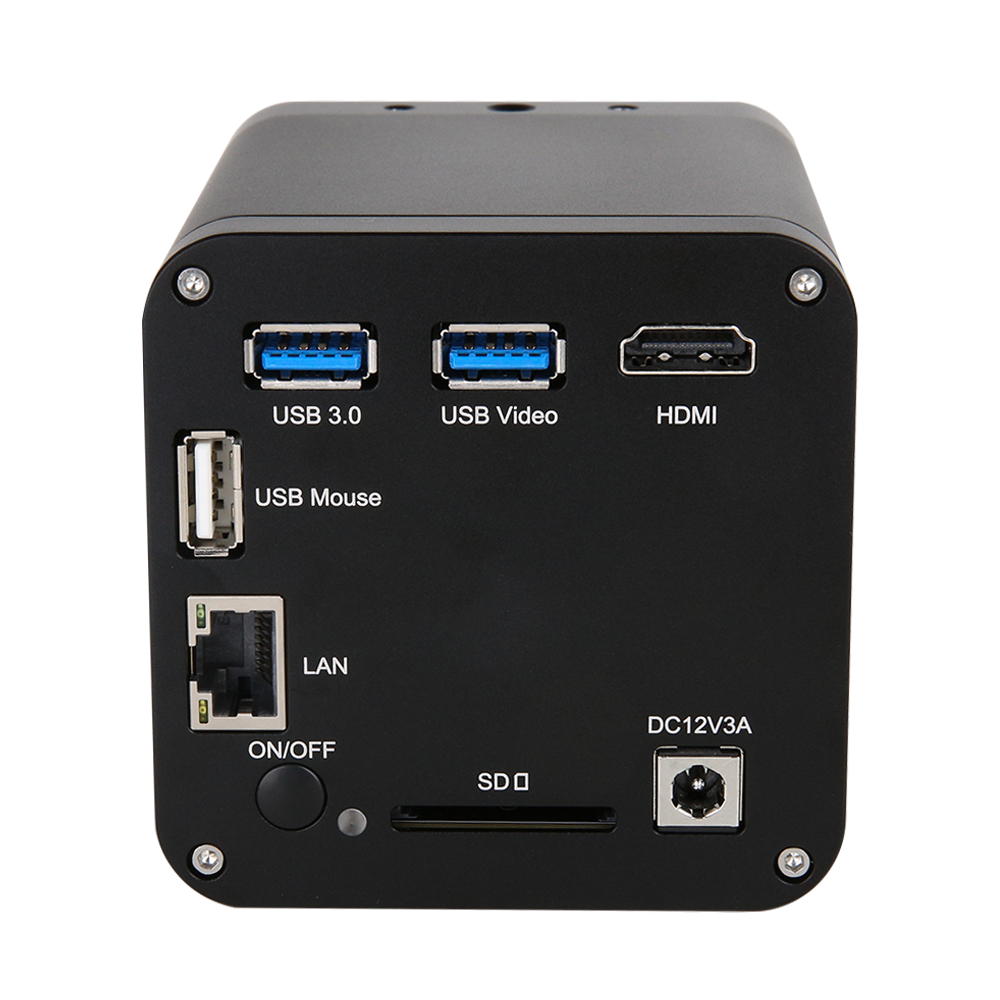

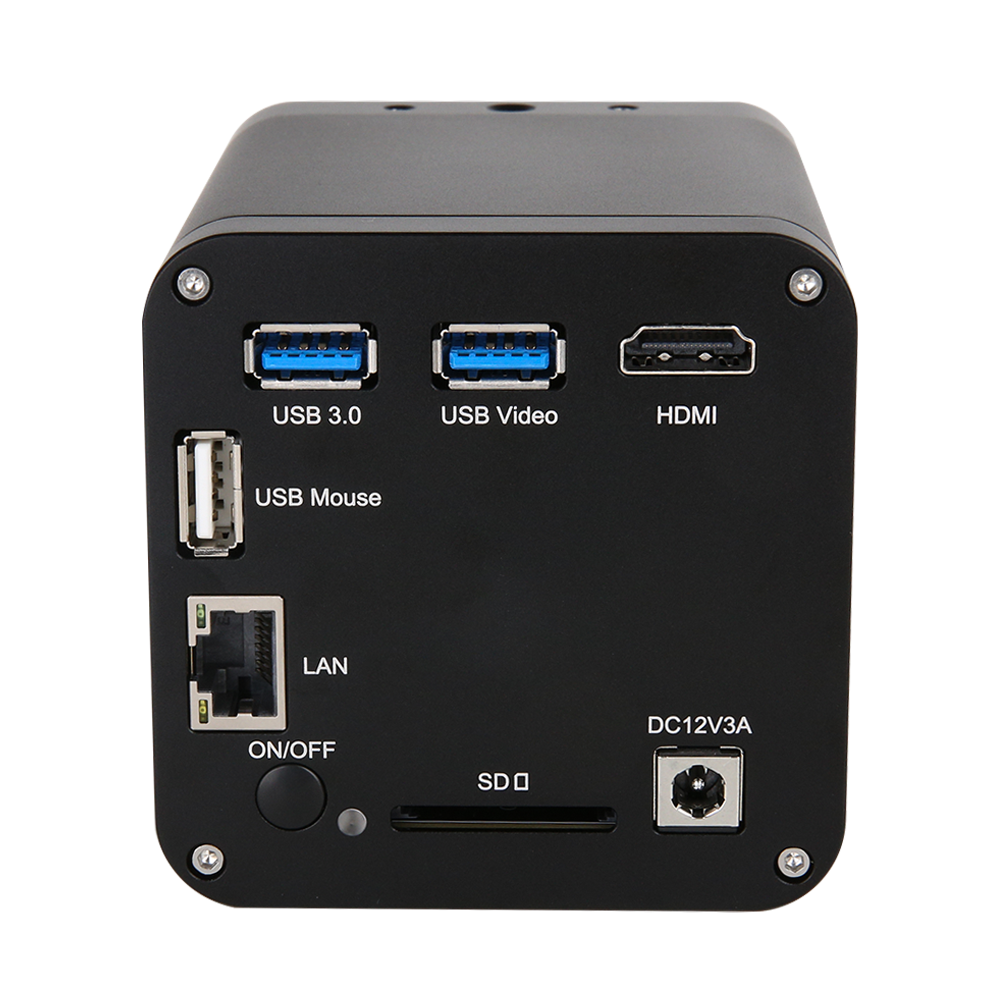

- Multi-interface output: HDMI 2.0 (4K60) / USB3.0 / Ethernet (external 5G Wi-Fi capable)
- Built-in XCamView measurement software, supporting real-time measurement and image analysis
- Supports SD card / USB flash drive local storage, rapid data export
- Head-mounted magnetic or external LED ring light, programmable brightness control
- Suitable for semiconductor inspection, PCB analysis, precision assembly and other high-end applications
4K60 HDMI/USB3.0/Ethernet Continuous Zoom Autofocus Digital Microscope
The AFDM512 Series features Sony IMX415 high-performance CMOS sensor with HDMI2.0 support for 4K/60 fps output and low latency ≈40 ms. Integrated with 18× continuous optical zoom and autofocus, it provides HDMI, USB3.0, Ethernet (with support for external 5G Wi-Fi via USB) multi-interface output. Suitable for high-precision industrial inspection, real-time monitoring, automated production lines and other applications requiring extreme speed and accuracy.
| Model | Sensor | Max Resolution & Frame Rate | Output Interface | Optical Zoom | Standard Working Distance | Lens Type | Features | Action |
|---|---|---|---|---|---|---|---|---|
| AFDM512A |
Sony IMX415LQR-C
1/2.8" (5.57×3.13 mm)
|
8MP (3840×2160)
60 fps@3840×2160
|
HDMI2.0 USB3.0 Ethernet Wi-Fi | 18× (0.021X~0.39X) | 205-255 mm (standard 250 mm) | EMZO-18XA-250 Integrated Lens | 4K Ultra HD Autofocus 18× Zoom | View Details |
| AFDM512B |
Sony IMX415LQR-C
1/2.8" (5.57×3.13 mm)
|
8MP (3840×2160)
60 fps@3840×2160
|
HDMI2.0 USB3.0 Ethernet Wi-Fi | 18× (0.0085X~0.1529X) | 400-670 mm (standard 640 mm) | EMZO-18XA-640 Integrated Lens | 4K Ultra HD Autofocus 18× Zoom Extended Working Distance | View Details |
AFDM512 Auto-Focus Digital Microscope | Package Contents #
Standard Packing List

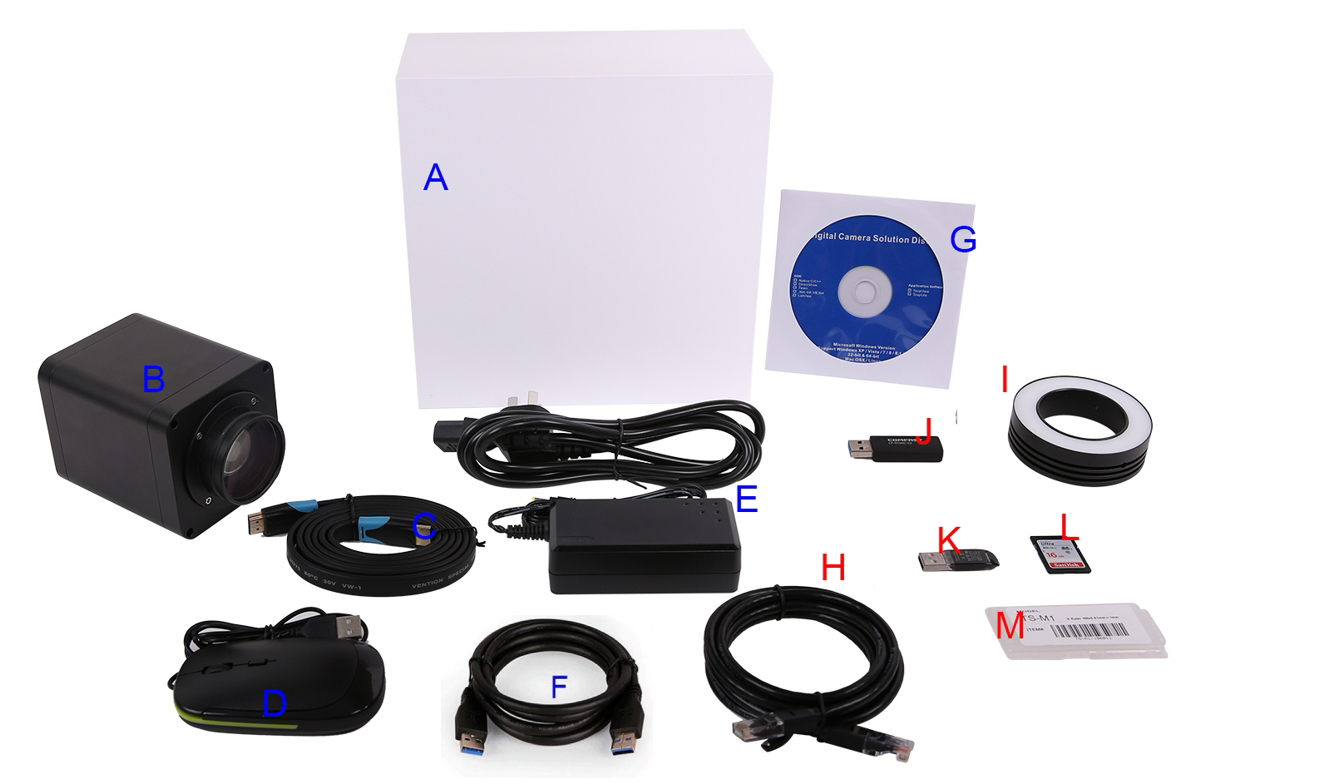

- A Camera box: 22.0 cm × 22.0 cm × 11.0 cm (1 pc, approx. 2.0 kg per box)
- B AFDM512 series auto-focus camera ×1
- C HDMI cable ×1
- D USB mouse ×1
- E Power adapter: input AC 100–240 V 50/60 Hz; output DC 12 V 3 A (HKA03612030-7K, includes CN/EU AC power cords, compliant with UL/CE/FCC; EMI: FCC Part 15 Subpart B; EMS: EN 61000-4-2/3/4/5/6)
- F High-speed USB 3.0 Type-A to Type-A gold-plated cable (1.5 m)
- G Drivers and application media (CD / bundled USB flash drive)
Optional Accessories
- H Ethernet cable
- I LED ring light (DRL-5076A-NPC or AALRL-200-7650)
- J Spare USB flash drive
- K USB Wi-Fi adapter (required for Wi-Fi mode)
- L SD card (16 GB)
- M USB audio control module
- N Stage micrometers 106011/TS-M1, 106012/TS-M2, 106013/TS-M7
AFDM512 Auto-Focus Digital Microscope | Product Dimensions #
Enclosure dimensions and environmental indicators

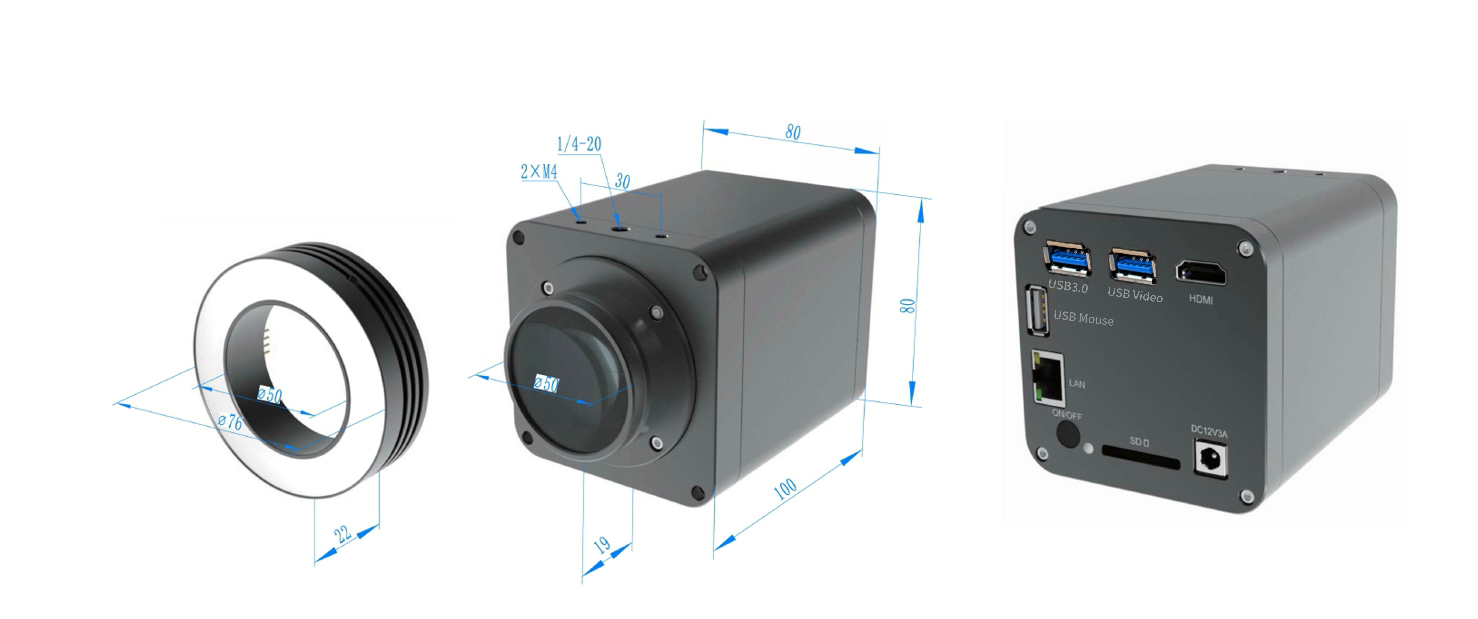

Housing 80 × 80 × 122 mm, see Fig. 3-34
Confirm mounting hole positions and connector orientation with the dimension diagram before installation.
AFDM512 In-Depth Overview
The AFDM512 series extends the AFDM511 platform with longer working distance options while retaining the Sony IMX415 4K STARVIS sensor and motorized continuous zoom architecture. It is optimized for inspecting large samples or work areas that demand additional clearance, and offers an 18× motorized zoom lens with two standard configurations: AFDM512A (standard 250 mm, range 205–255 mm) and AFDM512B (standard 640 mm, range 400–670 mm).

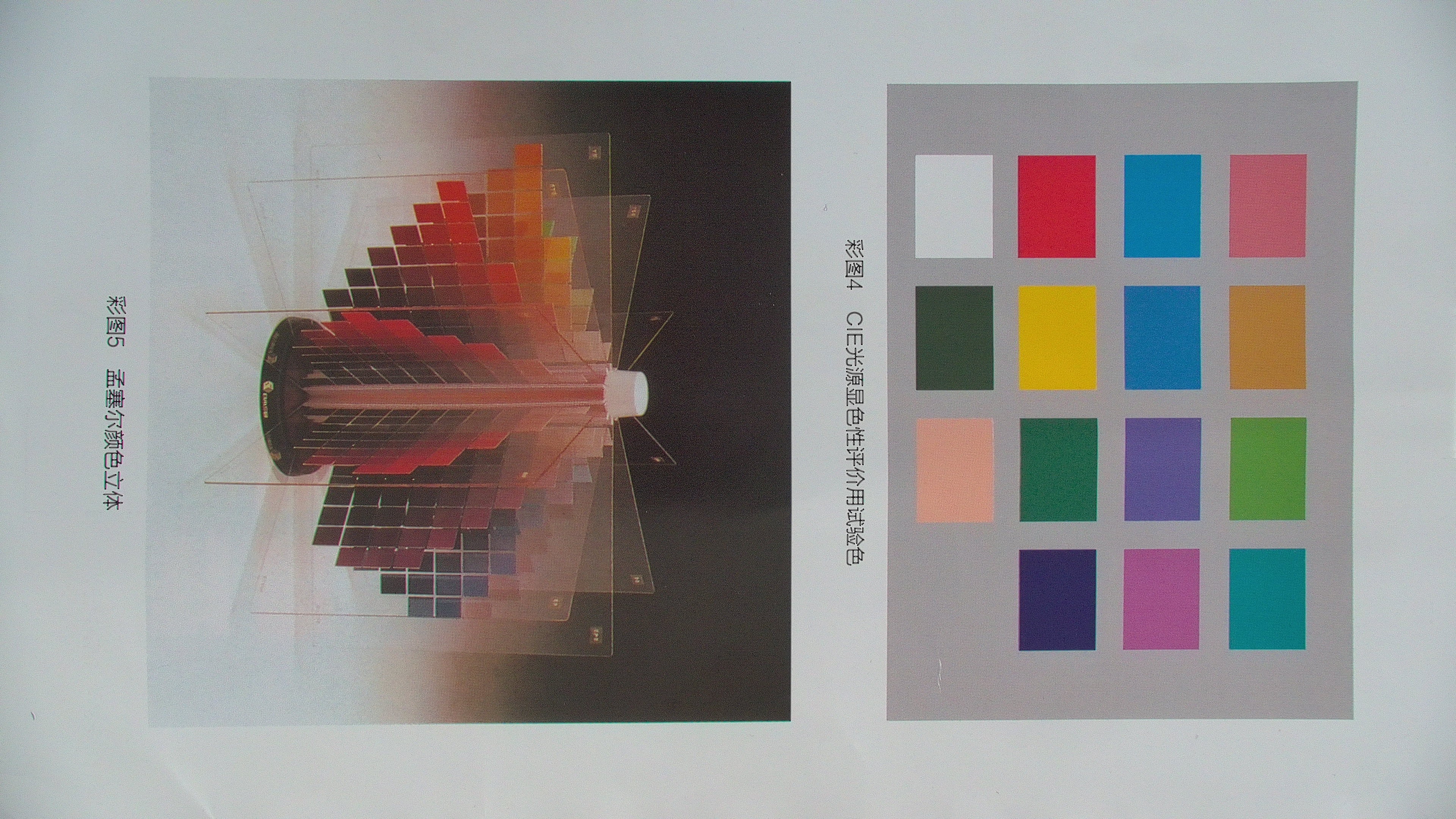

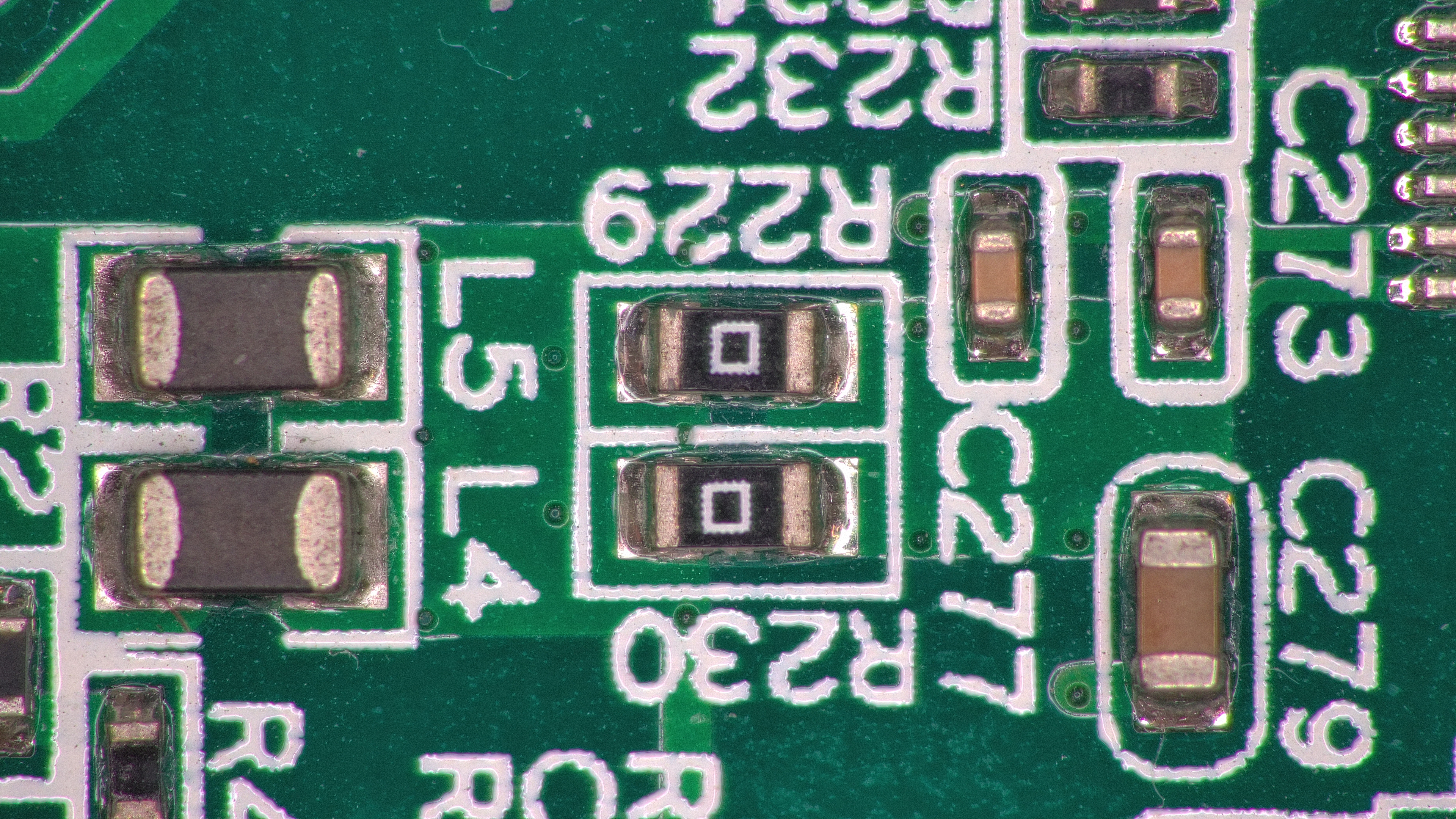

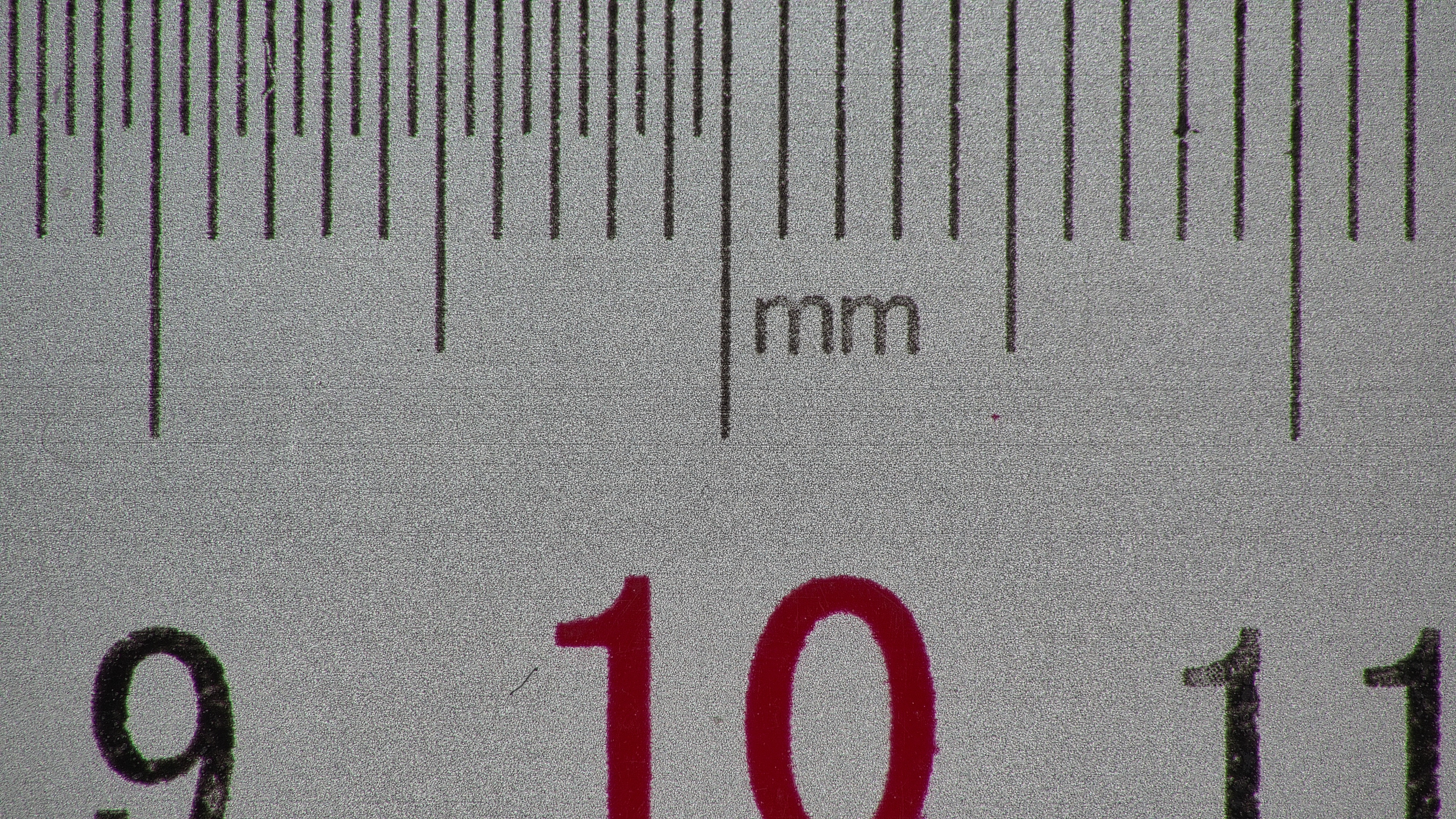

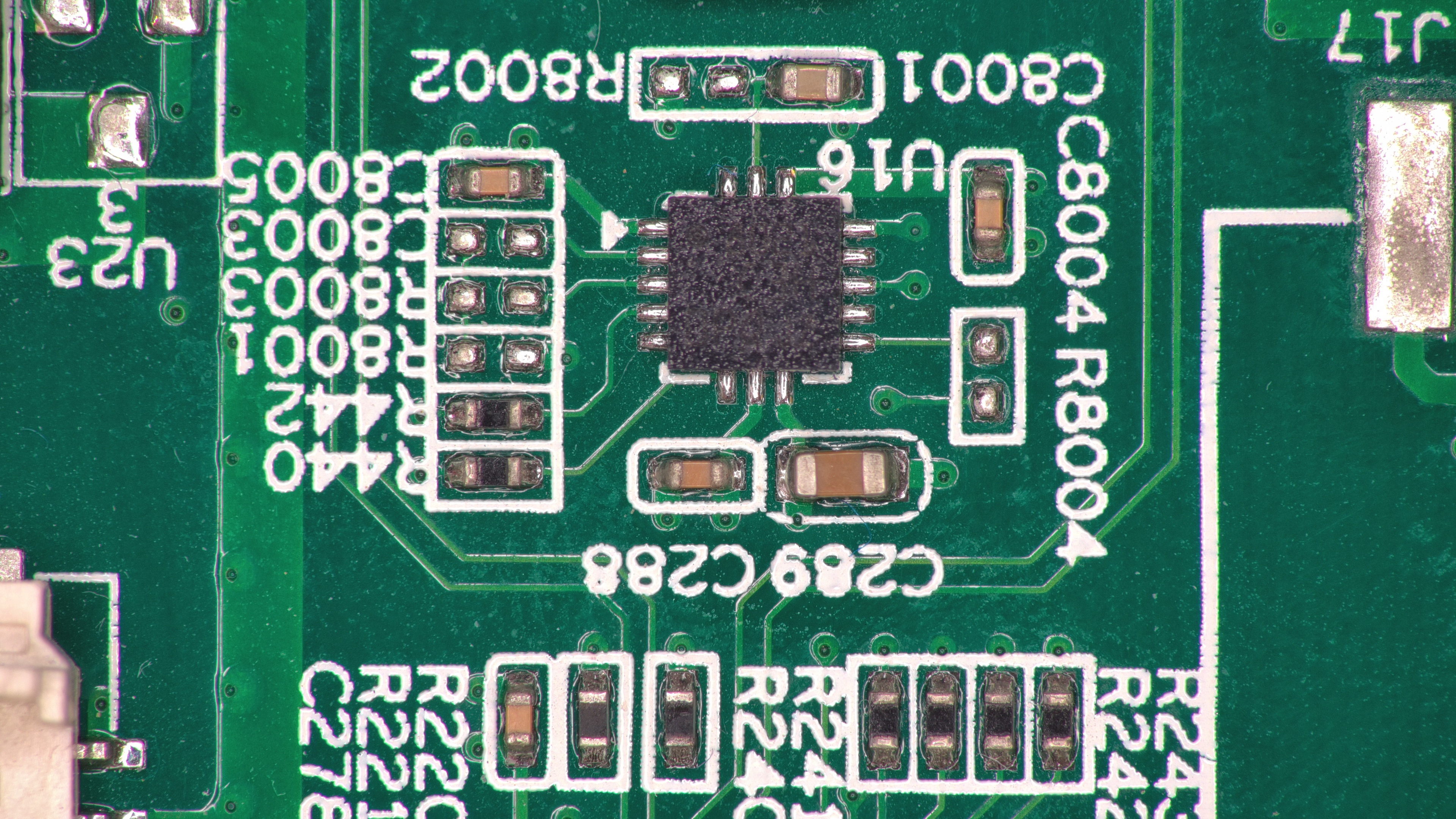

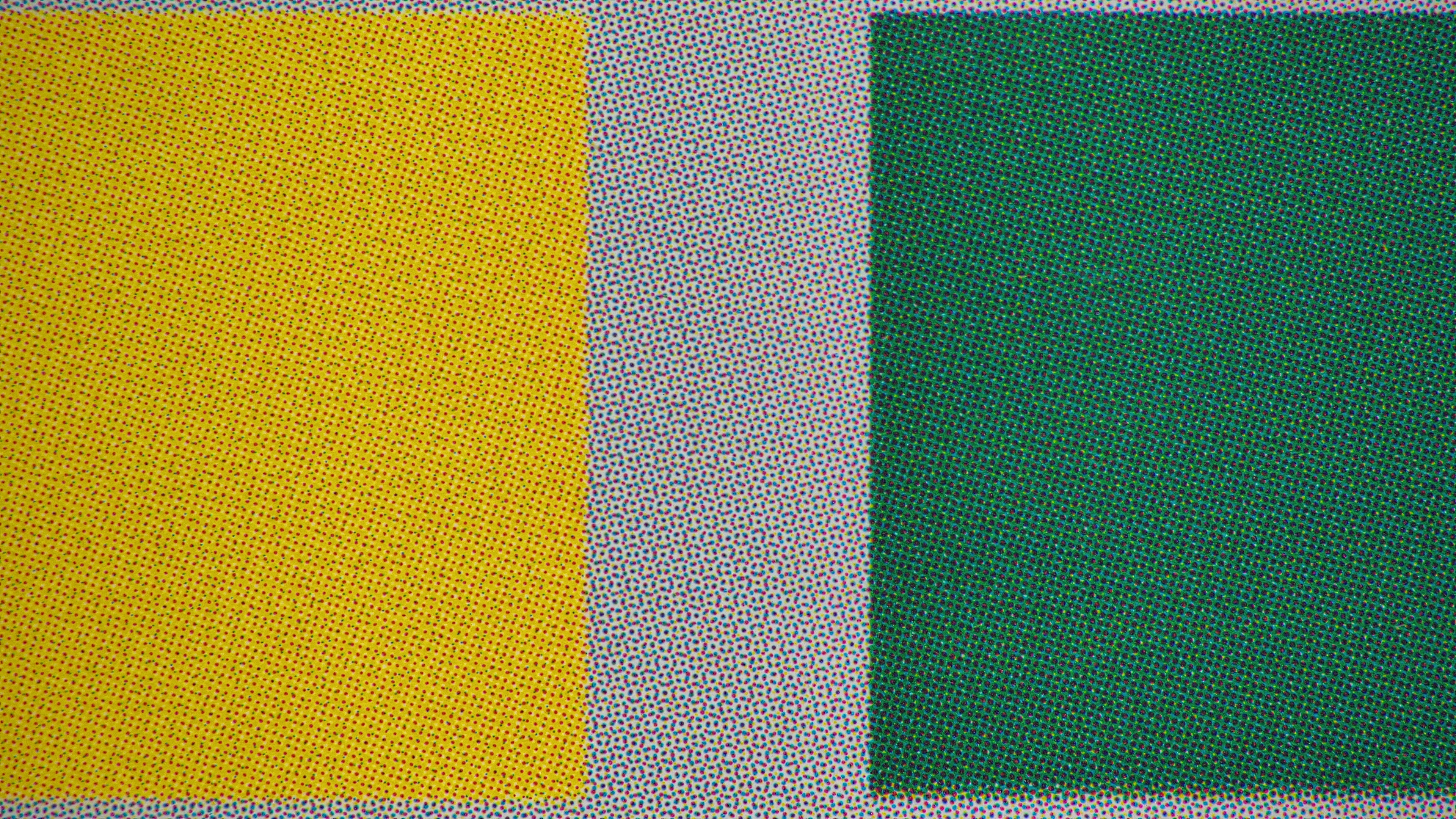

Fields of view span wide ranges: AFDM512A delivers 255 × 145 mm at low magnification and 14.2 × 8.0 mm at high magnification; AFDM512B covers 655.8 × 368.9 mm at low magnification and 36.4 × 20.5 mm at high magnification. Low magnification supports fast positioning, while high magnification captures microscopic detail with efficiency.
The system outputs HDMI 2.0 4K @ 60 fps (low latency) and USB 3.0/Ethernet up to 4K @ 30 fps. XCamView handles auto-focus, measurement, image stitching and (real-time) depth fusion, while supporting USB voice control modules and automatic upload of captured files. Optional magnetic LED ring lights mount to the head with camera-side brightness control, and default calibration data streamlines precision measurement.
AFDM512 Key Functions
Ultra-Wide Field of View

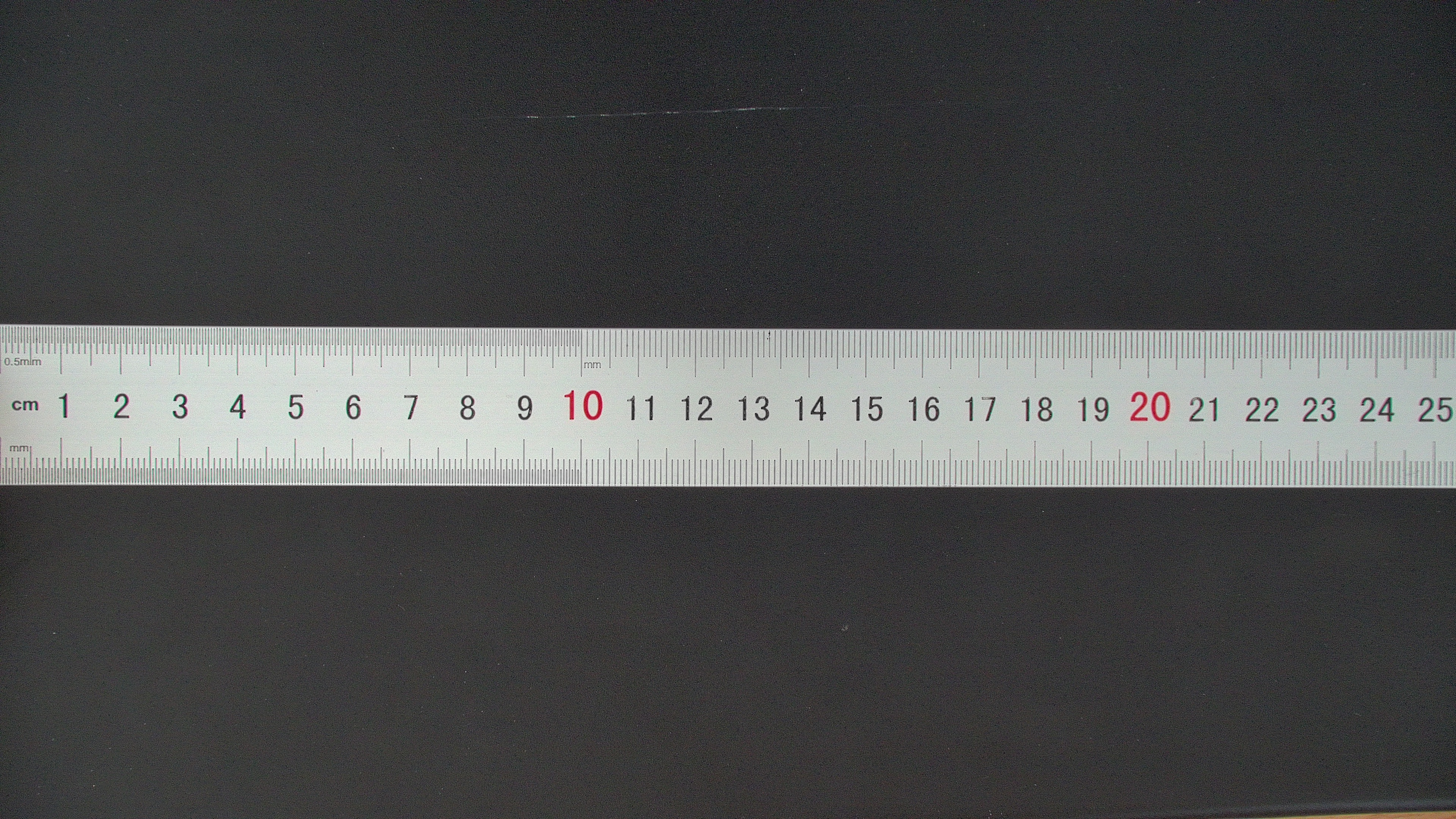

Low-magnification coverage: AFDM512A 255 × 145 mm; AFDM512B 655.8 × 368.9 mm.
Multiple Working Distances
Two standard working distances—250 mm and 640 mm (ranges 205–255 mm / 400–670 mm)—adapt to varied sample heights and workspaces.
Real-Time 4K Output
HDMI 2.0 4K @ 60 fps with low latency; USB 3.0/Ethernet up to 4K @ 30 fps.
Depth Fusion and Stitching
Image stitching and (real-time) depth fusion unite wide coverage with high depth-of-field imaging.
Optional Ring Illumination
Supports DRL-5076A-NPC or AALRL-200-7650 ring lights with camera-controlled brightness (optional).
Measurement and Calibration
Built-in default calibration data from 1× to 18× pairs with the measurement toolbar for precise gauging.
Multi-Camera Networking
Multiple cameras can join the same LAN/Wi-Fi network; software detects and connects to each unit.
Automatic Upload
Captured images can upload automatically to a server for archiving and sharing.
AFDM512 Core Advantages
Exceptional Low-Magnification Coverage
AFDM512B delivers 655.8 × 368.9 mm at low magnification; AFDM512A covers 255 × 145 mm.
Stable Measurement Capability
Built-in calibration and the measurement toolbar support common geometric measurements with data export.
Efficient and Easy to Use
Low magnification for rapid positioning, high magnification for detailed inspection, plus voice control and on-device recording/playback.
Flexible Configuration
Two working distances and multiple illumination options adapt to diverse sample sizes.
Rich Interfaces
Standard HDMI 2.0, USB 3.0 and Ethernet interfaces simplify system integration.

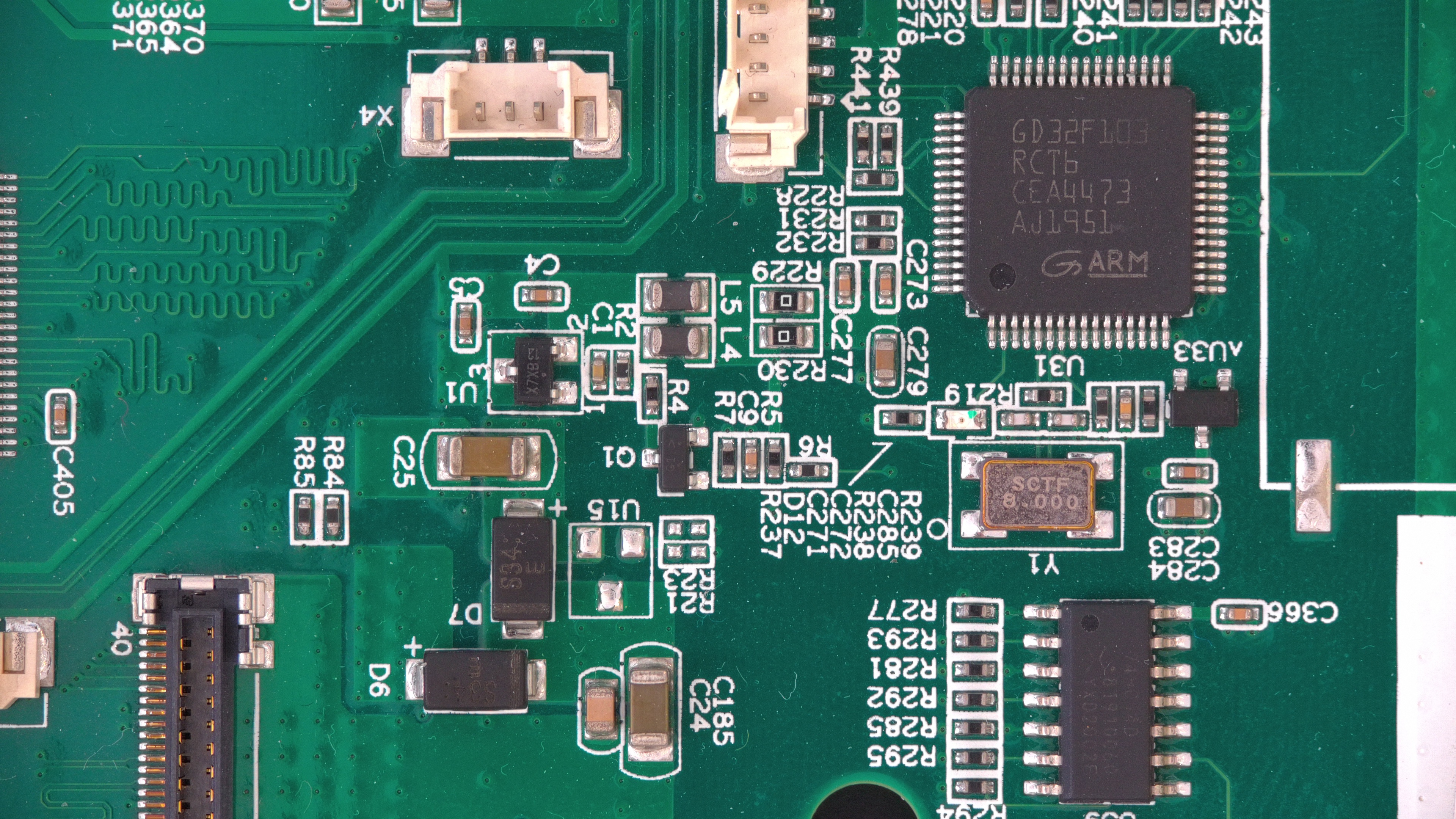

Designed for Large-Format Inspection
Ideal for rapid positioning and detailed checks of large samples such as PCBs and display panels.
