XCAMLITE4K Series
Product Introduction
Compact size, integrated HDMI and USB output, compatible with USB drive/SD card local storage, supports various image enhancement and measurement functions, suitable for teaching and portable use.
XCAMLITE4K series HDMI camera is a multi-output CMOS camera with HDMI/USB interface, achieving 30 frames per second at 4K resolution.
XCAMLITE4K series HDMI cameras adopt standard C-mount interface for maximum compatibility with various microscope systems. When used with HDMI displays or TVs, it can record videos. When connected to computer USB interface, it can transmit video to computer in real-time for image capture and video recording.
Hardware 3D noise reduction, sharpness and local tone mapping algorithms significantly improve the image and video quality of XCAMLITE4K series HDMI cameras.
The included Windows software ToupView/ToupLite provides image processing and measurement functions, as well as advanced composite functions such as image stitching and focus stacking. The software features magnification calibration at multiple magnifications for precise size measurement at different magnifications. For Mac and Linux systems, simplified software is available for capturing video, still images, and simple image processing.
Product Features
- Sony Exmor/Starvis back-illuminated CMOS sensor
- 4K HDMI/USB multi-interface output
- 4K/1080P adaptive switching, 4K frame rate of 30 fps
- SD card saves captured images or videos
- Built-in XCamView software for camera control
- Powerful ISP and other related processing functions (such as 3D noise reduction, etc.)
- PC with ToupView/ToupLite software for more convenient computer operation
- MAC computer uses ToupLite software
XCAMLITE4K Series
HDMI/USB multi-output C-mount compact camera
| Model | Sensor/Size | Effective Pixels | Output Resolution | Frame Rate (fps) | Output Interface | Auto Focus | Lens Mount | Storage Support | Featured Functions |
|---|---|---|---|---|---|---|---|---|---|
| XCAMLITE4K8MPA |
Sony IMX334(C)
1/1.8" (7.68×4.32 mm)
|
2.0 μm × 2.0 μm | 8MP (3840×2160) | HDMI: 30 fps@4K/1080P; USB: 20 fps@3840×2160 | HDMI1.4 USB2.0 | C-mount | SD card / USB drive | 4K video recording Image measurement Crosshair display Graphics overlay Image browsing Video playback 3D noise reduction Sharpening processing ROI white balance Multi-language menu | |
| XCAMLITE4K8MPB |
Sony IMX485(C)
1/1.2" (11.14×6.26 mm)
|
2.9 μm × 2.9 μm | 8MP (3840×2160) | HDMI: 30 fps@4K/1080P; USB: 20 fps@3840×2160 | HDMI1.4 USB2.0 | C-mount | SD card / USB drive | 4K video recording Image measurement Crosshair display Graphics overlay Image browsing Video playback 3D noise reduction Sharpening processing ROI white balance Multi-language menu | |
| XCAMLITE4K8MPC |
Sony IMX678(C)
1/1.8" (7.68×4.32 mm)
|
2.0 μm × 2.0 μm | 8MP (3840×2160) | HDMI: 30 fps@4K/1080P; USB: 20 fps@3840×2160 | HDMI1.4 USB2.0 | C-mount | SD card / USB drive | 4K video recording Image measurement Crosshair display Graphics overlay Image browsing Video playback 3D noise reduction Sharpening processing ROI white balance Multi-language menu | |
| XCAMLITE4K8MPD |
Sony IMX585(C)
1/1.2" (11.14×6.26 mm)
|
2.9 μm × 2.9 μm | 8MP (3840×2160) | HDMI: 30 fps@4K/1080P; USB: 20 fps@3840×2160 | HDMI1.4 USB2.0 | C-mount | SD card / USB drive | 4K video recording Image measurement Crosshair display Graphics overlay Image browsing Video playback 3D noise reduction Sharpening processing ROI white balance Multi-language menu |
XCAMLITE4K Multi-Interface Camera | Packing List #

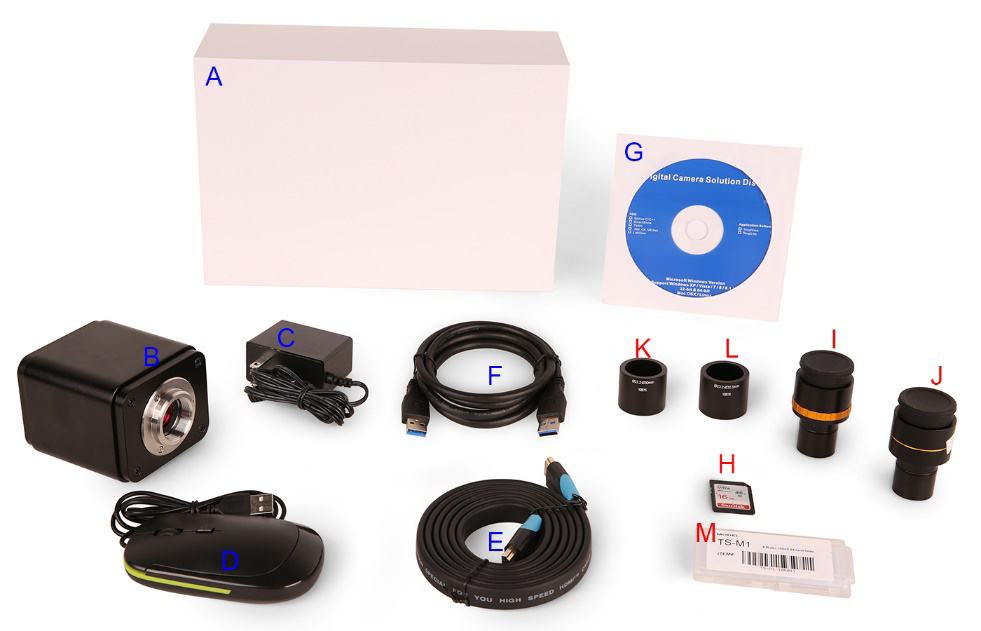

Standard Items in the Box
- A Camera box: 25.5 cm × 17.0 cm × 9.0 cm (1 pc, approx. 1.57 kg per box)
- B XCAMLITE4K series camera ×1
- C Power adapter: input AC 100–240 V 50/60 Hz; output DC 12 V 1 A (GS12U12-P1I / GS12E12-P1I)
- D USB mouse ×1
- E HDMI 2.0 cable ×1
- F High-speed USB 2.0 A↔A gold-plated data cable (2.0 m)
- G Driver and application disc (Ø12 cm)
Optional Accessories
- H SD card (≥16 GB, Class 10)
- I Adjustable eyepiece adapters 108001/AMA037, 108002/AMA050, 108003/AMA075
- J Fixed eyepiece adapters 108005/FMA037, 108006/FMA050, 108007/FMA075
- K 30 mm eyepiece conversion ring 108015
- L 30.5 mm eyepiece conversion ring 108016
- M Micrometer 106011/TS-M1, 106012/TS-M2, 106013/TS-M7
- N USB flash drive (backup media)
- O USB Wi-Fi adapter (required for Wi-Fi/AP mode)
XCAMLITE4K Multi-Interface Camera | Dimensions #

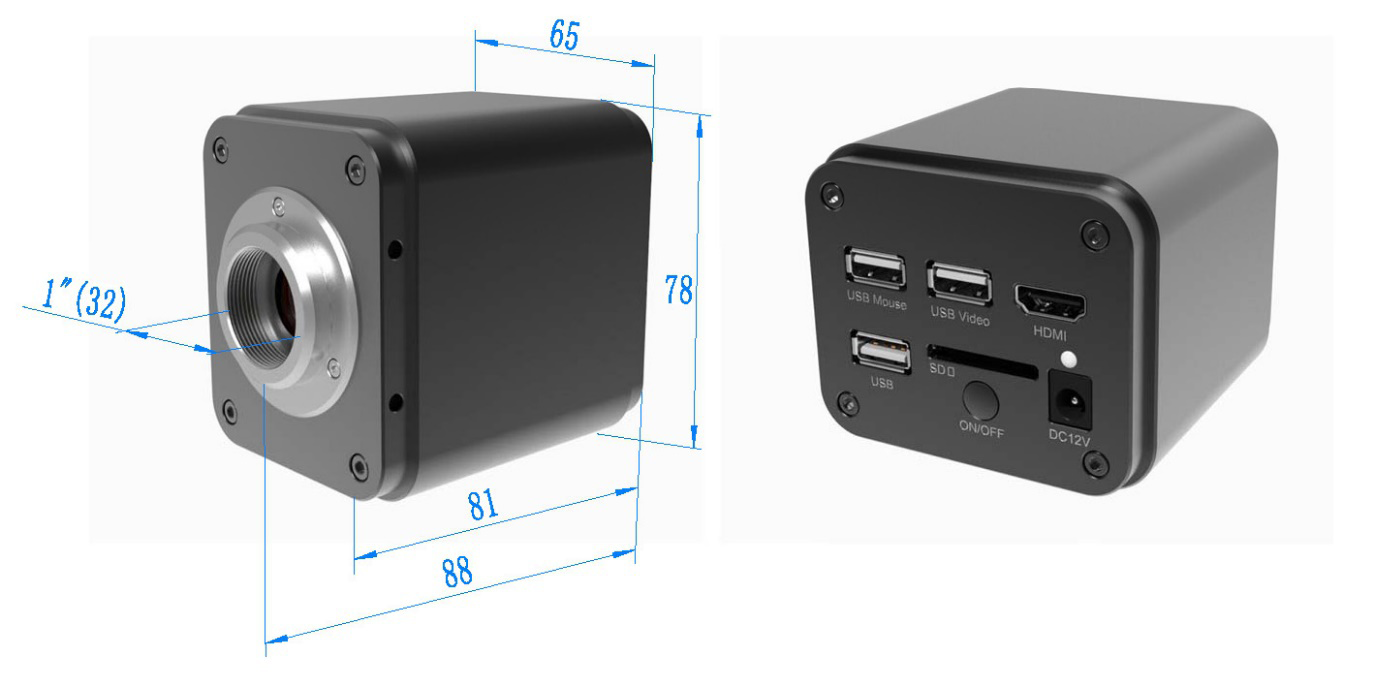

Chassis dimensions and mounting references
Refer to manual Figure 3-76
Confirm the mount holes and interface orientation with the dimension drawing before installation.
In-Depth Overview
The XCAMLITE4K series delivers a multi-interface 4K imaging solution for stereo and biological microscopes, balancing portability with high-fidelity output for teaching, research, and industrial inspection.
It integrates a Sony Exmor back-illuminated CMOS sensor, supports 4K/1080p HDMI output with adaptive switching, and works with USB, LAN, and optional Wi-Fi for flexible deployment.
Technical Highlights
- Dual-interface output: HDMI and USB outputs run concurrently, enabling standalone display or PC capture workflows.
- 4K imaging with hardware optimization: Sony Exmor sensor with hardware 3D noise reduction, sharpening, local tone mapping, and gamma control.
- XCamView built-in control: Touchscreen and mouse operation let users adjust settings and save to SD cards or USB storage without a computer.
- Cross-platform software ecosystem: Compatible with ToupView and ToupLite on Windows and macOS for measurement, stitching, denoising, multifocal fusion, and fluorescence processing.
- Industrial-grade reliability: Rugged metal housing and efficient heat dissipation ensure long-term stability in research and industrial environments.
Core Advantages
-
1
HDMI + USB dual-interface output Supports independent preview, demonstrations, and PC-based acquisition for flexible deployment.
-
2
4K high resolution with low-light adaptability Sony Exmor CMOS delivers detailed imaging and accurate color reproduction.
-
3
Plug-and-play with built-in control XCamView supports touch and mouse operation, eliminating the need for a separate computer.
-
4
Comprehensive research features ToupView enables measurement, stitching, multifocal fusion, and fluorescence processing.
-
5
Wide application coverage Ideal for "HDMI + USB microscope cameras," "4K C-mount systems," "research and teaching imaging," and "Sony Exmor high-sensitivity solutions."
