AFDM423 Series
Product Introduction
The AFDM423 series integrates a 4K HDMI camera, motorized continuous zoom autofocus lens, and optional ring illumination. It supports HDMI/USB/Network output and control, with 4K@30 fps output and local storage, making it suitable for industrial inspection, medical observation, teaching and research, and automation systems.
Product Features
- 4K@30 fps output with clear details
- 8.4× continuous optical zoom with auto/manual focus
- HDMI/USB/Network multi-interface output
- Standard working distance 600 mm with autofocus range 450–720 mm
- Wide field of view at low magnification for fast positioning
- Built-in XCamView control, measurement, and playback tools
- Supports SD card and USB flash drive storage
- Magnetic head-mounted LED ring light with camera-side brightness control (optional)
4K HDMI/USB/NETWORK Continuous Zoom Autofocus Digital Microscope
The AFDM423 series integrates a 4K HDMI camera, motorized continuous zoom autofocus lens, and optional ring illumination. It supports HDMI/USB/Network output and control, with 4K@30 fps output and local storage, making it suitable for industrial inspection, medical observation, teaching and research, and automation systems.
| Model | Sensor | Max Resolution & Frame Rate |
Output Interface | Optical Zoom | Standard Working Distance |
Lens Type | Features | Action |
|---|---|---|---|---|---|---|---|---|
| AFDM423 |
Sony IMX334 (C)
1/1.8" (7.68 × 4.32 mm)
|
8MP (3840×2160)
30 fps@3840×2160
|
HDMI USB Network | 8.4× (0.025X~0.21X) | 450–720 mm (standard 600 mm) | EMZO-8.4XA-600 integrated lens | 4K Ultra HD Autofocus | View Details |
AFDM423 Autofocus Digital Microscope | Packing List #

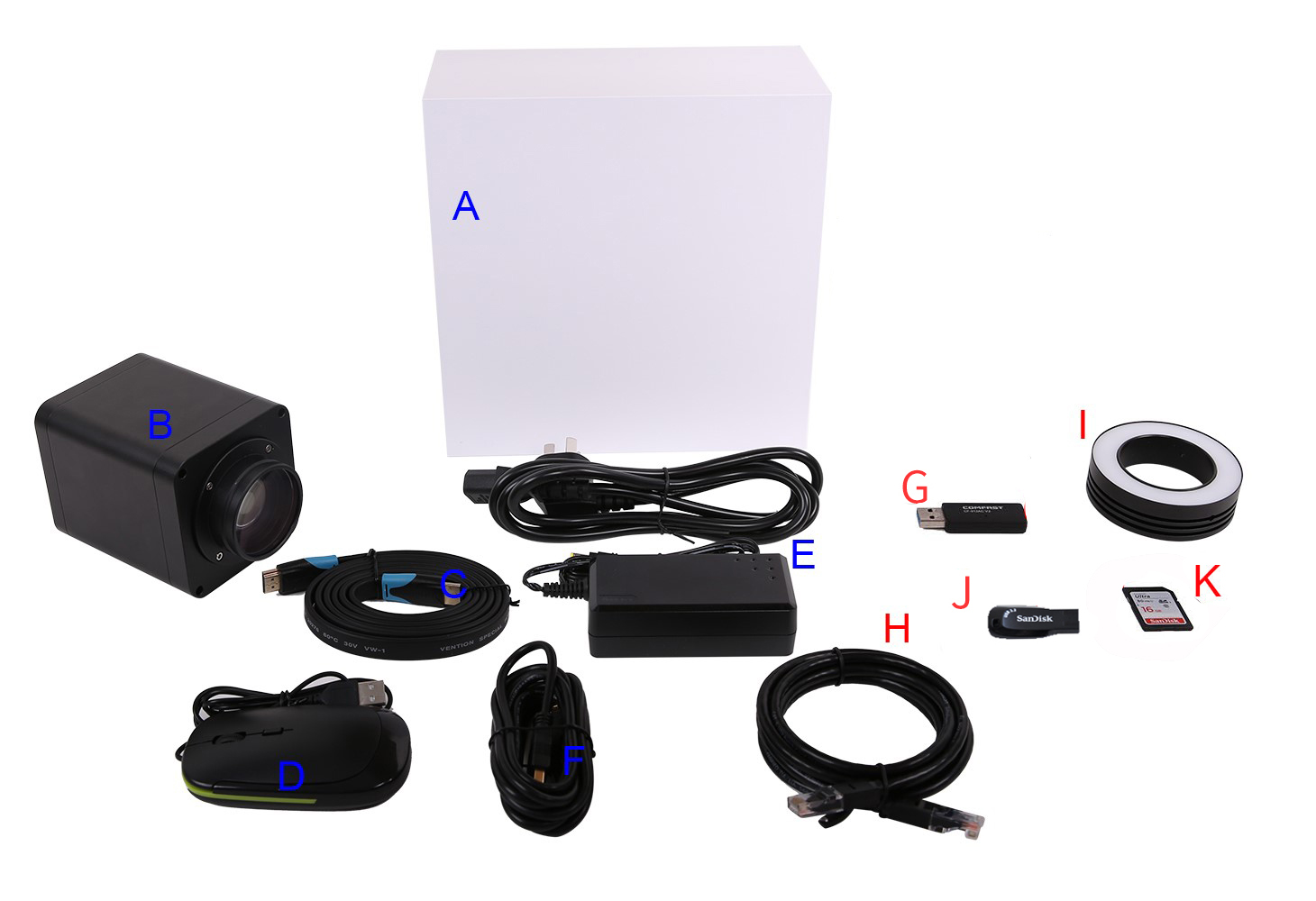

Standard Packing List
- A Camera box dimensions: 220 cm × 220 cm × 110 cm (1 pcs, 2 kg per box)
- B AFDM423 camera ×1
- C HDMI cable
- D USB mouse
- E Power adapter: Input AC 100~240 V 50/60 Hz, output DC 12 V 3 A; US version HKA03612030-7K (UL/CE/FCC, with US AC power cord), EU version HKA03612030-7K (UL/CE/FCC, with EU AC power cord); EMI: FCC Part 15 Subpart B; EMS: EN61000-4-2/3/4/5/6
- F USB 2.0 A male ↔ A male gold-plated data cable (2.0 m)
- G CD (drivers and application, Ø12 cm) / USB drive
Optional Accessories
- H Ethernet cable
- I LED ring light (DRL-5076A-NPC or AALRL-200-7650)
- J USB drive
- K USB wireless network adapter (required for WiFi mode; appearance varies by model)
- L SD card (16 GB)
- M Reticle: 106011/TS-M1 (X=0.01 mm/100 Div.); 106012/TS-M2 (X,Y=0.01 mm/100 Div.); 106013/TS-M7 (X=0.01 mm/100 Div., 0.10 mm/100 Div.)
AFDM423 Autofocus Digital Microscope | Dimensions #

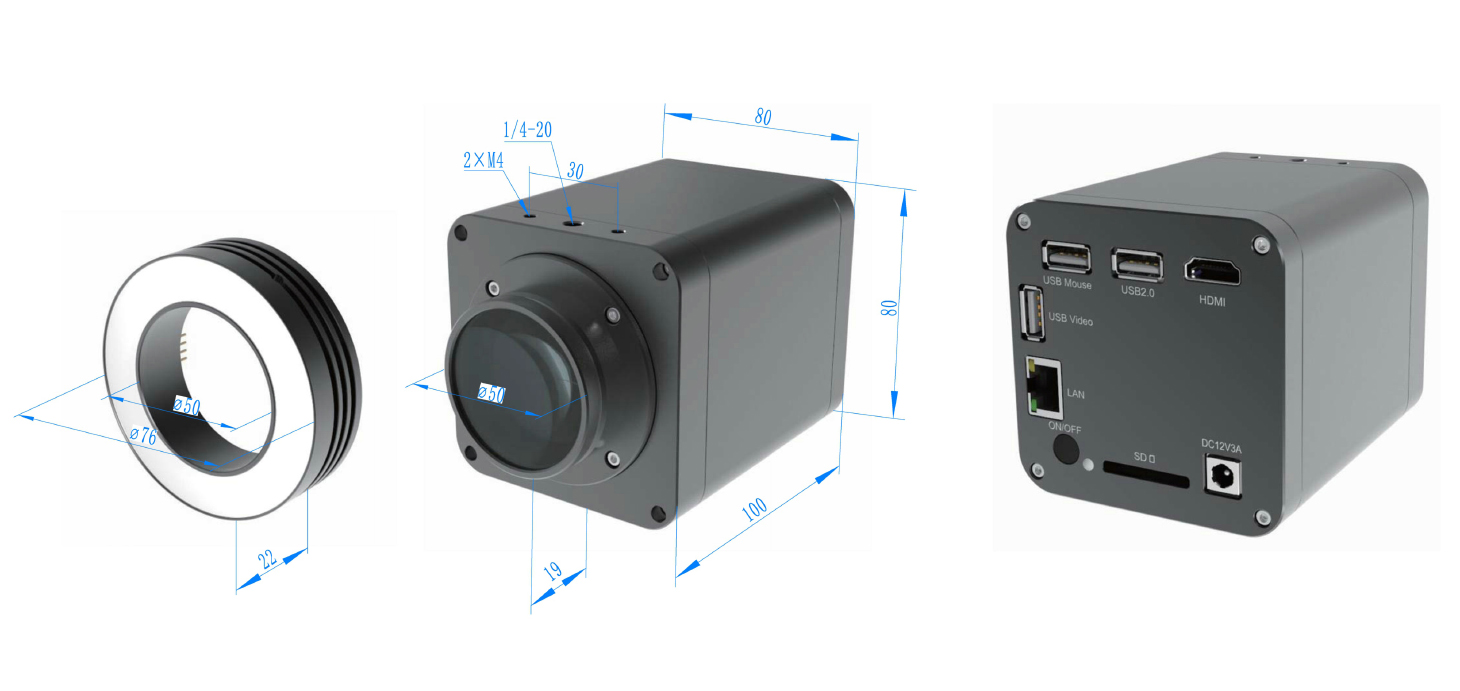

Body dimensions and environmental specs
Body 80 × 80 × 122 mm
Confirm mount holes and interface orientation with the dimension drawing before installation.
AFDM423 In-depth Overview

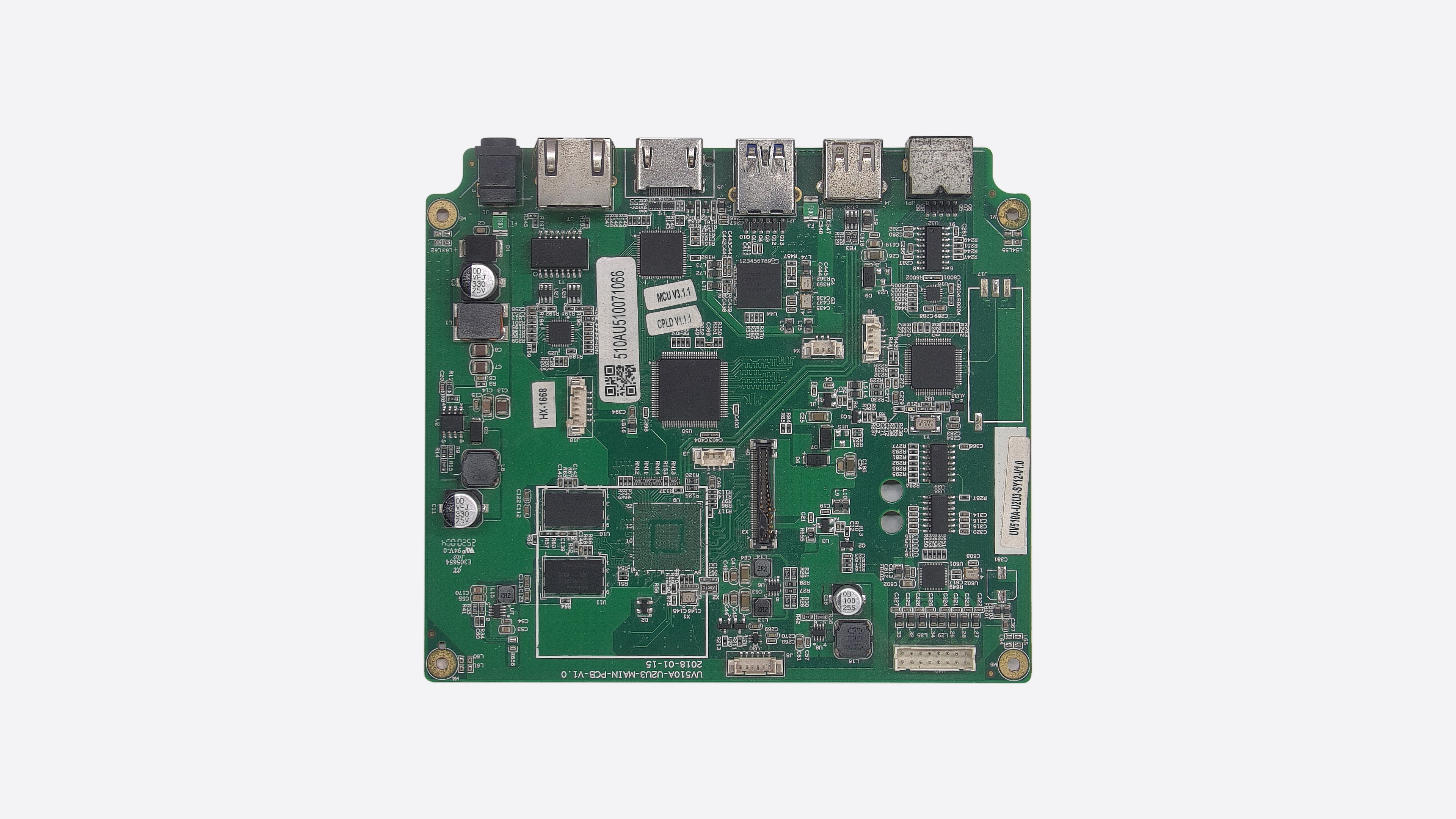

AFDM423 uses the Sony IMX334 CMOS (1/1.8") to deliver 4K (3840×2160) output. HDMI and USB output at 4K@30 fps, while network output provides 1080P@30 fps. The system integrates 8.4× motorized continuous zoom with auto/manual focus and embeds XCamView control and measurement.
The standard working distance is 600 mm (autofocus range 450–720 mm). At this distance the low-magnification field of view is 330 × 190 mm and the high-magnification field of view is 40 × 22.5 mm, balancing fast positioning and detailed observation.
The device supports HDMI/USB/Network output and control (ToupView for USB/Network). Image enhancement offers the Ultra-Fine color engine, 3D noise reduction, ROI white balance, and local dynamic range tuning; it also supports calibration, geometric measurement with parameter export, and 4K H.264 video recording (stored at 30 fps).
AFDM423 Key Features

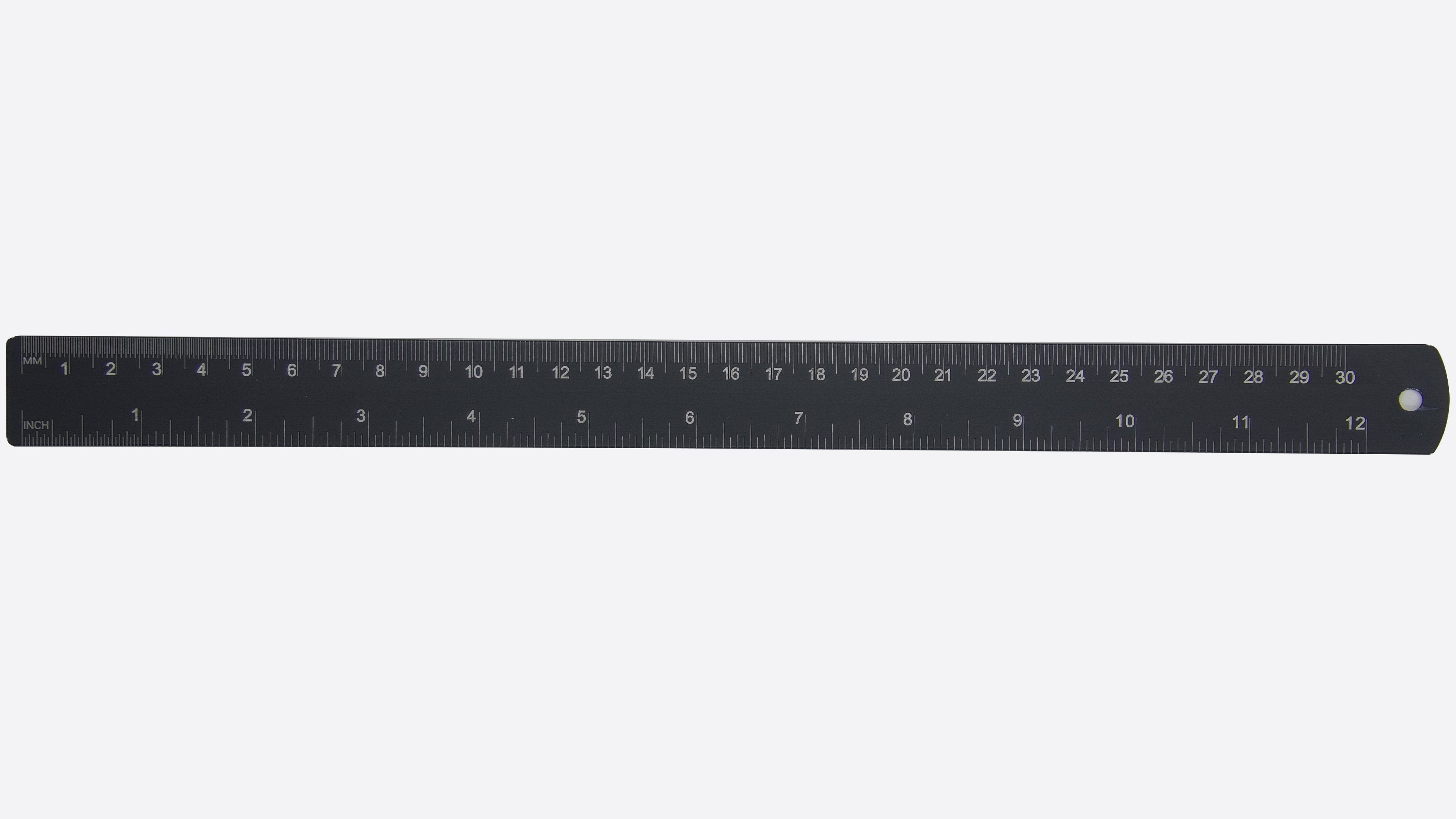

Wide field at low magnification

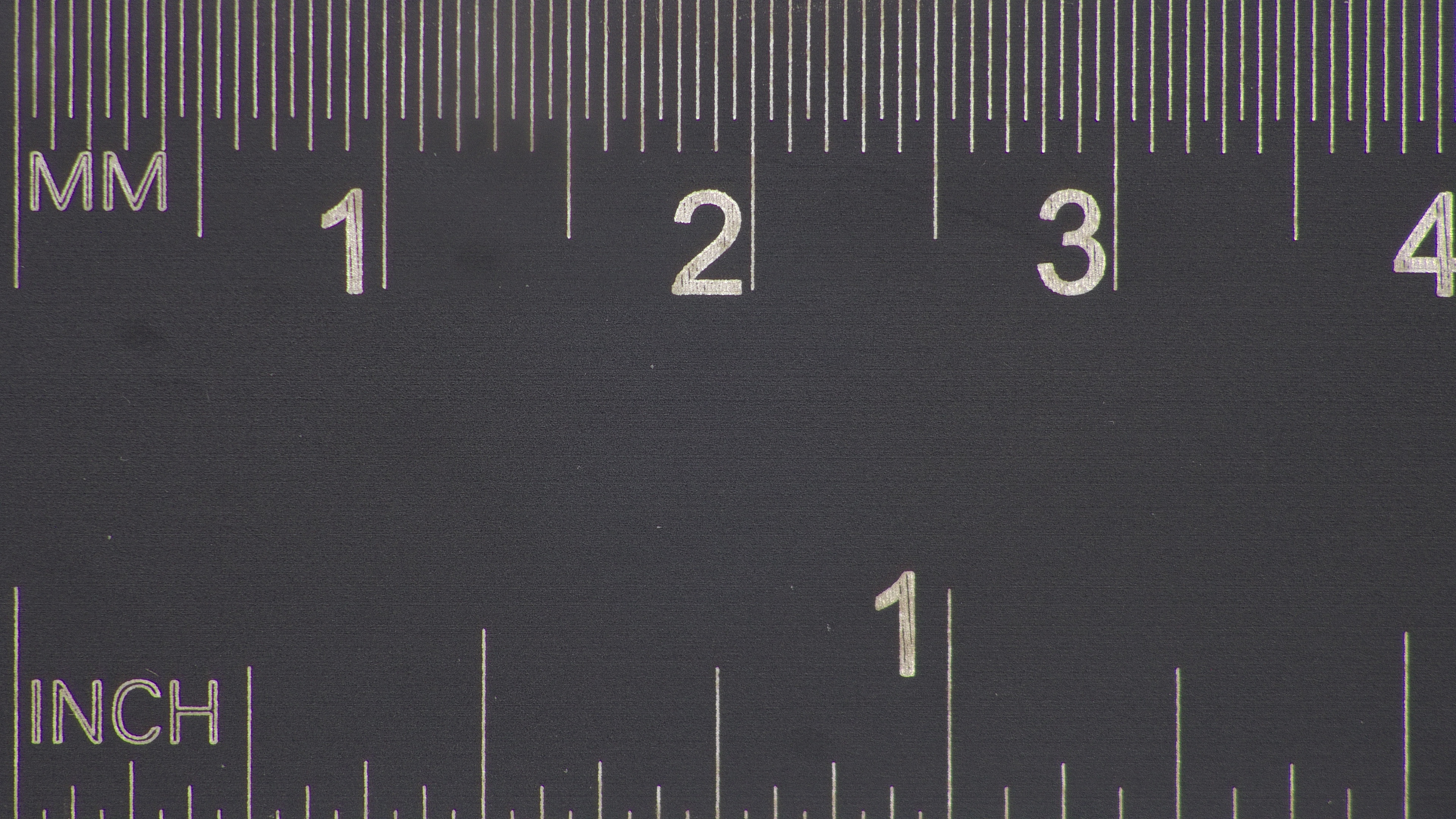

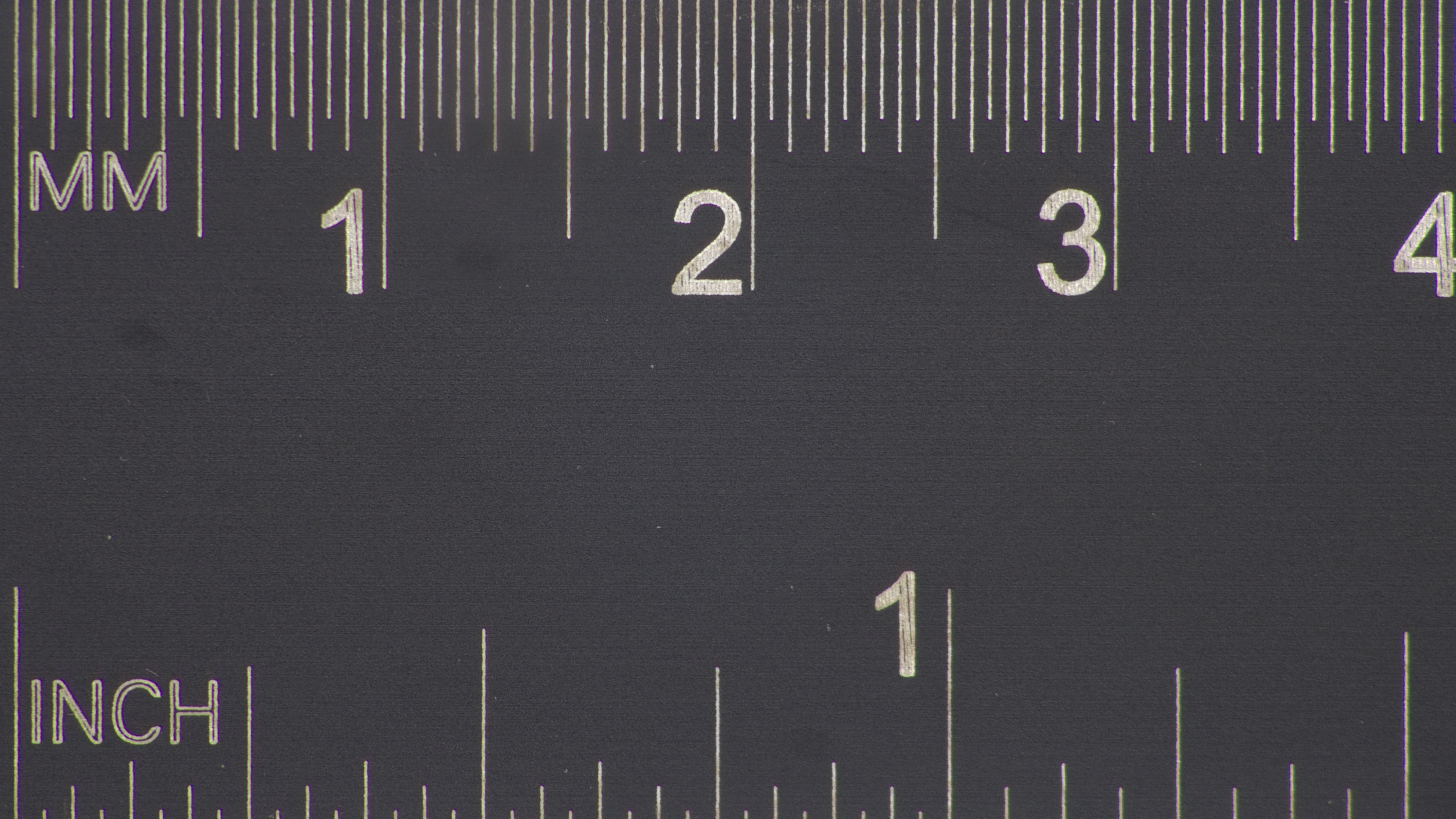

Low magnification FOV 330 × 190 mm; high magnification 40 × 22.5 mm.
600 mm standard working distance
Autofocus range 450–720 mm to accommodate various workpiece heights.
Auto/manual focus
Auto, single, and manual focus with 8.4× motorized zoom.
8.4× continuous zoom
0.025X–0.21X optical zoom with motorized, smooth transitions.
Measurement and export
Built-in calibration and geometric tools with measurement parameter export.

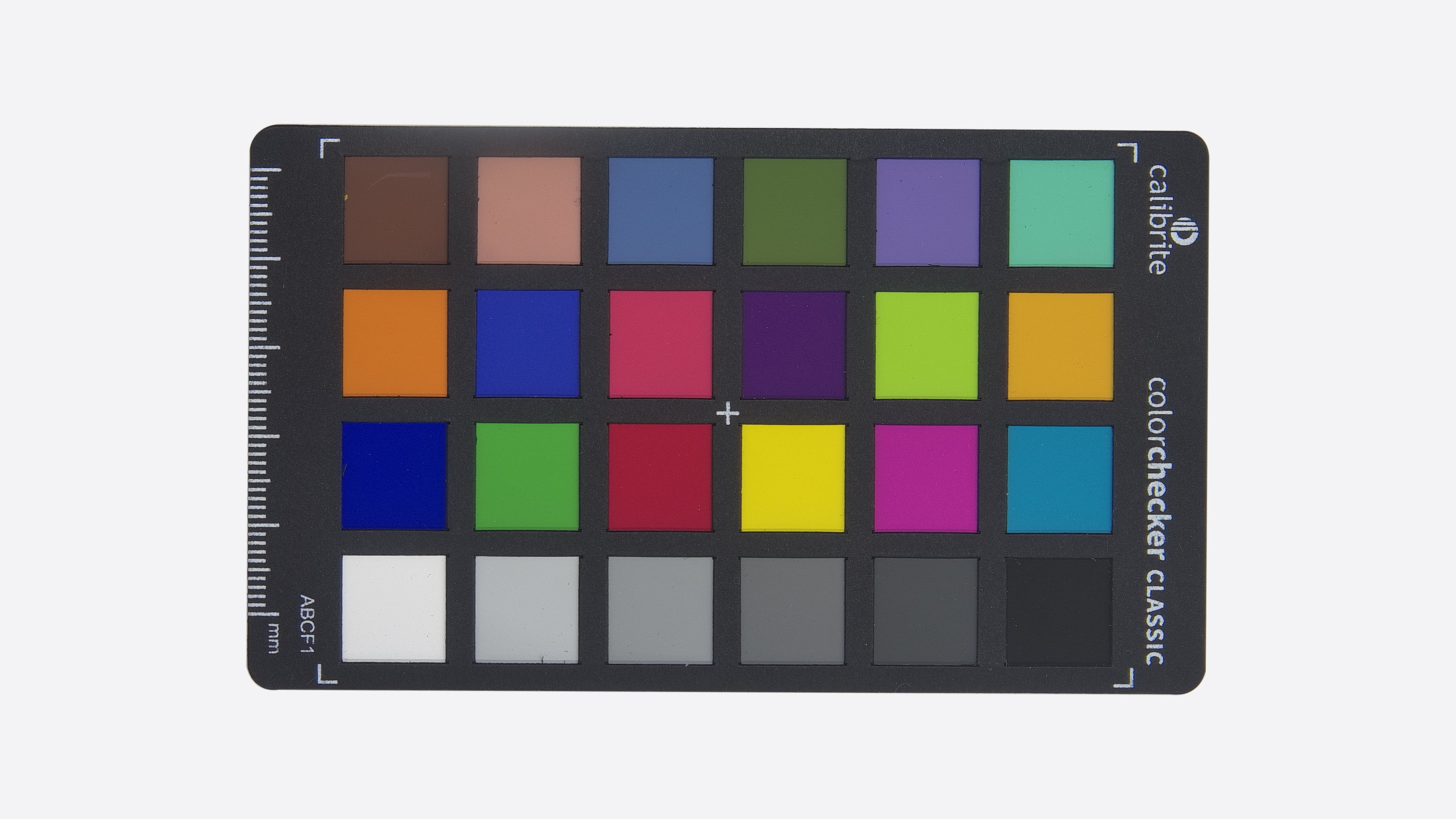

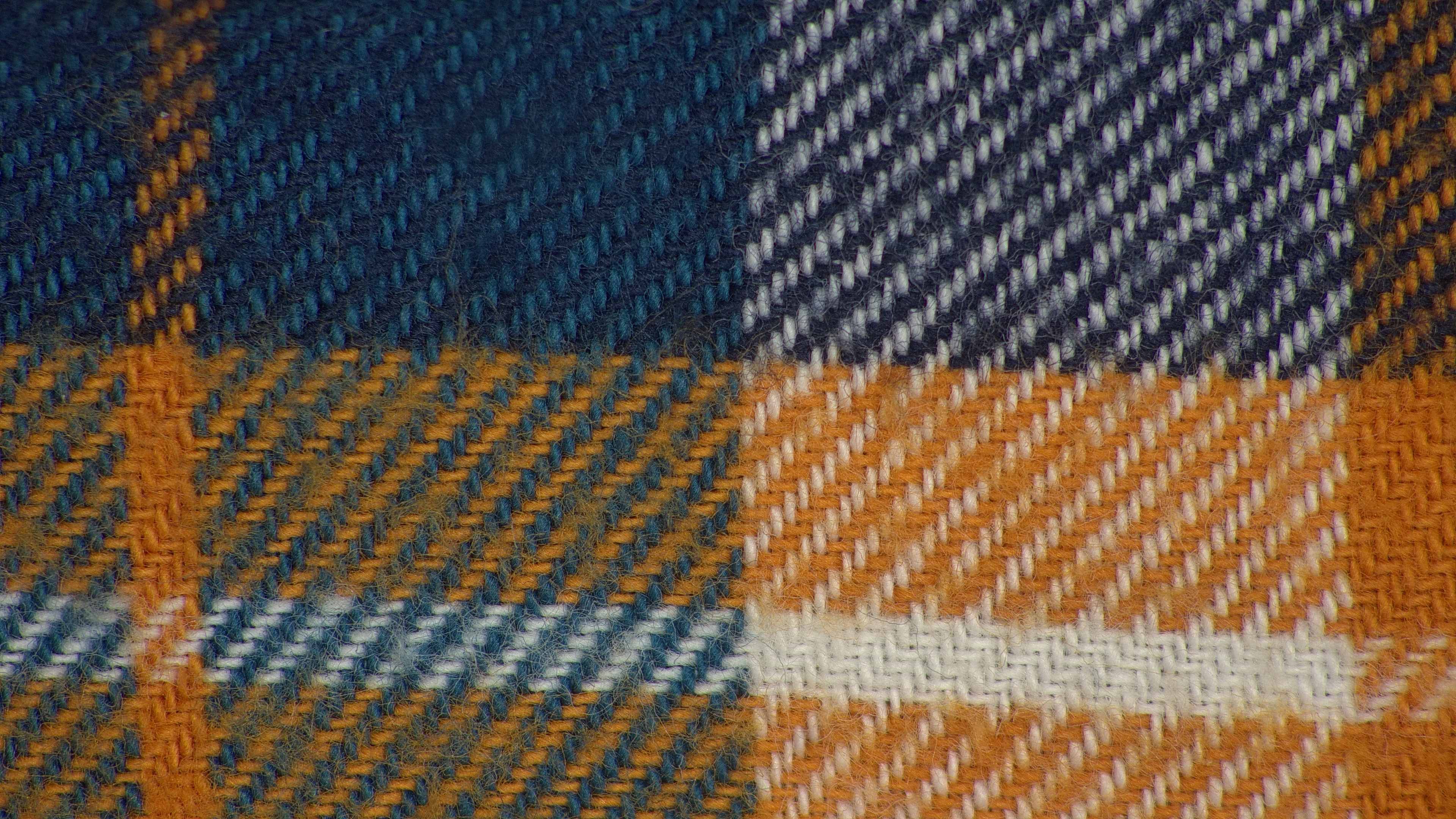

Image enhancement
Ultra-Fine color engine, 3D noise reduction, ROI white balance, and local dynamic range tuning.
HDMI/USB/Network output
Multi-interface output for monitors, PCs, and network streaming via ToupView.
Open SDK
Multi-platform SDK (Windows/Linux/macOS/Android) with multi-language interfaces for integration.
Recording and storage
4K H.264 recording (stored at 30 fps) with SD/USB local save and playback.
Optional ring illumination
Supports DRL-5076A-NPC or AALRL-200-7650 with camera-side brightness control (optional).
AFDM423 Core Advantages
Wide low-magnification coverage
330 × 190 mm low-magnification FOV for fast positioning of large samples.
Stable working distance
Standard 600 mm (AF range 450–720 mm) for easy deployment and operation.
Clear imaging
3D noise reduction, ROI white balance, and local dynamic range tuning for consistent detail.
Multiple outputs
HDMI/USB/Network output for flexible integration and streaming.
Easy measurement
Calibration plus geometric measurement and parameter export for daily measurement and documentation.
Ready for development
Cross-platform SDK for system integration and feature expansion.
