X8CAM4K_MR Series
Product Introduction
The X8CAM4K_MR is a separated long-distance transmission HDMI camera developed by ToupTek. The master device and image acquisition sub-device are connected by a USB3.0 cable up to 10 meters long, using a USB3.0 A male to MicroB interface with screw lock. The separated architecture allows customers to integrate the compact image capture sub-device into equipment while keeping the master device outside for convenient monitor or computer connection, operation, and control.
Product Features
- Sony STARVIS 2 back-illuminated CMOS sensor
- 4K HDMI / NETWORK / USB multiple video synchronous outputs
- 4K / 1080P automatic switching according to monitor resolution
- 4K 60 fps low-delay HDMI output with average delay of about 100 ms
- Supports customized neural-network-based development for recognition, counting, and detection
- Supports real-time network storage for captured images and recorded videos
- Supports JPEG, TIFF, PNG, and RAW image capture and display
- Supports external USB3.0 SSD and automatic video save protection during sudden power failure
- Supports USB voice control module for snap, recording, freeze, and related operations
- Excellent ISP with local tone mapping and 3D denoising
- Provides real-time video EDF and real-time Stitch functions
- Provides biological microscope and stereo microscope default ISP parameter sets
- Provides rich browser functions including picture comparison, video comparison, EDF, Stitch, and file operations
- Embedded XCamView supports camera control, measurement, and automatic edge finding
- ToupView / ToupLite software for PC
- iOS / Android applications for smart phones and tablets
X8CAM4K_MR Series
Separated Long-Distance 4K Multi-Interface Camera
| Model | Sensor/Size | Effective Pixels | Output Resolution | Frame Rate (fps) | Output Interface | Auto Focus | Lens Mount | Storage Support | Featured Functions |
|---|---|---|---|---|---|---|---|---|---|
| X8CAM4K8MPC_MR |
Sony IMX678(C)
1/1.8" (7.68 × 4.32 mm)
|
2.0 µm × 2.0 µm | 8 MP (3840 × 2160) | Sensor: 60 fps @ 3840 × 2160; HDMI2.0: 60 fps @ 3840 × 2160; USB3.0: 30 fps @ 3840 × 2160; NETWORK: 30 fps @ 3840 × 2160 | HDMI2.0 USB3.0 NETWORK SD USB Video | C mount | SD card / USB flash drive / USB3.0 SSD / Network storage | Separated long-distance transmission structure 10 m USB3.0 screw-lock connection between capture sub-device and master device 4K 60 fps HDMI output with about 100 ms average delay Network storage support SSD power-loss recording protection Real-time EDF and Stitch Dual default ISP profiles for biological and stereo microscopes USB voice control and neural network customization | |
| X8CAM4K8MPB_MR |
Sony IMX585(C)
1/1.2" (11.14 × 6.26 mm)
|
2.9 µm × 2.9 µm | 8 MP (3840 × 2160) | Sensor: 60 fps @ 3840 × 2160; HDMI2.0: 60 fps @ 3840 × 2160; USB3.0: 30 fps @ 3840 × 2160; NETWORK: 30 fps @ 3840 × 2160 | HDMI2.0 USB3.0 NETWORK SD USB Video | C mount | SD card / USB flash drive / USB3.0 SSD / Network storage | Separated long-distance transmission structure Large-format Sony IMX585 sensor 4K 60 fps HDMI output with about 100 ms average delay Network storage support SSD power-loss recording protection Real-time EDF and Stitch Dual default ISP profiles for biological and stereo microscopes USB voice control and neural network customization |
X8CAM4K_MR Multi-Module Camera Kit | Packing List #

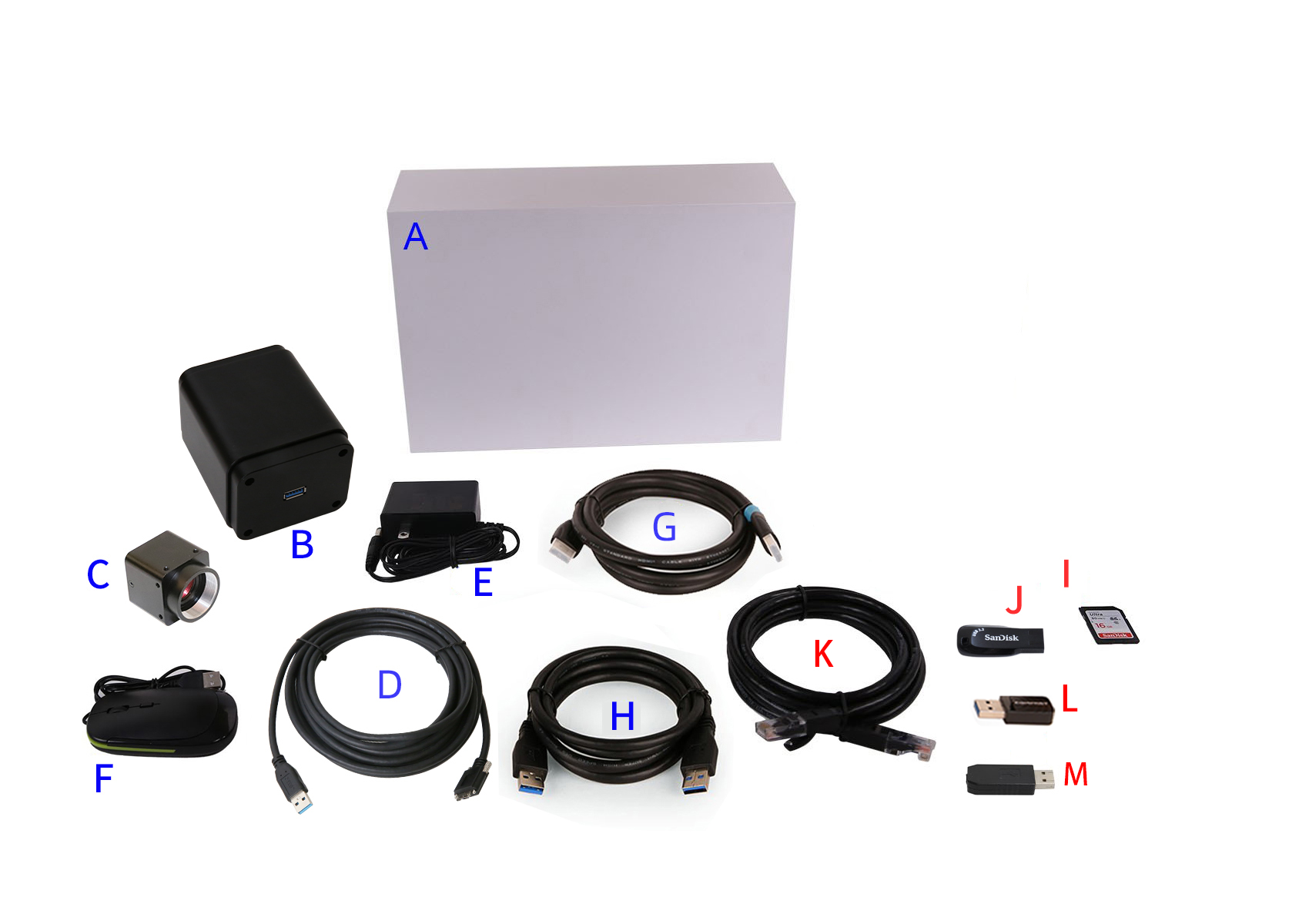

Standard Packing List
- A Gift box: 25.5 cm × 17.0 cm × 9.0 cm (1 pcs, 2.0 kg per box)
- B X8CAM4K_MR camera master device ×1
- C X8CAM4K_MR image capture sub-device ×1
- D USB3.0 A male to MicroB cable (4.5 m)
- E Power adapter: input AC 100~240 V 50/60 Hz, output DC 12 V 1 A; US POWER-U-12V1A (MSA-C1000IC12.0-12W-US), EU POWER-E-12V1A (MSA-C10001C12.0-12W-DE), UK POWER-UK-12V1A (NGE12I12-P1J)
- F USB mouse ×1
- G HDMI cable ×1
- H USB3.0 A male to A male gold-plated cable (1.5 m)
Optional Accessories
- I SD card (16 GB or above, Class 10)
- J USB flash drive
- K Ethernet cable
- L USB WiFi adapter
- M Voice control module
X8CAM4K_MR Multi-Module Camera Kit | Product Dimensions #

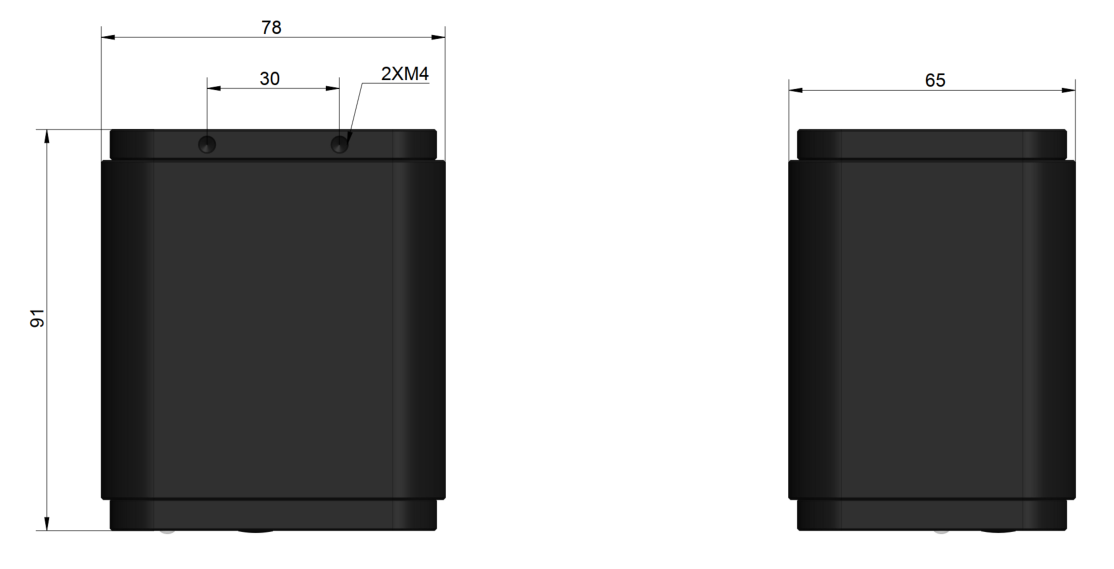

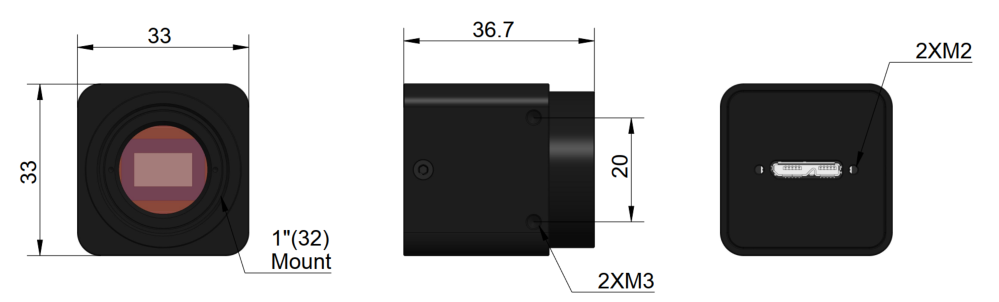

Dimension drawings for the image capture sub-device and master device
Please confirm the mounting direction, cable routing, and interface orientation from the drawing before final equipment integration.
Product Overview
The X8CAM4K_MR series is a separated long-distance transmission HDMI/NETWORK/USB camera platform from ToupTek. It combines Sony STARVIS 2 back-illuminated CMOS sensors, 4K multi-interface synchronous output, and a split hardware architecture that links the image capture sub-device to the master device through a 10 m USB3.0 screw-lock cable. This makes the series suitable for customers who need a compact imaging head inside their equipment but still want convenient external control and display.
Deep Dive

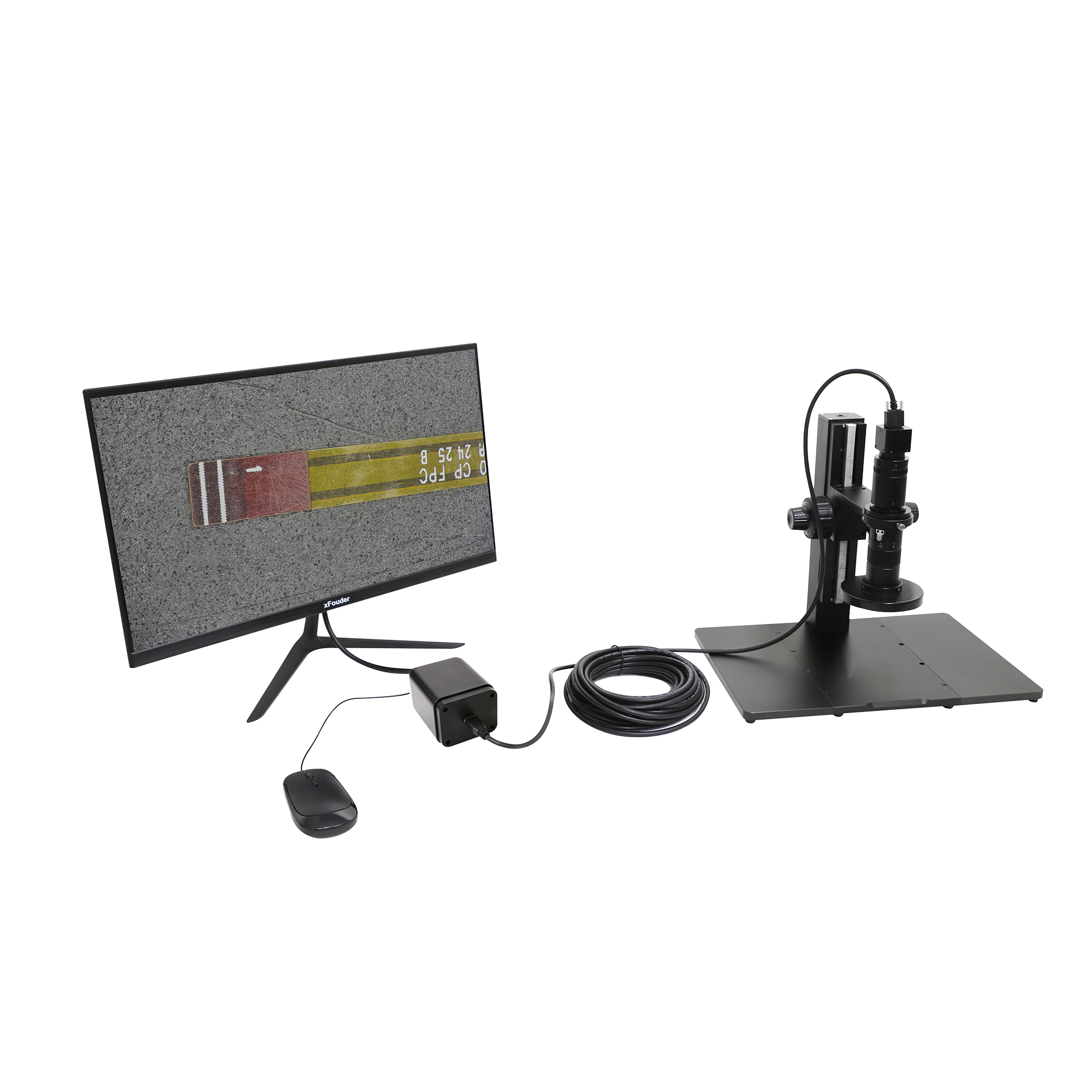

- Separated long-distance integration: The image capture sub-device can be embedded in equipment while the master device remains outside, improving layout flexibility for industrial and microscope systems.
- 4K / 1080P adaptive output: HDMI2.0 supports 4K and 1080P output with automatic switching based on connected monitor resolution, while LAN and USB support synchronized multi-end workflows.
- Neural-network-based customization: The platform supports customized development for recognition, counting, and detection tasks when OEM or project workflows require intelligent image analysis.
- Advanced storage workflow: Supports SD card, USB flash drive, network storage, and external USB3.0 SSD recording, including automatic save protection for sudden power-loss scenarios.
- Enhanced imaging tools: Built-in XCamView supports EDF, Stitch, measurement, browser comparison, automatic edge finding, and ISP switching for biological and stereo microscope usage.
- Convenient control: Supports USB voice control, USB mouse, mobile apps, and PC software for flexible local or remote operation.
Core Benefits
Separated Architecture for Integration
The capture head stays compact for embedding, while the master device remains accessible for display, storage, and control.
4K Multi-Interface Workflow
HDMI, network, and USB outputs can operate together, supporting local preview, PC capture, and remote viewing at the same time.
Intelligent Imaging Expansion
Neural-network-ready customization, EDF, Stitch, and measurement tools make the camera practical for advanced OEM or laboratory workflows.
Reliable Recording and Storage
Supports local, SSD, and network storage with power-loss protection to reduce the risk of losing critical recorded data.
Broad Applicability

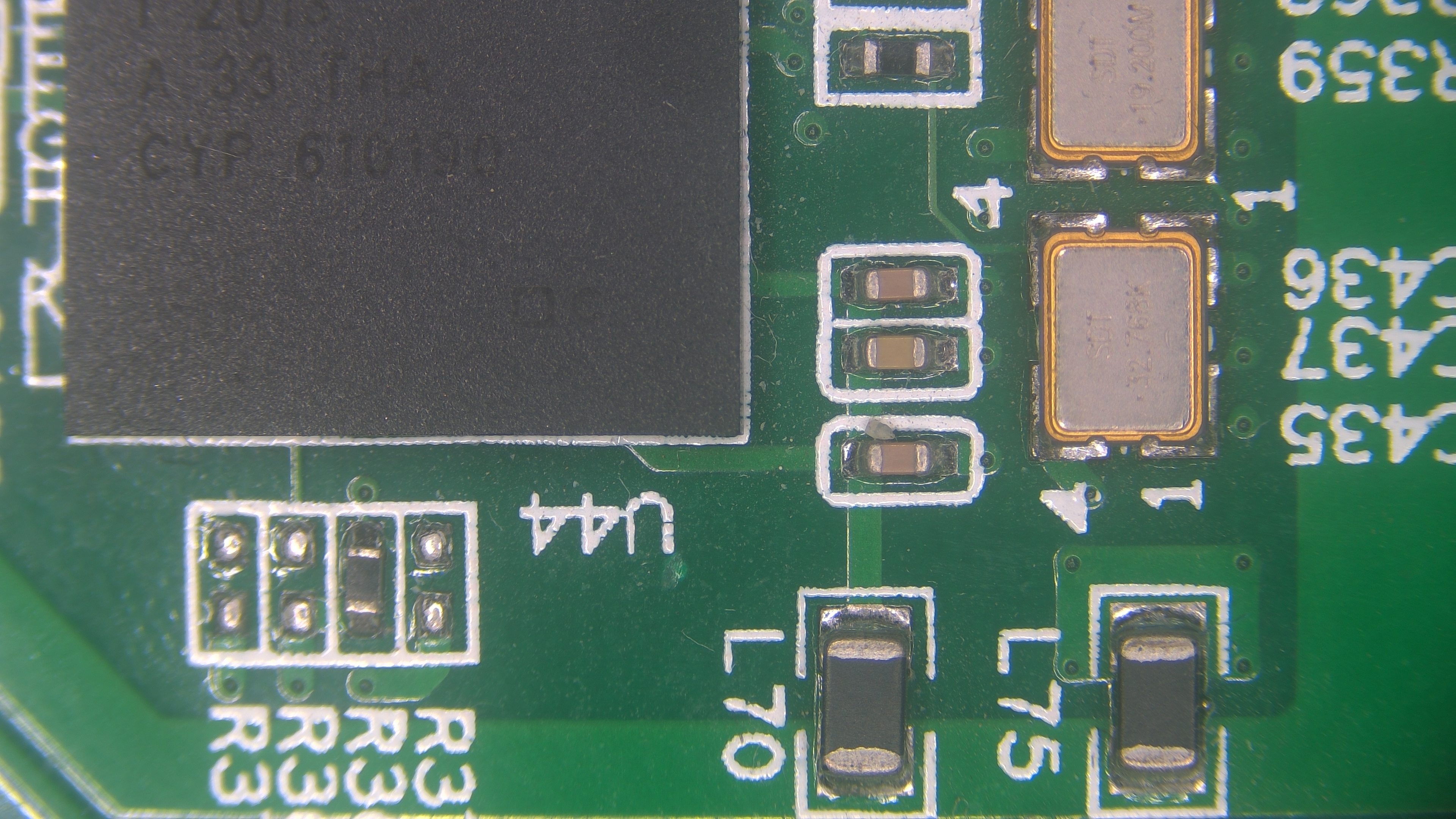

Fits biological microscopes, stereo microscopes, industrial inspection stations, embedded imaging devices, and remote collaborative observation workflows.
