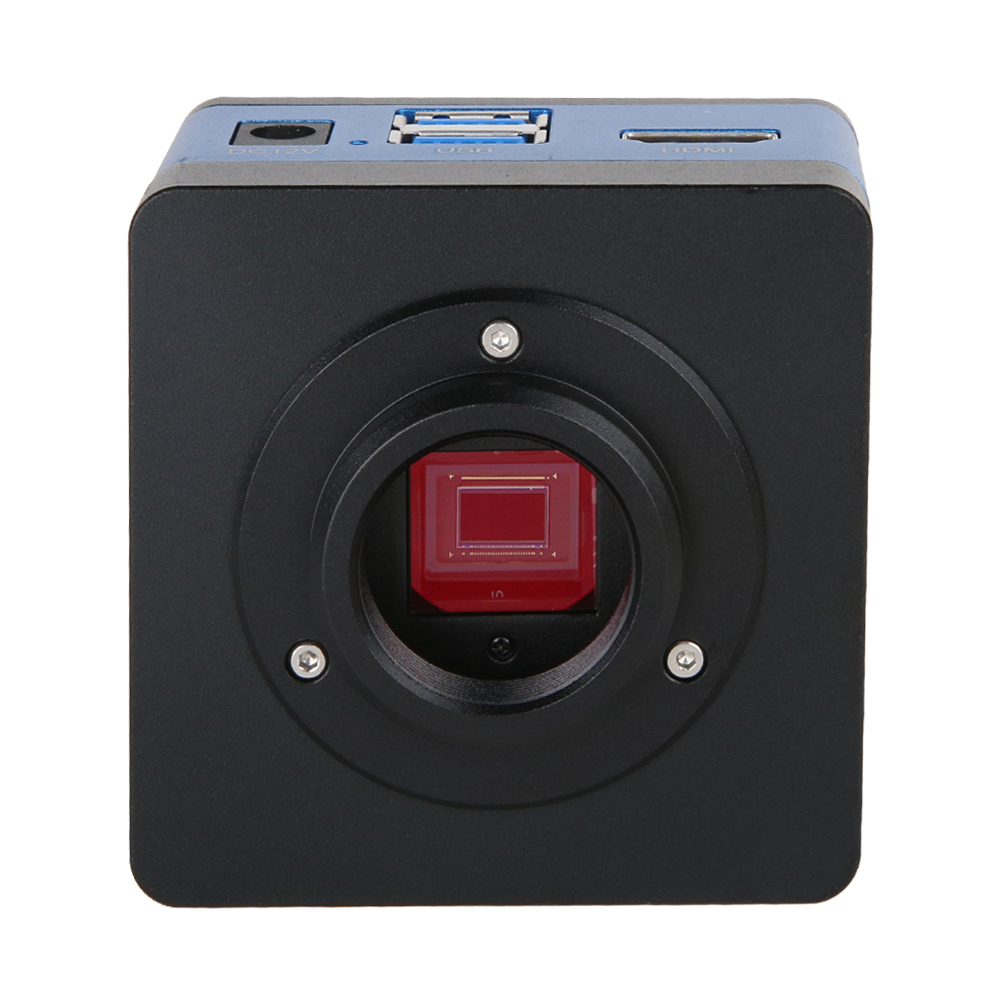

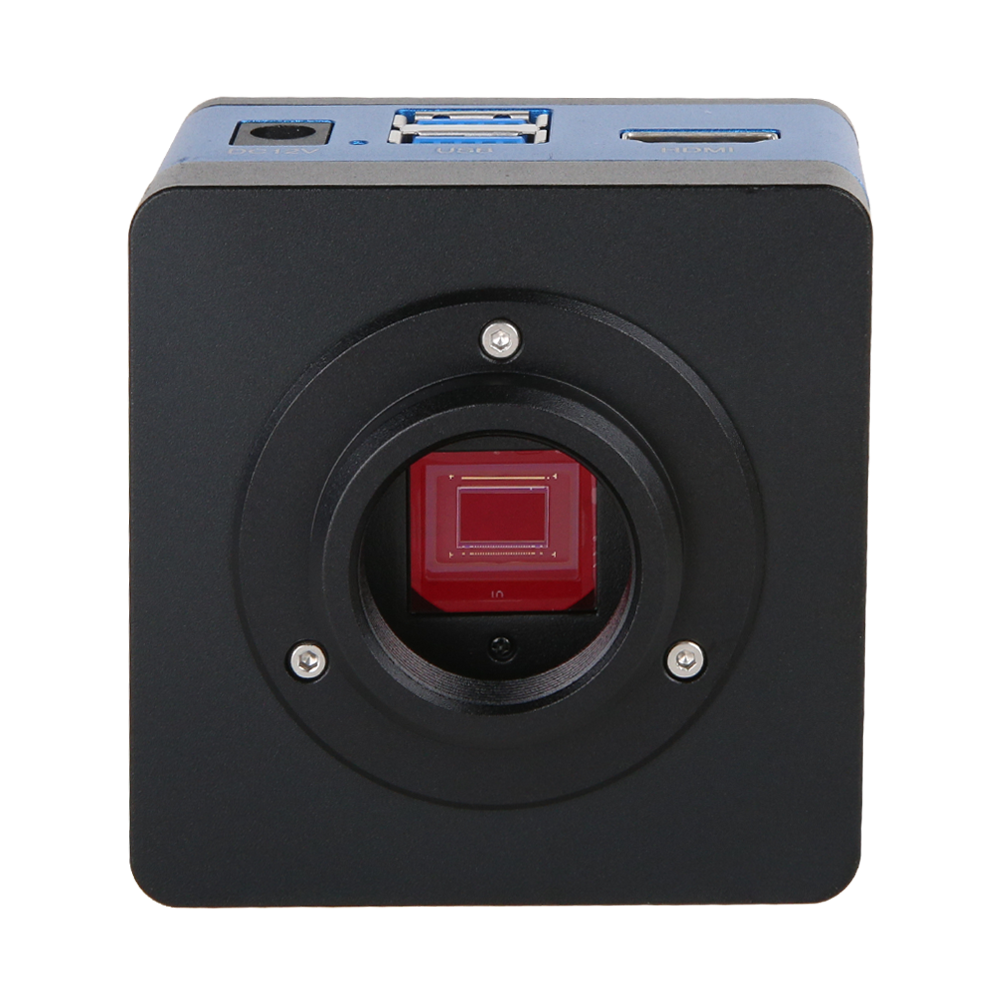

O5CAM4K Series
Product Introduction
Adopts Sony high-sensitivity sensors, delivers low-latency 4K/1080P HDMI 2.0 output, supports on-device local storage and voice/barcode control, and is ideal for high-definition microscopy display and documentation.
Product Features
- Sony Starvis 2 back-illuminated CMOS sensor
- 4K/1080P HDMI output adaptive switching
- Supports 4K 60 fps low-latency HDMI output with average latency of 40 ms
- Supports USB flash drive to save captured videos or images with local preview and playback support
- Supports RAW format image capture and display
- Supports USB voice control module for real-time voice command control of camera shooting, recording, freezing and other operations
- Supports barcode scanner capture function
- Brand new browsing interface providing rich file operation functions, image-to-image comparison, image-to-real-time video comparison, multi-image focus stacking function, multi-image stitching function
- Powerful ISP functionality providing shadow enhancement, sharpening and 3D noise reduction functions
- Provides real-time video focus stacking function and real-time video WDR output function
- Provides real-time stitching function for higher quality images through real-time processing
- Provides biological and stereo microscope default ISP parameter switching for convenient secondary adjustment optimization
- Built-in XCamView software provides rich image processing and measurement functions, supports automatic edge detection and automatic measurement functions
O5CAM4K Series
4K HDMI standalone microscope camera
| Model | Sensor/Size | Effective Pixels | Output Resolution | Frame Rate (fps) | Output Interface | Auto Focus | Lens Mount | Storage Support | Featured Functions |
|---|---|---|---|---|---|---|---|---|---|
| O5CAM4K8MPA |
Sony IMX678(C)
1/1.8" (7.68×4.32 mm)
|
2.0 μm × 2.0 μm | 8MP | HDMI: 60 fps@3840×2160 | HDMI2.0 | C-mount | USB drive | 4K60 low-latency HDMI output Real-time WDR/stitching |

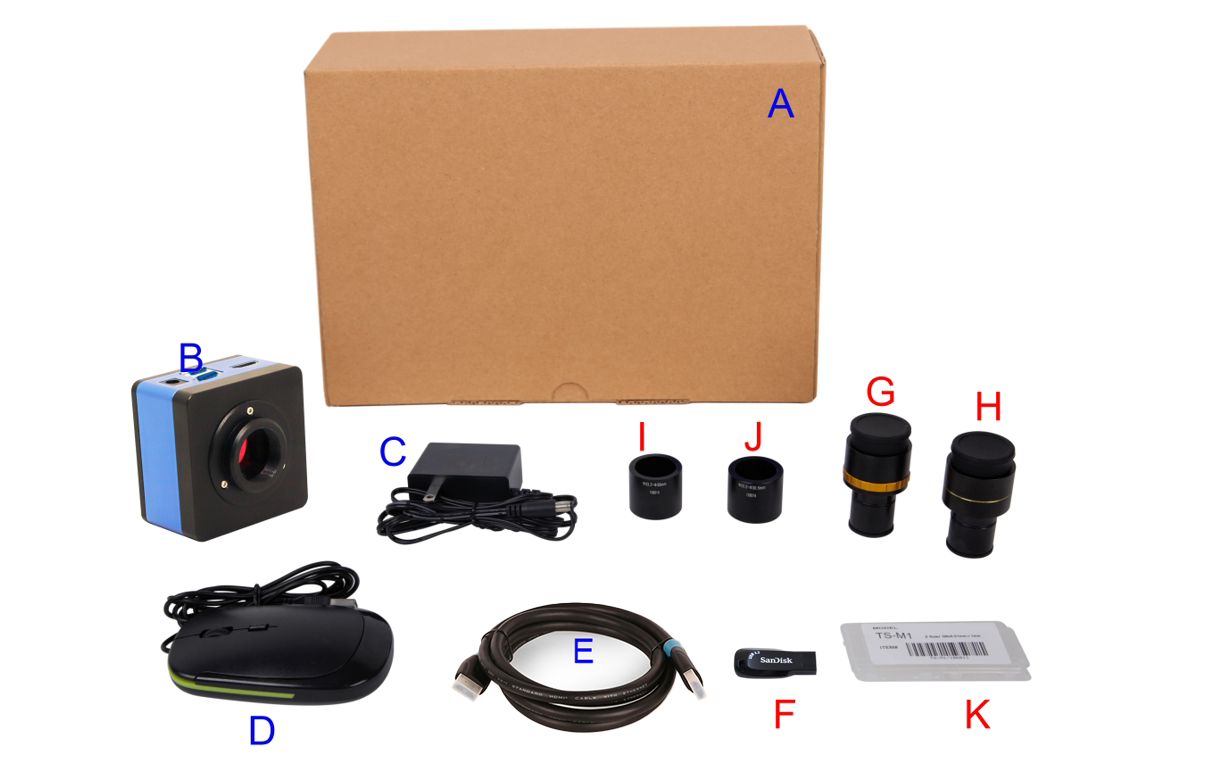

O5CAM4K HDMI Camera | Packing List #
Standard Packing List
- A Camera box dimensions: 18.4 cm × 17.4 cm × 8.1 cm
- B O5CAM4K series HDMI camera ×1
- C Power adapter: Input AC 100~240 V 50/60 Hz, output DC 12 V 1 A; US POWER-U-12V1A (MSA-C1000IC12.0-12W-US), EU POWER-E-12V1A (MSA-C10001C12.0-12W-DE)
- D USB mouse
- E HDMI 2.0 cable
Optional Accessories
- F USB flash drive (USB 3.0)
-
G Adjustable eyepiece tube adapters
Dia.23.2 mm to C-mount: 108001/AMA037, 108002/AMA050, 108003/AMA075 (choose based on camera and microscope).
-
H Fixed eyepiece tube adapters
Dia.23.2 mm to C-mount: 108005/FMA037, 108006/FMA050, 108007/FMA075. Note: Confirm camera model and interface before choosing G or H; engineers can assist with matching.
- I 108015 (Dia.23.2 mm→30.0 mm) adapter ring for 30 mm eyepiece tubes
- J 108016 (Dia.23.2 mm→30.5 mm) adapter ring for 30.5 mm eyepiece tubes
- K Micrometer: 106011/TS-M1 (X=0.01 mm/100 Div.); 106012/TS-M2 (X,Y=0.01 mm/100 Div.); 106013/TS-M7 (X=0.01 mm/100 Div., 0.10 mm/100 Div.)
Note: Confirm microscope interface size before selecting eyepiece adapters; our engineers can help match the proper spec.

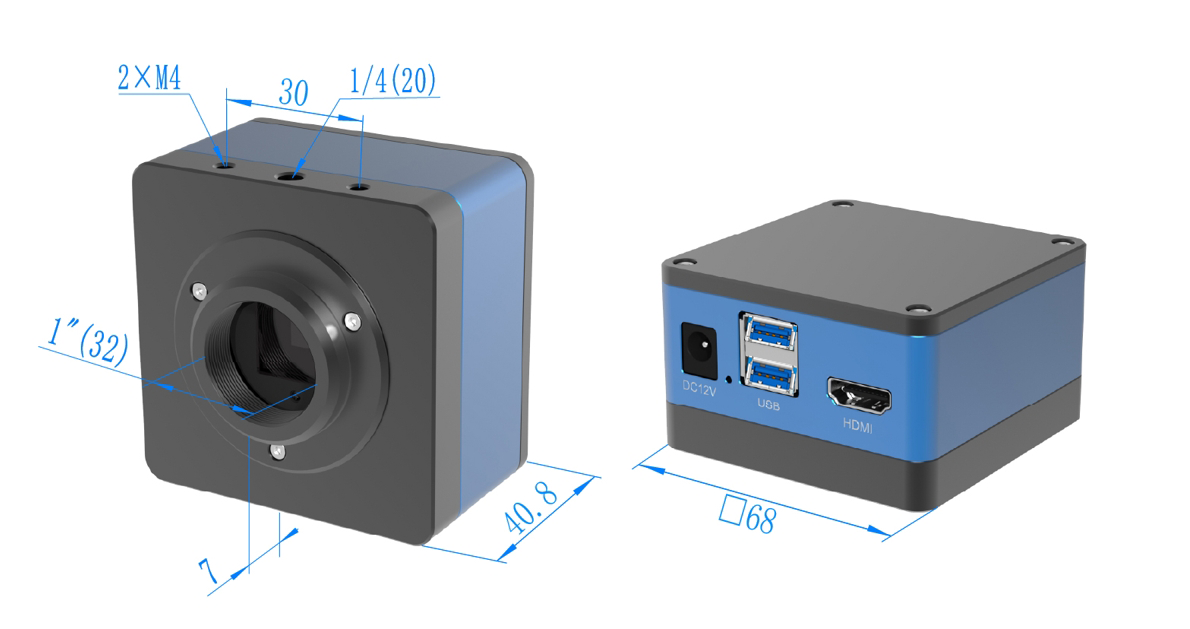

O5CAM4K HDMI Camera | Dimensions #
Body structure and interface layout
See manual Figure 3-120
Confirm mount holes and interface orientation with the dimension drawing before installation.
O5CAM4K Series HDMI Camera — Product Overview
The ToupTek Photonics O5CAM4K series is a standalone 4K HDMI microscope camera designed for video and image capture on stereo and biological microscopes. It uses a Sony Starvis 2 back-illuminated high-sensitivity CMOS, supports 4K/1080p HDMI adaptive switching, and delivers 4K 60 fps low-latency output (average ~40 ms) for high-resolution real-time observation.
The camera supports local saving of video or images to a USB flash drive with direct playback and offers RAW image capture, covering teaching, research, and industrial inspection use cases.
In-Depth Details
-
High-performance sensor:
Sony Starvis 2 back-illuminated CMOS for low noise and high sensitivity in low-light and high-dynamic-range scenes. -
HDMI adaptive output:
Automatic 4K/1080p switching with 60 fps real-time transmission for smooth preview and presentation. -
Low latency and high image quality:
Average output latency around 40 ms ensures real-time teaching and dynamic observation. -
Local storage and playback:
Save and play back directly on a USB flash drive; supports RAW capture for later analysis and archiving. -
Plug-and-play design:
Works without a computer; power on and use, simplifying setup and operation for microscopy imaging.
Product Advantages
PC-free, rapid deployment
Plug-and-play setup ideal for teaching and research environments.
High resolution with smooth output
Supports 4K 60 fps output with rich detail and minimal perceived delay for live demos.
Convenient data management
Supports USB local storage, RAW capture, and playback for easy sharing and archiving.
Flexible compatibility
Adapts to many microscope systems for labs, industrial inspection, and education.
