XCAMTOP4K_MINI Series
Product Introduction

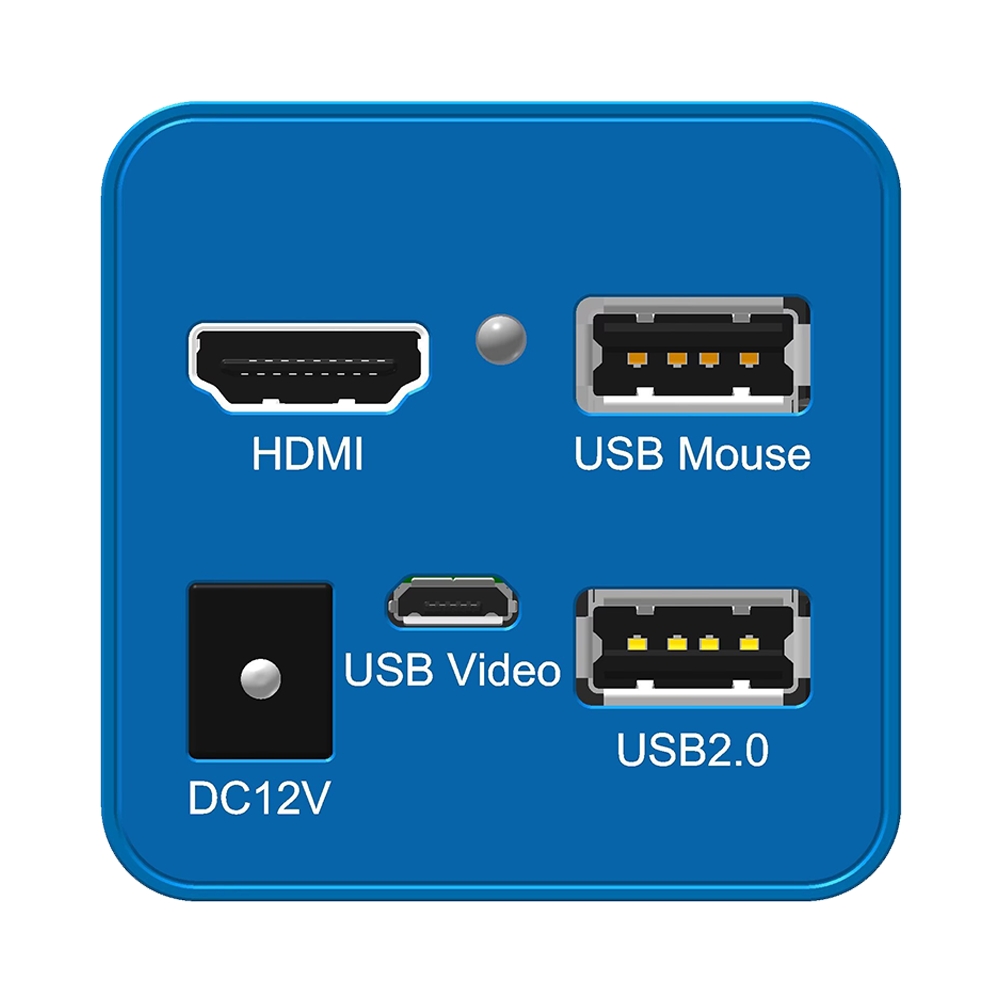

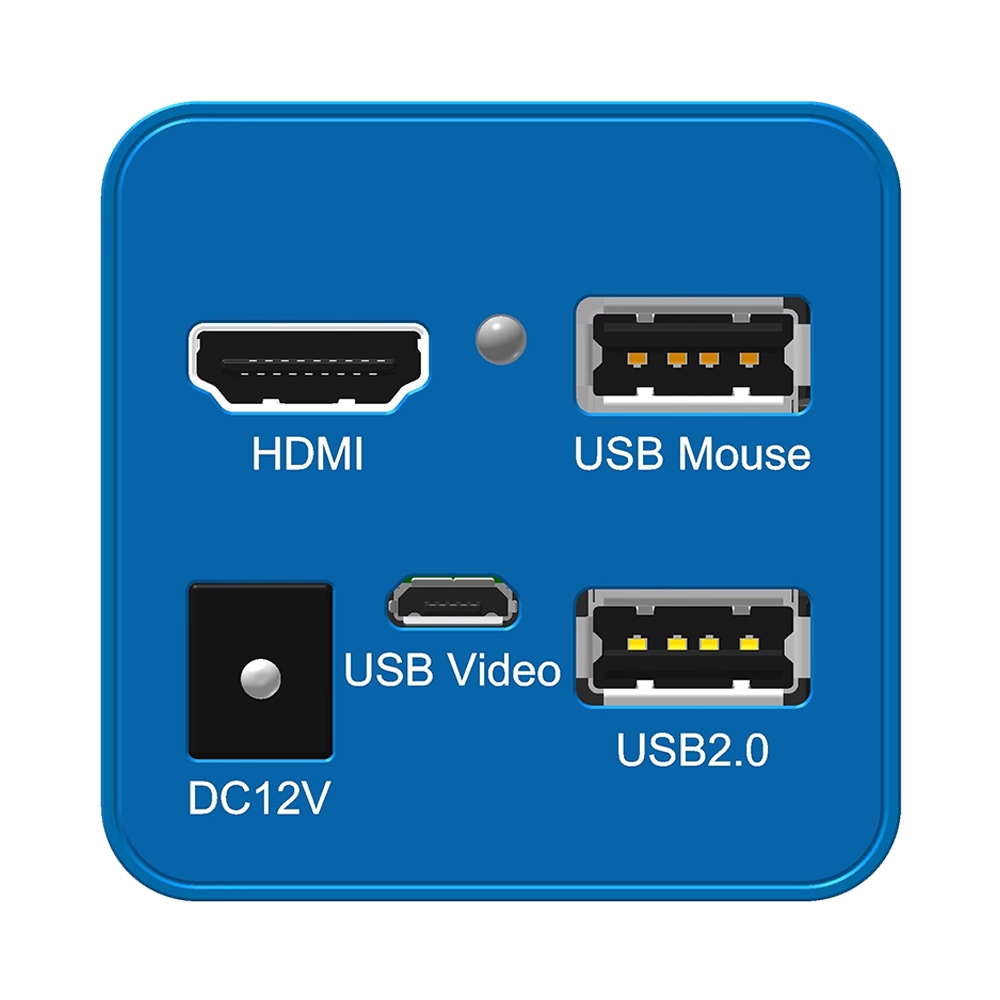

Compact body design integrating HDMI 1.4, USB Video and WiFi multiple output interfaces. Enables direct 4K ultra-HD image capture and display for stereo microscopes or biological microscopes without a computer. Built-in XCamView software provides rich measurement and image processing functions, supporting voice control and microscopic interactive teaching system networking.
Product Features
- Sony Starvis 2 back-illuminated CMOS sensor
- 4K/1080P HDMI output adaptive switching
- WiFi AP/STA dual mode (requires USB adapter)
- USB Video interface supports MJPEG real-time transmission
- Built-in XCamView measurement software: auto edge detection, calibration, multiple measurement tools
- USB storage: MP4 (H.264 encoding) video and JPEG/TIFF images
- USB voice control module: photo/video/freeze operations
- Powerful ISP functions: ROI white balance, 3D noise reduction, sharpening, dark area enhancement
- Multi-language interface support (10 languages)
- Built-in RTC precise time control
XCAMTOP4K_MINI Series
4K HDMI/WiFi/USB Multi-Output C-Mount CMOS Camera
| Model | Sensor/Size | Effective Pixels | Output Resolution | Frame Rate (fps) | Output Interface | Auto Focus | Lens Mount | Storage Support | Featured Functions |
|---|---|---|---|---|---|---|---|---|---|
| XCAMTOP4K8MPC_MINI |
Sony IMX678(C)
1/1.8" (7.68×4.32 mm)
|
2.0 µm × 2.0 µm | 8MP (3840×2160) | HDMI: 30 Hz@3840×2160; USB: 30 fps@3840×2160; WiFi: 30 fps@3840×2160 | HDMI 1.4 USB Video WiFi | C-mount | USB storage | 4K/1080P HDMI adaptive output WiFi AP/STA dual mode USB voice control module ROI white balance 3D noise reduction Auto edge detection measurement Graphic overlay Video recording MP4 (H.264) Multi-language interface (10 languages) | |
| XCAMTOP4K8MPD_MINI |
Sony IMX585(C)
1/1.2" (11.14×6.26 mm)
|
2.9 µm × 2.9 µm | 8MP (3840×2160) | HDMI: 30 Hz@3840×2160; USB: 30 fps@3840×2160; WiFi: 30 fps@3840×2160 | HDMI 1.4 USB Video WiFi | C-mount | USB storage | Large format high sensitivity 4K/1080P HDMI adaptive output WiFi AP/STA dual mode USB voice control module ROI white balance 3D noise reduction Auto edge detection measurement Graphic overlay Video recording MP4 (H.264) Multi-language interface (10 languages) | |
| XCAMTOP4K8MPE_MINI |
Sony IMX715(C)
1/2.8" (5.57×3.13 mm)
|
1.45 µm × 1.45 µm | 8MP (3840×2160) | HDMI: 30 Hz@3840×2160; USB: 30 fps@3840×2160; WiFi: 30 fps@3840×2160 | HDMI 1.4 USB Video WiFi | C-mount | USB storage | Small pixel high resolution 4K/1080P HDMI adaptive output WiFi AP/STA dual mode USB voice control module ROI white balance 3D noise reduction Auto edge detection measurement Graphic overlay Video recording MP4 (H.264) Multi-language interface (10 languages) |
XFCAMTOP_MINI Multi-Interface Camera | Packing List #

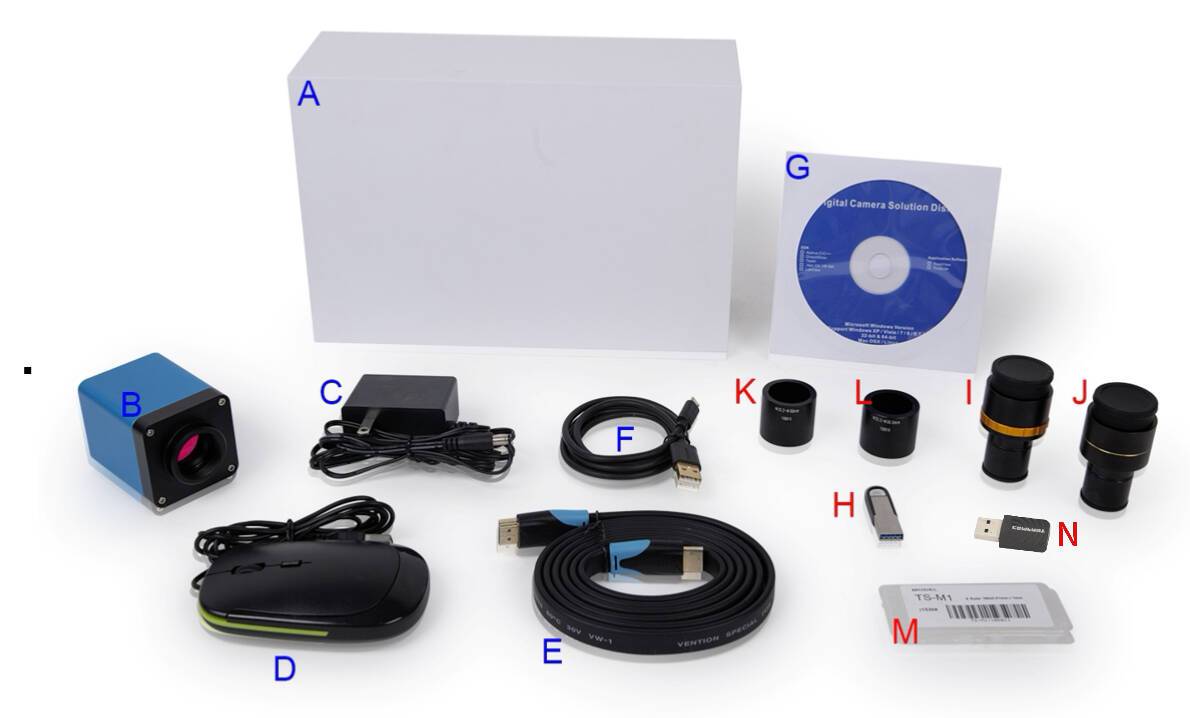

Standard Packing List
- A Camera box: 25.5 cm × 17.0 cm × 9.0 cm
- B XCAMTOP4K_MINI camera ×1
- C Power adapter: Input AC 100~240 V 50/60 Hz, output DC 12 V 1 A; US POWER-U-12V1A (MSA-C1000IC12.0-12W-US: UL/CE/FCC), EU POWER-E-12V1A (MSA-C10001C12.0-12W-DE: UL/CE/FCC)
- D USB mouse
- E HDMI cable
- F Micro USB cable
Optional Accessories
- G Voice control module
- H USB drive
-

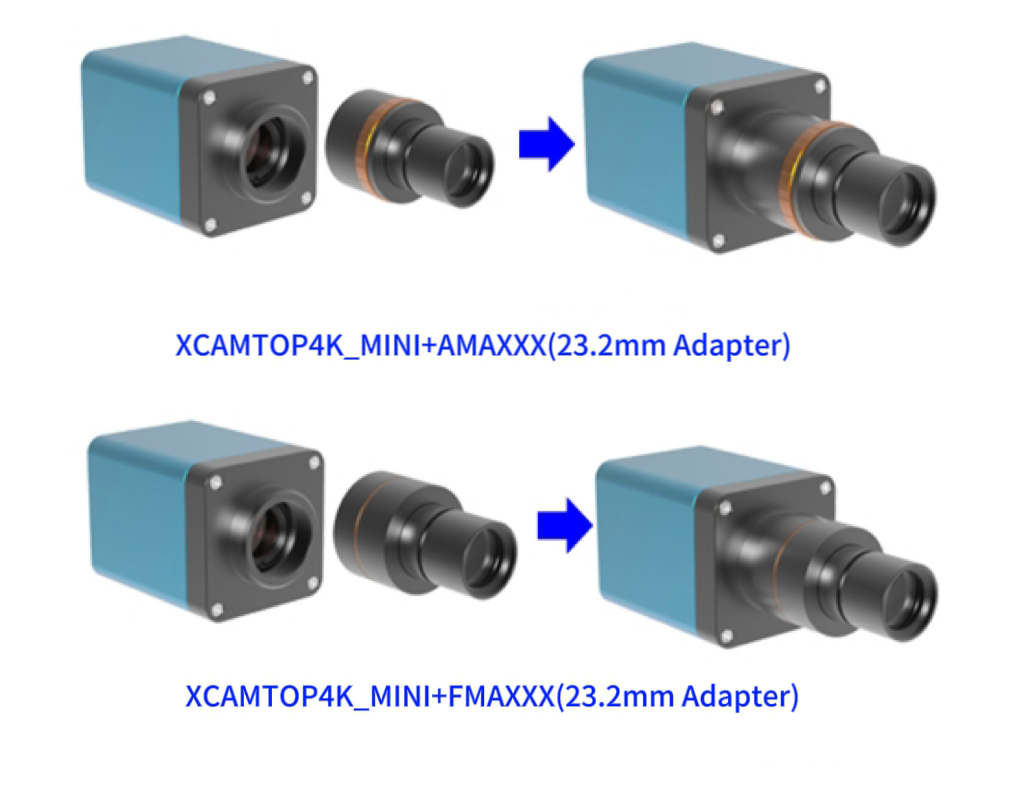

I Adjustable eyepiece tube adapters
Dia.23.2 mm eyepiece to C-mount: 108001/AMA037, 108002/AMA050, 108003/AMA075 (choose based on the camera and microscope).
-
J Fixed eyepiece tube adapters
Dia.23.2 mm eyepiece to C-mount: 108005/FMA037, 108006/FMA050, 108007/FMA075. Note: confirm the camera model and interface before choosing I or J; engineers can assist.
- K 108015 (Dia.23.2 mm→30.0 mm) adapter ring for 30 mm eyepiece tubes
- L 108016 (Dia.23.2 mm→30.5 mm) adapter ring for 30.5 mm eyepiece tubes
- M USB wireless network adapter (required for WiFi mode; appearance varies by model)
XFCAMTOP_MINI Multi-Interface Camera | Product Dimensions #

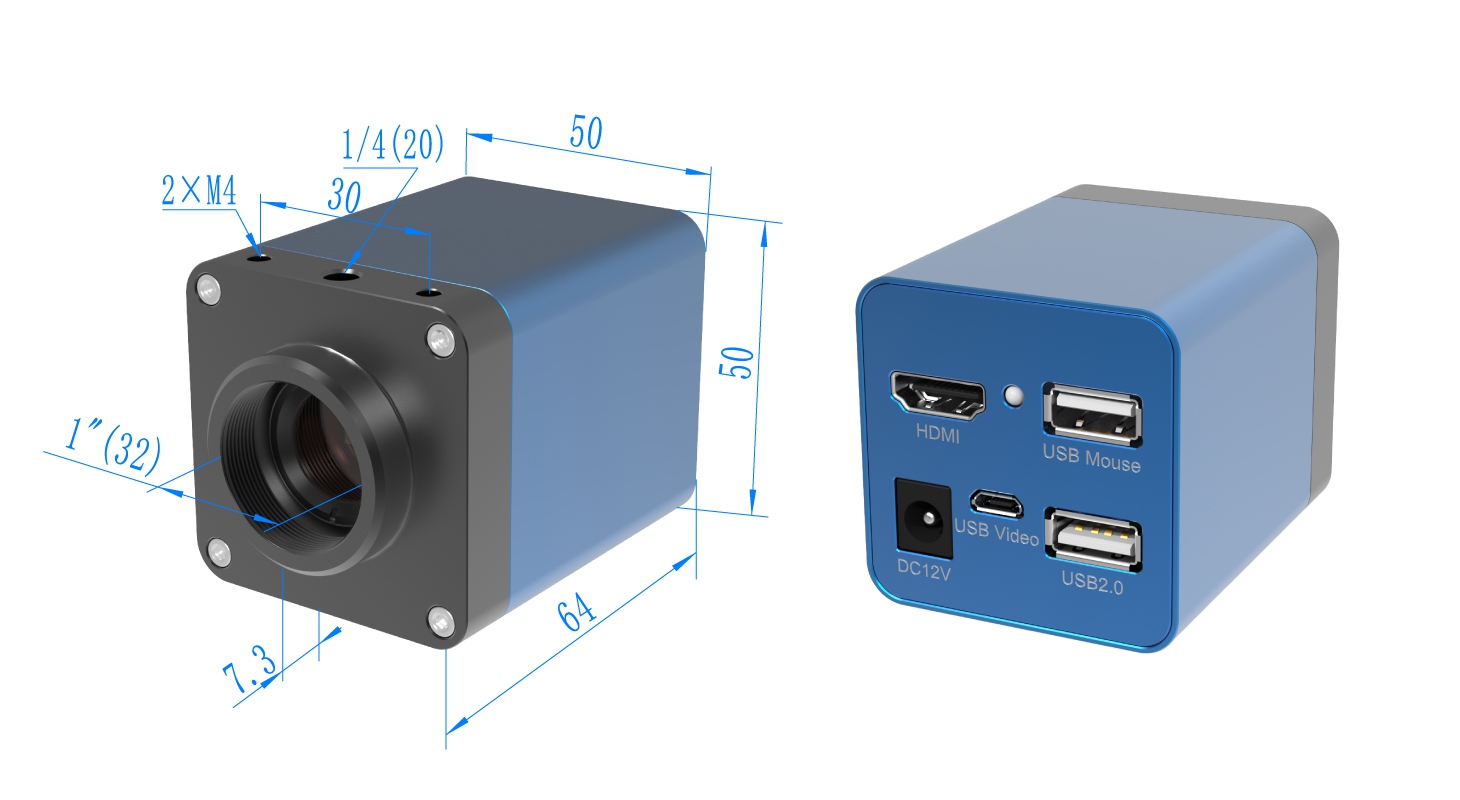

Body dimensions and environmental specifications
See manual Fig. 5-12
Please confirm mounting holes and interface orientation per the dimension drawing before installation.
Deep Dive

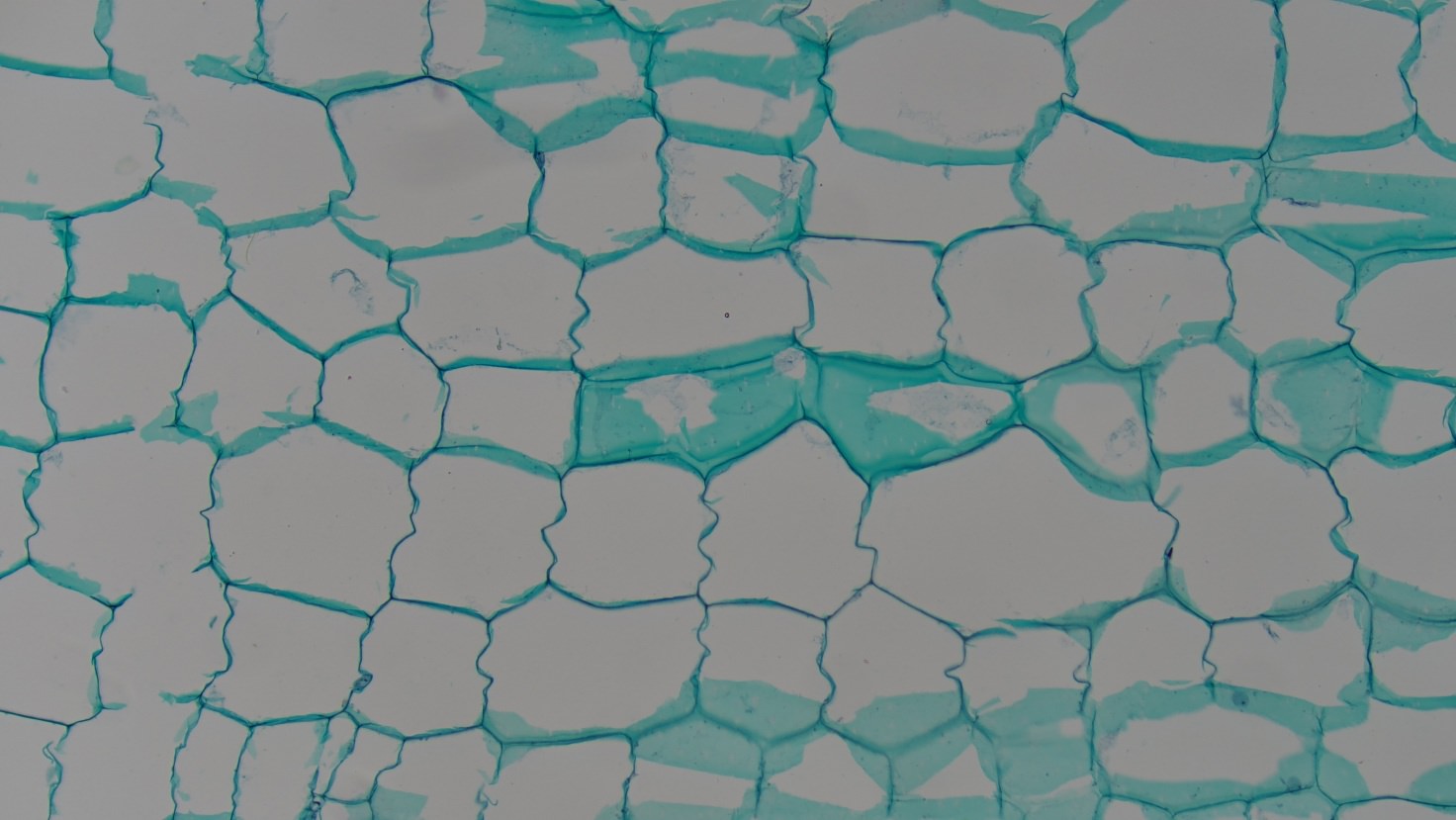

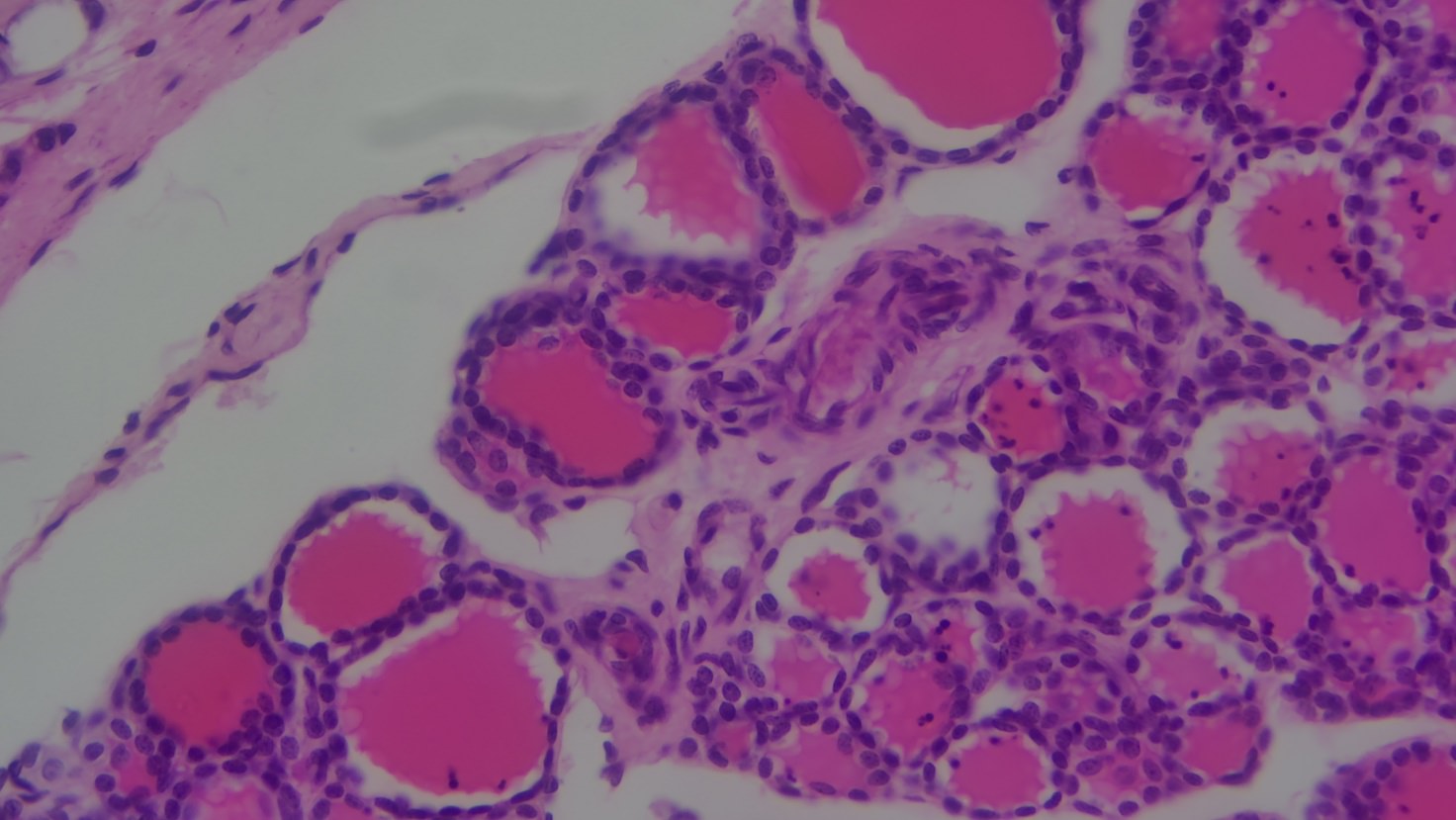

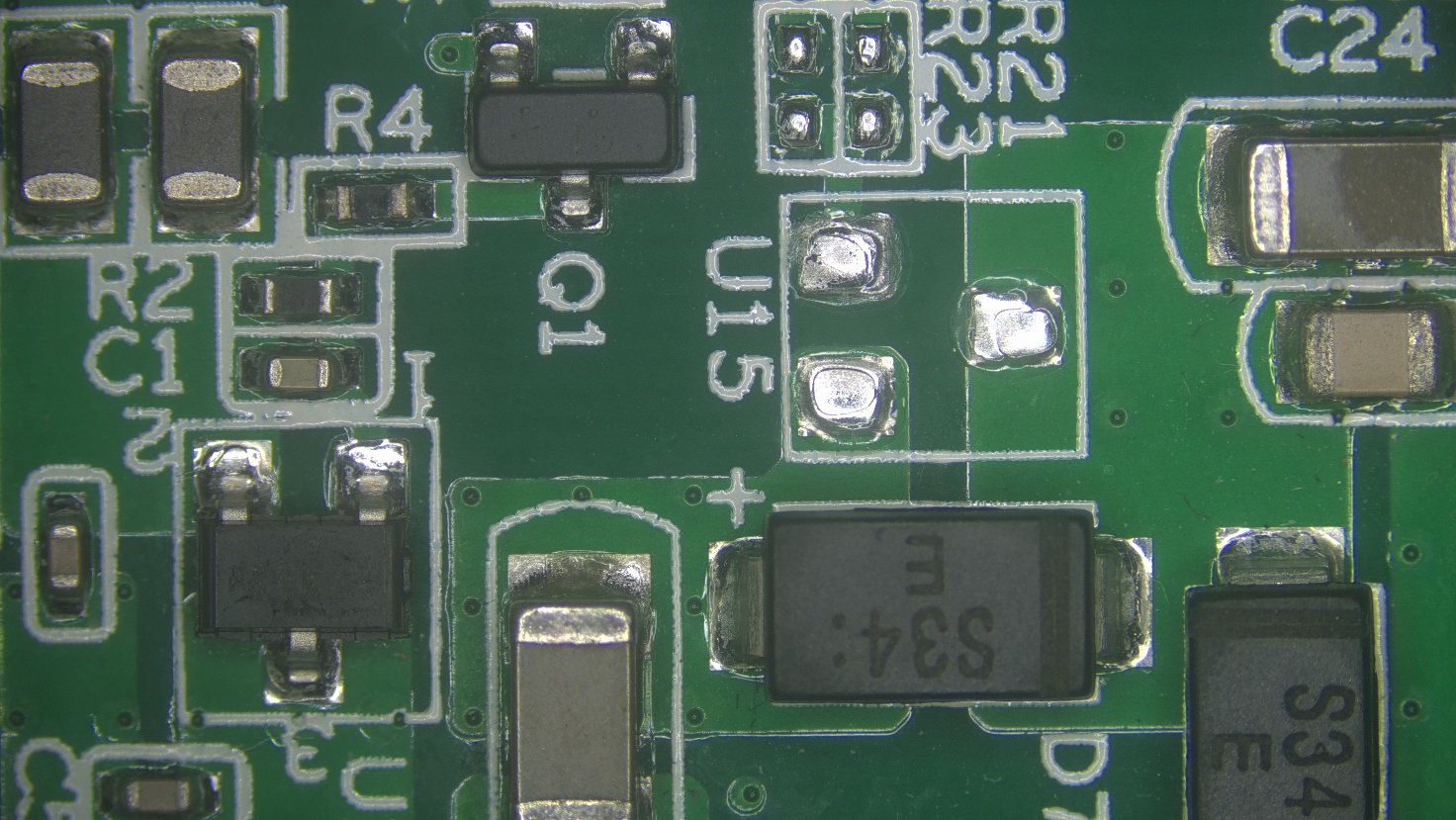

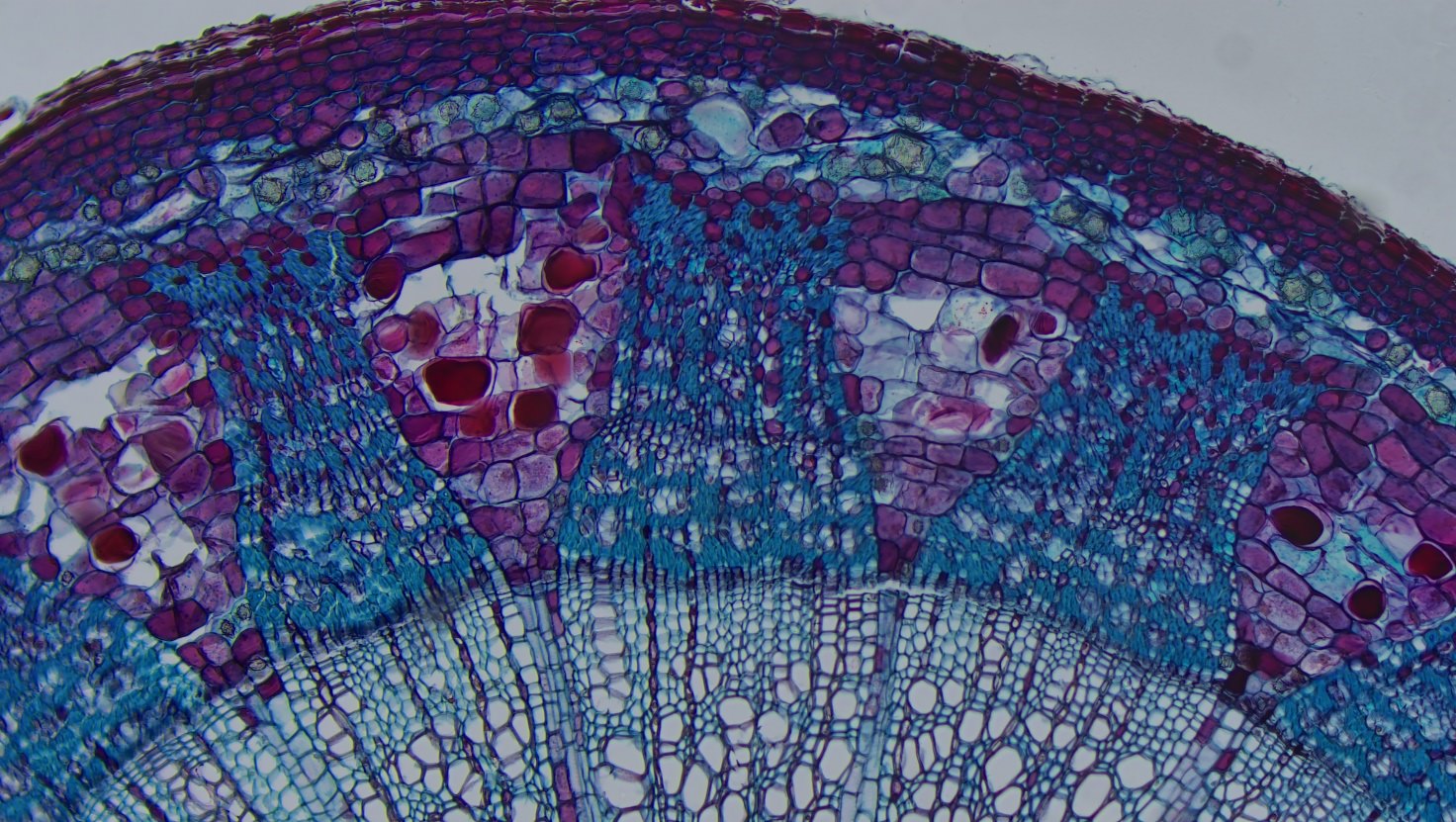

The Touptek XCAMTOP4K_MINI series is a C-mount 4K multi-output microscopy camera. It works PC-free over HDMI for viewing, capture, recording, and measurement on a large display, or connects via Wi-Fi or USB Video to computers/tablets/phones for collaboration and sharing, fitting stereo microscopes, biological microscopes, and other C-mount optical systems.
The camera uses Sony Starvis 2 high-sensitivity CMOS (e.g., IMX678), supports 4K/1080p HDMI auto switching, and has the XCamView imaging and measurement platform built in, offering ROI white balance, 3D noise reduction, Gamma, and sharpness/contrast/saturation ISP tuning. It also supports voice control, USB drive storage (H.264/H.265), and on-device playback, enabling efficient deployment for teaching, research logging, and industrial inspection.
Technical Highlights
- Multi-interface output: 4K/1080p HDMI auto, Wi-Fi (AP/STA), and USB Video (MJPEG)
- High-performance imaging: Sony Starvis 2 sensor with low noise and high sensitivity plus 50/60 Hz anti-flicker
- Built-in XCamView: Calibration, measurement, auto edge finding, overlay, comparison, and playback all in one
- Smart control: Voice control (capture/record/freeze), USB mouse operation, and multi-language UI
- Easy storage: Save photos (JPEG/TIFF) and videos (MP4, H.264/H.265) directly to USB drives with on-device browsing and playback
- Broad compatibility: Works with ToupView/ToupLite (Windows/macOS/Linux/iOS/Android) for teaching networks and multi-camera setups
Core Benefits
-
1
Compact C-Mount Design Small footprint and easy mounting for stereo/biological microscopes
-
2
4K Clarity with Stable Output HDMI 4K/1080p auto switching for teaching displays and demos
-
3
Multi-Interface & Wireless HDMI + Wi-Fi + USB Video, supporting AP/STA networking and multi-end collaboration
-
4
Robust ISP & Measurement ROI white balance, 3D noise reduction, Gamma/sharpness/contrast/saturation plus calibration/measurement/overlay/playback
-
5
Plug-and-Play, Easy Upkeep USB recording and playback with multi-language UI for quick deployment and low training cost
