X8FCAM4K Series
Product Introduction

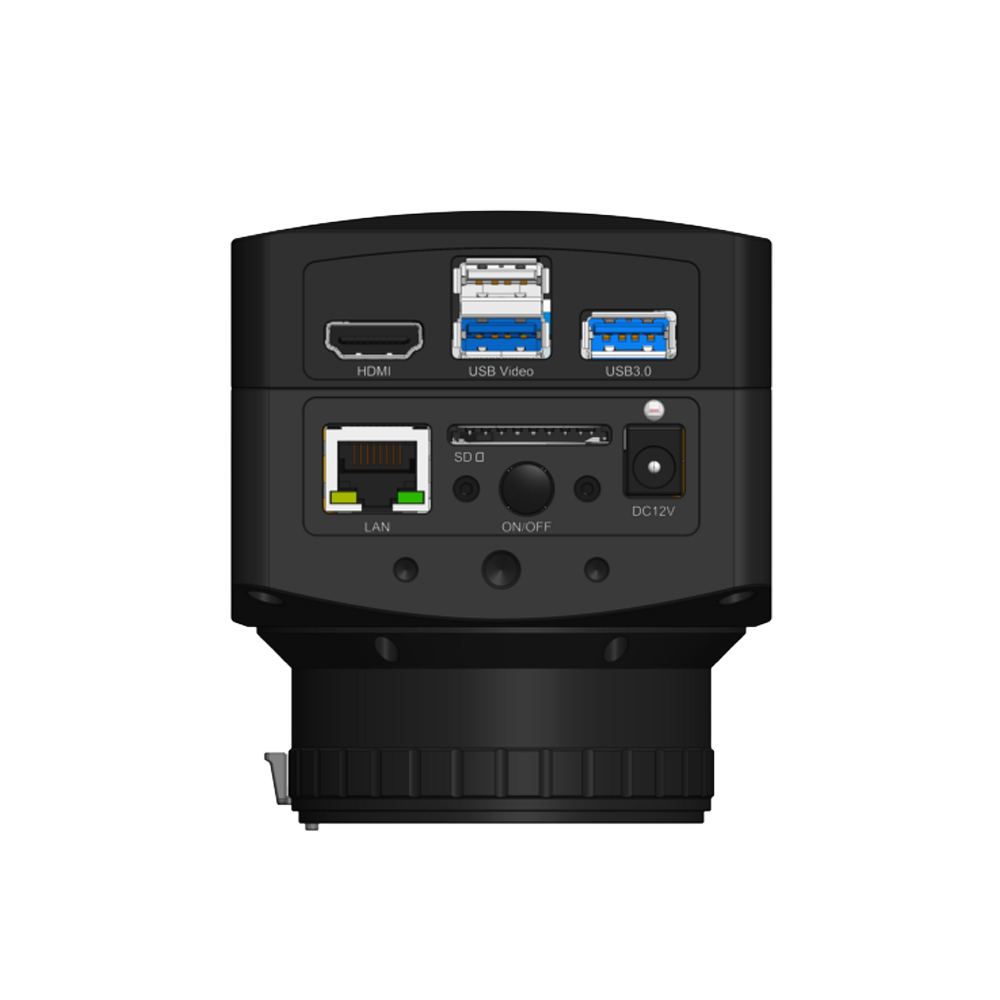

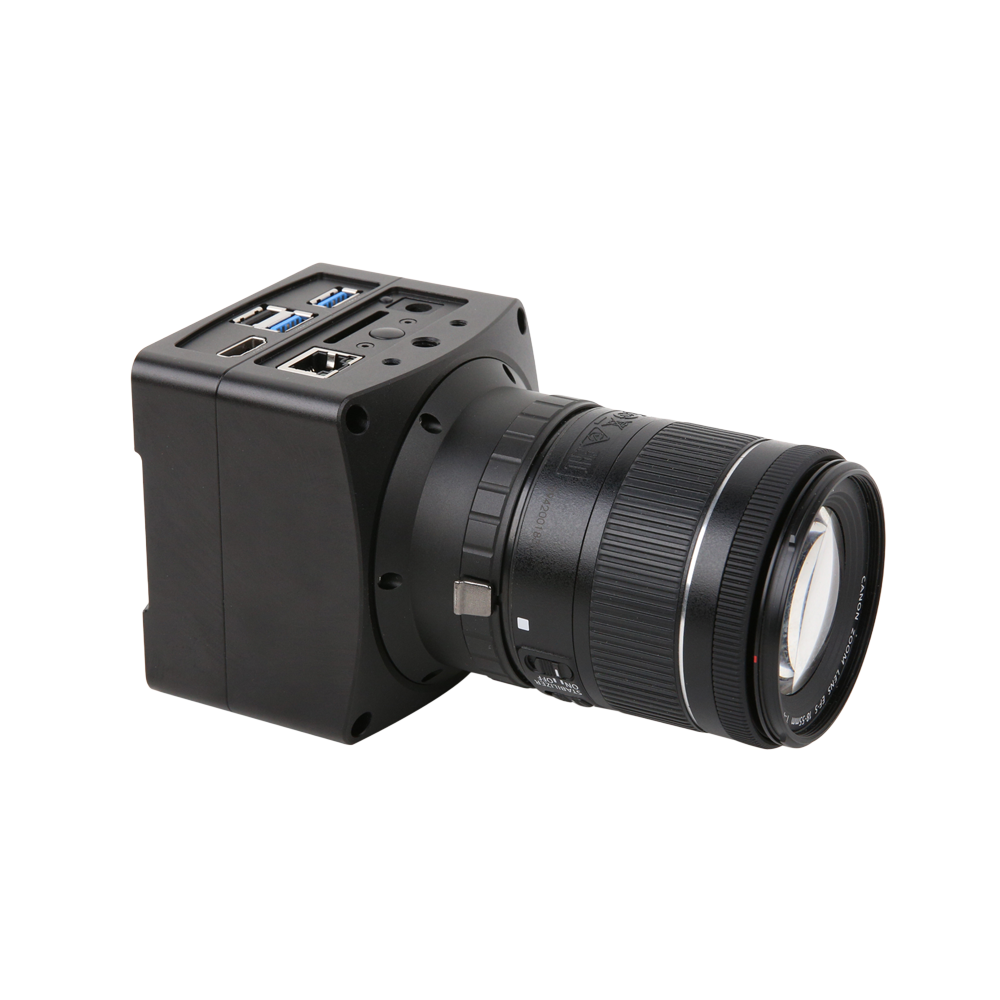

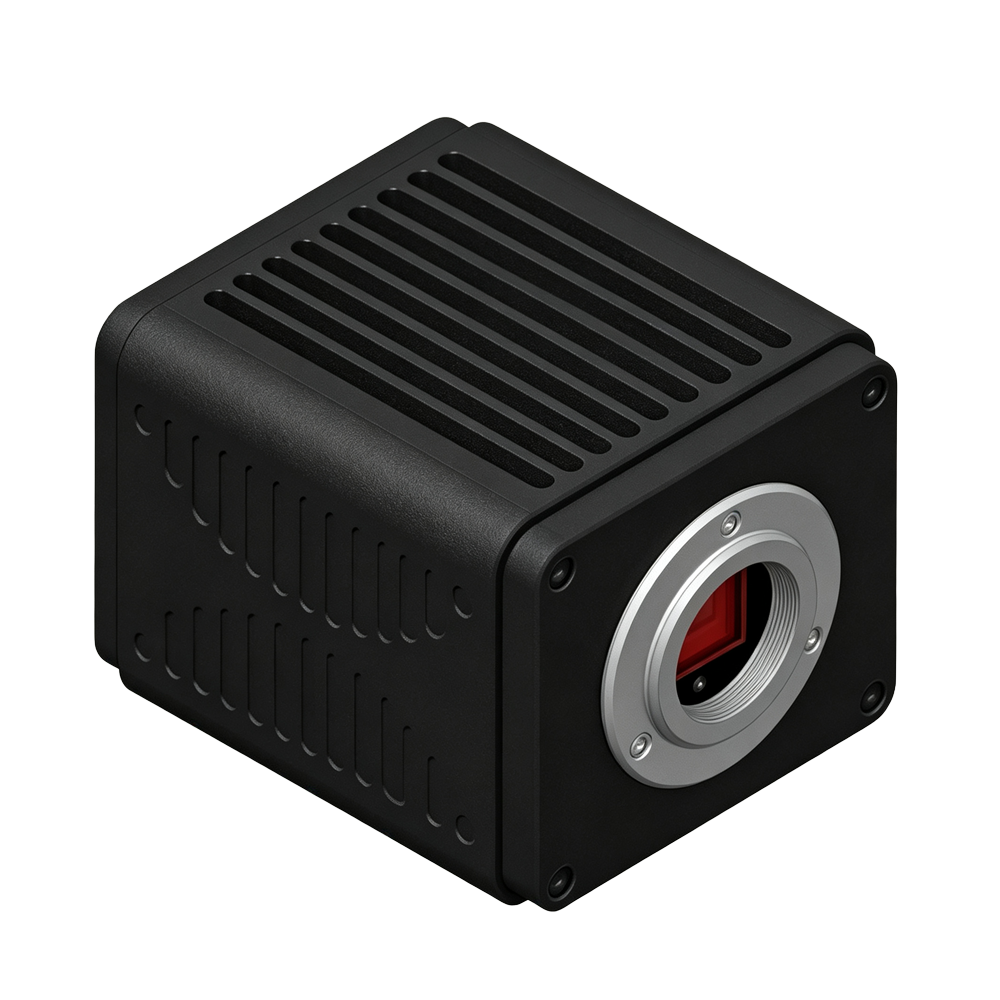

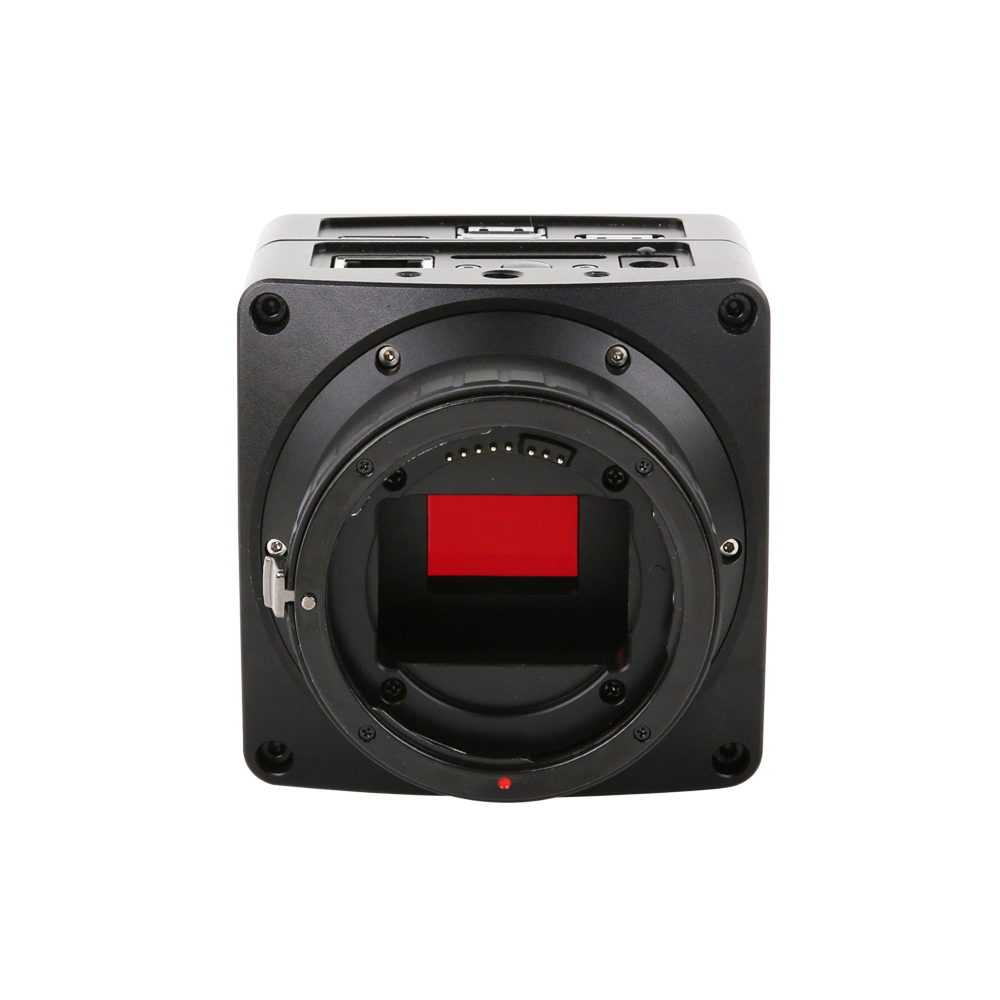

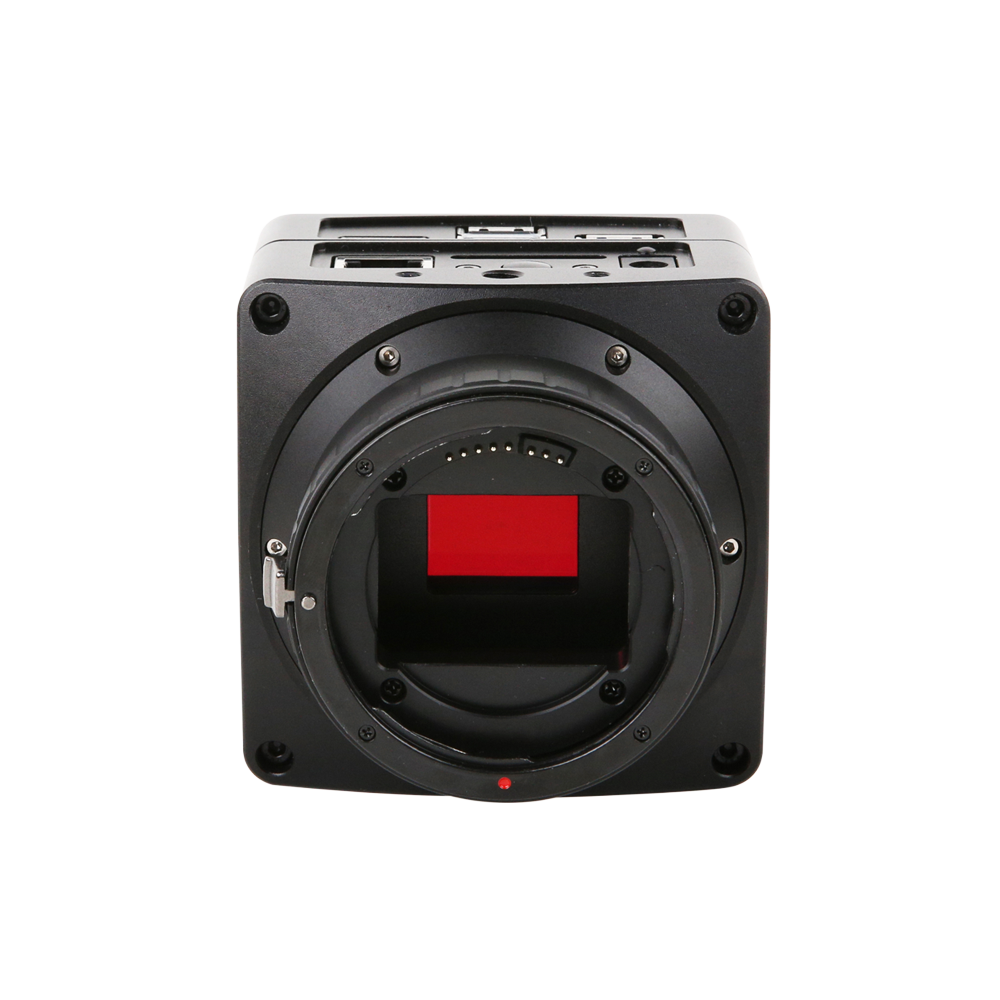

The X8FCAM4K22MPA_EFL camera is a multi-output camera (HDMI + NETWORK + USB) designed by ToupTek Photonics. In the model designation X8FCAM4K22MPA_EFL, 'X' represents multi-interface capability, '8' series indicates ToupTek's AI high-end platform, 'F' denotes autofocus functionality, '4K' signifies 4K HDMI output, '22MP' represents the camera's maximum 22 MP image output, 'A' indicates sensor variant A, and 'EFL' stands for Canon Electronic Focus Lens, representing electronic focus lens compatibility and Canon EF mount. The camera features a large-format, high-resolution, high-performance CMOS sensor. It can be directly connected to HDMI displays, linked to computers via NETWORK/USB, and can save images and videos to SD cards or USB flash drives for on-site analysis and subsequent research.

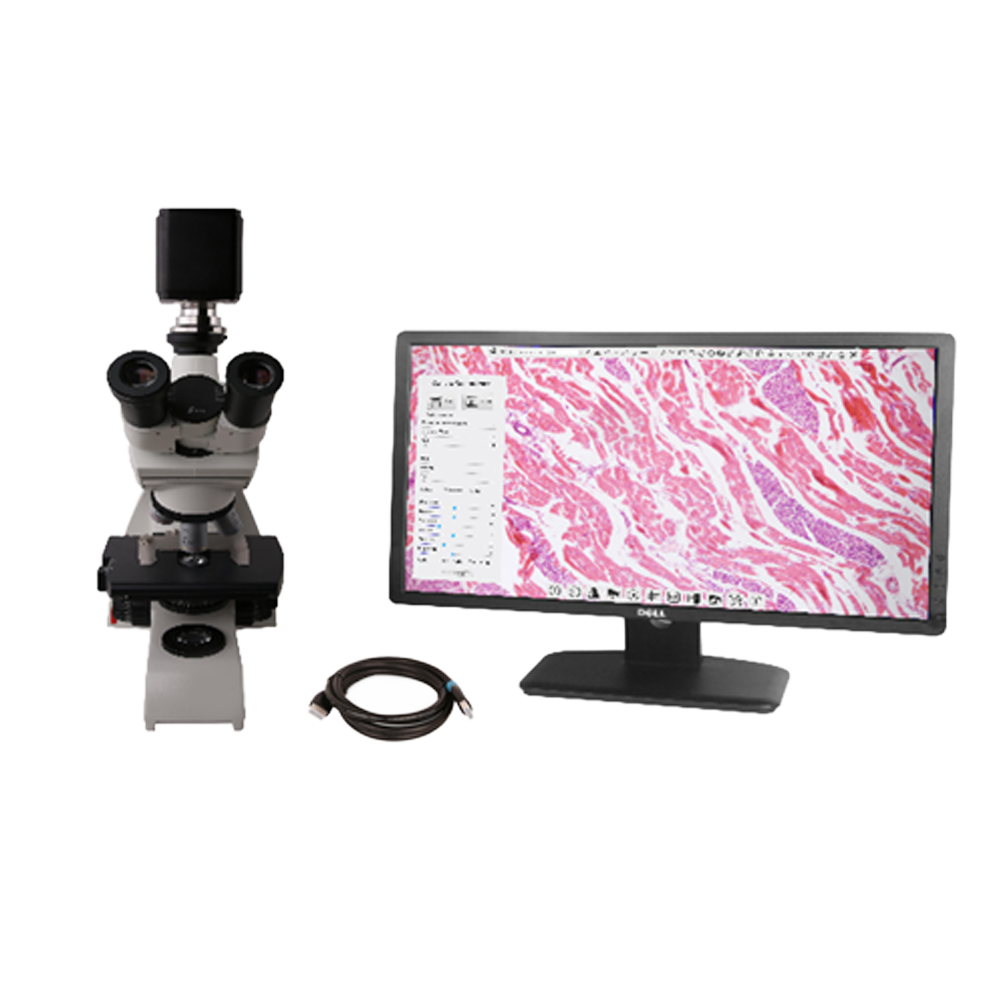

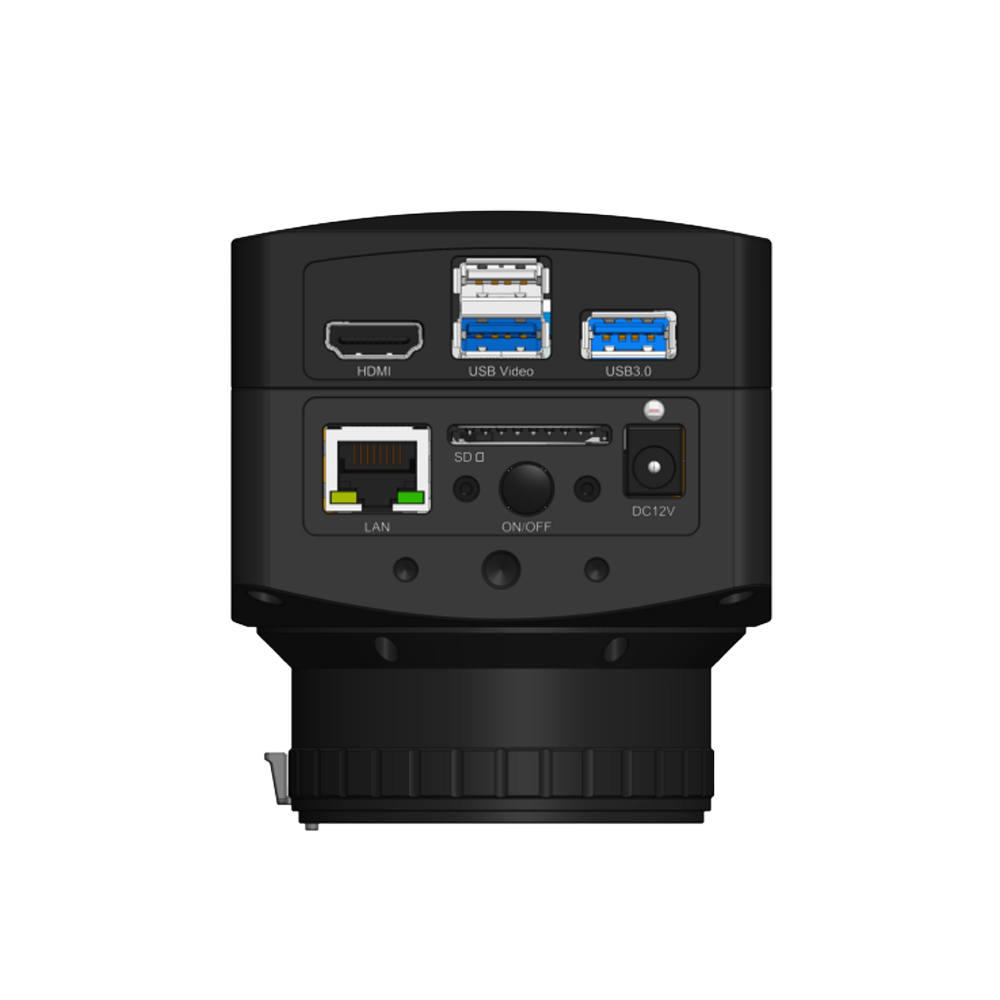

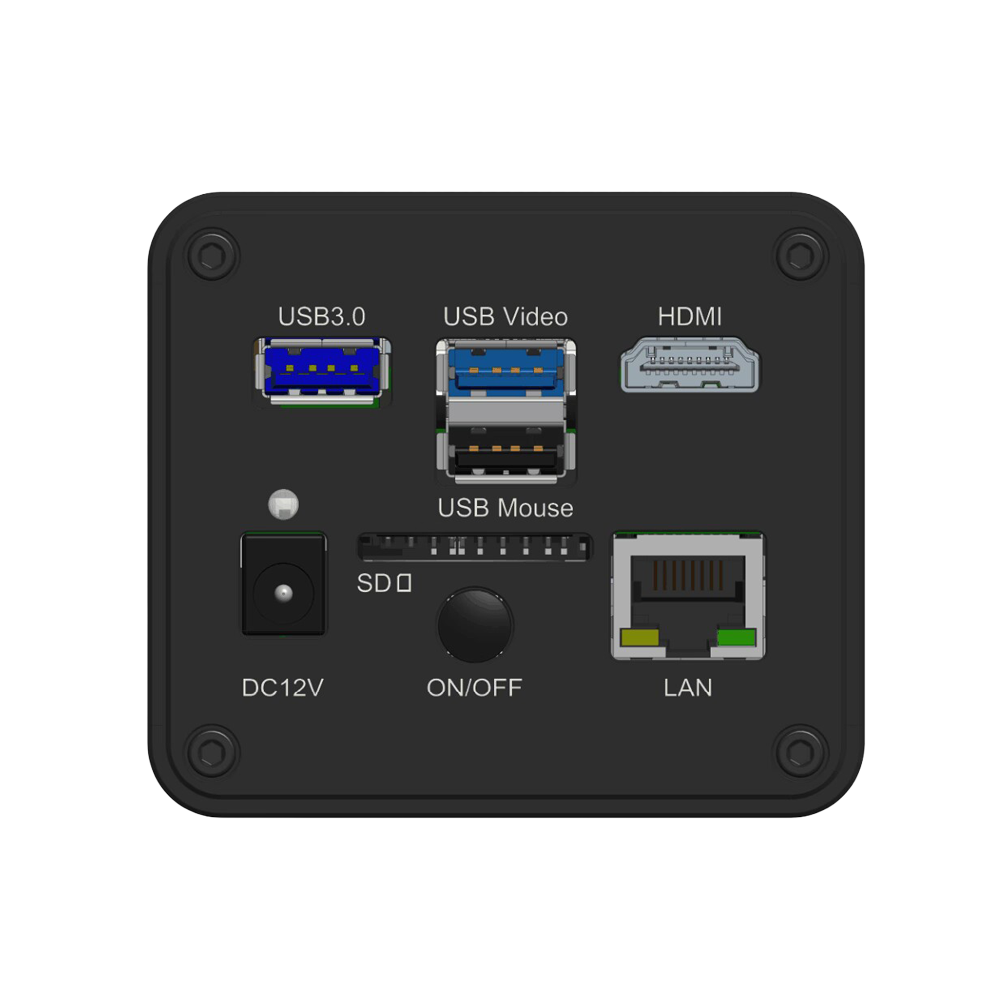

The X8FCAM4K22MPA_EFL camera outputs real-time images through the HDMI interface and can be operated via USB mouse through a graphical interface for image display adjustment, processing, measurement, and other functions.
The standout feature of the X8FCAM4K22MPA_EFL camera is its compatibility with any supported EF mount lens. Once a lens is properly installed, the HDMI interface displays real-time lens information including focal length, aperture, and focus status, enabling aperture control, manual focus, and autofocus operations.

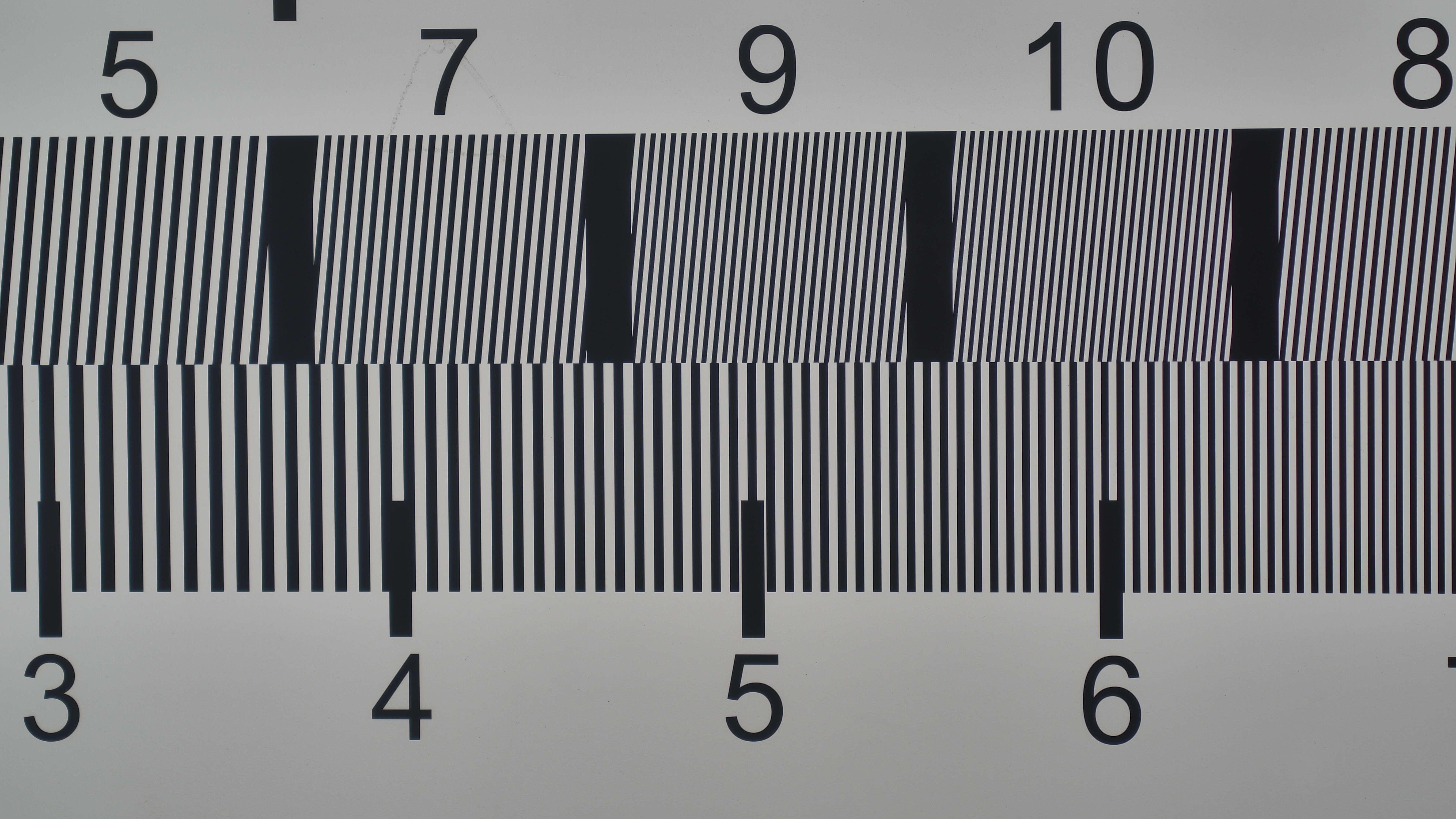

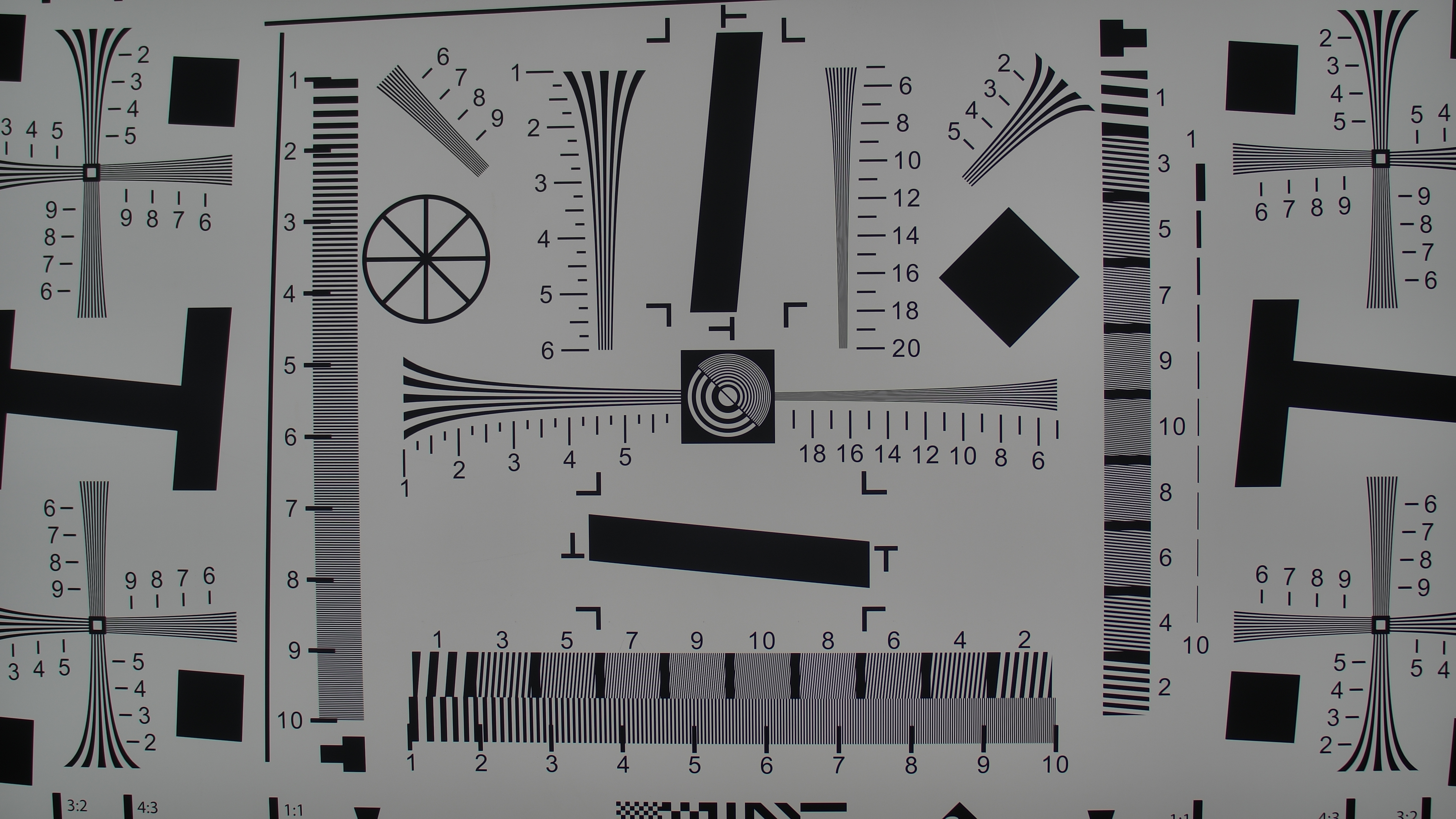

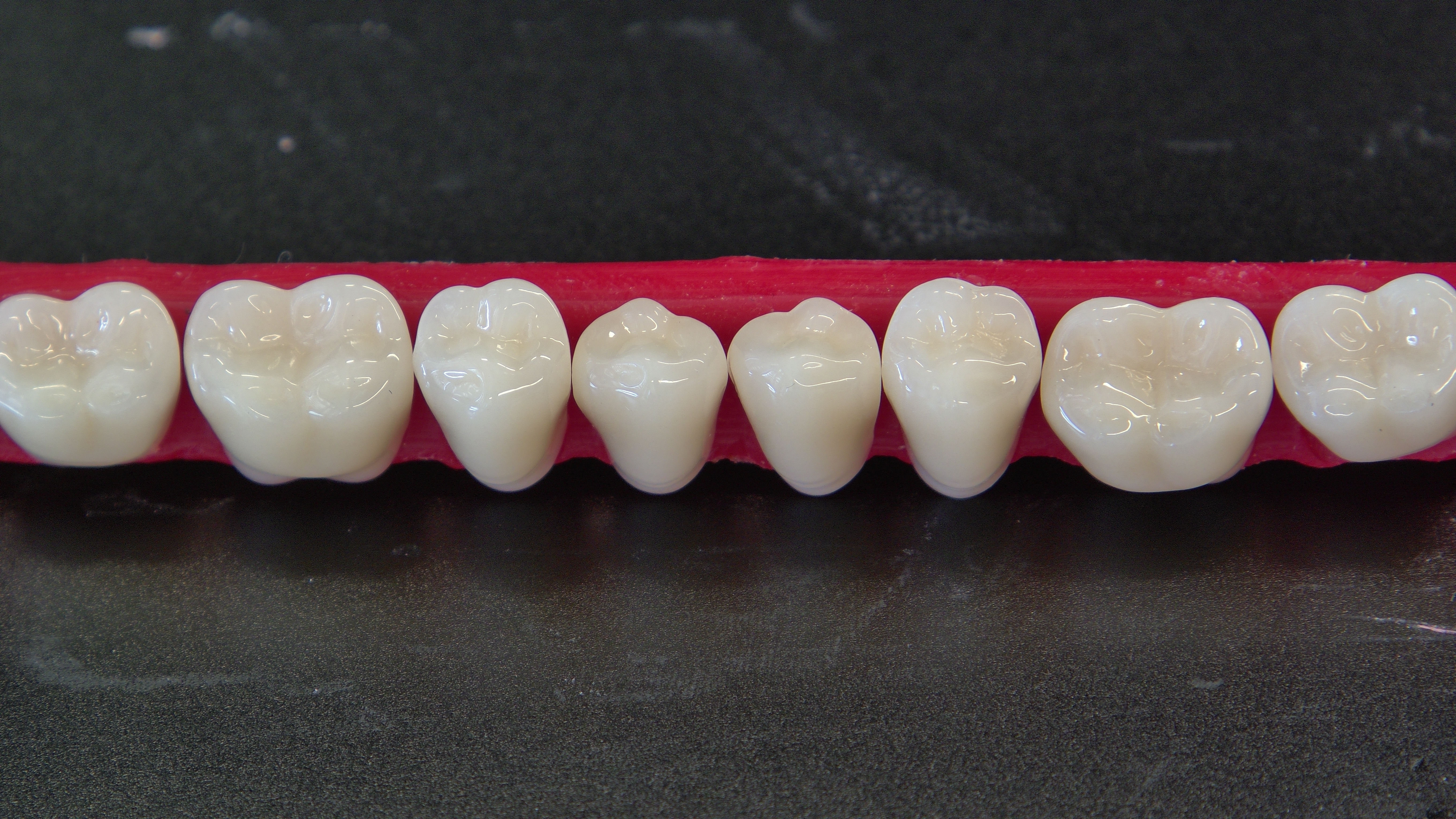

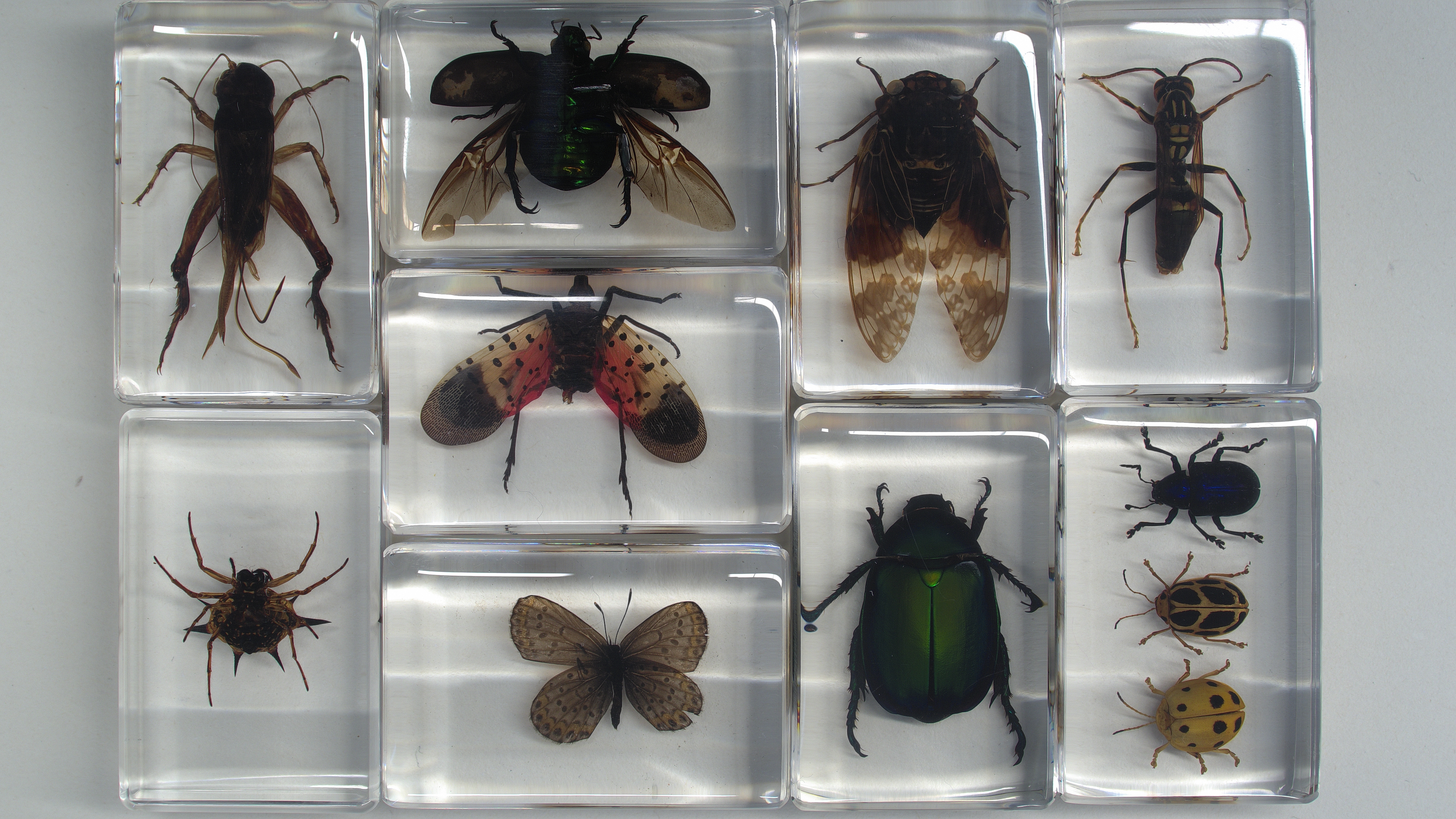

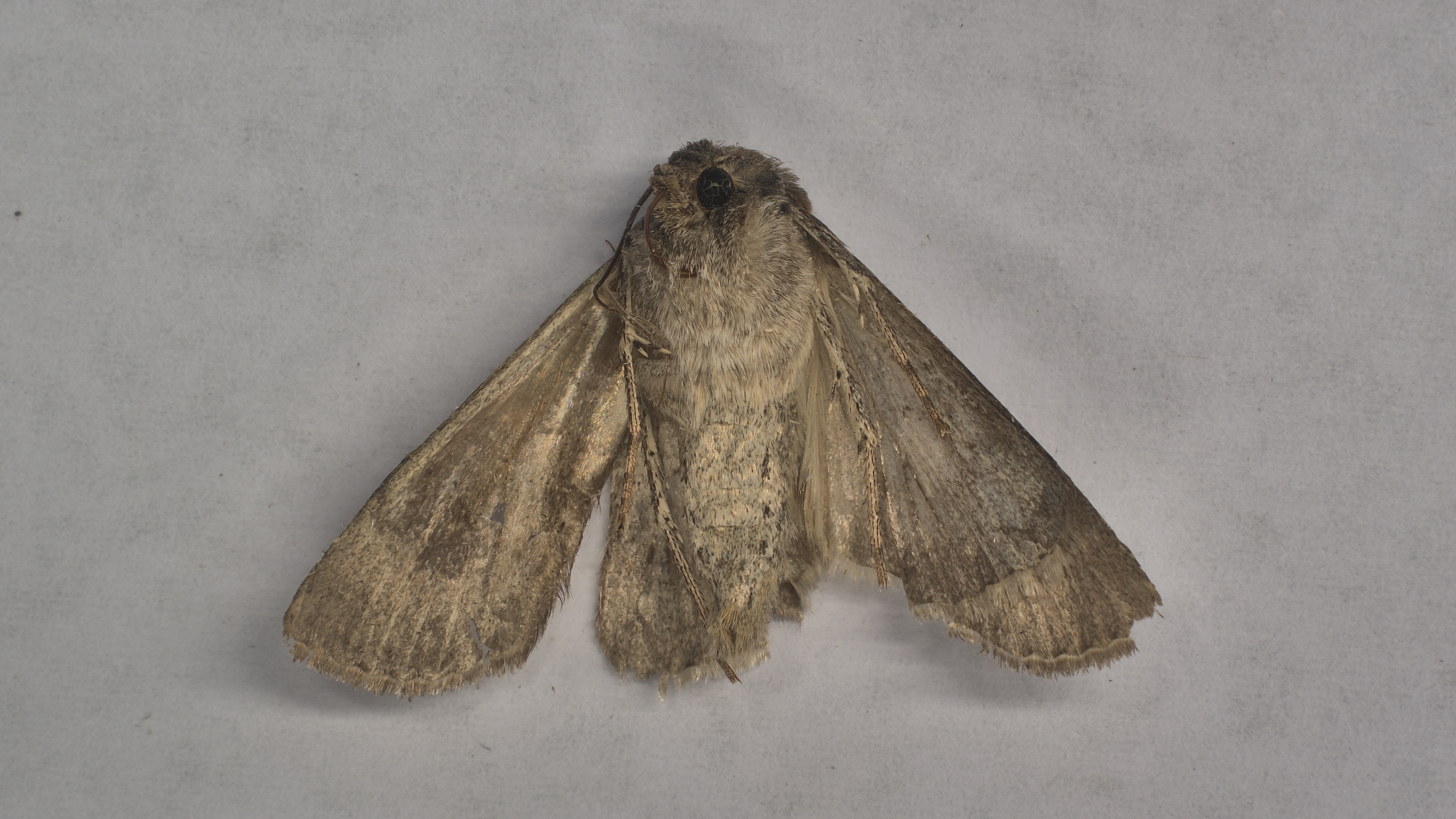

This camera is suitable for medical applications such as ophthalmology and dentistry, as well as ultra-high-definition industrial inspection. Various focal length EF mount lenses can be adapted according to customer requirements.
Product Features
- Sony back-illuminated large-format CMOS sensor
- Compatible with various EF mount lenses, enabling lens aperture control, manual focus, and autofocus

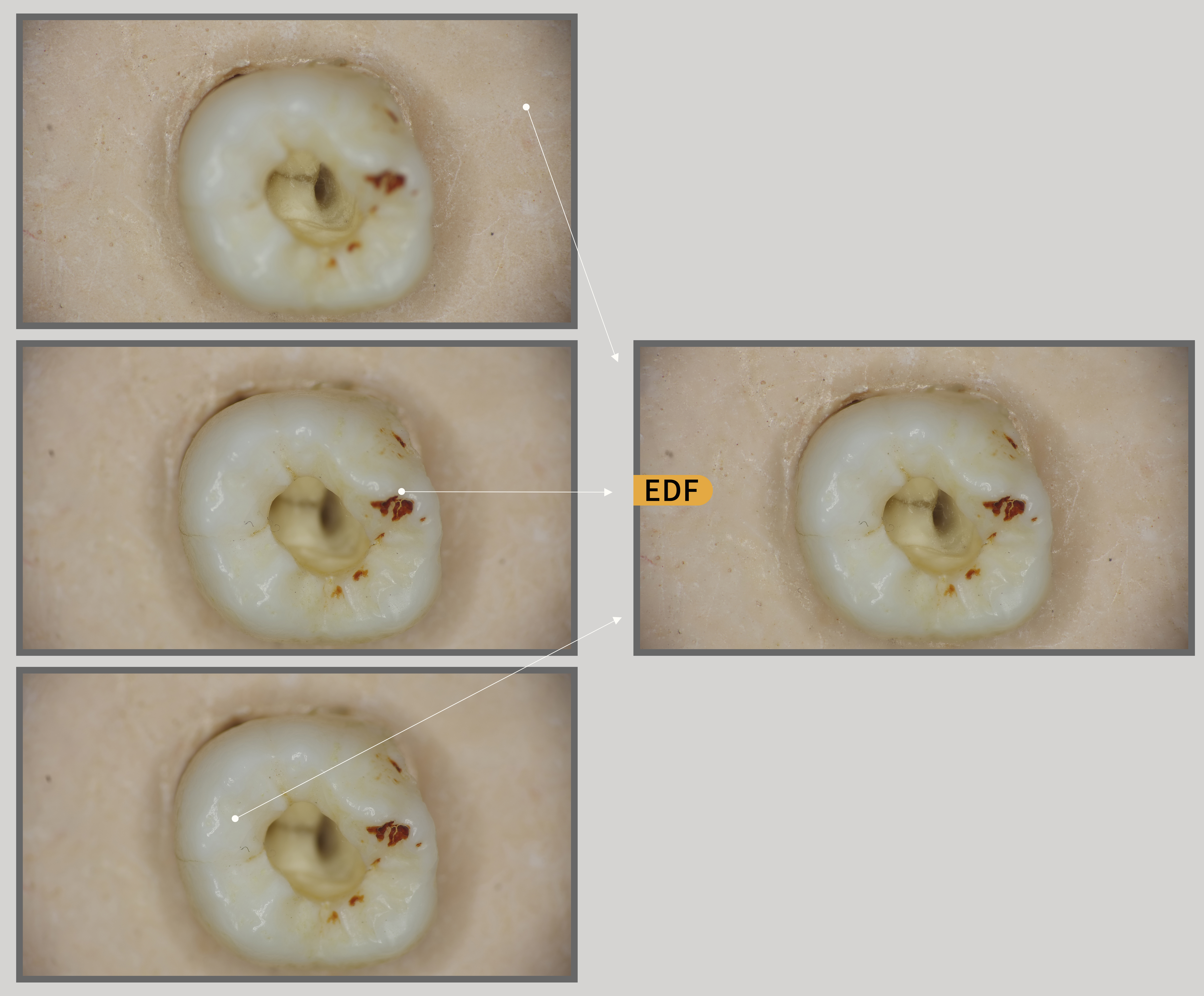

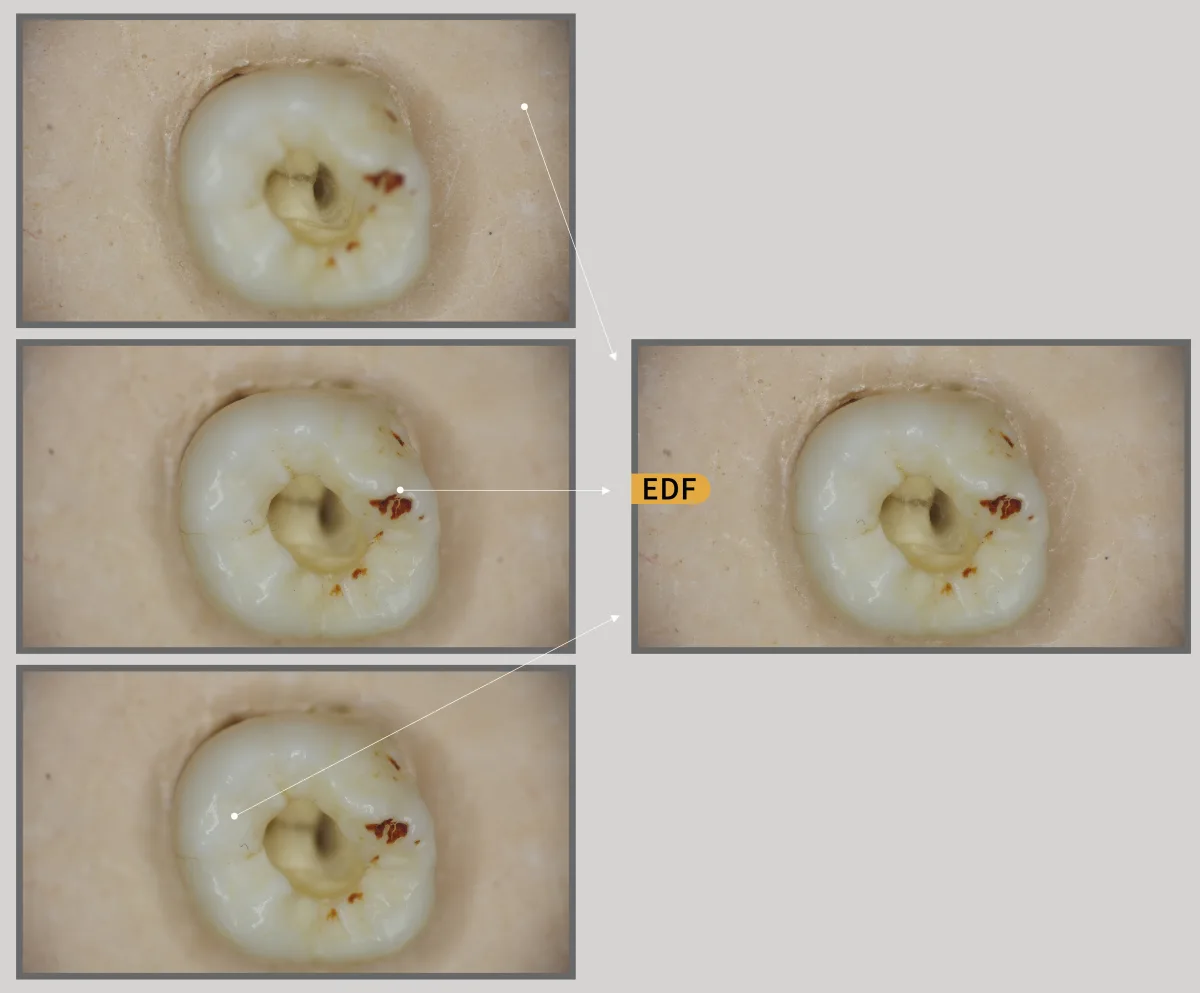

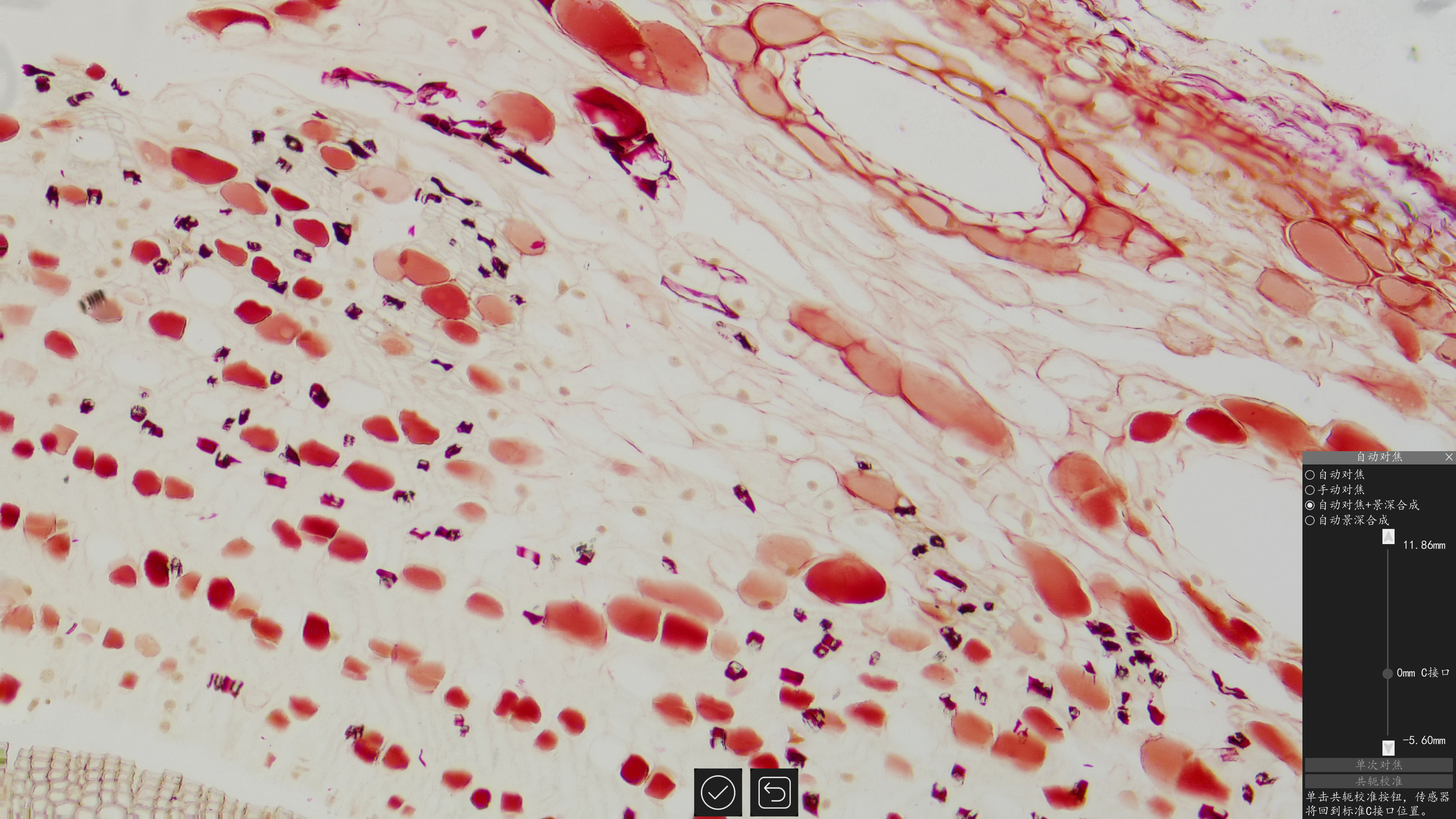

- Focus-based depth-of-field stacking for focused images
- Lens distortion correction functionality
- 10-bit ISP processing for superior color reproduction, enhanced sharpening and 3D noise reduction, precise ROI white balance
- 4K HDMI/NETWORK/USB multi-interface simultaneous output
- SD card/USB flash drive storage for captured videos or images with local preview and playback support
- RAW format image capture and display support
- Automatic image upload to server via network after capture
- USB audio module support for voice command real-time camera control for photography, recording, and freeze operations

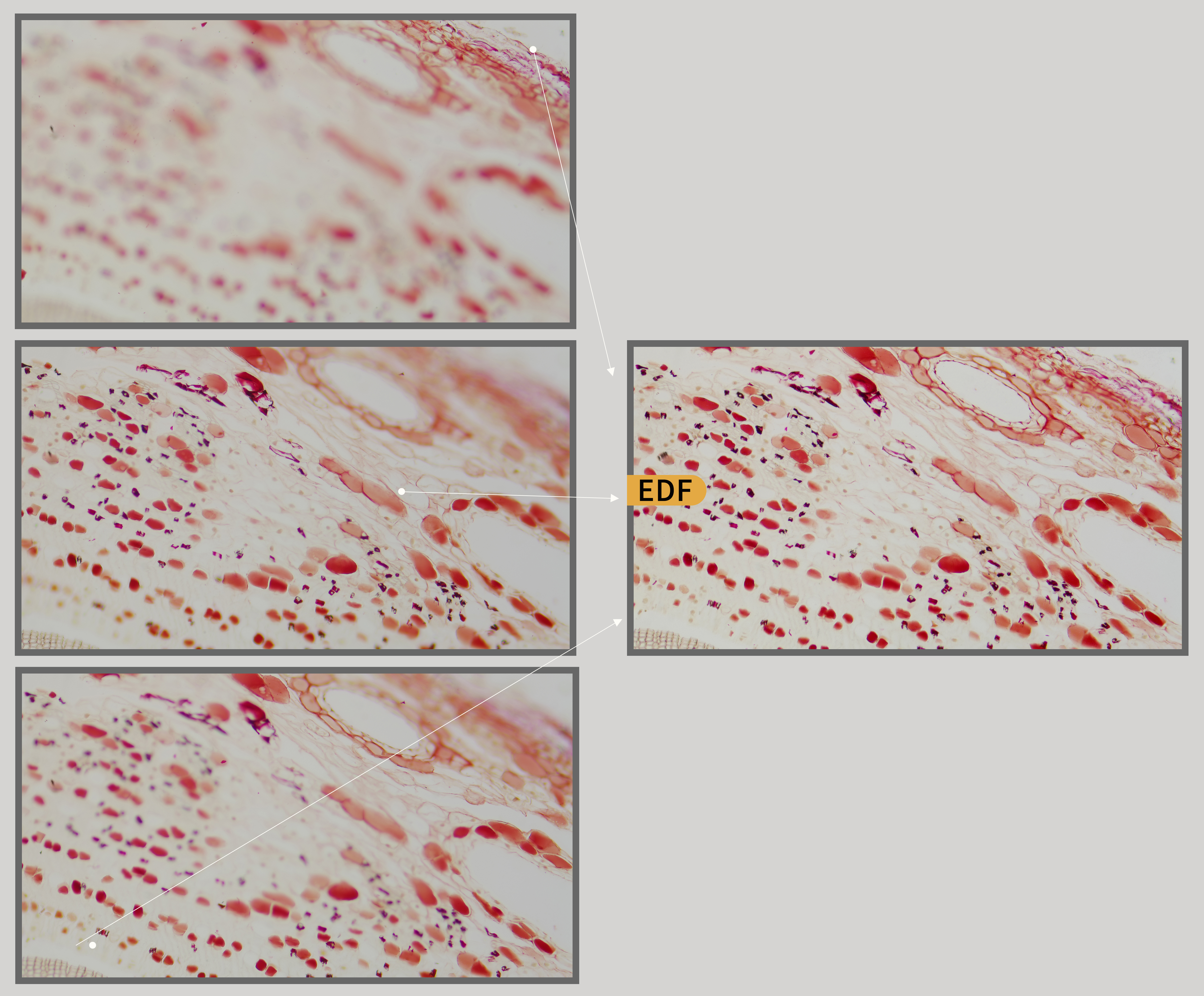

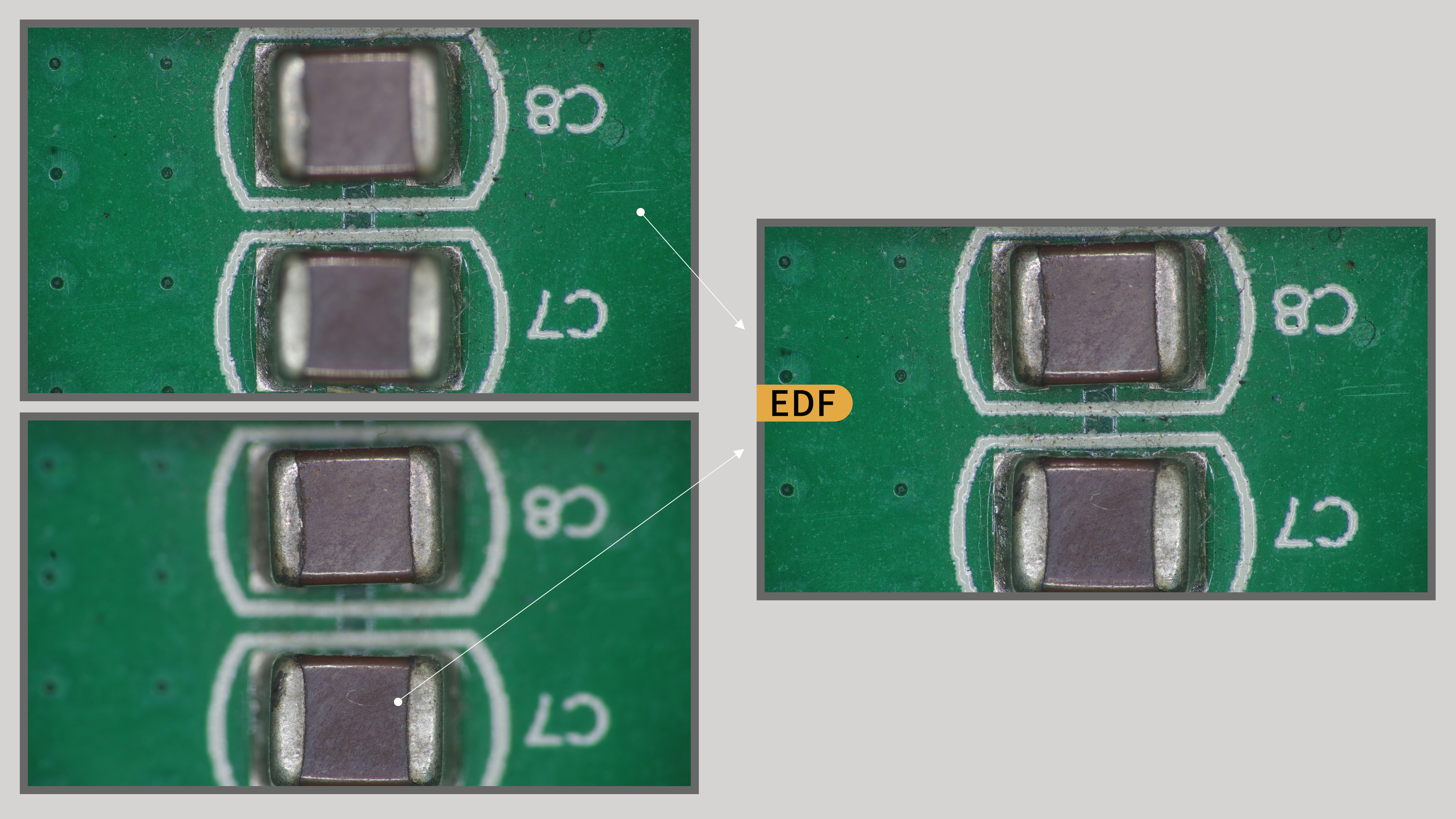

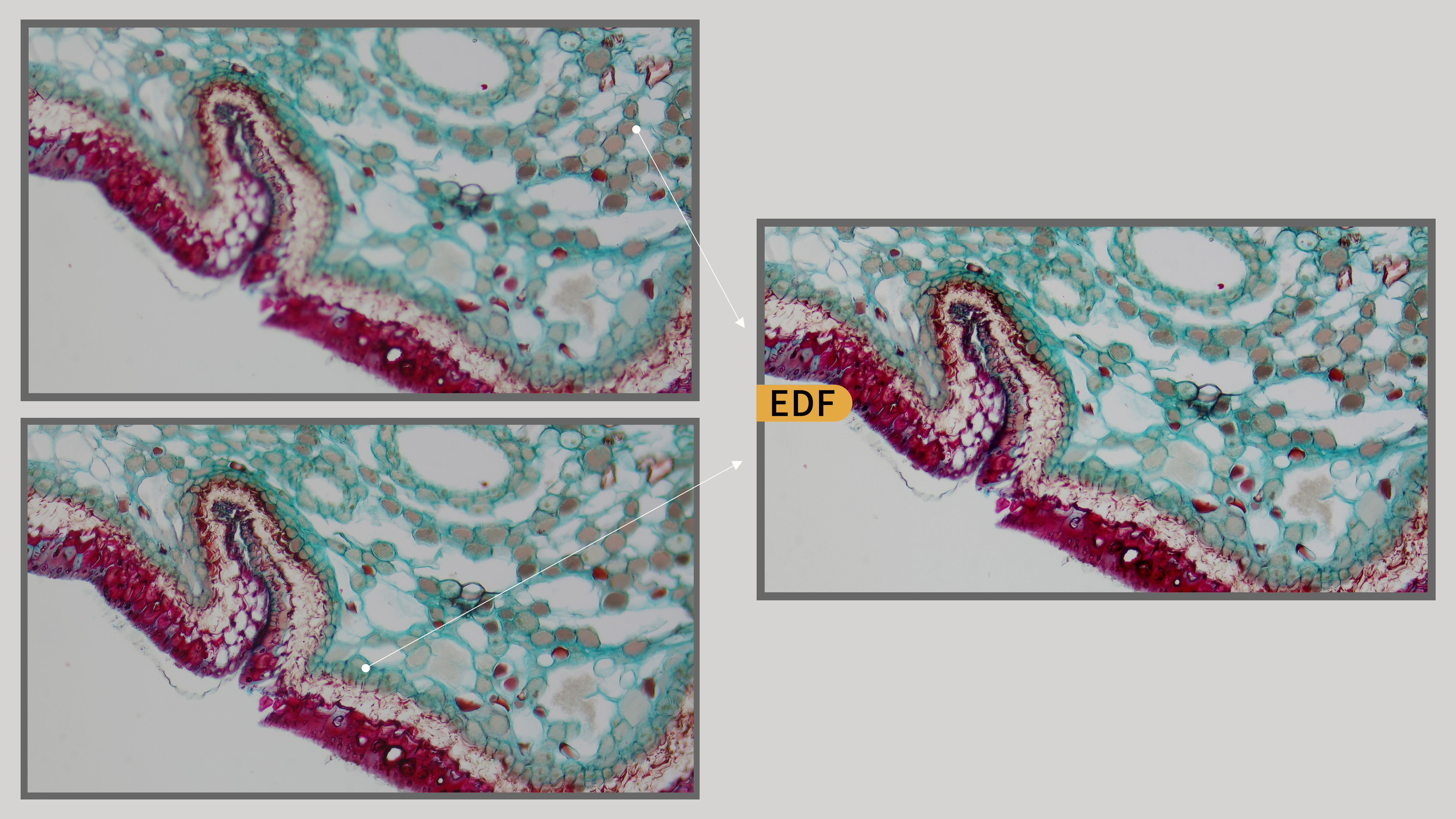

- Real-time video depth-of-field stacking functionality
- Real-time stitching function for higher quality images through real-time processing
- All-new UI interface; browsing interface provides rich file operation functions, image-to-image comparison, image-to-live-video comparison, multi-image depth-of-field stacking, multi-image stitching
- Embedded XCamView software provides rich image processing and measurement functions, supports automatic edge detection and automatic measurement
- Text input box supports bilingual Chinese-English input
- ToupView/ToupLite software for more convenient PC operation
- iOS/Android mobile applications, free download from app stores
HDMI/USB3/NETWORK 4K EF Mount Autofocus Camera
| Model | Output Interface | Sensor | Resolution | Frame Rate | Lens Mount |
Key Features |
|---|---|---|---|---|---|---|
| X8FCAM4K22MPA_EFL | HDMI2.0 USB3.0 Ethernet Wi-Fi |
Sony IMX571 (C)
1.7" (23.46 × 13.21 mm)
|
22 MP (6240×3512) |
HDMI: 37 fps @ 3840×2160, 37 fps @ 1920×1080 USB: 15 fps @ 6240×3512, 37 fps @ 2688×1512, 37 fps @ 1920×1080 NETWORK: 30 fps @ 3840×2160, 37 fps @ 1920×1080, 37 fps @ 1280×720 |
Canon EF Mount | Autofocus EF Mount SD Card Storage Wi-Fi Connectivity |
Product Features
Sony back-illuminated large-format CMOS sensor
Compatible with various EF mount lenses, enabling lens aperture control, manual focus, and autofocus
Focus-based depth-of-field stacking for focused images
Lens distortion correction functionality
10-bit ISP processing for superior color reproduction, enhanced sharpening and 3D noise reduction, precise ROI white balance
4K HDMI/NETWORK/USB multi-interface simultaneous output
SD card/USB flash drive storage for captured videos or images with local preview and playback support
RAW format image capture and display support
Automatic image upload to server via network after capture
USB audio module support for voice command real-time camera control for photography, recording, and freeze operations
Real-time video depth-of-field stacking functionality
Real-time stitching function for higher quality images through real-time processing
All-new UI interface; browsing interface provides rich file operation functions, image-to-image comparison, image-to-live-video comparison, multi-image depth-of-field stacking, multi-image stitching
Embedded XCamView software provides rich image processing and measurement functions, supports automatic edge detection and automatic measurement
Text input box supports bilingual Chinese-English input
ToupView/ToupLite software for more convenient PC operation
iOS/Android mobile applications, free download from app stores

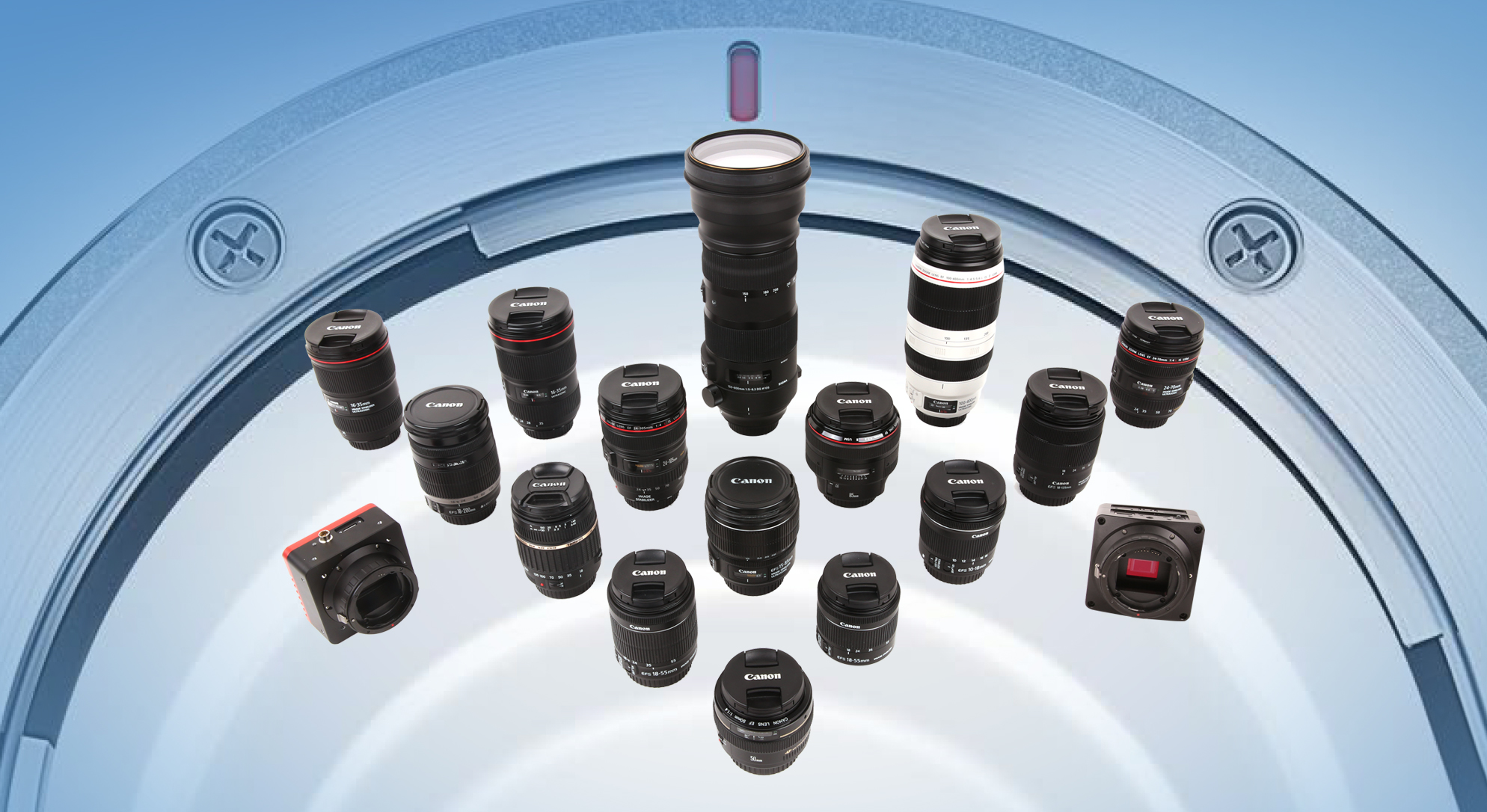

Lens Compatibility Overview
X8FCAM4K22MPA_EFL cameras can operate with any supported EF-mount lens. Once a lens is properly installed, the system reads focal length, aperture and focus information, while enabling motorized aperture and focus control.
X8FCAM4K22MPA_EFL cameras are theoretically compatible with all EF-mount lenses, though not every lens has been validated. Third-party models from Tamron, Sigma and others may exhibit limited control or incomplete compatibility. Share the lens models you plan to use and we will perform validation for you.
EF-mount lenses validated with X8FCAM4K22MPA_EFL:
| Lens | Minimum Focus Distance | Focal Length Feedback | Aperture Control | Focus Control | Fixed Working Distance Focus |
|---|---|---|---|---|---|
|
Canon EF-S Series Lenses
|
|||||
| Canon EF-S 10-18mm f/4.5-5.6 IS STM | Approx. 0.22 m | Supported | Supported | Supported | — |
| Canon EF-S 18-55mm f/3.5-5.6 IS STM | Approx. 0.25 m | Supported | Supported | Supported | Supported |
| Canon EF-S 18-55mm f/4-5.6 IS STM | Approx. 0.25 m | Supported | Supported | Supported | — |
| Canon EF-S 15-85mm f/3.5-5.6 IS USM | Approx. 0.35 m | Supported | Supported | Supported | — |
| Canon EF-S 18-135mm f/3.5-5.6 IS USM | Approx. 0.39 m | Supported | Supported | Supported | Supported |
| Canon EF-S 18-200mm f/3.5-5.6 IS | Approx. 0.45 m | Supported | Supported | Supported | — |
|
Canon EF Prime Lenses
|
|||||
| Canon EF 24mm f/1.4L II USM | Approx. 0.25 m | Supported | Supported | Supported | — |
| Canon EF 24mm f/2.8 IS USM | Approx. 0.20 m | Supported | Supported | Supported | — |
| Canon EF 35mm f/1.4L II USM | Approx. 0.28 m | Supported | Supported | Supported | — |
| Canon EF 50mm f/1.2L USM | Approx. 0.45 m | Supported | Supported | Supported | Supported |
| Canon EF 50mm f/1.4 USM | Approx. 0.45 m | Supported | Supported | Supported | — |
| Canon EF 85mm f/1.2L II USM | Approx. 0.95 m | Supported | Supported | Supported | — |
|
Canon EF Zoom Lenses
|
|||||
| Canon EF 16-35mm f/2.8L III USM | Approx. 0.28 m | Supported | Supported | Supported | — |
| Canon EF 16-35mm f/4L IS USM | Approx. 0.28 m | Supported | Supported | Supported | — |
| Canon EF 24-70mm f/2.8L II USM |
Approx. 0.38 m
(Approx. 0.20 m in macro mode)
|
Supported | Supported | Supported | — |
| Canon EF 24-70mm f/4L IS USM |
Approx. 0.38 m
(Approx. 0.20 m in macro mode)
|
Supported | Supported | Supported | — |
| Canon EF 24-105mm f/4L IS USM | Approx. 0.45 m | Supported | Supported | Supported | — |
| Canon EF 100-400mm f/4.5-5.6L IS II USM | Approx. 0.98 m | Supported | Supported | Supported | — |
|
Third-Party Compatible Lenses
|
|||||
| Sigma 150-600mm f/5-6.3 DG OS HSM|S | Approx. 2.6 m | Supported | Supported | Supported | — |
Compatible Canon EF Lenses
X8FCAM4K22MPA_EFL cameras pair seamlessly with a wide range of professional EF-mount lenses.
X8FCAM4K22MPA_EFL Multi-Interface Camera | Package Contents #

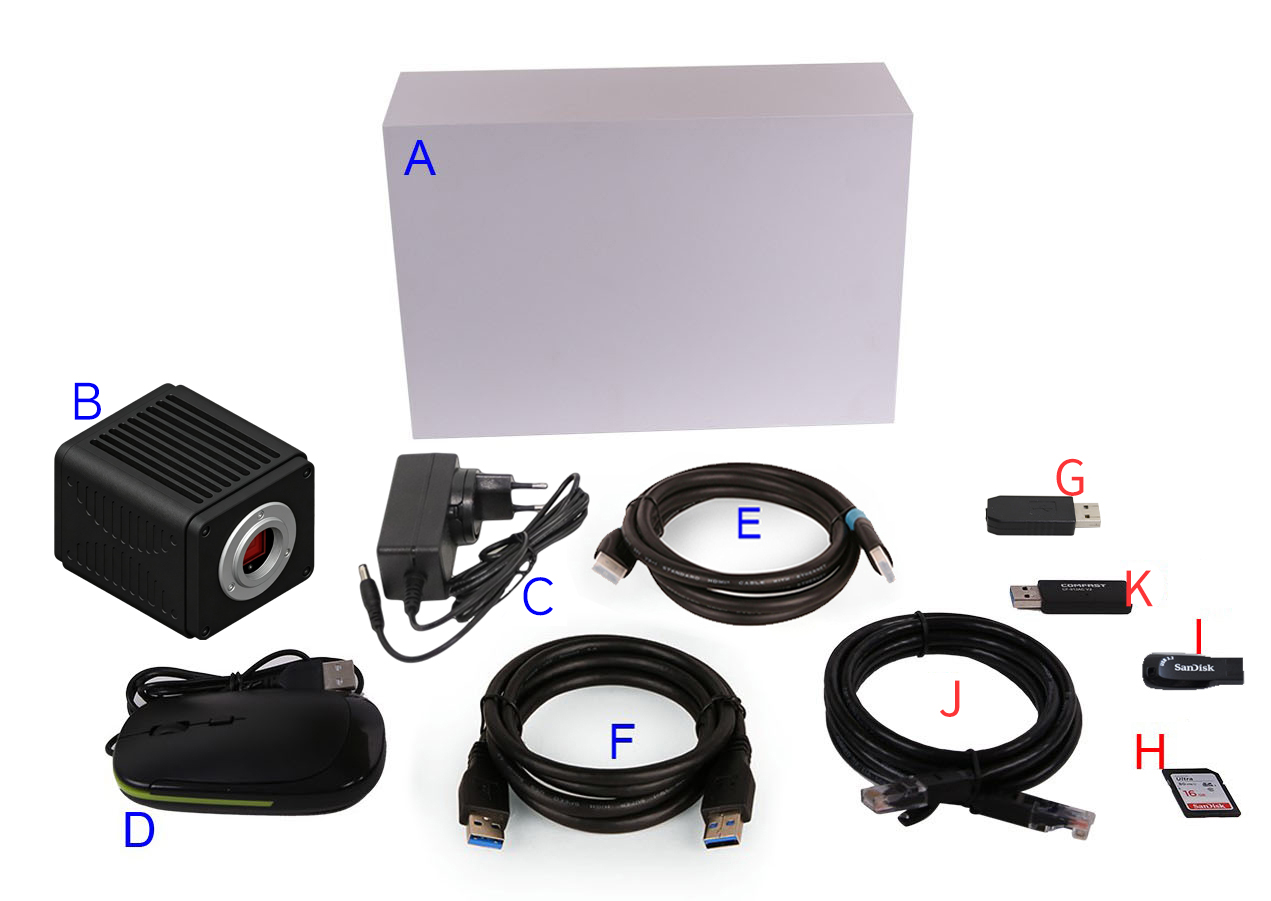

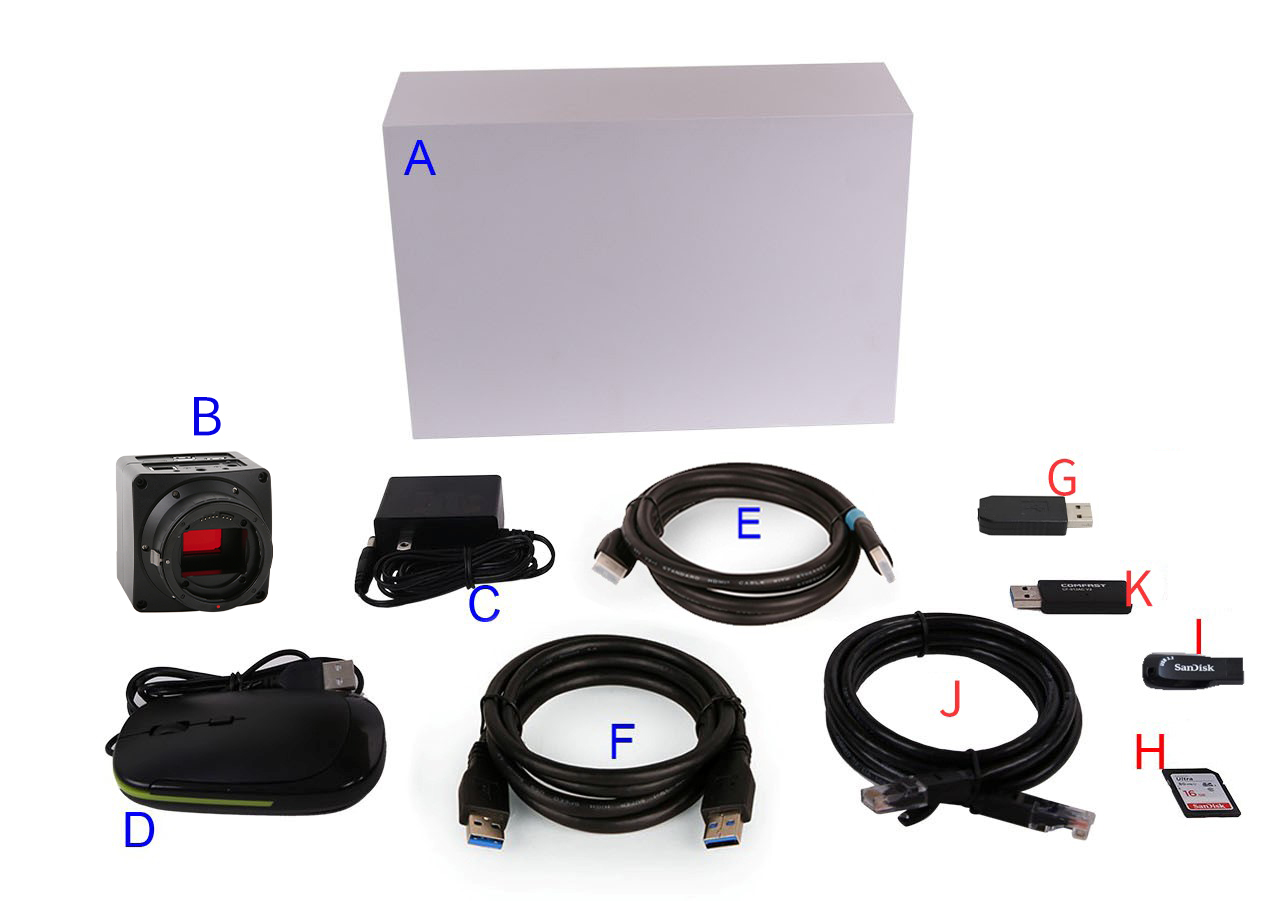

Standard Packing List
- A Camera box: 25.5 cm × 17.0 cm × 9.0 cm (1 pc, approx. 1.70 kg per box)
- B X8FCAM4K22MPA_EFL camera ×1
- C Power adapter (input AC 100–240 V 50/60 Hz; output DC 12 V / 2 A; model POWER-12V2A (MX24Z1-1202000); US/EU plug options)
- D USB mouse ×1
- E HDMI 2.0 cable ×1
- F USB 3.0 Type-A to Type-A gold-plated cable (1.5 m)
Optional Accessories
- G Voice control module
- H SD card (≥16 GB, Class 10)
- I USB flash drive
- J Ethernet cable
- K USB Wi-Fi adapter (required for Wi-Fi mode)
- L EF-mount lenses
X8FCAM4K22MPA_EFL Multi-Interface Camera | Product Dimensions #

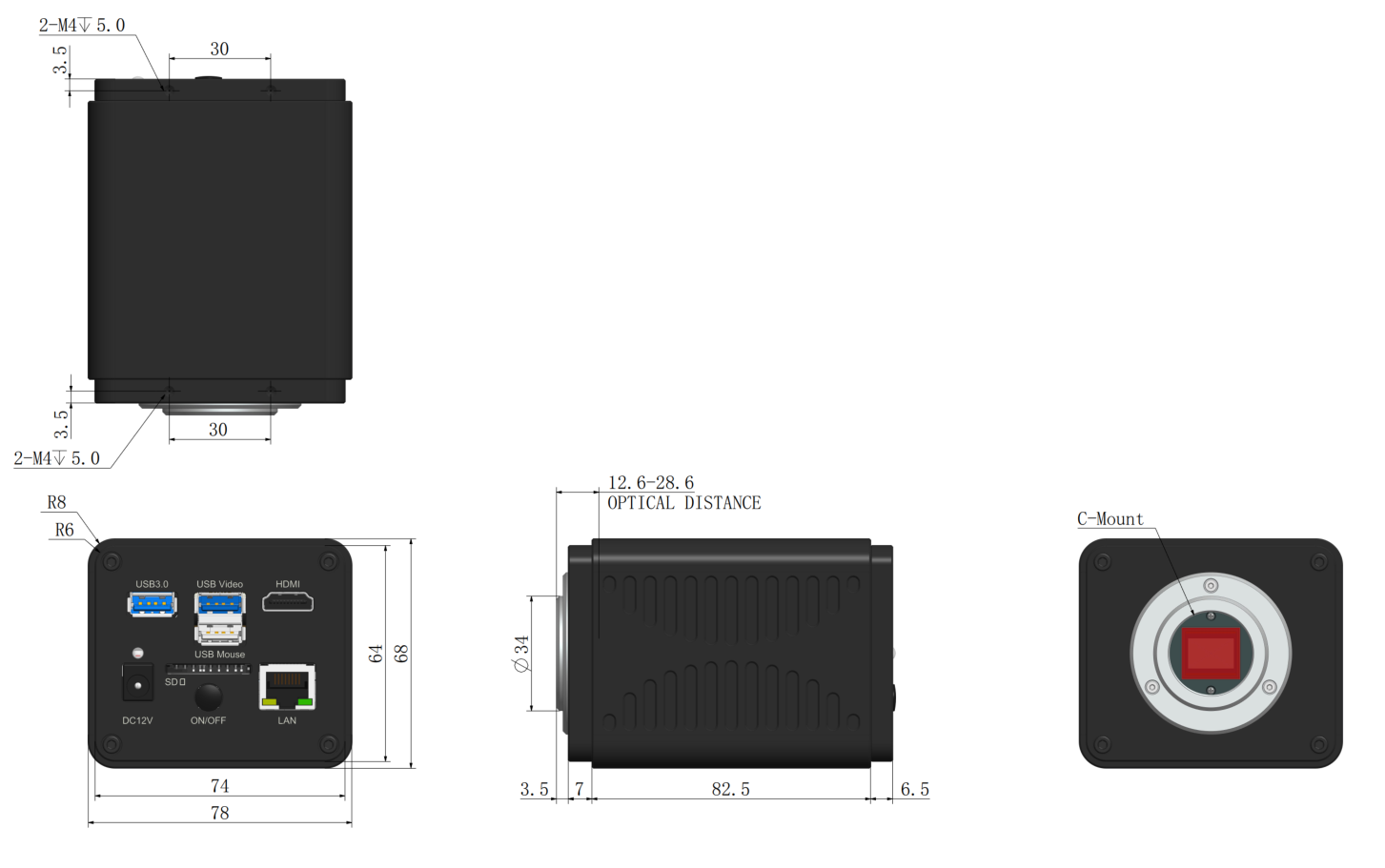

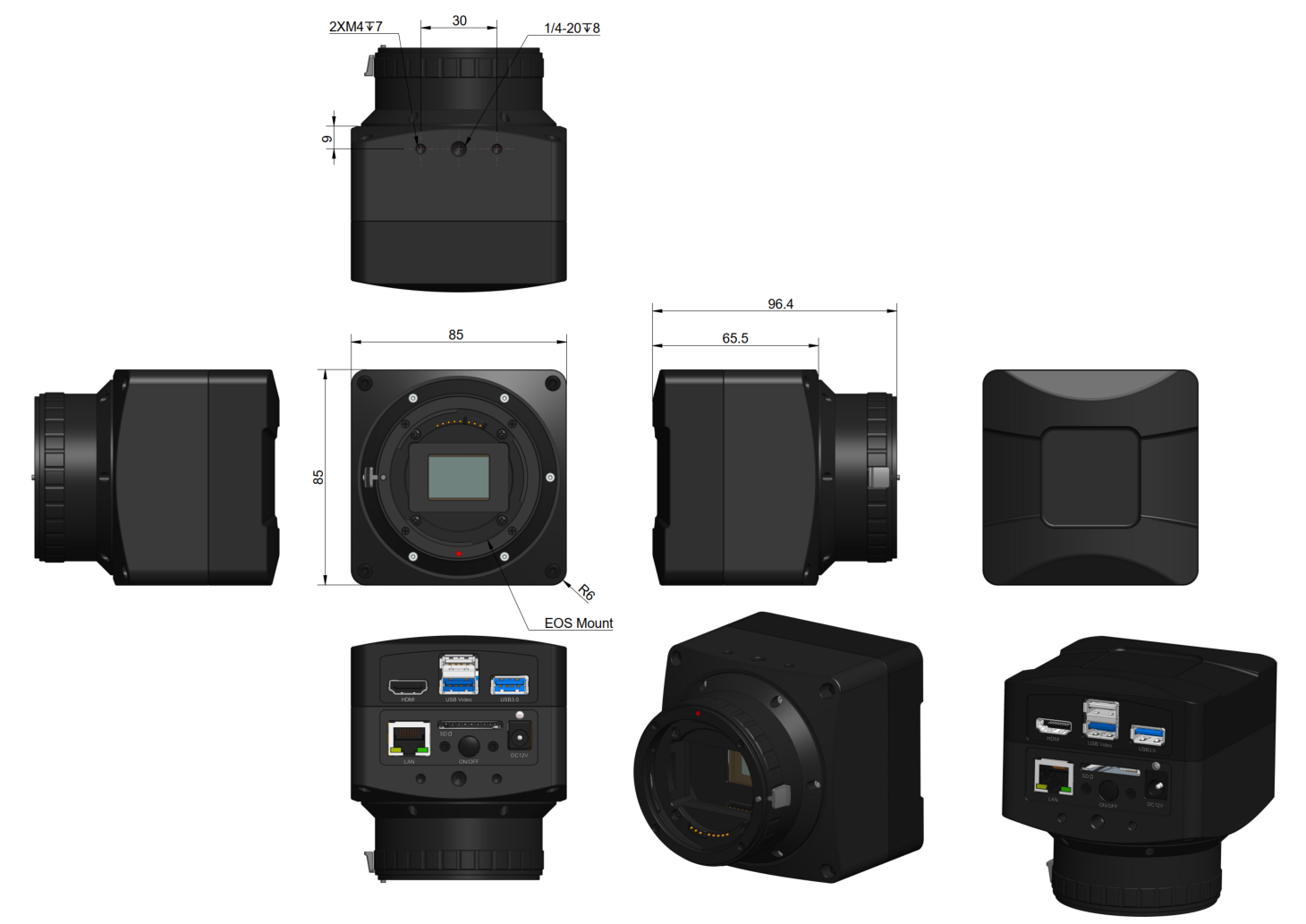

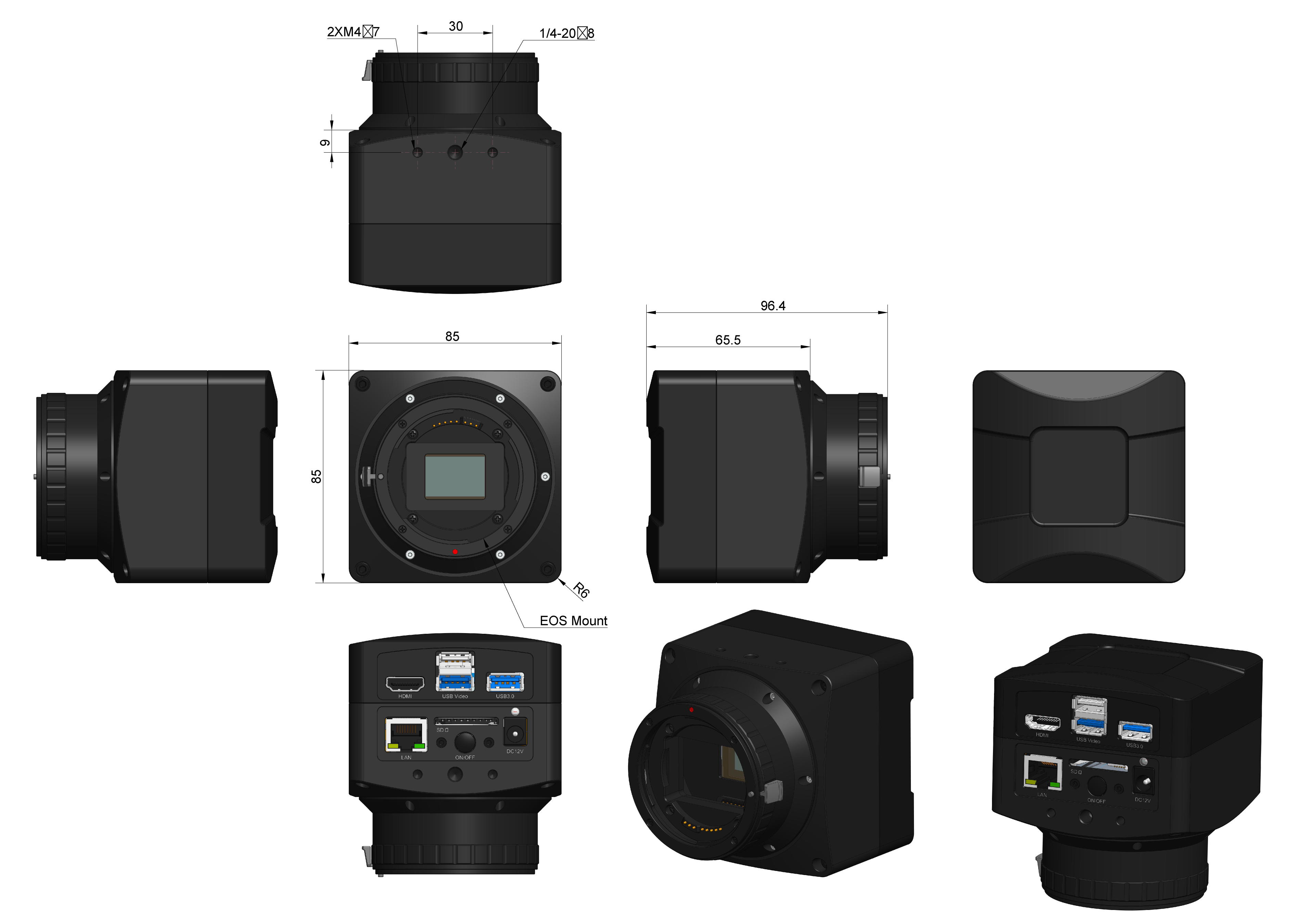

Overall dimensions with EF lens adapter installed
Complete layout including the lens adapter module
Verify mounting holes and connector orientation with the dimension diagram before installation; diagrams are illustrative and final details are subject to the actual product.
In-Depth Overview
The X8FCAM4K22MPA_EFL series represents the latest AI-driven imaging platform from ToupTek Photonics. It is engineered for flagship medical diagnostics, precision industrial inspection and cutting-edge research. The series adopts Sony’s IMX571 back-illuminated CMOS sensor to deliver 22 MP ultra-high-resolution imaging on a 1.7-inch format, ensuring outstanding sensitivity and dynamic range. A 10-bit ISP enables professional-grade color reproduction and image optimization. With the Canon EF mount, the system fully supports professional lenses, offering electronic aperture control, auto-focus and real-time depth fusion. HDMI 2.0, USB 3.0, Gigabit Ethernet and Wi-Fi outputs operate concurrently, while the integrated XCamView software delivers a complete workflow covering acquisition, processing, measurement and analysis—ideal for ophthalmology, dental imaging, ultra-high-definition microscopy and any application that demands exceptional clarity.
Key Functions
- 22 MP ultra-high-resolution imaging with the Sony IMX571 large-format sensor (3.76 µm pixel size) for exceptional fidelity
- 10-bit ISP with professional 3D noise reduction, sharpening and ROI white balance
- Canon EF mount electronic control system for aperture adjustment and auto/manual focus switching
- Dual depth-fusion modes (real-time and automated) to solve complex depth-of-field scenarios
- RAW image capture support for advanced post-processing
- Voice control module compatibility for hands-free capture and recording commands
- Automatic network upload of captured images for remote data collection and management
- Built-in edge detection and measurement algorithms to deliver precise image analysis
Core Advantages
- Industry-leading image quality with 22 MP resolution and a 1.7-inch sensor format
- 10-bit color depth for superior tonal accuracy and detail compared with 8-bit systems
- Concurrent multi-interface output with 4K HDMI live preview alongside USB and network transmission
- Extensive lens ecosystem supporting more than 18 Canon OEM lenses
- High automation featuring voice control, auto-focus and integrated depth fusion
- Industrial-grade reliability with a -10 to 50 °C operating temperature range
- Multilingual UI with simplified Chinese and English plus 13 additional languages for global deployment
