TXCAMLITE4K Series
Product Introduction

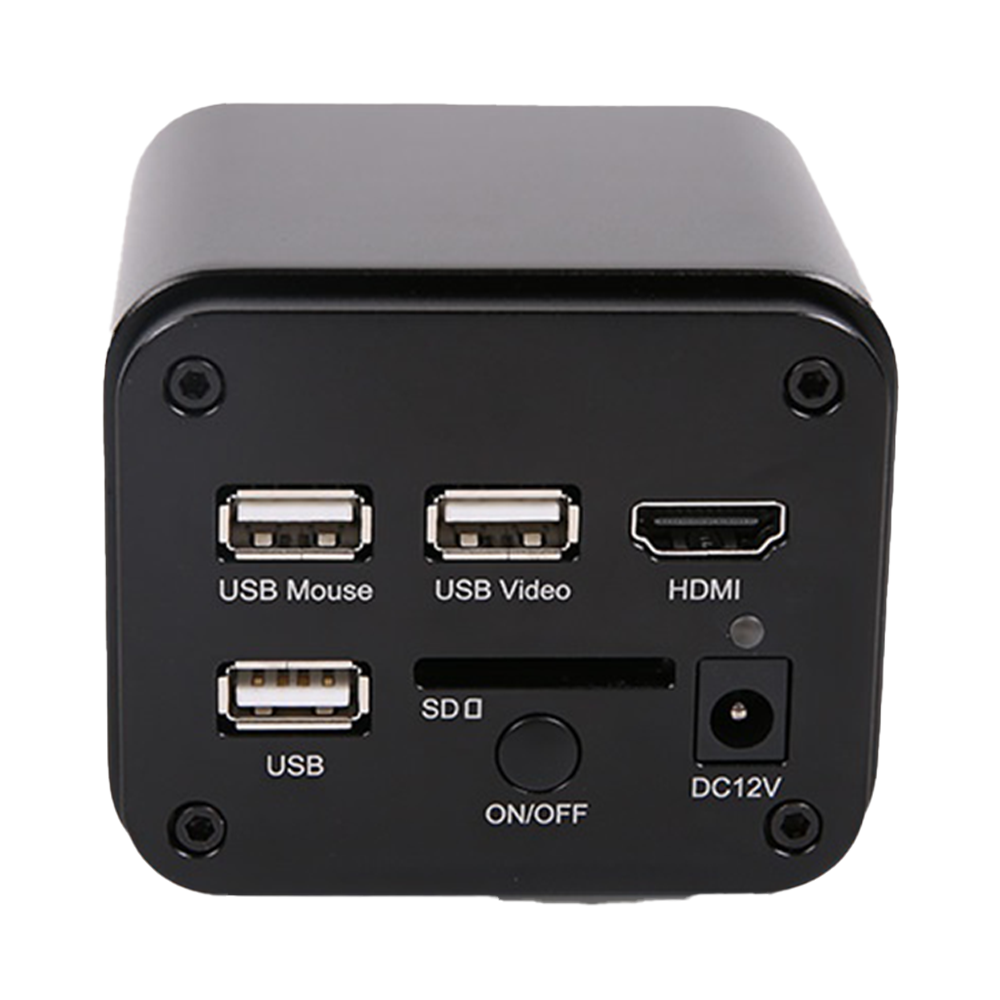

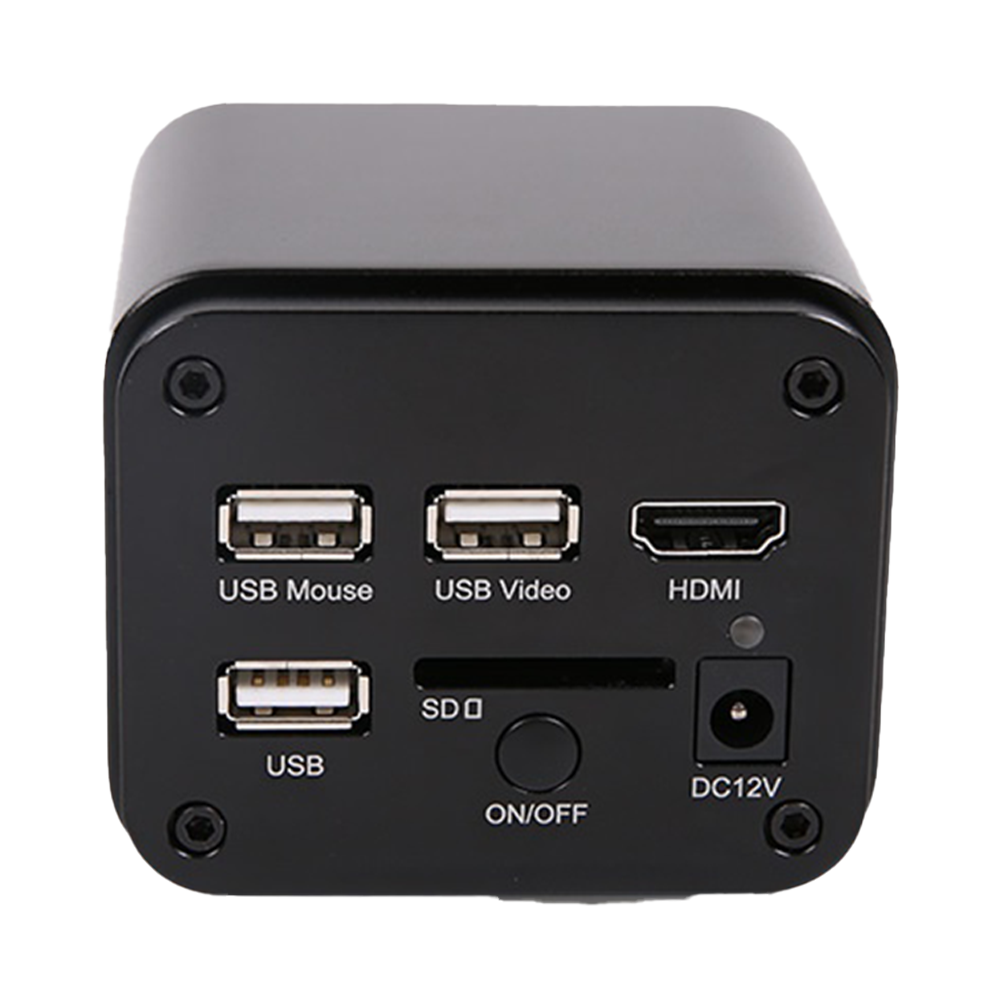

TXCAMLITE4K series HDMI camera is a multi-output CMOS camera with touch functionality supporting HDMI/USB interface, achieving 30 frames per second at 4K resolution.
TXCAMLITE4K series HDMI cameras adopt standard C-mount interface for maximum compatibility with various microscope systems. When used with HDMI displays, the built-in XCamView software provides camera control functions through touchscreen or mouse. When connected to computer USB interface, it can transmit video to computer in real-time for image capture and video recording.
Hardware 3D noise reduction, sharpness and local tone mapping algorithms significantly improve the image and video quality of TXCAMLITE4K series cameras.
The included Windows software ToupView/ToupLite provides image processing and measurement functions, as well as advanced composite functions such as image stitching and focus stacking. The software features magnification calibration at multiple magnifications for precise size measurement at different magnifications. For Mac and Linux systems, simplified software is available for capturing video, still images, and simple image processing.
Product Features
- Sony Exmor back-illuminated CMOS sensor
- 4K HDMI/USB multi-interface output
- 4K/1080P adaptive switching, 4K frame rate of 30 fps
- SD card or USB drive saves captured images or videos
- Built-in XCamView software provides camera control through touchscreen or mouse
- Touch/mouse control modes can be switched to each other
- Powerful ISP and other related processing functions
- ToupView/ToupLite software for more convenient computer operation
TXCAMLITE4K Series
Supports HDMI, USB output and touch control, rich image processing and measurement functions, suitable for teaching, training and scientific imaging applications.
| Model | Sensor/Size | Effective Pixels | Output Resolution | Frame Rate (fps) | Output Interface | Auto Focus | Lens Mount | Storage Support | Featured Functions |
|---|---|---|---|---|---|---|---|---|---|
| TXCAMLITE4K8MPA |
Sony IMX334(C)
1/1.8" (7.68×4.32 mm)
|
2.0 μm × 2.0 μm | 8MP (3840×2160) |
HDMI: 30 fps@3840×2160 30 fps@1080P; USB: 20 fps@3840×2160 |
HDMI1.4 USB2.0 | C-mount | SD card / USB drive | Touch control Mouse operation mode Image measurement Video recording Graphics overlay Multi-language menu ROI white balance 3D noise reduction | |
| TXCAMLITE4K8MPB |
Sony IMX485(C)
1/1.2" (11.14×6.26 mm)
|
2.9 μm × 2.9 μm | 8MP (3840×2160) |
HDMI: 30 fps@3840×2160 30 fps@1080P; USB: 20 fps@3840×2160 |
HDMI1.4 USB2.0 | C-mount | SD card / USB drive | Touch control Mouse operation mode Image measurement Video recording Graphics overlay Multi-language menu ROI white balance 3D noise reduction |
TXCAMLITE4K Multi-Interface Camera | Packing List #

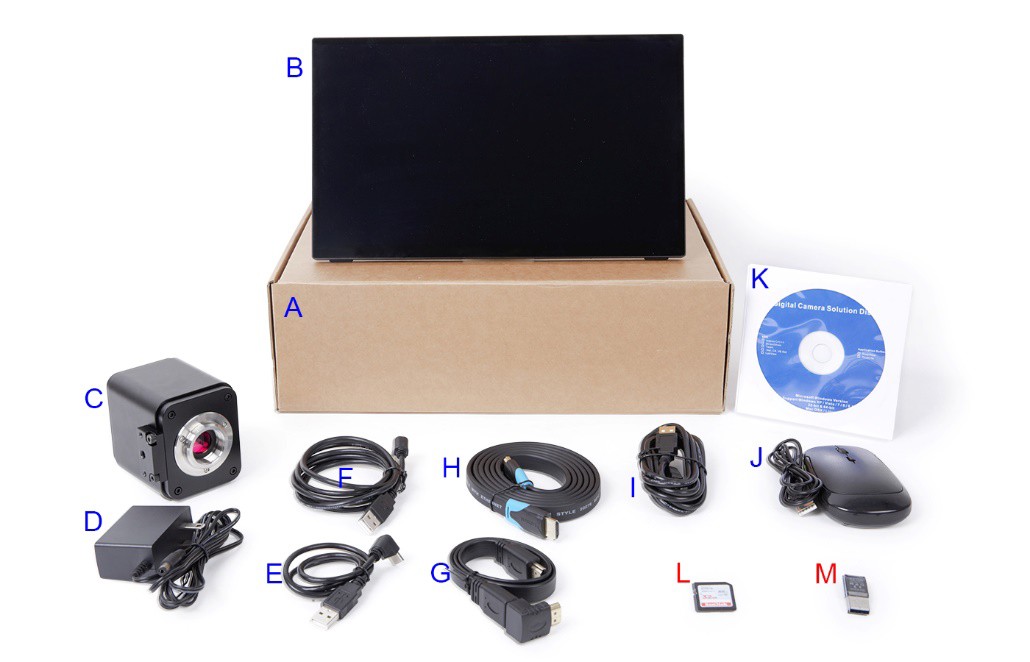

Standard Packing List
- A Camera box size: 33 cm × 21.5 cm × 6.8 cm (1 pcs, about 1.48 kg per box)
- B 4K or 1080p touchscreen ×1
- C TXCAMLITE4K camera ×1
- D Power adapter: Input AC 100~240 V 50/60 Hz, output DC 12 V 1 A (US POWER-U-12V1A MSA-C1000IC12.0-12H-US; EU POWER-E-12V1A MSA-C10001C12.0-12H-DE); or DC 12 V 2 A (POWER-12V2A MX24Z1-1202000 with US/EU plugs); EMI: FCC Part 15 Subpart B; EMS: EN61000-4-2/3/4/5/6
- E USB Type-A → Type-C cable 0.5 m (for close screen placement)
- F USB Type-A → Type-C cable 1.5 m (for distant screen placement)
- G HDMI cable 0.5 m (for close screen placement)
- H HDMI cable 1.5 m (for distant screen placement)
- I USB2.0 Type-A male to Type-A male cable 2.0 m
- J Mouse
- K CD (driver and application, Ø12 cm)
Optional Accessories
- L SD card (16 GB+, Class 10)
- M 32 GB USB drive
-
N Adjustable eyepiece tube adapters
Dia.23.2 mm to C-mount: 108001/AMA037, 108002/AMA050, 108003/AMA075 (choose based on the camera and microscope).
-
O Fixed eyepiece tube adapters
Dia.23.2 mm to C-mount: 108005/FMA037, 108006/FMA050, 108007/FMA075. Note: confirm the camera model and scenario before choosing N or O; engineers can assist.
- P 108015 (Dia.23.2 mm→30.0 mm) adapter ring for 30 mm eyepiece tubes
- Q 108016 (Dia.23.2 mm→30.5 mm) adapter ring for 30.5 mm eyepiece tubes
- R Micrometer: 106011/TS-M1 (X=0.01 mm/100Div.), 106012/TS-M2 (X,Y=0.01 mm/100Div.), 106013/TS-M7 (X=0.01 mm/100Div., 0.10 mm/100Div.)
TXCAMLITE4K Multi-Interface Camera | Product Dimensions #

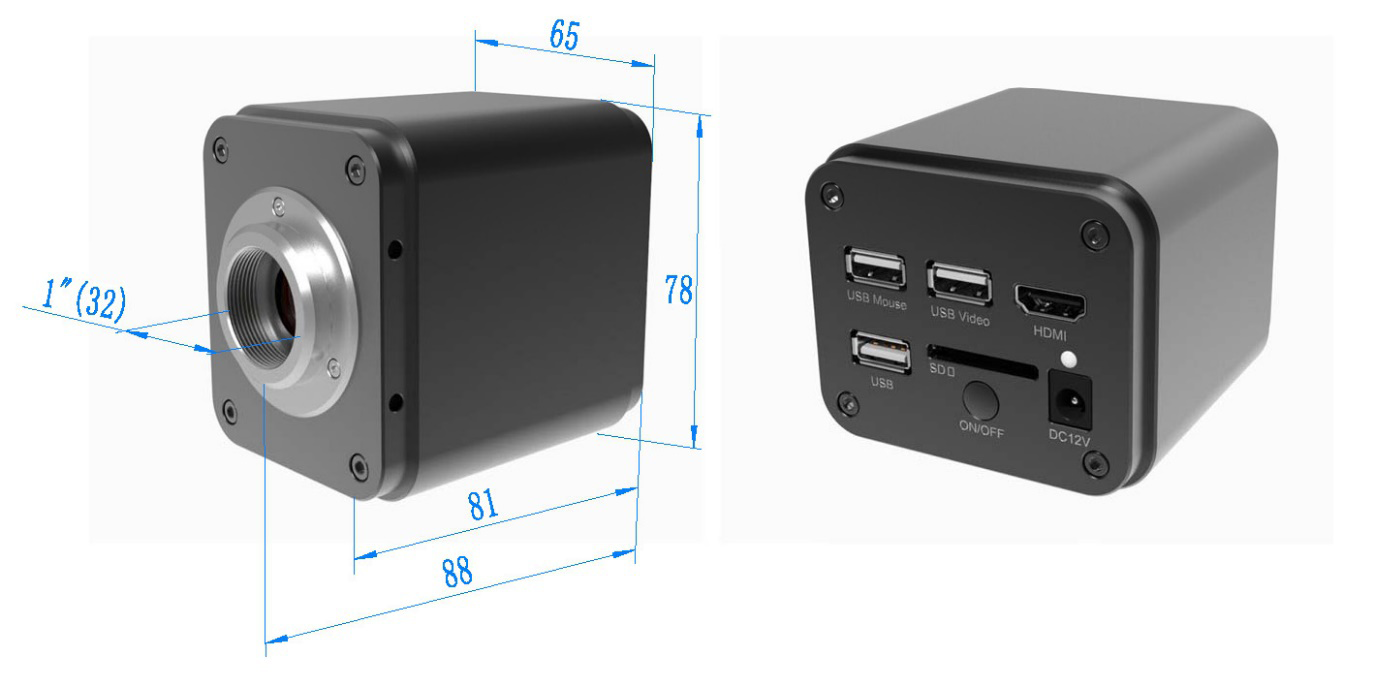

Body dimensions and adapter module interfaces
See manual Fig. 3-86
Please confirm mounting holes and interface orientation per the dimension drawing before installation.
Deep Dive
The Touptek TXCAMLITE4K series is a multi-function CMOS microscope camera with HDMI/USB dual outputs. It has built-in touchscreen control, enabling image and video capture without an external PC.
It uses Sony Exmor backside-illuminated CMOS sensors, supports 4K/1080p auto switching up to 30 fps, and integrates hardware 3D noise reduction, sharpness enhancement, and local tone mapping to elevate microscope image quality.
Technical Highlights
- Flexible dual-interface output: HDMI and USB3.0 outputs support real-time imaging on an HDMI display or USB streaming to a PC for capture/recording
- Touch + mouse control: Built-in XCamView supports touchscreen and mouse control for settings and feature switching, keeping operation intuitive
- Pro image processing: Hardware 3D noise reduction, sharpness boost, and local tone mapping keep images clean across lighting conditions
- Efficient storage & expansion: Save images and video directly to SD card or USB flash; compatible with ToupView/ToupLite for further processing and measurement
- Cross-platform compatibility: Full image processing on Windows via ToupView/ToupLite; Mac/Linux users can capture video and images via lightweight tools
Core Benefits
-
1
Dual Outputs, Flexible Use HDMI and USB outputs cover standalone display or PC capture
-
2
4K High-Resolution Imaging 4K/1080p auto switching up to 30 fps maintains detail and smoothness
-
3
Built-In Touch Control XCamView supports touch and mouse control, managing the camera without a PC
-
4
Professional Image Enhancement Hardware 3D noise reduction, sharpness, and local tone optimization ensure high-quality imaging
-
5
Easy Storage & Post-Processing Local storage plus ToupView/ToupLite workflow cover research, teaching, and industrial inspection
