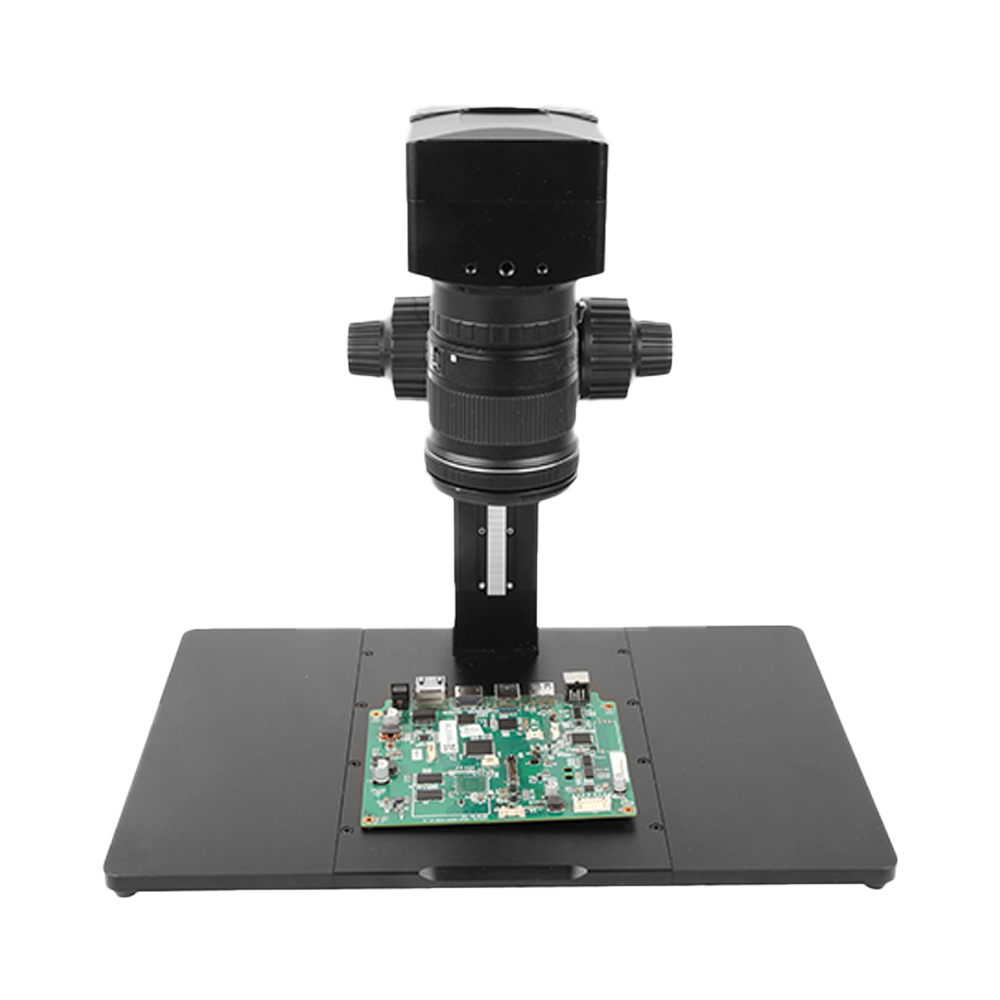

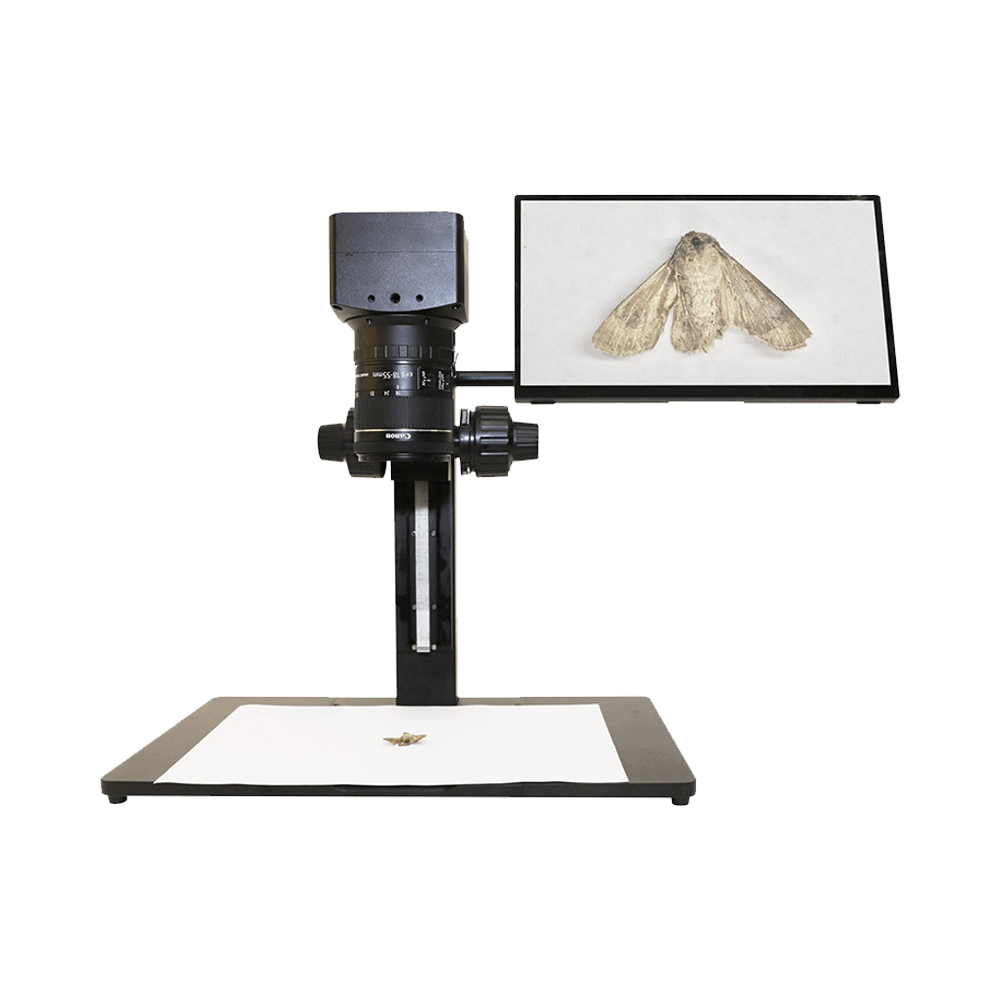

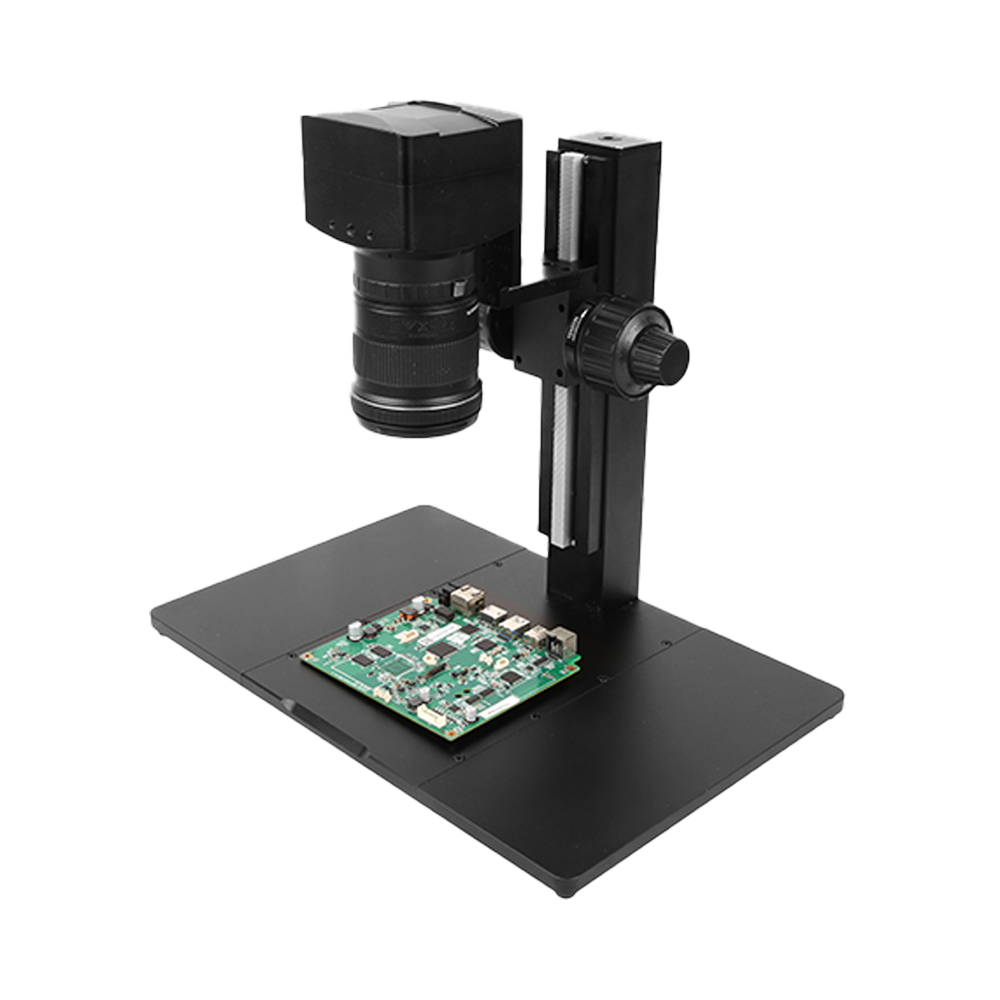

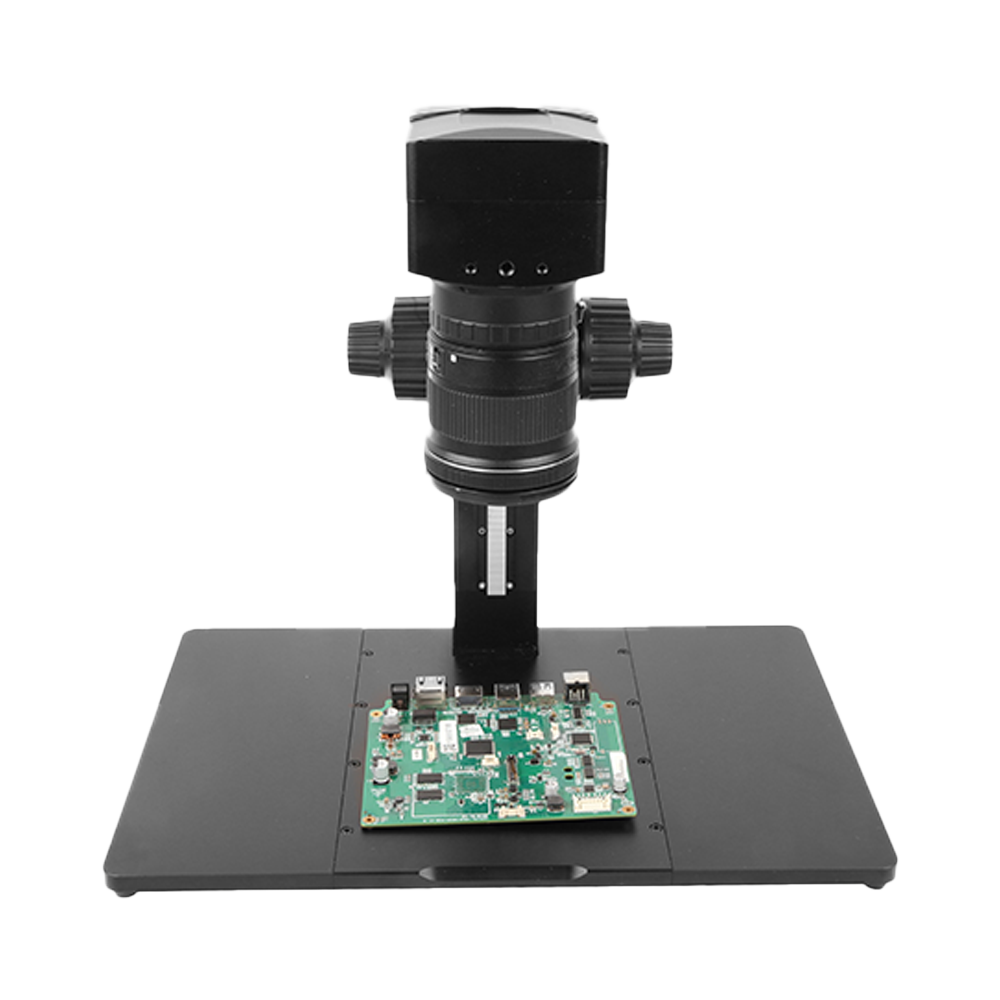

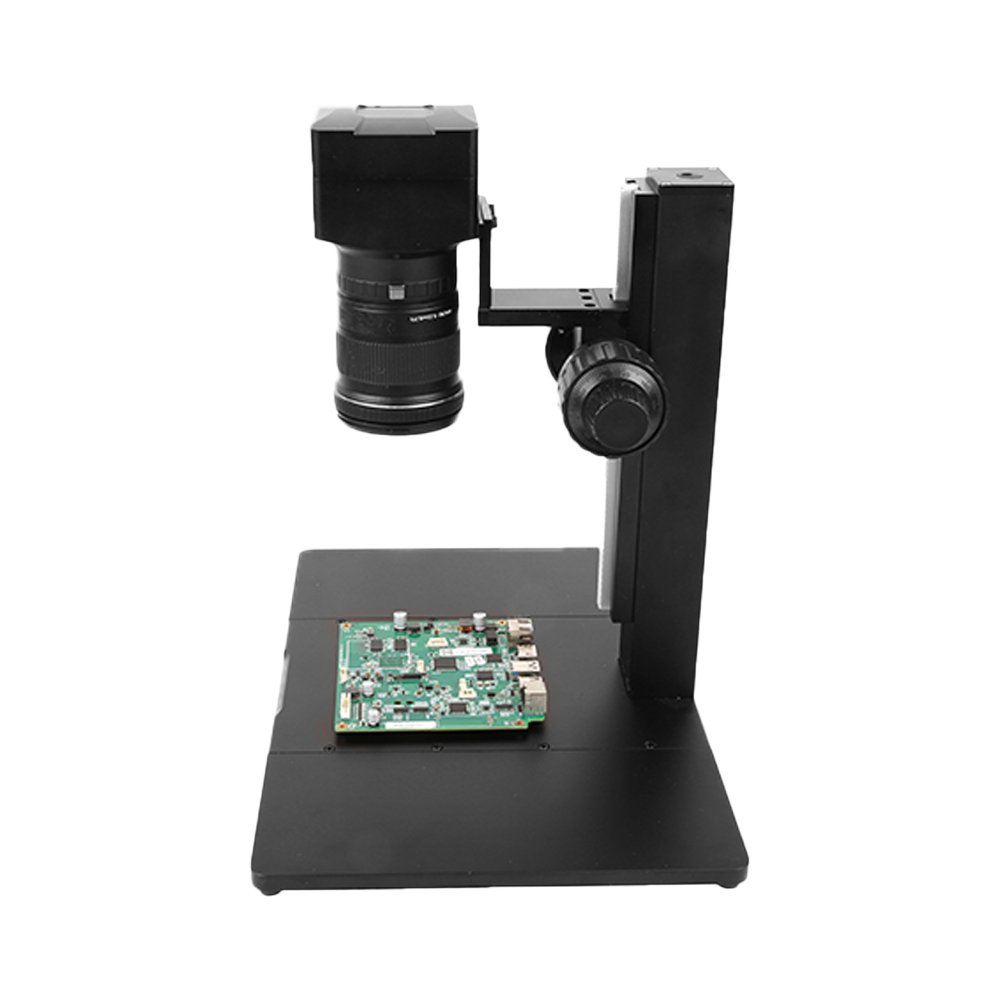

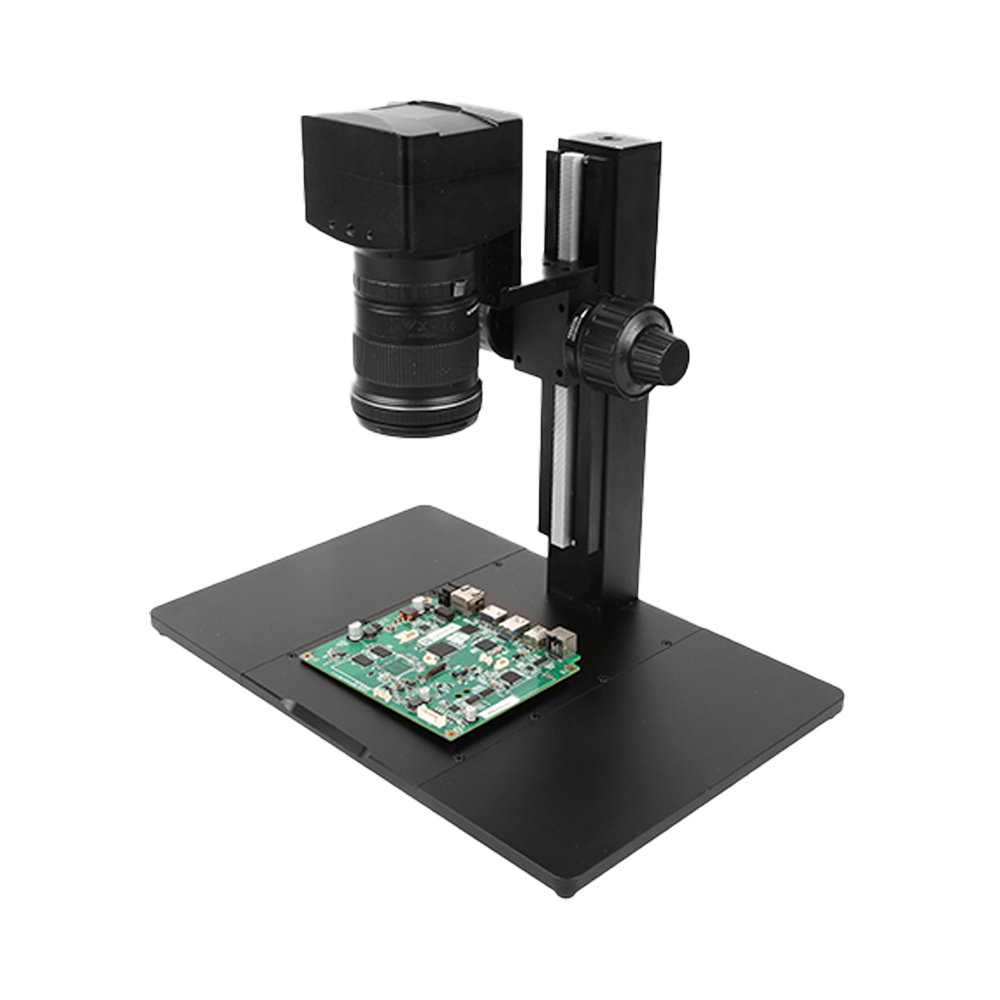

X7FCAM4K Series
Product Introduction

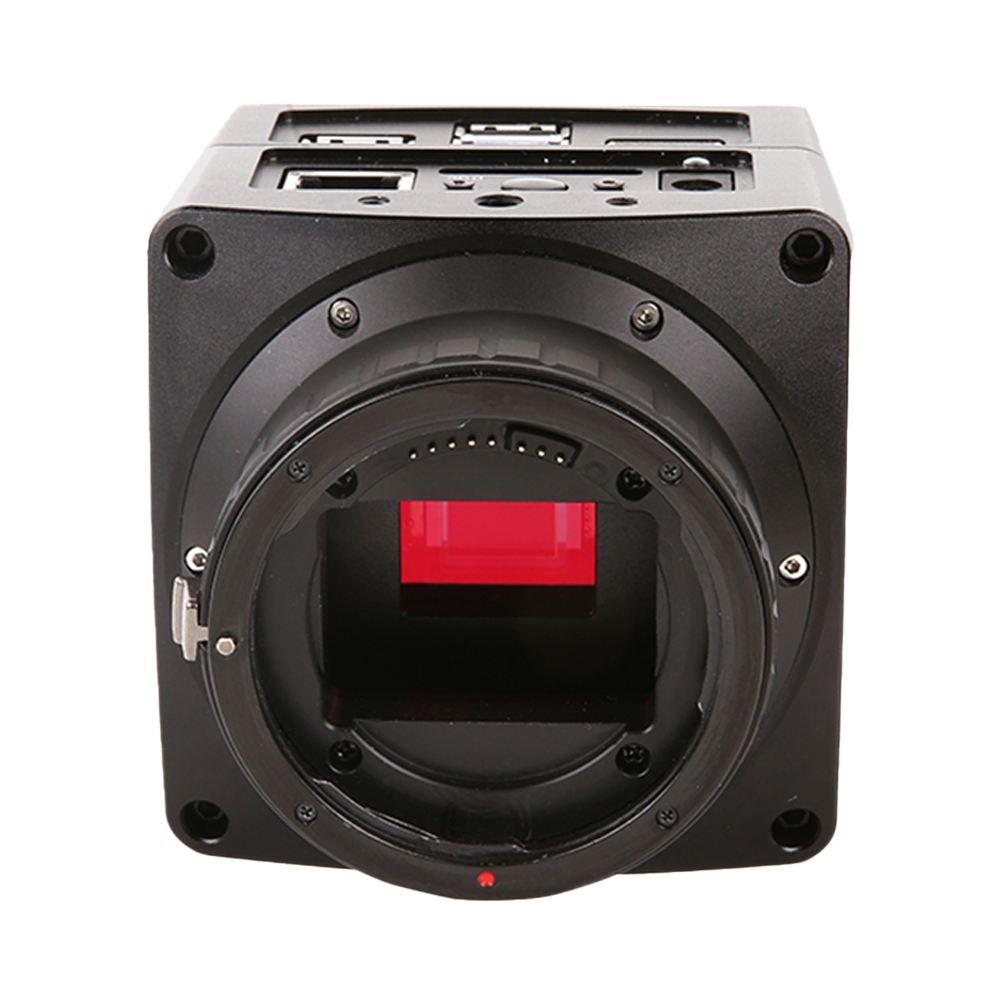

The X7FCAM4K16MPA_EFL HDMI camera is a multi-output camera (HDMI+NETWORK+USB) designed by Toptic Optoelectronics. In X7FCAM4K16MPA_EFL, 'X' represents multi-interface, '7 Series' represents Toptic Optoelectronics' AI high-end platform, 'F' represents autofocus, '4K' represents 4K HDMI output, '16MP' represents the camera's maximum 16MP image output, 'A' represents Type A sensor, and 'EFL' is the abbreviation for Canon Electronic Focus Lens, representing Canon EF mount lenses. The camera features a built-in large-format, high-resolution, high-performance CMOS sensor. It can directly connect to HDMI displays, connect to computers via NETWORK/USB, and save images and videos to SD cards or USB flash drives for on-site analysis and subsequent research.
The X7FCAM4K16MPA_EFL HDMI camera outputs real-time images through HDMI interface and can be operated via USB mouse through the graphical interface for image display adjustment, processing, measurement and other functions.
The key feature of X7FCAM4K16MPA_EFL HDMI camera is its compatibility with any supported EF mount lens. After proper lens installation, the camera can display real-time lens focal length, aperture and focus information on the HDMI interface, and perform aperture control/manual focus/autofocus.

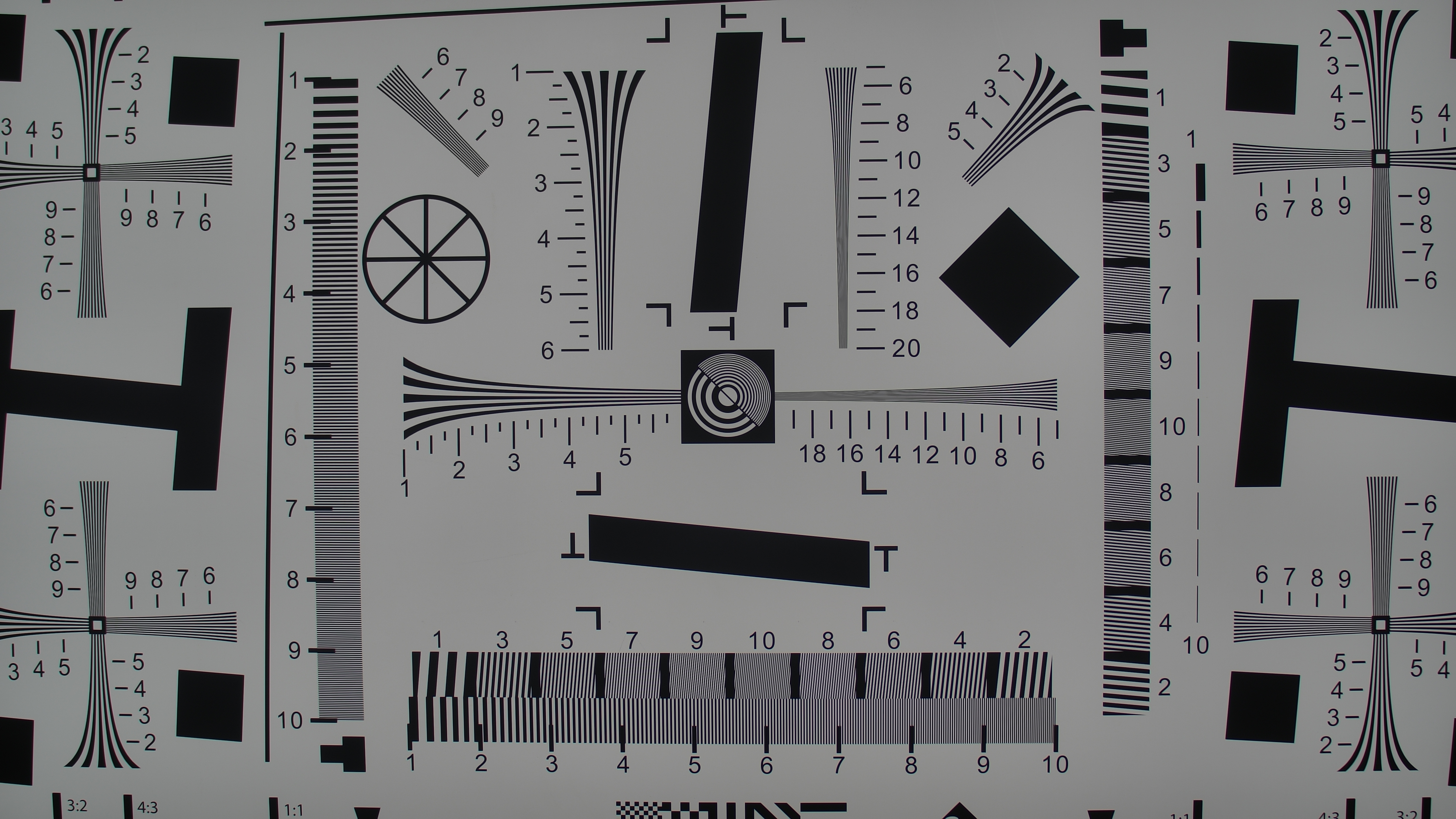

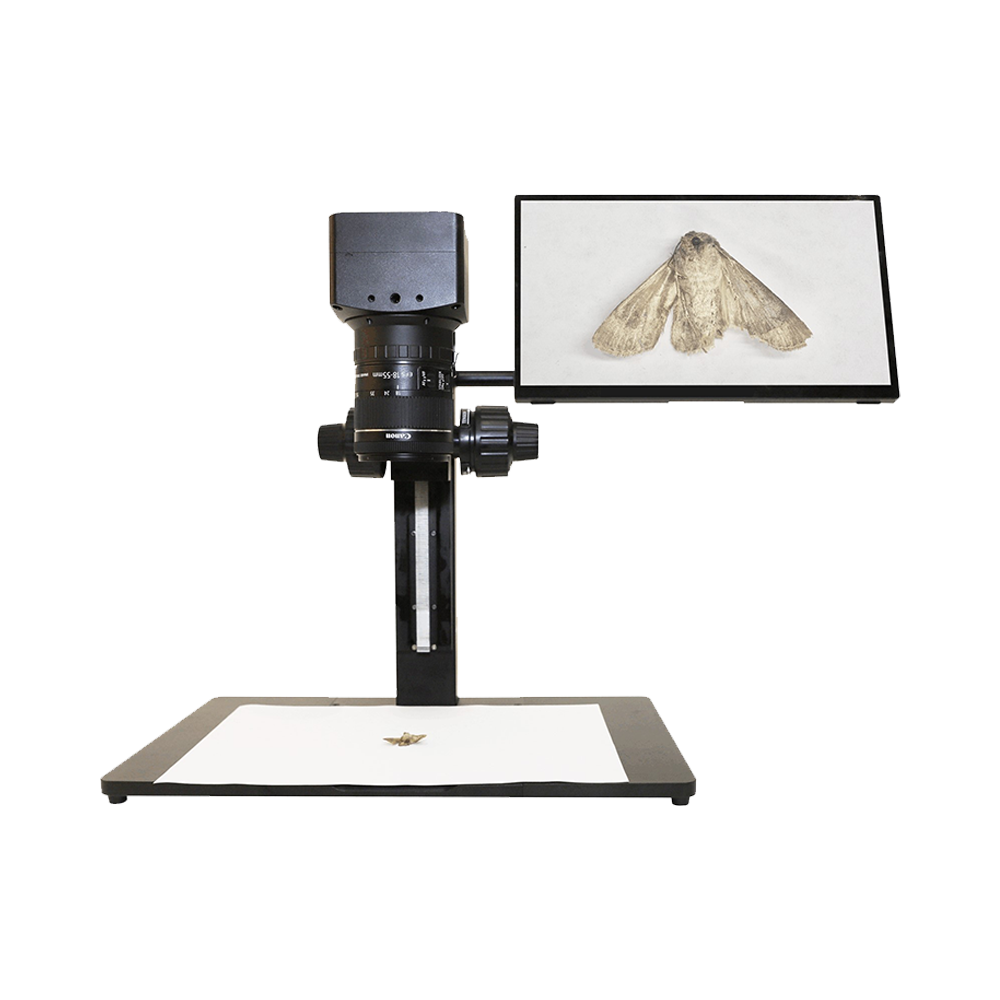

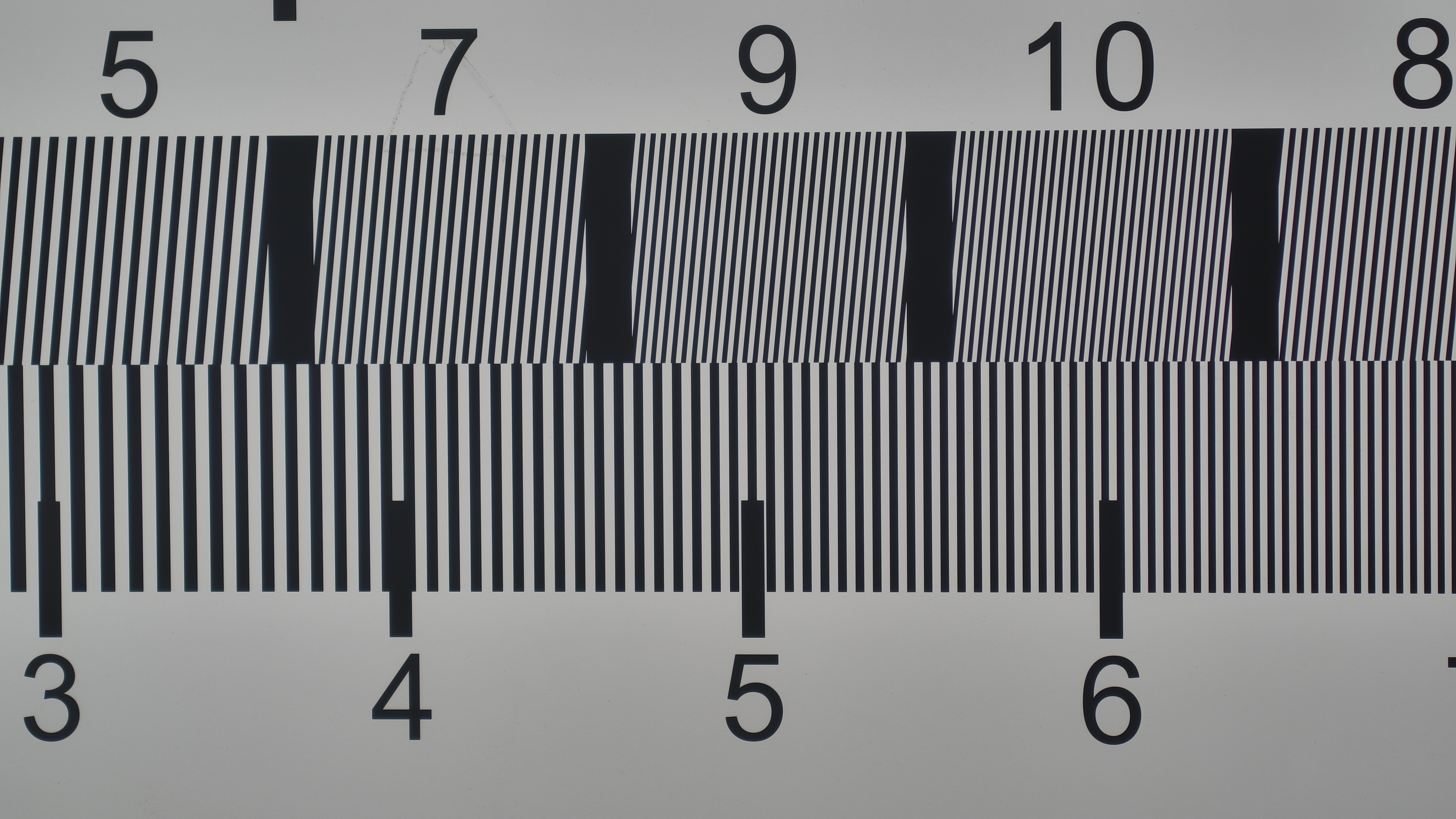

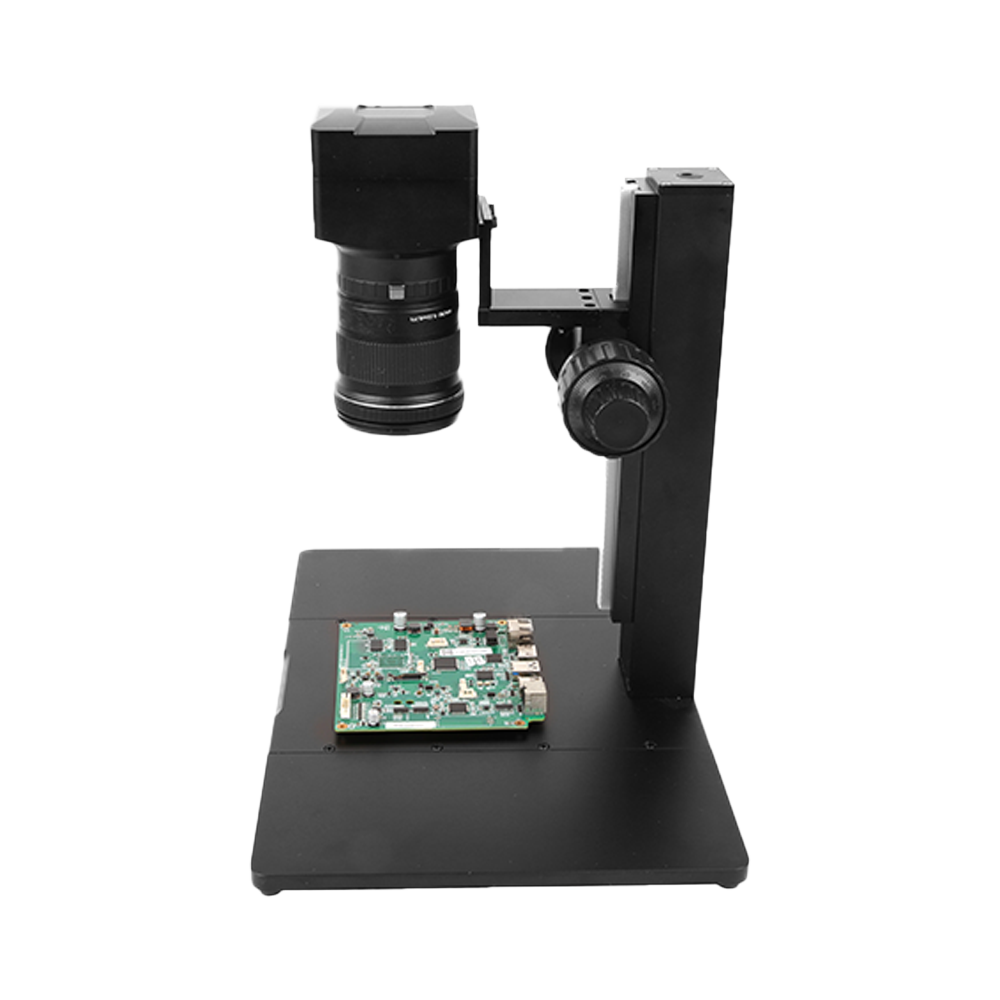

This camera can be used for medical field detection such as ophthalmology and dentistry, as well as ultra-high definition industrial inspection. Various focal length EF mount lenses can be adapted according to customer needs.
Product Features
- Large-format, high-resolution, high-performance Sony back-illuminated CMOS sensor
- Compatible with various EF mount lenses, enabling lens aperture control/manual focus/autofocus
- Depth synthesis function for focused images based on lens focus control
- Lens distortion correction functionality
- 4K HDMI/NETWORK/USB multi-interface simultaneous output
- SD card/USB flash drive capture of videos or images with local preview and playback support
- Support for RAW format image capture and display
- Automatic photo upload to server via network
- USB voice control module support for real-time voice command control of photo capture, recording, and freeze operations
- New browse interface with rich file operation functions, image-to-image comparison (2 or 4 images), image-to-live video comparison, multi-image depth synthesis, multi-image stitching
- Powerful ISP functions with significant sharpening and 3D noise reduction effects, precise ROI white balance
- Real-time video depth synthesis function, real-time video WDR output function
- Real-time stitching function for higher quality images through real-time processing
- Embedded XCamView software providing rich image processing and measurement functions, supporting auto edge detection and auto measurement
- ToupView/ToupLite software for more convenient PC operation
- iOS/Android mobile applications, free download from app stores
HDMI/USB3/NETWORK 4K EF Mount Autofocus Camera
| Model | Output Interface | Sensor | Resolution | Frame Rate | Lens Mount |
Key Features |
|---|---|---|---|---|---|---|
| X7FCAM4K16MPA_EFL | HDMI USB3.0 Ethernet |
Sony IMX283(C)
1/1.1" (13.06×7.3 mm)
|
16MP (5440×3060) | 30 fps@5440×3060 | Canon EF Mount | Autofocus 16MP Ultra HD EF Mount SD Card Storage |
Product Features
Large-format, high-resolution, high-performance Sony back-illuminated CMOS sensor
Compatible with various EF mount lenses, enabling lens aperture control/manual focus/autofocus
Depth synthesis function for focused images based on lens focus control
Lens distortion correction functionality
4K HDMI/NETWORK/USB multi-interface simultaneous output
SD card/USB flash drive capture of videos or images with local preview and playback support
Support for RAW format image capture and display
Automatic photo upload to server via network
USB voice control module support for real-time voice command control of photo capture, recording, and freeze operations
New browse interface with rich file operation functions, image-to-image comparison (2 or 4 images), image-to-live video comparison, multi-image depth synthesis, multi-image stitching
Powerful ISP functions with significant sharpening and 3D noise reduction effects, precise ROI white balance
Real-time video depth synthesis function, real-time video WDR output function
Real-time stitching function for higher quality images through real-time processing
Embedded XCamView software providing rich image processing and measurement functions, supporting auto edge detection and auto measurement
ToupView/ToupLite software for more convenient PC operation
iOS/Android mobile applications, free download from app stores
Lens Compatibility Overview
X7FCAM4K16MPA_EFL cameras can operate with any supported EF-mount lens. Once a lens is properly installed, the system reads focal length, aperture and focus information, while enabling motorized aperture and focus control.
X7FCAM4K16MPA_EFL cameras are theoretically compatible with all EF-mount lenses, though not every lens has been validated. Third-party models from Tamron, Sigma and others may exhibit limited control or incomplete compatibility. Share the lens models you plan to use and we will perform validation for you.
EF-mount lenses validated with X7FCAM4K16MPA_EFL:
| Lens | Minimum Focus Distance | Focal Length Feedback | Aperture Control | Focus Control | Fixed Working Distance Focus |
|---|---|---|---|---|---|
|
Canon EF-S Series Lenses
|
|||||
| Canon EF-S 10-18mm f/4.5-5.6 IS STM | Approx. 0.22 m | Supported | Supported | Supported | — |
| Canon EF-S 18-55mm f/3.5-5.6 IS STM | Approx. 0.25 m | Supported | Supported | Supported | Supported |
| Canon EF-S 18-55mm f/4-5.6 IS STM | Approx. 0.25 m | Supported | Supported | Supported | — |
| Canon EF-S 15-85mm f/3.5-5.6 IS USM | Approx. 0.35 m | Supported | Supported | Supported | — |
| Canon EF-S 18-135mm f/3.5-5.6 IS USM | Approx. 0.39 m | Supported | Supported | Supported | Supported |
| Canon EF-S 18-200mm f/3.5-5.6 IS | Approx. 0.45 m | Supported | Supported | Supported | — |
|
Canon EF Prime Lenses
|
|||||
| Canon EF 24mm f/1.4L II USM | Approx. 0.25 m | Supported | Supported | Supported | — |
| Canon EF 24mm f/2.8 IS USM | Approx. 0.20 m | Supported | Supported | Supported | — |
| Canon EF 35mm f/1.4L II USM | Approx. 0.28 m | Supported | Supported | Supported | — |
| Canon EF 50mm f/1.2L USM | Approx. 0.45 m | Supported | Supported | Supported | Supported |
| Canon EF 50mm f/1.4 USM | Approx. 0.45 m | Supported | Supported | Supported | — |
| Canon EF 85mm f/1.2L II USM | Approx. 0.95 m | Supported | Supported | Supported | — |
|
Canon EF Zoom Lenses
|
|||||
| Canon EF 16-35mm f/2.8L III USM | Approx. 0.28 m | Supported | Supported | Supported | — |
| Canon EF 16-35mm f/4L IS USM | Approx. 0.28 m | Supported | Supported | Supported | — |
| Canon EF 24-70mm f/2.8L II USM |
Approx. 0.38 m
(Approx. 0.20 m in macro mode)
|
Supported | Supported | Supported | — |
| Canon EF 24-70mm f/4L IS USM |
Approx. 0.38 m
(Approx. 0.20 m in macro mode)
|
Supported | Supported | Supported | — |
| Canon EF 24-105mm f/4L IS USM | Approx. 0.45 m | Supported | Supported | Supported | — |
| Canon EF 100-400mm f/4.5-5.6L IS II USM | Approx. 0.98 m | Supported | Supported | Supported | — |
|
Third-Party Compatible Lenses
|
|||||
| Sigma 150-600mm f/5-6.3 DG OS HSM|S | Approx. 2.6 m | Supported | Supported | Supported | — |

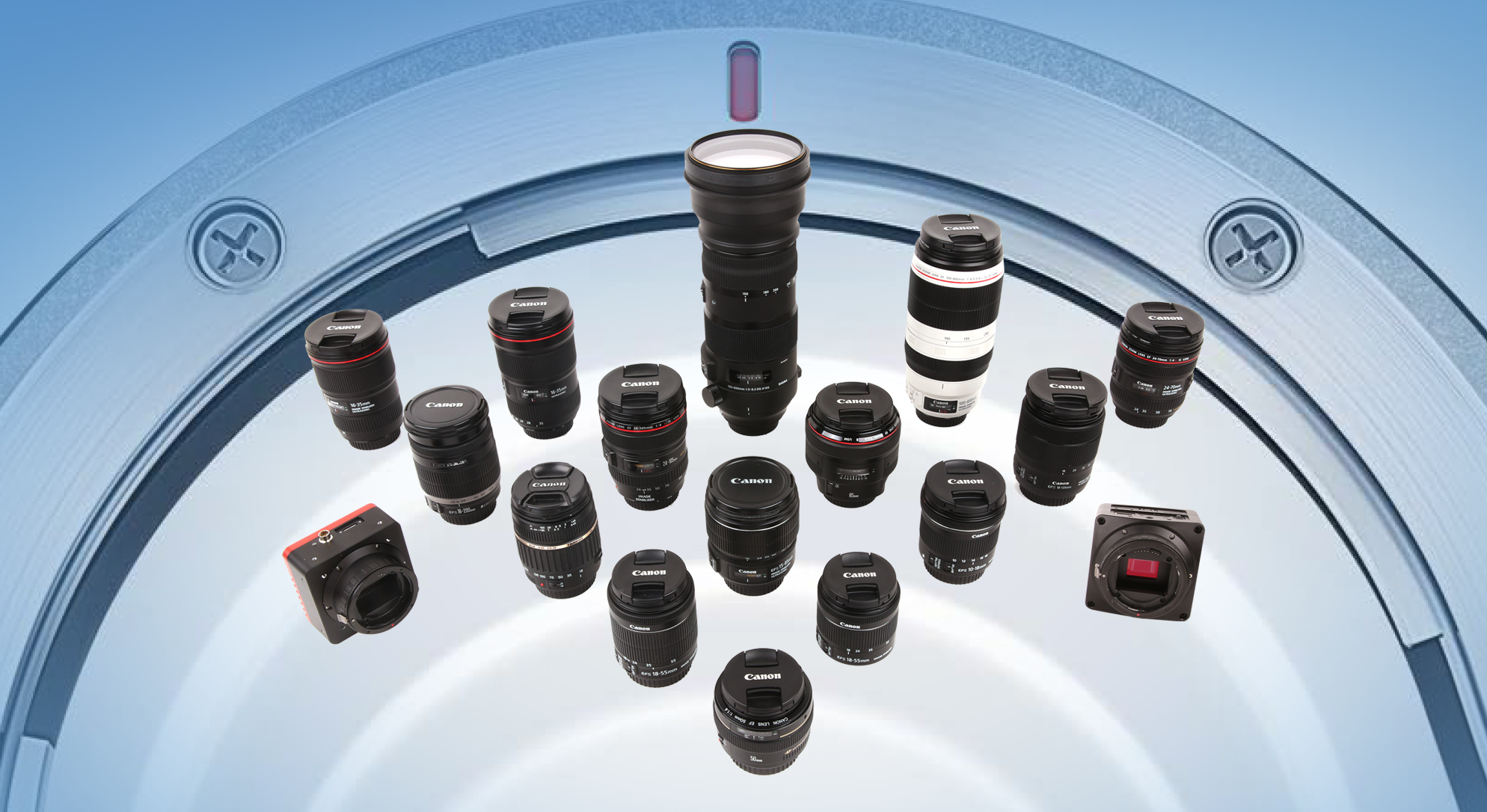

Compatible Canon EF Lenses
X7FCAM4K16MPA_EFL cameras pair seamlessly with a wide range of professional EF-mount lenses.
X7FCAM4K16MPA_EFL Multi-Interface Camera | Package Contents #

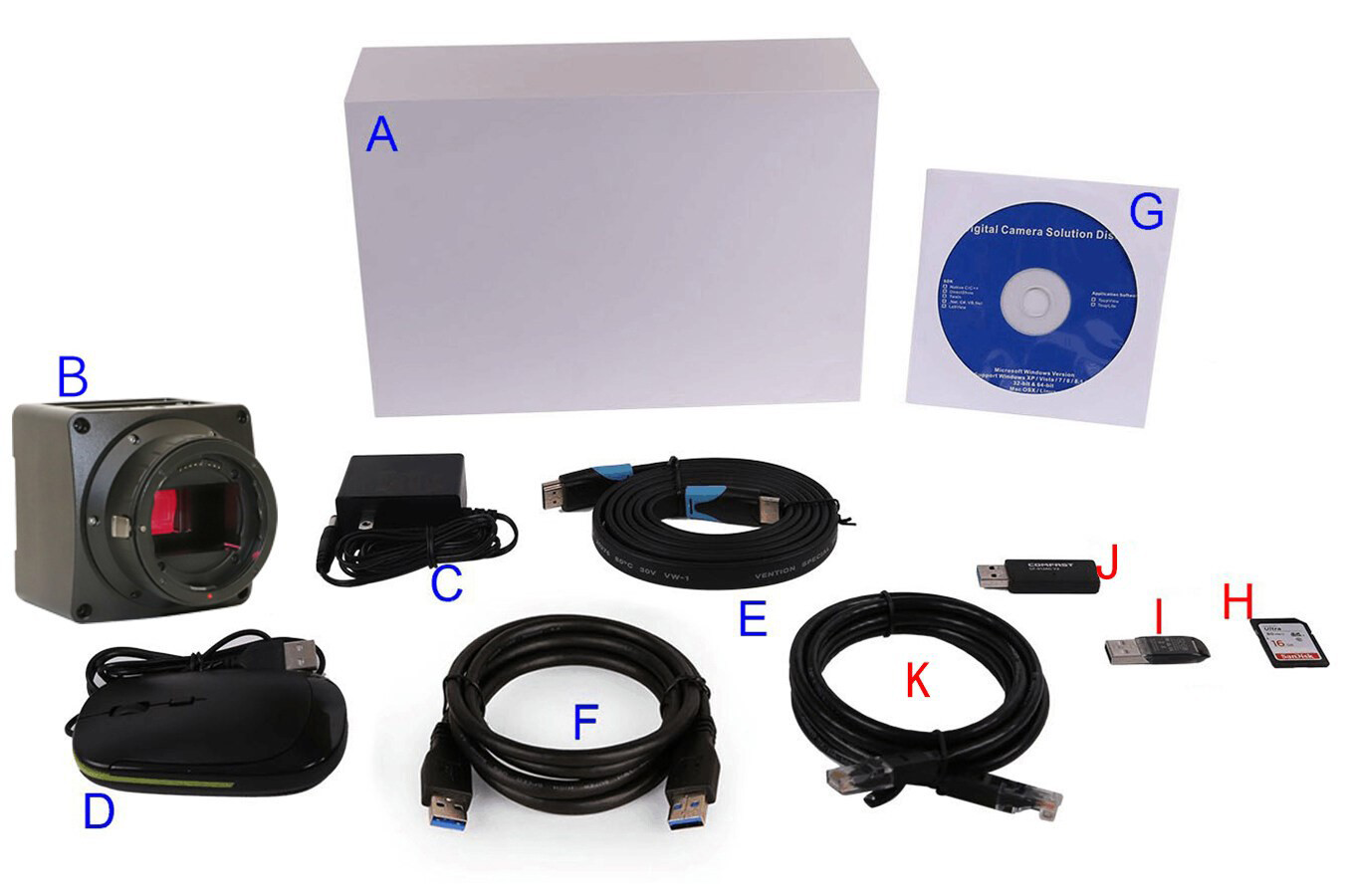

Standard Packing List
- A Camera box: 25.5 cm × 17.0 cm × 9.0 cm (1 pc, approx. 1.57 kg per box)
- B X7FCAM4K16MPA_EFL camera ×1
- C Power adapter: input AC 100–240 V 50/60 Hz; output DC 12 V 1 A (GS12U12-P1I / GS12E12-P1I, UL/CUL/BSMI/CB/FCC/TUV(GS)/CE/RoHS)
- D USB mouse ×1
- E HDMI 2.0 cable ×1
- F High-speed USB 2.0 Type-A to Type-A gold-plated cable (2.0 m)
- G Drivers and application disc (Ø12 cm)
Optional Accessories
- H SD card (≥16 GB, Class 10)
- I Adjustable eyepiece tube adapters 108001/AMA037, 108002/AMA050, 108003/AMA075
- J Fixed eyepiece tube adapters 108005/FMA037, 108006/FMA050, 108007/FMA075
- K Ø30 mm eyepiece conversion ring 108015
- L Ø30.5 mm eyepiece conversion ring 108016
- M Stage micrometers 106011/TS-M1, 106012/TS-M2, 106013/TS-M7
- N USB flash drive (backup media)
- O USB Wi-Fi adapter (required for Wi-Fi/AP mode)
X7FCAM4K16MPA_EFL Multi-Interface Camera | Product Dimensions #

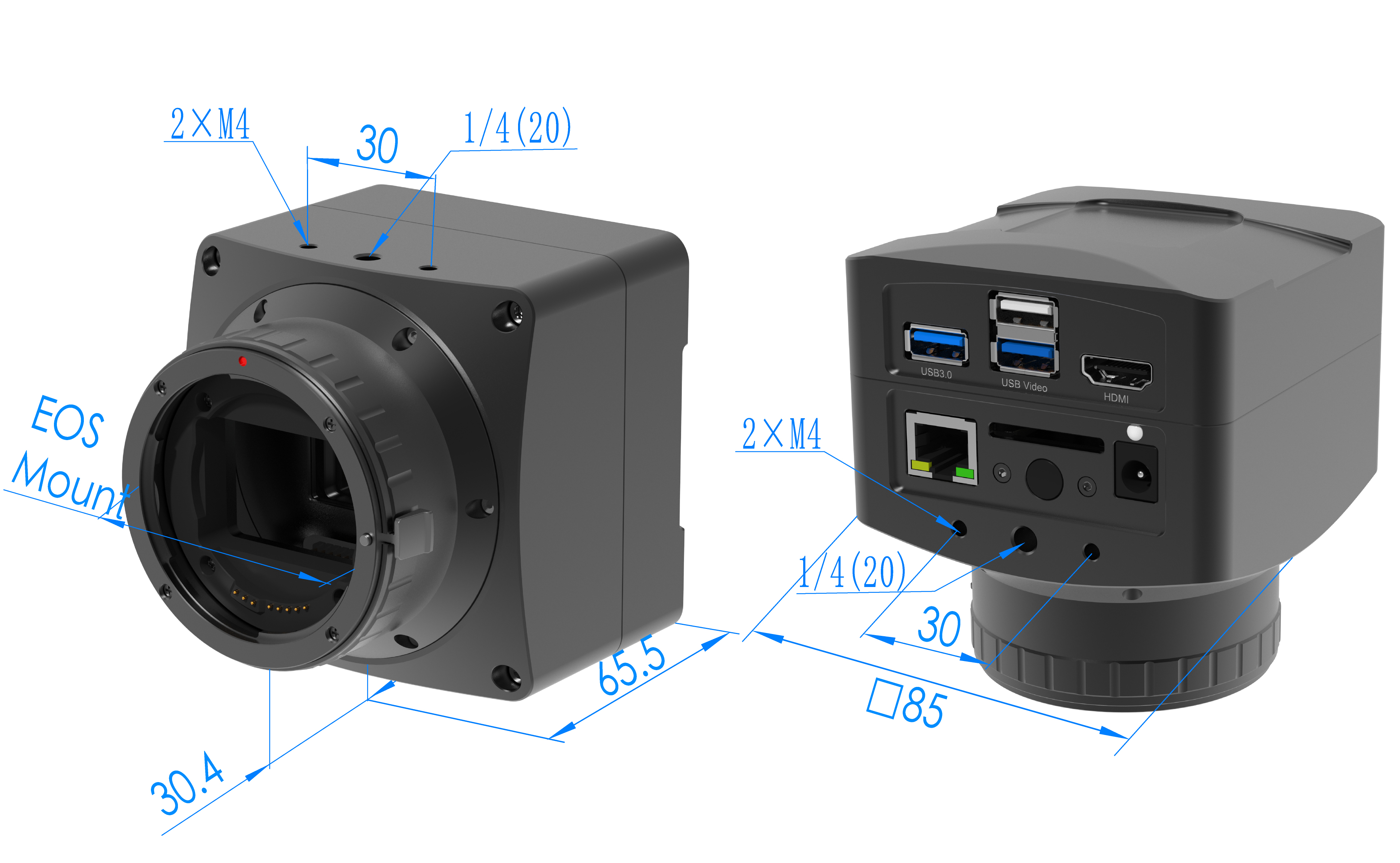

Overall dimensions with EF lens adapter installed
Complete layout including the lens adapter module
Confirm mounting holes and connector orientation with the dimension diagram before installation.
In-Depth Overview
The X7FCAM4K16MPA_EFL auto-focus camera series is built for premium medical, research and industrial imaging applications. It integrates a Sony IMX283 16 MP ultra-high-definition CMOS sensor and uses a Canon EF mount, unlocking a broad set of intelligent imaging capabilities. HDMI, USB 3.0 and Ethernet provide simultaneous multi-platform outputs, delivering the resolution and interface flexibility required by demanding workflows. Depth-of-field fusion, lens distortion correction and measurement functions are built in to streamline complex sample analysis and accurate documentation across medical diagnostics, ophthalmic and dental imaging, precision assembly and advanced research scenarios.
Key Functions
- 16 MP ultra-high-definition imaging with the Sony IMX283 sensor for exceptional detail and color fidelity
- Simultaneous HDMI, USB 3.0 and Ethernet outputs for easy integration with diverse display endpoints
- Intelligent imaging tools including auto-focus, depth fusion and lens distortion correction
- Canon EF mount compatibility with mainstream photographic lenses to match varied shooting requirements
- Local storage via SD card or USB drive for flexible data management
- Cross-platform support for Windows, macOS, Linux, Android and iOS
Core Advantages
- True 16 MP ultra-high-definition output that preserves fine detail
- Rich interface options to support concurrent workflows and remote control
- Intelligent auto-focus plus efficient depth fusion to accelerate imaging throughput
- High expandability (EF mount and multi-platform output) suited to complex, multi-industry needs
- Industrial-grade stability for dependable long-duration operation
