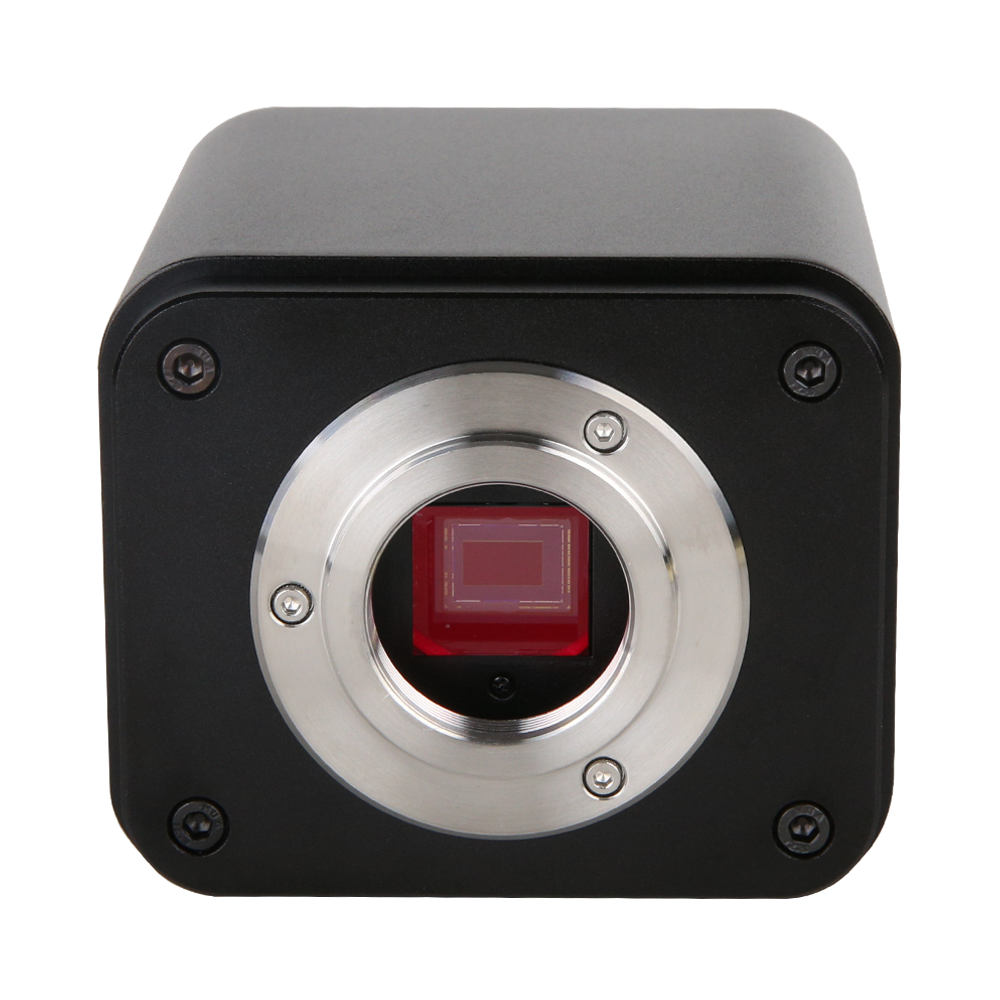

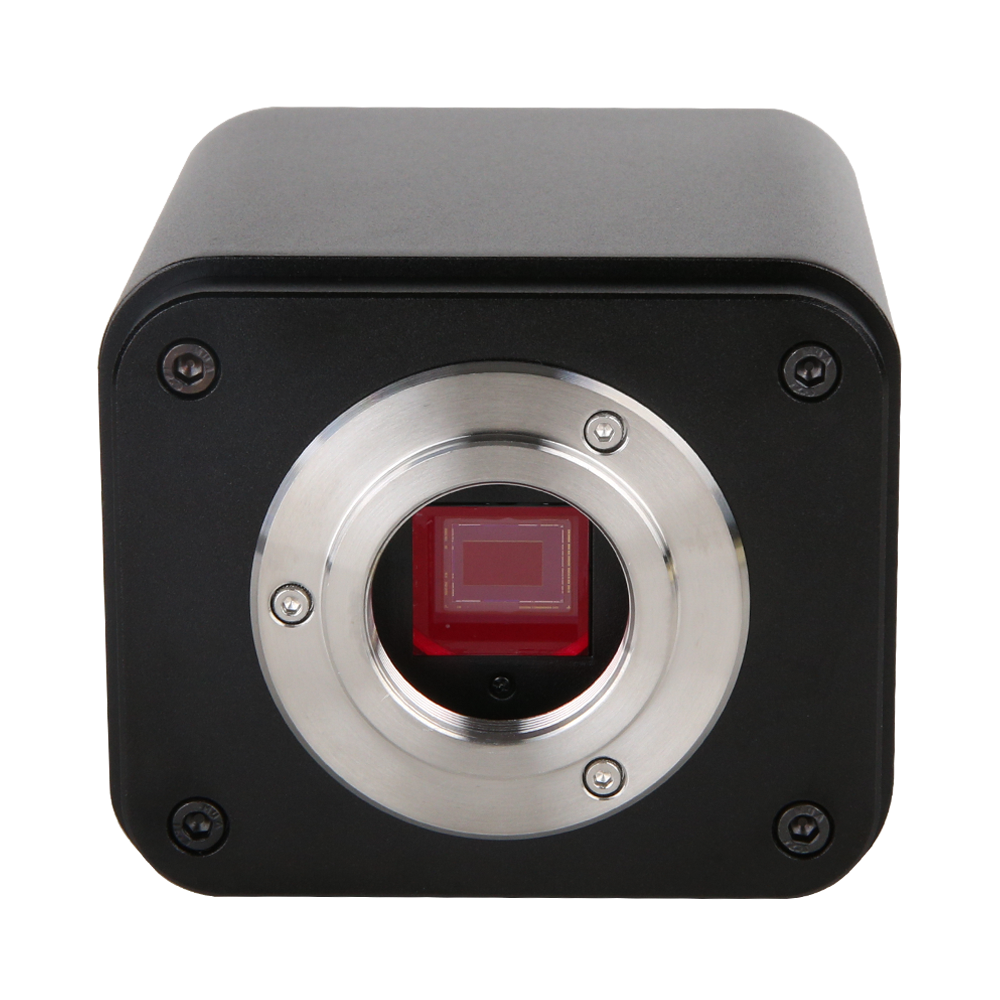

X8CAM4K Series
Product Introduction
The X8CAM4K series cameras feature high resolution, high frame rates, and excellent image quality, making them ideal for professional applications demanding superior detail capture and color reproduction.
Product Features
- Sony large-format Starvis or Starvis 2 back-illuminated CMOS sensors
- 10-bit ISP processing with superior color reproduction, remarkable sharpening and 3D noise reduction, more precise ROI white balance

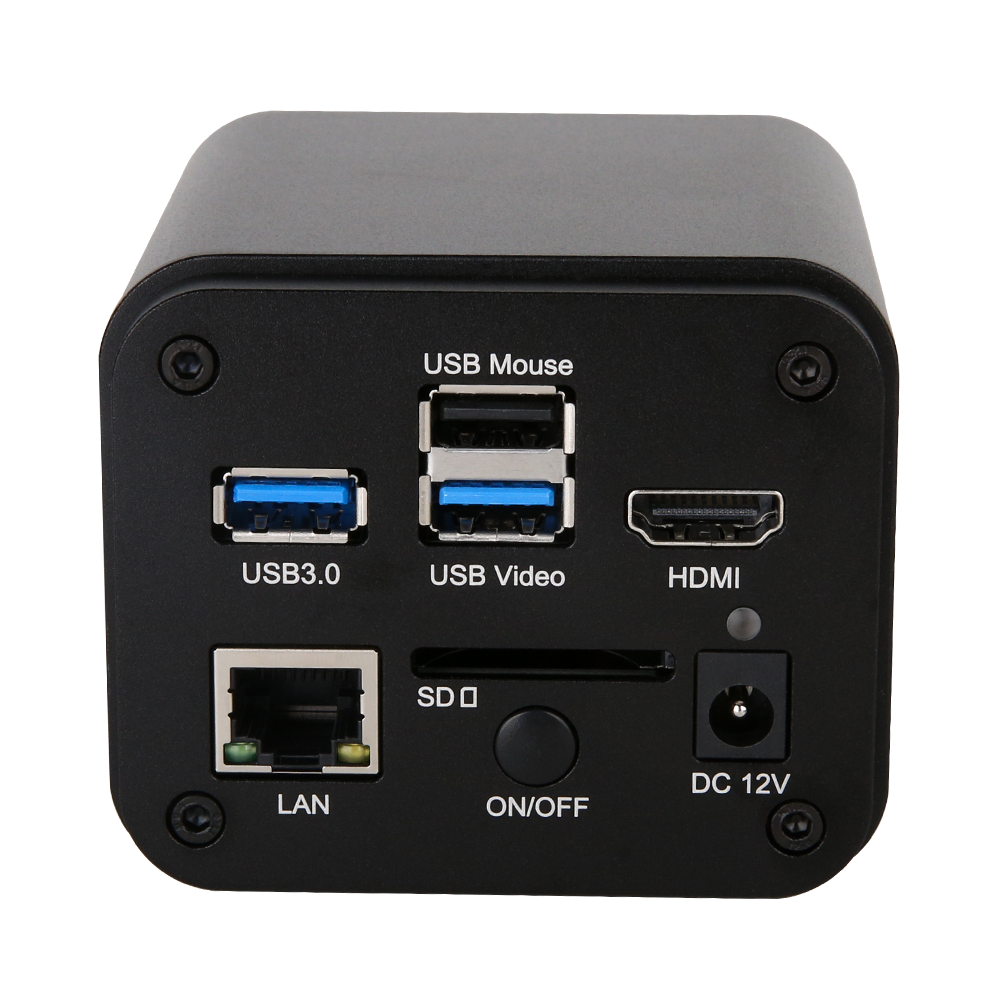

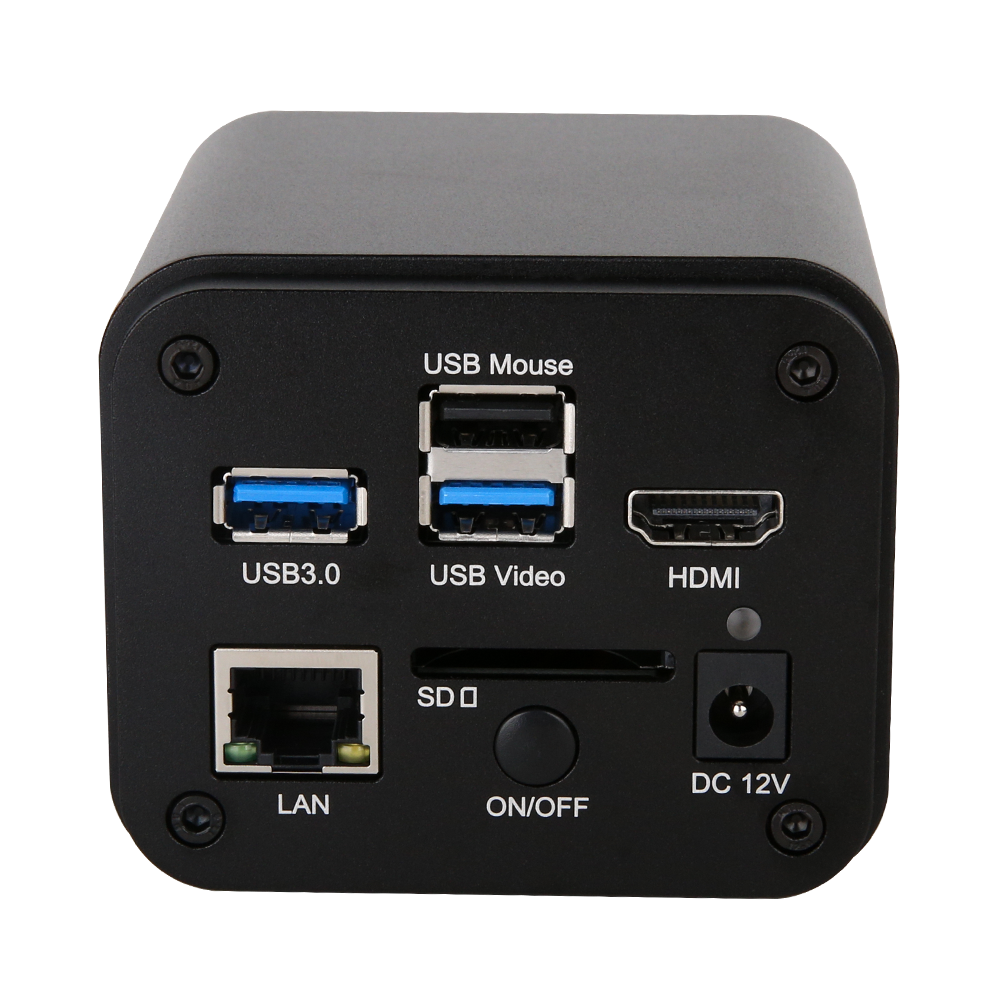

- 4K HDMI/NETWORK/USB multi-interface simultaneous output
- 4K/1080P HDMI output adaptive switching
- Supports 4K 60 fps low-latency HDMI output mode with average latency of 50 ms (X8CAM4K8MPA and X8CAM4K8MPB only)
- Supports custom development based on neural network functions: object recognition, counting, detection, etc.
- Supports network storage function (captured images or recorded videos from the camera are saved in real-time to network storage)
- Supports capture and display of JPEG, TIFF, PNG, and RAW format images
- Supports external USB3.0 interface SSD; supports automatic saving of recorded videos during sudden power loss
- Supports USB voice control module for real-time voice command control of camera photo, video, and freeze operations
- Provides real-time video depth-of-field stacking and real-time stitching functions
- Provides biological and stereoscopic microscope default ISP parameter switching for convenient secondary adjustment and optimization
- Brand new UI interface with rich file operation functions in browse interface: image-to-image comparison, image-to-live-video comparison, multi-image depth-of-field stacking, multi-image stitching
- Embedded XCamView software provides rich image processing and measurement functions, supports automatic edge detection and automatic measurement
- ToupView/ToupLite software for more convenient PC operation
- iOS/Android mobile applications, free download from app stores
X8CAM4K Series
Multi-Interface Output 4K HDMI/USB/LAN/Wi-Fi Camera
| Model | Sensor/Size | Effective Pixels | Output Resolution | Frame Rate (fps) | Output Interface | Auto Focus | Lens Mount | Storage Support | Featured Functions |
|---|---|---|---|---|---|---|---|---|---|
| X8CAM4K22MPA |
Sony IMX571 (C)
1.7" (23.46 × 13.21 mm)
|
3.76 µm × 3.76 µm | 22 MP (6240 × 3512) |
15 Hz @ 6240×3512 30 Hz @ 3840×2160 60 Hz @ 1920×1080 |
HDMI2.0 USB3.0 LAN Wi-Fi | M42×0.75 (C-mount adapter optional) | SD Card / USB Flash Drive | 22 MP high resolution imaging 4K/1080P HDMI synchronous output Multi-platform software support (Windows, macOS, Linux) Supports live streaming/remote control/multi-terminal access SD card/USB drive local image and video storage | |
| X8CAM4K16MPA |
Sony IMX383 (C)
1/1.1" (13.06 × 7.34 mm)
|
2.4 µm × 2.4 µm | 16 MP (5440 × 3060) |
25 Hz @ 5440×3060 60 Hz @ 3840×2160 60 Hz @ 1920×1080 |
HDMI2.0 USB3.0 LAN Wi-Fi | C-mount | SD Card / USB Flash Drive | High sensitivity 16 MP imaging 4K/1080P HDMI synchronous output USB3.0/network multi-terminal access Real-time image and video storage Multi-software platform compatibility | |
| X8CAM4K8MPA |
Sony IMX334 (C)
1/1.8" (7.68 × 4.32 mm)
|
2.0 µm × 2.0 µm | 8 MP (3840 × 2160) | 60 fps@3840×2160 | HDMI2.0 USB3.0 LAN Wi-Fi | C-mount | SD Card / USB Flash Drive | 8 MP high resolution imaging 4K 60 fps output Low-latency HDMI output (50 ms average) Multi-interface simultaneous output Neural network custom development support | |
| X8CAM4K8MPB |
Sony IMX585 (C)
1/1.2" (11.14 × 6.26 mm)
|
2.9 µm × 2.9 µm | 8 MP (3840 × 2160) | 90 fps@3840×2160 | HDMI2.0 USB3.0 LAN Wi-Fi | C-mount | SD Card / USB Flash Drive | 8 MP high resolution imaging 4K 90 fps ultra-high frame rate Low-latency HDMI output (50 ms average) Large-format sensor Multi-interface simultaneous output |
X8CAM4K Multi-Interface Camera | Packing List #

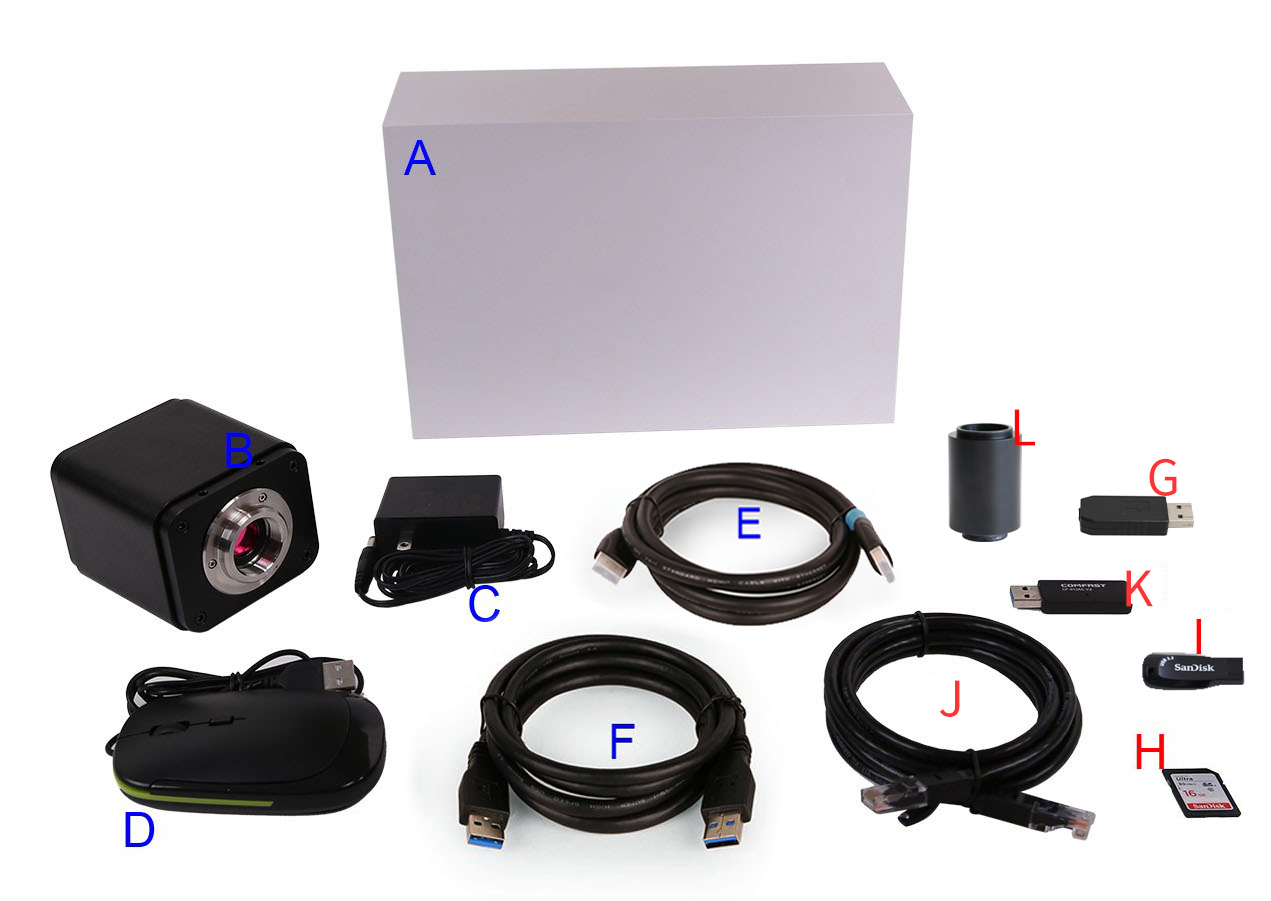

Standard Packing List
- A Camera box: 25.5 cm × 17.0 cm × 9.0 cm (1 pcs, 1.7 kg per box)
- B X8CAM4K series camera ×1
- C Power adapter: Input AC 100~240 V 50/60 Hz, output DC 12 V 1 A; US POWER-U-12V1A (MSA-C1000IC12.0-12H-US), EU POWER-E-12V1A (MSA-C10001C12.0-12H-DE)
- D USB mouse
- E HDMI 2.0 cable
- F USB 3.0 A↔A gold-plated data cable (1.5 m)
Optional Accessories
- G Audio control module
- H SD card (16 GB or above, Class 10)
- I USB drive
- J Ethernet cable
- K USB wireless network adapter (required for WiFi mode; appearance varies by model)
- L ToupTek 1.2/1.5X microscope adapters (for X8CAM4K22MPA; engineers can assist with selection)
X8CAM4K packaging overview (Fig. 3-35)
X8CAM4K Multi-Interface Camera | Dimensions #
Cube/flat body structures as shown in the dimension drawing

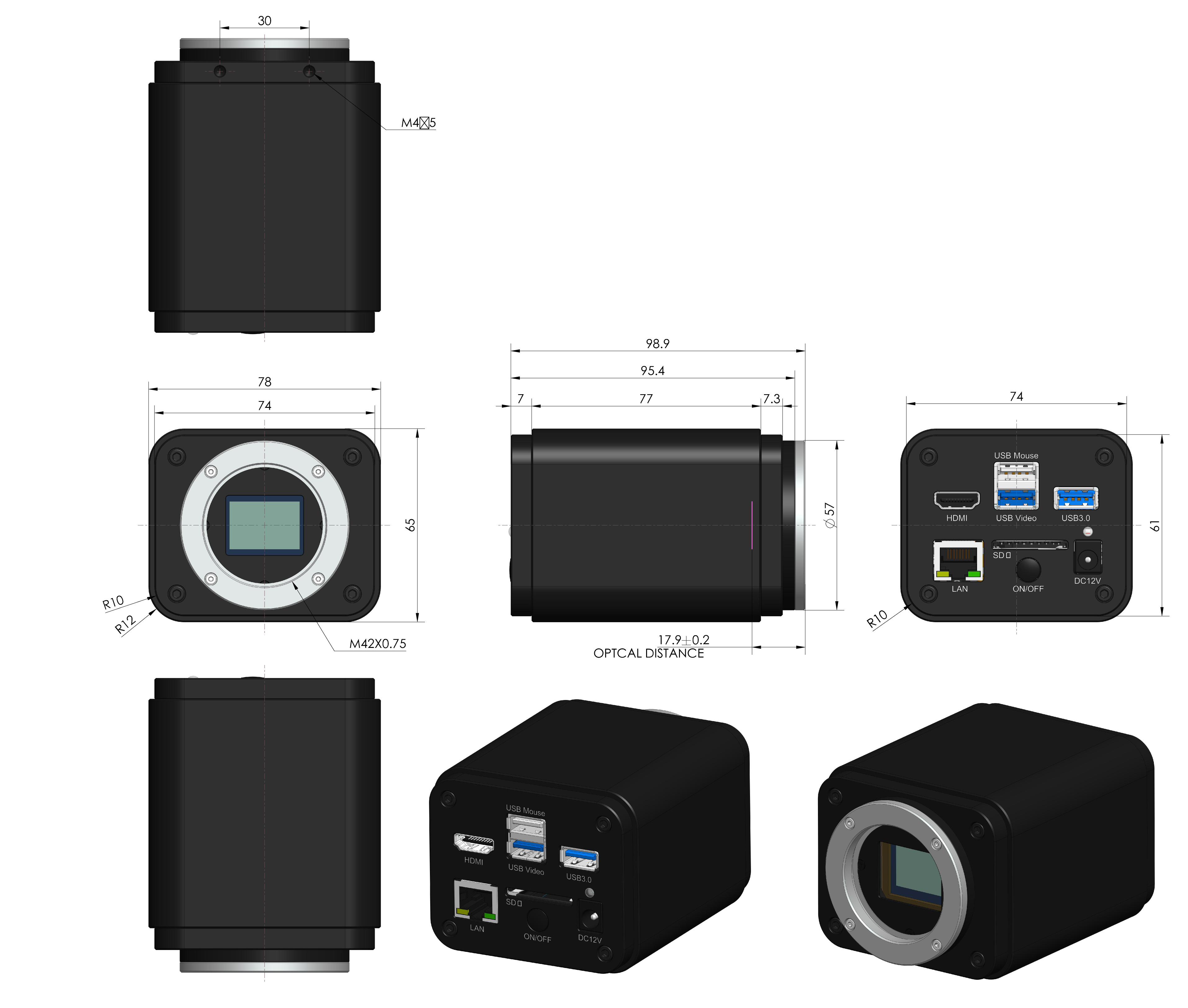

X8CAM4K dimensions
Includes cube and flat body drawings (Fig. 3-33 / Fig. 3-34)
Confirm mount holes and interface orientation with the dimension drawing before installation.
In-Depth Overview
The ToupTek Photonics X8CAM4K series is a 4K CMOS microscope camera with HDMI, USB, and Ethernet outputs, usable standalone or with a PC, fitting stereo microscopes, biological microscopes, and other C-mount systems for 4K ultra-HD imaging and video capture.
It uses a Sony Starvis 2 back-illuminated high-sensitivity CMOS sensor, supports 4K/1080p HDMI real-time output, USB 3.0 high-speed transfer, and networked collaboration, and embeds the XCamView control system for touch or mouse operation—widely applied in research, teaching, and industrial inspection.
Technical Highlights
- Multi-interface output for varied scenarios: 4K HDMI, USB 3.0, and Ethernet outputs enable local display, PC capture, and networked teaching.
- 4K imaging with hardware optimization: Sony Starvis 2 sensor with hardware 3D noise reduction, gamma tuning, sharpening, and color restoration.
- Built-in XCamView for easy control: Integrated XCamView UI supports touch or mouse, saving directly to SD or USB storage.
- Cross-platform software and research tools: Works with ToupView/ToupLite for measurement, stitching, multifocus fusion, denoising, and fluorescence processing.
- Industrial design for long-term stability: Robust metal housing and efficient thermal design for sustained performance in research and industrial settings.
Core Advantages
-
1
Multi-interface collaboration HDMI, USB, and Ethernet outputs for standalone use or building teaching/research systems.
-
2
4K ultra-HD with low noise Sony Starvis 2 sensor offers high dynamic range and accurate color.
-
3
Plug-and-play with built-in control XCamView supports touch/mouse for PC-free operation.
-
4
Research-ready features With ToupView, supports measurement, stitching, multifocus, and fluorescence processing.
-
5
Broad application coverage Fits “HDMI USB Ethernet microscope camera,” “4K C-mount microscope camera,” “research/teaching imaging system,” “Sony Starvis high-sensitivity camera.”
