X5CAM4K_MR Series
Product Introduction

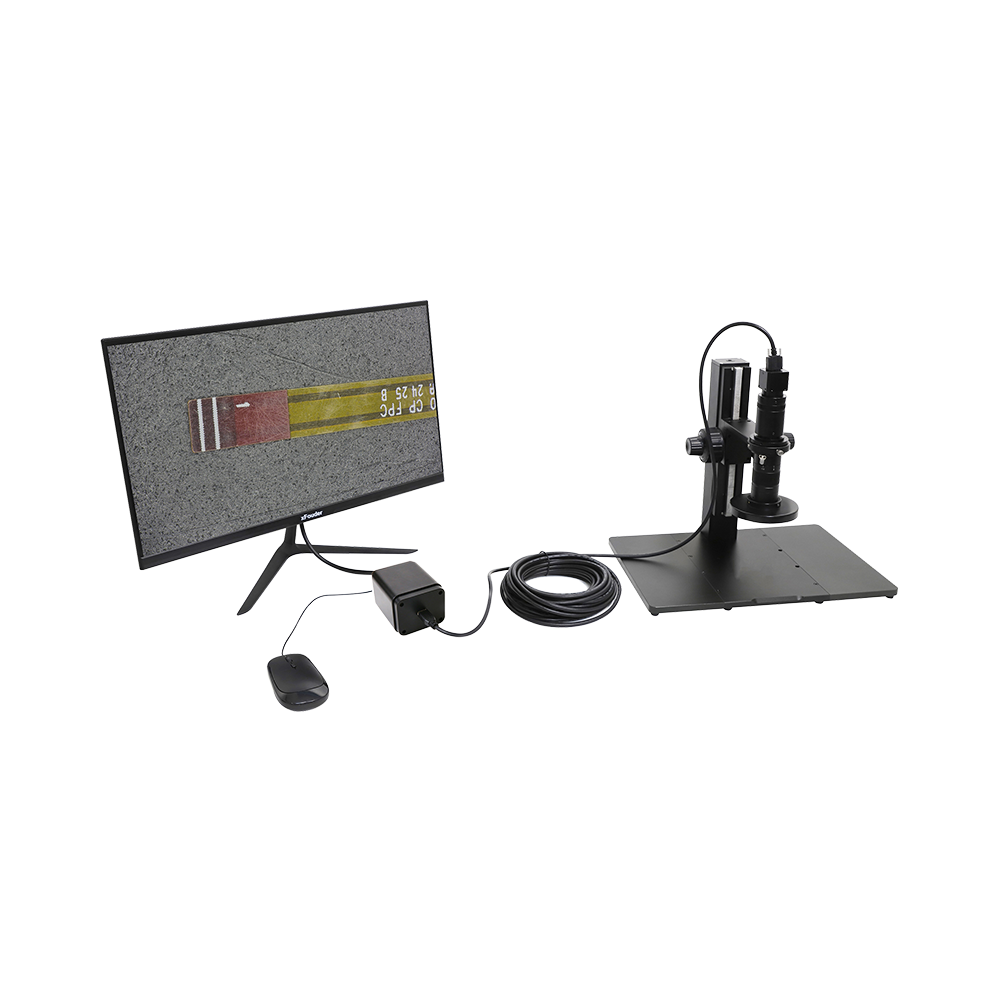

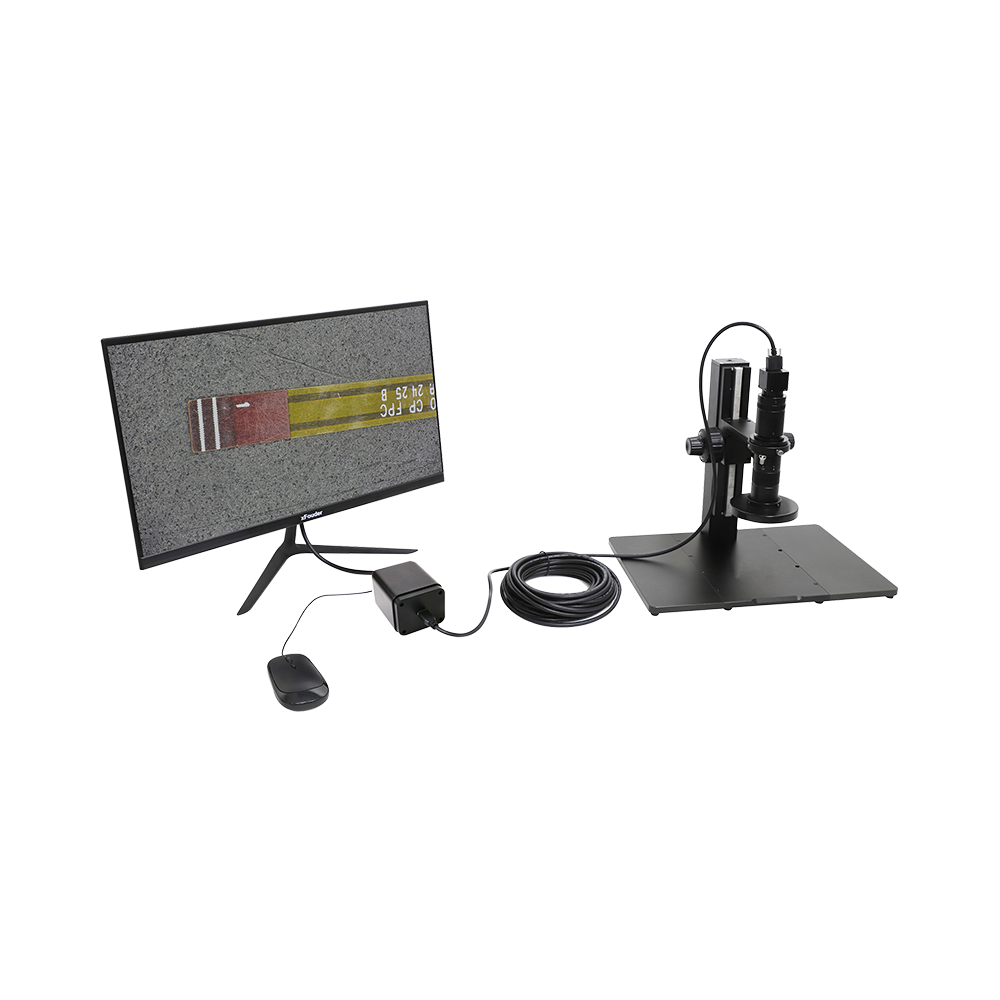

X5CAM4K_MR is a separated long-distance transmission HDMI camera developed by ToupTek. The main device and image acquisition sub-device are connected via USB3.0 cable, with a maximum connection length of 10 meters, using USB3.0 A male to Micro B interface with screw lock. The separated design allows customers to easily integrate the small-volume acquisition sub-device into relevant industry hosts, with the main device external for convenient connection to monitors or computers for operation and control.
Product Features
- Sony Starvis 2 back-illuminated CMOS sensor
- 4K HDMI/NETWORK/USB multi-interface simultaneous output
- 4K/1080P HDMI output adaptive switching
- High frame rate output, supports up to 4K 75 fps
- Supports 4K 60 fps low-latency HDMI output mode with average latency of 40 ms
- SD card/USB flash drive saves captured videos or images with customizable storage location and local preview and playback support
- Supports external keyboard with Chinese and English input
- Supports capture and display of JPEG, TIFF, PNG, and RAW format images
- Supports external USB3.0 interface SSD; supports automatic saving of recorded videos during sudden power loss
- Supports editing of recorded videos; supports optional time watermark in recorded videos or images
- Supports automatic upload of captured photos to server via network
- Supports USB voice control module for real-time voice command control of camera photo, video, and freeze operations
- Brand new browse interface provides rich file operation functions: image-to-image comparison, image-to-live-video comparison, multi-image depth-of-field stacking, multi-image stitching
- Powerful ISP functions with remarkable sharpening and 3D noise reduction effects, more precise ROI white balance
- Provides real-time video depth-of-field stacking function and real-time video WDR output function
- Provides real-time stitching function to obtain higher quality images through real-time processing
- Provides biological and stereoscopic microscope default ISP parameter switching for convenient secondary adjustment and optimization
- Embedded XCamView software provides rich image processing and measurement functions, supports automatic edge detection and automatic measurement
- ToupView/ToupLite software for more convenient PC operation
- iOS/Android mobile applications, free download from app stores
X5CAM4K_MR Series
Separated Multi-Interface Ultra-HD Camera
| Model | Sensor/Size | Effective Pixels | Output Resolution | Frame Rate (fps) | Output Interface | Auto Focus | Lens Mount | Storage Support | Featured Functions |
|---|---|---|---|---|---|---|---|---|---|
| X5CAM4K8MPA_MR |
Sony IMX678(C)
1/1.8" (7.68×4.32 mm)
|
2.0 µm × 2.0 µm | 8MP (3840×2160) |
HDMI2.0: 60 fps@3840×2160 USB3.0: 30 fps@3840×2160 NETWORK: 30 fps@3840×2160 |
HDMI2.0 USB3.0 LAN Wi-Fi SD USB Video | C mount | SD card / USB drive | Separated long-distance transmission USB3.0 connection cable up to 10 meters 4K 60 fps low-latency HDMI output (40 ms) RAW format image capture Depth of field synthesis function Stitching function WDR wide dynamic range Automatic server upload function Voice control | |
| X5CAM4K8MPB_MR |
Sony IMX585(C)
1/1.2" (11.14×6.26 mm)
|
2.9 µm × 2.9 µm | 8MP (3840×2160) |
HDMI2.0: 60 fps@3840×2160 USB3.0: 30 fps@3840×2160 NETWORK: 30 fps@3840×2160 |
HDMI2.0 USB3.0 LAN Wi-Fi SD USB Video | C mount | SD card / USB drive | Separated long-distance transmission USB3.0 connection cable up to 10 meters 4K 60 fps low-latency HDMI output (40 ms) RAW format image capture Depth of field synthesis function Stitching function WDR wide dynamic range Large-format sensor Automatic server upload function Voice control |
X5CAM4K_MR Multi-Module Camera Kit | Packing List #

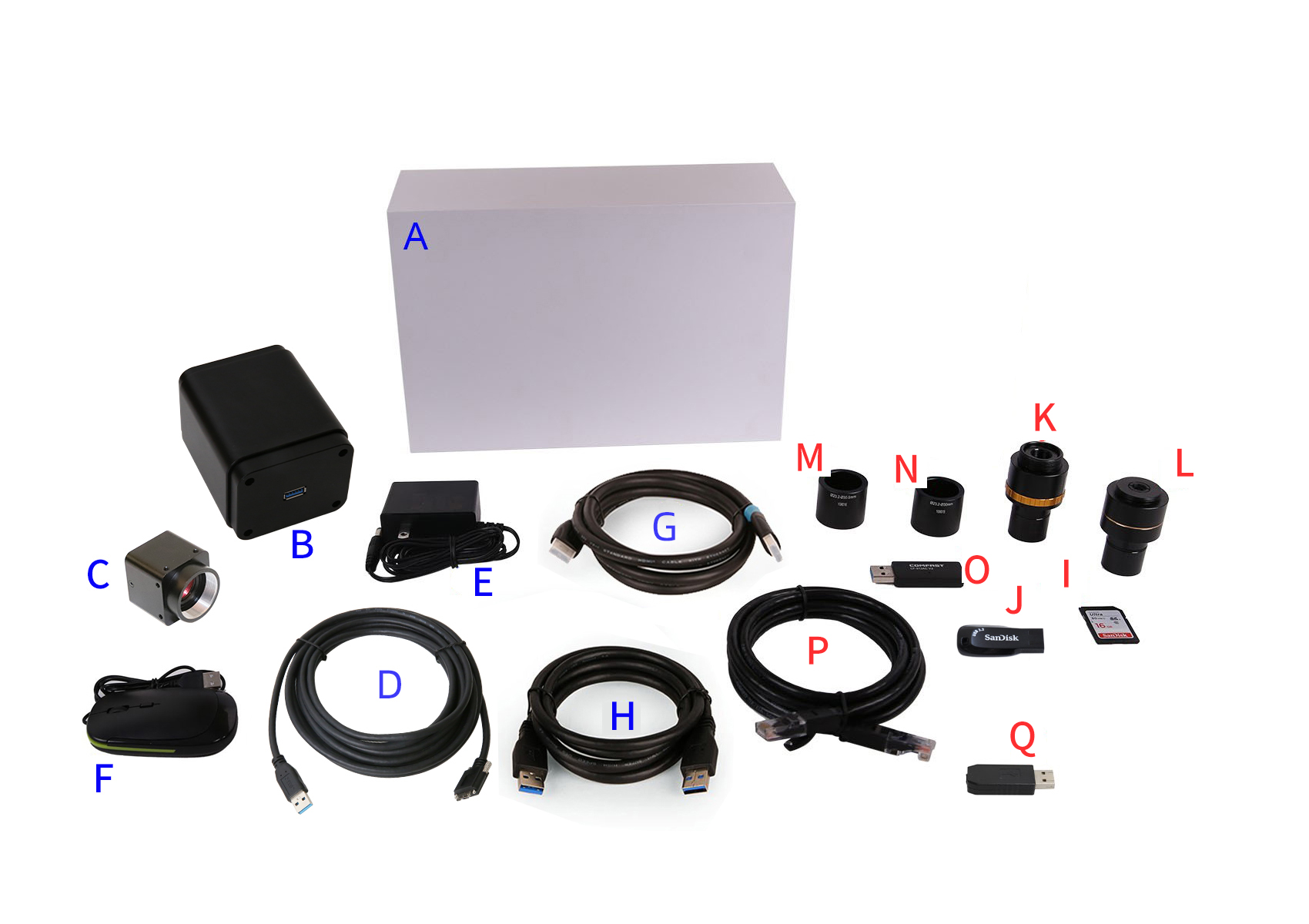

Standard Packing List
- A Camera box: 25.5 cm × 17.0 cm × 9.0 cm (1 pcs, 2.0 kg per box)

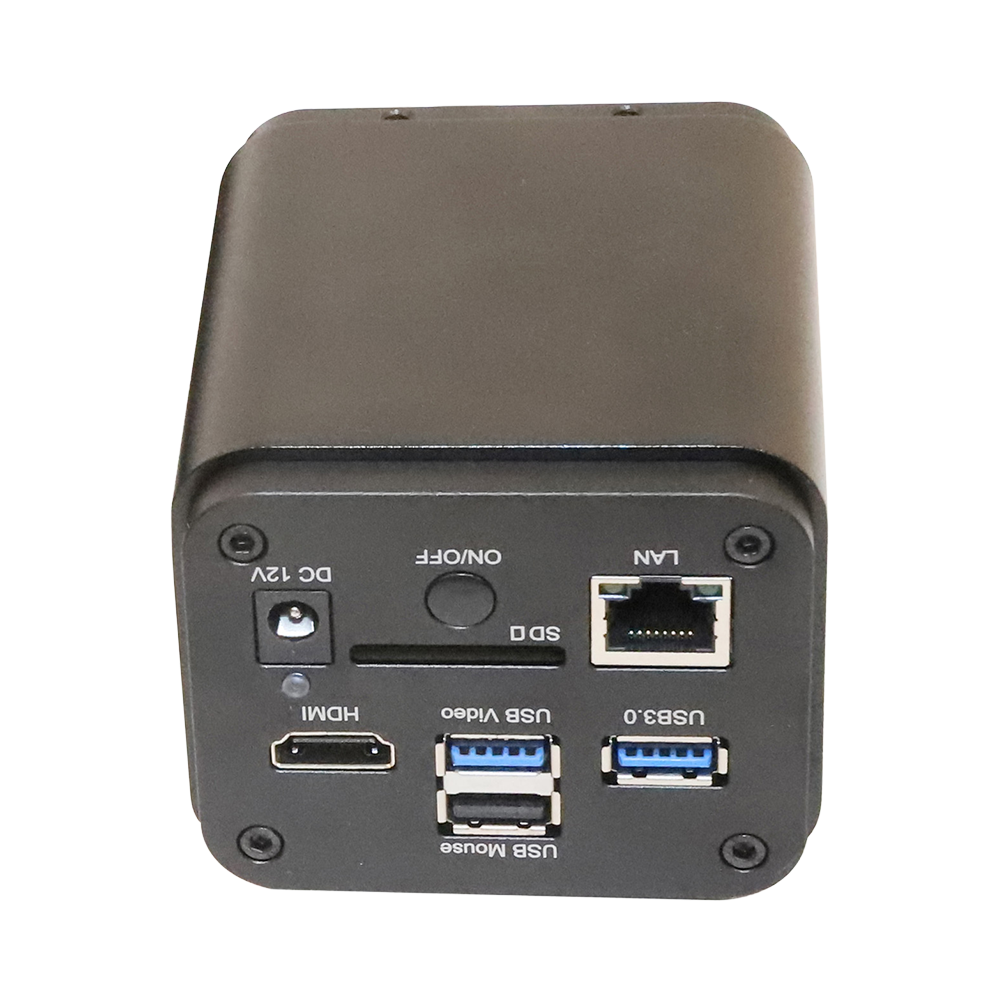

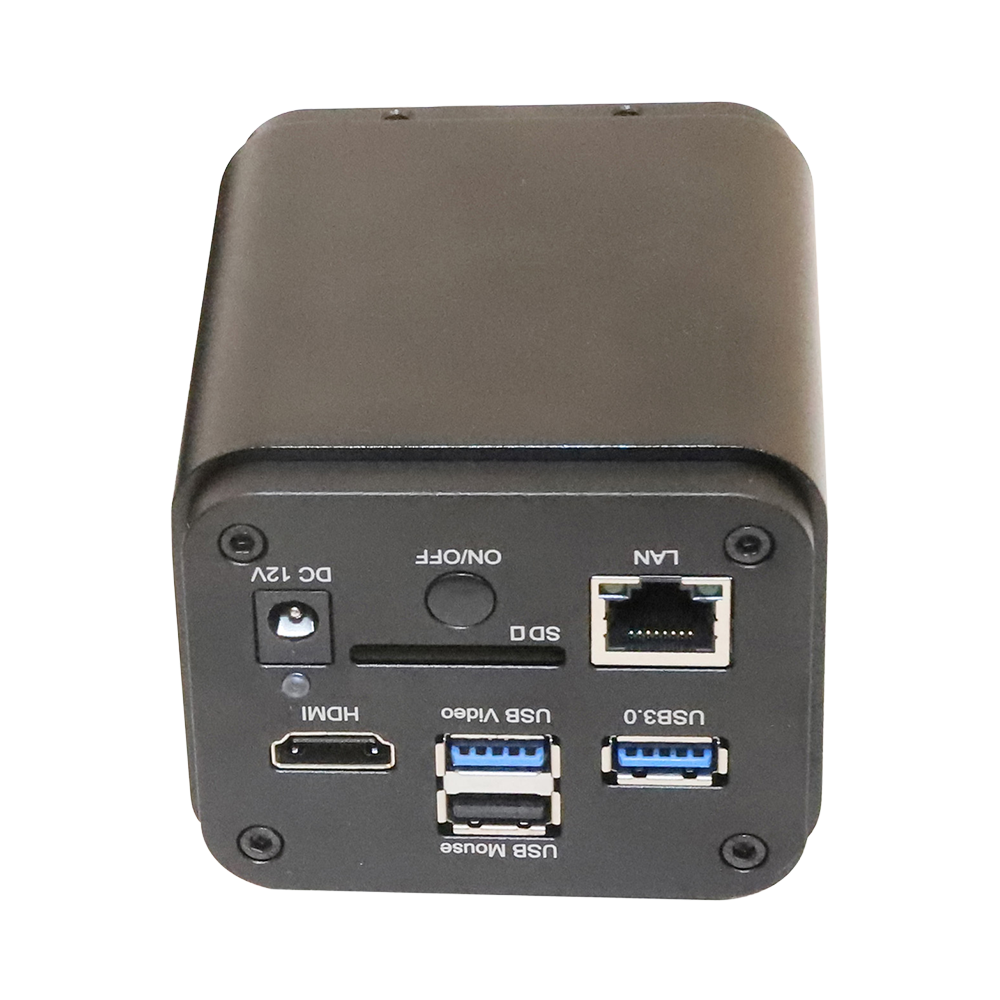

- B X5CAM4K_MR main unit ×1

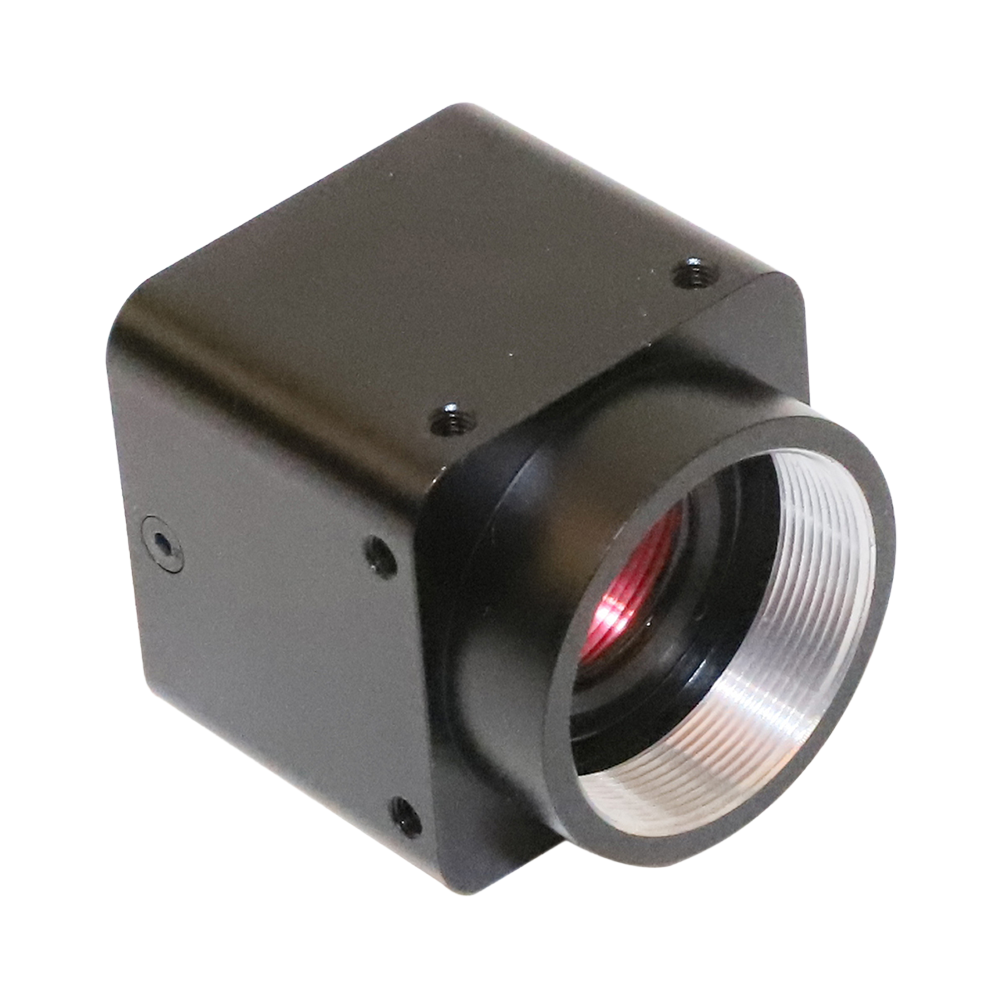

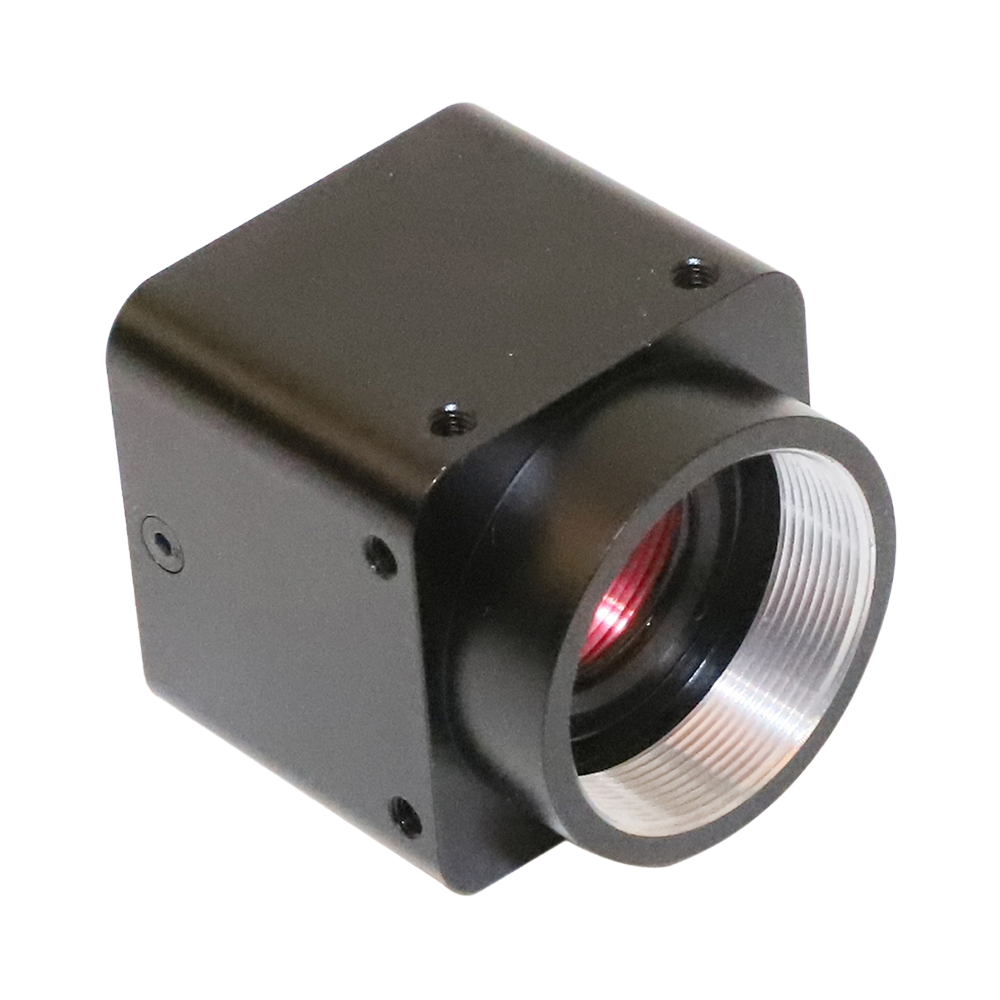

- C X5CAM4K_MR imaging sub-module ×1
- D USB 3.0 A to Micro-B cable (4.5 m)
- E Power adapter: Input AC 100~240 V 50/60 Hz, output DC 12 V 1 A; US POWER-U-12V1A (MSA-C1000IC12.0-12H-US), EU POWER-E-12V1A (MSA-C10001C12.0-12H-DE)
- F USB mouse ×1
- G HDMI 2.0 cable
- H USB 3.0 A↔A gold-plated data cable (1.5 m)
Optional Accessories
- I SD card (16 GB or above, Class 10)
- J USB drive
-
K Adjustable eyepiece tube adapters
Dia.23.2 mm to C-mount: 108001/AMA037, 108002/AMA050, 108003/AMA075 (choose based on camera and microscope).
-
L Fixed eyepiece tube adapters
Dia.23.2 mm to C-mount: 108005/FMA037, 108006/FMA050, 108007/FMA075. Note: Confirm camera interface and scenario before choosing K or L; engineers can assist.
- M 108015 (Dia.23.2 mm→30.0 mm) adapter ring for 30 mm eyepiece tubes
- N 108016 (Dia.23.2 mm→30.5 mm) adapter ring for 30.5 mm eyepiece tubes
- O USB wireless network adapter (required for WiFi mode; appearance varies)
- P Ethernet cable
- Q USB audio control module

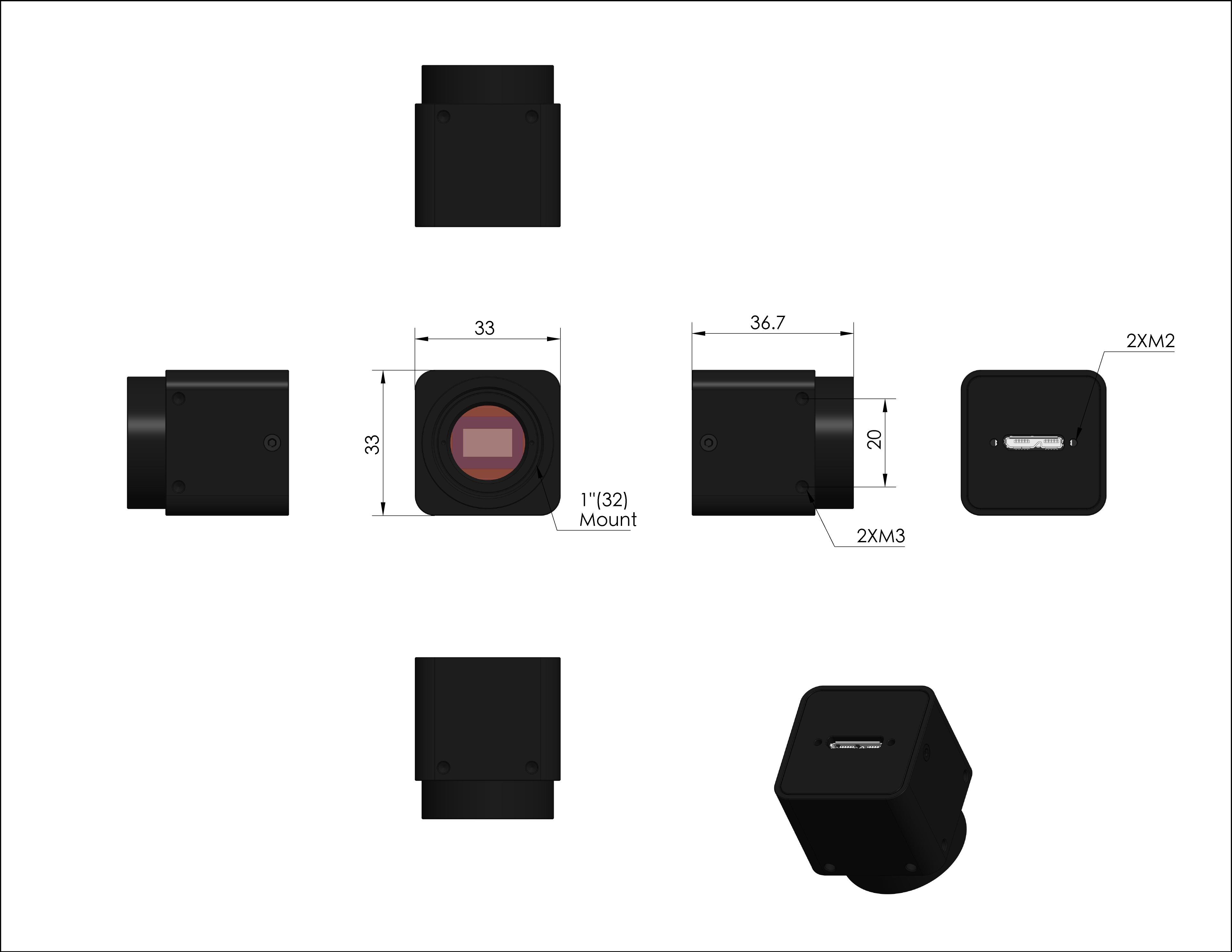

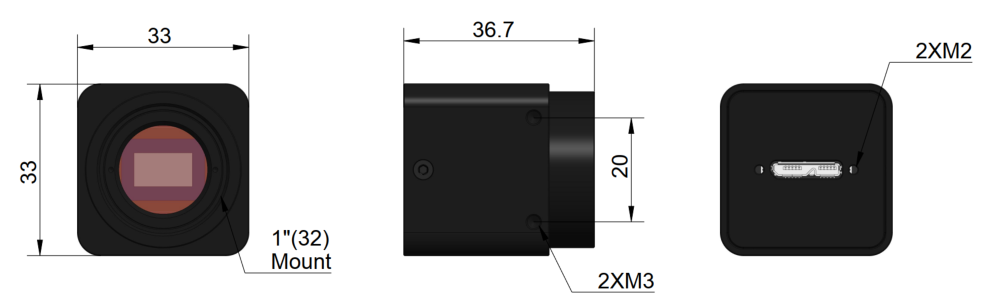

X5CAM4K_MR Multi-Module Camera Kit | Product Dimensions #

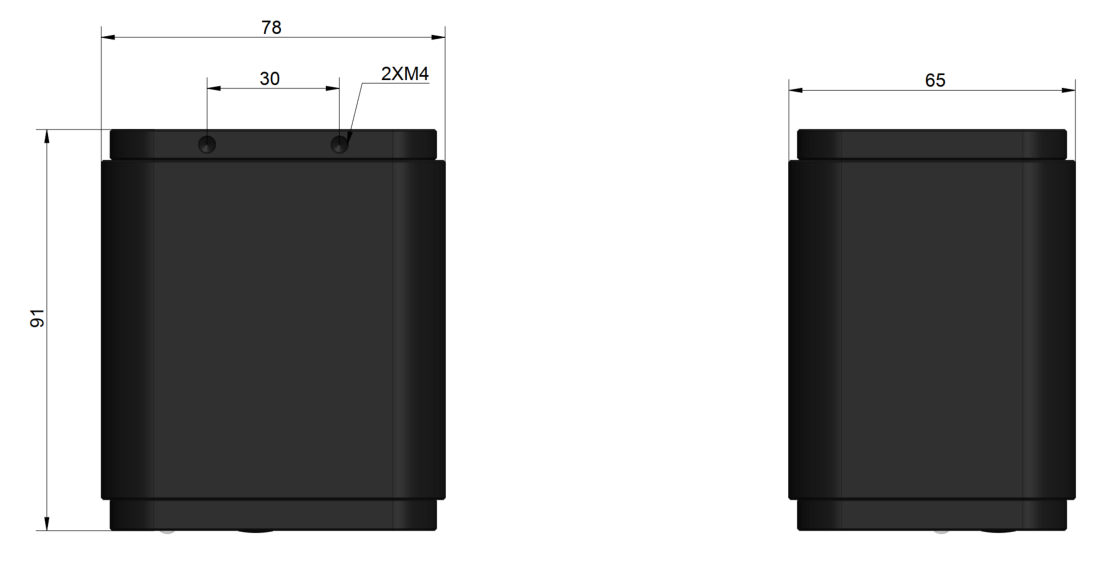

Dimensions for main unit with imaging submodule
See manual Fig. 5-3 to 5-4, including module connection orientation
Please confirm mounting holes and interface orientation per the dimension drawing before installation.
Product Overview
The X5CAM4K_MR series is a professional HDMI/NETWORK/USB multi-interface synchronous-output C-mount CMOS camera from Touptek. It uses Sony Starvis 2 backside-illuminated high-sensitivity sensors, supports 4K/1080p formats, and addresses high-resolution needs in microscopy, industrial inspection, and research recording. The split design links the imaging submodule to the main unit via a 10 m USB3.0 cable for easy embedding and remote display, balancing flexibility and integration.
Deep Dive
- Multi-interface real-time output: 4K HDMI, USB3.0, and Ethernet run in sync up to 60 fps for low-latency display and multi-end capture.
- Pro-grade imaging: Robust ISP with 3D noise reduction, sharpening, ROI white balance, and Gamma tuning to optimize color and detail.
-
Powerful feature set:
- • Supports RAW image capture and MP4 recording (H.264/H.265) with local storage to SD card or USB drive;
- • Built-in XCamView for depth fusion, real-time stitching, measurement, and auto edge finding;
- • USB audio control module enables voice commands for capture, recording, and freeze.
- Excellent system compatibility: Supports Windows, macOS, Linux plus iOS/Android apps, with standard SDKs for research and industrial software.
- Industrial reliability: Operates from -10 °C to 50 °C with a metal body for stable, long-term use.
Core Benefits
One Device, Flexible Output
HDMI, network, and USB3.0 outputs in parallel for local preview, remote control, and PC capture.
High Quality, Low Latency
4K 60 fps low-latency HDMI (about 40 ms) balances detail and real-time responsiveness.
Intelligent Imaging
Depth fusion, real-time stitching, and WDR enhance sample contrast and dimensionality.
Rich Expansion
Supports Wi-Fi module, audio control, and multi-language UI for teaching, demos, and OEM/ODM customization.
Broad Applicability

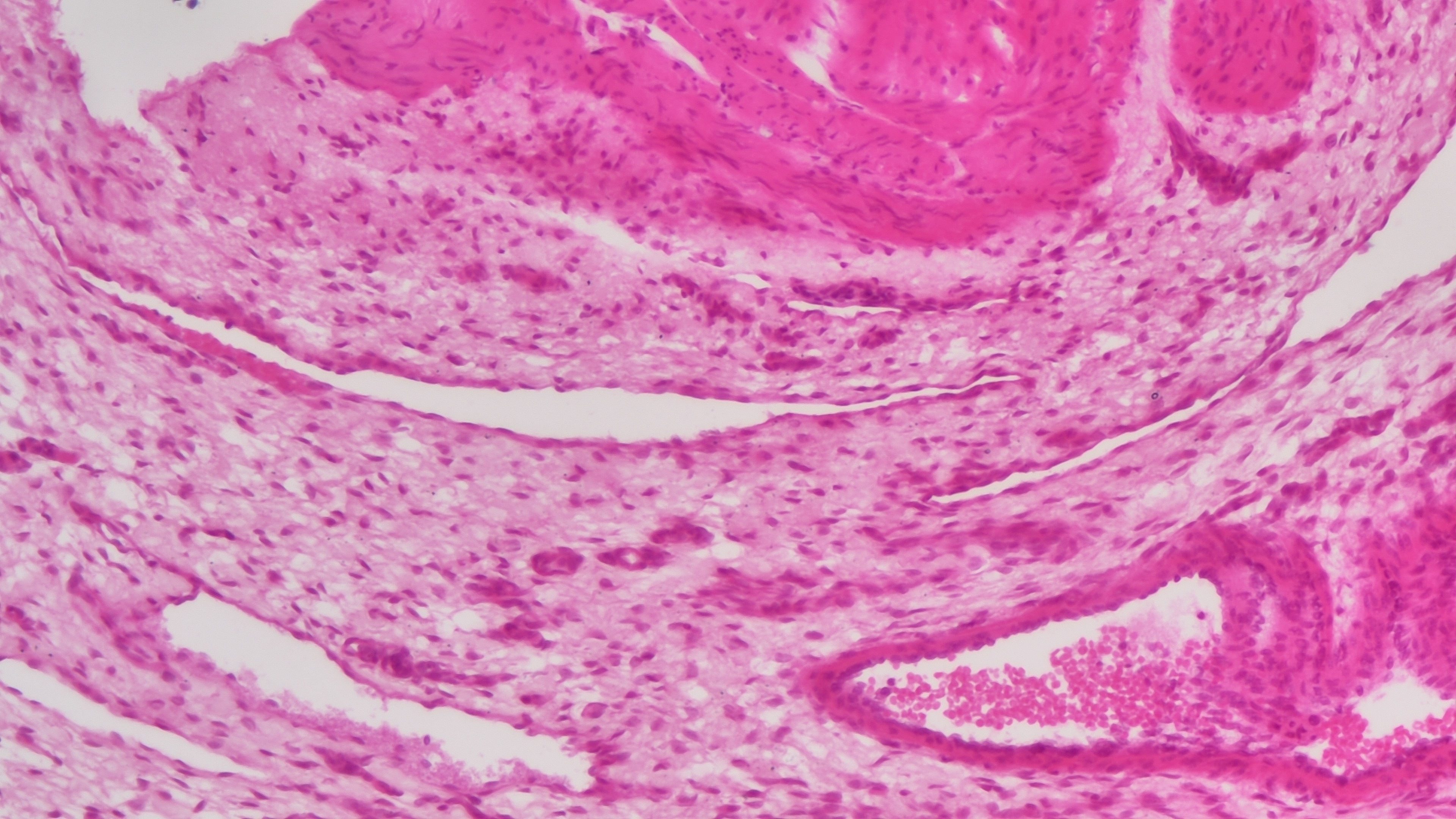

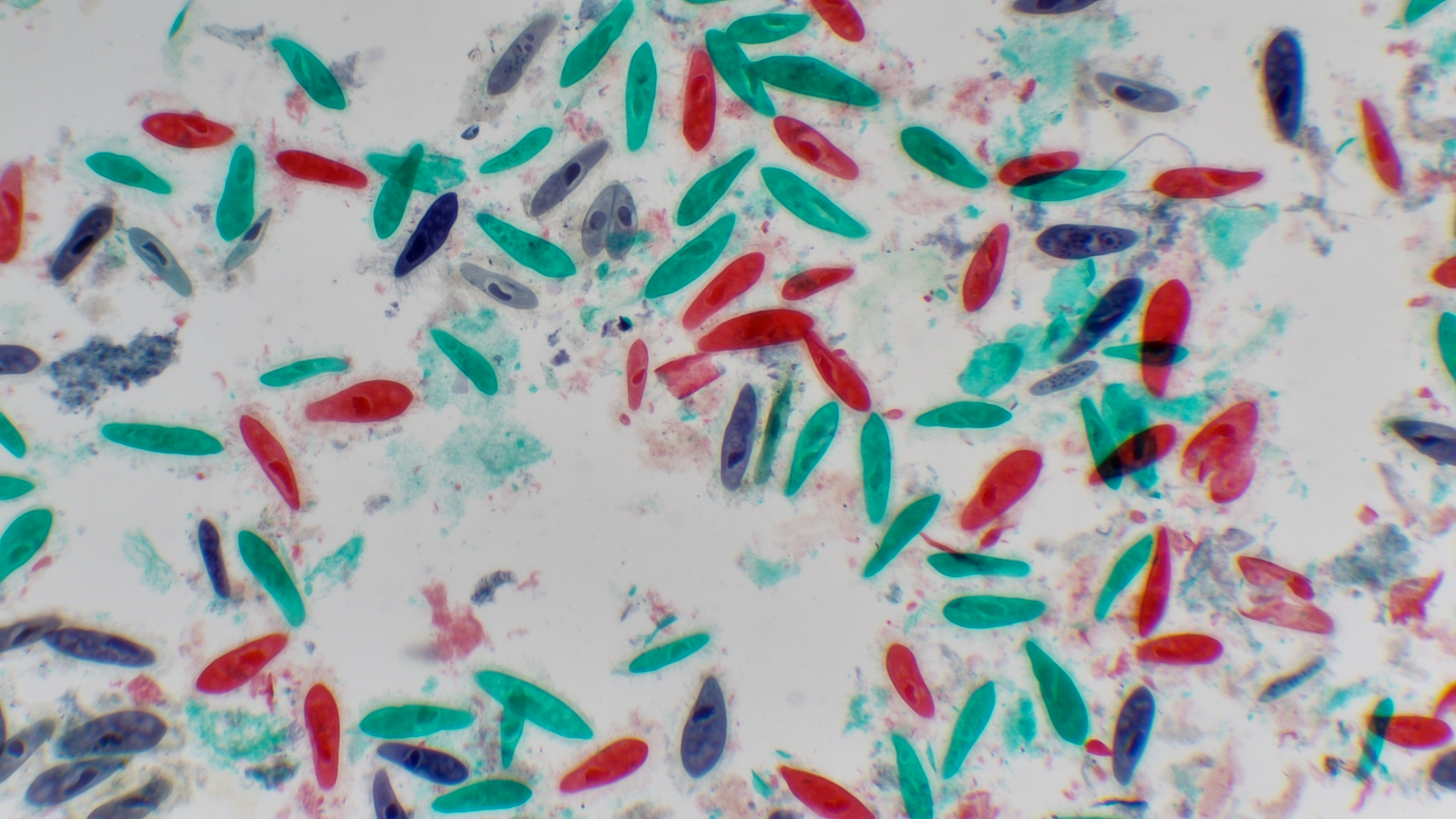

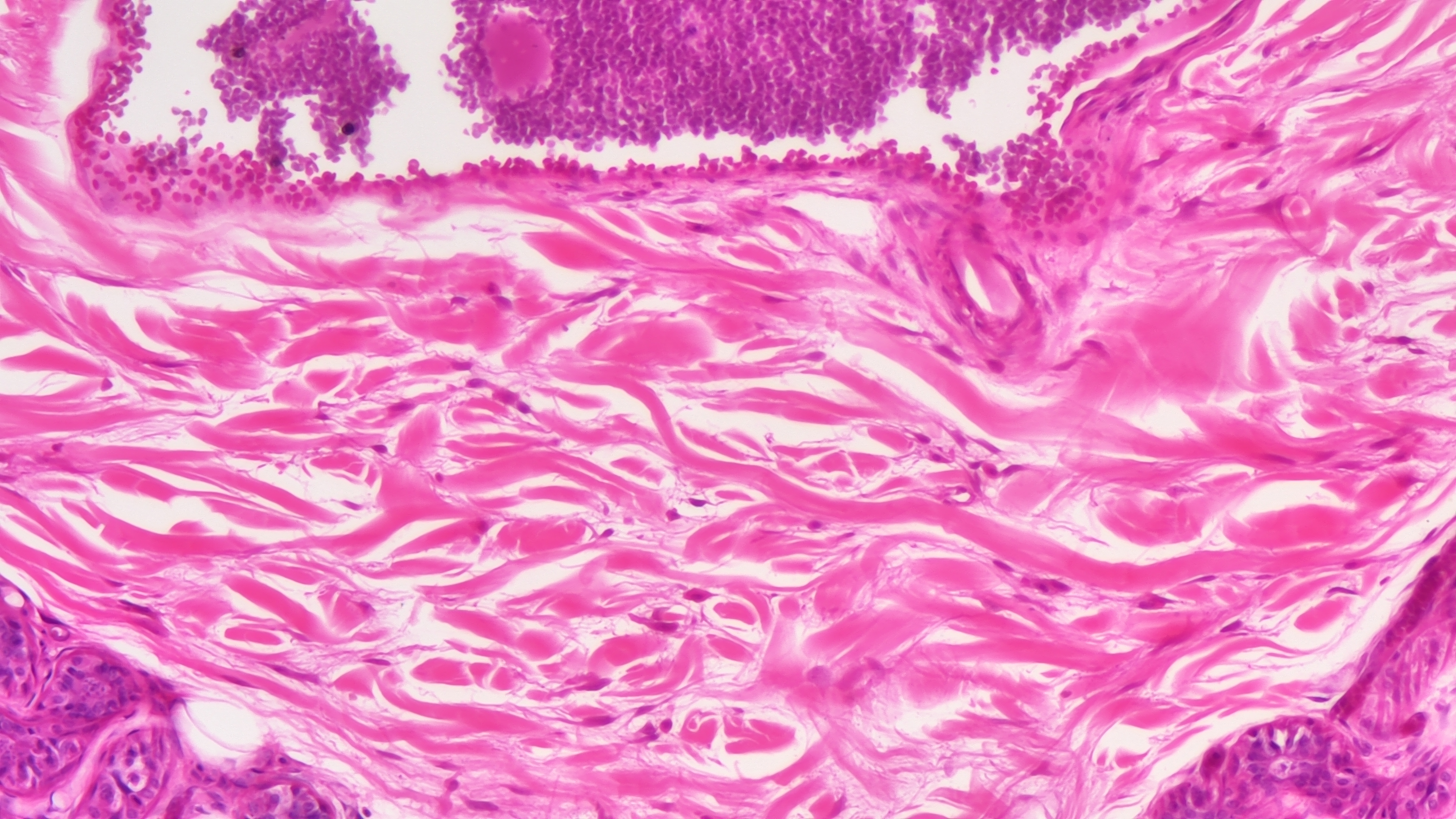

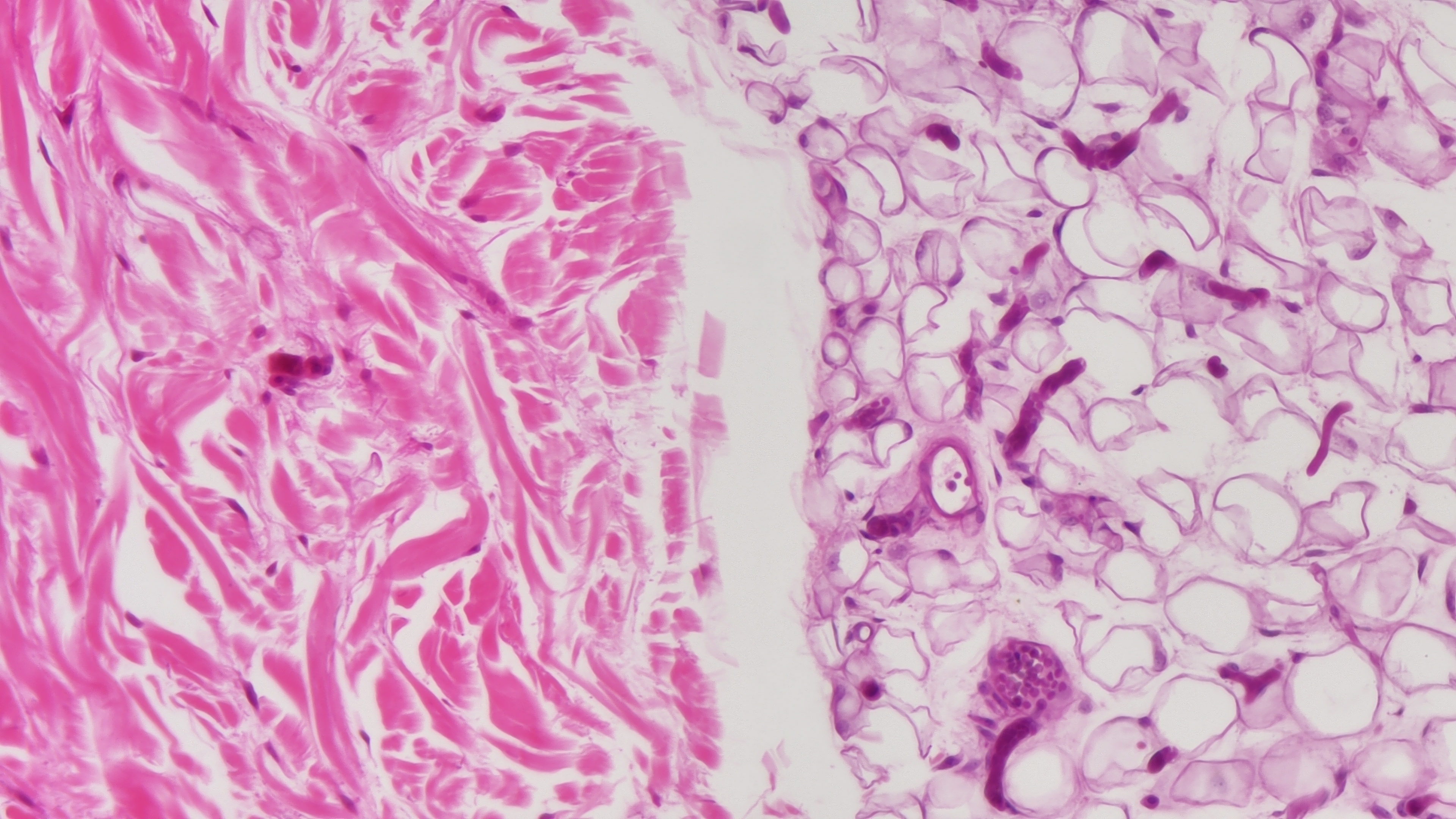

Fits biological microscopes, stereo microscopes, industrial QC, research recording, and teaching demos.
