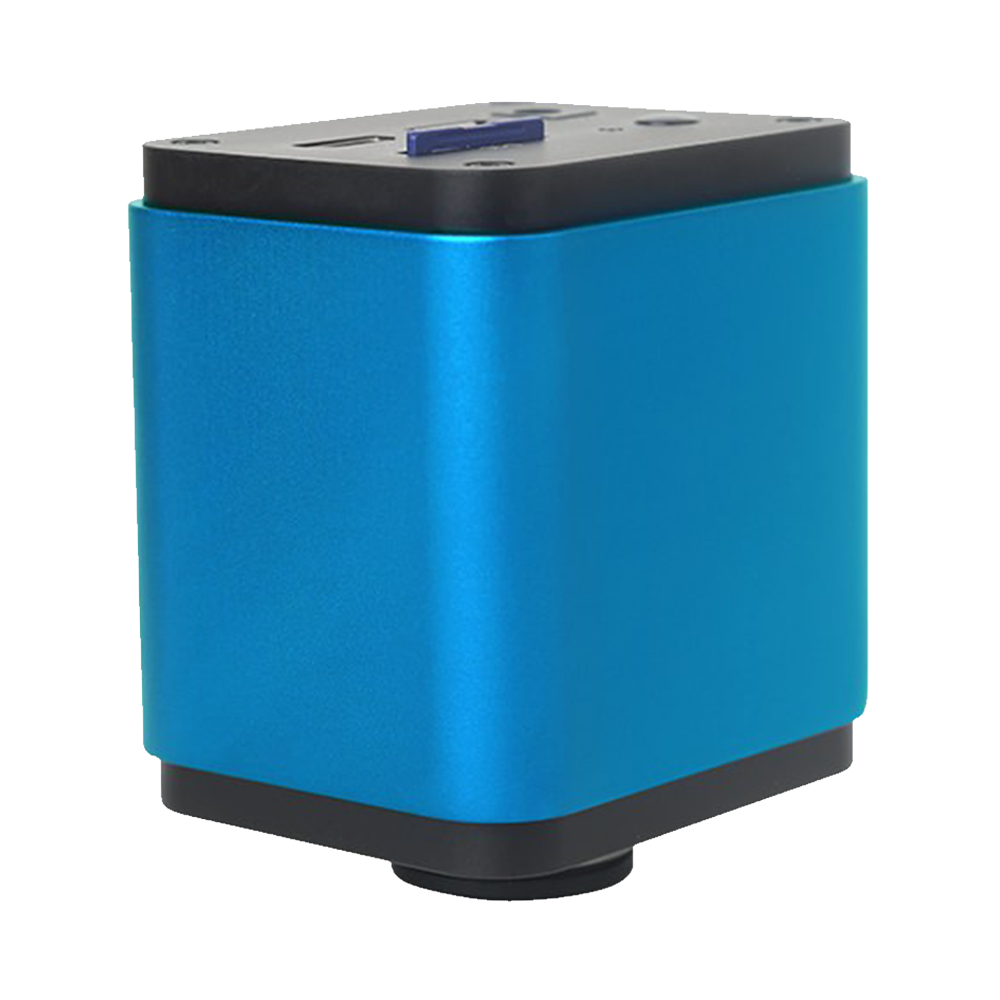

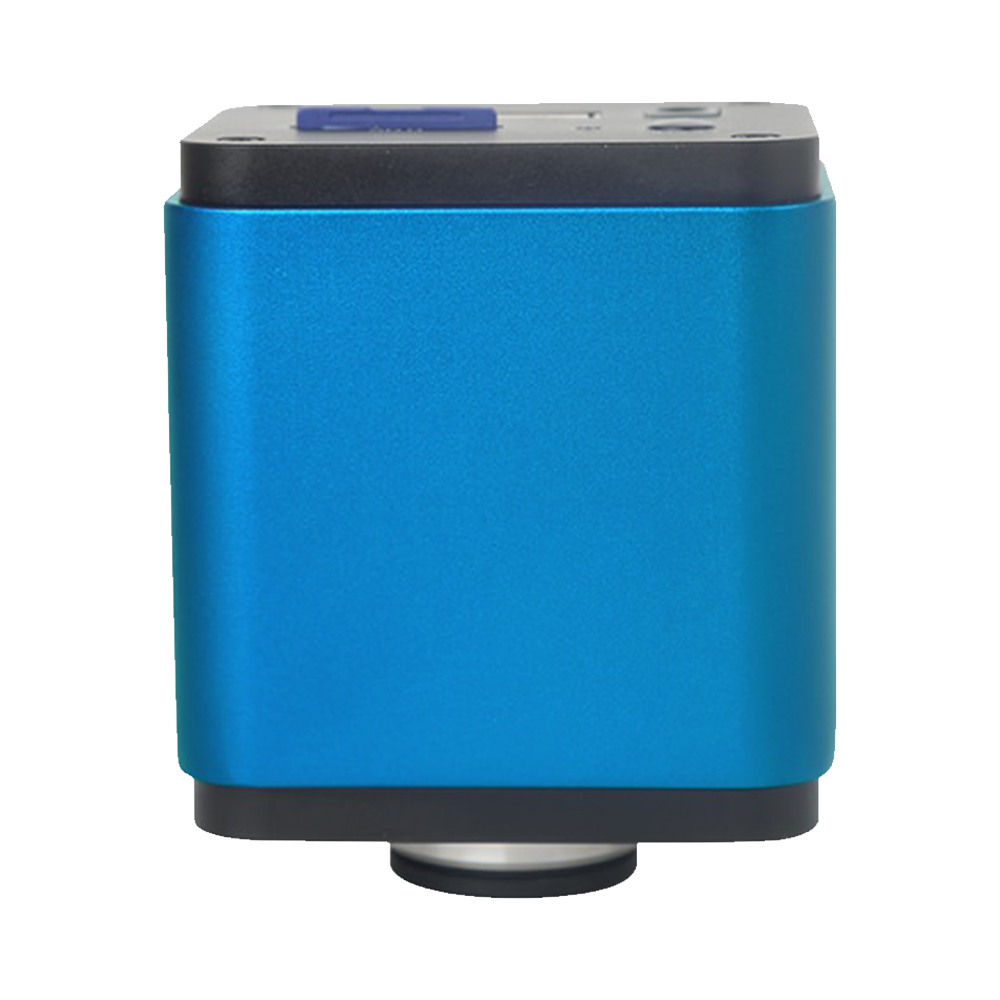

XCAM1080PHX Series
Product Introduction
XCAM1080PHX series cameras are designed by ToupTek as cameras with multiple output methods (HDMI+Wi-Fi+SD card), where the X in XCAM stands for multi-interface). They adopt ultra-high performance CMOS sensors. The cameras can be directly connected to HDMI displays, connected to computers and other smartphones or tablets via Wi-Fi, and can also save images and videos to SD cards for on-site analysis and subsequent research.
The greatest feature of XCAM1080PHX series cameras is that the camera itself is equipped with an embedded ARM core, which can display various camera control functions directly on HDMI displays in the form of control panels. Furthermore, users can directly control various camera parameters using a USB mouse interface mouse. Additionally, the HDMI display interface has various toolbar buttons at the bottom for user operation.
When the mouse is unplugged and a USB Wi-Fi module is inserted, and the computer is connected to that Wi-Fi, the XCAM1080PHX series camera becomes a Wi-Fi interface camera, and users can directly control the camera hardware using the included software ToupView/ToupLite. XCAM1080PHX series cameras can be used for on-site tool inspection, microscope observation, etc.
Product Features
- C-mount camera with Sony high sensitivity CMOS sensor
- HDMI / Wi-Fi can output simultaneously
- HDMI output can be achieved through built-in USB interface mouse software XCamView
- Wi-Fi output can be achieved by inserting USB interface Wi-Fi module, its control can be achieved by ToupView/ToupLite software provided with the camera
- Can achieve 5.04M pixel (2592x1944) image capture and preview (XCAM1080PHB) or 2.0M pixel (1920x1080) (XCAM1080PHD/PHE); can achieve 1080P video stream (asf format) SD card storage
- Ultra-Fine color engine ensures accurate color reproduction (when camera is connected to computer via Wi-Fi)
- Provides multi-platform standard SDK for Windows/Linux/OSX
- CNC housing one-piece design and processing

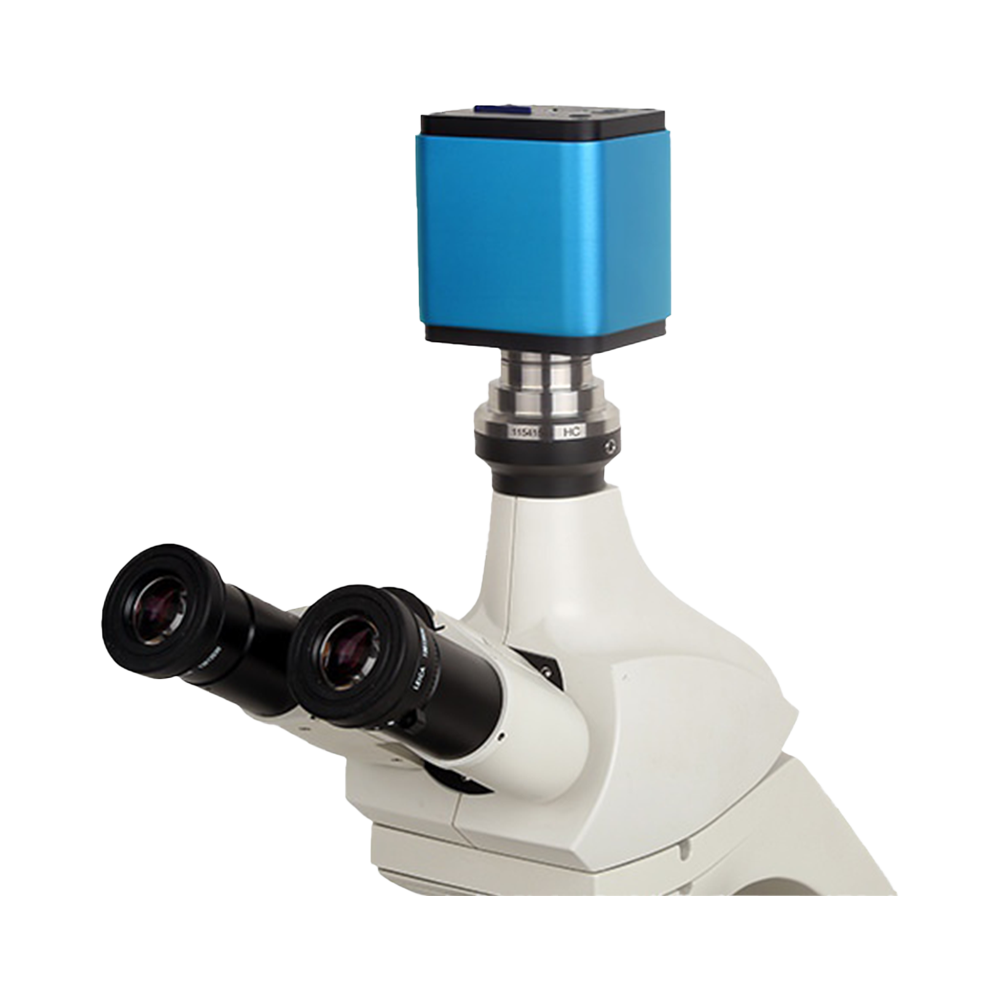

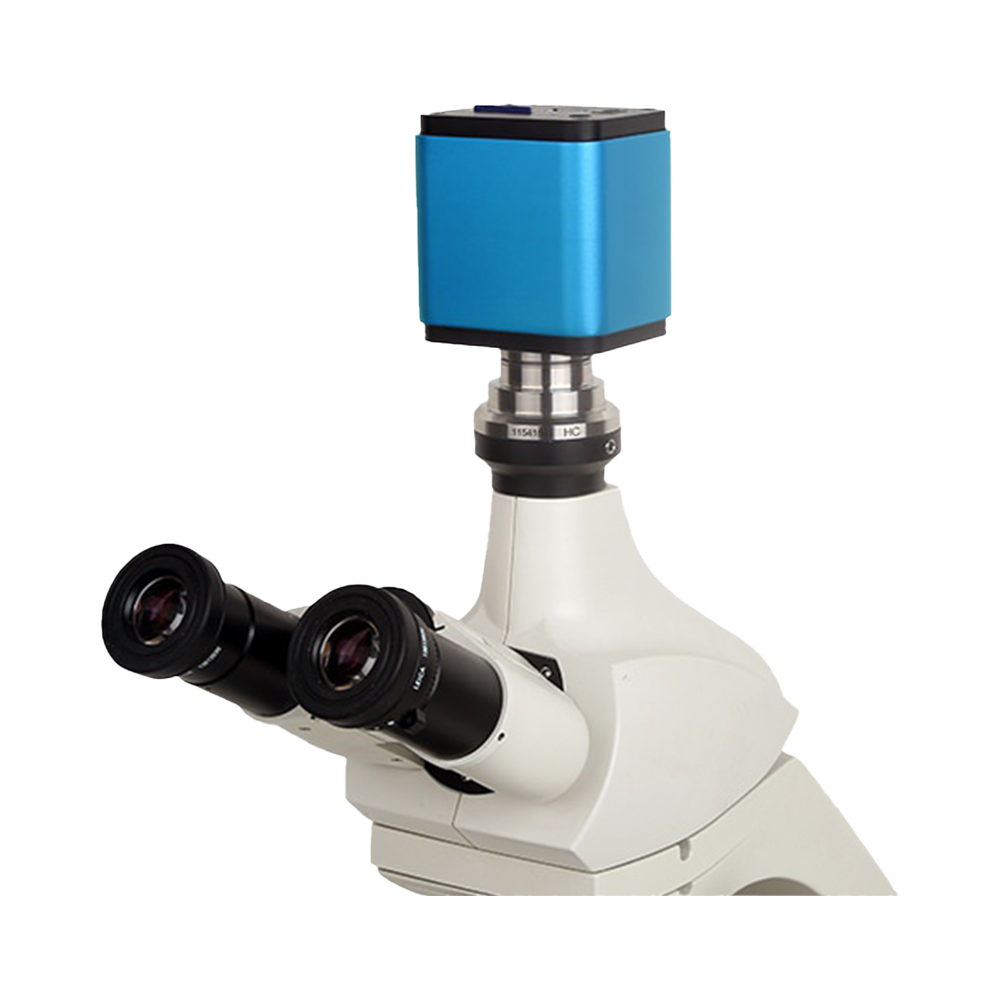

- Can be used for stereo microscope or biological microscope image acquisition, and can also be networked into interactive teaching systems
XCAM1080PHX Series
HDMI and Wi-Fi dual mode, suitable for wireless image transmission and multi-device connectivity, supports global shutter and motion imaging applications.
| Model | Sensor/Size | Effective Pixels | Output Resolution | Frame Rate (fps) | Output Interface | Auto Focus | Lens Mount | Storage Support | Featured Functions |
|---|---|---|---|---|---|---|---|---|---|
| XCAM1080PHB |
Sony IMX178(C)
1/1.8" (6.22×4.67 mm)
|
2.4 μm × 2.4 μm | 5MP (2592×1944) | HDMI: 30 fps@1920×1080; Wi-Fi: 25 fps@1920×1080 | HDMI Wi-Fi | C-mount | SD card | Wi-Fi wireless transmission Image measurement Video recording Multi-device connection Graphics overlay Multi-language menu | |
| XCAM1080PHD |
Sony IMX185(C)
1/1.9" (7.20×4.05 mm)
|
3.75 μm × 3.75 μm | 2MP (1920×1080) | HDMI: 30 fps@1920×1080; Wi-Fi: 25 fps@1920×1080 | HDMI Wi-Fi | C-mount | SD card | Wi-Fi wireless transmission Image measurement Video recording Multi-device connection Graphics overlay Multi-language menu | |
| XCAM1080PHE |
Sony IMX249(C,GS)
1/1.2" (11.25×6.33 mm)
|
5.86 μm × 5.86 μm | 2MP (1920×1080) | HDMI: 30 fps@1920×1080; Wi-Fi: 25 fps@1920×1080 | HDMI Wi-Fi | C-mount | SD card | Global shutter Wi-Fi wireless transmission Image measurement Video recording Multi-device connection Moving object imaging |
XCAM1080PHX Multi-Interface Camera | Packing List #

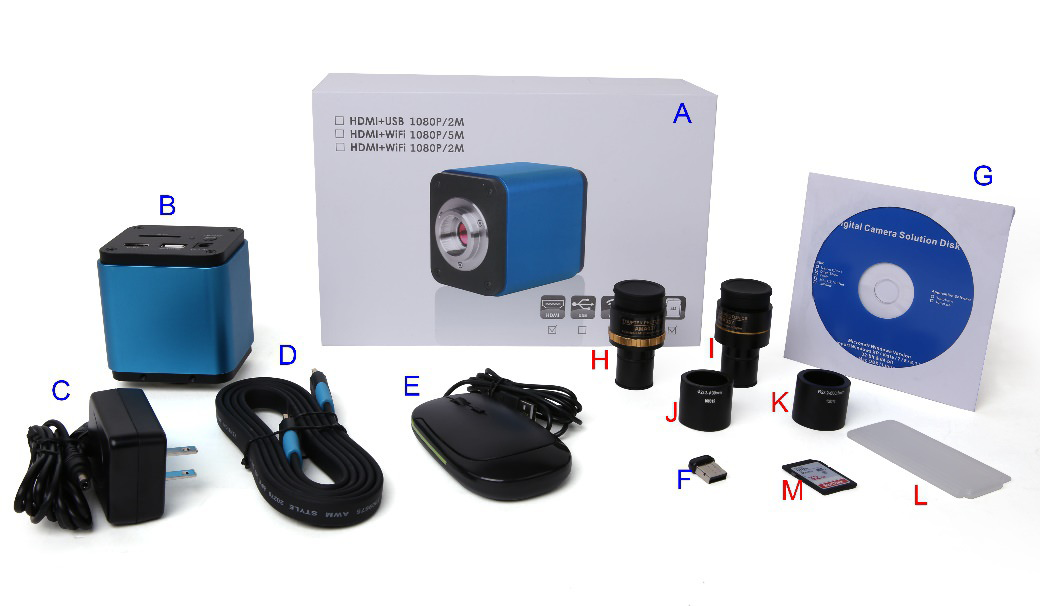

Standard Packing List
- A Camera box: 25.5 cm × 17.0 cm × 9.0 cm (1 pcs, 1.43 kg per box)
- B XCAM1080PHX series camera ×1
- C Power adapter: Input AC 100~240 V 50/60 Hz, output DC 12 V 1 A; US GS12U12-P1I (UL/CUL/BSMI/CB/FCC), EU GS12E12-P1I (TUV(GS)/CB/CE/ROHS); EMI: EN55022, EN61204-3, EN61000-3-2/-3, FCC Part 15B, BSMI CNS14338; EMS: EN61000-4-2/3/4/5/6/8/11, EN61204-3 Class A
- D HDMI cable
- E USB mouse
- F USB wireless network adapter
- G CD (drivers and application, Ø12 cm)
Optional Accessories
- H Adjustable eyepiece tube adapters
Dia.23.2 mm to C-mount: 108001/AMA037, 108002/AMA050, 108003/AMA075; Dia.31.75 mm to C-mount: 108008/ATA037, 108009/ATA050, 108010/ATA075 (choose based on camera and microscope/telescope).
- I Fixed eyepiece tube adapters
Dia.23.2 mm to C-mount: 108005/FMA037, 108006/FMA050, 108007/FMA075; Dia.31.75 mm to C-mount: 108011/FTA037, 108012/FTA050, 108013/FTA075. Note: Confirm camera model (C-mount) before choosing H or I; engineers can assist.
- J 108015 (Dia.23.2 mm→30.0 mm) adapter ring for 30 mm eyepiece tubes
- K 108016 (Dia.23.2 mm→30.5 mm) adapter ring for 30.5 mm eyepiece tubes
- L Micrometer: 106011/TS-M1 (X=0.01 mm/100 Div.); 106012/TS-M2 (X,Y=0.01 mm/100 Div.); 106013/TS-M7 (X=0.01 mm/100 Div., 0.10 mm/100 Div.)
- M SD card (4 GB or 8 GB)
XCAM1080PHX Multi-Interface Camera | Dimensions #

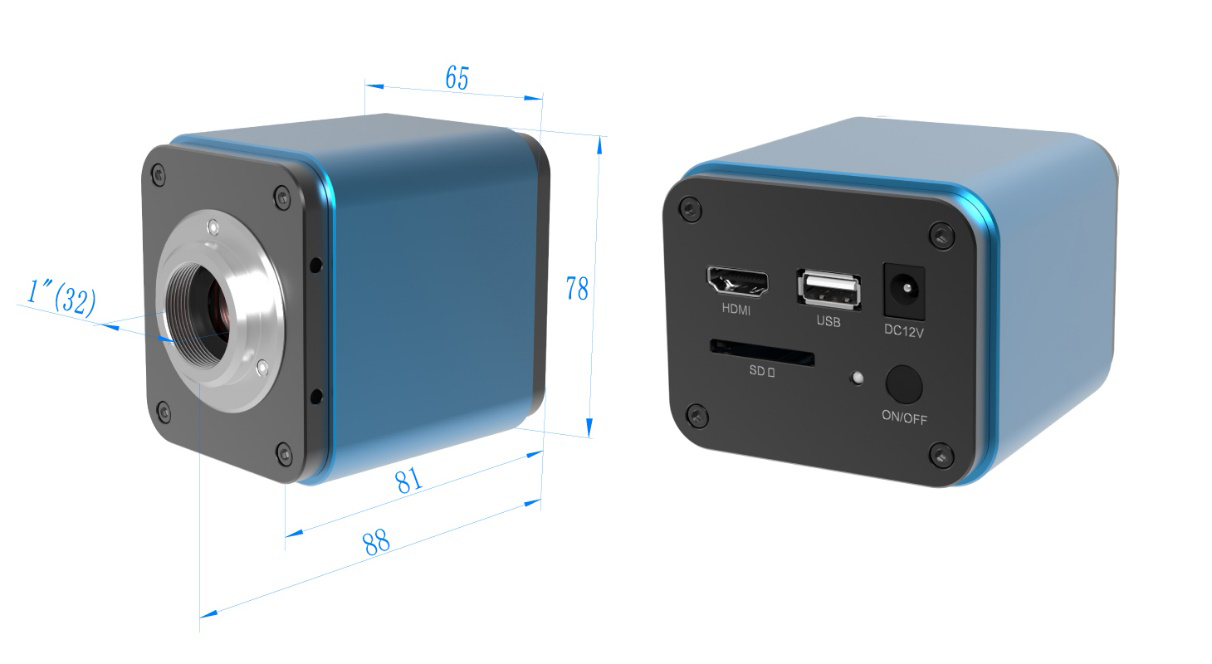

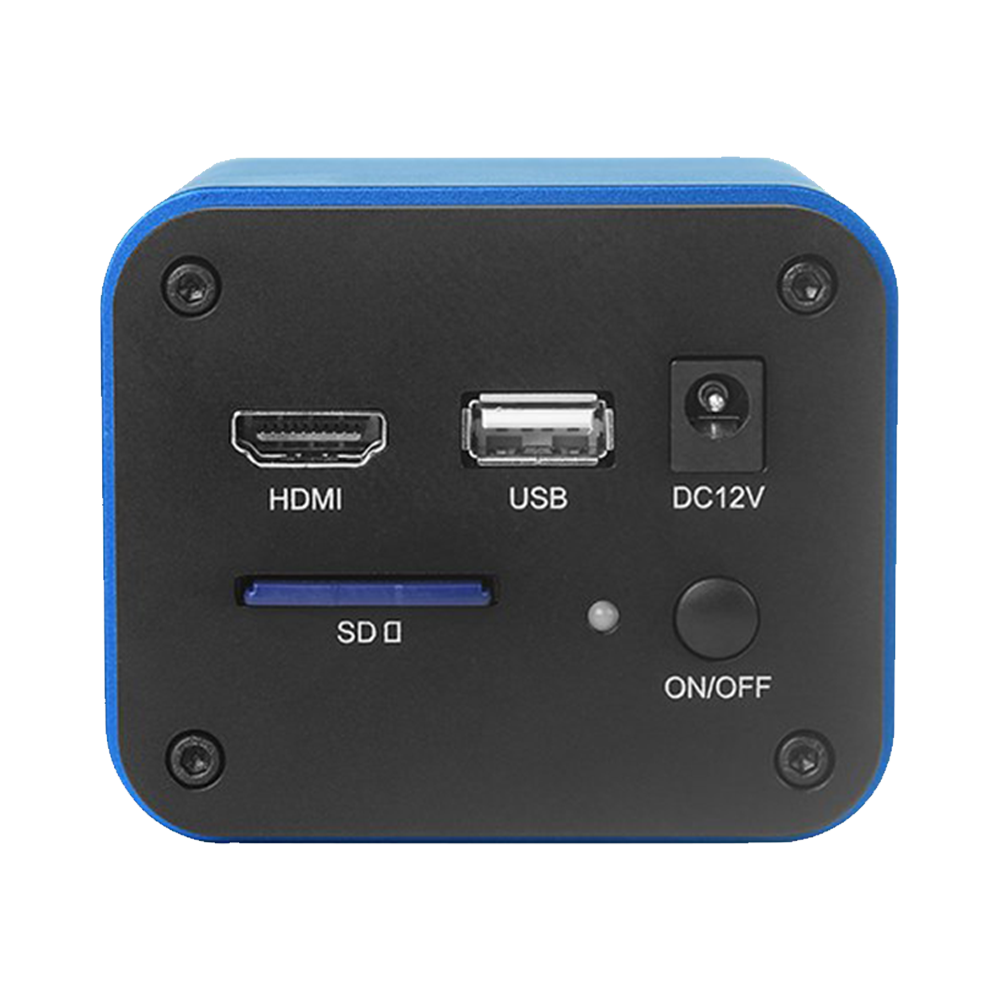

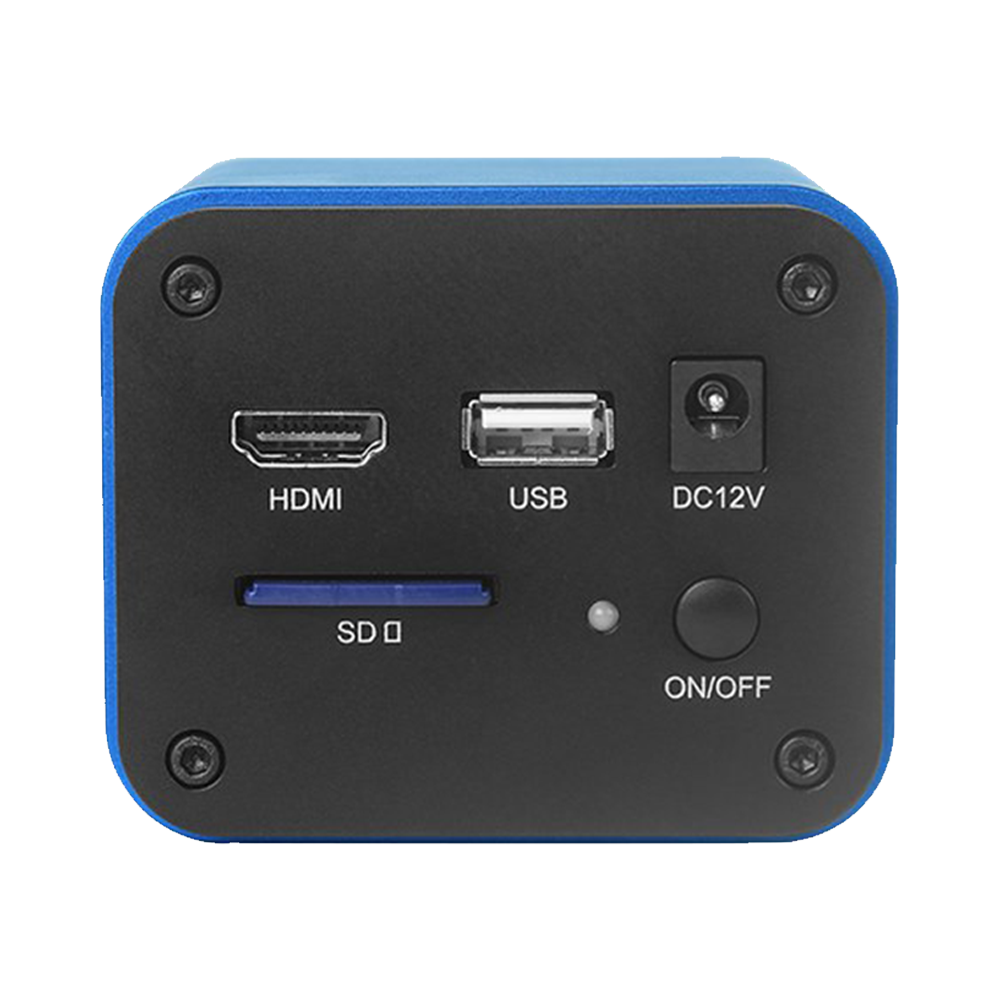

Body dimensions and interface layout
See manual Figure 3-112
Confirm mount holes and interface orientation with the dimension drawing before installation.
In-Depth Overview
The ToupTek Photonics XCAM1080PHX series is a C-mount microscope camera supporting simultaneous HDMI and Wi-Fi output for stereo microscopes, biological microscopes, and other optical systems needing 1080p full-HD imaging and video capture. On an HDMI display, the built-in XCamView interface enables preview, capture, and recording without a computer, with SD card local storage.
Insert a USB Wi-Fi module to enable AP wireless mode, working with ToupView/ToupLite (PC) or the ToupView App (iOS/Android) for remote control; or add a USB-to-Ethernet adapter for LAN access to support multi-camera networking and collaborative teaching with flexible deployment.
Technical Highlights
- Flexible connectivity and networking: Supports HDMI real-time display, Wi-Fi (USB Wi-Fi module/AP), and USB-to-Ethernet (LAN) for standalone use or multi-camera networking.
- Integrated operation interface: Built-in XCamView with intuitive USB mouse control; side/top/bottom panels expose tools for exposure, measurement, and system control.
- 1080p imaging with local storage: Capture 5.04 MP/2 MP stills; record 1080p video to SD card (ASF) for retention and archiving.
- Rich image controls and optimization: Offers auto/manual exposure, exposure compensation, gain, white balance, sharpening, noise reduction, gamma, contrast, and 50/60 Hz anti-flicker settings.
- Cross-platform software and SDK: Compatible with ToupView/ToupLite/ToupView App; provides a standard SDK for Windows / Linux / macOS to ease integration and development.
Core Advantages
-
1
HDMI plug-and-play, no PC needed Connect a display and mouse to preview, capture, and record with lightweight setup.
-
2
HDMI + Wi-Fi simultaneous output Balances on-site display and wireless collaboration for classroom demos and remote viewing.
-
3
Expandable LAN and multi-camera networking Join LAN via USB-to-Ethernet adapter; supports unified access and management of multiple cameras.
-
4
Local storage + measurement tools Save images/video directly to SD card; use the measurement toolbar for annotation and calibration.
-
5

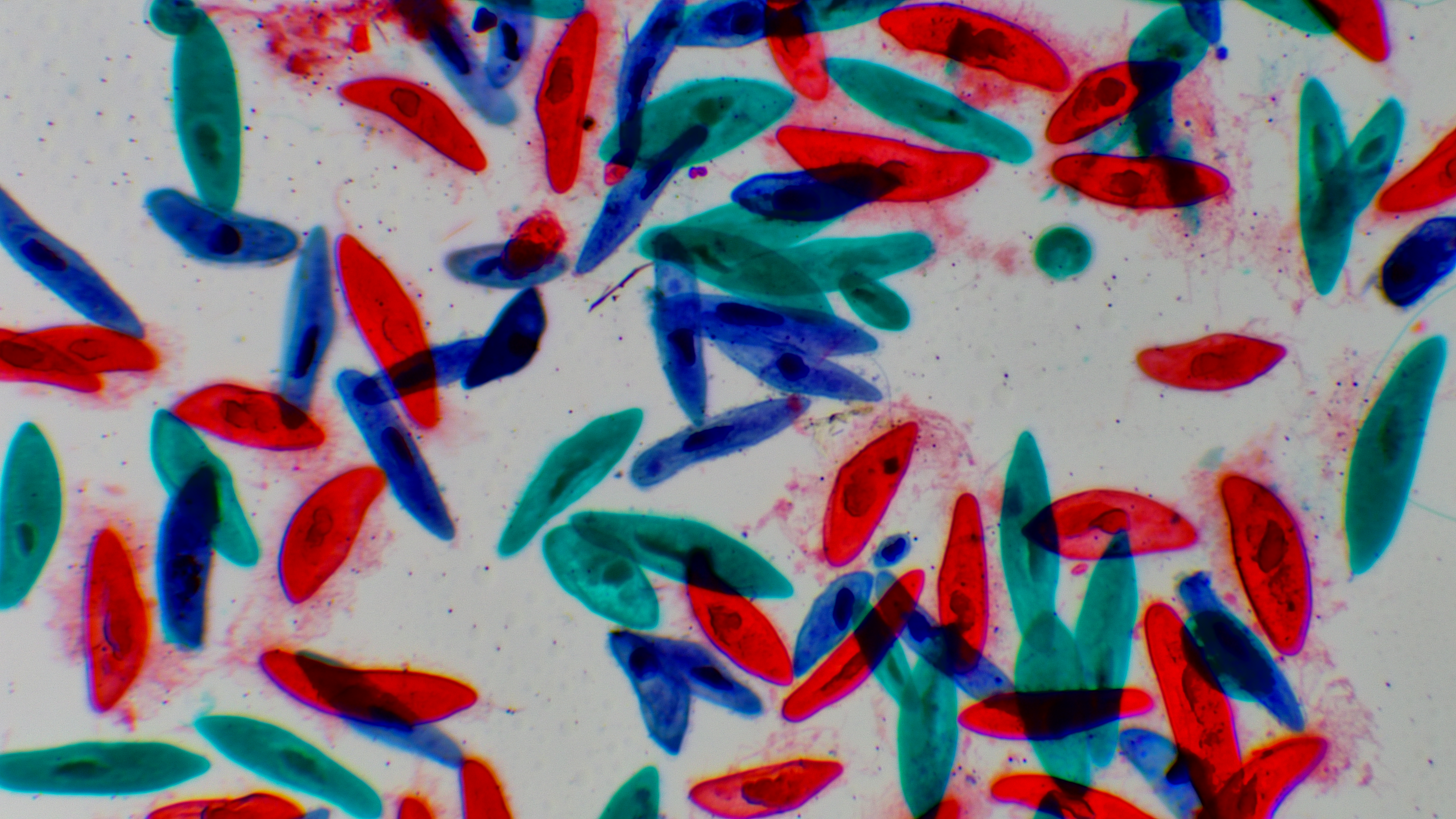

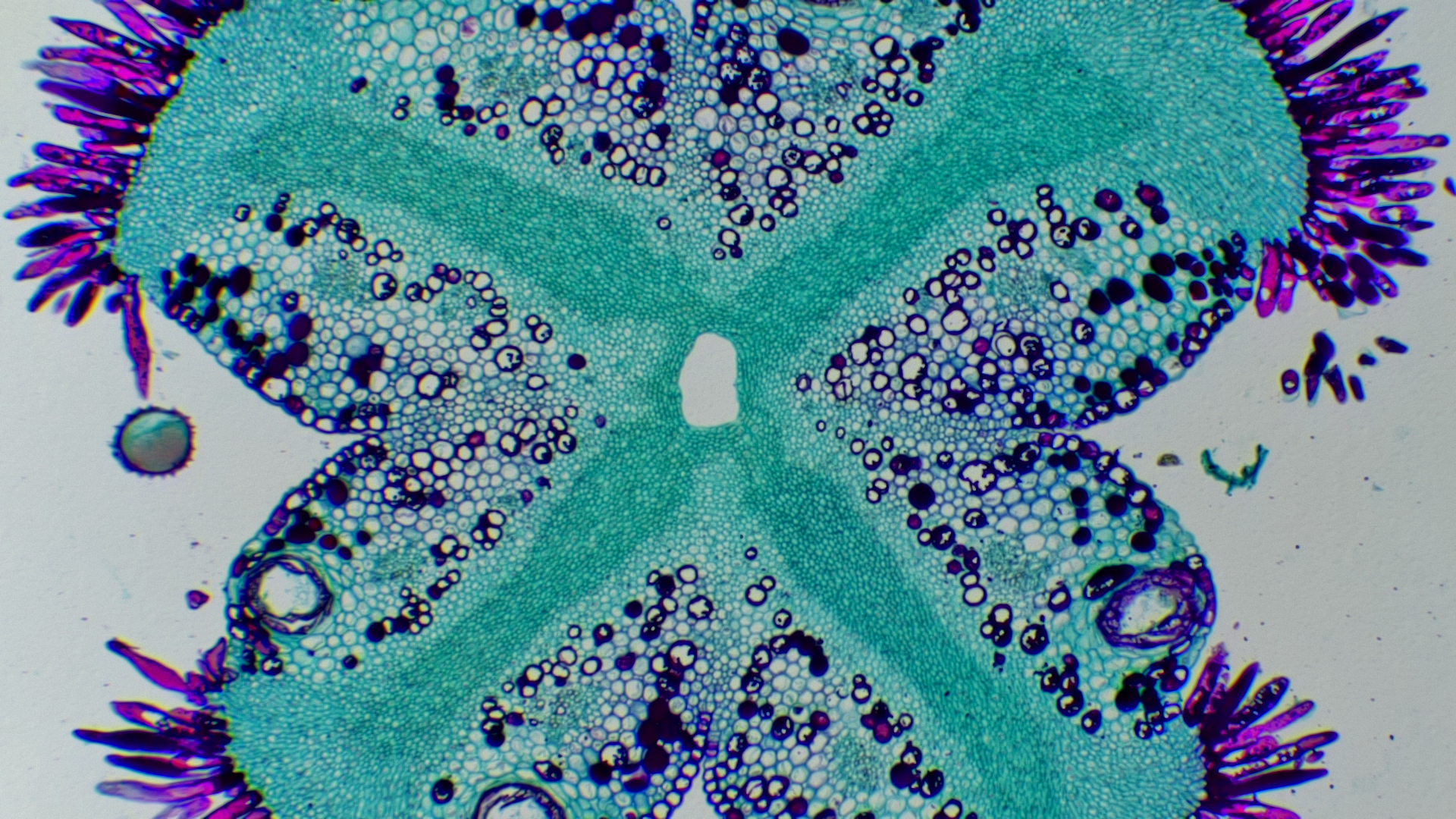

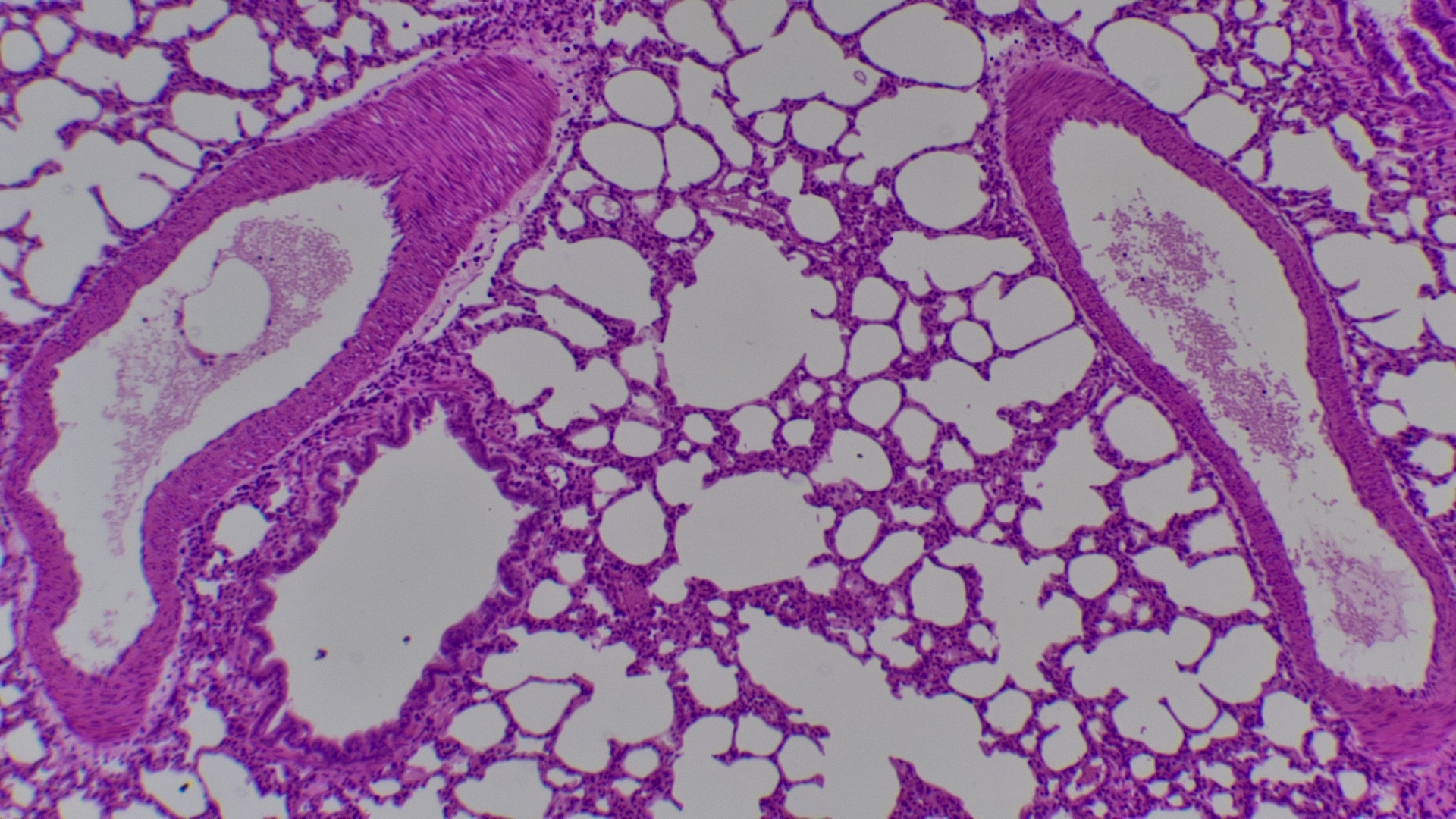

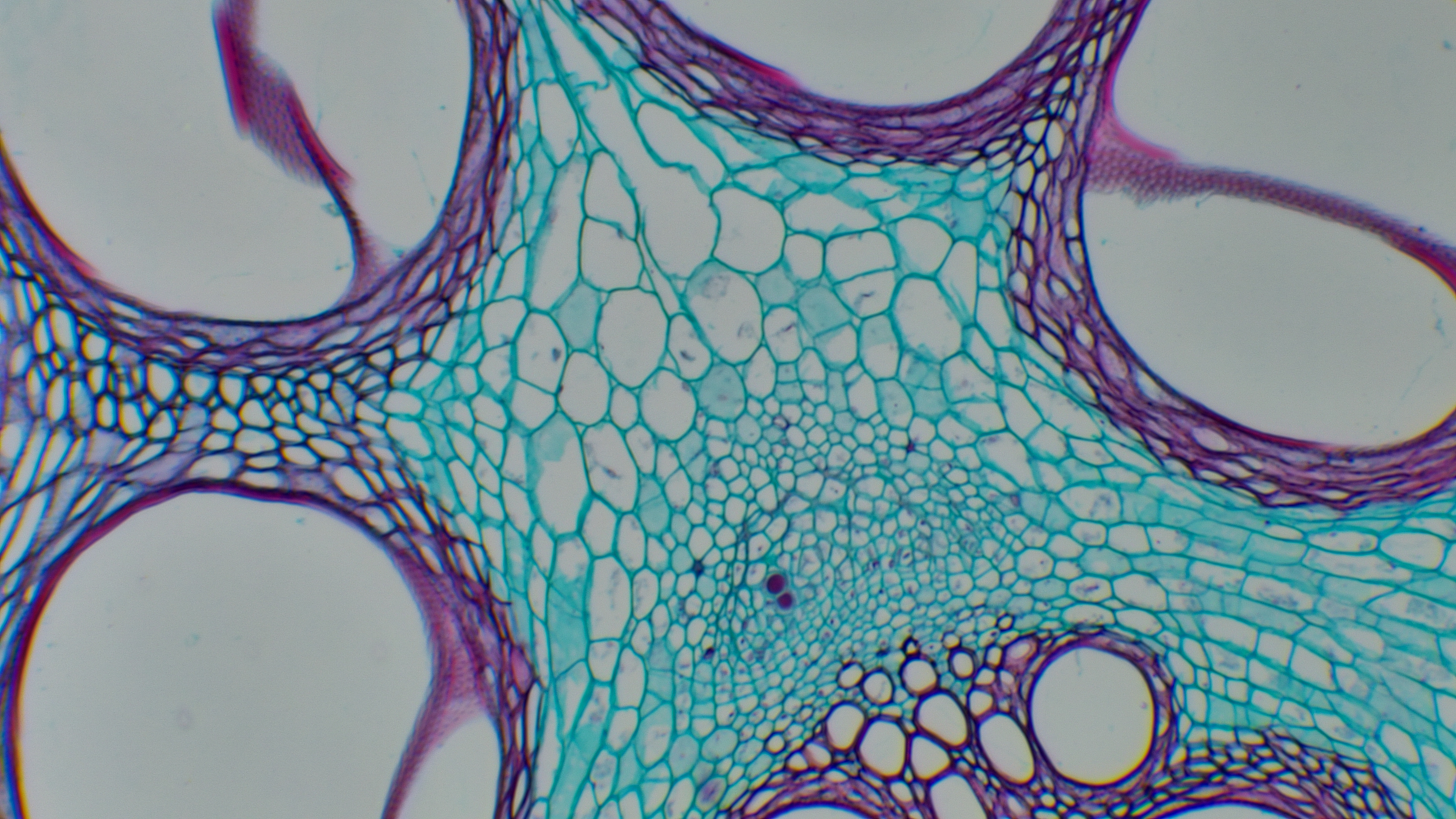

Fits multiple use cases Efficiently covers research/teaching, industrial inspection, interactive instruction, and remote collaboration.
