WECAM Series
Product Introduction
The WECAM series HDMI cameras enable direct video and image acquisition for stereoscopic or biological microscopes without requiring a computer. They can also be networked to create interactive microscopy teaching systems, facilitating both instructor teaching and student learning.
Product Features
- Sony Exmor back-illuminated CMOS sensor
- LAN, Wi-Fi (AP/STA) multi-interface output
- Powerful ISP and comprehensive processing functions
- ToupView/ToupLite software for convenient PC operation
- iOS/Android mobile applications available for free download from app stores
WECAM Series
Supports both Wi-Fi and wired LAN output with enterprise-grade network connectivity, ideal for remote teaching, network imaging, and enterprise integration applications.
| Model | Sensor/Size | Effective Pixels | Output Resolution | Frame Rate (fps) | Output Interface | Auto Focus | Lens Mount | Storage Support | Featured Functions |
|---|---|---|---|---|---|---|---|---|---|
| WECAM5MPA |
Sony IMX178(C)
1/1.8" (6.22×4.67 mm)
|
2.4 µm × 2.4 µm | 5MP (2592×1944) | LAN/Wi-Fi: 30 fps@2592×1944 | LAN Wi-Fi 802.11ac | C-mount | No local storage | Dual network interfaces AP/STA mode switching High resolution Network bandwidth adjustment Enterprise-grade applications |
WECAM WiFi+Ethernet Camera | Packing List #

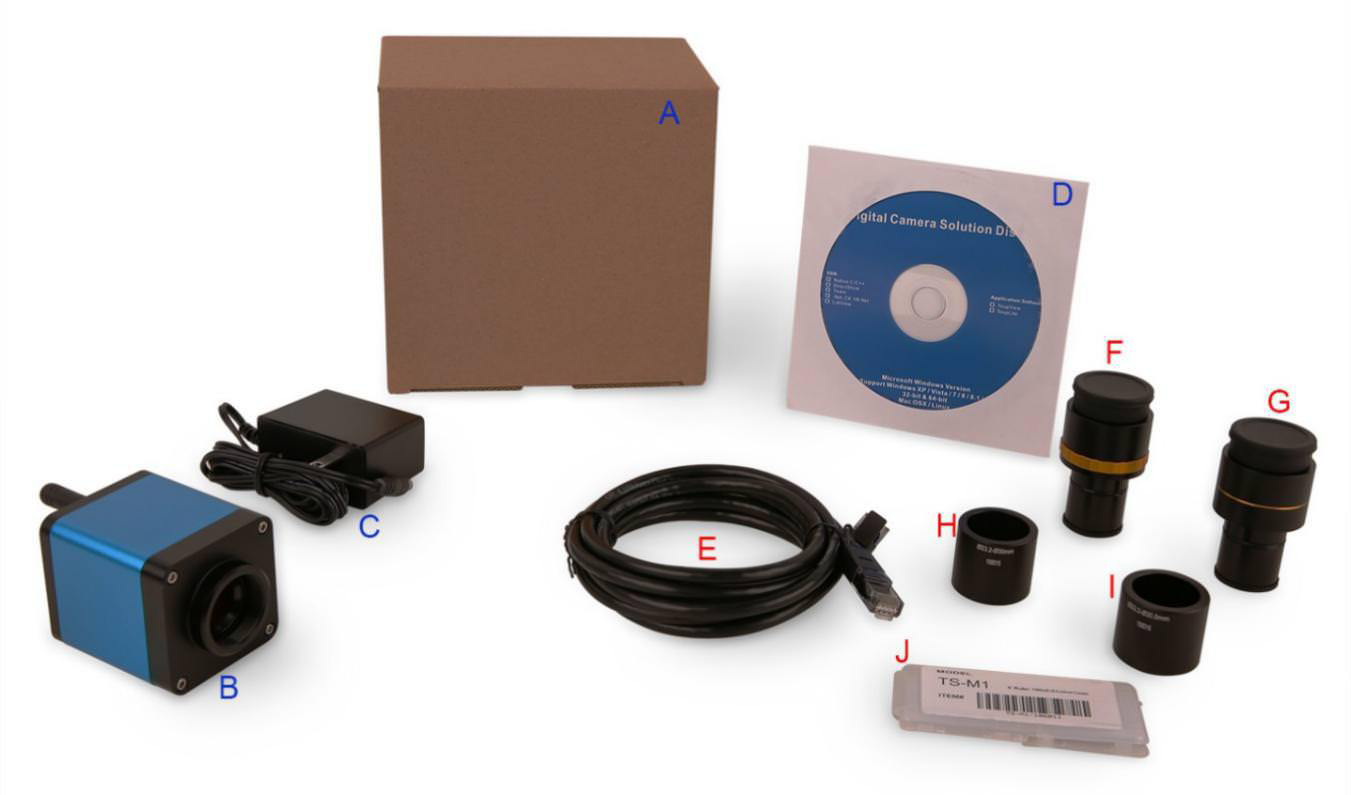

Standard Packing List
- A Camera box dimensions: 15.0 cm × 15.0 cm × 10.0 cm (1 pcs, 0.46 kg per box)
- B WECAM series camera ×1
- C Power adapter: input AC 100~240 V 50/60 Hz; output DC 12 V 1 A; US GS12U12-P1I (UL/CUL/BSMI/CB/FCC), EU GS12E12-P1I (TUV(GS)/CB/CE/ROHS); EMI: EN55022, EN61204-3, EN61000-3-2/-3, FCC Part 15B, BSMI CNS14338; EMS: EN61000-4-2/3/4/5/6/8/11, EN61204-3 Class A light industrial standard
- D CD (drivers and application, Ø12 cm)
Optional Accessories
- E Gigabit Ethernet cable
-
F Adjustable eyepiece tube adapters
Dia.23.2 mm eyepiece to C-mount: 108001/AMA037, 108002/AMA050, 108003/AMA075 (choose based on camera and microscope).
-
G Fixed eyepiece tube adapters
Dia.23.2 mm eyepiece to C-mount: 108005/FMA037, 108006/FMA050, 108007/FMA075. Note: Confirm the camera interface and scenario before choosing F or G; engineers can help match.
- H 108015 (Dia.23.2 mm→30.0 mm) adapter ring for 30 mm eyepiece tubes
- I 108016 (Dia.23.2 mm→30.5 mm) adapter ring for 30.5 mm eyepiece tubes
- J Micrometer: 106011/TS-M1 (X=0.01 mm/100 Div.); 106012/TS-M2 (X,Y=0.01 mm/100 Div.); 106013/TS-M7 (X=0.01 mm/100 Div., 0.10 mm/100 Div.)
WECAM WiFi+Ethernet Camera | Dimensions #

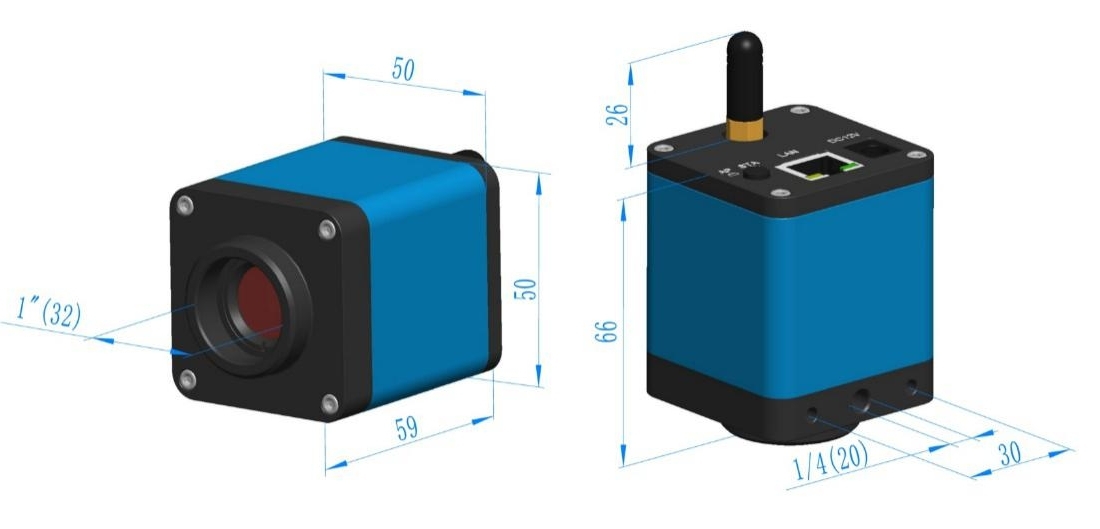

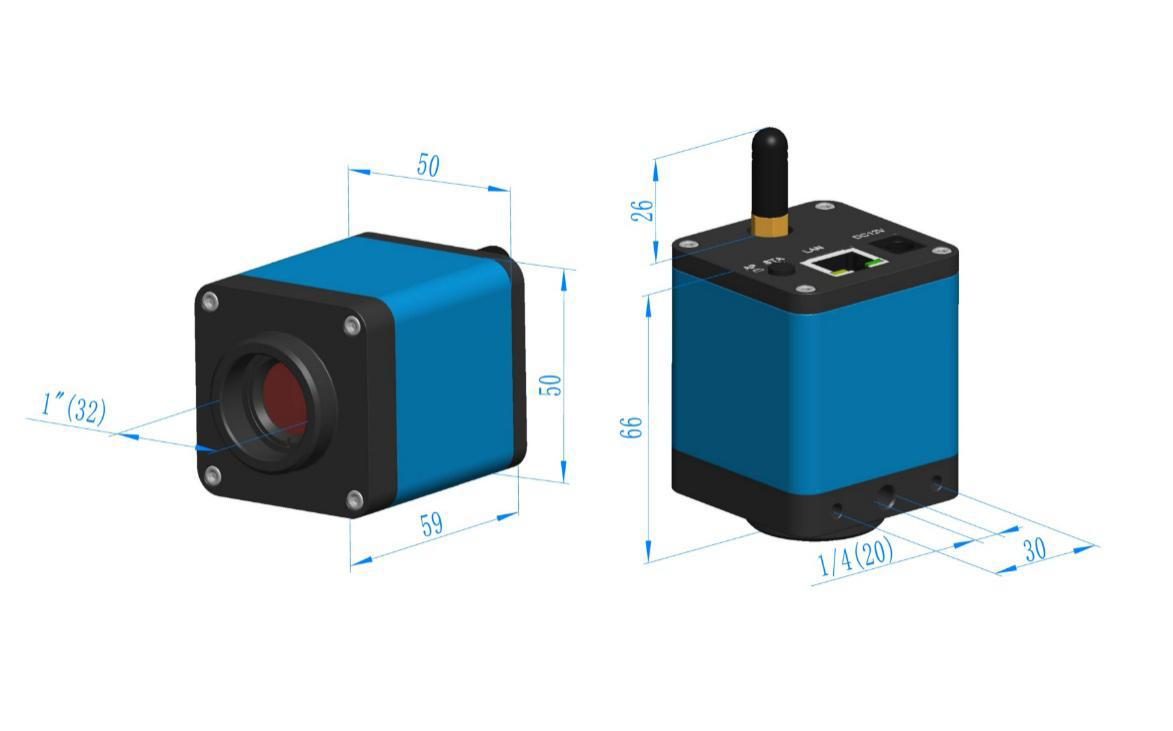

Chassis dimensions and interface layout
See manual Figure 4-11
Confirm mount holes and interface orientation with the dimension drawing before installation.
In-Depth Overview
The ToupTek Photonics WECAM series uses a Sony Exmor back-illuminated CMOS sensor and is a C-mount microscope camera supporting Wi-Fi and Ethernet transmission. It captures high-resolution images and video on stereo or biological microscopes without a computer and enables multi-endpoint interactive teaching over LAN or Wi-Fi so instructors and students can share views in real time.
Technical Highlights
- Multi-interface wireless connectivity: Supports LAN and Wi-Fi (AP/STA) dual-mode output to stream images to Windows, macOS, iOS, Android, and more for cross-platform use.
- High-performance image processing: Built-in ISP and real-time processing optimize streaming, reduce noise, and restore color for teaching and research.
- Cross-platform software ecosystem: Compatible with ToupView and ToupLite for capture, measurement, and analysis, plus convenient control via iOS/Android apps.
- Interactive teaching across endpoints: Builds a microscopy teaching network for multi-device sharing and live viewing, ideal for lab classes and remote teaching.
- Rugged, versatile design: C-mount fits many microscope systems; hardware is built for stable, long-term use in research and teaching.
Core Advantages
-
1
PC-free, fast deployment Connect via Wi-Fi or Ethernet and start immediately, simplifying microscopy workflows.
-
2
Cross-platform sharing Works with multiple OS platforms and mobile devices for interactive teaching and research demos.
-
3
High image quality with real-time processing Sony Exmor CMOS and built-in ISP ensure high-quality imaging and optimized streaming.
-
4
Comprehensive software support Paired with ToupView/ToupLite and mobile apps for measurement and analysis.
-
5
Broad application coverage Fits “Wi-Fi HDMI microscope camera,” “multi-interface C-mount camera,” “cross-platform microscopy,” and “interactive teaching solutions.”
