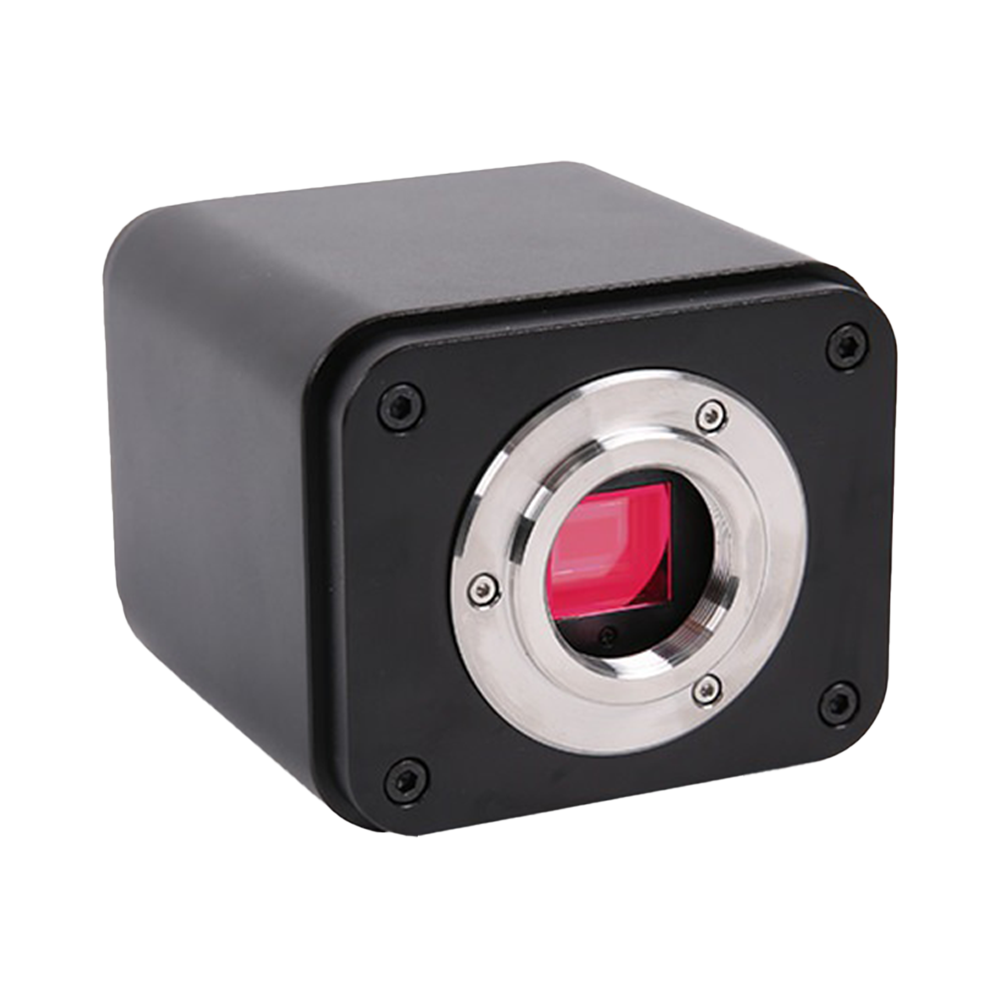

XFCAMTOP4K Series
Product Introduction

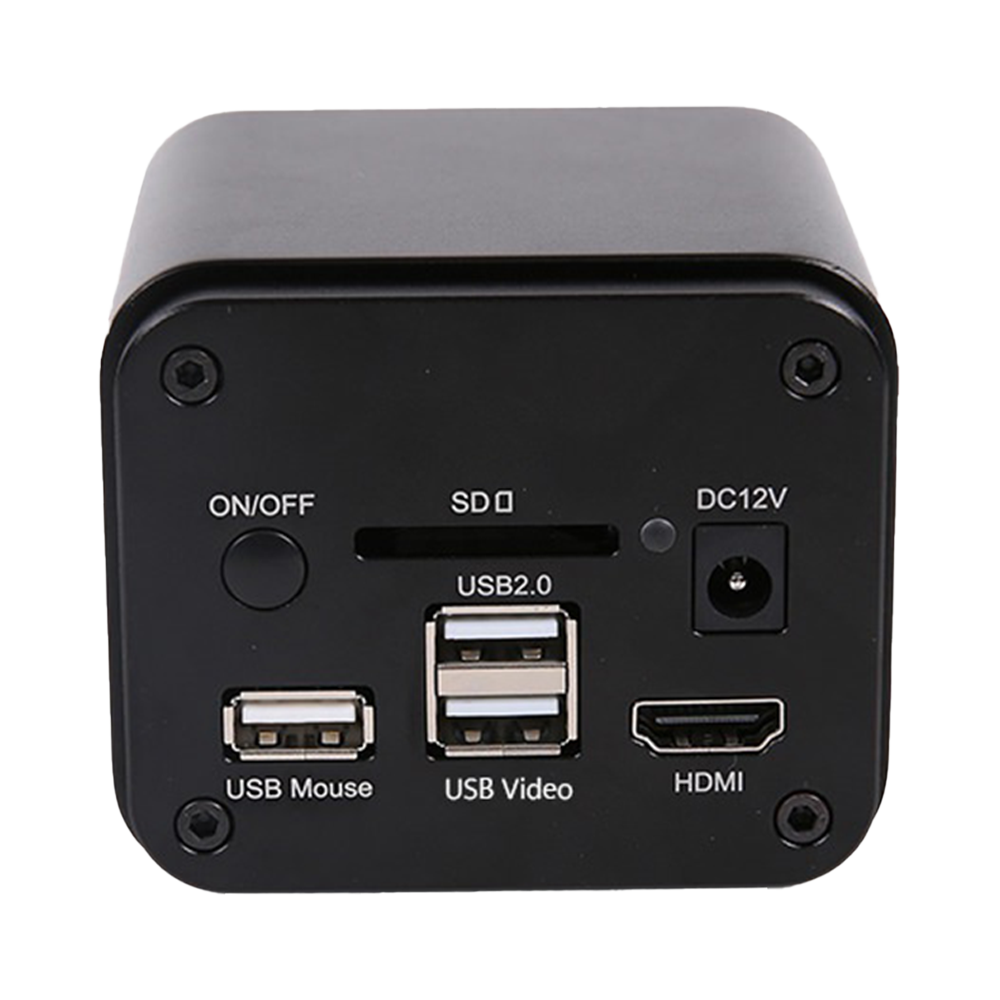

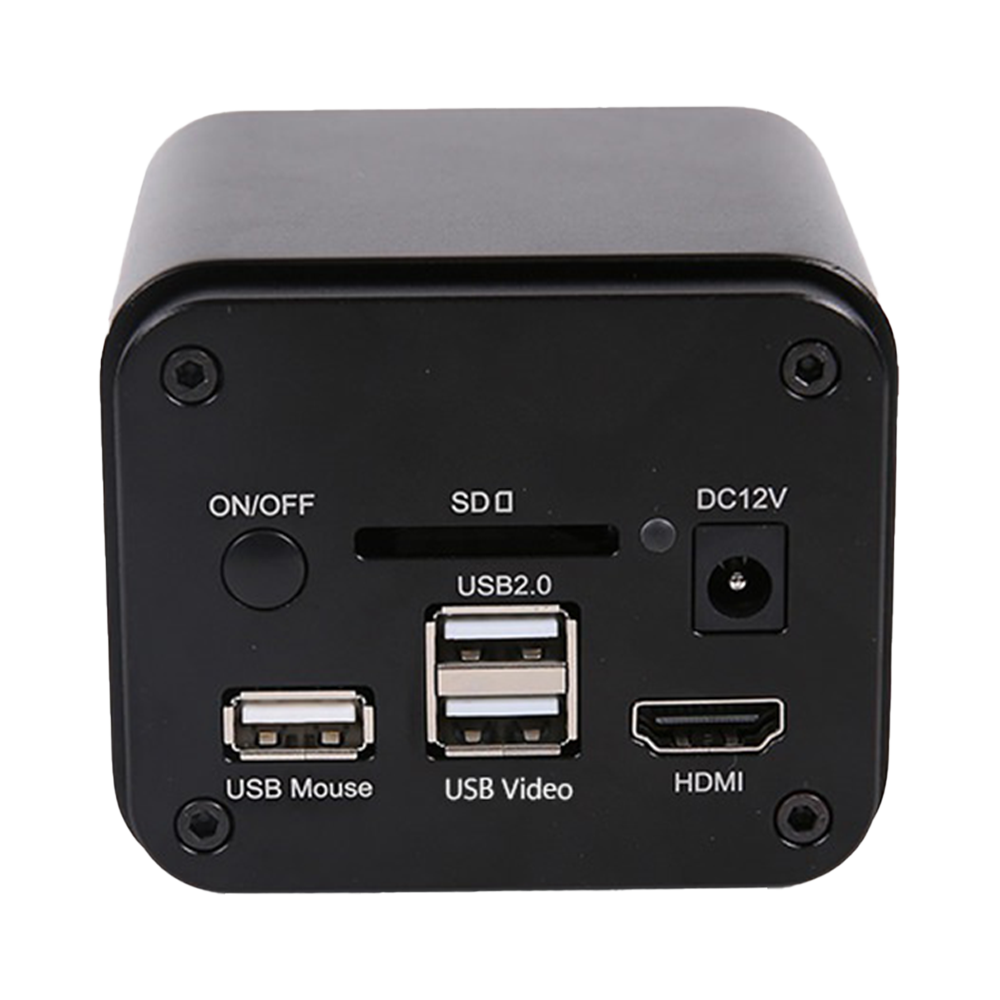

The XFCAMTOP4K8MPA HDMI camera is a multi-output camera (HDMI/Wi-Fi/USB) designed by Toptic Optoelectronics. In XFCAM, 'X' represents multi-interface CMOS camera and 'F' represents autofocus. It features an ultra-high performance CMOS sensor. The camera can directly connect to HDMI displays, connect to computers via Wi-Fi or USB, and save images and videos to SD cards for on-site analysis and subsequent research.
The XFCAMTOP4K8MPA HDMI camera itself features an embedded ARM core, displaying camera control functions as a control panel directly on the HDMI display. Furthermore, users can directly control various camera parameters using a USB mouse interface. Additionally, the HDMI display interface bottom features various toolbar buttons for user operation.
The key feature of the XFCAMTOP4K8MPA HDMI camera is its embedded autofocus system, enabling autofocus on specific areas of the scene.
By inserting a Wi-Fi module or connecting via USB cable to a computer, users can directly control the camera hardware using the included ToupView or ToupLite software.
The XFCAMTOP4K8MPA HDMI camera can be used for field inspection, microscope observation, and other applications.
Product Features
- Sony Exmor/Starvis back-illuminated CMOS sensor
- 4K HDMI/Wi-Fi/USB multi-interface output C-mount CMOS camera
- 4K/1080P HDMI output adaptive switching
- SD card/USB flash drive capture of images or videos with local preview and playback support
- Embedded XCamView software for camera control
- Autofocus through moving image sensor on HDMI interface and Windows platform USB/Wi-Fi interface
- Powerful ISP functions with significant sharpening and 3D noise reduction effects, precise ROI white balance
- ToupView/ToupLite software for more convenient PC operation
- iOS/Android mobile applications, free download from app stores
HDMI/USB2/Wi-Fi 4K C-Mount Autofocus Camera
| Model | Output Interface | Sensor | Resolution | Frame Rate | Lens Mount |
Key Features |
|---|---|---|---|---|---|---|
| XFCAMTOP4K8MPA | HDMI USB2.0 Wi-Fi |
Sony IMX334(C)
1/1.8" (7.68×4.32 mm)
|
8MP (3840×2160) |
HDMI: 30 fps@4K USB: 30 fps@4K Wi-Fi: 30 fps@4K |
C-Mount | Autofocus 4K Ultra HD C-Mount SD Card Storage Wi-Fi Connectivity |
Product Features
Sony Exmor/Starvis back-illuminated CMOS sensor
4K HDMI/Wi-Fi/USB multi-interface output C-mount CMOS camera
4K/1080P HDMI output adaptive switching
SD card/USB flash drive capture of images or videos with local preview and playback support
Embedded XCamView software for camera control
Autofocus through moving image sensor on HDMI interface and Windows platform USB/Wi-Fi interface
Powerful ISP functions with significant sharpening and 3D noise reduction effects, precise ROI white balance
ToupView/ToupLite software for more convenient PC operation
iOS/Android mobile applications, free download from app stores
Detailed Introduction
The XFCAMTOP4K8MPA series 4K autofocus camera is equipped with Sony high-performance CMOS sensor, HDMI, USB2.0 and Wi-Fi triple output channels, specifically designed for industrial field applications and microscopy education. Features autofocus, video recording, image comparison and other functions, with high versatility for C-mount lenses, meeting efficient imaging and image management requirements for various scenarios.
Main Functions
- 4K high-definition imaging, 8 MP CMOS sensor
- HDMI, USB2.0, Wi-Fi multi-platform output, supporting wireless real-time transmission
- Autofocus, video recording, image comparison, measurement
- Local SD card/USB drive storage, secure and convenient data management
- Supports Windows, macOS, Linux, Android, iOS
Core Advantages
- High-resolution 4K imaging, meeting precision inspection and education requirements
- One camera multiple outputs, flexible deployment for various scenarios
- Autofocus and image enhancement functions, improving experimental and quality inspection efficiency
- Industrial-grade quality, stable and reliable for long-term operation
