XFCAMTOP4K8MPA 4K C-Mount Autofocus Camera
XFCAMTOP4K8MPA pairs the Sony IMX334(C) sensor with 4K HDMI, USB 2.0 (UVC), and Wi-Fi outputs—ready for teaching labs, industrial QA, and automation benches.
Key Highlights
- Sony Sony IMX334(C) sensor delivering 8MP (3840×2160) imaging.
- HDMI / USB 2.0 (UVC) / Wi-Fi interfaces support monitors, recorders, and remote preview.
- Autofocus, measurement, and video capture are integrated in the XCamView interface.
- SD card / USB flash storage captures 4K MP4 videos and high-resolution photos.
- Voice control, crosshair, freeze, and image comparison utilities streamline operation.
- Multilingual menus and annotation tools are ideal for training and collaboration.
Product Details
XFCAMTOP4K8MPA Specifications
| General Information | |
| Product Model | XFCAMTOP4K8MPA |
| Product Series | 4K C-Mount Autofocus Camera |
| Autofocus | Supported |
| Sensor Parameters | |
| Sensor Model | Sony IMX334(C) |
| Sensor Size | 1/1.8" (7.68×4.32 mm) |
| Pixel Size | 2.0 µm × 2.0 µm |
| Maximum Resolution | 8MP (3840×2160) |
| Shutter Type | Rolling Shutter |
| Color Type | Color |
| Output & Performance | |
| Output Interfaces | HDMI / USB2.0 / Wi-Fi |
| Frame Rate | HDMI: 30 fps@4K; USB: 30 fps@4K; Wi-Fi: 30 fps@4K |
| Storage Support | SD Card / USB Flash Drive |
| Software Support | XCamView / ToupView / ToupLite |
| Power Supply | DC 12 V / 1 A |
| Physical & Environmental | |
| Dimensions | 78 × 65 × 94.5 mm |
| Weight | 0.47 kg |
| Operating Temperature | -10 °C ~ +50 °C |
| Storage Temperature | |
| Operating Humidity | |
| Storage Humidity | |
| Compatibility & Certifications | |
| Operating Systems | Windows / Linux / macOS / Android / iOS |
| Certifications | CE / FCC / RoHS |
The built-in XCamView interface enables HDMI-side focus, measurement, distortion correction, and depth stacking.
Core Functional Highlights
- Adaptive 4K/1080p HDMI output works across displays and capture cards.
- USB Video Class (UVC) connects directly to conferencing or recording systems.
- Optional Wi-Fi module supports AP/STA modes for mobile or desktop remote control.
- Built-in measurement scales, annotation tools, and gallery features simplify reviews.
Connectivity Options
4K HDMI Output
Connect directly to UHD monitors or capture devices for sharp 4K visuals.
USB 2.0 (UVC)
Driver-free connectivity for conferencing and recording software on PC/Mac.
Wi-Fi Expansion
AP/STA modes enable wireless preview and control from tablets or laptops.
Local Storage
Record 4K MP4 video or stills to SD/USB media with on-screen playback.
Focus & Operation
- Toggle between single-shot and continuous autofocus, with manual fine adjustment.
- Live compare, freeze, and zoom functions accelerate review and troubleshooting.
- Voice commands trigger capture or recording for hands-free efficiency.
Image Processing
- Built-in 3D noise reduction, sharpening, and ROI white balance optimization.
- Rich annotation, measurement, and data export utilities.
- Multilingual interface simplifies deployment for international teams.
Typical Applications
Stereo Microscope Imaging
Stereo Microscope Imaging
Industrial Field Inspection
Industrial Field Inspection
Teaching and Training
Teaching and Training
Medical Observation
Medical specimen review, pathology documentation, and case recording.
Upgrade Suggestions
- Need EF-mount lens control and networking? Select X7FCAM4K16MPA_EFL for electronic aperture control and gigabit networking.
- Need a larger format with 22 MP output? Upgrade to X8FCAM4K22MPA_EFL featuring a 1.7-inch sensor and 10-bit ISP pipeline.
- Need a compact C-mount solution? XFCAMTOP_MINI Series offers a smaller footprint for tight integrations.
XFCAMTOP4K8MPA Product Manual
PDF covering interface layout, focus workflows, and storage management.

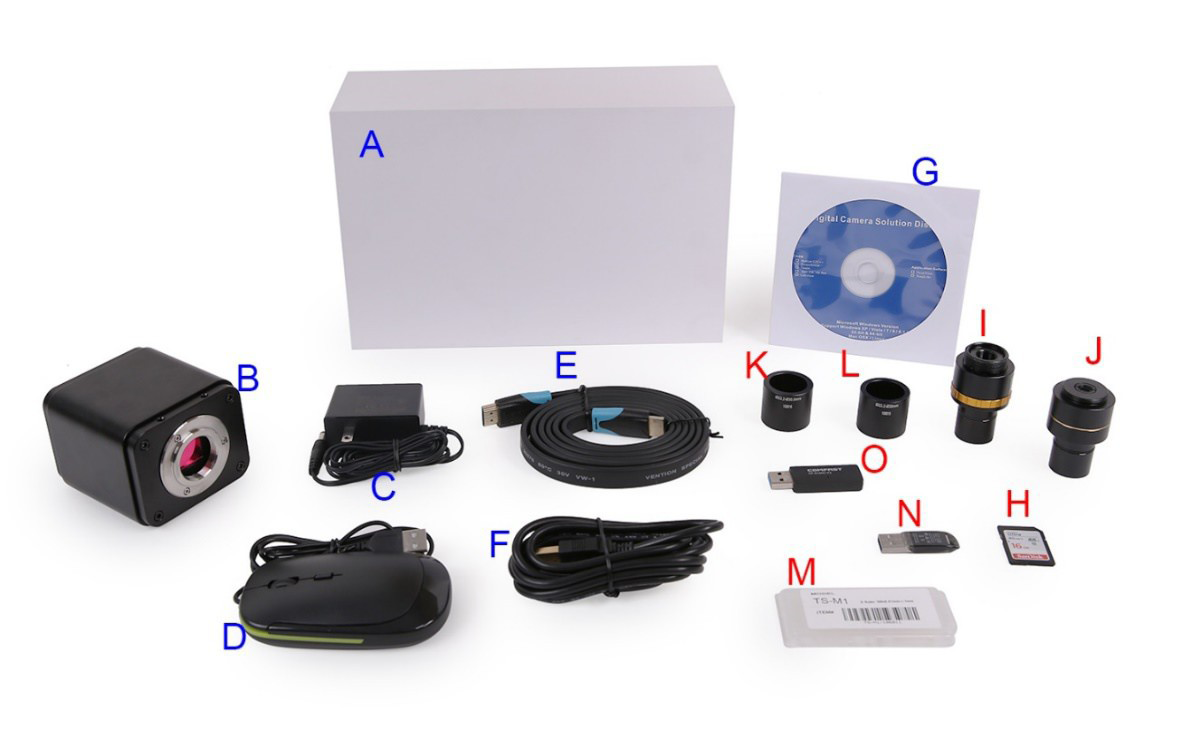

XFCAMTOP4K8MPA Multi-Interface Camera | Packing List #
Standard Packing List
- A Camera box size: L 25.5 cm × W 17.0 cm × H 9.0 cm (1 pcs, 1.43 kg per box)
- B XFCAMTOP4K8MPA camera ×1
- C Power adapter: Input AC 100~240 V 50/60 Hz, output DC 12 V 1 A; US GS12U12-P1I (UL/CUL/BSMI/CB/FCC), EU GS12E12-P1I (TUV(GS)/CB/CE/RoHS); EMI: EN55022, EN61204-3, EN61000-3-2/-3, FCC Part 15B, BSMI CNS14338; EMS: EN61000-4-2/3/4/5/6/8/11, EN61204-3 Class A
- D USB mouse
- E HDMI cable
- F High-speed USB2.0 A male ↔ A male gold-plated data cable (2.0 m)
- G CD (driver and application, Ø12 cm)
Optional Accessories
- H SD card (16 GB+, Class 10)
-
I Adjustable eyepiece tube adapters
Dia.23.2 mm to C-mount: 108001/AMA037, 108002/AMA050, 108003/AMA075; Dia.31.75 mm to C-mount: 108008/ATA037, 108009/ATA050, 108010/ATA075 (choose based on camera and microscope/telescope).
-
J Fixed eyepiece tube adapters
Dia.23.2 mm to C-mount: 108005/FMA037, 108006/FMA050, 108007/FMA075; Dia.31.75 mm to C-mount: 108011/FTA037, 108012/FTA050, 108013/FTA075. Note: confirm the camera model (C-mount) before choosing I or J; engineers can help match the adapter.
- K 108015 (Dia.23.2 mm→30.0 mm) adapter ring for 30 mm eyepiece tubes
- L 108016 (Dia.23.2 mm→30.5 mm) adapter ring for 30.5 mm eyepiece tubes
- M Micrometer: 106011/TS-M1 (X=0.01 mm/100Div.), 106012/TS-M2 (X,Y=0.01 mm/100Div.), 106013/TS-M7 (X=0.01 mm/100Div., 0.10 mm/100Div.)
- N USB drive
- O USB wireless network adapter (required for WiFi mode; appearance varies by model)

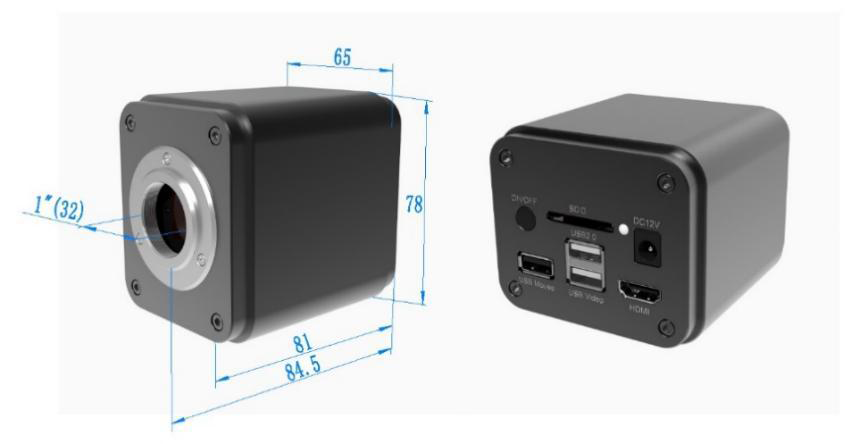

XFCAMTOP4K8MPA Multi-Interface Camera | Product Dimensions #
Body size and environmental specifications
See manual Fig. 5-9 (with interface labels)
Please confirm mounting holes and interface orientation per the dimension drawing before installation.
Deep Dive
The XFCAMTOP4K8MPA 4K autofocus series uses high-performance Sony CMOS sensors with HDMI, USB2.0, and Wi-Fi outputs. It is designed for industrial sites and microscopy education, offering autofocus, video recording, and image comparison. The C-mount lens provides broad compatibility to meet diverse high-efficiency imaging and management needs.
Key Features
- 4K high-definition imaging with 8 MP CMOS
- HDMI, USB2.0, and Wi-Fi outputs with wireless real-time transfer
- Autofocus, video recording, image comparison, and measurement
- Local SD card/USB storage for secure, convenient data handling
- Compatible with Windows, macOS, Linux, Android, and iOS
Core Benefits
- High-resolution 4K imaging for detailed inspection and teaching
- One device, multiple outputs for flexible deployment
- Autofocus and image enhancement to speed labs and QA
- Industrial-grade quality for stable long-term operation
