XCAM1080PX Series
Product Introduction
XCAM1080PX series HDMI camera is a CMOS camera designed by ToupTek with multiple output methods (HDMI+USB2.0), where the X in XCAM stands for multi-interface). It adopts ultra-high performance CMOS sensors. The camera can be directly connected to HDMI displays and simultaneously connected to computers, and can also save images and videos to SD cards for on-site analysis and subsequent research.
The greatest feature of XCAM1080PX series HDMI cameras is that the camera itself is equipped with an embedded ARM core, which can display various camera control functions directly on HDMI displays in the form of control panels. Furthermore, users can directly control various camera parameters using a USB mouse interface mouse. Additionally, the HDMI display interface has various toolbar buttons at the bottom for user operation.
When the mouse is unplugged and the USB interface is connected to a computer, the XCAM1080PX series camera becomes a USB interface camera, and users can directly control the camera hardware using the included software ToupView/ToupLite. XCAM1080PX series cameras can be used for on-site tool inspection, microscope observation, etc.
Product Features
- C-mount camera with high sensitivity CMOS sensor
- HDMI + USB can achieve simultaneous output
- Built-in mouse control software XCamView
- Built-in image capture and video recording to SD card functionality
- Built-in mouse-operated control panel
- Built-in mouse-operated toolbar for zoom, mirror, compare, freeze, crosshair, browse functions
- Built-in image and video browsing, display and playback functions
- Ultra-Fine color engine ensures accurate color reproduction
- Includes advanced video and image processing application software ToupView/ToupLite
- Provides multi-platform standard UVC SDK for Windows/Linux/macOS
- CNC housing one-piece design and processing
XCAM1080PX Series
Integrated HDMI and USB dual output, high frame rate real-time preview, built-in measurement and graphics functions, suitable for teaching, industrial and scientific research demonstrations.
| Model | Sensor/Size | Effective Pixels | Output Resolution | Frame Rate (fps) | Output Interface | Auto Focus | Lens Mount | Storage Support | Featured Functions |
|---|---|---|---|---|---|---|---|---|---|
| XCAM1080P2MPA |
Sony IMX385(C)
1/2" (7.2×4.05 mm)
|
3.75 μm × 3.75 μm | 2MP (1920×1080) | HDMI: 60 fps@1920×1080; USB: 50 fps@1920×1080 | HDMI1.4 USB2.0 | C-mount | SD card / USB drive | Image measurement Video recording Graphics overlay Multi-language menu ROI white balance 3D noise reduction Real-time clock | |
| XCAM1080P8MPB |
Sony IMX415(C)
1/2.8" (5.57×3.13 mm)
|
1.45 μm × 1.45 μm | 8MP (3840×2160) | HDMI: 30 fps@1920×1080; USB: 30 fps@3840×2160 | HDMI1.4 USB2.0 | C-mount | SD card / USB drive | Image measurement Video recording Graphics overlay Multi-language menu ROI white balance 3D noise reduction Real-time clock |
XCAM1080PX Multi-Interface Camera | Packing List #

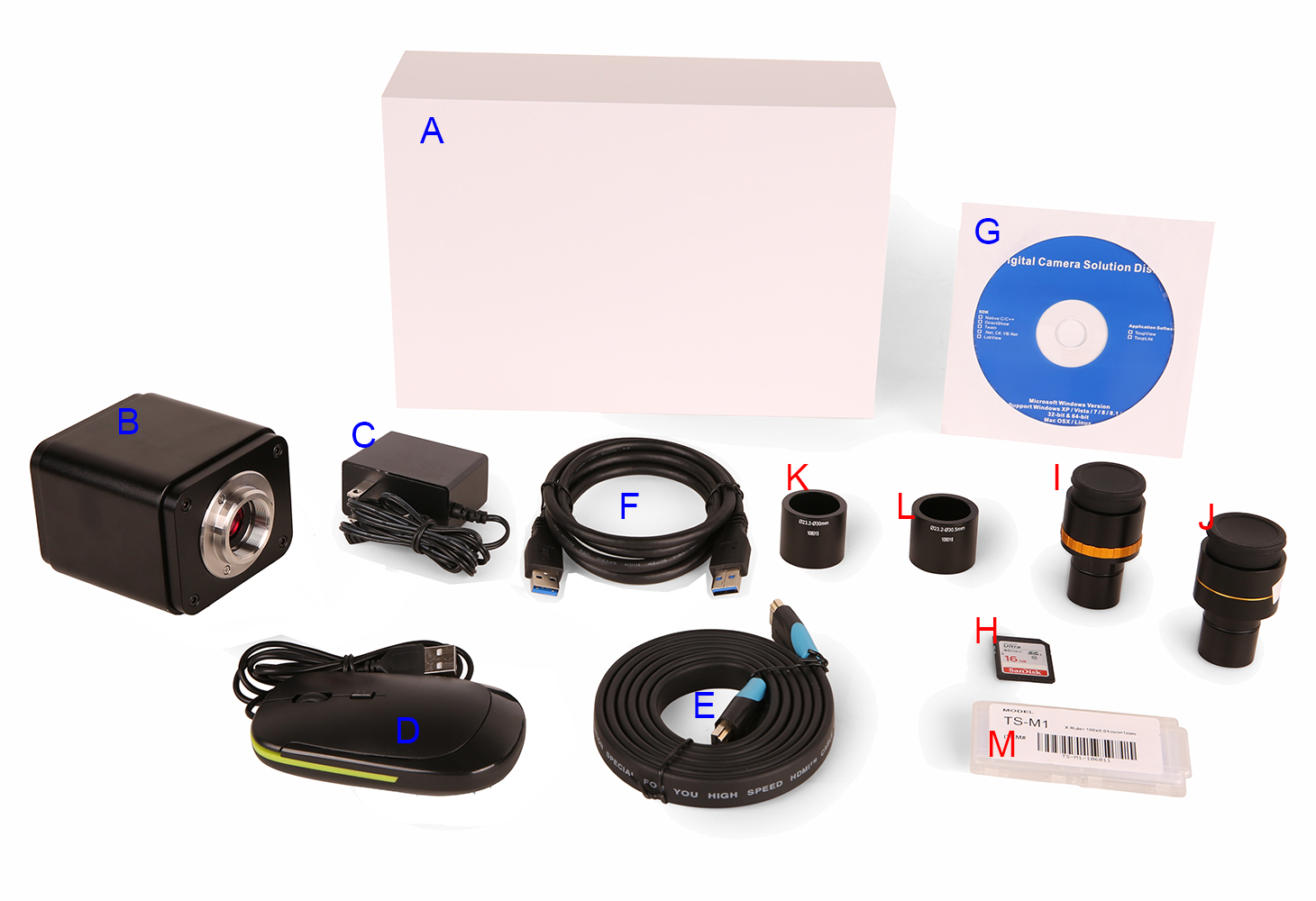

Standard Packing List
- A Camera box size: 25.5 cm × 17.0 cm × 9.0 cm (1 pcs, 1.47 kg per box)
- B XCAM1080PX camera ×1
- C Power adapter: Input AC 100~240 V 50/60 Hz, output DC 12 V 1 A; US POWER-U-12V1A (MSA-C1000IC12.0-12W-US: UL/CE/FCC), EU POWER-E-12V1A (MSA-C10001C12.0-12W-DE: UL/CE/FCC); EMI: FCC Part 15 Subpart B; EMS: EN61000-4-2/3/4/5/6
- D USB mouse
- E HDMI cable
- F USB2.0 A male to A male 2.0 m data cable
- G CD (driver and application, Ø12 cm)
Optional Accessories
- H SD card (16 GB+, Class 10)
-
I Adjustable eyepiece tube adapters
Dia.23.2 mm eyepiece to C-mount: 108001/AMA037, 108002/AMA050, 108003/AMA075 (choose based on the camera and microscope).
-
J Fixed eyepiece tube adapters
Dia.23.2 mm eyepiece to C-mount: 108005/FMA037, 108006/FMA050, 108007/FMA075. Note: confirm the camera model and scenario before choosing I or J; engineers can assist.
- K 108015 (Dia.23.2 mm→30.0 mm) adapter ring for 30 mm eyepiece tubes
- L 108016 (Dia.23.2 mm→30.5 mm) adapter ring for 30.5 mm eyepiece tubes
- M Micrometer: 106011/TS-M1 (X=0.01 mm/100Div.), 106012/TS-M2 (X,Y=0.01 mm/100Div.), 106013/TS-M7 (X=0.01 mm/100Div., 0.10 mm/100Div.)
- N USB drive
XCAM1080PX Multi-Interface Camera | Product Dimensions #

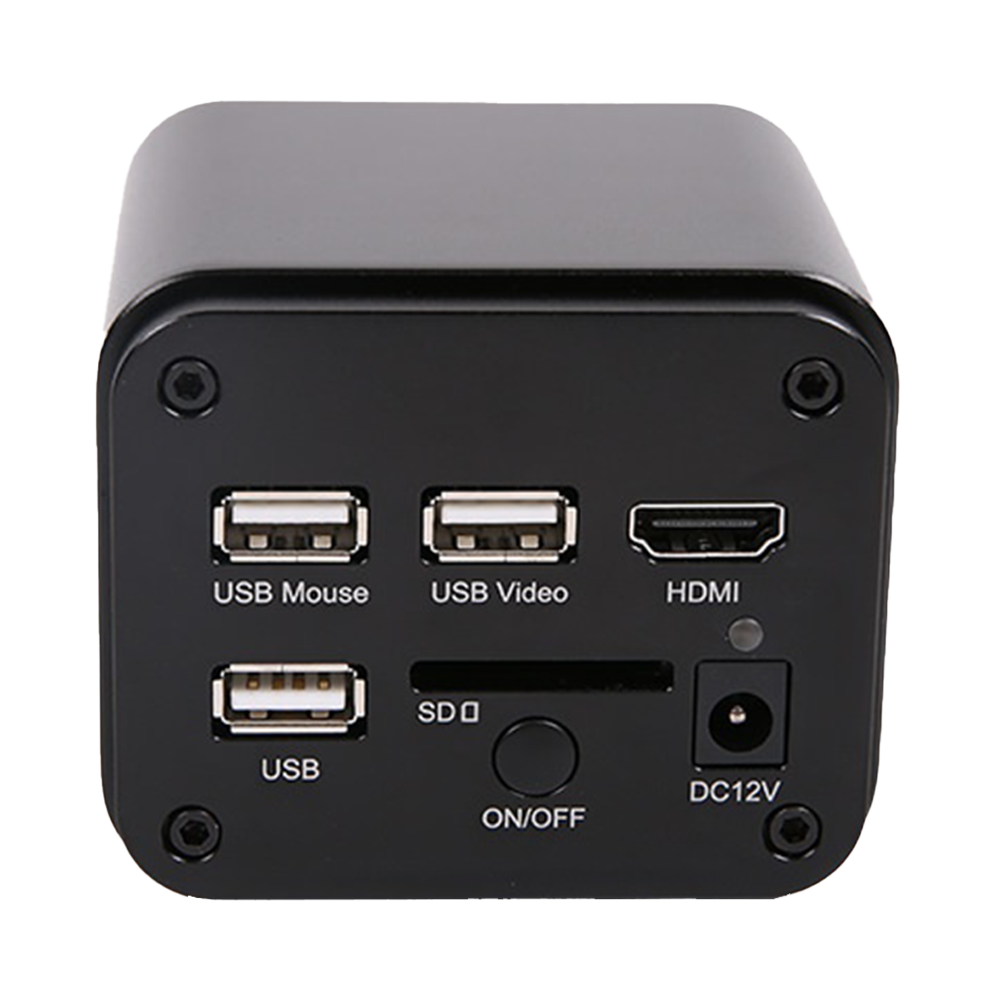

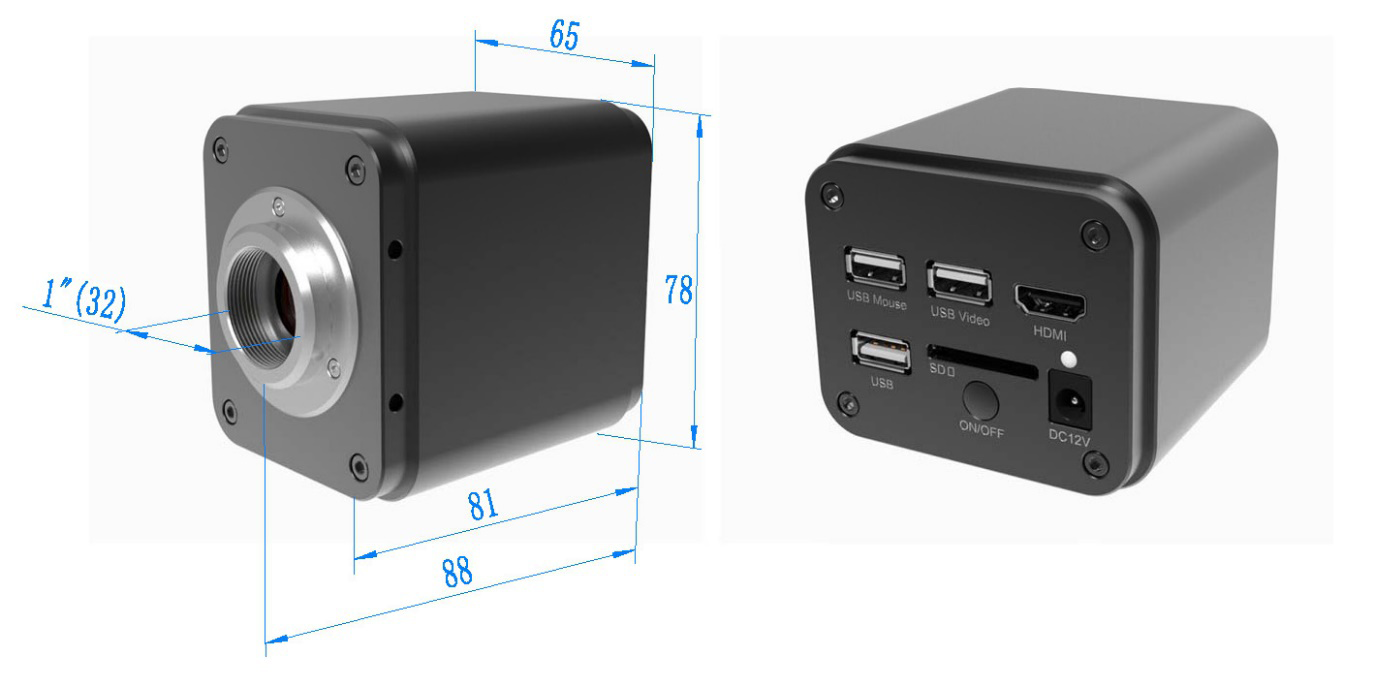

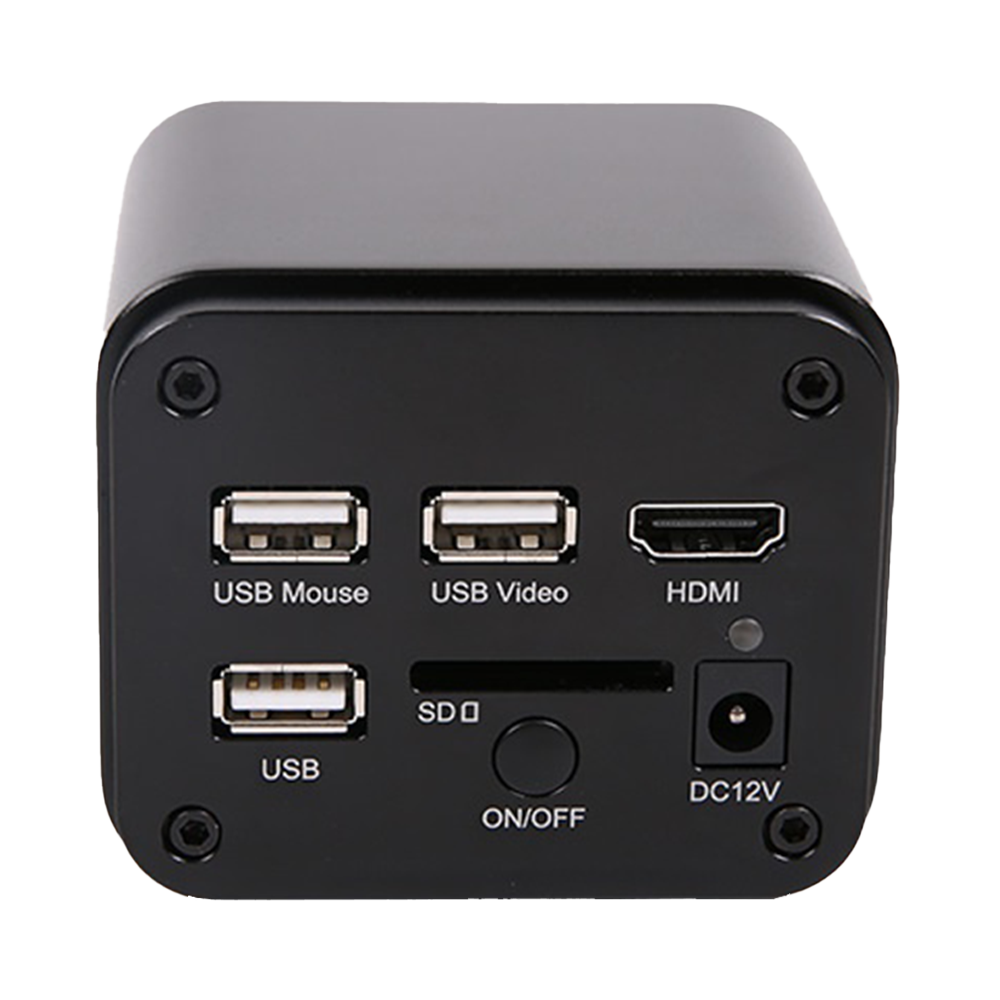

Body dimensions and interface layout
See manual Fig. 3-104
Please confirm mounting holes and interface orientation per the dimension drawing before installation.
Deep Dive
The Touptek XCAM1080PX series is a C-mount CMOS microscope camera with HDMI and USB dual outputs, designed for stereo microscopes, biological microscopes, and other optical systems to capture 1080p HD images and video.
It features a high-sensitivity CMOS sensor, supports HDMI real-time display, USB2.0 transfer, and SD card local saving, and pairs on-screen menu control with ToupView software to meet teaching, research, and industrial inspection needs.
Technical Highlights
- Dual-interface output for flexible use: HDMI real-time display and USB2.0 high-speed transfer support standalone use or PC workflows
- 1080p imaging with flexible tuning: High-sensitivity CMOS ensures 1080p quality with auto/manual exposure, white balance, gain, and Gamma controls
- Easy control and local storage: On-screen menu via remote or panel buttons; save directly to SD card or USB storage
- Research-grade processing & compatibility: USB with ToupView unlocks measurement, stitching, denoise, multifocus fusion, and fluorescence compositing
- Durable industrial design: Rigid metal housing and efficient thermal design ensure long-term stability for labs and factory floors
Core Benefits
-
1
HDMI + USB Dual Output Supports standalone display, teaching demos, and PC data capture
-
2
1080p Clarity & Low-Light Readiness High-sensitivity CMOS preserves detail and accurate color
-
3
Plug-and-Play with Local Storage PC-free; record directly to SD/USB media
-
4
Full Research Toolkit With ToupView: measurement, stitching, multifocus fusion, and fluorescence processing
-
5
Broad Application Fit Covers “HDMI USB microscope camera,” “1080p C-mount microscope camera,” “research/teaching imaging,” “high-sensitivity CMOS camera”
