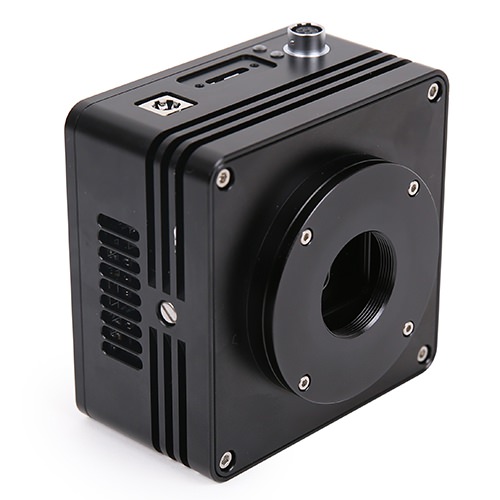

CTR3CMOS Series TE-Cooling C-mount USB3.0/GigE CMOS Camera

CTR3CMOS

CTR3CMOS series Camera adopts SONY Exmor CMOS sensor as the image-picking device and USB3.0 /GigE is used as the transfer interface to increase the frame rate.

With the peltier cooling sensor chip to 5-10 degree below ambient temperature. This will greatly increase the signal to noise ratio and decrease the image noise. Smart structure is designed to assure the heat radiation efficiency and avoid the moisture problem. Electric fan is used to increase the heat radiation speed.

CTR3CMOS series comes with advanced video & image processing application ToupView/ToupLite; Providing Windows/Linux/OSX multiple platform SDK; Native C/C++, C#/VB.NET, DirectShow, Twain Control API;

The CTR3CMOS can be widely used in low light environment and microscope fluorescence image capture and analysis, as well as the astronomy deep sky application.

  • Standard C-Mount Camera with SONY Exmor CMOS sensors;
  • TE-cooling with controllable electric fan;
  • Sensor chip cooling up to 5~10°C below ambient temperature;
  • Working temperature can be regulated to specified temperature in 5 minutes;
  • Smart structure to assure the heat radiation efficiency and avoid the moisture problem;
  • IR-CUT/AR coated windows;
  • Up to 5-minutes long time exposure;
  • USB3.0 /GigE 5Gbit/second interface ensuring high speed data transmission;
  • Support capture image with video /trigger mode;
  • Support external IO synchronization trigger mode;
  • Ultra-Fine color engine with perfect color reproduction capability;
  • With advanced video & image processing application ToupView/ToupLite;
  • Providing Windows/Linux/Mac OS multiple platforms SDK;
  • Native C/C++, C#/VB.NET, DirectShow, Twain control API;

Related models

Order Code

Sensor & Size(mm)

Pixel(μm)

G Sensitivity

Dark Signal

FPS/Resolution

ADC

Binning

Exposure

CTR3CMOS00390KMA

0.39M/IMX287(M,GS)

1/2.9”(4.97x3.73)

6.9 x6.9

7320mV with 1/30s

0.76mV with 1/30s

20fps@720x540

8 Bit / 12 Bit

1x1



6us~300s

CTR3CMOS00503KMA

0.5M/IMX426(M,GS)

1/1.7”(7.2x5.58)

9.0 x9.0

8100mV with 1/30s

0.3mV with 1/30s

20fps@800x620

8 Bit / 12 Bit

1x1



6us~300s

CTR3CMOS01700KPA

1.7M/IMX432(C,GS)

1.1 “(14.4x9.9)

9.0 x9.0

4910mv with 1/30s

0.3mv with 1/30s

98.6fps@1600×1100

8 Bit / 12 Bit

1x1

6us~300s

CTR3CMOS01700KMA

1.7M/IMX432(M,GS)

1.1 “(14.4x9.9)

9.0 x9.0

8100mv with 1/30s

0.3mv with 1/30s

98.6fps@1600×1100

8 Bit / 12 Bit

1x1

6us~300s

CTR3CMOS07100KPA

7.0M/IMX428(C,GS)

1.1 “(14.4x9.9)

4.5 x4.5

2058mv with 1/30s

0.15mv with 1/30s

51.3fps@3200×2200

133.8fps@1584×1100

8 Bit / 12 Bit

1x1

1x1



6us~300s

CTR3CMOS07100KMA

7.0M/IMX428(M,GS)

1.1 “(14.4x9.9)

4.5 x4.5

3354mv with 1/30s

0.15mv with 1/30s

51.3fps@3200×2200

133.8fps@1584×1100

8 Bit / 12 Bit

1x1

1x1



6us~300s

CTR3CMOS20000KPA

20M/IMX183(C,RS)

1 “(13.056x8.755)

2.4 x2.4

462mv with 1/30s

0.21mv with 1/30s

19.0@5440x3648

48.8@2736x1824

59.4@1824x1216

8 Bit / 12 Bit

1x1

2x2

3x3



53us~300s

CTR3CMOS20000KMA

20M/IMX183(M,RS)

1 “(13.056x8.755)

2.4 x2.4

776mv with 1/30s

0.21mv with 1/30s

19.0@5440x3648

48.8@2736x1824

59.4@1824x1216

8 Bit / 12 Bit

1x1

2x2

3x3



53us~300s

CTR3CMOS45000KMA

45M/IMX492(M,RS)

4/3”(19.11x13.00)

2.315x2.315

351mV with 1/30s

0.12mV with 1/30s

8.1@8176x5616

30.0@4080x2808

8.1@7408x5556

33.0@3696x2778

10.4@8176x4320

34.7@4096x2160

62.5@2048x1080

86.5@1360x720

8 Bit / 12 Bit

1x1(3:2)

2x2(3:2)

1x1(4:3)

2x2(4:3)

1x1(17:9)

2x2(17:9)

3x3(17:9)

4x4(17:9)



0.1ms~300s

CTR3CMOS01700KPA-G

1.7M/IMX432(C,GS)

1.1 “(14.4x9.9)

9.0 x9.0

4910mv with 1/30s

0.3mv with 1/30s

66fps@1600×1100

8 Bit / 12 Bit

1x1



6us~300s

CTR3CMOS01700KMA-G

1.7M/IMX432(M,GS)

1.1 “(14.4x9.9)

9.0 x9.0

8100mv with 1/30s

0.3mv with 1/30s

66fps@1600×1100

8 Bit / 12 Bit

1x1



6us~300s

CTR3CMOS07100KPA-G

7.0M/IMX428(C,GS)

1.1 “(14.4x9.9)

4.5 x4.5

2058mv with 1/30s

0.15mv with 1/30s

16.4fps@3200×2200

66fps@1600×1100

8 Bit / 12 Bit

1x1

1x1



6us~300s

CTR3CMOS07100KMA-G

7.0M/IMX428(M,GS)

1.1 “(14.4x9.9)

4.5 x4.5

3354mv with 1/30s

0.15mv with 1/30s

16.4fps@3200×2200

66fps@1600×1100

8 Bit / 12 Bit

1x1

1x1



6us~300s

CTR3CMOS20000KPA-G

20M/IMX183(C,RS)

1 “(13.056x8.755)

2.4 x2.4

462mv with 1/30s

0.21mv with 1/30s

4.5@5440x3648

18.5@2736x1824

41.7@1824x1216

8 Bit / 12 Bit

1x1

2x2

3x3



53us~300s

CTR3CMOS20000KMA-G

20M/IMX183(M,RS)

1 “(13.056x8.755)

2.4 x2.4

776mv with 1/30s

0.21mv with 1/30s

4.5@5440x3648

18.5@2736x1824

41.7@1824x1216

8 Bit / 12 Bit

1x1

2x2

3x3



53us~300s

specification

Other Specification

Spectral Range

380-650nm (with IR-cut Filter)

White Balance

ROI White Balance/ Manual Temp Tint Adjustment/NA for Monochromatic Sensor

Color Technique

Ultra-Fine Color Engine/NA for Monochromatic Sensor

Capture/Control SDK

Windows/Linux/macOS/Android Multiple Platform SDK(Native C/C++, C#/VB.NET, Python, Java, DirectShow, Twain, etc)

Recording System

Still Picture and Movie

Cooling System*

Two-stage TE-cooling System 25 °C below Camera Body Temperature

Operating Environment

Operating Temperature(in Centidegree)

-10~ 50

Storage Temperature(in Centidegree)

-20~ 60

Operating Humidity

30~80%RH

Storage Humidity

10~60%RH

Power Supply

External Power Adapter for Camera and cooling system, DC12V, 3A

Software Environment

Operating System

Microsoft® Windows® XP / Vista / 7 / 8 /10 /11 (32 & 64 bit)

OSx(Mac OS X)

Linux

PC Requirements

CPU: Equal to Intel Core2 2.8GHz or Higher

Memory:2GB or More

USB Port:USB3.0 High-speed Port

Display:17” or Larger

CD-ROM

Application

The CTR3CMOS series can be widely used in low light environment and microscope fluorescence image capture and analysis, as well as the astronomy deep sky application.

Instance

CTR3CMOS Application Instance

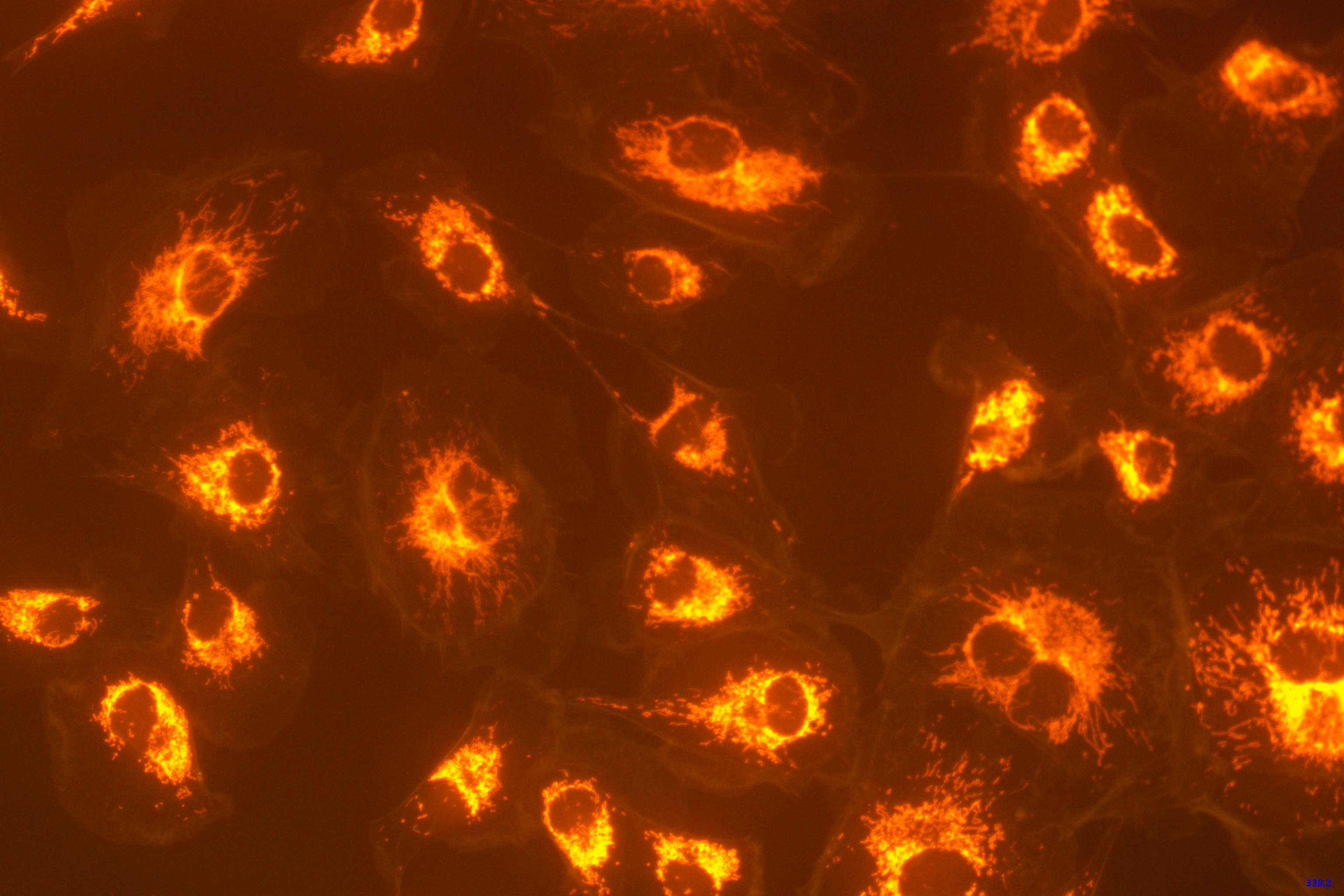

Red Fluorescent Image
CTR3CMOS Application Instance

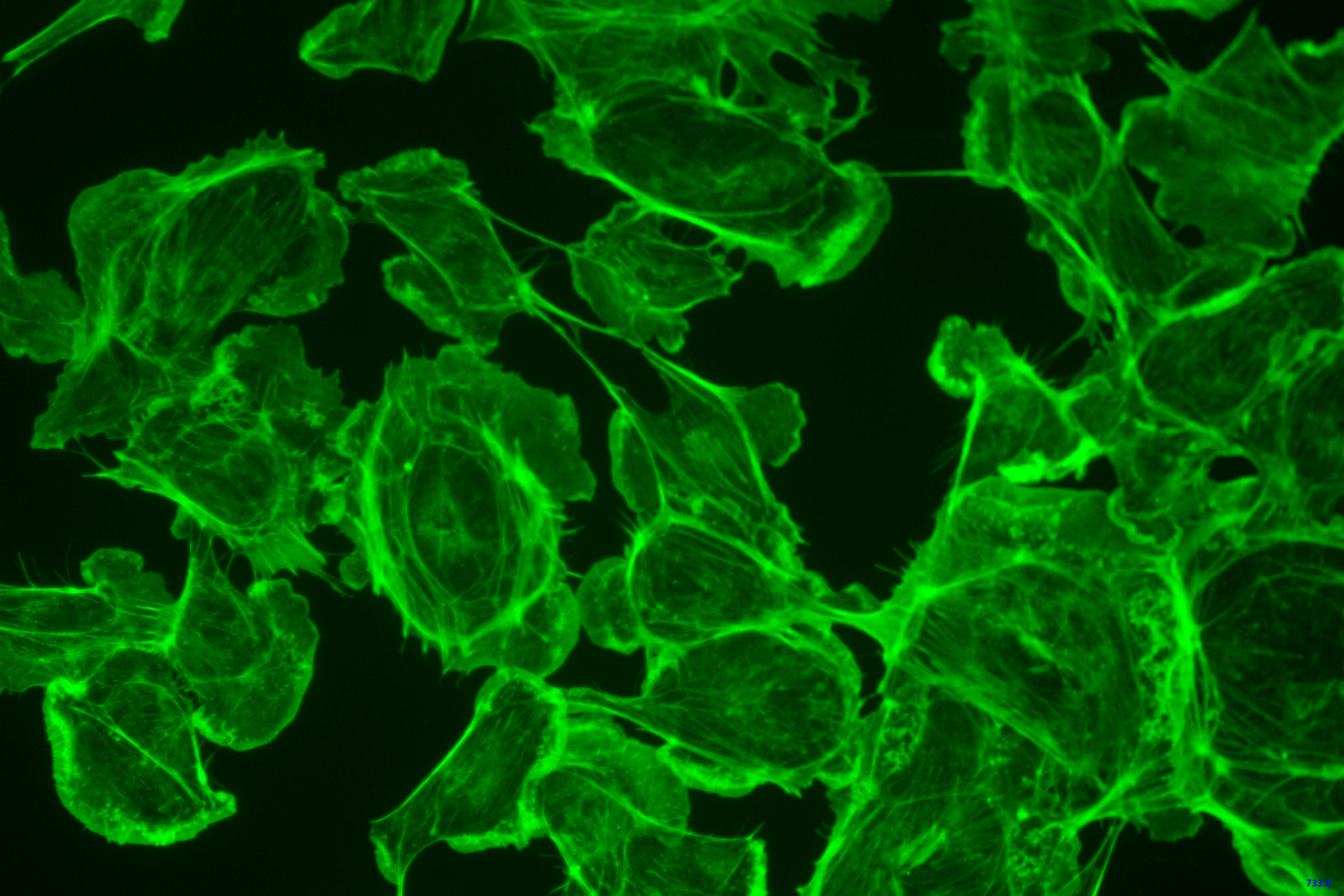

Green Fluorescent Image
CTR3CMOS Application Instance

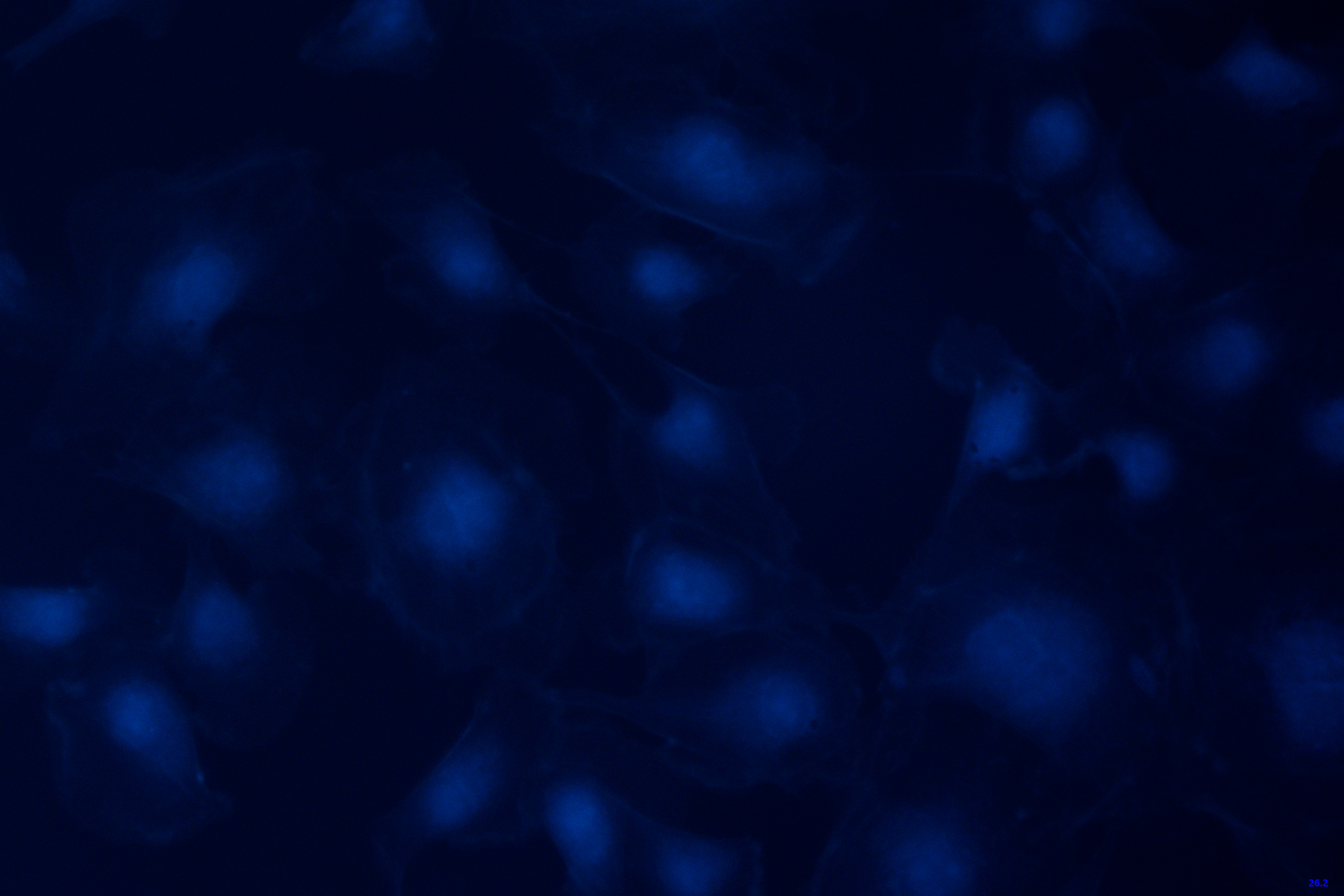

Blue Fluorescent Image
CTR3CMOS Application Instance

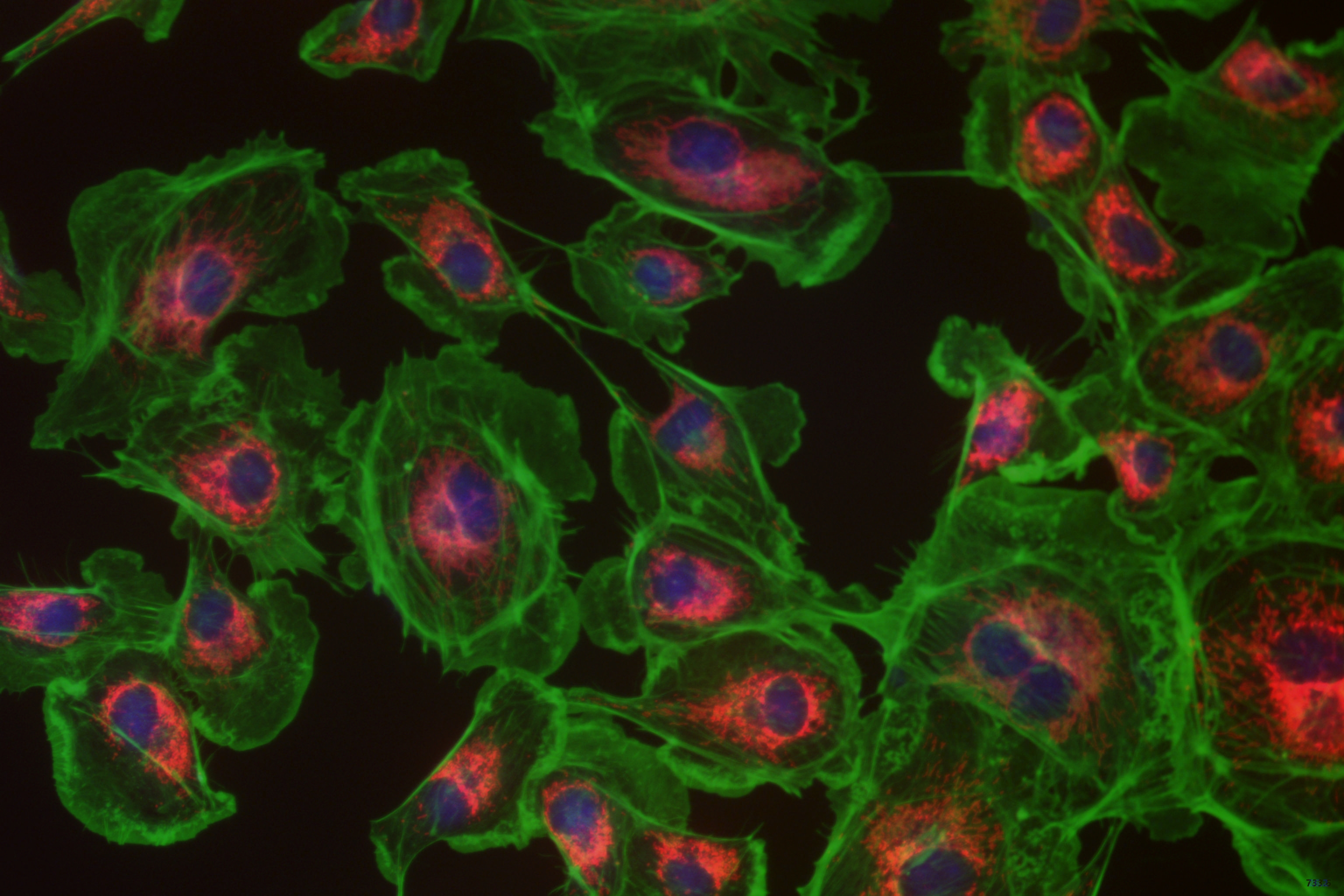

Fused Fluorescent Image

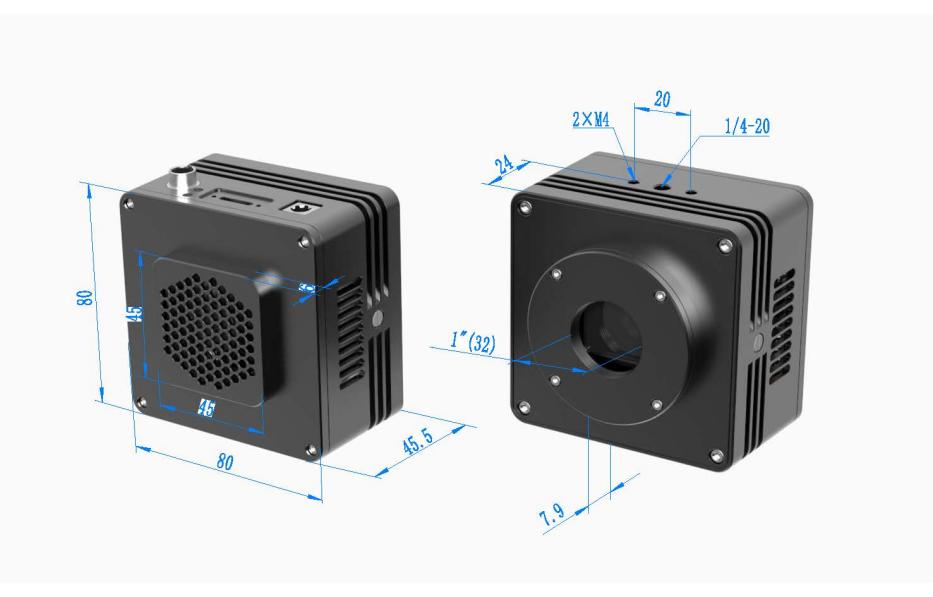

CTR3CMOS Camera Dimensions

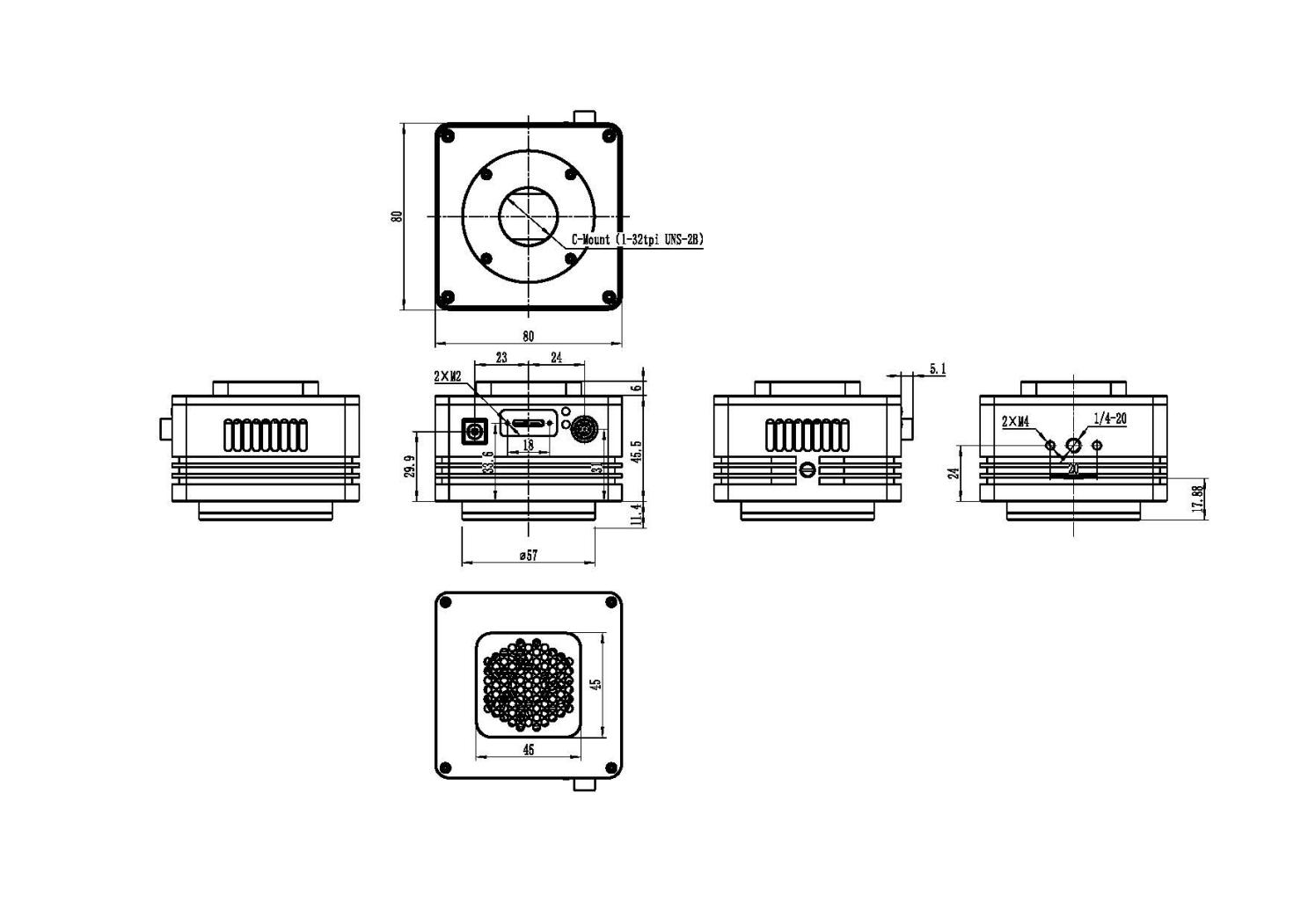

CTR3CMOS Camera Dimensions
CTR3CMOS Camera Dimensions

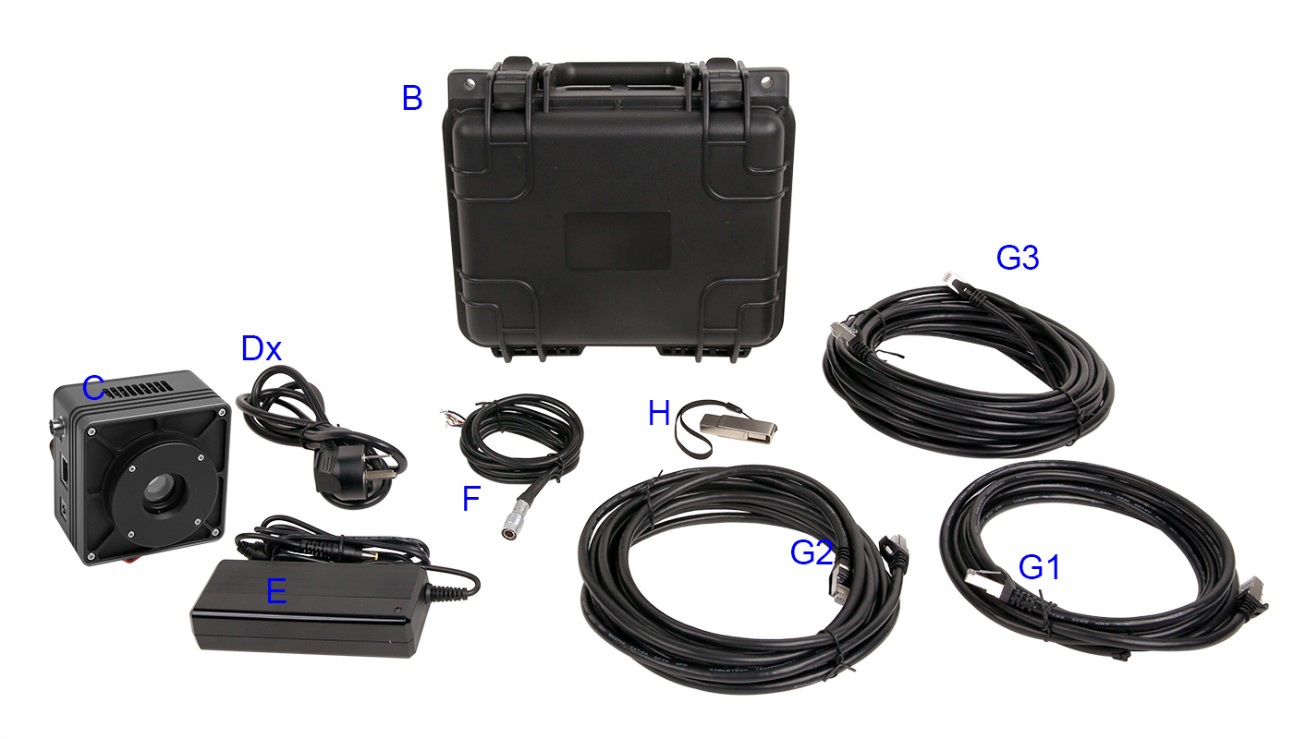

Packing List

CTR3CMOS
Packing Information for CTR3CMOS Series(USB)

Standard Package

A

Carton L:50cm W:30cm H:30cm (20pcs, 12~17Kg/ carton), not shown in the photo(TBD)

B

B1: L:20.4cm W:20.4.0cm H:10cm (1pcs, 1.04kg/ box)

B2:3-A safety equipment case: L:28cm W:23cm H:15cm (1pcs, 2.1Kg/ box); Carton size:L:28.2cm W:25.2cm H:16.7cm(TBD)

C

One CTR3CMOS series camera(C-mount)

D

With National standard, American Standard, European standard, and British standard power lines respectively(Optional)

E

Power adapter: input: AC 100~240V 50Hz/60Hz, output: DC12 V 3A

F

High-Speed USB3.0 A male to B male gold-plated connectors cable /3m

G

One external trigger control cable

H

USB flash driver (Driver & utilities software)

Optional Accessory(Not shown in the Photo)

I

Adjustable lens adapter

C-mount to Dia.23.2mm eyepiece tube

(Please choose 1 of them for your microscope)

108001/AMA037

108002/AMA050

108003/AMA075

108004/AMA100

C-Mount to Dia.31.75mm eyepiece tube

(Please choose 1 of them for your telescope)

108008/ATA037

108009/ATA050

108010/ATA075

108011/ATA100

J

Fixed lens adapter

C-mount to Dia.23.2mm eyepiece tube

(Please choose 1 of them for your microscope)

108005/FMA037

108006/FMA050

108007/FMA075

108008/FMA100

C-mount to Dia.31.75mm eyepiece tube

(Please choose 1 of them for your telescope)

108011/FTA037

108012/FTA050

108013/FTA075

108014/FTA100

Note: For I and J optional items, please specify your Camera type(C-mount, microscope Camera or telescope camera), ToupTek engineer will help you to determine the right microscope or telescope Camera adapter for your application;

K

108015(Dia.23.2mm to 30.0mm ring)/Adapter rings for 30mm eyepiece tube

L

108016(Dia.23.2mm to 30.5mm ring)/ Adapter rings for 30.5mm eyepiece tube

M

Calibration kit

106011/TS-M1(X=0.01mm/100Div.);

106012/TS-M2(X,Y=0.01mm/100Div.);

106013/TS-M7(X=0.01mm/100Div., 0.10mm/100Div.)

Packing Information for CTR3CMOS Series Camera(GigE)

CTR3CMOS
Standard Package
A External box for B(not shown in this figure) Carton size: L:28.2cm W:25.2cm H:16.7cm
B 3-A safety equipment case: L:28cm W:23cm H:15.5cm (1pcs, 2.8Kg/ box)
C One SWIR series GigE camera
D Power cord. National standard, American standard, European standard, British standard power cord ( D1, D2, D3, D4 ) for choosing
E Power adapter: Input: AC 100~240V 50Hz/60Hz, Output: DC 12V 3A
F One external trigger control cable
G GigE cable: G1:3m G2:5m G3:10m(G4:50m not shown in this figure)
H USB flash disk (with driver and application software in it)
