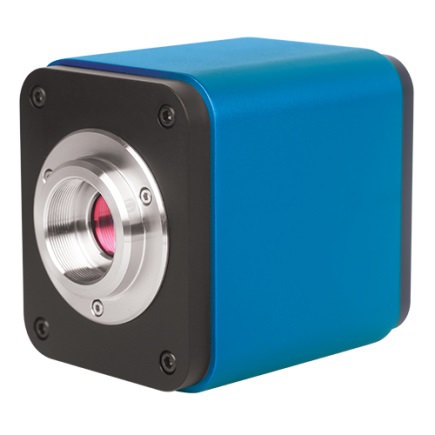

XCAM1080PHX C-mount HDMI+WiFi Output CMOS Camera

XCAM1080PHX

XCAM1080PHX is a multiple interfaces (HDMI+WiFi+SD card, X here means multiple interfaces) CMOS Camera and it adopts ultra-high performance Sony CMOS sensor as the image-picking device. HDMI+WiFi are used as the data transfer interface to HDMI display or computer.

For HDMI output, The XCamView will be loaded and a camera control panel and toolbar are overlaid on the HDMI screen, in this case, the USB mouse can be used to set the camera, browse and compare the captured image, play the video ital.

For WiFi output, unplug the mouse and plug in the USB WiFi adapter, connect the computer WiFi to the camera, then the video stream can be transfer to computer with the advanced software ToupView. With ToupView, you can control the camera, process the image as ToupTek's other USB series camera.

  • C-mount CMOS Camera with Sony high sensitivity sensor
  • HDMI+WiFi outputs at the same time
  • HDMI output can be controlled by XCamView through the USB mouse
  • WiFi output can be enabled with wireless network USB adapter,and can be controlled with ToupView/ToupLite application
  • Ultra-Fine Color Engine with perfect color reproduction capability(WiFi)
  • 04M resolution image(2592*1944 XCAM1080PHB) or 2.0M resolution image(1920*1080 XCAM1080PHD/PHE(Global Shutter for PHE)) can be captured and saved for browsing; For video, 1080P video stream(asf format) can be captured and saved
  • Windows/Linux/OSX multiple platform SDK
  • CNC housing
  • Can be used for industrial inspection, education and research, materials analysis, precision measurement, medical analyses etc.
XCAM1080PHX

Related models

Order Code

Sensor & Size(mm)

Pixel(μm)

G Sensitivity

Dark Signal

FPS/Resolution

Binning

Exposure

XCAM1080PHB

1080P/5M/Sony IMX178(C)

1/1.8"(6.22x4.67)

2.4x2.4

425mv with 1/30s

0.15mv with 1/30s

30@1920*1080(HDMI)

25@1920*1080(WiFi)

1x1

0.03ms~918ms

XCAM1080PHD

1080P/2M/Sony IMX185(C)

1/1.9"(7.20x4.05)

3.75x3.75

1120mv with 1/30s

0.15mv with 1/30s

30@1920*1080(HDMI)

25@1920*1080(WiFi)

1x1

0.06ms~918ms

XCAM1080PHE

Sony IMX249(C,GS)

1/1.2"(11.25x6.33)

5.86*5.86

1016mv with 1/30s

0.15mv with 1/30s

30@1920*1080(HDMI)

25@1920*1080(WiFi)

1x1

0.043ms~1000ms

specification

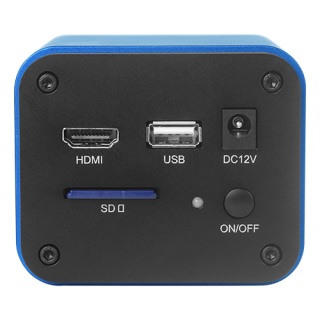

Interface & Button Functions

USB

USB Mouse/USB WiFi Adapter

HDMI

HDMI Output

DC12V

12V Power in

SD

SD Card Slot

ON/OFF

Power On/off Switch

LED

Power Indicator

Other Specification for HDMI Output

UI Operation

With USB Mouse to Operate on the Embedded XCamView

Image Capture

JPEG Format with 5M Resolution (2592*1944) in SD Card(8G) (XAM1080PHB)

JPEG Format with 2M Resolution in SD Card (XCAM1080PHD/PHE(Global Shutter for PHE))

Video Record

ASF Format 1080P 30fps in SD Card(8G)

Camera Control Panel

Including Exposure, Gain, White Balance, Color Adjustment, Sharpness and Denoising Control

Toolbar

Including Zoom, Mirror, Comparison, Freeze, Cross, Browser Function, Muti-language and XCamView Version Information

Other Specification for WiFi Output

UI Operation

ToupView or ToupLite on Windows/Linux/OSX/Android Platform

WiFi Performance

802.11n 150Mbps; RF Power 20dBm(Maximum)

Maximum Connected Devices

3~6(According to the Environment and Connection Distance)

White Balance

Auto White Balance

Color Technique

Ultra-Fine Color Engine (WiFi)

Capture/Control SDK

Windows/Linux/macOS/Android Multiple Platform SDK(Native C/C++, C#/VB.NET, Python, Java, DirectShow, Twain, etc) (WiFi)

Recording System

Still Picture or Movie (WiFi)

Software Environment (for USB2.0 Connection)

Operating System

Microsoft® Windows® XP / Vista / 7 / 8 / 8.1/10(32 & 64 bit)

OSx(Mac OS X)

Linux

PC Requirements

CPU: Equal to Intel Core2 2.8GHz or Higher

Memory:4GB or More

USB Port:USB2.0 High-speed Port(As Power Only, not as the USB Data Transfer)

Display:19” or Larger

CD-ROM

Operating Environment

Operating Temperature(in Centidegree)

-10~ 50

Storage Temperature(in Centidegree)

-20~ 60

Operating Humidity

30~80%RH

Storage Humidity

10~60%RH

Power Supply

DC 12V/1A Adapter

Instance

XCAM1080PHX Application Instance

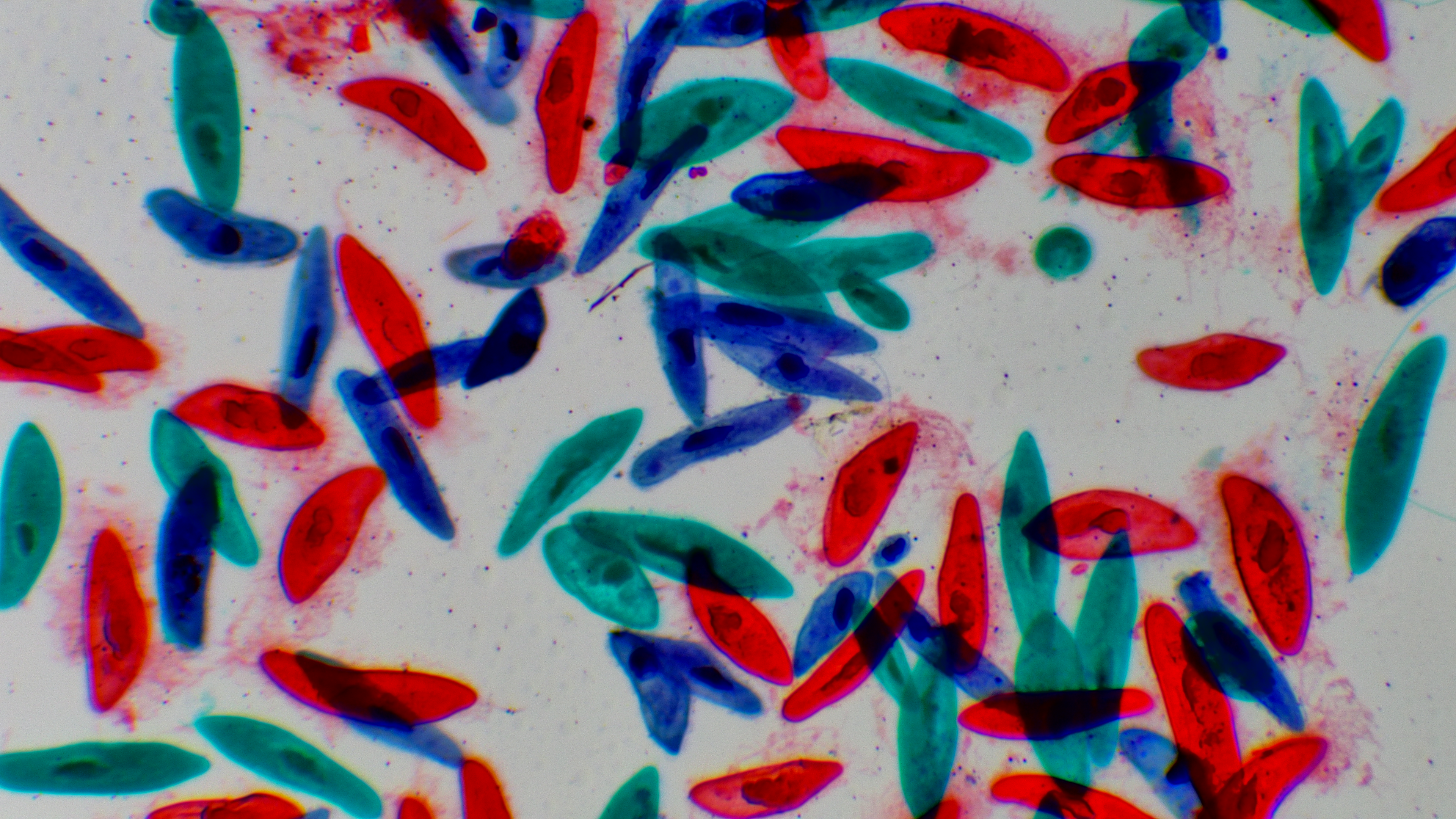

Paramecium slide preparation
XCAM1080PHX Application Instance

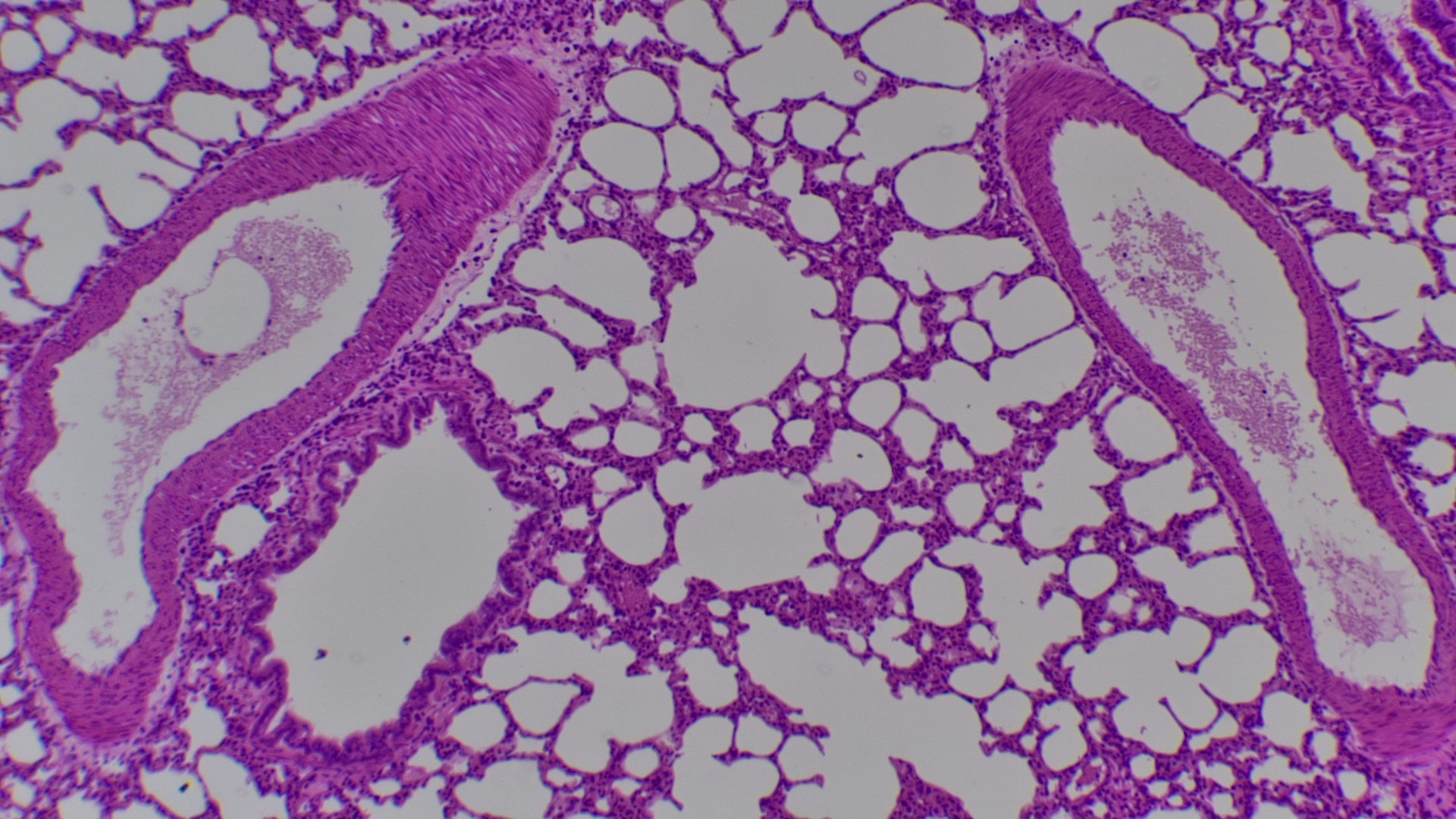

Lung section
XCAM1080PHX Application Instance

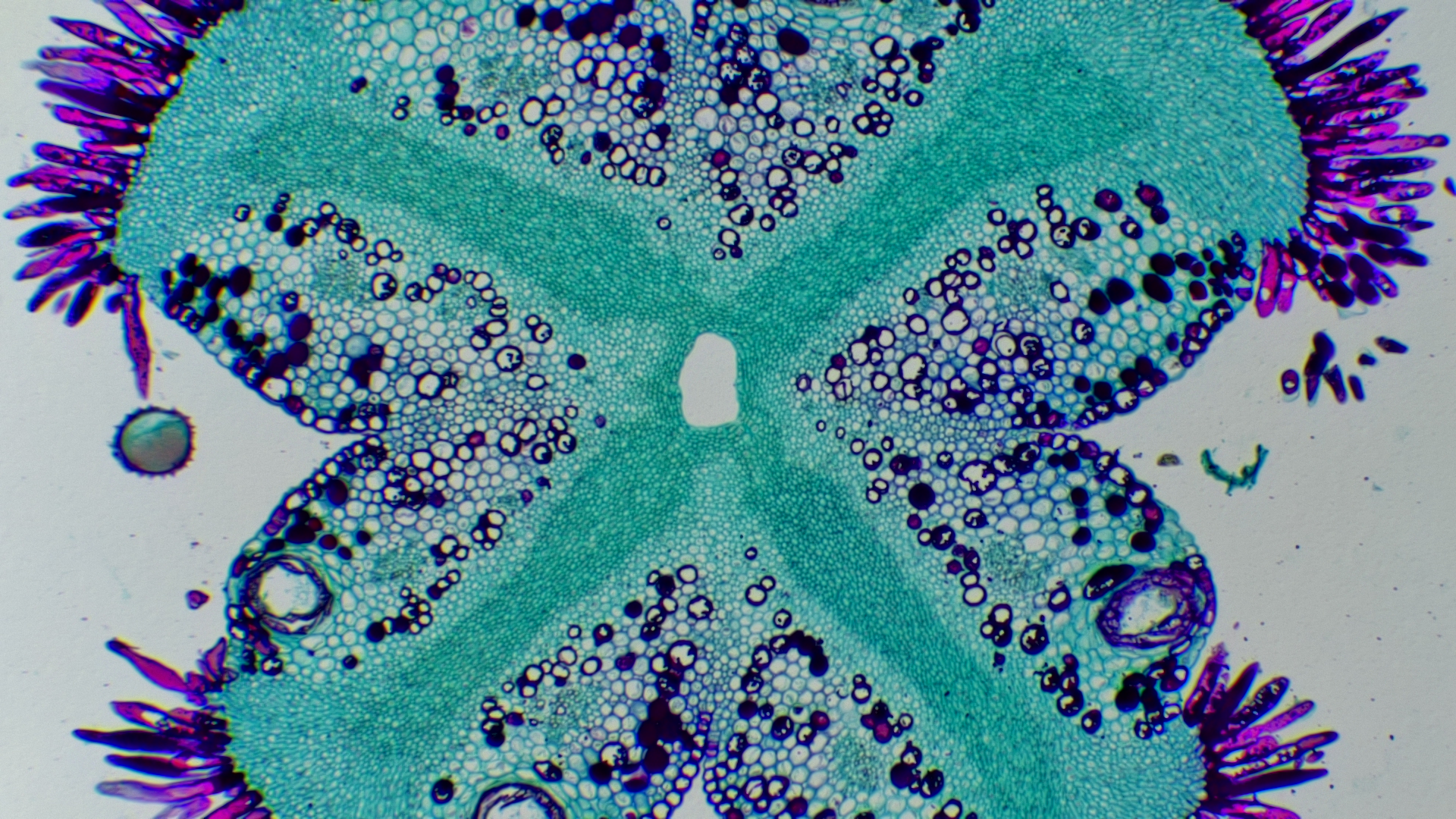

Transverse section of cotton stigma
XCAM1080PHX Application Instance

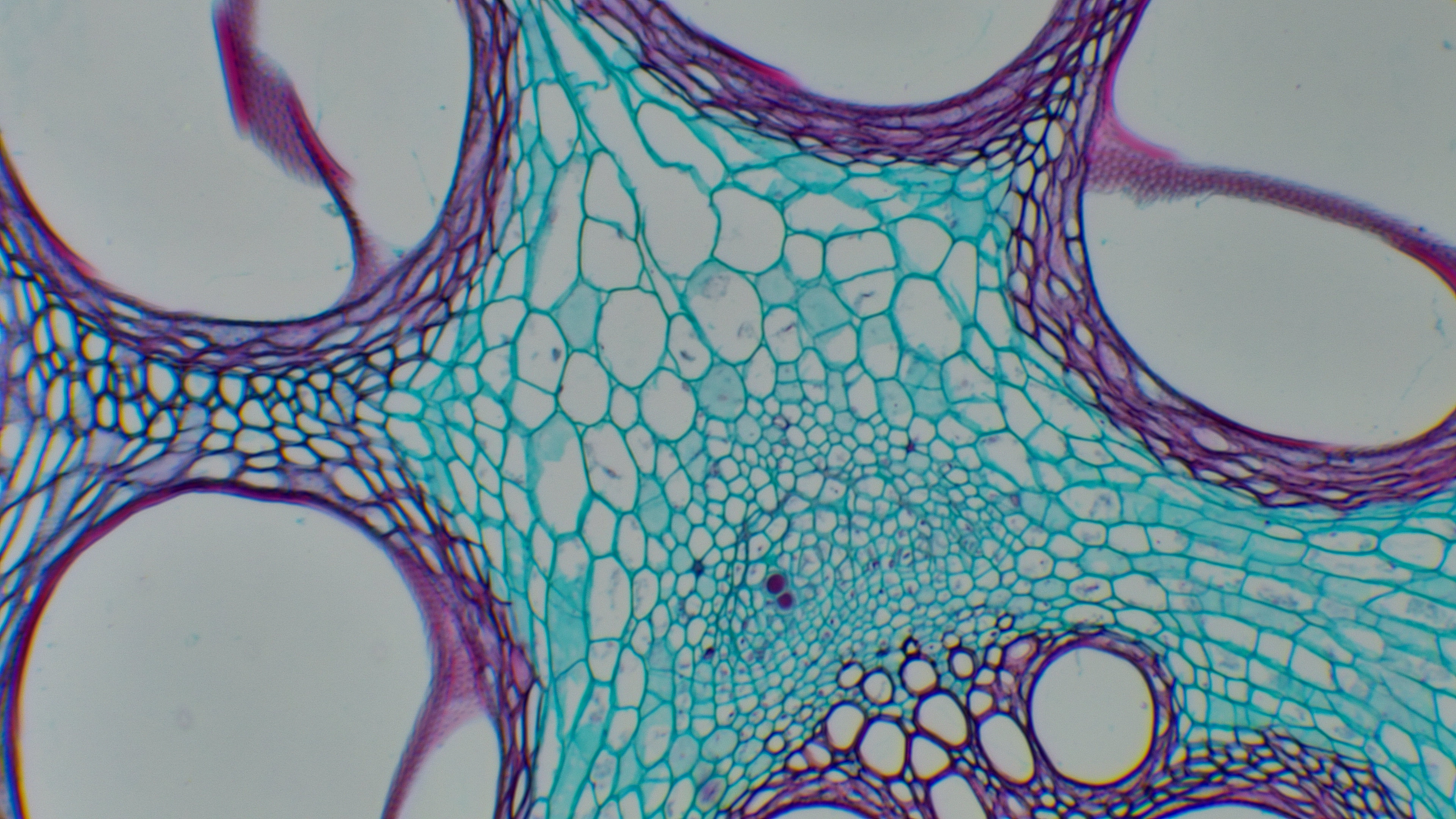

Transverse section of pumpkin stem

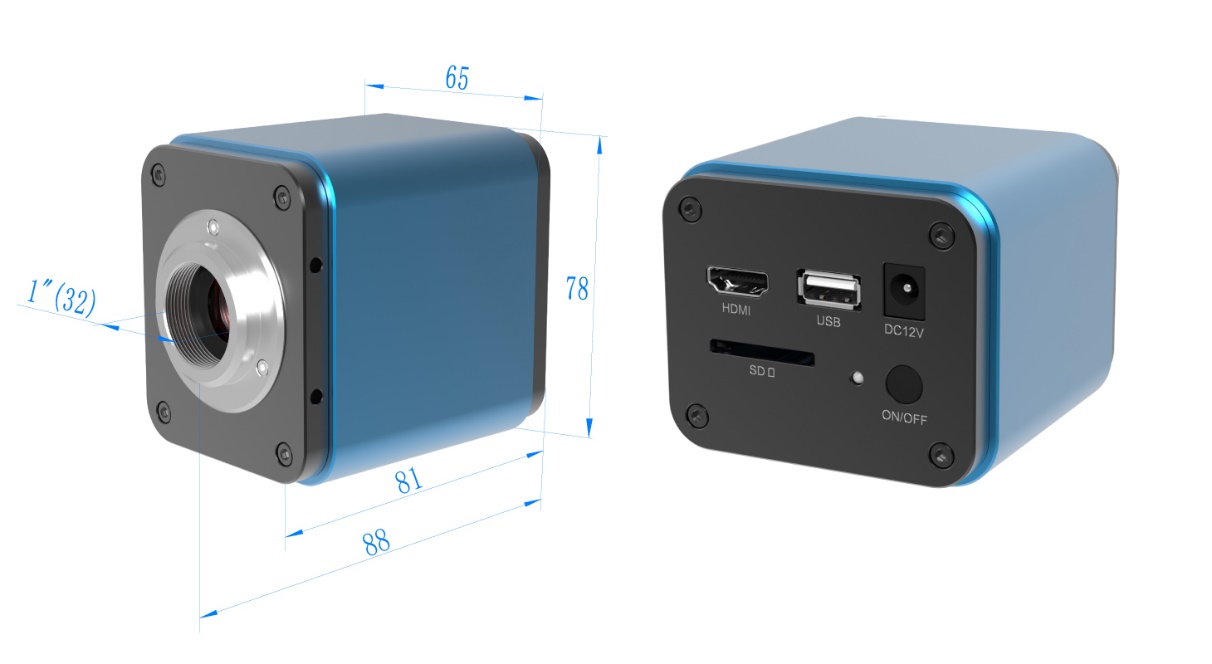

Camera interface and appearance dimensions

XCAM1080PHX

Packing List

XCAM1080PHX
Packing Information of XCAM1080PHX Series

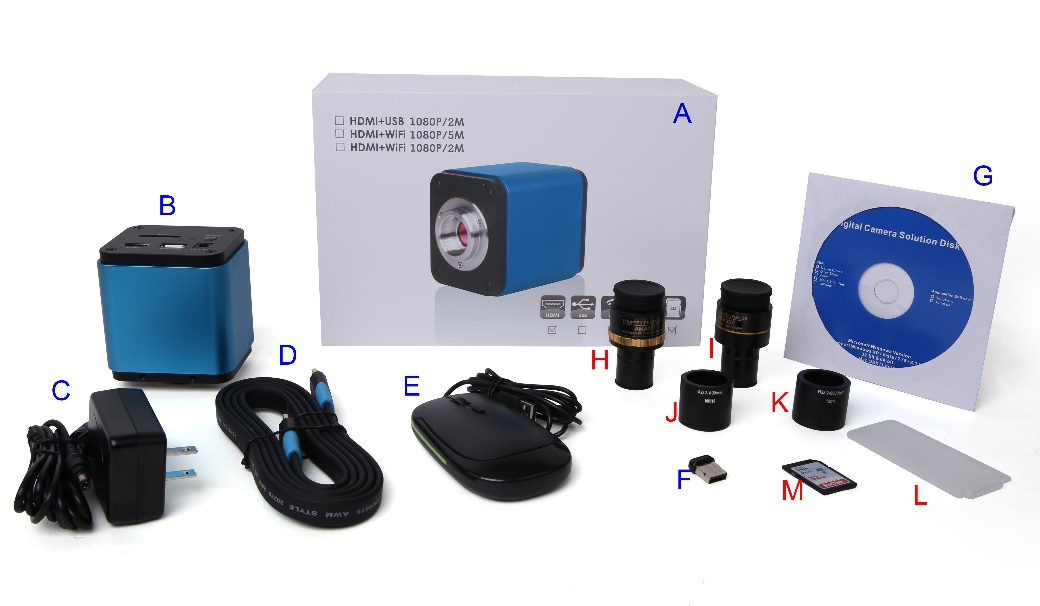

Standard Packing List

A

Gift box : L:25.5cm W:17.0cm H:9.0cm (1pcs, 1.43Kg/ box)

B

XCAM1080PHB or XCAM1080PHD or XCAM1080PHE camera

C

Power Adapter: Input: AC 100~240V 50Hz/60Hz, Output: DC 12V 1A

American standard: Model: GS12U12-P1I 12W/12V/1A: UL/CUL/BSMI/CB/FCC

EMI Standard:EN55022,EN61204-3, EN61000-3-2,-3, FCC Part 152 class B, BSMI CNS14338

EMS Standard:EN61000-4-2,3,4,5,6,8,11,EN61204-3,Class A Light Industry Standard

European standard:Model:GS12E12-P1I 12W/12V/1A; TUV(GS)/CB/CE/ROHS

EMI Standard:EN55022,EN61204-3, EN61000-3-2,-3, FCC Part 152 class B, BSMI CNS14338

EMS Standard:EN61000-4-2,3,4,5,6,8,11,EN61204-3,Class A Light Industry Standard

D

HDMI cable

E

USB mouse

F

Wireless network adapter with USB interface

G

CD (Driver & utilities software, Ø12cm)

Optional Accessory

H

Adjustable lens adapter

C-Mount to Dia.23.2mm eyepiece tube

(Please choose 1 of them for your microscope)

108001/AMA037

108002/AMA050

108003/AMA075

C-Mount to Dia.31.75mm eyepiece tube

(Please choose 1 of them for your telescope)

108008/ATA037

108009/ATA050

108010/ATA075

I

Fixed lens adapter

C-Mount to Dia.23.2mm eyepiece tube

(Please choose 1 of them for your microscope)

108005/FMA037

108006/FMA050

108007/FMA075

C-Mount to Dia.31.75mm eyepiece tube

(Please choose 1 of them for your telescope)

108011/FTA037

108012/FTA050

108013/FTA075

Note: For H and I optional items, please specify your Camera type(C-mount, microscope camera or telescope camera), ToupTek engineer will help you to determine the right microscope or telescope camera adapter for your application;

J

108015(Dia.23.2mm to 30.0mm ring)/Adapter rings for 30mm eyepiece tube

K

108016(Dia.23.2mm to 30.5mm ring)/ Adapter rings for 30.5mm eyepiece tube

L

Calibration kit

106011/TS-M1(X=0.01mm/100Div.);

106012/TS-M2(X,Y=0.01mm/100Div.);

106013/TS-M7(X=0.01mm/100Div., 0.10mm/100Div.)

M

SD card(4G or 8G)
