X8CAM4K Series HDMI/NETWORK/USB Multi-outputs CMOS Camera

For Purchase / Trial / OEM / ODM, Please Contact Us

ToupTek

Introduction

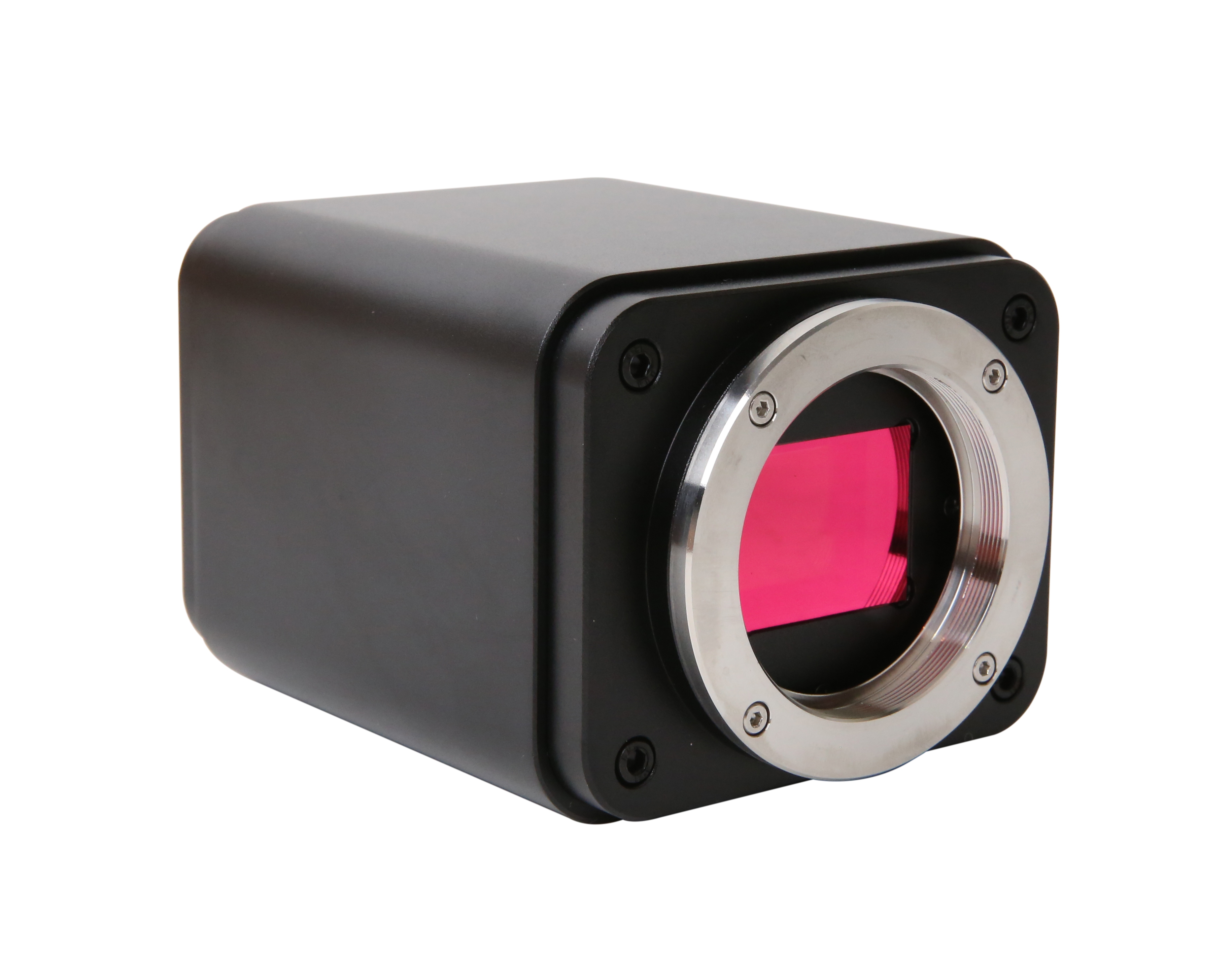

X8CAM4K Series HDMI/NETWORK/USB Multi-outputs CMOS Camera

The X8CAM4K series cameras have high resolution, high frame rate, and excellent image quality, making them suitable for professional applications that require extremely high levels of detail capture and colour reproduction. The basic characteristic is listed as below:

  • Sony back-illuminated large target surface CMOS sensor
  • With 10-bit ISP processing, it offers better color reproduction, remarkable sharpening and 3D noise reduction effects, and more accurate ROI white balance
  • 4K HDMI/ NETWORK/ USB multiple video synchronous outputs
  • 4K/1080P auto switching according to monitor resolution
  • SD card/USB flash drive for captured image and video storage, support local preview and playback
  • Support the capture and display of RAW format images
  • Support Image Auto Upload to the server over the network
  • Supports USB voice control module, enabling real-time control of the camera through voice commands for taking photos, recording videos, freezing, and other operations
  • Provide real-time video EDF function and real-time video WDR output function
  • Provide real-time Stitch function to obtain higher quality images through real-time processing
  • Provide two sets of default ISP parameters for biological microscope and stereo microscope
  • New UI interface, the browsing interface provids rich file operation functions, image to image comparison, image to real-time video comparison, multi-image EDF function, multi-image Stitch function
  • Embedded XCamView for the control of the camera and image processing, supporting automatic edge finding and measurement functions
  • The text input box supports the input of both Chinese and English languages
  • ToupView/ToupLite software for PC
  • iOS/Android applications for smart phones or tablets

Related Models

Order Code

Sensor & Size(mm)

Mount

Pixel(μm)

G Sensitivity

Dark Signal

Sensor Output

(FPS/Resolution)

Binning

Exposure(us)

X8CAM4K22MPA

IMX571(C)
1.7"(23.46x13.21)

M42*0.75

3.76x3.76

485mv with 1/30s
0.07mv with 1/30s

37@6240*3512

1x1

7~

X8CAM4K16MPA

IMX383(C)
1/1.1"(13.06x7.34)

C

2.4x2.4

470mv with 1/30s
0.21mv with 1/30s

60@5440*3060

1x1

41~

Different interfaces output parameters

Camera Model

Video Saving(FPS/Resolution)


H DMI2.0(FPS/Resolution)

USB3.0(FPS/Resolution)

NETWORK(FPS/Resolution)

X8CAM4K22MPA

37@3840*2160

6240*3512

30@3840*2160
30@1920*1080

15@6240*3512
37@2688*1512
37@1920*1080

30@3840*2160
37@1920*1080
37@1280*720

X8CAM4K16MPA

60@3840*2160

5440*3060

60@3840*2160
60@1920*1080

25@5440*3060
45@2688*1512
60@1920*1080

30@3840*2160
60@1920*1080
60@1280*720

Detailed Specifications

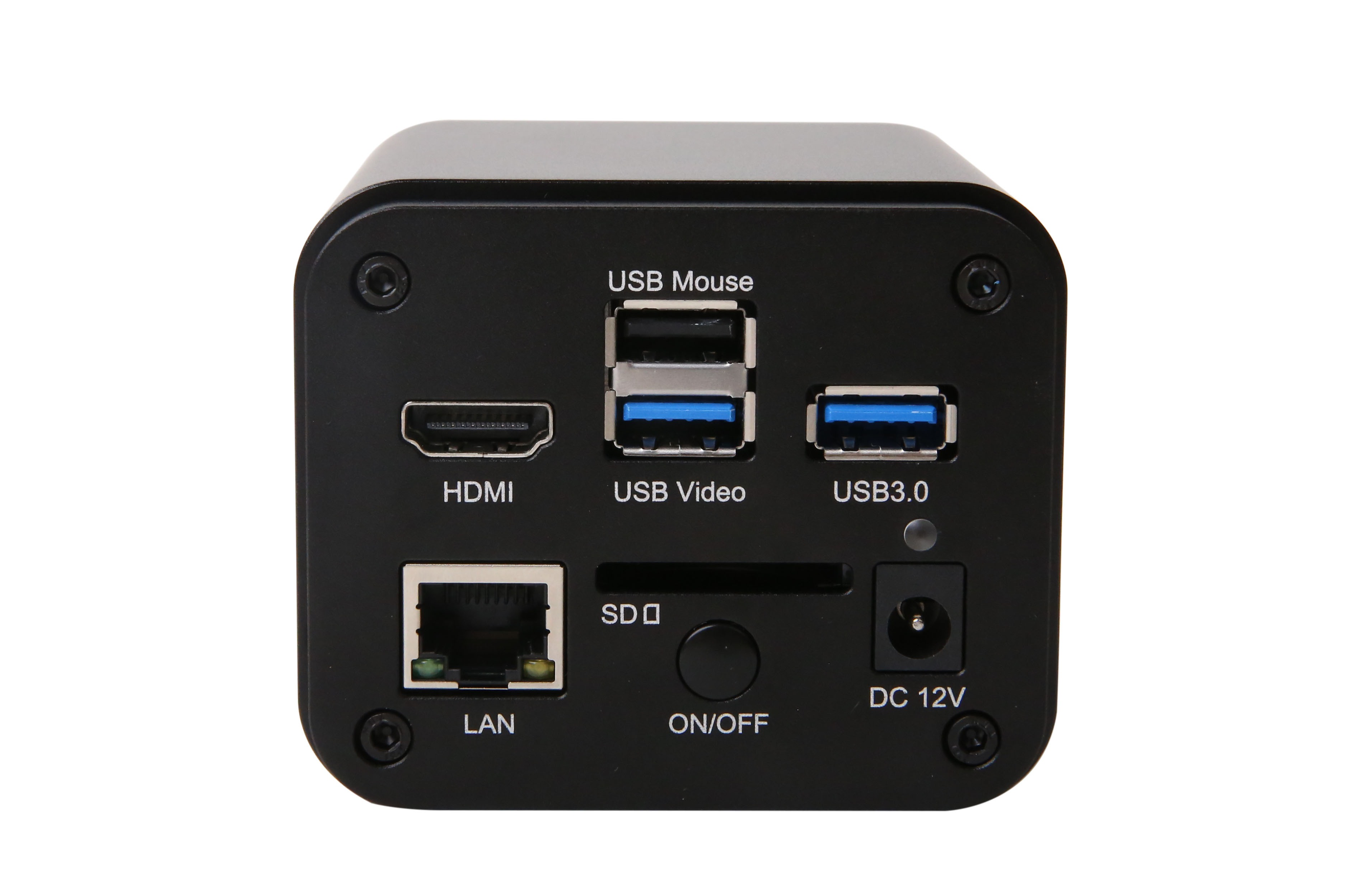

Interface or Button

Function Description

USB Mouse

Connect USB mouse for easy operation with embedded XCamView software
Connect USB voice control for enable real-time control of camera snap, recording, freezing, and other operations

USB3.0

Connect USB flash drive to save pictures and videos
Connect 5G WiFi module to transfer video wirelessly in real time
Connect USB microphone to record audio and video
Connect USB voice control for enable real-time control of camera snap, recording, freezing, and other operations

USB Video

Connect PC or other host device to realize video image transmission

HDMI

Comply with HDMI2.0 standard. 4K/1080P format video output and supporting automatic switch between 4K and 1080P format according to the connected monitors

LAN

LAN port to connect router and switch to transfer video

SD

SD card slot, comply with SDIO3.0 standard and SD card could be inserted for video and images saving

ON/OFF

Power switch

LED

LED status indicator

DC12V

Power adapter connection (12V/1A)

Video Output Interface

Function Description

HDMI Interface

Comply with HDMI2.0 standard; 30fps@4K or 30fps@1080P (X8CAM4K22MPA)
60fps@4K or 60fps@1080P(X8CAM4K16MPA)

LAN Interface

Support real time resolution switching(4K/1080P/720P)
H264 encoded video
DHCP configuration or manual configuration
Unicast/multicast configuration

WiFi Interface

Connecting 5G WiFi adapter (USB3.0 slot) in AP/STA mode

USB Video Interface

Connecting USB Video port of PC for video transfer
MJPEG format video

Other Function

Function Description

Video Saving

Video format:8M(3840*2160) H264 encoded MP4 file
Video saving frame rate:37fps(X8CAM4K22MPA); 60fps(X8CAM4K16MPA);

Image Capture

22M (6240*3512, X8CAM4K22MPA) JPEG/TIFF/RAW image in SD card or USB flash drive
16M (5440*3060, X8CAM4K16MPA) JPEG/TIFF/RAW image in SD card or USB flash drive
(Default SD card priority, priority can be modified in settings)

Measurement Saving

Measurement information saved in different layer with image content
Measurement information is saved together with image content in burn in mode

ISP

Exposure(Automatic / Manual Exposure) / Gain, White Balance(Manual / Automatic / ROI Mode), Sharpening, 3D Denoise, Saturation Adjustment, Gamma Adjustment, Contrast Adjustment, Brightness Adjustment, Hue Adjustment, Color to Gray, 50HZ/60HZ Anti-flicker, Dark Enhance, DRC Function

Image Operation

Zoom In/Zoom Out(Up to 10X), Mirror/Flip, Freeze, EDF, Stitch, Grids, Overlay, PIP , Browser(including Picture Browsing , Video Playback , Video Compare , Picture Compare , EDF , Stitch , Image Processing), Measurement Function

Embedded RTC(Optional)

To support accurate time on board

Restore Factory Settings

Restore camera parameters to its factory status

Multiple Language Support

English / Simplified Chinese / Traditional Chinese / Korean / Thailand / French / German / Spanish / Japanese / Italian / Russian / Dutch / Portuguese

Software Environment under Network/USB Video Output

White Balance

Auto White Balance

Color Technique

Ultra-Fine Color Engine

Capture/Control SDK

Windows/Linux/macOS/Android Multiple Platform SDK(Native C/C++, C#/VB.NET, Python, Java, DirectShow, Twain, etc)

Recording System

Still Picture or Movie

Operating System

Microsoft® Windows® XP / Vista / 7 / 8 / 8.1 / 10 / 11(32 & 64 bit)
OSx(Mac OS X)
Linux

PC Requirements

CPU: Equal to Intel Core2 2.8GHz or Higher

Memory: 4GB or More

USB interface: USB 2.0 interface or higher

Ethernet Port: RJ45 Ethernet Port

Display:19” or Larger

CD-ROM

Operating Environment

Operating Temperature (in Centidegree)

-10°~ 50°

Storage Temperature (in Centidegree )

-20°~ 60°

Operating Humidity

30~80%RH

Storage Humidity

10~60%RH

Power Supply

DC 12V/1A Adapter

Applications

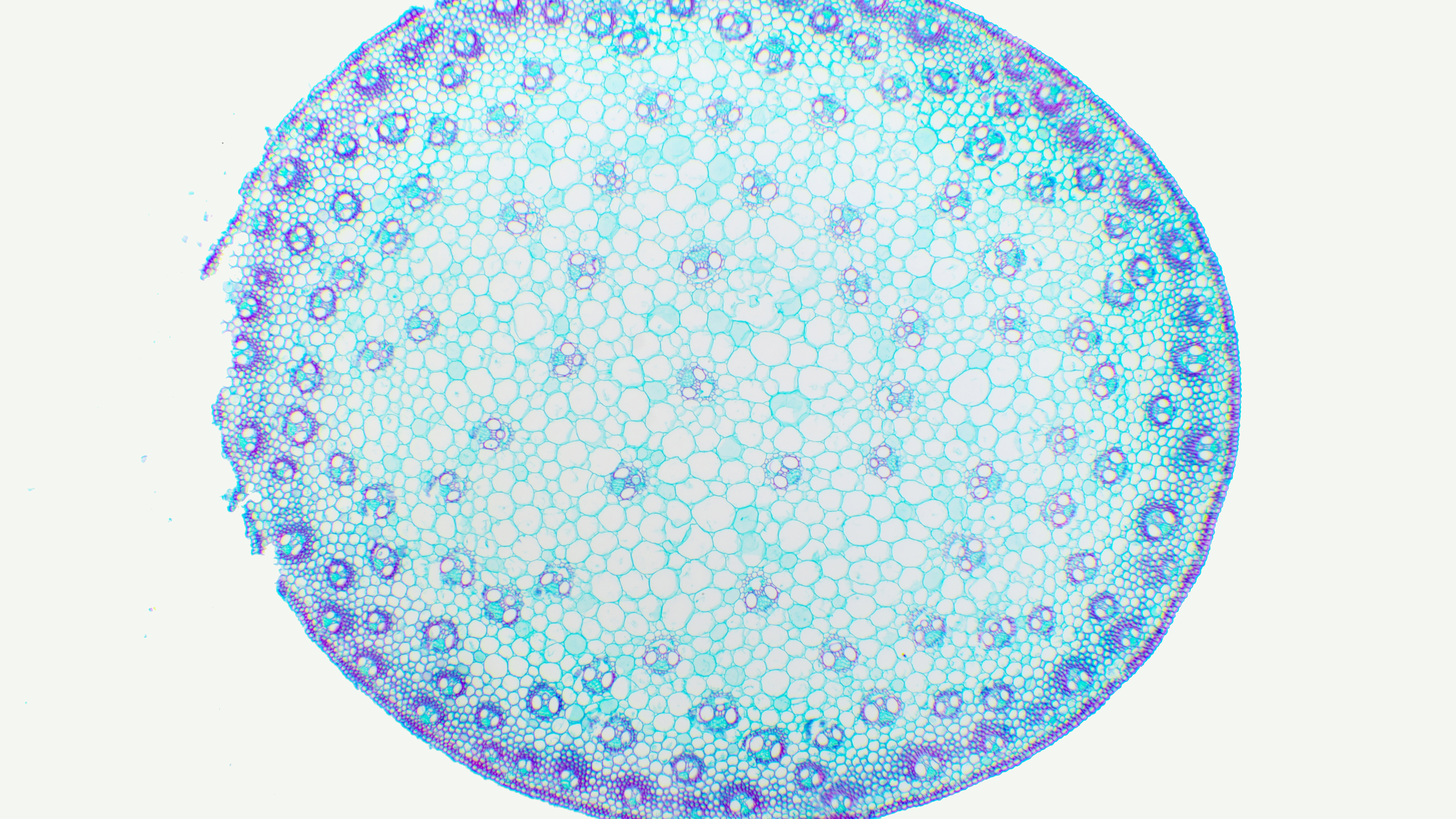

X8CAM4K application example
Corn Stem.C.S Captured with X8CAM4K22MPA
X8CAM4K application example

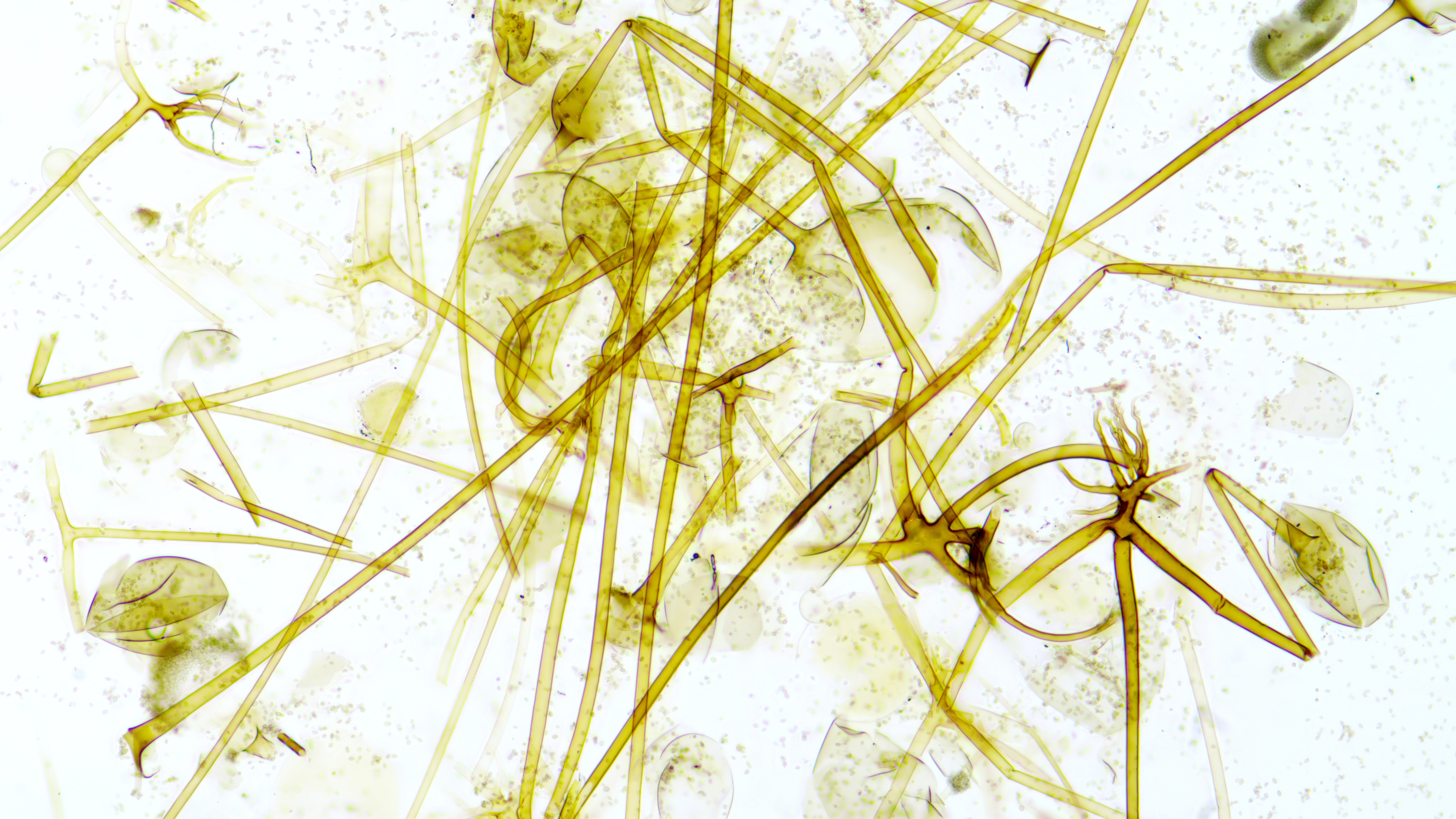

Rhizopus.W.M Captured with X8CAM4K22MPA

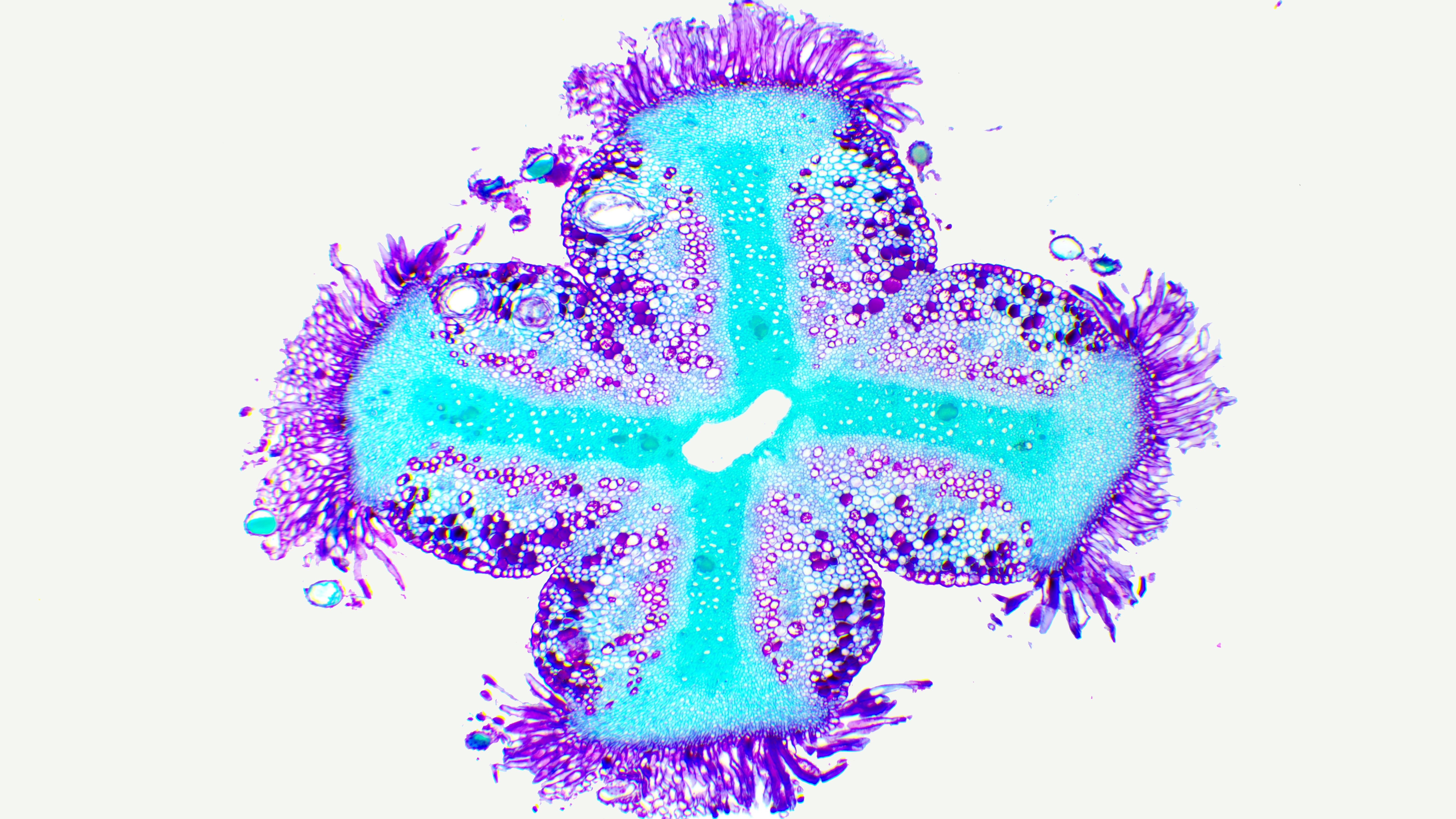

X8CAM4K application example
Cross Section of Cotton Stigma Captured with X8CAM4K22MPA
X8CAM4K application example
FPC Captured with X8CAM4K16MPA

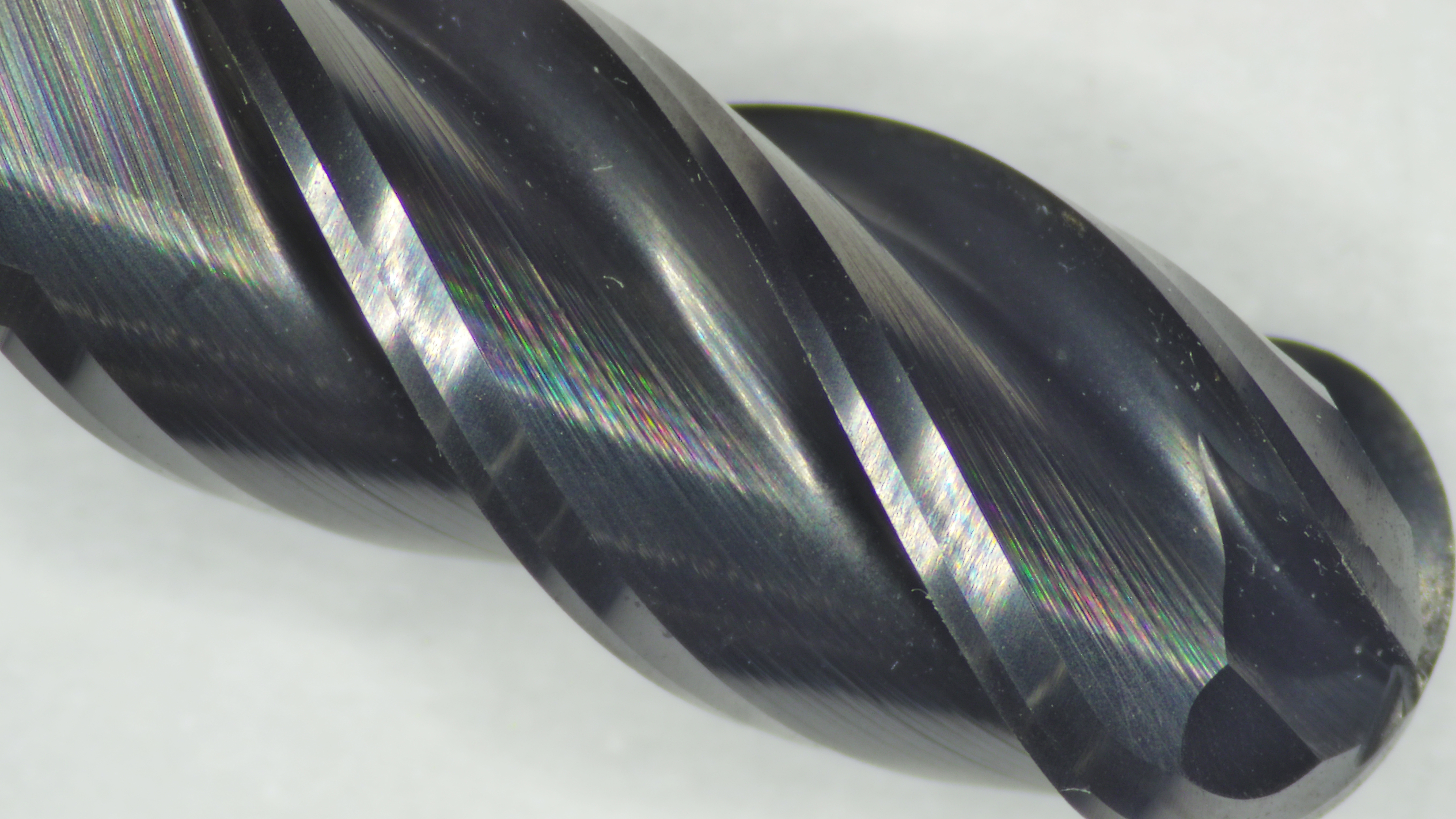

X8CAM4K application example
Carbide Tip Captured with X8CAM4K16MPA
X8CAM4K application example

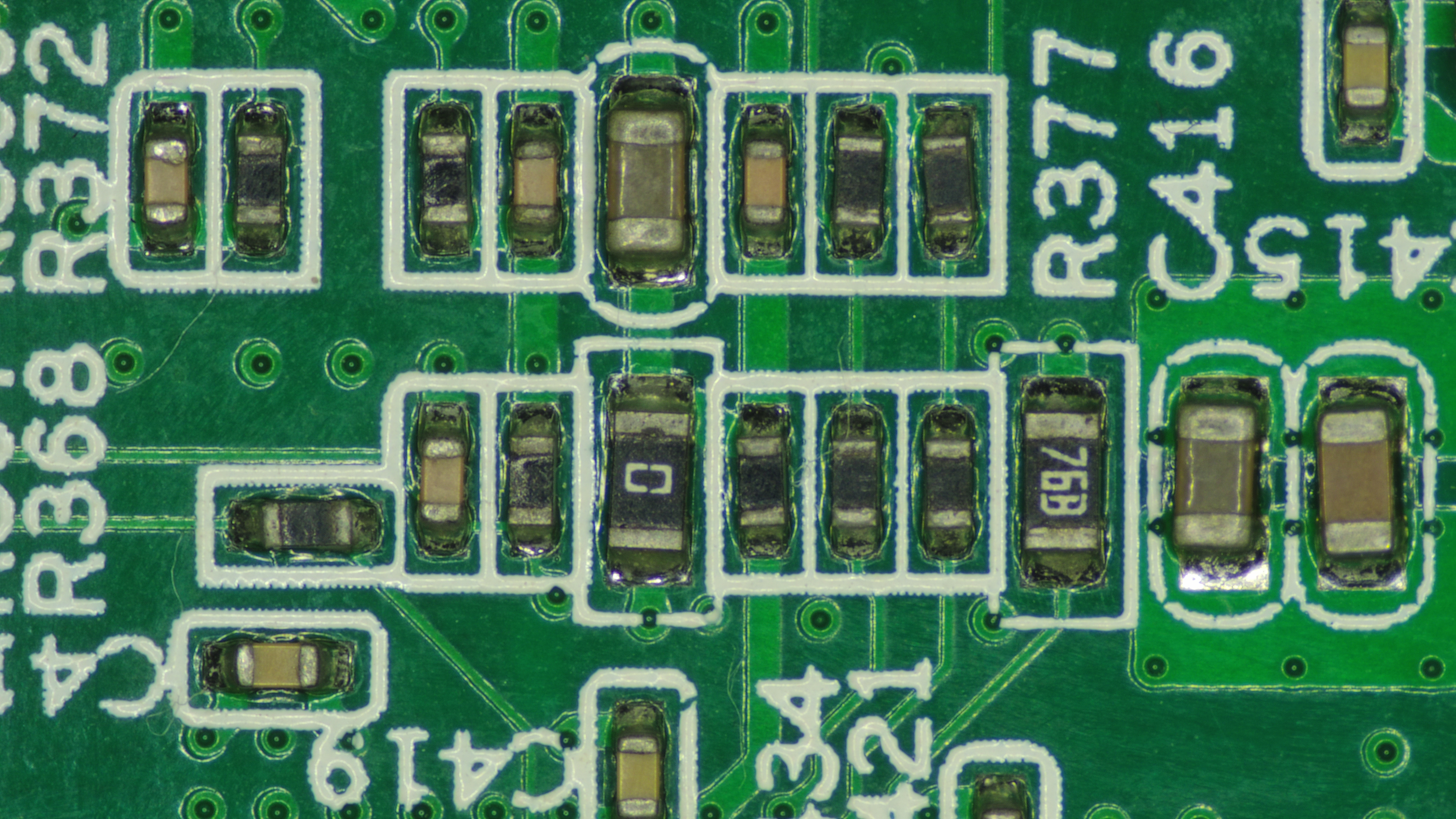

Circuit Board Captured with X8CAM4K16MPA
X8CAM4K application example

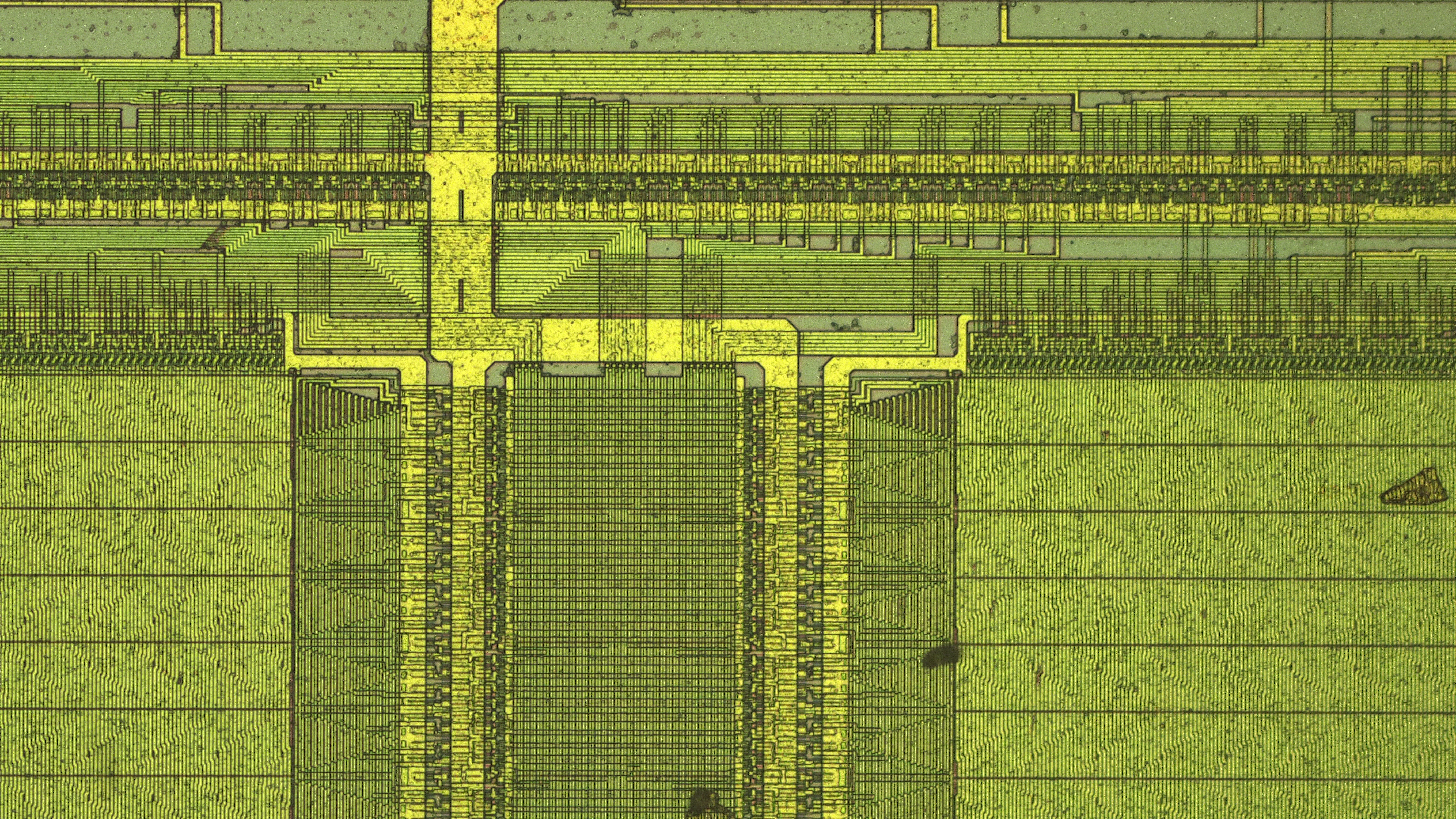

Samples Photographed by the SOPTOP RX50M Metallographic Microscopy System Captured with X8CAM4K16MPA
X8CAM4K application example

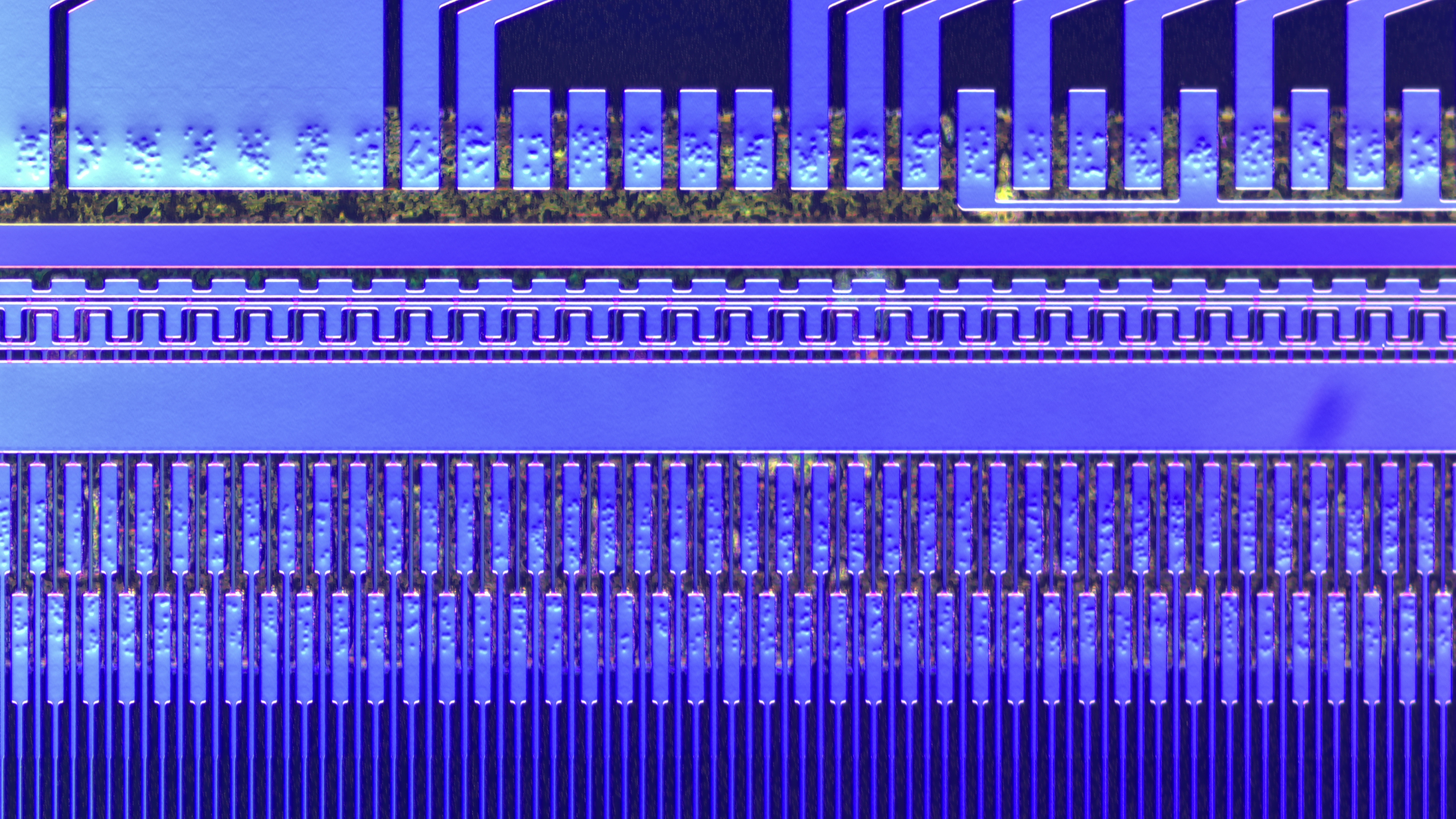

Conductive Particles of the Liquid Crystal Screen Photographed by the DIC-100WVA Differential Interference Contrast (DIC) Microscopy System Captured with X8CAM4K16MPA
X8CAM4K application example

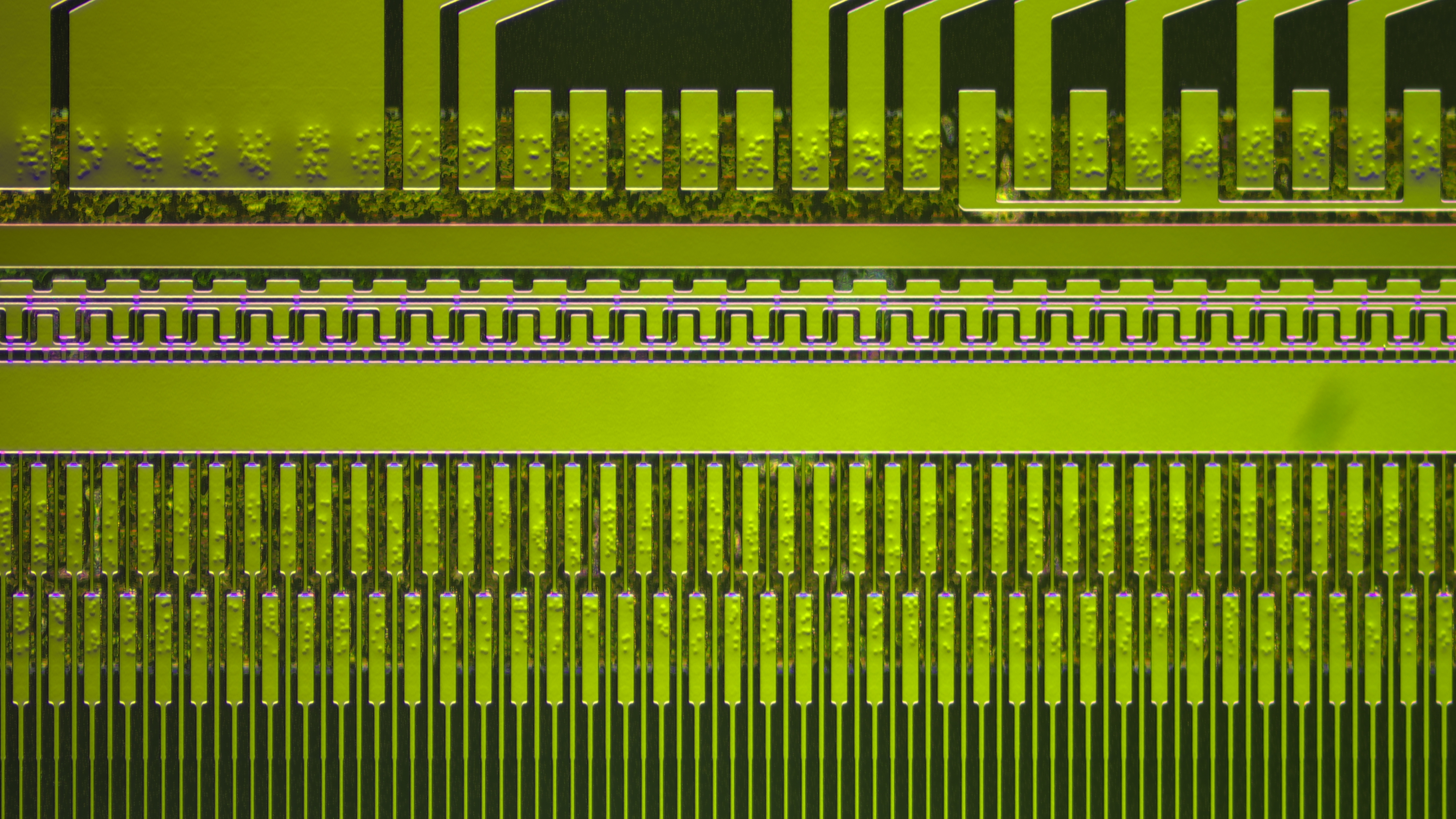

Conductive Particles of the Liquid Crystal Screen Photographed by the DIC-100WVA Differential Interference Contrast (DIC) Microscopy System Captured with X8CAM4K16MPA
X8CAM4K application example

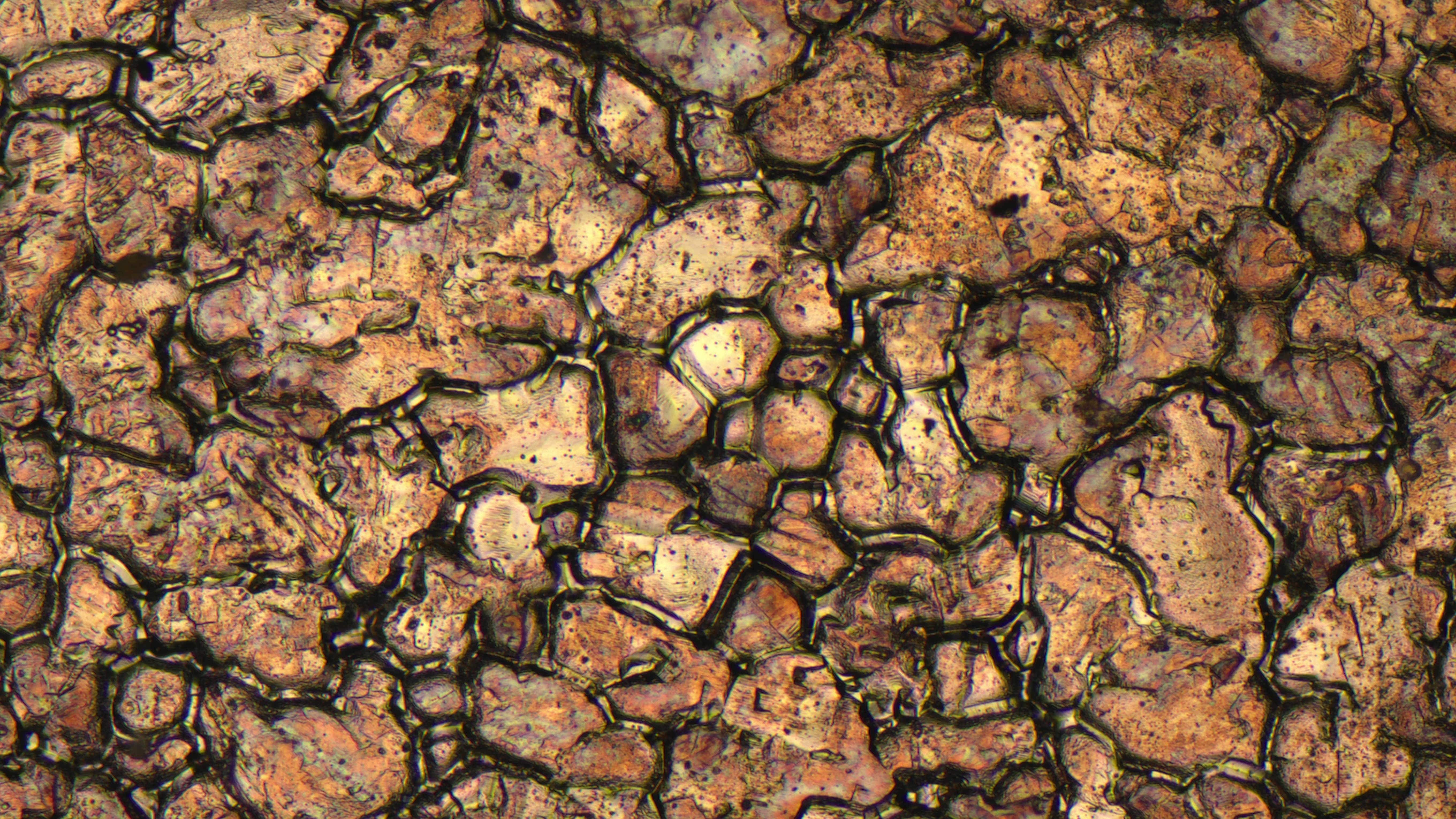

Metal Samples Photographed by the OUMIT CX43M Metallographic Microscopy System Captured with X8CAM4K16MPA
X8CAM4K application example

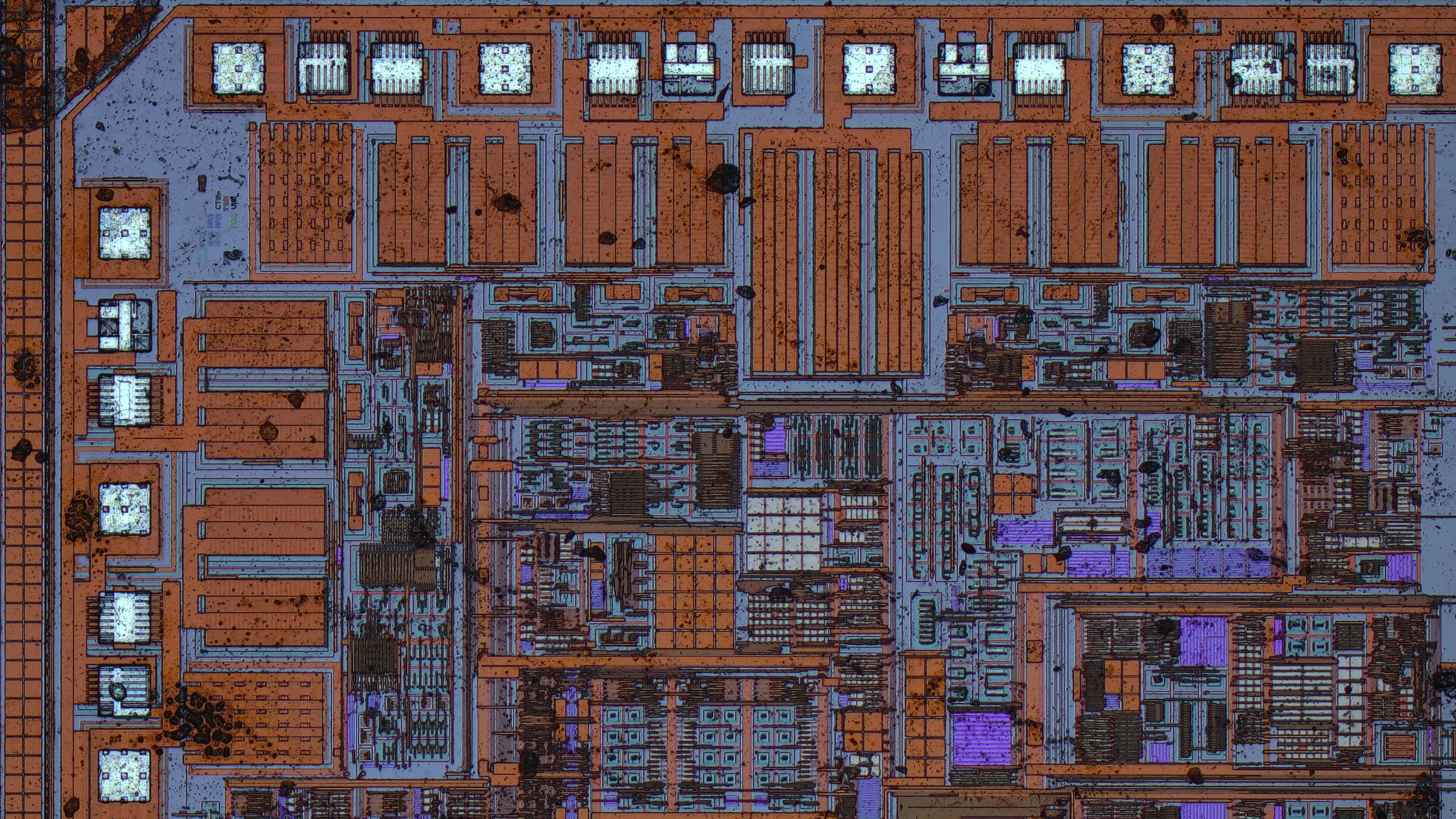

Semiconductor Samples Photographed by the OUMIT CX43M Metallographic Microscopy System Captured with X8CAM4K16MPA

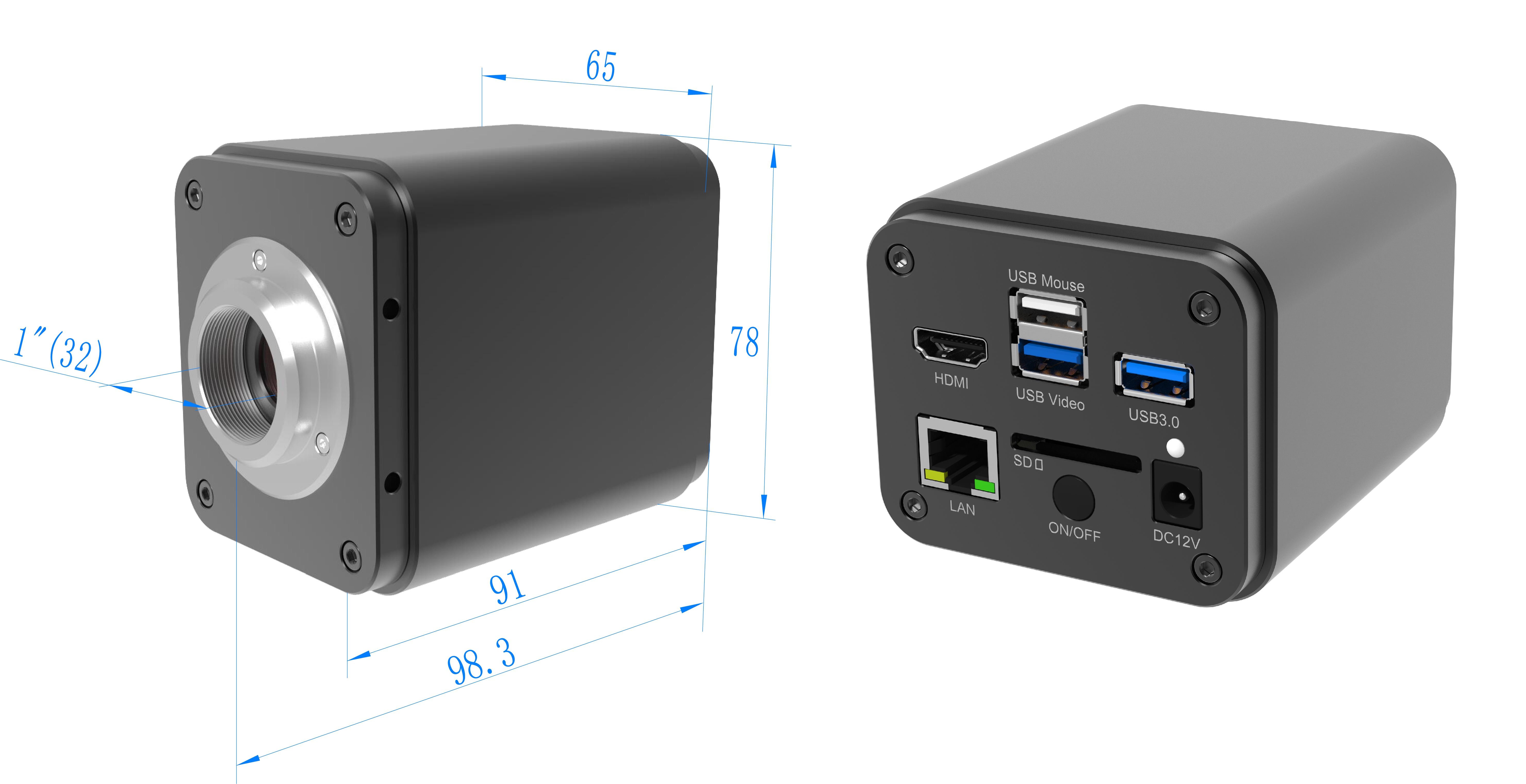

External Dimensions

X8CAM4K

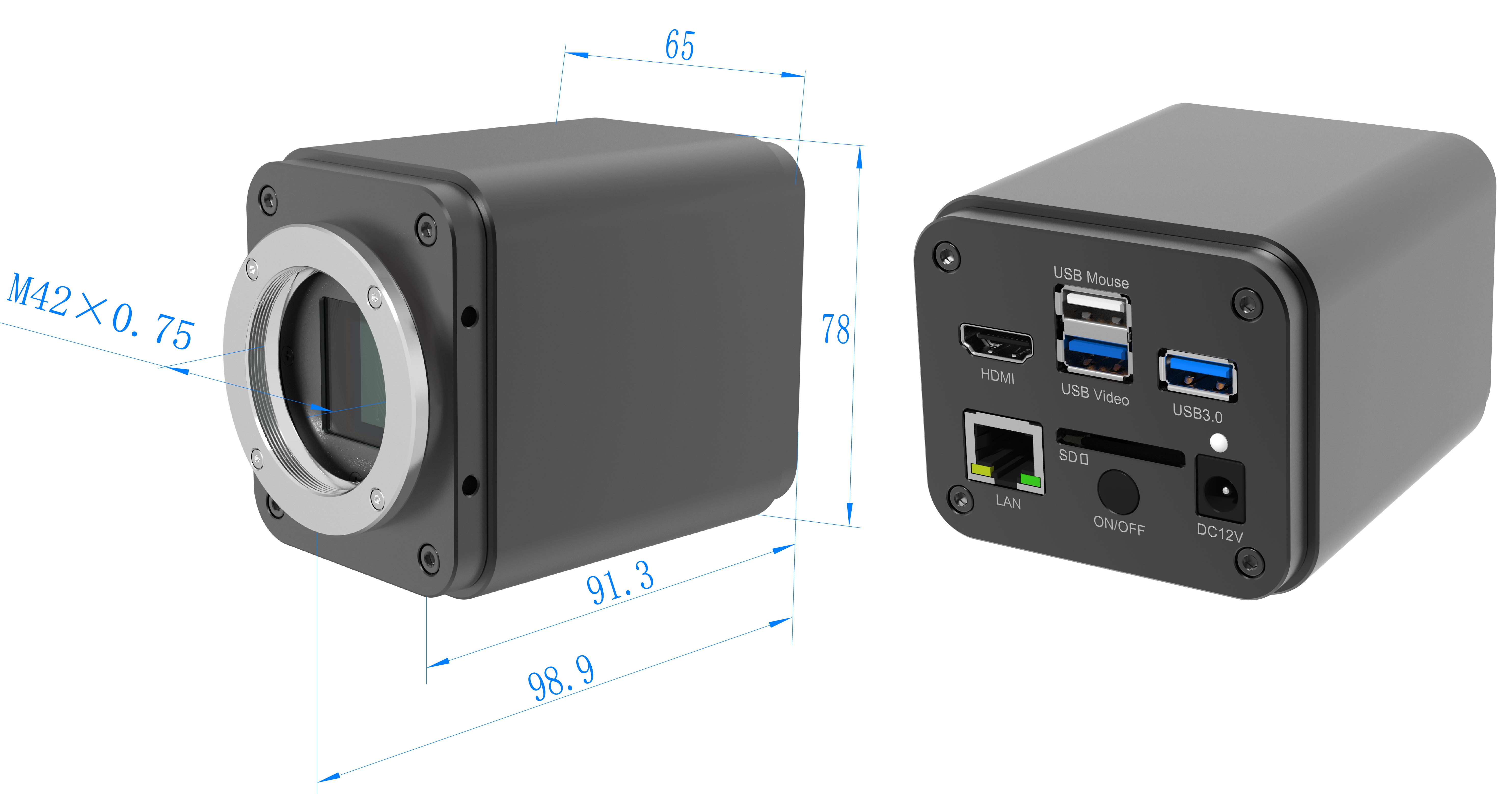

Dimension of X8CAM4K22MPA
X8CAM4K
Dimension of X8CAM4K16MPA

Packing List

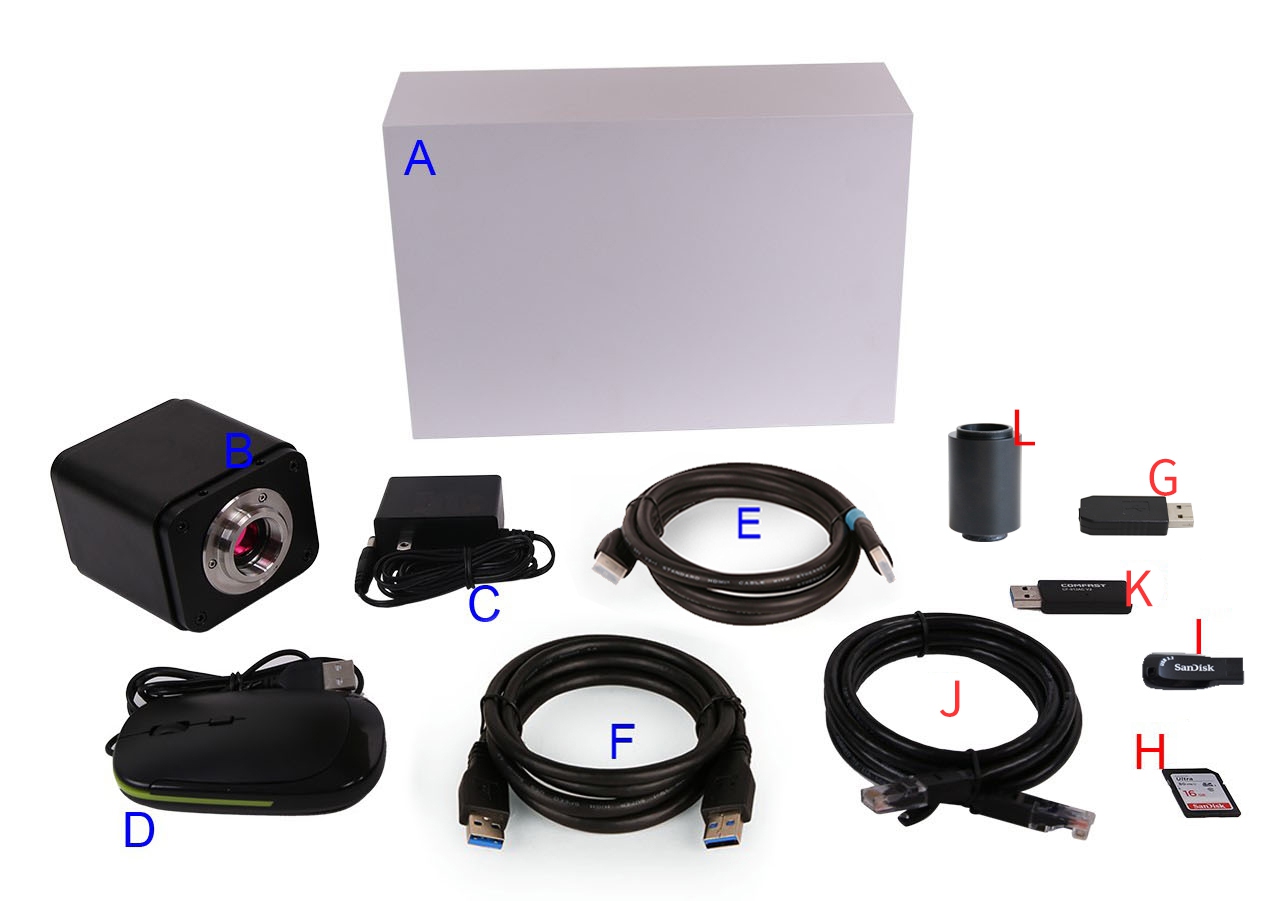

Standard Packing List

A

Gift box : L:25.5cm W:17.0cm H:9.0cm (1pcs, 1.7Kg/ box)

B

X8CAM4K Camera

C

Power Adapter: Input: AC 100~240V 50Hz/60Hz, Output: DC 12V 1A
American standard: Model: POWER-U-12V1A(MSA-C1000IC12.0-12W-US): UL/CE/FCC
European standard: Model: POWER-E-12V1A(MSA-C10001C12.0-12W-DE): UL/CE/FCC
EMI standard: FCC Part 15 Subpart B
EMS standard: EN61000-4-2,3,4,5,6

D

USB Mouse

E

HDMI2.0 Cable

F

USB3.0 A male to A male gold-plated connectors cable /1.5m

Optional Accessory

G

Voice Control Module

H

SD Card(16G or above; Speed: class 10)

I

USB flash drive(USB3.0)

J

Ethernet cable

K

USB WiFi adapter (Shape will vary with different models)

L

ToupTek 1.2/1.5X Microscope Adapter (For X8CAM4K22MPA), ToupTek engineer will help you to determine the right microscope adapter for your application
