Introduction

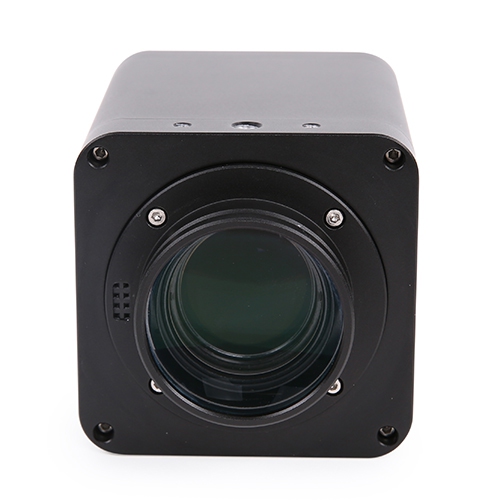

AFDM512 Series Electric Controlled Continuous Zoom and Autofocus Digital

AFDM512 is a series of electric controlled continuous zoom and autofocus all-in-one digital microscope with a large field of view by ToupTek Photonics. It is integrated with HDMI camera, Electric Controlled Continuous Zoom Auto-focus Objective and LED Integrated Illumintaion Light. AFDM is the abbreviation of Auto-focus Digital Microscope. Different products in the AFDM series can be formed with different part to satisfy the applicatuon requirement.

AFDM512 can be assembled with various brackets or arms to achieve optical zoom through electric zoom. AFDM also supports autofocus mode and manual focus mode.

AFDM512 comes with a high-performance SONY CMOS sensor. It also has an embedded ARM core, allowing the camera to be connected directly to the HDMI monitor. The camera has XCamView software built within it, including Camera Control Panel, Auto Focus Control Panel, Measurement Toolbar, and Synthesis Camera Control Toolbar. Users can directly control the camera and perform various operations through a USB mouse. The images and videos captured by AFDM can be saved on an SD card/USB flash drive for on-site analysis and follow-up research.

AFDM512 can be widely used in industrial inspection, medical observation, teaching and scientific research, automation system, and other fields.

AFDM512 series camera supports HDMI/NETWORK/USB control and video output (ToupView). The maximum frame rate of the output is 4K/60FPS, and the zoom range is 1X~18X. It also supports electric zoom and auto focusing.

The AFDM512 series camera comes with H4KPA HDMI camera, EMZO-18XA-250 / EMZO-18XA-640 lens and DRL-5076A-NPC light source(Optional);

  • 5 groups 16 elements EMZO, 18 zoom ratio, supports auto and manual focus
  • AFDM512A: 250mm standard working distance with 205~255mm depth of field; AFDM512B: 640mm standard working distance with 400~670mm depth of field;
  • At standard working distance of AFDM512A, the large field of view of AFDM512A at low magnification is 255mm*145mm, and the small field of view at higher magnification is 14.2mm*8mm; At standard working distance of AFDM512B, the large field of view of AFDM512B at low magnification is 655.8mm*368.9mm, and the small field of view at higher magnification is 36.4mm*25mm. Users can quickly locate target objects at low magnification and conduct microscopic observations at high magnification
  • Under the standard measurement working distance, the camera has stored 1~18 times the default measurement calibration information, allowing users to accurately measure
  • Sony IMX415 1/2.8” 4K Starvis CMOS with high signal-to-noise ratio
  • 4K HDMI/NETWORK/USB multiple video outputs
  • 4K/1080P auto switching according to monitor resolution
  • Support 4K 60fps low delay HDMI output mode, with an average delay of 40ms
  • SD card/USB flash drive for captured image and video storage, support local preview and playback
  • Support the capture and display of RAW format images
  • Support Image Auto Upload to the server over the network
  • Support USB voice control module, enabling real-time control of the camera through voice commands for taking photos, recording videos, freezing, and other operations
  • New browsing function, providing rich file operation functions, image to image comparison, image to real-time video comparison, multi-image EDF function, multi-image Stitch function
  • Provide multiple focusing methods, and the size of the focusing area can be modified; Provide AF+EDF, facilitating the synthesis of high depth of field images in multiple focus areas at high magnification
  • Provide real-time video EDF function
  • Provide real-time Stitch function to obtain images with a larger field of view through real-time processing
  • Provide default ISP parameters for scene, convenient for secondary adjustment and optimisation
  • Built-in mouse control software XCamView, all functions can be realized with USB mouse
  • Embedded mouse Camera Control Panel, Measurement Toolbar, Synthesis Control Toolbar, AF Control Panel
  • Excellent ISP with local tone mapping and 3D denoising
  • ToupView/ToupLite software for PC
  • iOS/Android applications for smart phones or tablets

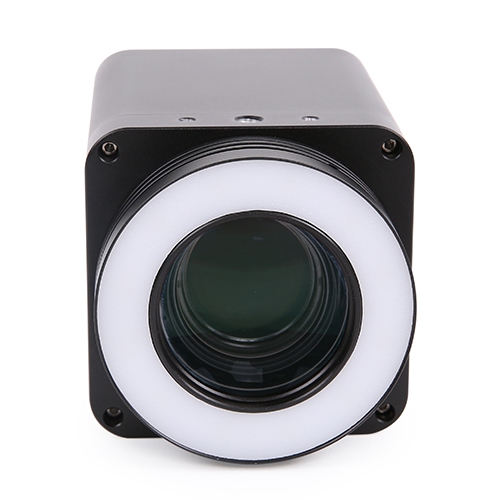

  • Head suction LED ring light, the brightness can be directly controlled by XCamView
  • With the adapter bracket of 76mm diameter, a electric controlled continuous zoom AFDM can be built

application

AFDM512 Widely applicable in industrial testing, medical observation, teaching and research, automation systems and other fields.

Industrial inspection

AFDM512 application example
AFDM512 application example
AFDM512 application example
AFDM512 application example

Related modules

AFDM digital module

Order Code

Sensor & Size(mm)

Pixel(μm)

G Sensitivity/Dark Signal

Sensor(FPS/Resolution)

Binning

Exposure(ms)

H4KPA

Sony IMX415LQR-C
1/2.8"(5.57x3.13)

1.45x1.45

300mv/0.13 with 1/30s

60@3840*2160

1x1

0.059~1000

The output parameters of different interfaces are shown in the following table

Camera Model

Video Saving(FPS/Resolution)

HDMI2.0(FPS/Resolution)

USB3.0(FPS/Resolution)

NETWORK(FPS/Resolution)

H4KPA

60@3840*2160
60@1920*1080
60@1280*720

60@3840*2160
60@1920*1080

30@3840*2160
45@2688*1512
60@1920*1080

60@1920*1080

AFDM Lens Module Datasheet

Order Code

Working Distance(mm)

Zoom Range

MTF(lp/mm)

Distortion

FOV@1X(mm)

FOV@18X(mm)

EMZO-18XA-250

205~255

0.021X~0.39X

160

0.5%

255x145

14.2x8

EMZO-18XA-640

400~670

0.0085X~0.1529X

160

0.5%

655.8x368.9

36.4x20.5

1X and 18x are defined as the normalized magnification, which is only used to represent the relative relationship between the lowest and highest magnification. Here, the normalized equations are 1x = 0.021/0.021; 18X=0.39/0.021;

AFDM Light Module

Order Code

LED

Power

Inner Dia.(mm)

Out Dia.(mm)

DRL-5076A-NPC

8 CREE xpes

3V/3A

50

76

AALRL-200-7650

12 1W LED

12V/2A

50

76

DRL: LED direct ring light with adjustable brightness; NPC: No power cable
AALRL-200-7650外接照明模块连接

AFDM512 Seires Camera Model

Currently there are two models in the AFDM512 series, AFDM512A and AFDM512B, of which the lighting module can be specified at the time of purchase.

Model

Camera Module

Lens Module

Light Module

AFDM512A

H4KPA

EMZO-18XA-250

DRL-5076A-NPC/AALRL-200-7650

AFDM512B

H4KPA

EMZO-18XA-640

DRL-5076A-NPC/AALRL-200-7650

AFDM512 series camera supports two lens modules for different working distances, Users can choose the corresponding camera model according to the needs.

Detailed Specifications

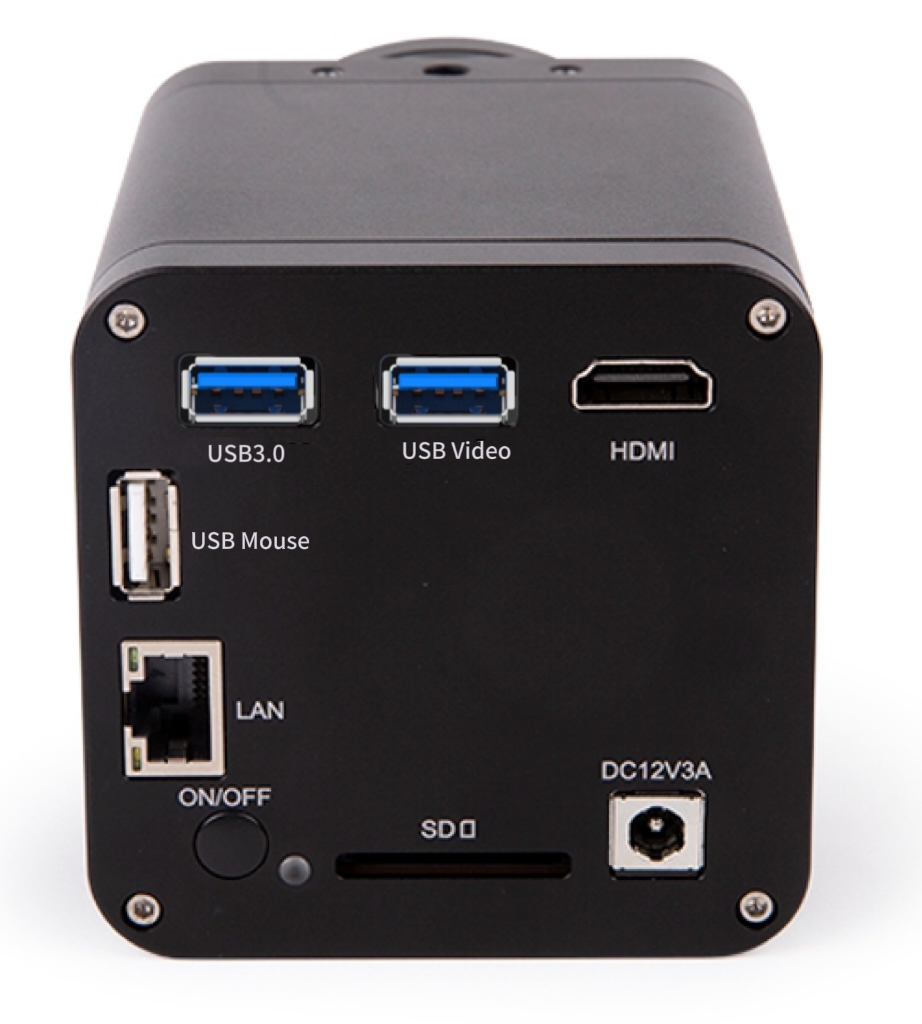

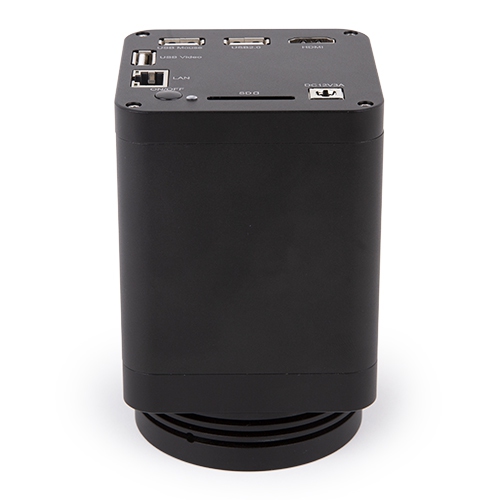

Interface & Button Functions

Autofocus Camera

USB Mouse

Connect USB mouse for easy operation with embedded XCamView software
Connect USB voice control for enable real-time control of camera snap, recording, freezing, and other operations. Please refer to Sec. Settings>Voice Control Control for voice control commands

USB3.0

Connect USB flash drive to save pictures and videos
Connect 5G WiFi module to transfer video wirelessly in real time
Connect USB microphone to record audio and video
Connect USB voice control for enable real-time control of camera snap, recording, freezing, and other operations. Please refer to Sec. Settings>Voice Control Control for voice control commands

HDMI

Comply with HDMI2.0 standard. 4K/1080P format video output and supporting automatic switch between 4K and 1080P format according to the connected monitors

USB Video

Connect PC or other host device to realize video image transmission with ToupView/ToupLite

LAN

LAN port to connect router and switch to transfer video with ToupView/ToupLite

ON/OFF

Power on/off switch

LED

Power LED indicator

SD

Comply with SDIO3.0 standard and SD card could be inserted for video and images saving

DC12V3A

DC12V3A power input

XCamView Software Funcitons

UI Operation

With USB mouse to operate on the embedded XCamView

Image Capture

8M (3840*2160) JPEG/TIFF/RAW image in SD card or USB flash drive
(Default SD card priority, priority can be modified in settings)

Video Record

Video format:8M(3840*2160) H264/H265 encoded MP4 file

Video saving frame rate:60fps

Camera Control Panel

Including Exposure, Gain, White Balance, Sharpness, 3D Denoise, Saturation, Gamma, Contrast, Brightness, Power Frequency control

Measurement Toolbar

Including Calibration, Measurement, and measurement parameter Export functions

Synthesis Control Toolbar

Zoom In/Zoom Out(Up to 10X), Mirror/Flip, Freeze, EDF, Cross Line, Overlay, PIP , AF, LED, Browser(including Picture Browsing , Video Playback , Video Compare , Picture Compare , EDF , Stitch , Image Processing), Measurement Function

Auto Focus Control Panel

Including Zoom, Auto Focus, One Push, Manual Focus, Reset, and other functions

Software ToupView/ToupLite Environment under NETWORK/USB Video Output

White Balance

Auto White Balance

Color Technique

Ultra-Fine Color Engine

Capture/Control SDK

Windows/Linux/macOS/Android Multiple Platform SDK(Native C/C++, C#/VB.NET, Python, Java, DirectShow, Twain, etc)

Recording System

Still Picture or Movie

Operating System

Microsoft® Windows® XP / Vista / 7 / 8 / 8.1 /10(32 & 64 bit)/ToupView

OSx(Mac OS X)/ToupLite

Linux/ToupLite

PC Requirements

CPU: Equal to Intel Core2 2.8GHz or Higher

Memory: 4GB or More

Ethernet Port: RJ45 Ethernet Port

Display:19” or Larger

CD-ROM

CPU: Equal to Intel Core2 2.8GHz or Higher

Operating Environment

Operating Temperature(in Centidegree)

-10~ 50

Storage Temperature(in Centidegree)

-20~ 60

Operating Humidity

30~80%RH

Storage Humidity

10~60%RH

Dimension

Length x Width x Height

80mm x 80mm x 122mm

Shipping Weight

0.75kg

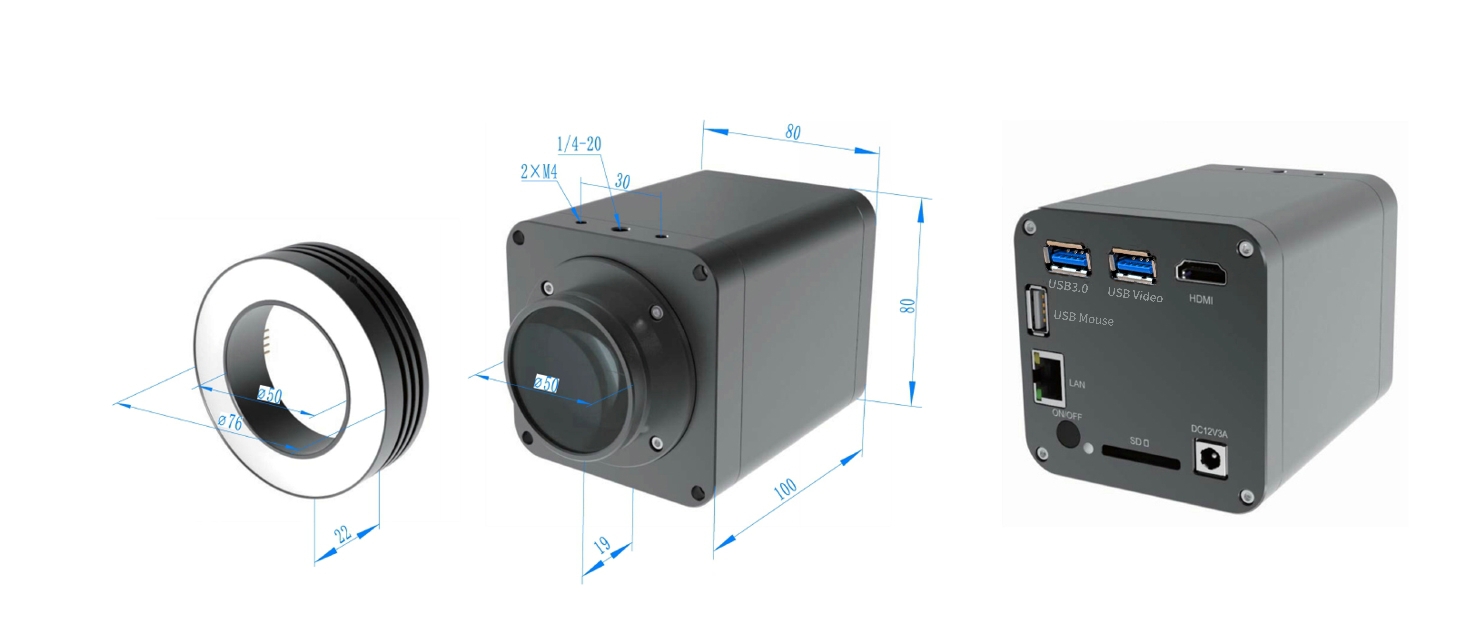

AFDM512 Overall Dimensions

Autofocus digital microscope

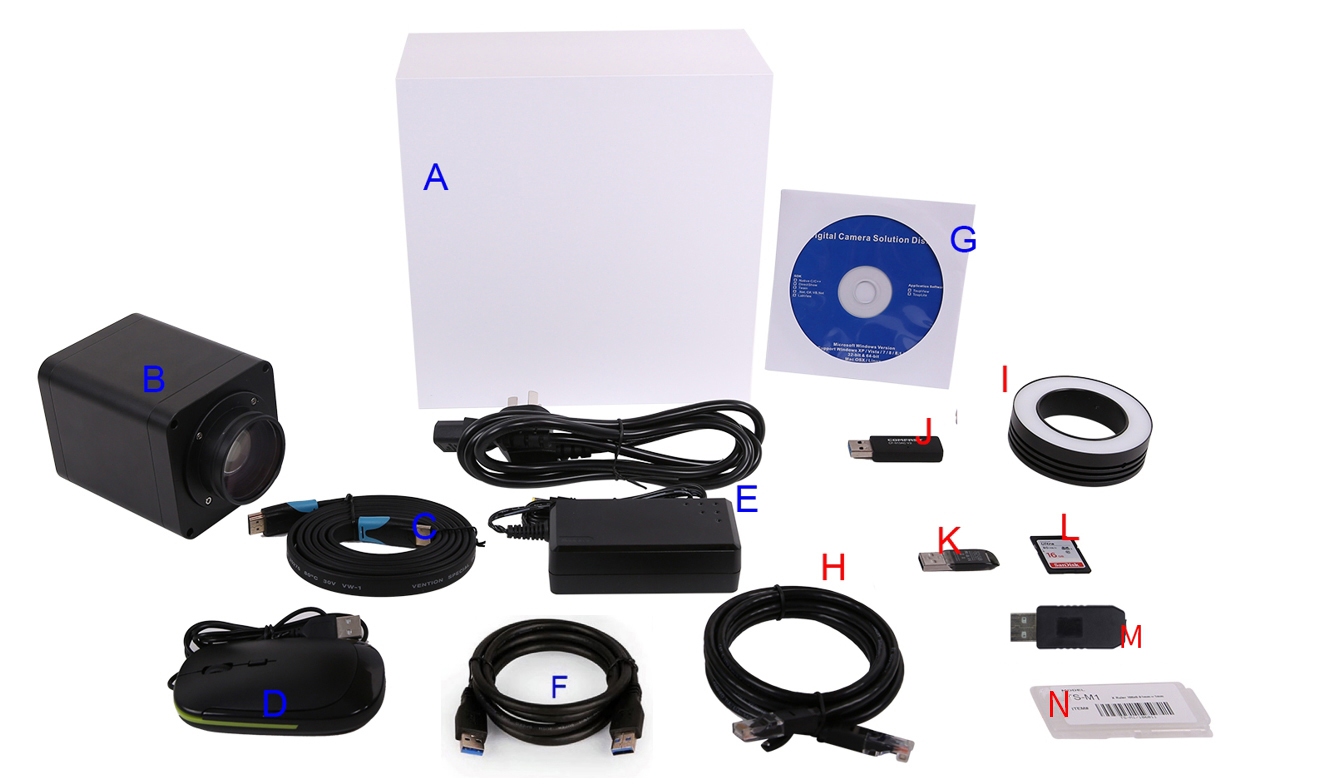

Packing List

AFDM512

Standard Packing List

A

Gift box: L:220cm W:220cm H:110cm (1pcs, 2.0kg/box)

B

AFDM512 Series Camera

C

Power Adapter: Input: AC 100~240V 50Hz/60Hz, Output: DC 12V 3A

American Standard: Model: HKA03612030-7K : UL/CE/FCC(With American Standard AC Power Cable)

European Standard: Model: HKA03612030-7K : UL/CE/FCC(With European Standard AC Power Cable)

EMI Standard: FCC Part 15 Subpart B

EMS Standard: EN61000-4-2,3,4,5,6

D

USB Mouse

E

HDMI Cable

F

USB3.0 A male to A male gold-plated connectors cable /1.5m

G

CD (Driver & utilities software, Ø12cm)

Optional Accessory

H

Ethernet cable

I

LED Ring Light(DRL-5076A-NPC) or AALRL-200-7650( Not provided )

J

USB flash drive

K

USB WiFi adapter

L

SD card(16G)

M

USB voice control module

N

Calibration kit

106011/TS-M1(X=0.01mm/100Div.);
106012/TS-M2(X,Y=0.01mm/100Div.);
106013/TS-M7(X=0.01mm/100Div., 0.10mm/100Div.)
