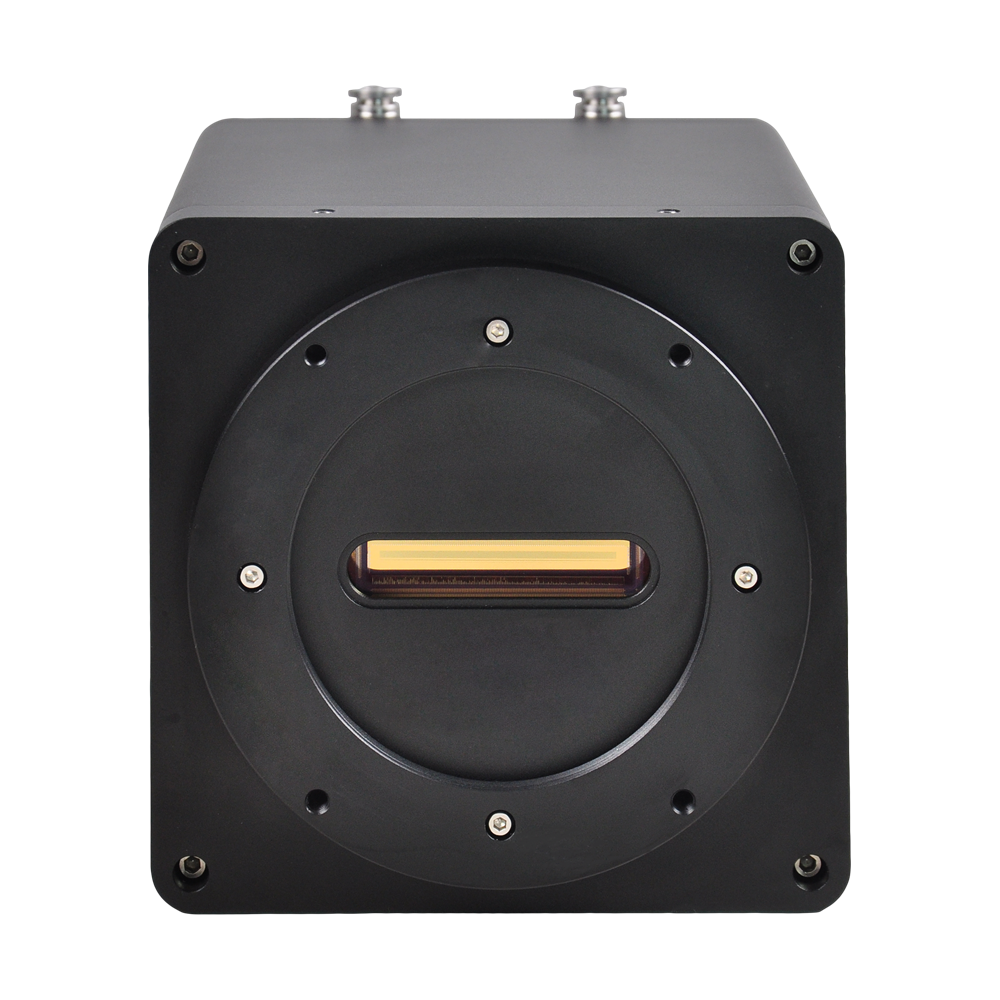

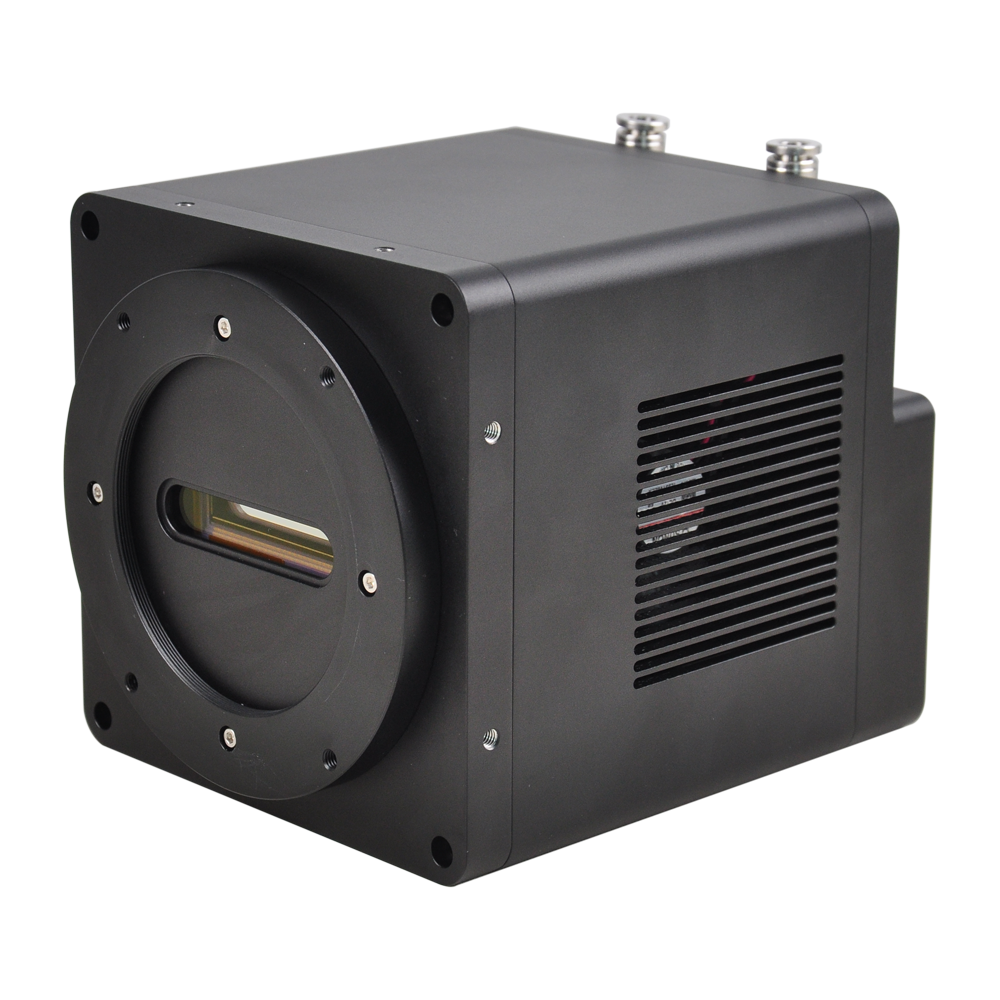

sTDI Series
Product Introduction
The sTDI series combines an 8208-pixel Gpixel GLT5008BSI back-illuminated sCMOS TDI sensor with selectable P1 (256-stage) and P2 (32-stage) acquisition configurations for high-speed line-scan imaging. UV models cover 180–1100 nm, while VIS models cover 300–1100 nm. The 500K models provide line rates up to 500 kHz with 8/10/12-bit output, and the 1000K models provide line rates up to 1000 kHz with 8/10-bit output. QSFP+ / QSFP28 connectivity, configurable triggering, ROI, binning, and multiple cooling methods support integration into high-throughput imaging systems.
Product Features
- Gpixel GLT5008BSI back-illuminated sCMOS TDI sensor
- 8208-pixel monochrome line output with 5 µm × 5 µm pixels
- Selectable P1 8208-pixel × 256-stage and P2 8208-pixel × 32-stage acquisition configurations
- 500K models support up to 500 kHz with 8/10/12-bit output; 1000K models support up to 1000 kHz with 8/10-bit output
- UV models cover 180–1100 nm; VIS models cover 300–1100 nm
- TDI and area operation modes with user- or trigger-controlled scan direction
- ROI and 2×2, 4×4, or 8×8 binning
- Line trigger, frame trigger, and combined line + frame trigger modes

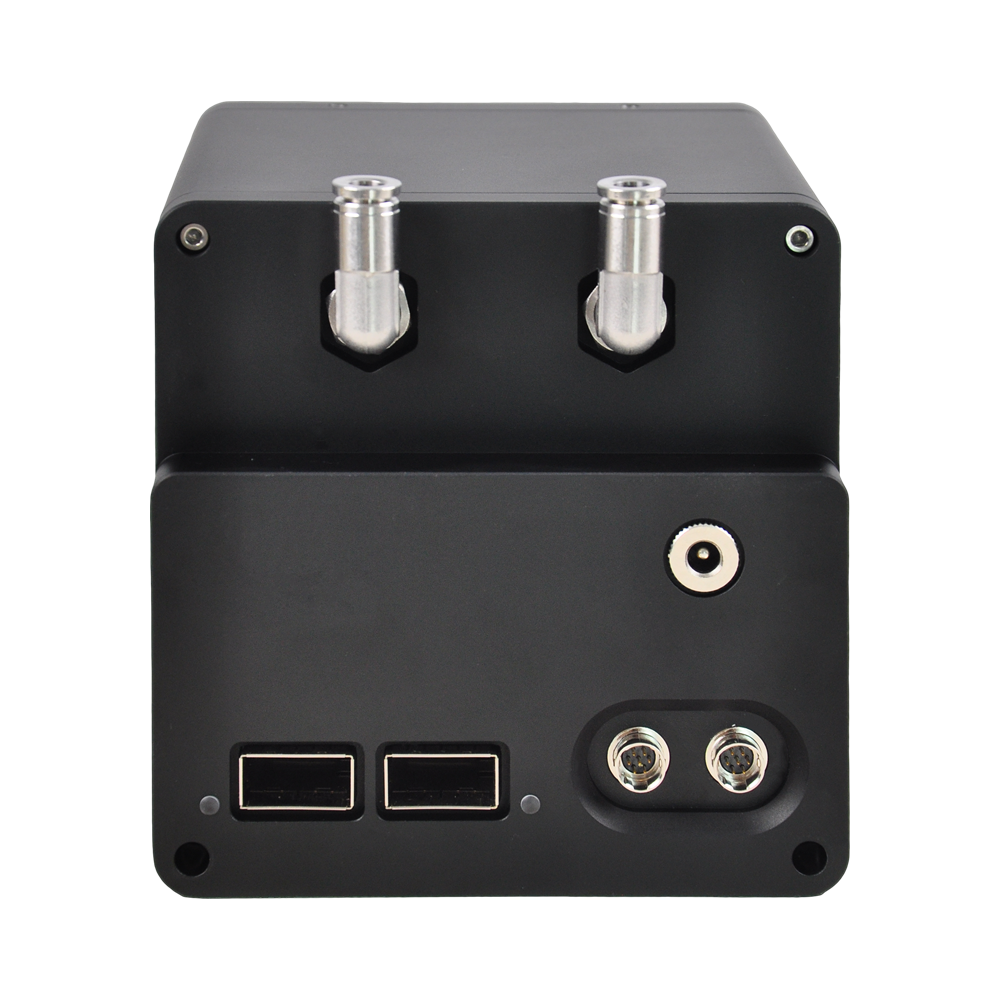

- QSFP+ / QSFP28 high-speed data interfaces
- Air cooling, fan cooling, and water cooling
- Two 7-pin ports, each with four configurable I/O channels and one RS-485 differential interface
- M72×0.75 lens mount and DC 24 V input
- SDK and ToupView software
Product Models
sTDI Series 8K High-Speed TDI Line-Scan Cameras
| Model | Sensor / Size | Resolution | Pixel Size | Shutter | Max Line Rate | Interface | Dynamic Range |
Action |
|---|---|---|---|---|---|---|---|---|
| sTDI08KA-UV-CoF500K |
Gpixel GLT5008BSI
|
P1: 8208 pixels × 256 stages; P2: 8208 pixels × 32 stages | 5 µm × 5 µm | TDI line scan |
500 kHz @ 8-bit
428 kHz @ 10-bit
380 kHz @ 12-bit
|
QSFP+ / QSFP28 |
66.9 dB
|
View Details |
| sTDI08KA-UV-CoF1000K |
Gpixel GLT5008BSI
|
P1: 8208 pixels × 256 stages; P2: 8208 pixels × 32 stages | 5 µm × 5 µm | TDI line scan |
1000 kHz @ 8-bit
1000 kHz @ 10-bit
|
QSFP+ / QSFP28 |
64.6 dB
|
View Details |
| sTDI08KA-VIS-CoF500K |
Gpixel GLT5008BSI
|
P1: 8208 pixels × 256 stages; P2: 8208 pixels × 32 stages | 5 µm × 5 µm | TDI line scan |
500 kHz @ 8-bit
428 kHz @ 10-bit
380 kHz @ 12-bit
|
QSFP+ / QSFP28 |
66.9 dB
|
View Details |
| sTDI08KA-VIS-CoF1000K |
Gpixel GLT5008BSI
|
P1: 8208 pixels × 256 stages; P2: 8208 pixels × 32 stages | 5 µm × 5 µm | TDI line scan |
1000 kHz @ 8-bit
1000 kHz @ 10-bit
|
QSFP+ / QSFP28 |
64.6 dB
|
View Details |
Spectral Response #

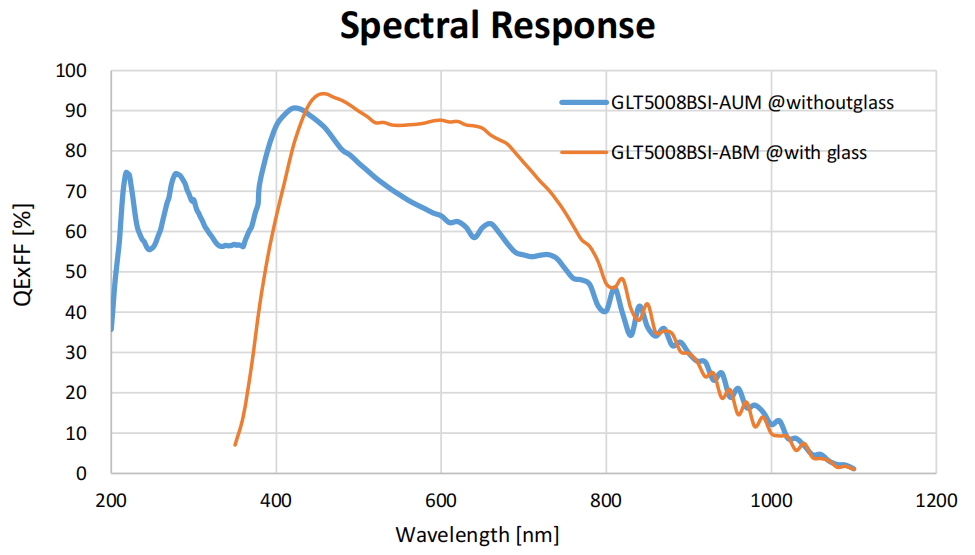

Gpixel GLT5008BSI spectral response curves
Dimensions and Interfaces #

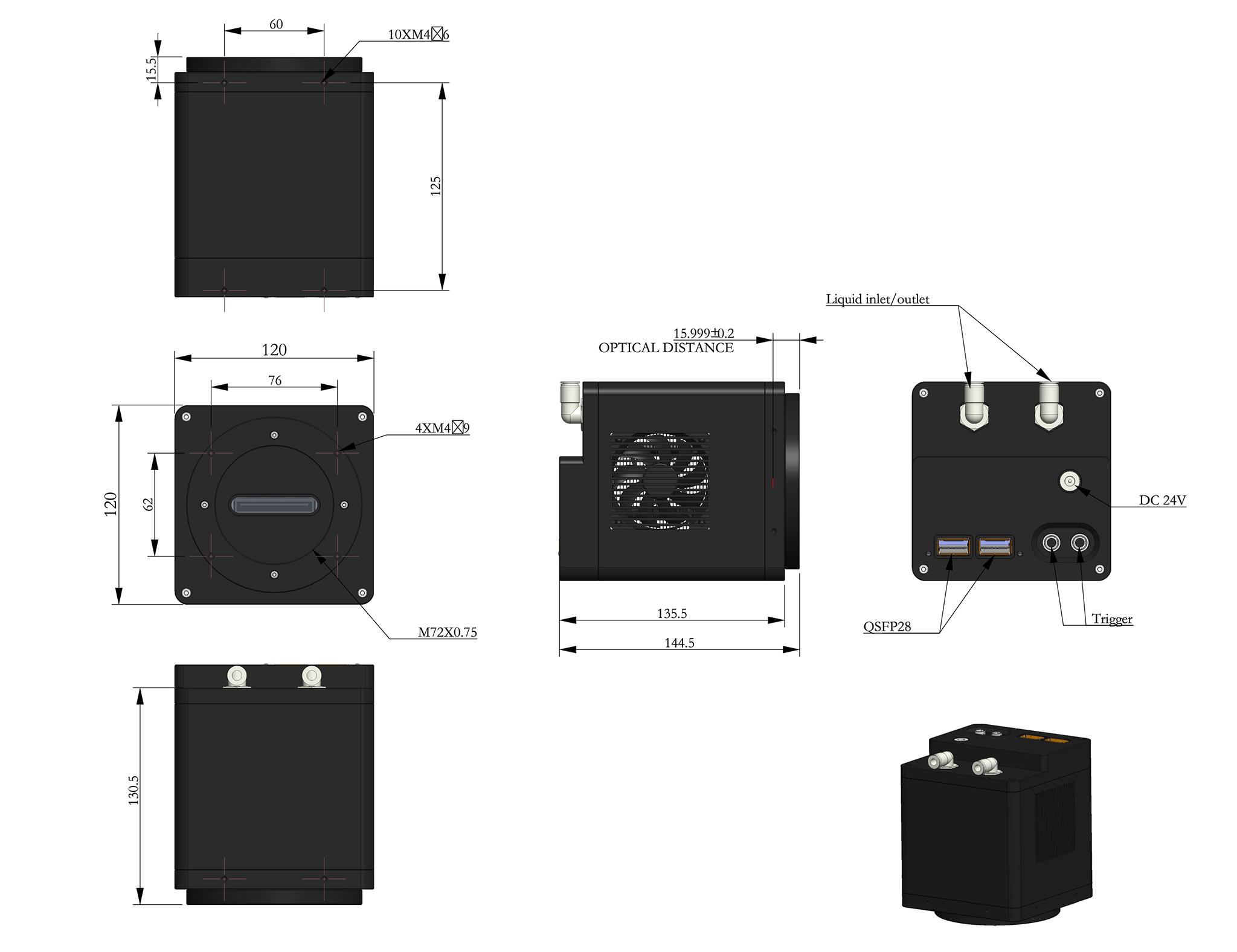

sTDI08KA outline dimensions and interface layout
