sTDI08KA-UV-CoF500K High-Speed TDI Line-Scan Camera

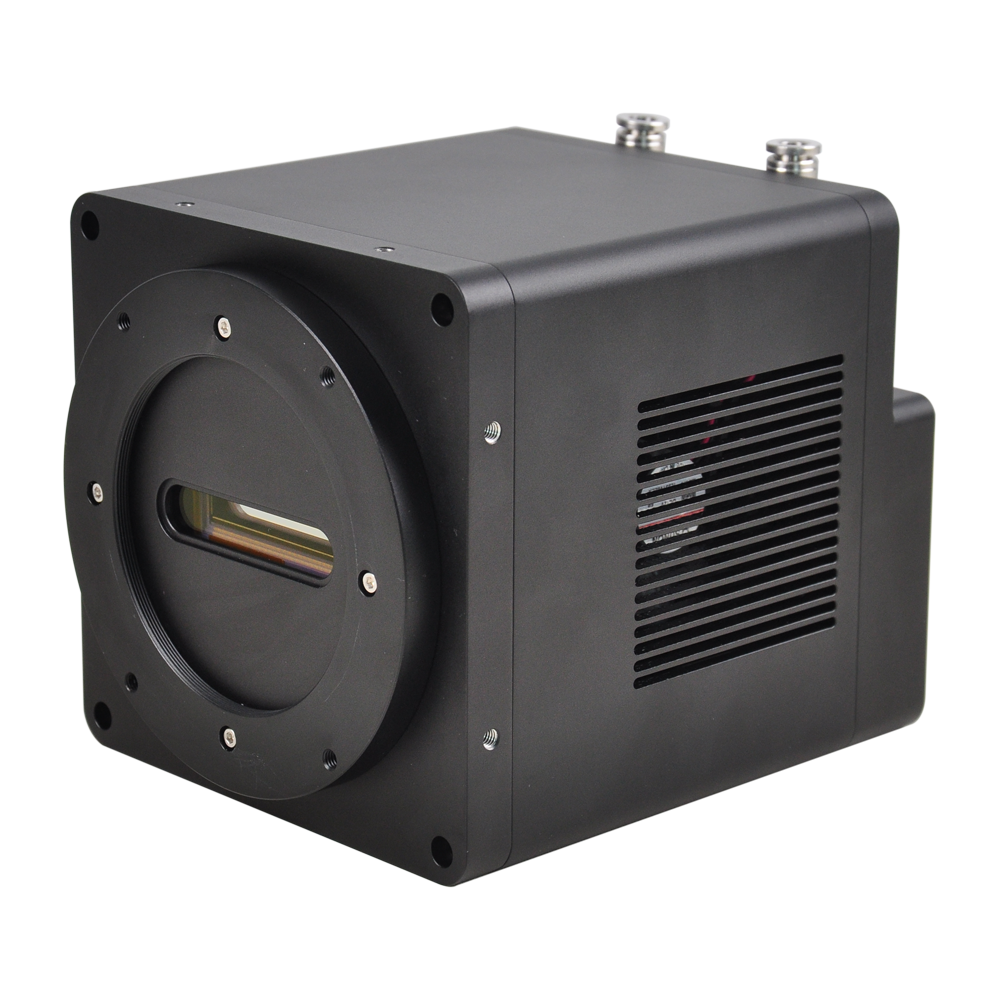

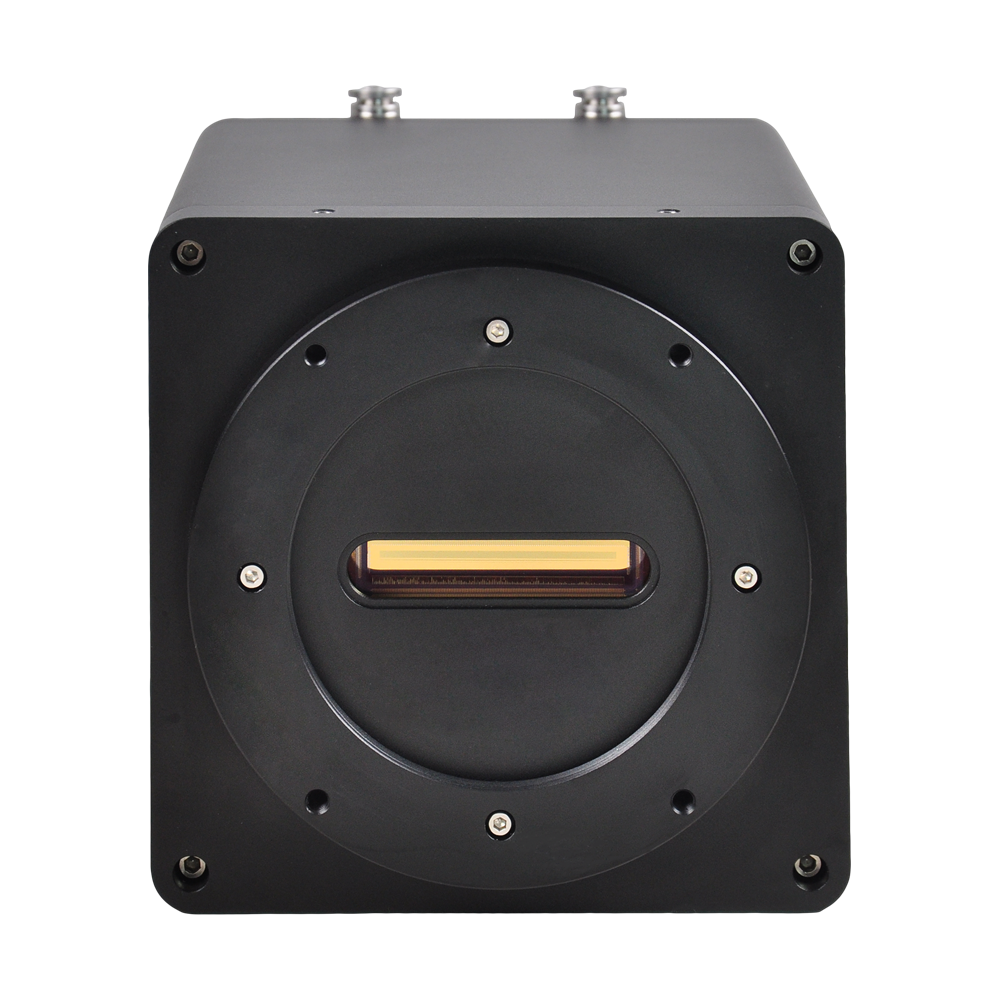

Product Introduction
The sTDI08KA-UV-CoF500K is the 500 kHz UV-response model in the sTDI series. Its Gpixel GLT5008BSI back-illuminated sCMOS TDI sensor covers 180–1100 nm and supports selectable P1 8208-pixel × 256-stage and P2 8208-pixel × 32-stage acquisition configurations. Maximum line rates are 500 kHz at 8-bit, 428 kHz at 10-bit, and 380 kHz at 12-bit, with QSFP+ / QSFP28 connectivity for high-speed data transfer.
Key Features
- Gpixel GLT5008BSI back-illuminated sCMOS TDI sensor
- Selectable P1 8208-pixel × 256-stage and P2 8208-pixel × 32-stage acquisition configurations
- 180–1100 nm spectral range
- Maximum line rates: 500 kHz @ 8-bit, 428 kHz @ 10-bit, and 380 kHz @ 12-bit
- 66.9 dB dynamic range and 43.0 dB SNR
- TDI and area acquisition modes with user- or trigger-controlled scan direction
- QSFP+ / QSFP28 data interfaces
- Air, fan, or water cooling
Product Specifications
| Sensor and Imaging | |
| Model | sTDI08KA-UV-CoF500K |
| Sensor | Gpixel GLT5008BSI |
| Sensor Type | BSI sCMOS TDI |
| Color Type | Monochrome |
| Resolution / TDI Array | P1: 8208 pixels × 256 stages; P2: 8208 pixels × 32 stages |
| Pixel Size | 5 µm × 5 µm |
| Spectral Range | 180–1100 nm |
| Charge Transfer Efficiency | ≥ 0.99993 |
| Selectable TDI Stages | P1: 4 / 32 / 64 / 128 / 192 / 224 / 252 / 256; P2: 2 / 4 / 8 / 16 / 24 / 28 / 30 / 32 |
| Operation Modes | TDI / Area |
| Scan Direction Control | User controlled / Trigger controlled |
| Performance | |
| Maximum Line Rate | 500 kHz @ 8-bit; 428 kHz @ 10-bit; 380 kHz @ 12-bit |
| Data Format | 8/10/12-bit |
| Conversion Gain | 0.21 e-/DN |
| System Gain | 5.12 e-/ADU |
| Dynamic Range | 66.9 dB |
| Read Noise | 8.22 e- |
| Full Well Capacity | 20.0 ke- |
| Maximum SNR | 43.0 dB |
| Dark Current | 517 e-/s/pixel @ 10 °C |
| Analog Gain | 1×–4× |
| Digital Gain | 0.1×–16.0× |
| Binning | 2×2 / 4×4 / 8×8 |
| ROI | Supported |
| Interfaces and Control | |
| Data Interface | QSFP+ / QSFP28 |
| Trigger Modes | Line trigger / Frame trigger / Line + frame trigger |
| Digital I/O | Two 7-pin ports; each provides 4 configurable I/O channels and 1 RS-485 differential interface |
| Lens Mount | M72×0.75 |
| Cooling | Air cooling / Fan cooling / Water cooling |
| Power Supply | DC 24 V |
| Software | SDK / ToupView |
| Mechanical and Environmental | |
| Dimensions | 120 × 120 × 144.5 mm |
| Weight | 2 kg |
| Operating Temperature | 0 °C to 40 °C |
| Operating Humidity | 20% to 80% |
| Storage Temperature | -20 °C to 60 °C |
Spectral Response #

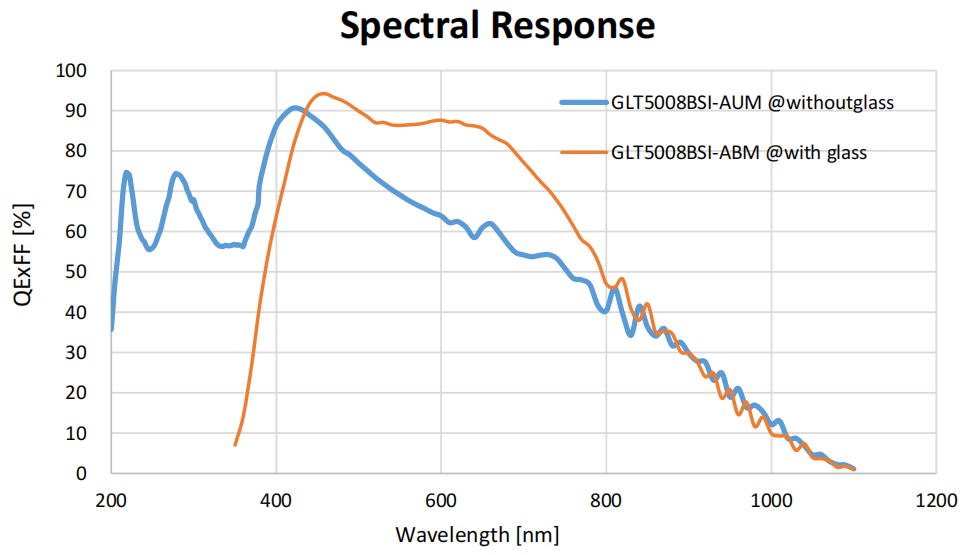

Gpixel GLT5008BSI spectral response curves
GLT5008BSI
UV / VIS
Spectral response curves

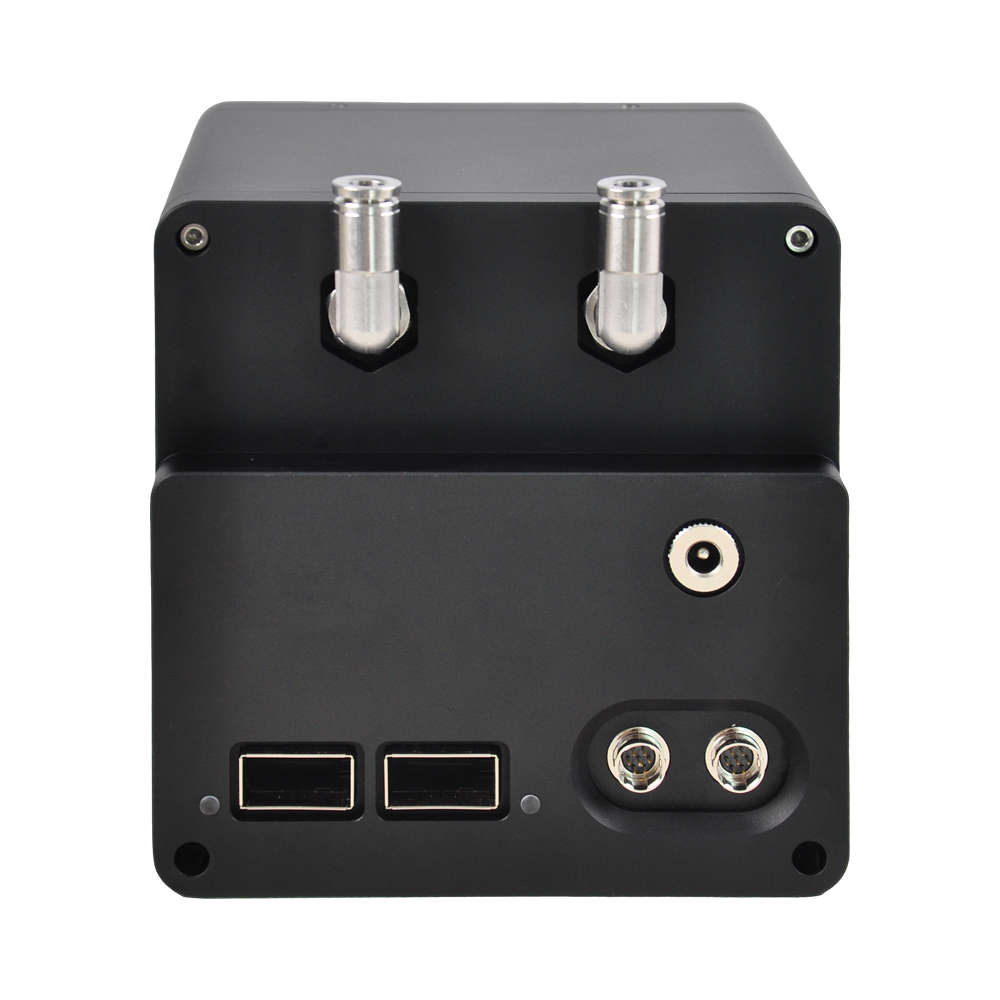

Dimensions and Interfaces #

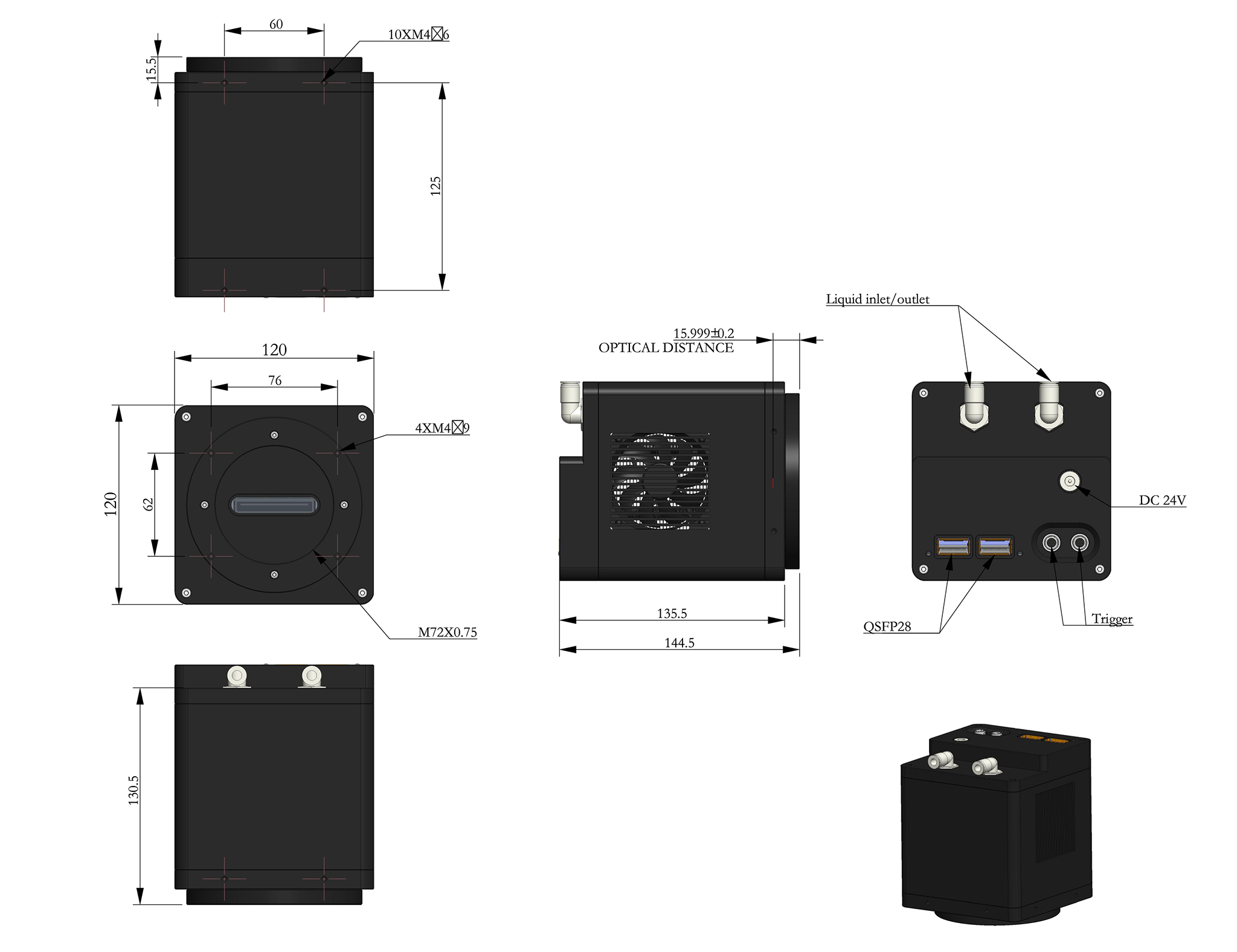

sTDI08KA outline dimensions and interface layout
sTDI08KA
120 × 120 × 144.5 mm
M72×0.75
QSFP28, trigger, digital I/O, DC 24 V, and cooling interfaces
