sMAX6504B-VIS-U10-10G Scientific Camera

Product features

• GSENSE6504BSI scientific CMOS sensor with 95% QE at 450 nm
• 2048×2048 resolution, 6.5 µm pixels and 200–1100 nm spectral response
• 10GigE up to 248 fps and USB3.2 Gen 2x1 up to 224 fps at 8-bit

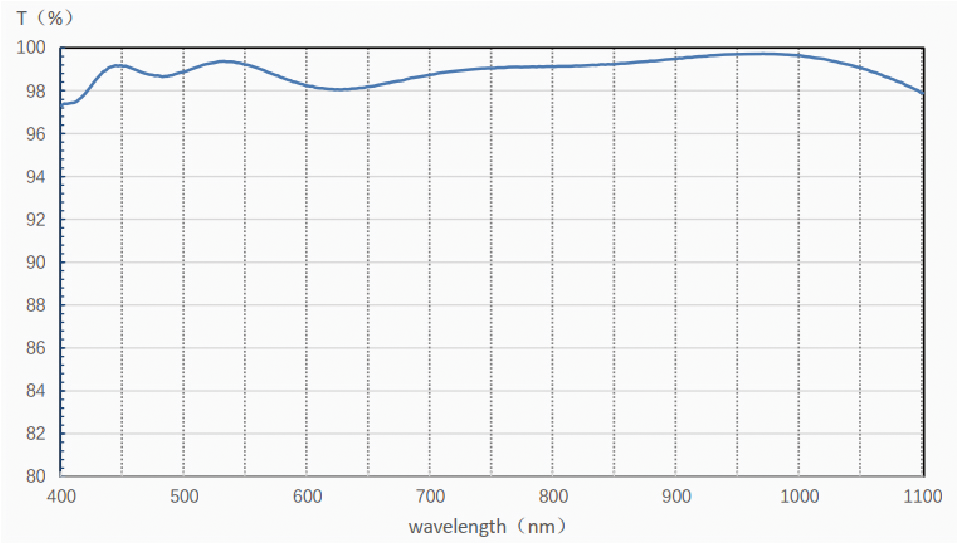

• Double-side AR-coated protective glass for visible imaging
• Air cooling 40 °C or water cooling 55 °C below ambient
• 12 µs–300 s exposure, external I/O triggering and Mono 8/12/16 output

Core specifications

Sensor

GSENSE6504BSI (CMOS sensor)

Resolution

4.2 MP (2048×2048)

Pixel size

6.5 µm × 6.5 µm

Frame rate

10GigE: 248 fps @ 8-bit, 124 fps @ 12-bit, 124 fps @ 16-bit; USB3.2 Gen 2x1: 224 fps @ 8-bit, 112 fps @ 12-bit, 112 fps @ 16-bit

Dynamic range

62.1 dB (High Sensitivity Mode); 86 dB (HDR Mode)

Readout noise

0.74 e⁻ (High Sensitivity Mode); 0.72 e⁻ (HDR Mode)

Full well capacity

1.03 ke⁻ (High Sensitivity Mode); 13.48 ke⁻ (HDR Mode)

S/N ratio

30.1 dB (High Sensitivity Mode); 41.3 dB (HDR Mode)

Sensitivity

9.2×10⁷ e⁻/((W/m²)·s) @ 450 nm

Dark current

≤0.05 e⁻/s/pix @ -10 °C; ≤0.01 e⁻/s/pix @ -20 °C

Quantum efficiency

95% @ 450 nm

Exposure

12 µs – 300 s

Data interface

USB3.2 Gen 2x1 / 10GigE

GPIO

1 opto-isolated input, 1 opto-isolated output, 2 non-isolated I/O ports

Power / consumption

19 V / 4.74 A power adapter; <46 W @ USB3.2 / <55 W @ 10GigE

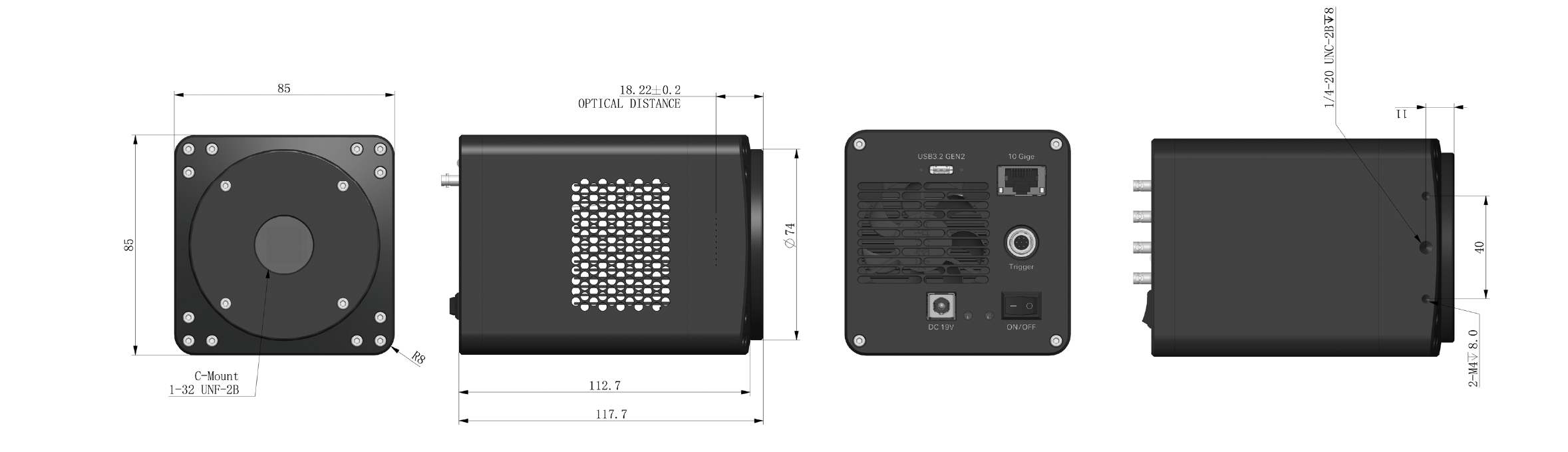

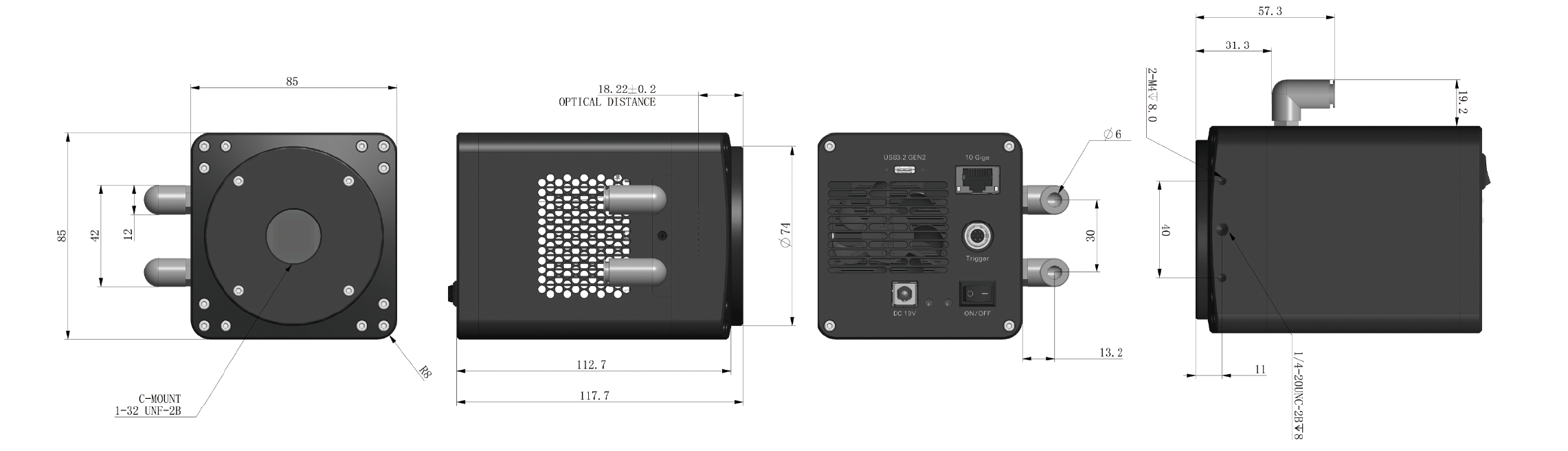

Dimensions / weight

85 mm × 85 mm × 118 mm; 976 g
