MAX128AM-CXP Scientific Camera
Product Introduction
The MAX128AM-CXP is a 120 MP monochrome scientific camera built around the Sony IMX661ALR global-shutter sensor. At 13312×9520 resolution, it delivers 20 fps in 8-bit, 17 fps in 12-bit, or 13 fps in 14-bit, with a CoaXPress interface. It supports 150 µs–36000 s exposure, software 2×2–8×8 binning, DC 19 V input, and SDK / ToupView support.
Key Features
- Sony IMX661ALR global-shutter sensor, monochrome, 120 MP (13312×9520)
- 3.6″ sensor diagonal and 3.45 µm × 3.45 µm pixels
- 20 fps @ 8-bit, 17 fps @ 12-bit, and 13 fps @ 14-bit at full resolution
- CoaXPress data interface with one opto-isolated input, one opto-isolated output, and two non-isolated I/O ports
- 0.725 e⁻/ADU conversion gain, 2.01 e⁻ read noise, 11.856 ke⁻ full well capacity, 75.4 dB dynamic range, and 40.7 dB SNR
- Dark current: 0.0131 / 0.0115 / 0.0082 / 0.0041 e⁻/pix/s at 0 / -10 / -20 / -30 °C
- 1×–50× gain, 150 µs–36000 s exposure, and software 2×2–8×8 binning
- M72 mount; 110 mm × 110 mm × 123.8 mm; 1.44 kg
- DC 19 V; power consumption 44.84 W when cooled and 8.417 W when uncooled
- Operating temperature -15 °C to +50 °C; storage temperature -30 °C to +70 °C; humidity 20%–80% (non-condensing)
- SDK / ToupView; Win32/WinRT/Linux/macOS/Android; x86/x64/ARM HF/ARM EL/ARM64; CE / FCC
Product Details
| Specifications | |
| Model | MAX128AM-CXP |
| Sensor | Sony IMX661ALR |
| Shutter Type | Global Shutter |
| Color Type | Monochrome |
| Resolution | 120 MP (13312×9520) |
| Sensor Diagonal | 3.6″ |
| Pixel Size | 3.45 µm × 3.45 µm |
| Performance Parameters | |
| Frame Rate | 8-bit: 20 fps @ 13312×9520; 12-bit: 17 fps @ 13312×9520; 14-bit: 13 fps @ 13312×9520 |
| Exposure Time | 150 µs–36000 s |
| Bit Depth | 8/12/14-bit |
| Dynamic Range | 75.4 dB |
| Conversion Gain | 0.725 e⁻/ADU |
| Read Noise | 2.01 e⁻ |
| Full Well Capacity | 11.856 ke⁻ |
| Signal-to-Noise Ratio | 40.7 dB |
| Dark Current | 0.0131 / 0.0115 / 0.0082 / 0.0041 e⁻/pix/s @ 0 / -10 / -20 / -30 °C |
| Gain | 1×–50× |
| Binning | Software 2×2–8×8 |
| Interface Parameters | |
| GPIO | 1× opto-isolated input, 1× opto-isolated output, 2× non-isolated I/O |
| Lens Mount | M72 |
| Data Interface | CoaXPress |
| Power Supply | DC 19 V |
| Power Consumption | 44.84 W (cooled); 8.417 W (uncooled) |
| Physical Parameters | |
| Dimensions | 110 mm × 110 mm × 123.8 mm |
| Weight | 1.44 kg |
| Environmental Parameters | |
| Operating Temperature | -15 °C to +50 °C |
| Operating Humidity | 20%–80% RH (non-condensing) |
| Storage Temperature | -30 °C to +70 °C |
| Other Parameters | |
| OS Support | Win32/WinRT/Linux/macOS/Android; x86/x64/ARM HF/ARM EL/ARM64 |
| Software | Complete SDK / ToupView |
| Certification | CE / FCC |
Product Overview
The MAX128AM-CXP is a 120 MP monochrome scientific camera built around the Sony IMX661ALR global-shutter sensor. At 13312×9520 resolution, it delivers 20 fps in 8-bit, 17 fps in 12-bit, or 13 fps in 14-bit, with a CoaXPress interface. It supports 150 µs–36000 s exposure, software 2×2–8×8 binning, DC 19 V input, and SDK / ToupView support.
- Sony IMX661ALR global-shutter sensor, monochrome, 120 MP (13312×9520)
- 3.6″ sensor diagonal and 3.45 µm × 3.45 µm pixels
- 20 fps @ 8-bit, 17 fps @ 12-bit, and 13 fps @ 14-bit at full resolution
- CoaXPress data interface with one opto-isolated input, one opto-isolated output, and two non-isolated I/O ports
- 0.725 e⁻/ADU conversion gain, 2.01 e⁻ read noise, 11.856 ke⁻ full well capacity, 75.4 dB dynamic range, and 40.7 dB SNR
- Dark current: 0.0131 / 0.0115 / 0.0082 / 0.0041 e⁻/pix/s at 0 / -10 / -20 / -30 °C
- 1×–50× gain, 150 µs–36000 s exposure, and software 2×2–8×8 binning
- M72 mount; 110 mm × 110 mm × 123.8 mm; 1.44 kg
- DC 19 V; power consumption 44.84 W when cooled and 8.417 W when uncooled
- Operating temperature -15 °C to +50 °C; storage temperature -30 °C to +70 °C; humidity 20%–80% (non-condensing)
- SDK / ToupView; Win32/WinRT/Linux/macOS/Android; x86/x64/ARM HF/ARM EL/ARM64; CE / FCC
SDK Package
Supports Windows, Linux, and macOS platforms.
Product Dimensions #

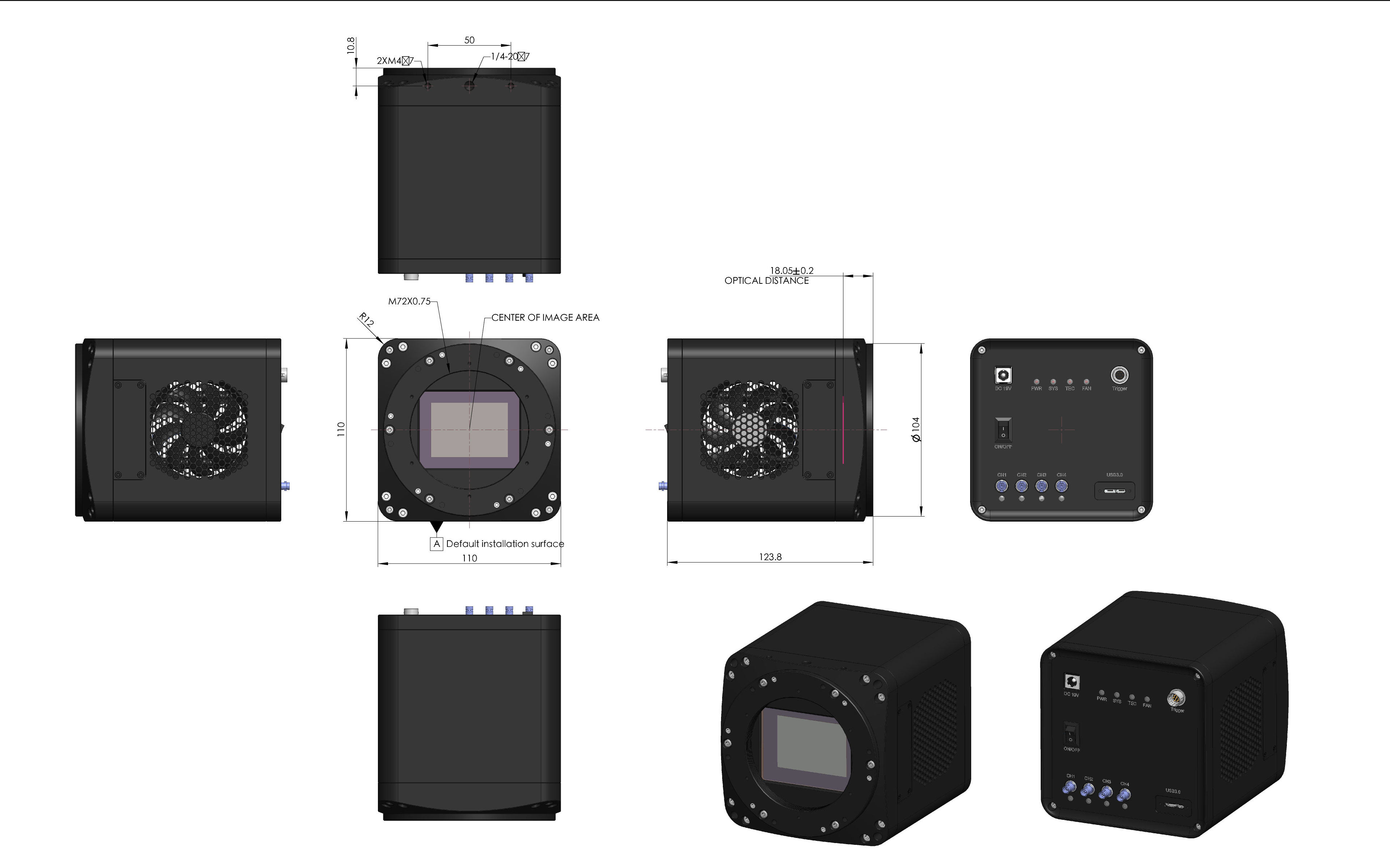

Dimensions for model MAX128AM-CXP (MAX128AM-CXP)
