AIOCAM4K8MPA Multifunktionales All-in-One-Gerät

Product Introduction

AIOCAM4K8MPA is a high-performance Multifunktionales All-in-One-Gerät featuring Sony IMX678(C) sensor, with resolution up to 8MP, supporting HDMI, USB3, Wi-Fi multiple output methods.

Model: AIOCAM4K8MPA
Sensor: Sony IMX678(C)
Resolution: 8MP
Sensor Size: 1/1.8" (7.68×4.32mm)
Pixel Size: 2.0μm × 2.0μm
Frame Rate: 60fps@3840×2160
Output Interface: HDMI, USB3, Wi-Fi
Lens Mount: C-Mount-Anschluss

Product Features

  • Integriertes 13,3-Zoll-Display
  • Niedrige Latenz ca. 40 ms
  • HDMI2.0 4K/1080P adaptive Ausgabe
  • USB3.0-Echtzeitausgabe
  • Wi-Fi AP/STA-Modus
  • RAW-Bilderfassung
  • Sprachsteuerung für Foto/Video/Einfrierung
  • Echtzeit-WDR/Stitching
  • ROI-Weißabgleich und 3D-Rauschunterdrückung
  • Integrierte XCamView-Mess- und Bildverarbeitung
咨询报价 产品手册

Product Details

AIOCAM4K8MPA Specifications

Key Parameters
Product Model AIOCAM4K8MPA
Product Series Multifunktionales All-in-One-Gerät
Sensor Parameters
Sensor Model Sony IMX678(C)
Sensor Size 1/1.8" (7.68×4.32mm)
Diagonal 1/1.8"
Pixel Size 2.0μm × 2.0μm
Resolution 8MP
Shutter Type Rolling Shutter
Color Type Farbe
Performance Parameters
Frame Rate 60fps@3840×2160
Output Interfaces HDMI, USB3, Wi-Fi
Lens Mount C-Mount-Anschluss
Autofocus Not supported
Storage & Software
Storage Support USB-Stick
Software Support XCamView, ToupView, ToupLite
Physical Parameters
Power Supply DC 12V/2A
Dimensions Unbekannt
Weight Unbekannt
Environmental Parameters
Operating Temperature -10℃ ~ 50℃
Additional Information
Operating System Support Windows, macOS, Linux, Android, iOS
Certification CE, FCC

Product Overview

AIOCAM4K8MPA is an integrated microscopy imaging system that combines 4K CMOS image acquisition, a 13.3-inch display, and HDMI/USB 3.0/Wi-Fi multi-interface output. It is ready to use on power-up, enabling observation, capture, recording, and measurement without requiring an external computer.

  • Integrated 4K Imaging Platform :The camera integrates with a 13.3-inch full HD touch display; it operates with a single power connection and greatly simplifies installation and cabling.

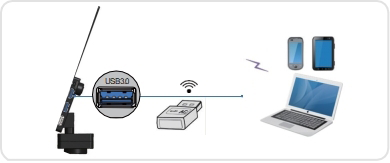

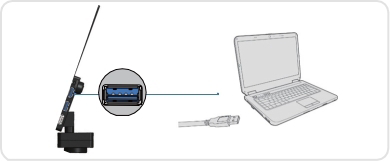

  • Multi-Interface Synchronous Output :HDMI 2.0 adaptive 4K/1080p, USB 3.0 real-time output, and Wi-Fi AP/STA networking support classroom teaching, remote collaboration, and live broadcasting.
  • Low-Latency Real-Time Display :The integrated hardware image processor delivers approximately 40 ms display latency to support high-frame-rate real-time observation.
  • Voice and Barcode Control :Supports voice commands through USB audio modules and barcode-triggered capture to streamline industrial documentation workflows.
  • Comprehensive Software Ecosystem :Built-in XCamView provides measurement and compositing tools with support for ToupView, ToupLite, and iOS/Android apps.

Key Performance Metrics

4K

High-definition real-time output

60 fps

Maximum frame rate

HDMI / USB3 / Wi-Fi

Simultaneous multi-interface output

8MP

Sensor resolution

Advanced Feature Set

Real-Time Depth Fusion

Supports real-time depth-of-field stacking and image stitching to enhance imaging performance for thick samples.

Professional ISP

Shadow enhancement, 3D noise reduction, ROI white balance, and HDR keep 4K imagery crisp and detailed.

Network Upload

Automatically uploads to servers after capture, making team collaboration and management more efficient.

Local Storage

Supports USB flash drive and SD card recording with playback so critical data is always accessible.

Recommended For

AIOCAM4K8MPA combines integrated hardware, low-latency 4K output, and versatile interaction methods to meet the demanding needs of microscopy education, industrial inspection, and remote collaboration. It is the preferred microscopy solution wherever rapid deployment and multi-user coordination are critical.

Applications

Mikroskopbildgebung

Mikroskopbildgebung

Selection Guide

  • High-Resolution Observation: 4K 8 MP imaging is ideal for fine structural and color analysis.
  • Real-Time Collaboration: Wi-Fi AP/STA modes enable wireless connectivity and remote interactive instruction.
  • Process Documentation: Voice control and barcode-triggered capture suit batch inspection and traceability requirements.
  • Multi-Platform Compatibility: When coordination with PCs or mobile devices is needed, pair with ToupView, ToupLite, or the mobile apps.
AIOCAM4K8MPA 产品手册

PDF covering setup guidance, touchscreen workflow, and maintenance tips.

下载手册

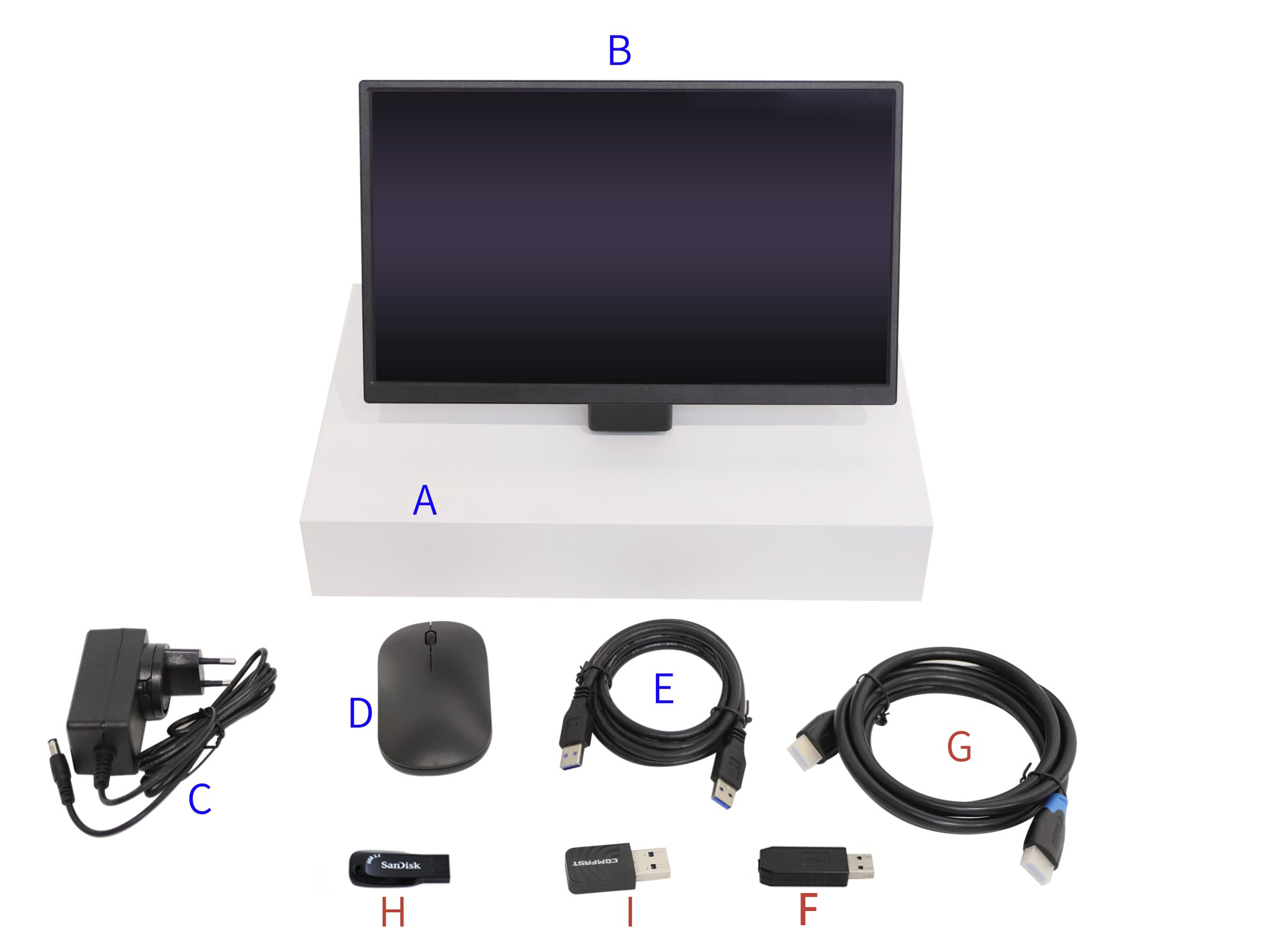

AIOCAM4K All-in-One Camera with Display | Package List #

Standard Items in the Box

  • A Camera packaging box: 35.6 cm × 24.9 cm × 7.5 cm (1 pc, approx. 1.68 kg/box)
  • B AIOCAM4K all-in-one camera ×1
  • C Power adapter: input AC 100–240 V 50/60 Hz; output DC 12 V 2 A
    US version: model POWER-12V2A (MX24Z1-1202000) + US plug
    EU version: model POWER-12V2A (MX24Z1-1202000) + EU plug
  • D USB wireless mouse ×1
  • E USB 3.0 A↔A gold-plated data cable (1.5 m)

Optional Accessories

  • F Voice control module (Chinese or English)
  • G HDMI 2.0 cable
  • H USB flash drive
  • I USB wireless network adapter (required for Wi-Fi mode; appearance varies by model)
AIOCAM4K packaging overview
AIOCAM4K packaging overview

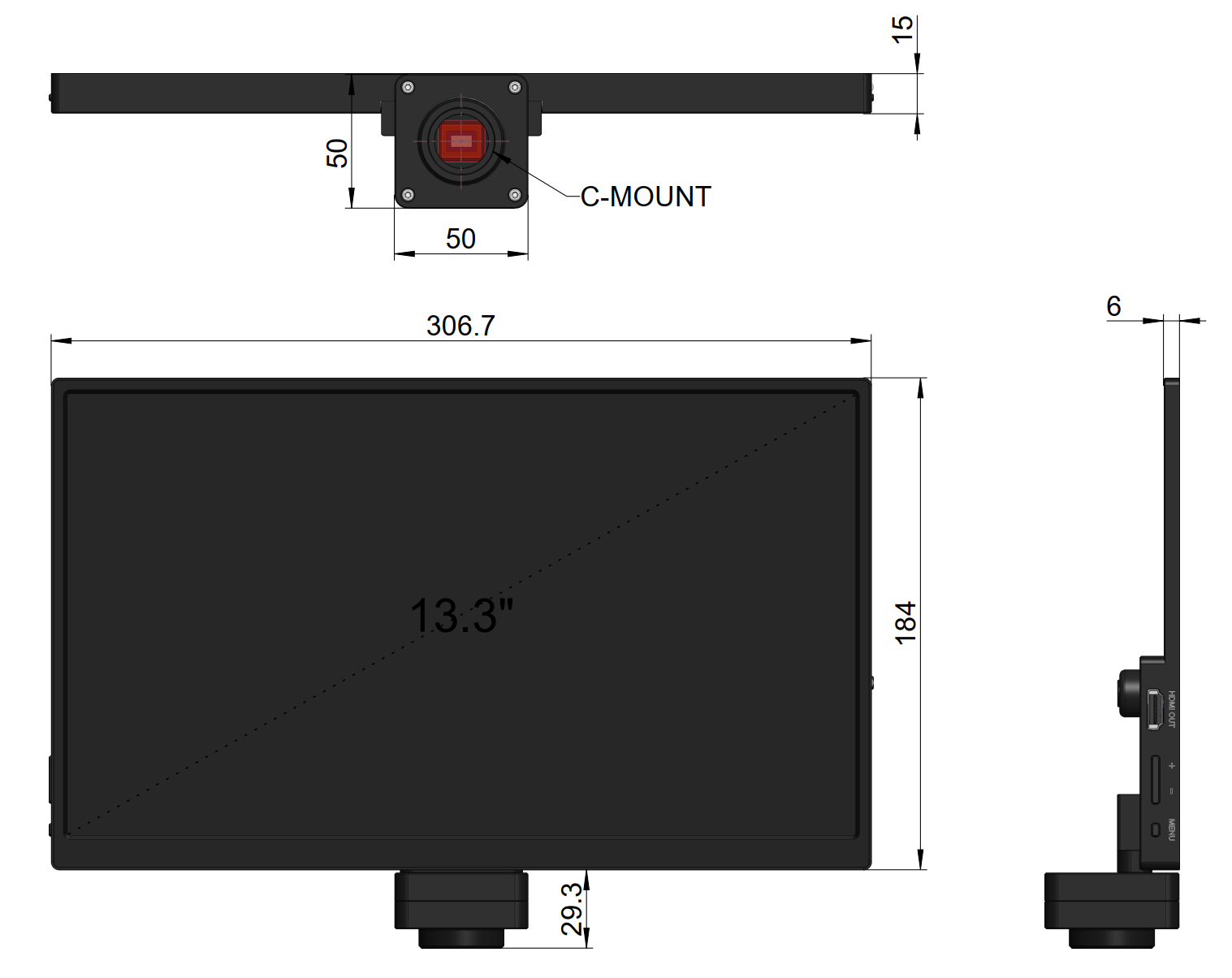

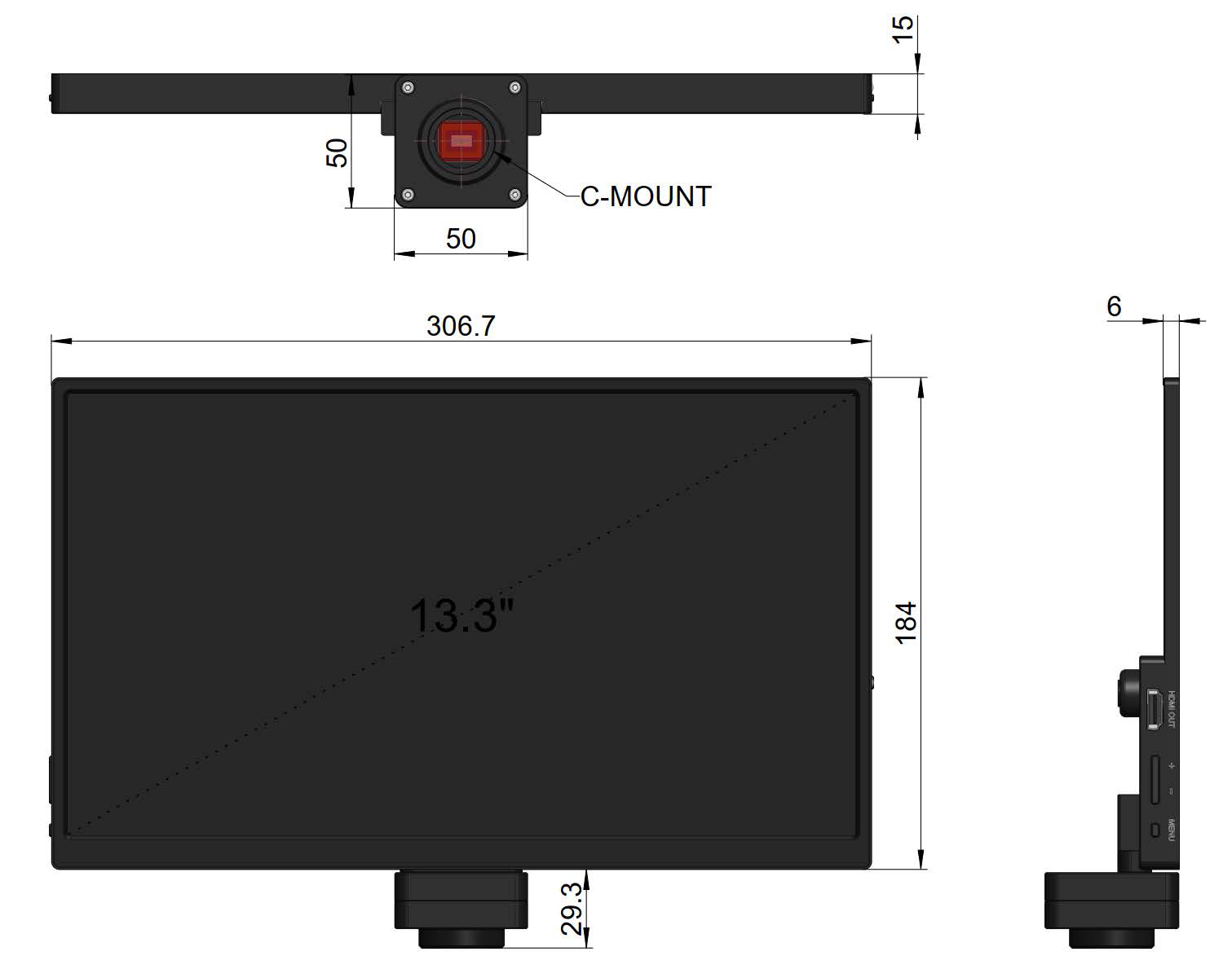

AIOCAM4K All-in-One Camera with Display | Product Dimensions #

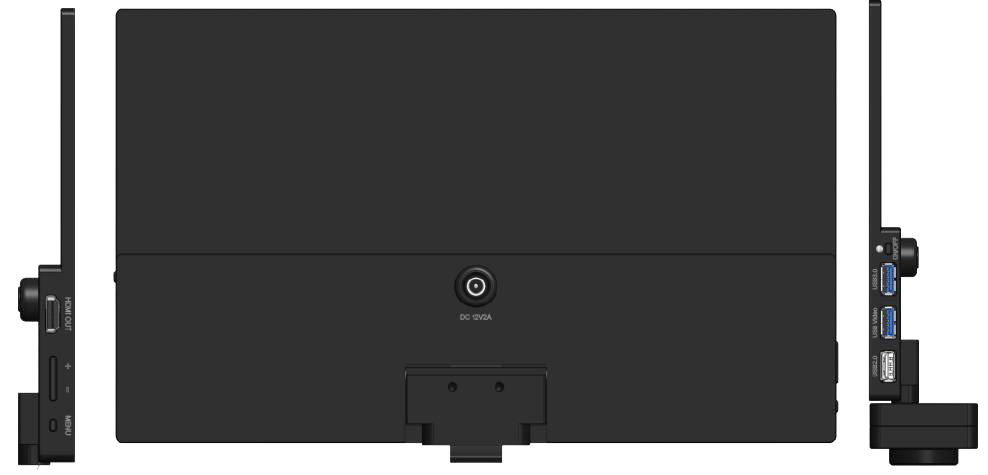

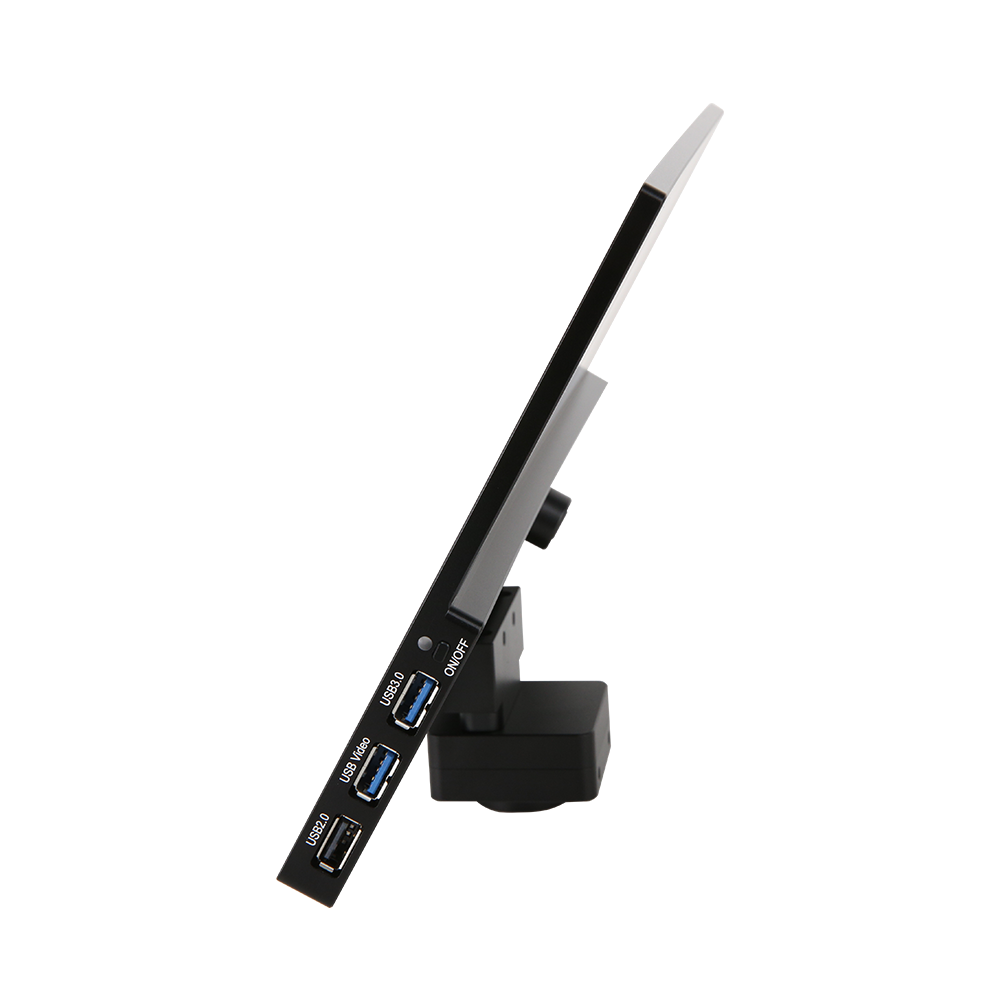

Chassis layout and interface locations

AIOCAM4K dimensions
AIOCAM4K dimensions

Refer to the manual for detailed drawings

  • Packaging box: 35.6 cm × 24.9 cm × 7.5 cm
  • Shipping weight: approx. 1.68 kg (with packaging)
  • Power supply: DC 12 V / 2 A

Please verify the mounting holes and interface orientation against the dimension drawing before installation.

AIOCAM4K8MPA Series All-in-One Multi-Interface Camera — Product Overview

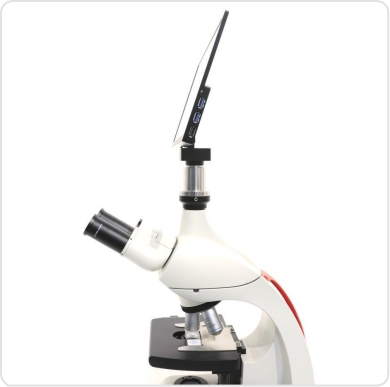

ToupTek Photonics AIOCAM4K8MPA Series cameras are standalone 4K multi-interface microscopes that operate without a computer. They are engineered for video and image capture on stereo and biological microscopes and support networked deployment for interactive microscopy classrooms, enabling instructors and students to observe in sync.

Powered by a Sony Starvis 2 back-illuminated high-sensitivity sensor and 8 MP high-resolution imaging, the camera integrates a built-in display so users can preview, record, and output 4K video directly, greatly improving efficiency in microscopy education and research imaging.

In-Depth Overview

  • Integrated and Easy to Use: Integrated camera and display eliminate extra cabling, support HDMI output to external monitors, and auto-switch between 4K and 1080p for streamlined operation.
  • Multi-Interface, High-Performance Output: Supports HDMI, USB 3.0, and Wi-Fi simultaneous transmission, recording at 60 fps @ 3840×2160 to cover teaching, presentation, and documentation scenarios.
  • High-Sensitivity Sensor with Low-Latency Display: Sony Starvis 2 back-illuminated CMOS ensures low noise and high dynamic range performance, while the integrated screen delivers about 40 ms latency for real-time viewing.
  • Local Storage and File Management: Supports saving video and images to USB flash drives with RAW capture for convenient post-processing and sharing.
  • Versatile Application Expansion: Supports networking for interactive teaching, live demonstrations, and synchronized multi-terminal display, and works with ToupView/ToupLite software for extended PC workflows.

Product Advantages

1
All-in-One Design, No External Dependencies

Integrated screen and multiple interfaces deliver imaging right out of the box, simplifying setup and deployment.

2
High Resolution and Real-Time Display

4K 60 fps output with 40 ms low latency supports high-definition recording and smooth classroom demonstrations.

3
Flexible Interface Options

HDMI, USB 3.0, and Wi-Fi output in parallel to support varied display and storage needs.

4
Local and Network Collaboration

Supports RAW capture, local playback, and synchronized network transmission for research and teaching data management.

5
Broad Application Coverage

Ideal for microscopy education, laboratory research, industrial inspection, live demonstrations, and interactive teaching systems.
