WUCAM1080PA USB + Wi-Fi C-mount CMOS Camera
Product Introduction
WUCAM1080PA is a high-performance USB + Wi-Fi C-mount CMOS Camera featuring Sony IMX307(C) Starvis sensor, with resolution up to 2MP (1920×1080), supporting USB2.0, Wi-Fi 802.11b/g/n multiple output methods.
Product Features
- Dual output mode
- Wi-Fi AP mode
- High frame rate 50 fps output
- ROI white balance
- 3D noise reduction
- Multi-client connection
- H264 video encoding
- Economical solution
Product Details
WUCAM1080PA Specifications
| Key Parameters | |
| Product Model | WUCAM1080PA |
| Product Series | USB + Wi-Fi C-mount CMOS Camera |
| Sensor Parameters | |
| Sensor Model | Sony IMX307(C) Starvis |
| Sensor Size | 1/2.8" (5.57×3.13 mm) |
| Diagonal | 6.4 mm |
| Pixel Size | 2.9 µm × 2.9 µm |
| Resolution | 2MP (1920×1080) |
| Shutter Type | Rolling shutter |
| Color Type | Color |
| Performance Parameters | |
| Frame Rate | USB: 50 fps@1920×1080; Wi-Fi: 50 fps@1920×1080 |
| Exposure Time | Auto/Manual |
| Output Interfaces | USB2.0, Wi-Fi 802.11b/g/n |
| Lens Mount | C-mount |
| Storage Support | No local storage |
| Software Support | ToupView, ToupLite, iOS App, Android App |
| Physical Parameters | |
| Power Supply | USB DC 5 V/1 A |
| Dimensions | 50 × 50 × 112 mm |
| Weight | 0.19 kg |
| Environmental Parameters | |
| Operating Temperature | -10 °C ~ +50 °C |
| Other Information | |
| OS Support | Windows, Linux, macOS, iOS, Android |
| Certification | CE, FCC, RoHS |
Product Overview
WUCAM1080PA provides a high cost-performance professional microscopy imaging solution, maintaining excellent imaging performance while controlling costs.
Core Technical Advantages
- Sony IMX307 Starvis Sensor: Mature backside-illuminated technology, 2.9 µm pixel provides good light sensitivity
- 50 fps Smooth Output: Meets most microscopy observation needs, ensuring smooth real-time preview
- H.264 Video Encoding: Efficient video compression, saving storage space, convenient for network transmission
- Complete Function Support: Supports all professional ISP functions including ROI white balance, 3D noise reduction, etc.
Performance Comparison
1080P
Maximum Resolution
50 fps
Maximum Frame Rate
802.11n
Wi-Fi Standard
2.9 µm × 2.9 µm
Pixel Size
Shared Technical Features
AP/STA Dual Mode
Supports hotspot and station modes, flexible networking, multi-device collaboration
Ultra-Fine Color Engine
Professional color reproduction, precise white balance, true sample color representation
3D Noise Reduction
Intelligent noise reduction algorithm, improved SNR, enhanced low-light imaging
ROI White Balance
Region-selective white balance, adapts to complex lighting environments
Selection Recommendations
WUCAM1080PA offers highly competitive cost-performance, suitable for teaching demonstration, routine inspection, and budget-limited laboratories. Despite its affordable price, it maintains professional-grade imaging quality and complete function support.
Application Scenarios
Microscopy imaging
Microscopy imaging
Mobile observation
Mobile observation
Interactive teaching
Interactive teaching
Dual-mode switching
Dual-mode switching
Entry-level applications
Entry-level applications
Budget-friendly solution
Budget-friendly solution
Application Case Display
Simple ciliated epithelium
Simple cuboidal epithelium section
Loose connective tissue slide
Fibrous connective tissue section
Model Selection Guide
WUCAM8MPA
Suitable Scenarios:
- • Requires 4K ultra HD recording
- • Research-grade image analysis
- • Precision measurement applications
- • Professional image archival
WUCAM1080PB
Suitable Scenarios:
- • High-speed dynamic processes
- • Live cell imaging
- • Microfluidics observation
- • Requires 60 fps smoothness
WUCAM1080PA
Suitable Scenarios:
- • Teaching demonstration systems
- • Routine quality inspection
- • Budget-sensitive projects
- • Entry-level research
WUCAM1080PA Product Manual
PDF format, includes detailed technical specifications, dimension drawings, installation guide and application instructions
Software Download
ToupView / ToupLite professional imaging software, supports Windows/macOS/Linux
SDK Development Kit
Windows/Linux/macOS SDK, supports secondary development integration
WUCAM8MPA / WUCAM1080PB WiFi Camera | Packing List #

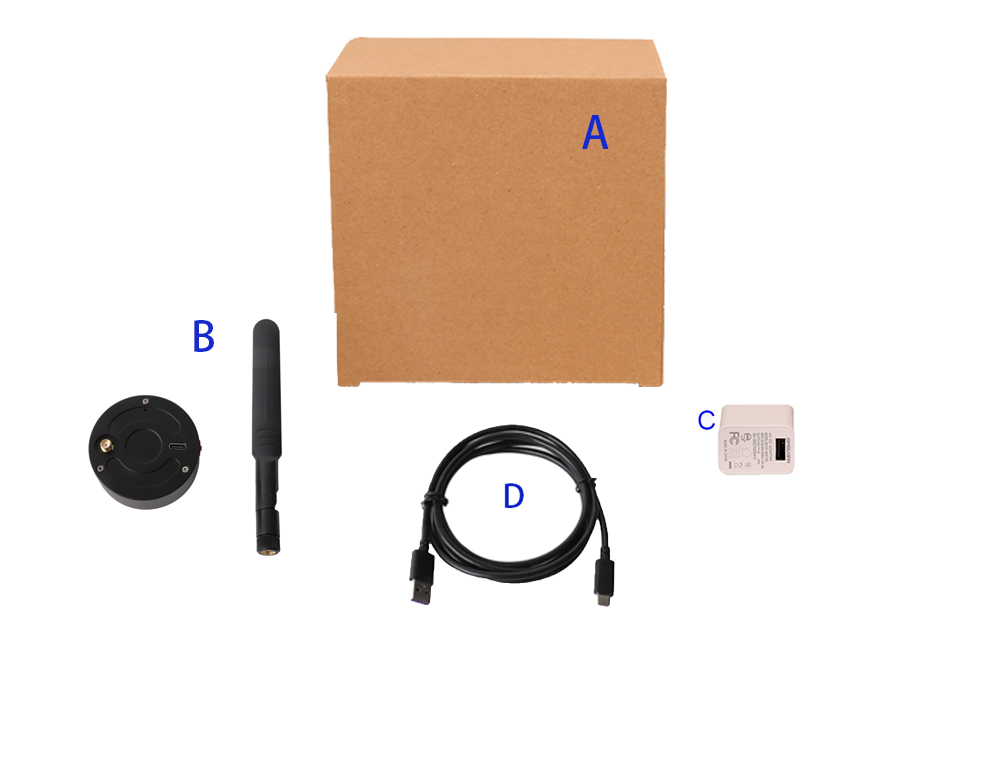

Standard Packing List
- A Camera box size: 17.0 cm × 15.0 cm × 6.0 cm (1 pcs, 0.5 kg per box)
- B WUCAM8MPA / WUCAM1080PB camera ×1
- C Power adapter: Input AC 100~240 V 50/60 Hz, output DC 5 V 2 A; US POWER-U-5V2A (SK12G-0500100U: UL/CE/FCC), EU POWER-E-5V2A (SK12G-0500100V: UL/CE/FCC)
- D USB Type-C to Type-A cable 1.5 m
Optional Accessories
- F Gigabit Ethernet cable
-
G Adjustable eyepiece tube adapters
Dia.23.2 mm eyepiece to C-mount: 108001/AMA037, 108002/AMA050, 108003/AMA075 (choose based on the camera and microscope).
-
H Fixed eyepiece tube adapters
Dia.23.2 mm eyepiece to C-mount: 108005/FMA037, 108006/FMA050, 108007/FMA075. Note: confirm camera interface and scenario before choosing G or H; engineers can assist.
- I 108015 (Dia.23.2 mm→30.0 mm) adapter ring for 30 mm eyepiece tubes
- J 108016 (Dia.23.2 mm→30.5 mm) adapter ring for 30.5 mm eyepiece tubes
- K Micrometer: 106011/TS-M1 (X=0.01 mm/100Div.), 106012/TS-M2 (X,Y=0.01 mm/100Div.), 106013/TS-M7 (X=0.01 mm/100Div., 0.10 mm/100Div.)
- L SD card (16 GB+)
WUCAM1080PA WiFi Camera | Packing List #

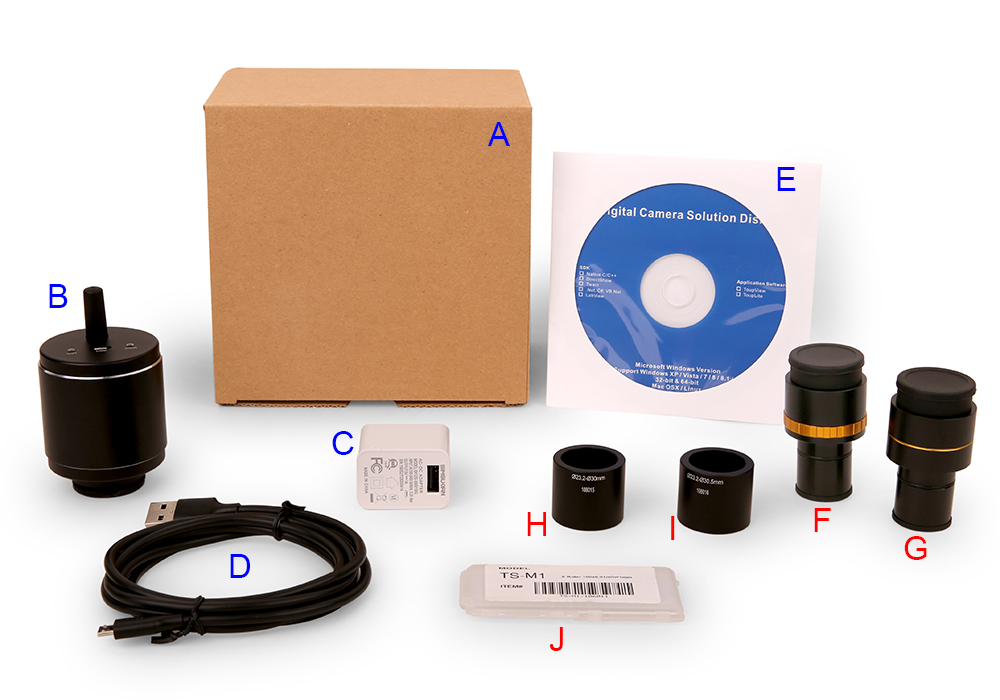

Standard Packing List
- A Camera box size: 17.4 cm × 17.4 cm × 7.6 cm (1 pcs, 0.54 kg per box)
- B WUCAM1080PA camera ×1
- C Power adapter: Input AC 100~240 V 50/60 Hz, output DC 5 V 1 A; US POWER-U-5V1A (SK12G-0500100U: UL/CE/FCC), EU POWER-E-5V1A (SK12G-0500100V: UL/CE/FCC)
- D Micro USB data cable 1.5 m
Optional Accessories
-
E Adjustable eyepiece tube adapters
Dia.23.2 mm eyepiece to C-mount: 108001/AMA037, 108002/AMA050, 108003/AMA075 (choose based on the camera and microscope).
-
F Fixed eyepiece tube adapters
Dia.23.2 mm eyepiece to C-mount: 108005/FMA037, 108006/FMA050, 108007/FMA075. Note: confirm camera interface and scenario before choosing E or F; engineers can assist.
- G 108015 (Dia.23.2 mm→30.0 mm) adapter ring for 30 mm eyepiece tubes
- H 108016 (Dia.23.2 mm→30.5 mm) adapter ring for 30.5 mm eyepiece tubes
- I Micrometer: 106011/TS-M1 (X=0.01 mm/100Div.), 106012/TS-M2 (X,Y=0.01 mm/100Div.), 106013/TS-M7 (X=0.01 mm/100Div., 0.10 mm/100Div.)
- K SD card (16 GB+)

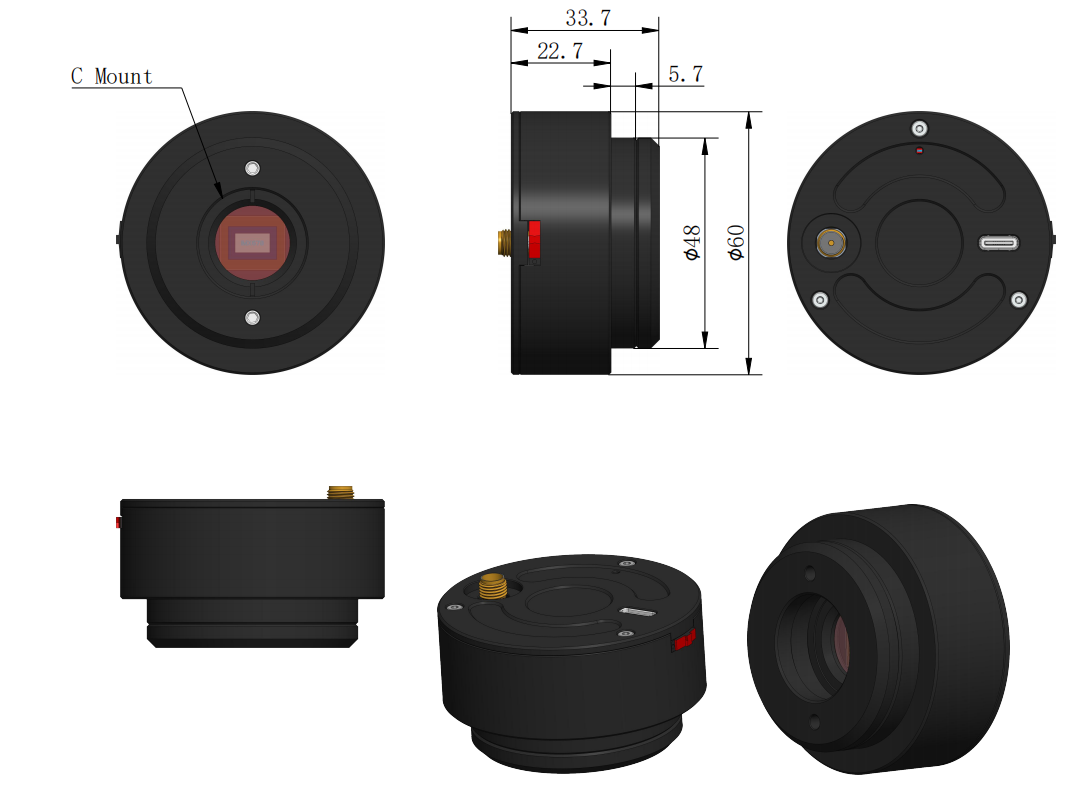

WUCAM8MPA / WUCAM1080PB WiFi Camera | Product Dimensions #
Interface panel and power module dimensions
See manual interface panel and dimension drawing (Fig. 4-3)
See manual Fig. 4-7 (Micro USB power version)
Please confirm mounting holes and interface orientation per the dimension drawing before installation.
Deep Dive
The Touptek WUCAM series is a complete USB + Wi-Fi dual-interface microscopy solution built for high-quality video and image capture on stereo and biological microscopes. Flexible connectivity and a broad product lineup cover needs from classroom demos to professional research.
The lineup includes three models: WUCAM8MPA with Sony IMX678 Starvis 2 delivering 4K ultra HD (3840×2160); WUCAM1080PB using the same sensor tuned for 60 fps high-frame-rate 1080p; and WUCAM1080PA with Sony IMX307 providing an economical 50 fps 1080p option.
All models support Wi-Fi AP/STA modes with 802.11ac/n plus high-gain antennas for stable wireless transmission. Paired with ToupView/ToupLite software, users can leverage the Ultra-Fine color engine, 3D noise reduction, ROI white balance, image stitching, multifocus fusion, and more.
Technical Highlights
- Advanced sensor tech: Sony IMX678 Starvis 2 and IMX307 BSI CMOS deliver excellent low-light performance and low noise with 1364 mV G sensitivity and 0.15 mV dark current
- Flexible resolution choices: From 1080p to 4K UHD, 30 fps to 60 fps; USB Type-C supports 30 fps@3840×2160, 30 fps@2688×1512, 60 fps@1920×1080, and more
- Dual-interface, dual-mode design: USB Type-C/USB 2.0 plus Wi-Fi 802.11ac/n outputs; Wi-Fi supports AP hotspot and STA networking for multi-device collaboration
- Professional ISP processing: Ultra-Fine color engine with exposure (0.04 ms–1000 ms), gain, ROI white balance, 3D noise reduction, local dynamic range tuning, and 50/60 Hz anti-flicker
- Full-platform software support: Compatible with Windows XP/7/8/10/11, macOS 10.10+, Linux 2.6.27+, plus iOS 11+ and Android 5.1+ apps for seamless cross-platform use
Core Benefits
-
1
Comprehensive Lineup From 4K UHD to high-frame-rate 1080p, from premium research to budget teaching, three models cover all needs
-
2
Sony Starvis 2 Strength Latest BSI CMOS tech with 2.0 µm pixels for excellent sensitivity and image quality
-
3
Smart Networking AP/STA dual modes enable interactive teaching networks that link instructors and students
-
4
Professional Software Ecosystem ToupView/ToupLite deliver layer management, precision measurement, stitching, overlay denoise, and multifocus fusion
-
5
Wide Applications Fits biomedical research, materials analysis, quality control, interactive teaching, remote diagnostics, and more
