XCAM0720PHC C-mount HDMI camera with SD card storage
Product Introduction
XCAM0720PHC is a high-performance C-mount HDMI camera with SD card storage featuring Sony IMX322(C) sensor, with resolution up to 2MP (1920×1080), supporting HDMI multiple output methods.
Product Features
- Mouse control, SD card storage, OSD menu, Crosshair display, Wired remote photography
Product Details
XCAM0720PHC Specifications
| Key Parameters | |
| Product Model | XCAM0720PHC |
| Product Series | C-mount HDMI camera with SD card storage |
| Sensor | |
| Sensor Model | Sony IMX322(C) |
| Sensor Size | 1/2.8" (5.78×3.02 mm) |
| Diagonal | 6.6 mm |
| Pixel Size | 2.8 μm × 2.8 μm |
| Maximum Resolution | 2MP (1920×1080) |
| Shutter Type | Rolling shutter |
| Imaging Performance | |
| Frame Rate | HDMI: 30 fps@1280×720; Static: 1920×1080 |

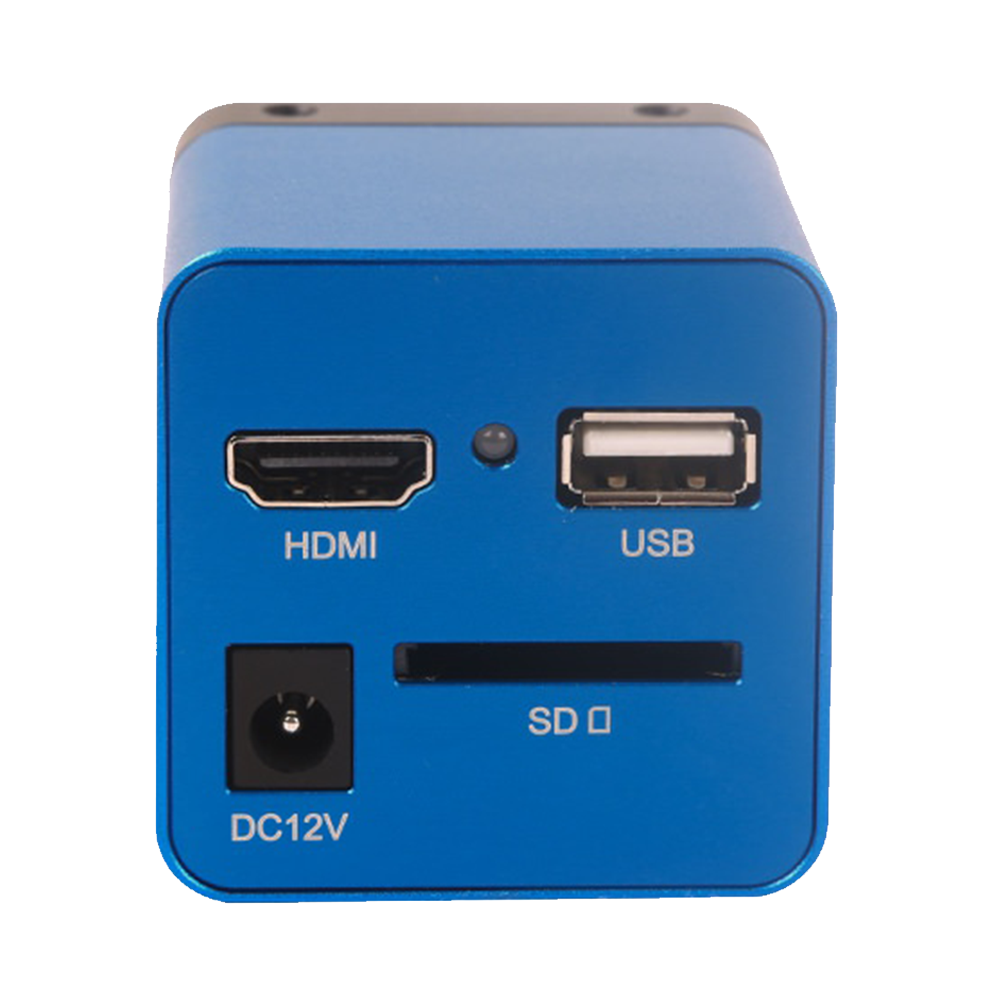

| Output Interfaces | HDMI |
| Local Storage | SD card (max 32GB) |
| User Interface | Built-in control system |
| Physical & Environmental | |
| Dimensions | 50 × 50 × 61 mm |
| Weight | 0.47 kg |
| Operating Temperature | -10 °C ~ +50 °C |
| Power Supply | DC 5 V/2A |
| Certification | CE, FCC, RoHS |
Product Overview
XCAM0720PHC is an HDMI storage microscope camera delivering 1280×720 at 30 fps directly to any HDMI display. Powered by high-sensitivity Aptina/Sony CMOS sensors and an embedded Linux-based XCamView interface, it enables mouse-driven exposure control, annotation, and one-click capture. Integrated SD card recording supports up to 32 GB for standalone operation, making it a compact choice for industrial inspection, education, and mobile microscopy setups.
Core Feature Highlights
- HDMI 720p 30 fps output with smooth real-time display for classrooms and production lines.
- Built-in XCamView software provides mouse-driven exposure tuning, white balance, ROI zoom, and freeze functions.
- Supports still capture and video recording directly to SD cards (up to 32 GB) without a connected PC.

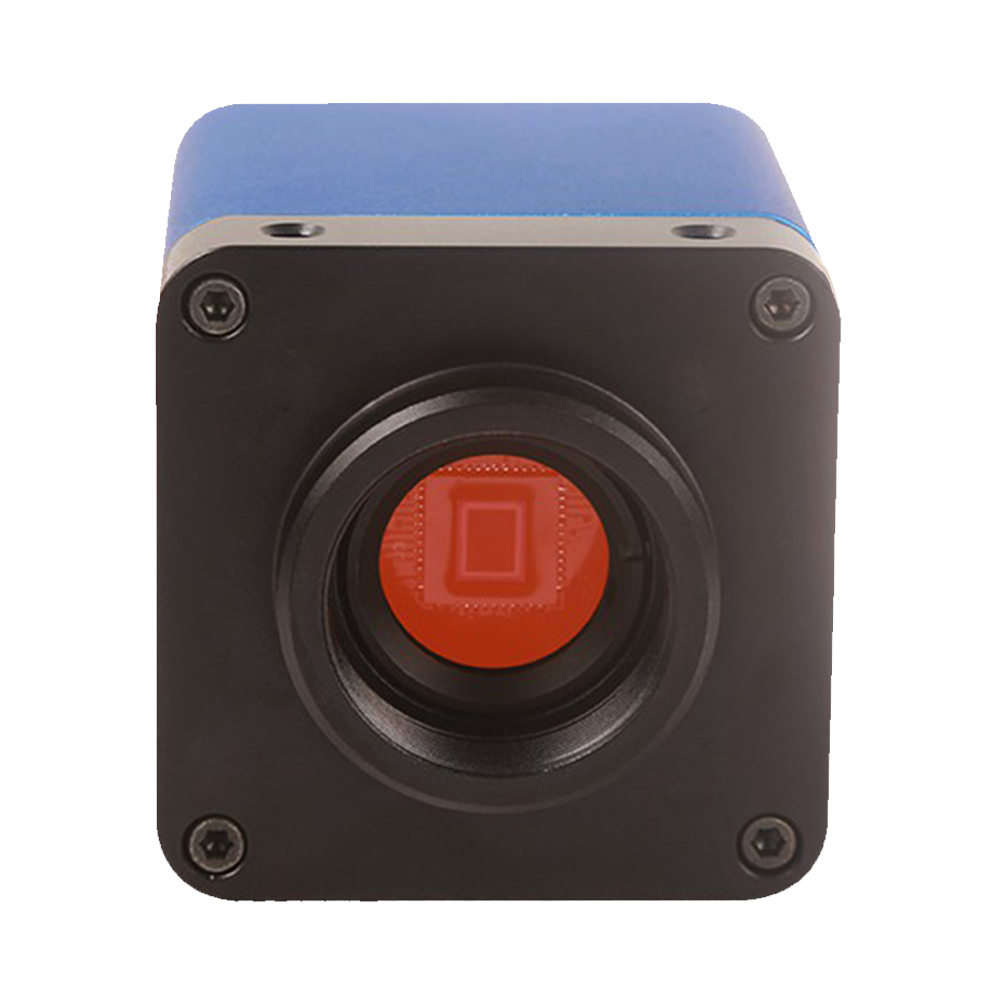

- Compact housing with C-mount adapters for microscopes and telescopes, simplifying integration.
- USB mouse control plus on-screen OSD menus streamline operation for non-technical users.
Controls & Workflow
- Automatic/manual exposure, gain, and white balance toggled directly via mouse.
- One-click image capture, freeze/unfreeze, digital zoom, and image flip for versatile framing.
- Power-frequency stripe suppression and noise reduction for stable LED-lit environments.
- Supports on-screen overlays for measurement aids when paired with XCamView tools.
Image Processing
- Customizable color adjustments (hue, saturation, sharpness) maintain accurate reproduction.
- Digital zoom and ROI preview highlight critical inspection regions.
- Supports up to 32 GB SD storage for JPG capture and 720p video recording.
- Optional microscope and telescope adapters extend camera versatility.
Application Scenarios
Microscope imaging
Microscope imaging
Industrial inspection
Industrial inspection
Field photography
Field photography
Simple observation
Simple observation
Application Gallery
Plant root-stem research
Plant root-stem research
Medical pathological observation
Industrial quality inspection
Upgrade Suggestions
- Need 4K Output? Consider the O5CAM4K Series for 4K60 HDMI output with local storage and low-latency preview.
- Need LAN or Wi-Fi? Explore the WECAM/WEUCAM Series for gigabit LAN and 802.11ac wireless networking.
- Need USB 3.0 Capture? The SCAM4K Series adds multi-interface output with higher throughput and software control.
