IUA1300KMA-10G Industrial Camera/Analytical Imaging
Product Introduction
The IUA1300KMA-10G is a 1.3 MP monochrome UV industrial camera with a GPixel GLUX9701BSI sensor, rolling shutter and 10GigE interface. It delivers 30 fps at 1280×1024 or 640×512.
Key Features
- GPixel GLUX9701BSI (UV) monochrome sensor, 1.3 MP
- 30 fps at 1280×1024 and 640×512 over 10GigE
- HCG, LCG and HDR performance modes; 8/16-bit output
- Hardware 2×2 and software 2×2–8×8 binning
Product Details
| Key Parameters | |
| Model | IUA1300KMA-10G |
| Sensor | GPixel GLUX9701BSI (UV) |
| Effective Pixels / Resolution | 1.3 MP (1280×1024) |
| Frame Rate (Full Resolution) | 30 fps @ 1280×1024; 30 fps @ 640×512 |
| Shutter Type | Rolling shutter |
| Color Type | Monochrome(UV) |
| Imaging Performance | |
| Pixel Size | 9.76 µm × 9.76 µm |
| Sensor Size | 12.49 mm × 9.99 mm |
| Diagonal | 1" (15.99 mm) |
| Dynamic Range | 56.9 dB (HCG 16×); 67.3 dB (LCG 1.5×); 81.2 dB (HDR) |
| Bit Depth | 8/16-bit |
| Sensitivity | 2.57 × 10⁸ e⁻/(W/m²·s) |
| Conversion Gain | 0.26 e⁻/ADU (HCG 16×); 12.98 e⁻/ADU (LCG 1.5×); 0.32 e⁻/ADU (HDR) |
| Read Noise | 1.5 e⁻ (HCG 16×); 22.36 e⁻ (LCG 1.5×); 1.83 e⁻ (HDR) |
| Full Well Capacity | 1.05 ke⁻ (HCG 16×); 51.88 ke⁻ (LCG 1.5×); 21.03 ke⁻ (HDR) |
| Signal-to-Noise Ratio | 30.2 dB (HCG 16×); 47.2 dB (LCG 1.5×); 43.2 dB (HDR) |
| Peak QE | 89% @ 610 nm |
| Dark Current | 28 e⁻/s/pixel @ 25 °C |
| Gain Range | 1×–16× |
| Binning | Hardware 2×2; software 2×2–8×8 |
| Software | Full SDK package / ToupView |
| Interface & Mechanical | |
| Data Interface | 10GigE |
| GPIO | 1 optically isolated input, 1 optically isolated output, 2 non-isolated input/output |
| Lens Mount | C-mount |
| Dimensions | 68 mm × 68 mm × 46.2 mm |
| Power Supply | DC 12 V |
| Environment & Certification | |
| Operating Temperature / Humidity | -10 °C ~ +50 °C / 20%~80% non-condensing |
| Storage Temperature / Humidity | -30 °C ~ +70 °C / 20%~80% non-condensing |
| Operating System | Windows 32-bit/Windows RT/Linux/macOS/Android; x86/x64/ARM HF/ARM EL/ARM64 |
| Certification | CE, FCC |
Product Overview
The IUA1300KMA-10G is a 1.3 MP monochrome UV industrial camera with a GPixel GLUX9701BSI sensor, rolling shutter and 10GigE interface. It delivers 30 fps at 1280×1024 or 640×512.
- GPixel GLUX9701BSI (UV) monochrome sensor, 1.3 MP
- 30 fps at 1280×1024 and 640×512 over 10GigE
- HCG, LCG and HDR performance modes; 8/16-bit output
- Hardware 2×2 and software 2×2–8×8 binning
IUA1300KMA-10G Technical Documentation
Comprehensive PDF documentation including detailed spectral specifications and integration guidelines
Professional SDK Suite
Multi-platform development resources supporting Windows, Linux, macOS with spectral imaging examples
3D CAD Models
Precision STEP format files for mechanical design integration and optical system planning
Package Contents · IUA1300KMA-10G #
Recommended IUA 10GigE accessory configuration
Recommended kit
- Camera body - model from this series
- I/O cable - GigE cable
- Cable - 12 V/3 A aviation power adapter
- Lens (optional) - C-mount lens

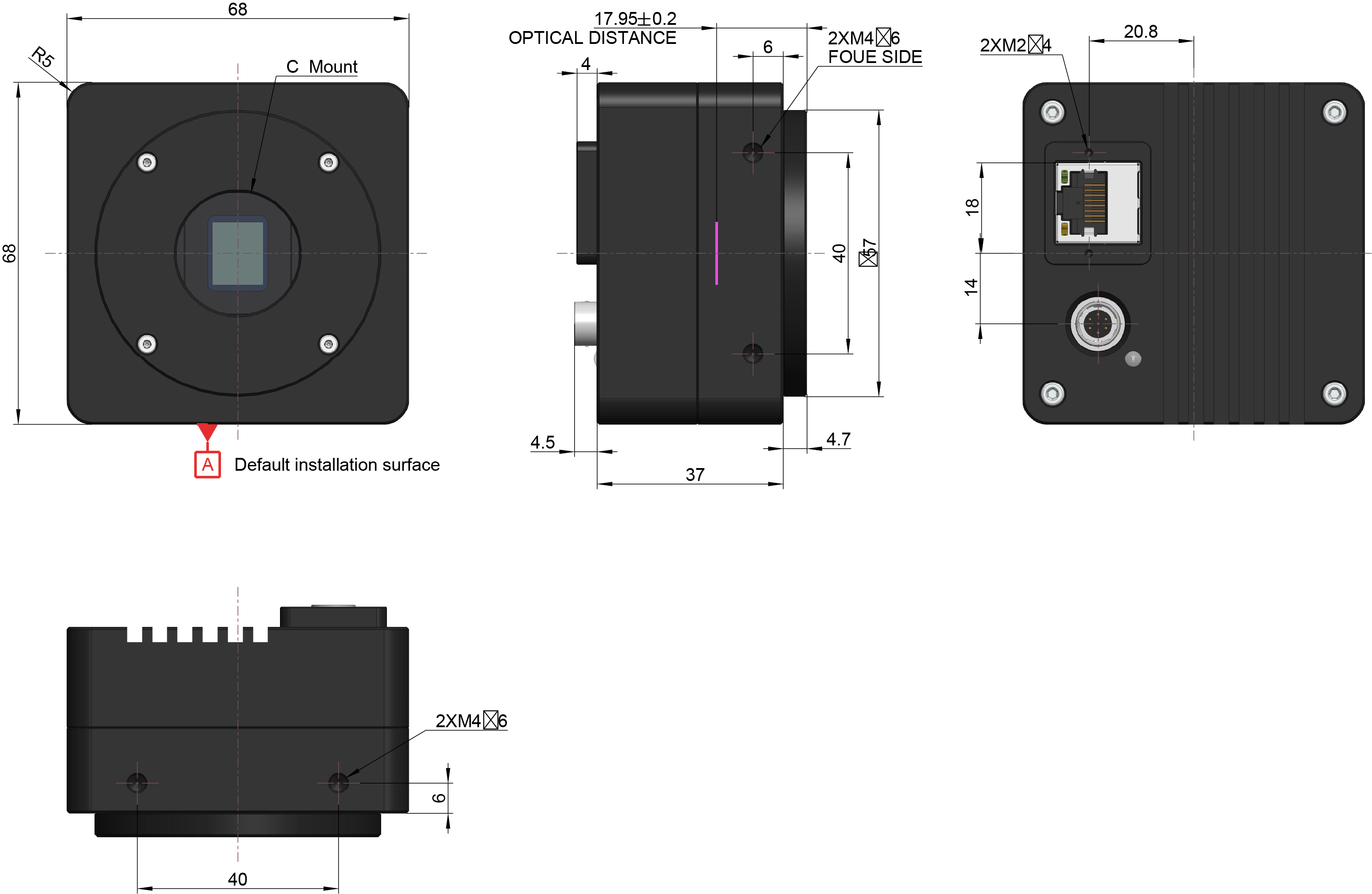

Product Dimensions #
Dimension references for IUA compact industrial cameras
